Bosch SHU6806UC/14 Dishwasher Parts List

0101

Control Module BOS 00266746 No Longer Available

View on Model

0104

00419827 Bosch Dishwasher Latch In Stock BOS 00419827 $21.05

View on Model

0106

00298518 Bosch Dishwasher Frame Backorder BOS 00298518 $30.20

View on Model

0108

Key BOS 00168561 No Longer Available

View on Model

0109

Worktop BOS 00165248 Contact Us For Availability

View on Model

0201

00151703 Bosch Screw In Stock BOS 00151703 $7.32

View on Model

0202

00218781 Bosch Dishwasher Inner Door Backorder BOS 00218781 $251.68

View on Model

0203

00298534 Bosch Dishwasher Door Seal In Stock BOS 00298534 $60.64

View on Model

0207

00166637 Bosch Dishwasher Sealing In Stock BOS 00166637 $10.07

View on Model

0208

00166623 Bosch Dishwasher Lid In Stock BOS 00166623 $8.24

View on Model

0209

00166625 Bosch Dishwasher Sealing In Stock BOS 00166625 $9.15

View on Model

0210

00488964 Bosch Dishwasher Dispenser In Stock BOS 00488964 $211.20

View on Model

0211

00166621 Bosch Dishwasher Lid In Stock BOS 00166621 $42.09

View on Model

0212

00166630 Bosch Dishwasher Tripping Device In Stock BOS 00166630 $12.81

View on Model

0213

00166627 Bosch Dishwasher Plunger Backorder BOS 00166627 $10.07

View on Model

0214

00166632 Bosch Dishwasher Repair Set Backorder BOS 00166632 $5.49

View on Model

0215

00166635 Bosch Dishwasher Actuator Backorder BOS 00166635 $22.88

View on Model

0216

00166628 Bosch Dishwasher Repair Set In Stock BOS 00166628 $10.07

View on Model

0217

00166633 Bosch Dishwasher Switch In Stock BOS 00166633 $22.88

View on Model

0219

00166626 Bosch Dishwasher Adjustment Device Backorder BOS 00166626 $12.81

View on Model

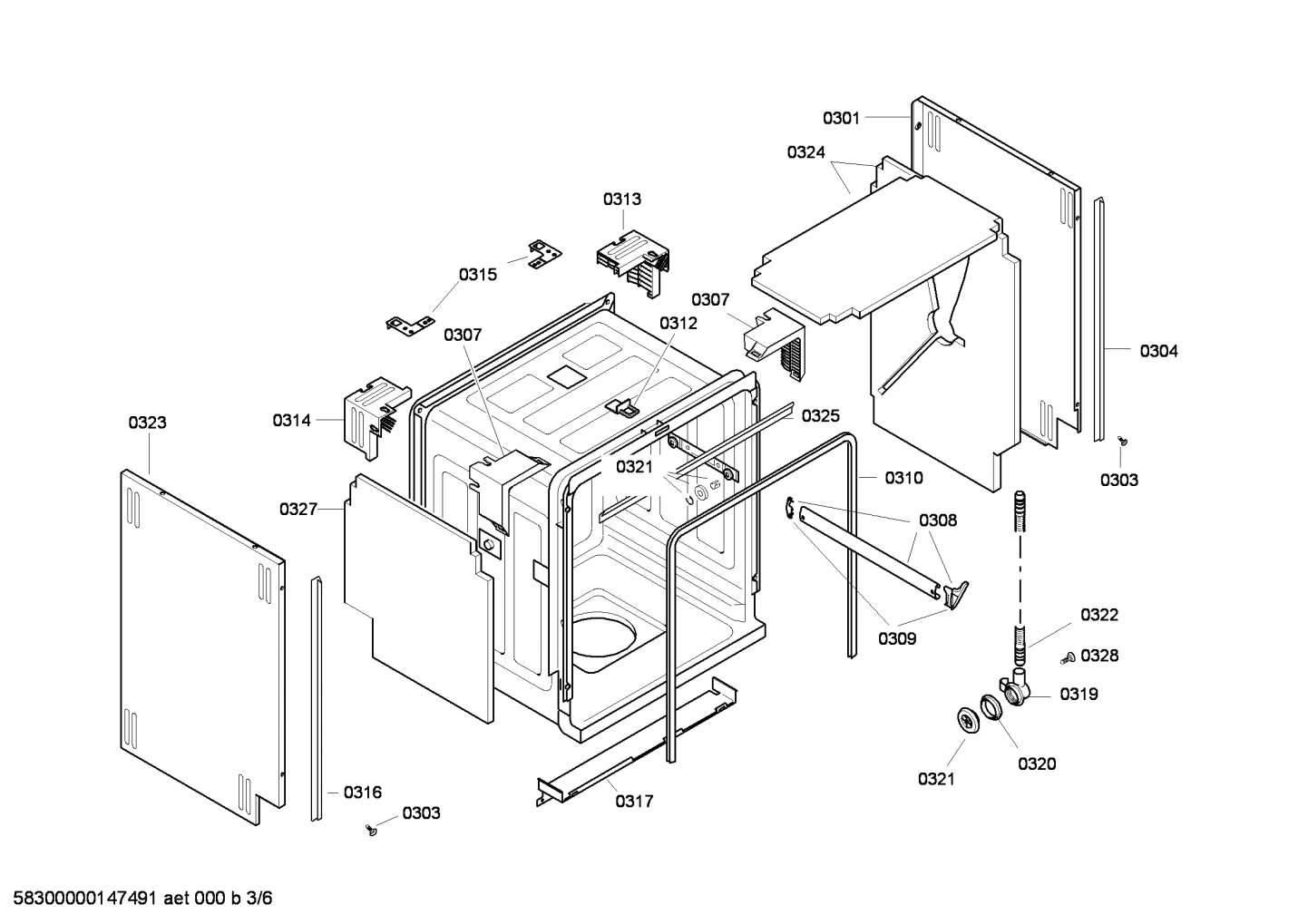

0308

00298547 Bosch Dishwasher Rack Guide In Stock BOS 00298547 $30.20

View on Model

0309

00165254 Bosch Dishwasher Holder In Stock BOS 00165254 $10.07

View on Model

0310

SEALING In Stock BOS 12054183 $11.90

View on Model

0312

Latch BOS 00187185 No Longer Available

View on Model

0315

00170664 Bosch Dishwasher Fixing Kit In Stock BOS 00170664 $13.79

View on Model

0316

00740617 Bosch Dishwasher Strip Backorder BOS 00740617 $45.75

View on Model

0317

Cover sheet BOS 00350318 Contact Us For Availability

View on Model

0319

00171024 Bosch Dishwasher Cover Backorder BOS 00171024 $11.90

View on Model

0320

Sealing BOS 00065303 Contact Us For Availability

View on Model

0321

Cover BOS 00066400 No Longer Available

View on Model

0322

Hose-vent BOS 00265832 Contact Us For Availability

View on Model

0325

00298550 Bosch Dishwasher Strip Backorder BOS 00298550 $20.13

View on Model

0327

Insulating part BOS 00437048 Contact Us For Availability

View on Model

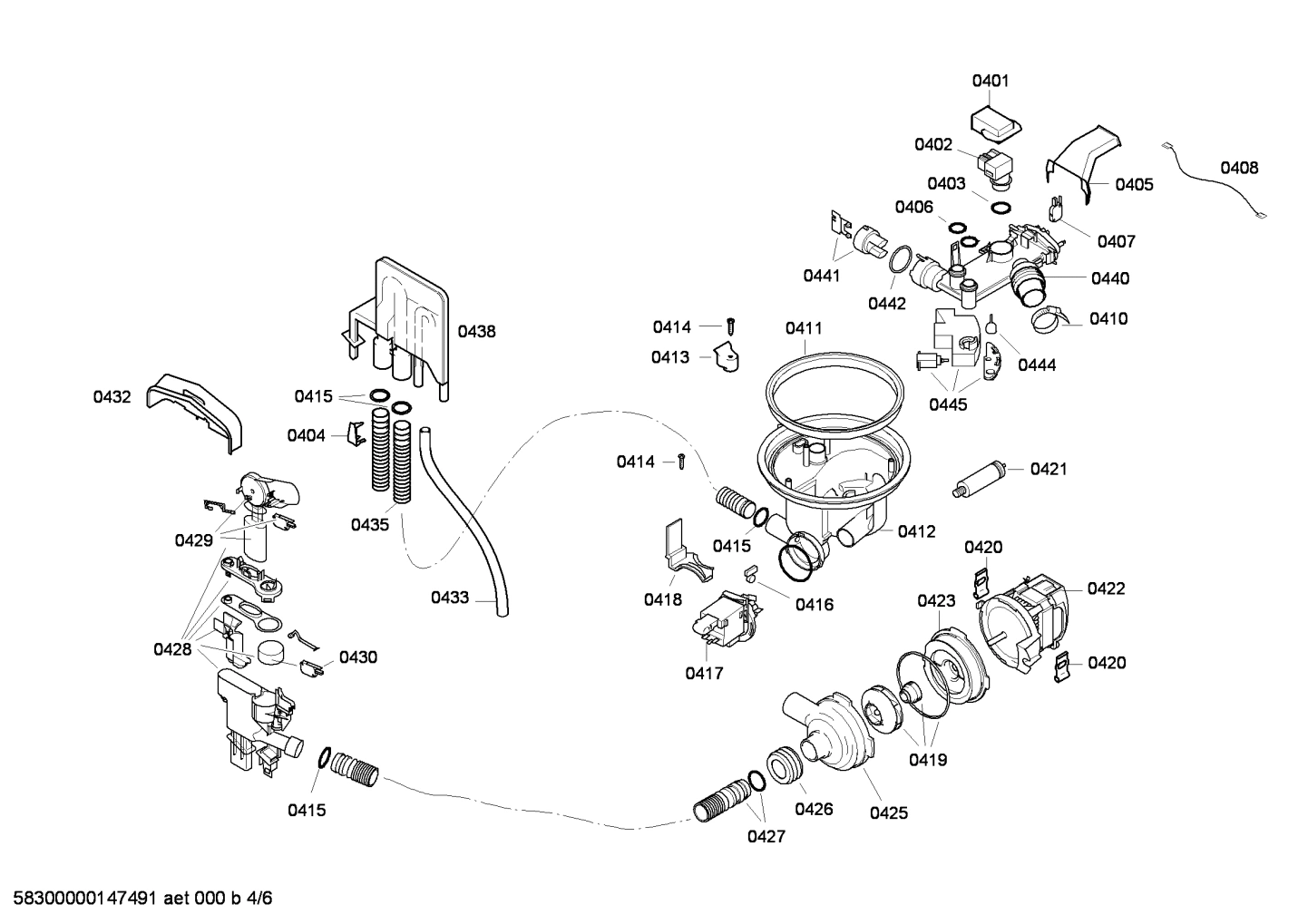

0401

00165284 Bosch Dishwasher Cover Backorder BOS 00165284 $4.58

View on Model

0402

00165281 Bosch Dishwasher NTC Sensor In Stock BOS 00165281 $48.50

View on Model

0403

00151866 Bosch Dishwasher Seal In Stock BOS 00151866 $9.15

View on Model

0404

00167028 Bosch Dishwasher Fixture Backorder BOS 00167028 $5.49

View on Model

0406

00165280 Bosch Dishwasher Seal In Stock BOS 00165280 $9.15

View on Model

0407

00069796 Bosch Dishwasher Switch Backorder BOS 00069796 $17.39

View on Model

0410

00172272 Bosch Dishwasher Hose Clamp In Stock BOS 00172272 $18.30

View on Model

0411

Sealing BOS 00263102 No Longer Available

View on Model

0412

00267619 Bosch Dishwasher Sump Backorder BOS 00267619 $74.21

View on Model

0413

Holder BOS 00165265 Contact Us For Availability

View on Model

0417

00167082 Bosch Dishwasher Drain Pump In Stock BOS 00167082 $94.08

View on Model

0418

00165263 Bosch Dishwasher Cover Backorder BOS 00165263 $8.24

View on Model

0420

Suspension BOS 00171596 No Longer Available

View on Model

0423

00267739 Bosch Dishwasher Pump Housing Backorder BOS 00267739 $30.20

View on Model

0425

00266514 Bosch Dishwasher Upper Case Part Backorder BOS 00266514 $34.77

View on Model

0426

00171598 Bosch Dishwasher Seal In Stock BOS 00171598 $23.79

View on Model

0427

00361113 Bosch Dishwasher Inlet Hose In Stock BOS 00361113 $12.81

View on Model

0428

00499500 Bosch Dishwasher Pressure Chamber In Stock BOS 00499500 $50.33

View on Model

0430

00165256 Bosch Dishwasher Switch In Stock BOS 00165256 $21.96

View on Model

0432

00263113 Bosch Dishwasher Cover Backorder BOS 00263113 $14.64

View on Model

0433

00086373 Bosch Dishwasher Hose Backorder BOS 00086373 $18.30

View on Model

0435

00263099 Bosch Dishwasher Hose In Stock BOS 00263099 $10.98

View on Model

0438

Water inlet BOS 00263833 No Longer Available

View on Model

0440

00480317 Bosch Dishwasher Instantaneous Water In Stock BOS 00480317 $256.08

View on Model

0441

Sensor BOS 00165279 Contact Us For Availability

View on Model

0442

00165278 Bosch Dishwasher Sealing In Stock BOS 00165278 $10.07

View on Model

0444

Float BOS 00165273 Contact Us For Availability

View on Model

0445

00165271 Bosch Dishwasher Actuator In Stock BOS 00165271 $53.99

View on Model

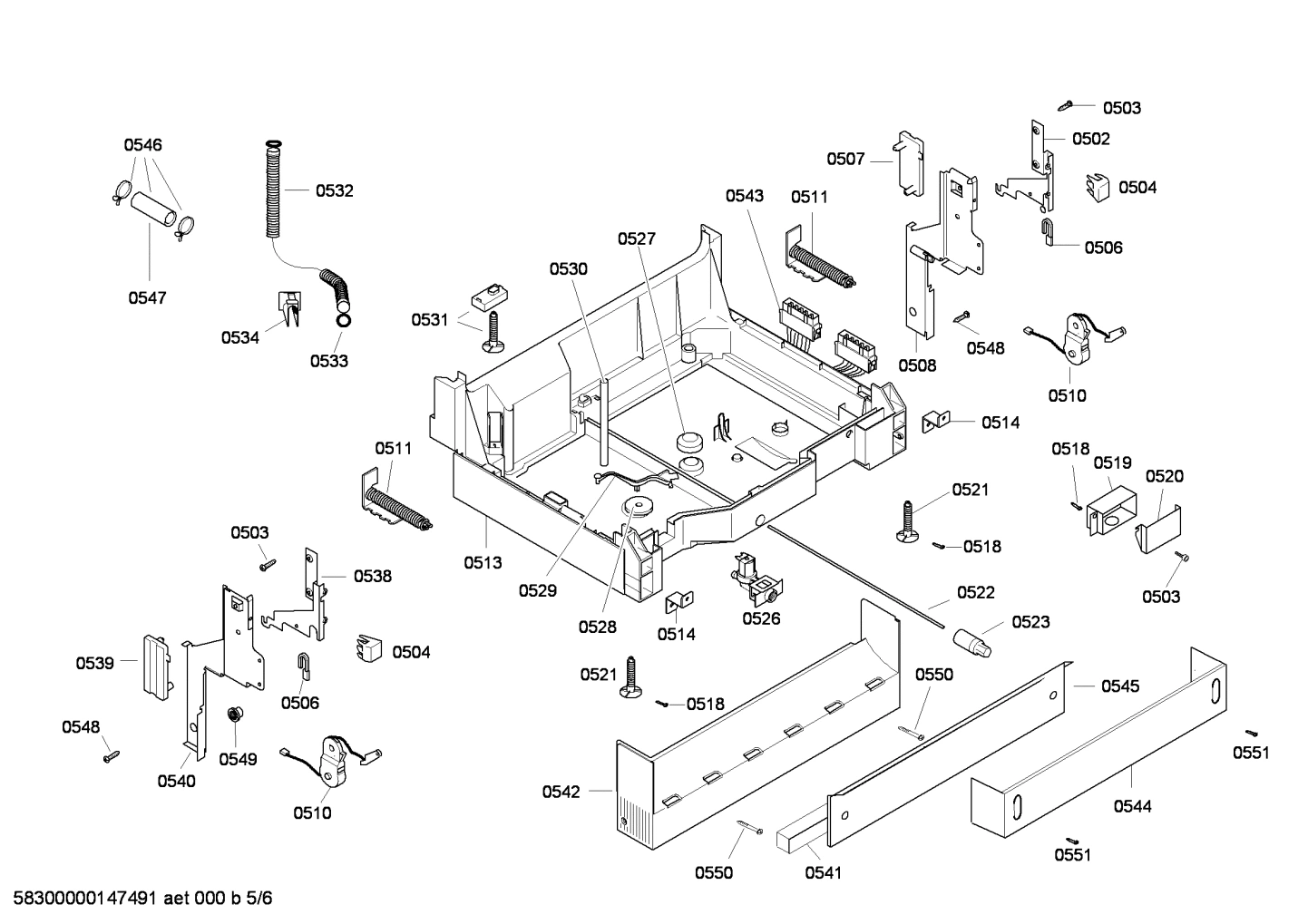

0502

00263119 Bosch Dishwasher Hinge In Stock BOS 00263119 $39.35

View on Model

0503

00423896 Bosch Oven Screw In Stock BOS 00423896 $8.24

View on Model

0504

Insulating part BOS 00167078 Contact Us For Availability

View on Model

0506

00165296 Bosch Dishwasher Bearing In Stock BOS 00165296 $11.90

View on Model

0507

00165295 Bosch Dishwasher Plate Backorder BOS 00165295 $15.56

View on Model

0508

00298570 Bosch Dishwasher Hinge In Stock BOS 00298570 $45.75

View on Model

0514

Bracket BOS 00167079 Contact Us For Availability

View on Model

0518

00188670 Bosch Dishwasher Screw In Stock BOS 00188670 $8.24

View on Model

0521

Foot BOS 00165299 No Longer Available

View on Model

0523

00165329 Bosch Dishwasher Bushing Backorder BOS 00165329 $6.41

View on Model

0526

00165262 Bosch Dishwasher Non-Valve Return In Stock BOS 00165262 $8.24

View on Model

0527

Hood BOS 00167243 Contact Us For Availability

View on Model

0528

00165301 Bosch Dishwasher Float In Stock BOS 00165301 $5.49

View on Model

0529

Lever BOS 00263123 No Longer Available

View on Model

0530

Tube BOS 00263122 No Longer Available

View on Model

0531

Foot BOS 00165330 Contact Us For Availability

View on Model

0532

00298564 Bosch Dishwasher Outlet Hose In Stock BOS 00298564 $24.71

View on Model

0533

00165331 Bosch Dishwasher Sealing In Stock BOS 00165331 $10.07

View on Model

0534

00165286 Bosch Dishwasher Stress Relief Valve Backorder BOS 00165286 $10.98

View on Model

0538

00263115 Bosch Dishwasher Hinge In Stock BOS 00263115 $39.35

View on Model

0540

00298567 Bosch Dishwasher Hinge In Stock BOS 00298567 $43.92

View on Model

0541

Insulation BOS 00482120 Contact Us For Availability

View on Model

0545

Seal-door BOS 00432115 Contact Us For Availability

View on Model

0546

00088403 Bosch Dishwasher Mounting Set In Stock BOS 00088403 $13.73

View on Model

0547

00165258 Bosch Dishwasher Inlet Hose Connecti Backorder BOS 00165258 $4.58

View on Model

0548

00633945 Bosch Dishwasher Screw Backorder BOS 00633945 $5.49

View on Model

0550

Base Extension Screw BOS 00421783 Contact Us For Availability

View on Model

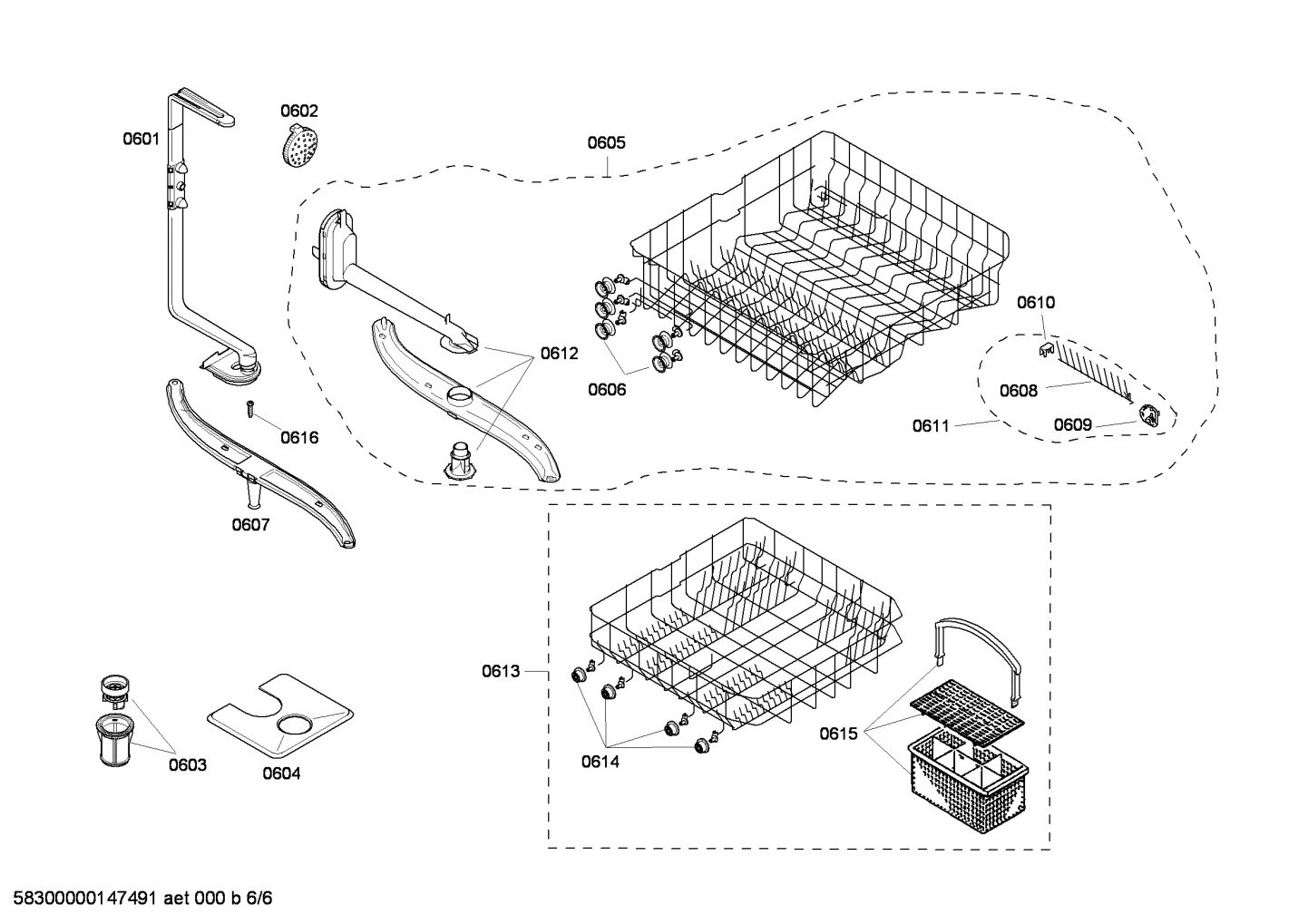

0601

00350321 Bosch Dishwasher Tube Backorder BOS 00350321 $67.88

View on Model

0602

00167301 Bosch Dishwasher Spray Head In Stock BOS 00167301 $10.07

View on Model

0603

00615079 Bosch Dishwasher Micro Filter In Stock BOS 00615079 $44.84

View on Model

0606

Dishwasher Rack Wheel BOS 00421129 No Longer Available

View on Model

0607

Spray Arm BOS 00359975 No Longer Available

View on Model

0613

00249276 Bosch Dishwasher Crockery Basket Backorder BOS 00249276 $271.04

View on Model

0614

00165314 Bosch Dishwasher Wheel In Stock BOS 00165314 $6.85

View on Model

0615

00093046 Bosch Dishwasher Cutlery Basket In Stock BOS 00093046 $42.09

View on Model

0616

00167241 Bosch Screw In Stock BOS 00167241 $1.83

View on Model

Model Bosch SHU6806UC/14 Dishwasher – Common Parts & Diagrams

Common parts from model Bosch SHU6806UC/14 Dishwasher
