Model Bosch SGI55E66EU/37 Dishwasher – Common Parts & Diagrams
Diagram 1
Diagram 2

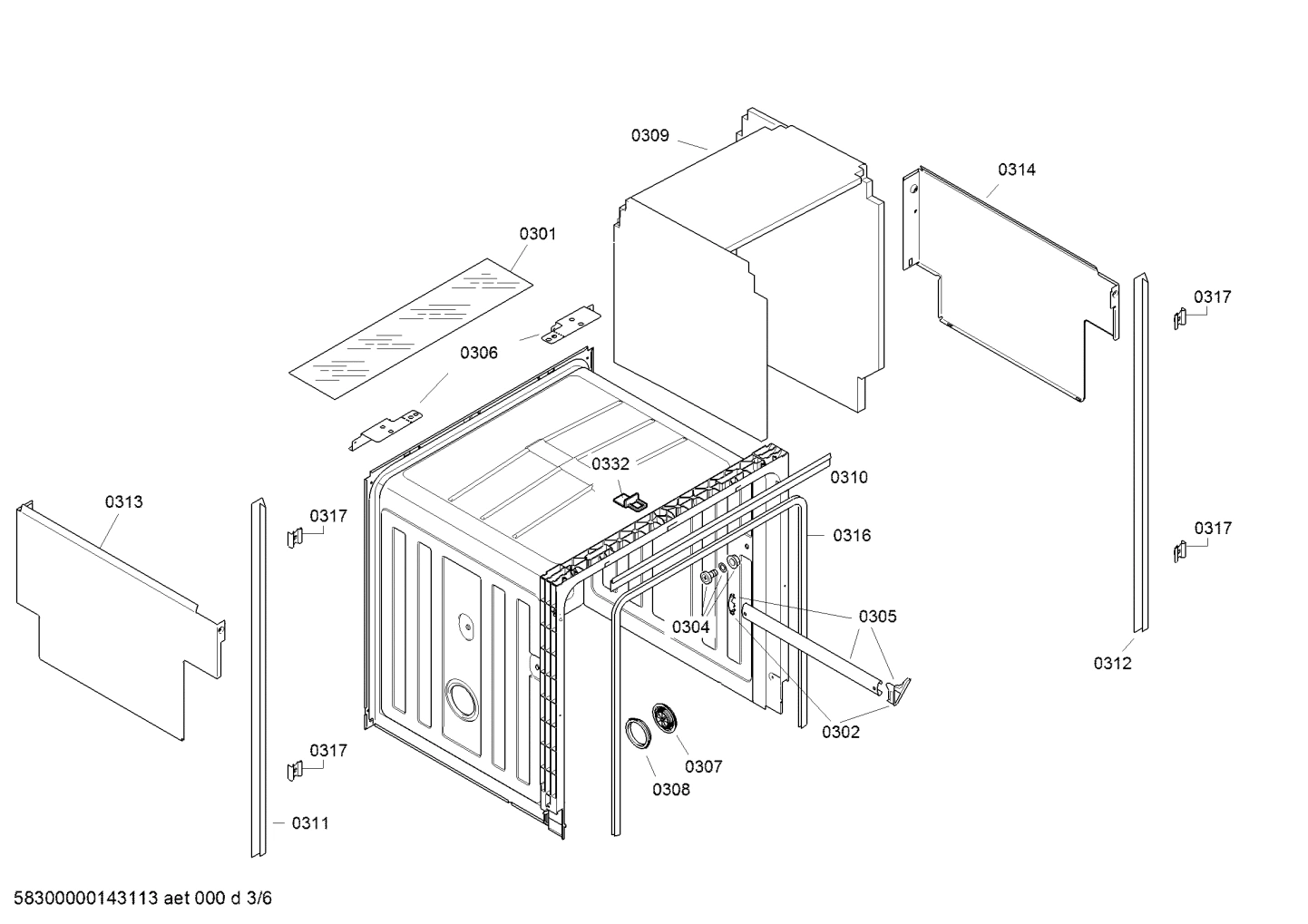

Diagram 3

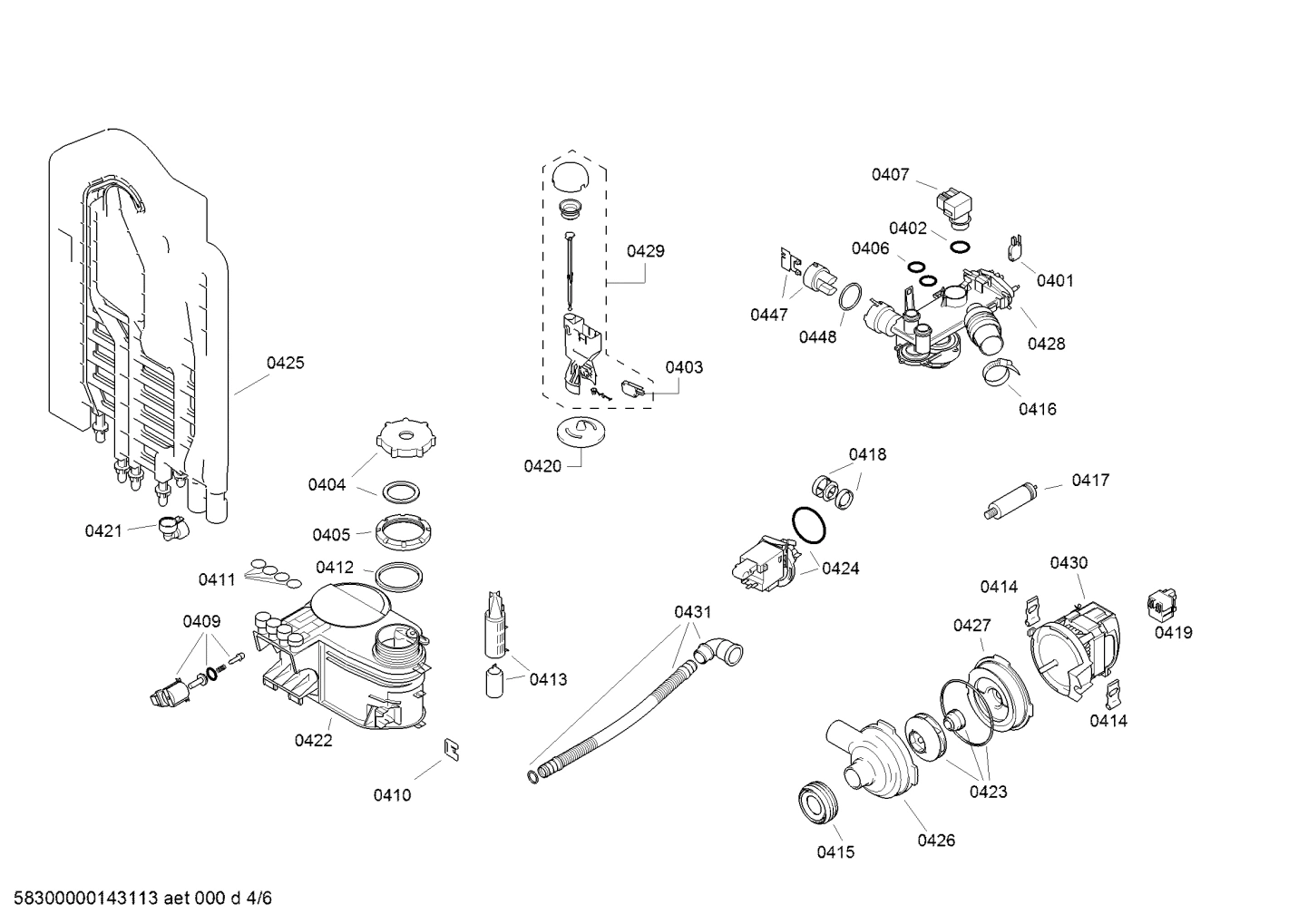

Diagram 4

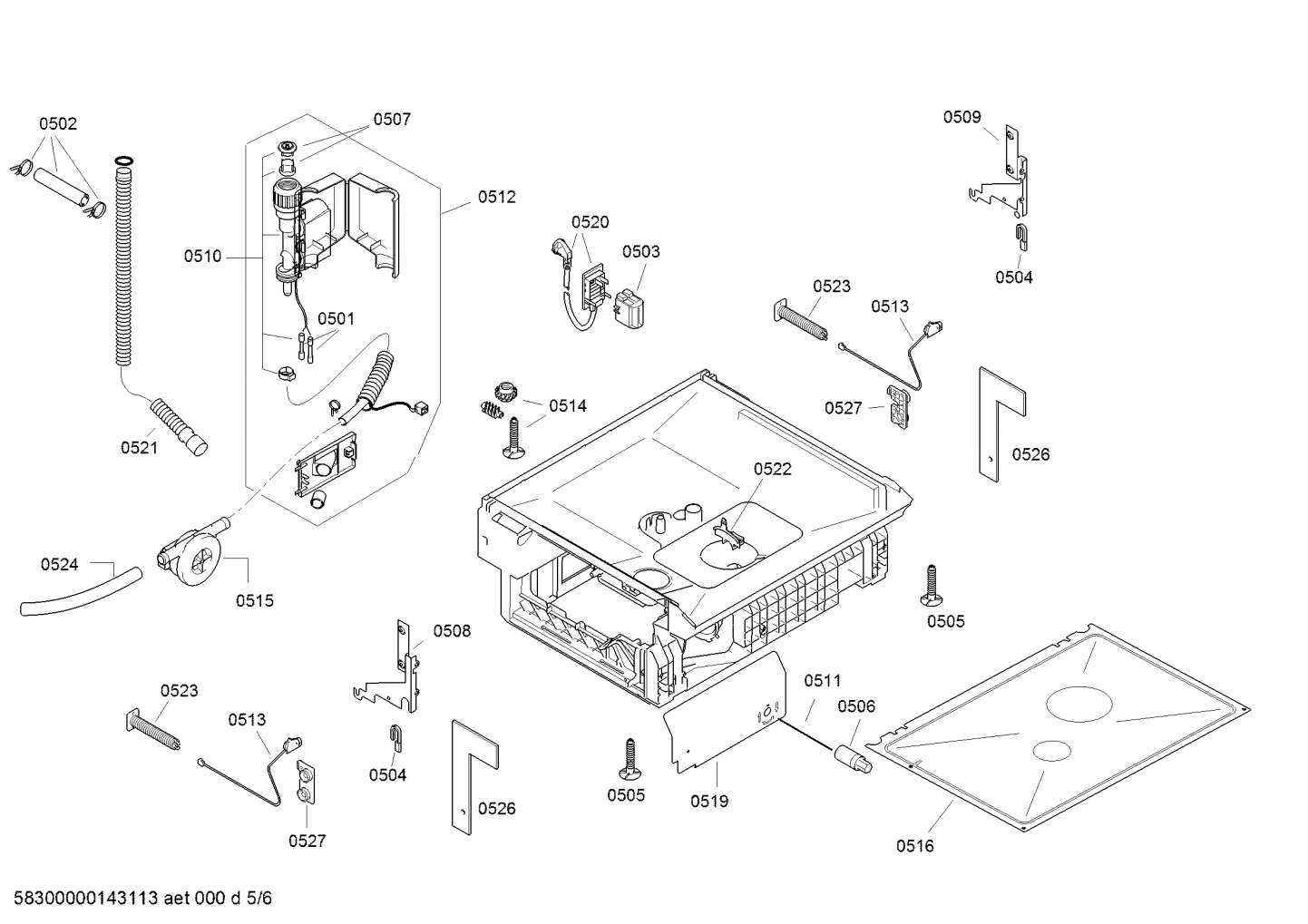

Diagram 5

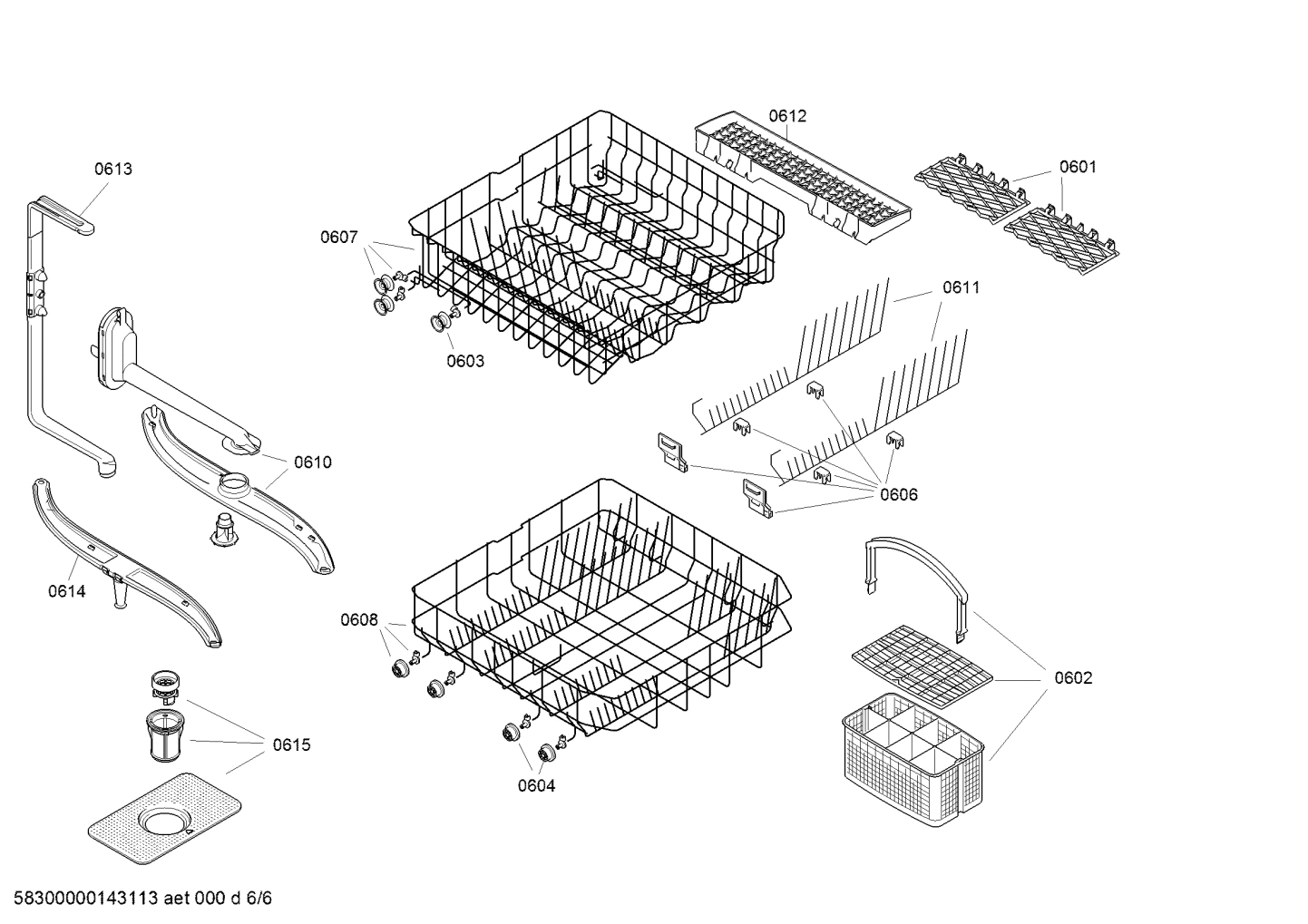

Diagram 6
Common parts from model Bosch SGI55E66EU/37 Dishwasher
0112
Switch BOS 00187205 Contact Us For Availability
0113
On/Off Main Switch BOS 00424410 Contact Us For Availability
0201
Screw BOS 00151703 Contact Us For Availability
0202
Detergent Lid BOS 00166621 Contact Us For Availability
0203
Lid BOS 00166623 Contact Us For Availability
0204
Sealing BOS 00166625 Contact Us For Availability
0205
Adjusting device BOS 00166626 Contact Us For Availability
0206
Plunger BOS 00166627 Contact Us For Availability
0207
Repair-set BOS 00166628 Contact Us For Availability
0208
Lever, Wrap, Seal BOS 00166630 Contact Us For Availability
0209
Repair-set BOS 00166632 Contact Us For Availability
0210
Switch BOS 00166633 Contact Us For Availability
0211
Actuator BOS 00166635 Contact Us For Availability
0212
Sealing BOS 00166637 Contact Us For Availability
0214
Dispenser BOS 00490467 Contact Us For Availability
0215
Door Seal BOS 00298534 Contact Us For Availability
0301
Steam Safety Sheet BOS 00114294 Contact Us For Availability
0302
Front/Rear End Cap Set BOS 00165254 Contact Us For Availability
0305
Rack guide rail BOS 00298547 Contact Us For Availability
0306
Attachment Brackets BOS 00170664 Contact Us For Availability
0307
Cover BOS 00420585 Contact Us For Availability
0308
Sealing BOS 00420586 Contact Us For Availability
0310
Strip BOS 00298550 Contact Us For Availability
0332
Latch BOS 00187185 Contact Us For Availability
0401
Switch BOS 00069796 Contact Us For Availability
0402
Sealing BOS 00151866 Contact Us For Availability
0403
Switch BOS 00165256 Contact Us For Availability
0406
Sealing BOS 00165280 Contact Us For Availability
0407
Sensor-NTC BOS 00165281 Contact Us For Availability
0408
Cover BOS 00165284 Contact Us For Availability
0414
Suspension BOS 00171596 Contact Us For Availability
0415
Sealing BOS 00171598 Contact Us For Availability
0416
Hose clamp BOS 00172272 Contact Us For Availability
0424
Pump-drain BOS 00165261 Contact Us For Availability
0447
Sensor BOS 00165279 Contact Us For Availability
0448
Sealing BOS 00165278 Contact Us For Availability
0501
Cable connector BOS 00067776 Contact Us For Availability
0502
Adapter BOS 00088403 Contact Us For Availability
0504
Hinge Bushing BOS 00165296 Contact Us For Availability
0506
Bushing BOS 00165329 Contact Us For Availability
0507
Sealing BOS 00166671 Contact Us For Availability
0508
Hinge BOS 00263115 Contact Us For Availability
0509
Hinge BOS 00263119 Contact Us For Availability
0513
Rope BOS 00610087 Contact Us For Availability
0515
Flow Meter BOS 00424099 Contact Us For Availability
0601
Cup rack BOS 00093044 Contact Us For Availability
0602
Cutlery Basket BOS 00093046 Contact Us For Availability
0604
Dishwasher Rack Wheel BOS 00165314 Contact Us For Availability
0606
Flip Tine Set BOS 00428344 Contact Us For Availability
0607
Upper crockery basket BOS 00770441 Contact Us For Availability
0610
Upper Spray Arm Assembly BOS 00298594 Contact Us For Availability
0612
Knife Rack BOS 00363436 Contact Us For Availability
0614
Spray Arm BOS 00448806 Contact Us For Availability
× ![]()
