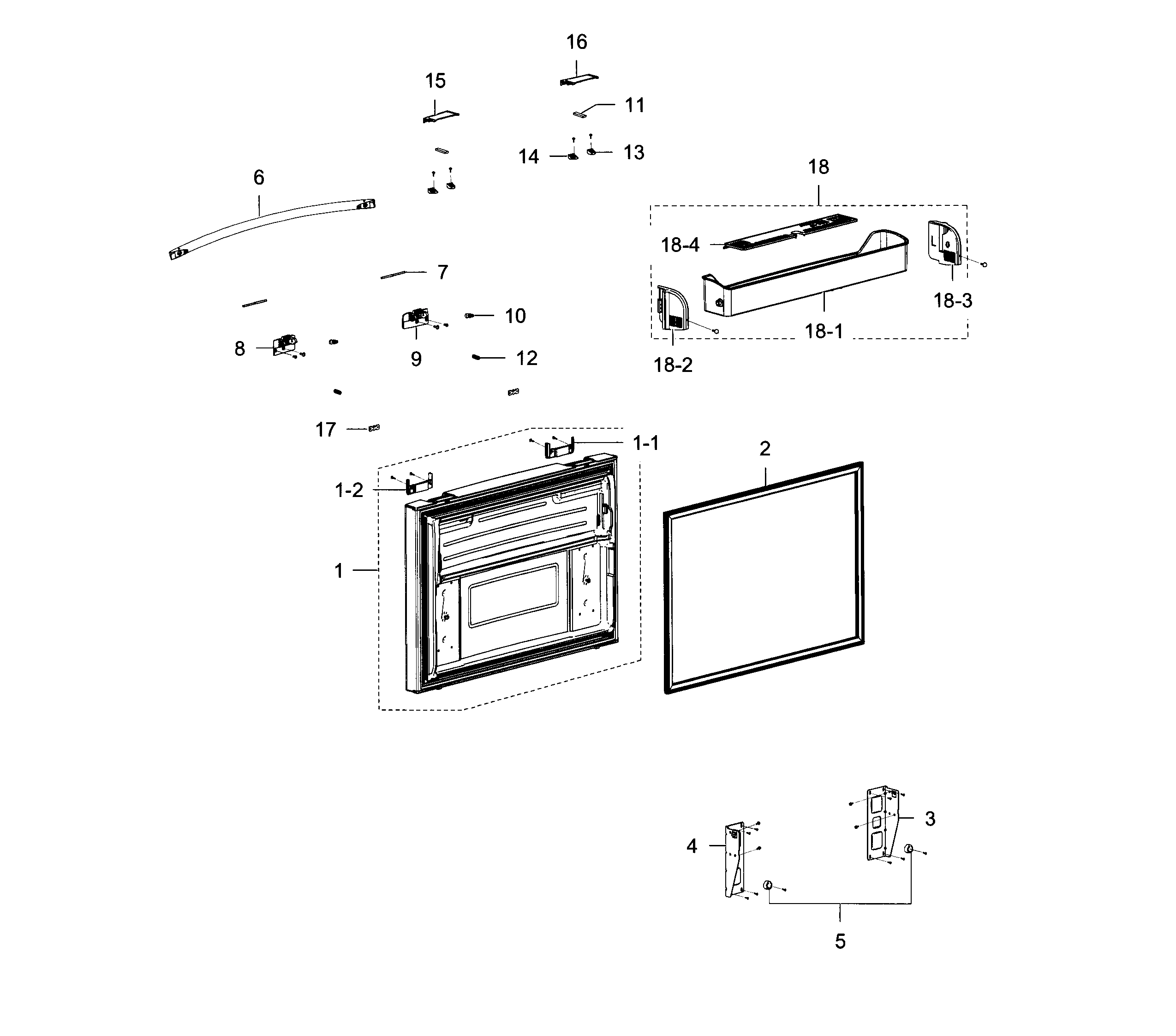

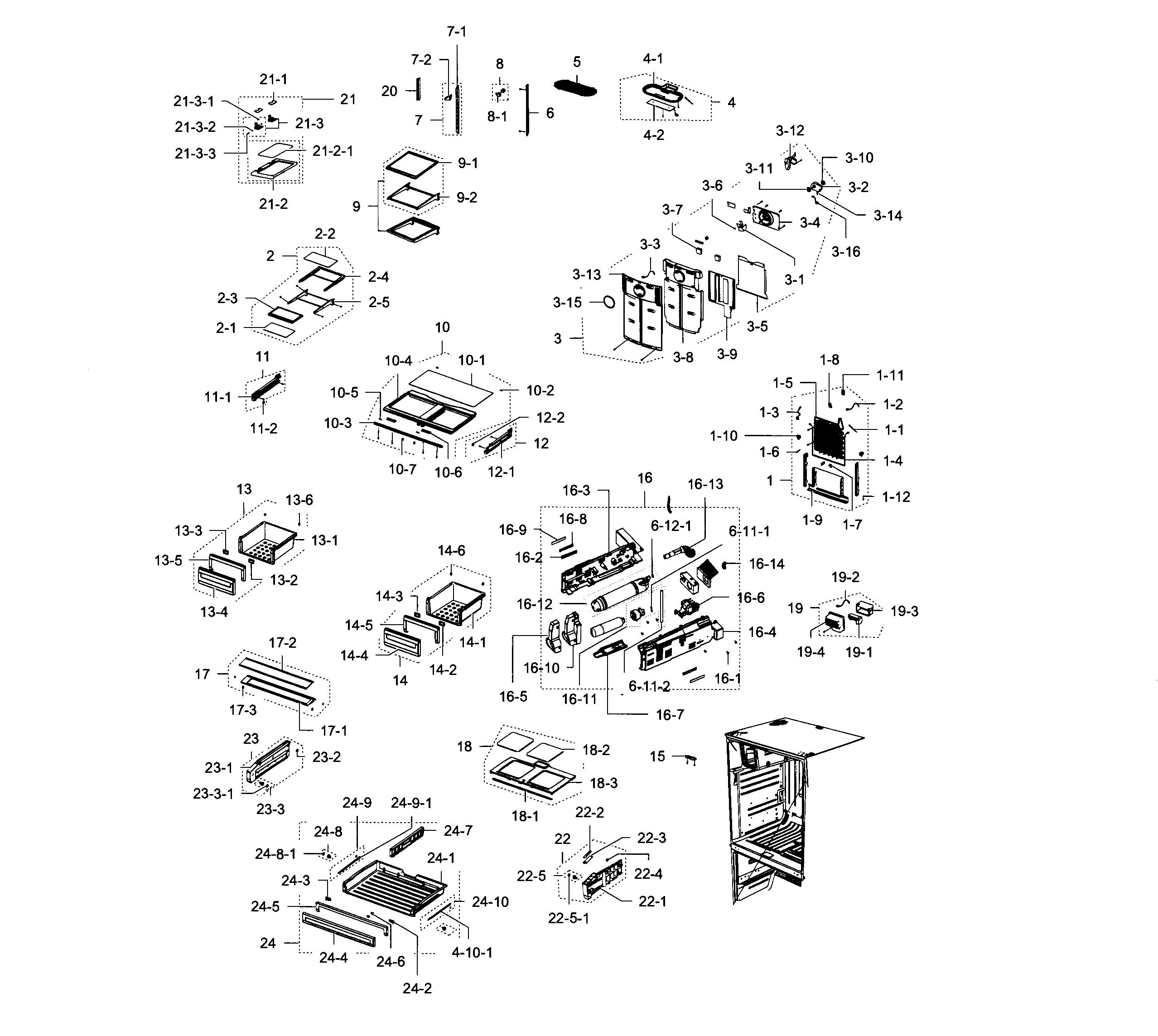

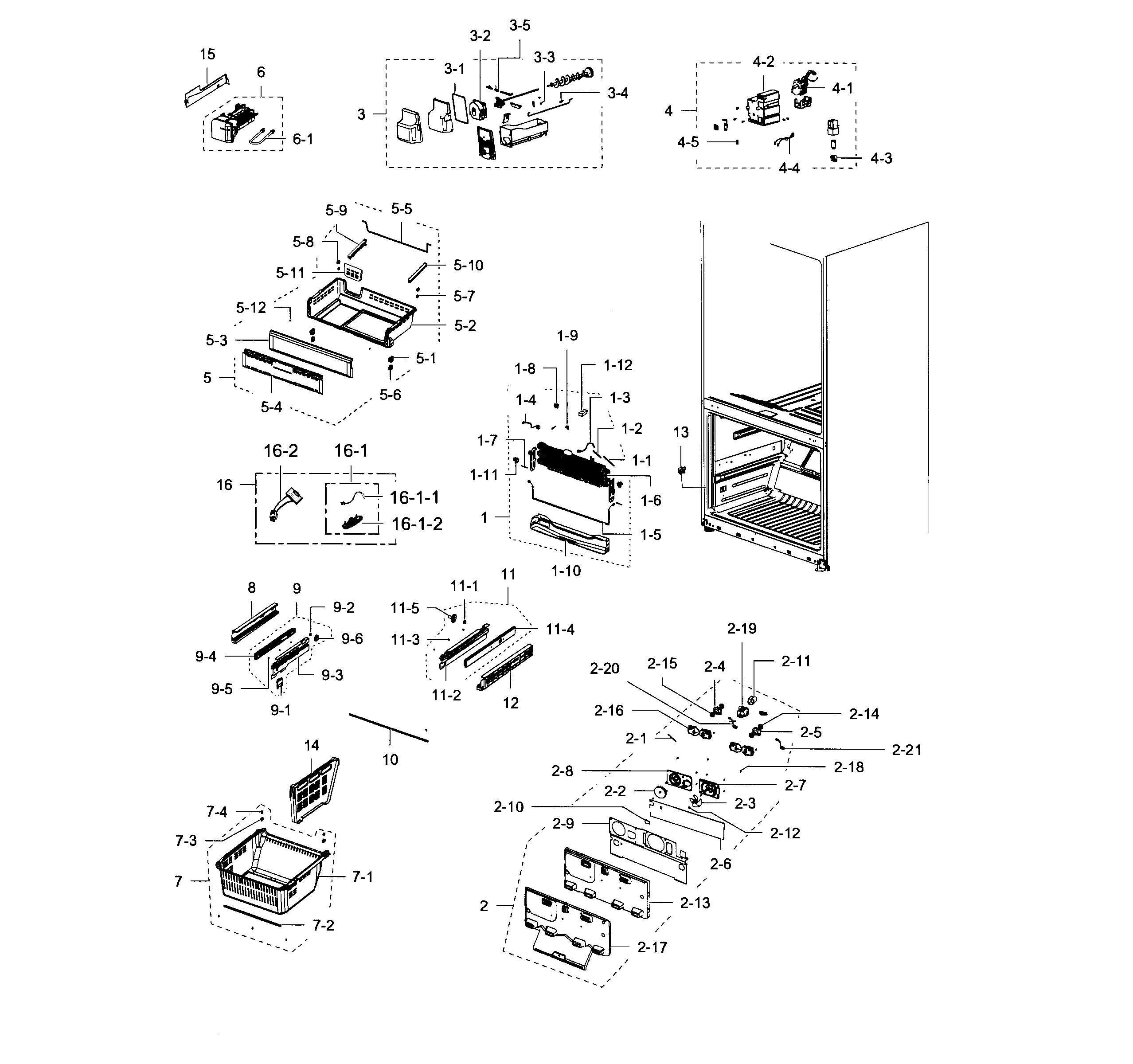

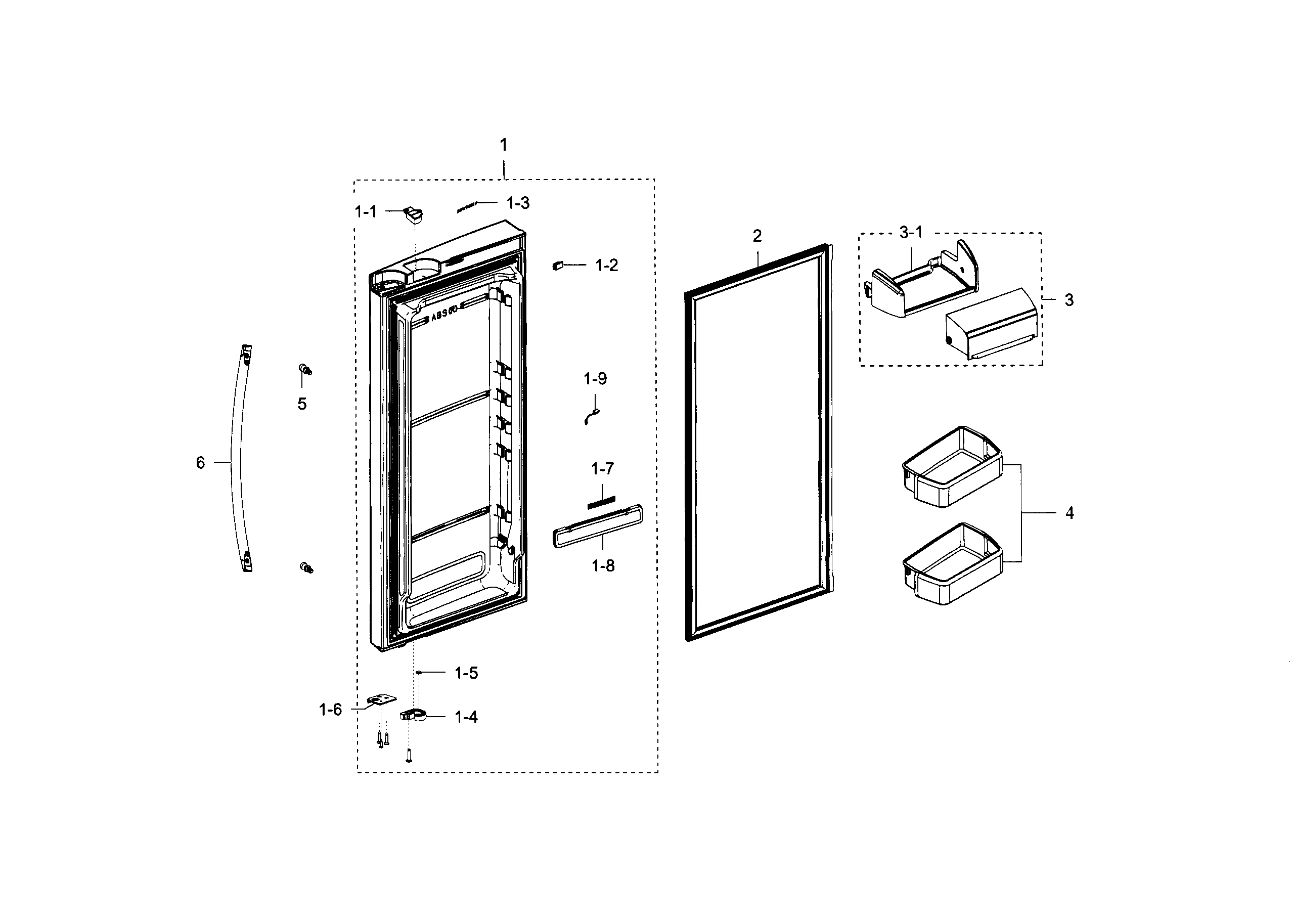

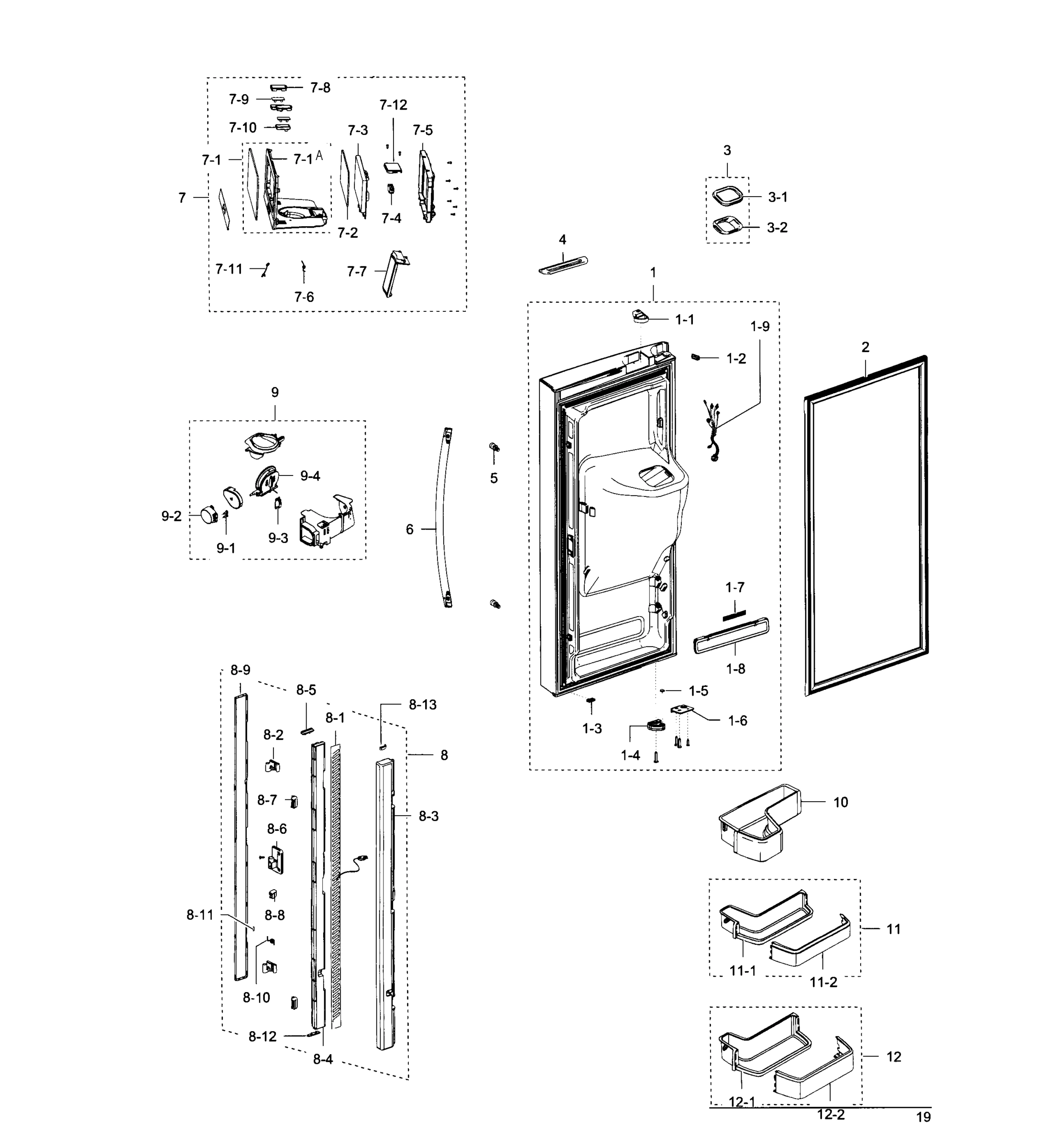

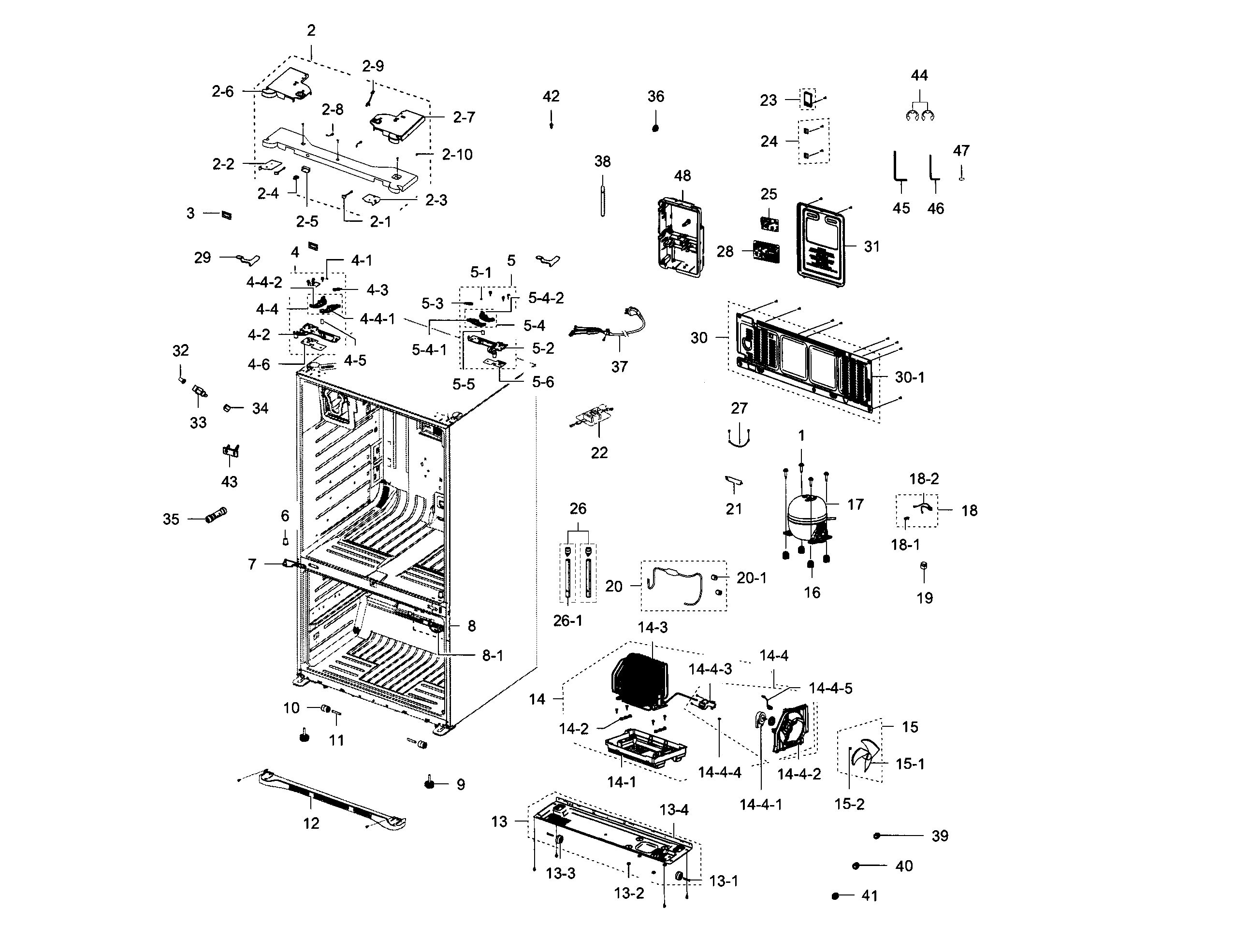

Model Samsung RFG297HDWP/XAA-01 Refrigerator – Common Parts &amp; Diagrams

1

DA96-00462D Samsung Refrigerator Evaporator A Backorder SMG DA96-00462D $165.57

1

DA96-00762L Samsung Refrigerator Evaporator A In Stock SMG DA96-00762L $173.79

1-1

DA66-00441C Samsung Refrigerator Auto Close C Backorder SMG DA66-00441C $4.98

1-2

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.42

1-3

DA32-00006S Samsung Refrigerator Freezer Defr In Stock SMG DA32-00006S $21.71

1-3

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.72

1-3

DA64-04021B Samsung MASCOT Assembly Backorder SMG DA64-04021B $24.36

1-4

DA61-02383C Samsung Refrigerator Door Support Backorder SMG DA61-02383C $4.98

1-4

Refrigerator Defrost Heater SMG DA47-00424N Contact Us For Availability

1-5

DA47-00424M Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424M $97.81

1-5

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.97

1-6

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $19.45

1-6

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $26.15

1-7

DA41-00519X Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00519X $24.43

1-8

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.35

1-8

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.35

1-8

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $46.84

1-9

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $8.14

1-9

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $45.20

1-9

DA96-00478Y Samsung Door Wire Harness Assembl Backorder SMG DA96-00478Y $21.27

1-10

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $7.70

1-11

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.08

1-11

DA61-05689A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05689A $2.18

2

DA97-05253E Samsung Refrigerator Door Gasket In Stock SMG DA97-05253E $157.00

2

DA97-05557Y Samsung Freezer Door Gasket Assem In Stock SMG DA97-05557Y $142.00

2

DA97-07818A Samsung Refrigerator Ice Evaporat Backorder SMG DA97-07818A $201.53

2-1

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $26.25

2-3

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

2-4

DA34-00066A Samsung Refrigerator Door Interlo Backorder SMG DA34-00066A $30.19

2-5

DA31-00146E Samsung Refrigerator Evaporator F In Stock SMG DA31-00146E $120.24

2-5

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $9.50

2-8

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $58.22

2-20

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $19.01

2-21

DA96-00042N Samsung Refrigerator Motor Wire H Backorder SMG DA96-00042N $14.48

3

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $61.77

3

DA97-05353A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-05353A $51.28

3

DA97-06426B Samsung Refrigerator Dairy Bin As Backorder SMG DA97-06426B $61.46

3

DA97-11117A Samsung Refrigerator Freezer Ice In Stock SMG DA97-11117A $168.64

3

DA97-11772B Samsung Refrigerator Evaporator C In Stock SMG DA97-11772B $187.68

3-1

DA63-03698A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-03698A $47.50

3-1

DA63-04319A Samsung Refrigerator Dairy Guard Backorder SMG DA63-04319A $50.22

3-1

Refrigerator Ice Container Front Cover Gasket SMG DA63-03737A Contact Us For Availability

3-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $126.00

3-2

DA67-01729A Samsung Refrigerator Ice Chute Ca Backorder SMG DA67-01729A $6.33

3-3

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $18.10

3-4

DA61-05890C Samsung Refrigerator Case Motor A Backorder SMG DA61-05890C $16.75

3-4

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $6.33

3-5

DA61-03186C Samsung Refrigerator Evaporator I Backorder SMG DA61-03186C $31.00

3-10

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.07

3-11

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.63

3-13

DA63-04218A Samsung Refrigerator Evaporator C Backorder SMG DA63-04218A $66.11

3-16

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $130.23

4

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $58.22

4

DA63-05506C Samsung Refrigerator Dispenser Tr Backorder SMG DA63-05506C $10.87

4

DA97-05246G Samsung Refrigerator Auger Motor In Stock SMG DA97-05246G $225.67

4

DA97-06419C Samsung Refrigerator Door Shelf B In Stock SMG DA97-06419C $71.09

4-1

DA31-00105G Samsung Refrigerator Geared Auger Backorder SMG DA31-00105G $182.83

4-2

DA96-00398J Samsung Refrigerator Led Lamp Ass Backorder SMG DA96-00398J $136.62

4-3

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $0.97

4-4

DA96-00036W Samsung Refrigerator Assembly wit Backorder SMG DA96-00036W $61.79

5

DA97-07638M Samsung Refrigerator Upper Tray A Backorder SMG DA97-07638M $188.66

5-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $7.70

5-3

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $6.33

5-5

DA66-00816A Samsung Assembly Refrigerator Sha Backorder SMG DA66-00816A $26.15

5-6

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.52

5-8

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.35

5-9

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $16.29

5-12

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.97

6

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.35

6

DA64-04014B Samsung Refrigerator Handle Bar A Backorder SMG DA64-04014B $116.65

6

DA97-07365G Samsung Refrigerator Ice Maker As In Stock SMG DA97-07365G $151.77

7

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $7.70

7

DA97-06372A Samsung Refrigerator Angle Shelf Backorder SMG DA97-06372A $73.42

7

DA97-12088U Samsung Refrigerator Dispenser Co Backorder SMG DA97-12088U $246.45

7-1

DA97-12275A Samsung Refrigerator Dispenser Co Backorder SMG DA97-12275A $93.97

7-3

DA92-00153A Samsung Refrigerator PCB Kit for Backorder SMG DA92-00153A $202.70

7-4

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $14.48

7-5

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $9.96

7-6

DA61-06033B Samsung Refrigerator Ice Dispense Backorder SMG DA61-06033B $2.72

7-7

DA66-00866A Samsung Refrigerator Dispenser Le Backorder SMG DA66-00866A $15.85

7-9

DA41-00217A Samsung Refrigerator Printed Circ Backorder SMG DA41-00217A $33.81

7-11

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $32.60

8

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $37.83

8

DA97-06417R Samsung Refrigerator French Assem Backorder SMG DA97-06417R $131.62

8-1

DA47-00245D Samsung Refrigerator Heater Cord Backorder SMG DA47-00245D $46.26

8-1

DA67-01688A Samsung Refrigerator Angle Cap As Backorder SMG DA67-01688A $0.97

8-2

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $2.72

8-3

DA61-04286A Samsung Refrigerator French Case In Stock SMG DA61-04286A $46.26

8-4

DA62-01836A Samsung Refrigerator Insulation - Backorder SMG DA62-01836A $18.10

8-5

DA63-03508C Samsung Refrigerator French Gaske Backorder SMG DA63-03508C $3.63

8-6

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.79

8-7

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.07

8-8

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.52

8-9

NON-SERVICEABLE PART SMG N/P Contact Us For Availability

8-10

DA81-01345B Samsung Refrigerator Door Spring In Stock SMG DA81-01345B $3.63

8-11

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $0.97

8-12

DA63-05158C Samsung French Gasket Backorder SMG DA63-05158C $5.42

8-13

DA67-02306A Samsung Refrigerator French Door Backorder SMG DA67-02306A $0.97

9

DA97-08680C Samsung Refrigerator Ice Dispense Backorder SMG DA97-08680C $47.73

9

DA97-10634A Samsung Refrigerator Slide Shelf Backorder SMG DA97-10634A $133.67

9-1

6002-001364 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001364 $0.97

9-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.63

9-2

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $79.72

9-2

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.35

9-3

DA34-00011A Samsung Refrigerator Micro Switch Backorder SMG DA34-00011A $8.59

9-4

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $44.27

9-6

Refrigerator Freezer Drawer Gear SMG DA66-00751A Contact Us For Availability

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $5.89

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.98

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $31.40

DA97-06425C Samsung Refrigerator Freezer Uppe Backorder SMG DA97-06425C $56.66

10-2

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.35

10-3

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $138.05

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $2.26

DA61-04258A Samsung Refrigerator Handle Slide Backorder SMG DA61-04258A $1.81

DA97-04839A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04839A $24.55

DA97-11478A Samsung Refrigerator Shelf Bin Do In Stock SMG DA97-11478A $68.76

11-1

DA61-03172A Samsung Refrigerator Crisper Draw Backorder SMG DA61-03172A $22.62

11-1

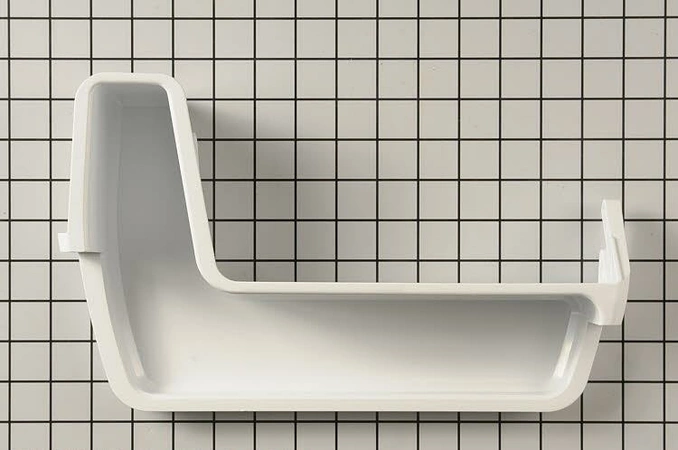

DA63-06474A Samsung Refrigerator Door Bin Gua Backorder SMG DA63-06474A $54.16

11-2

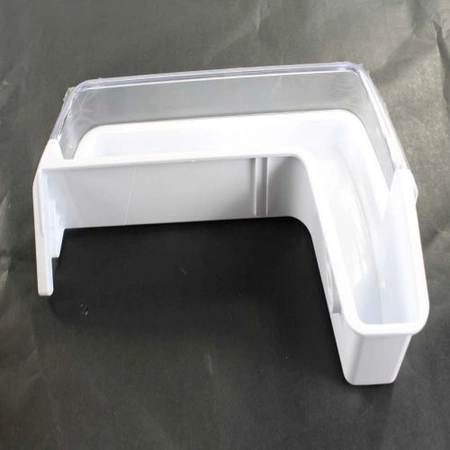

DA63-06471A Samsung Refrigerator Mid Guard Co Backorder SMG DA63-06471A $22.18

11-5

Refrigerator Gear Rail SMG DA66-00750A Contact Us For Availability

DA61-04335B Samsung E Assembly Handle Spring In Stock SMG DA61-04335B $2.26

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $41.86

DA97-04840A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04840A $23.08

DA97-11483A Samsung Refrigerator Door Shelf B Backorder SMG DA97-11483A $64.79

12-1

DA61-03177A Samsung Refrigerator Vegetable Cr Backorder SMG DA61-03177A $23.99

12-1

DA63-06473A Samsung Refrigerator Left Guard A Backorder SMG DA63-06473A $41.05

12-2

DA63-06472A Samsung Refrigerator Door Bin She In Stock SMG DA63-06472A $43.75

13

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.18

13

DA97-07547A Samsung Refrigerator Compressor C Backorder SMG DA97-07547A $120.49

13

Refrigerator freezer door handle mounting blo SMG DA61-04254A Contact Us For Availability

13-1

DA66-00649A Samsung Refrigerator Caster Shaft Backorder SMG DA66-00649A $3.63

13-3

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $4.98

14

DA61-04255A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04255A $0.97

14

DA97-07756F Samsung Refrigerator Water Drain Backorder SMG DA97-07756F $185.24

14-3

DA97-05093E Samsung Refrigerator Assembly Spi Backorder SMG DA97-05093E $164.86

14-4

DA97-07754D Samsung Refrigerator Motor Suppor Backorder SMG DA97-07754D $135.64

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $14.48

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $4.98

DA63-03691A Samsung Refrigerator Ice Room Har Backorder SMG DA63-03691A $9.96

Refrigerator freezer handle cover, right SMG DA63-04248C Contact Us For Availability

16

DA97-11433A Samsung Refrigerator Water Filter In Stock SMG DA97-11433A $264.34

16-1

DA97-08608A Samsung Refrigerator Sensor Cover Backorder SMG DA97-08608A $26.25

16-2

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $54.16

16-4

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $36.23

16-5

DA67-02505B Samsung Refrigerator Tank Filter Backorder SMG DA67-02505B $8.59

17

DA61-05215A Samsung Refrigerator Freezer Door Backorder SMG DA61-05215A $4.07

17

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $284.10

17

Refrigerator Drawer Cover SMG DA97-06327A Contact Us For Availability

18

DA97-08310E Samsung Refrigerator Compressor A Backorder SMG DA97-08310E $62.82

18

DA97-08417A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-08417A $188.66

18-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $25.77

18-1

DA63-05162A Samsung Refrigerator White Cool G Backorder SMG DA63-05162A $77.41

18-2

DA39-00154D Samsung Refrigerator Wire Harness Backorder SMG DA39-00154D $47.50

18-2

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $41.05

18-3

DA67-02519A Samsung Refrigerator Pantry Shelf Backorder SMG DA67-02519A $116.75

19

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $9.50

19

DA97-06324C Samsung Refrigerator Motor Damper Backorder SMG DA97-06324C $113.99

19-1

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $163.71

19-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $19.45

21-1

DA61-03571A Samsung Refrigerator Upper Shelf Backorder SMG DA61-03571A $3.17

21-3

DA97-05251B Samsung Refrigerator Shelf Hinge Backorder SMG DA97-05251B $26.96

22

DA27-00019K Samsung Refrigerator Coil Filter Backorder SMG DA27-00019K $89.83

22

DA97-11542A Samsung Refrigerator Pantry Rail Backorder SMG DA97-11542A $96.32

22-1

DA63-06520A Samsung Refrigerator Right Pantry Backorder SMG DA63-06520A $63.45

22-2

DA92-00151A Samsung Refrigerator Printed Circ Backorder SMG DA92-00151A $32.60

22-5

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $16.29

23

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $14.03

23

DA97-11541A Samsung Refrigerator Pantry Rail Backorder SMG DA97-11541A $44.70

24-4

DA63-04275B Samsung Refrigerator Pantry Front Backorder SMG DA63-04275B $51.28

24-5

DA63-04276B Samsung Refrigerator Pantry Trim Backorder SMG DA63-04276B $36.63

24-7

DA61-04290A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04290A $113.15

24-8

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $12.22

24-9

DA97-11538A Samsung Refrigerator Left Pantry Backorder SMG DA97-11538A $50.22

25

Refrigerator Electronic Control Board SMG DA41-00614B Contact Us For Availability

26

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $13.07

26-1

DA62-01266D Samsung Refrigerator PVC Tube Backorder SMG DA62-01266D $4.07

28

DA92-00147B Samsung Refrigerator Main PCB Ass Backorder SMG DA92-00147B $304.31

29

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $7.70

31

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $45.47

32

DA71-20207A Samsung Refrigerator Water Valve Backorder SMG DA71-20207A $0.97

33

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $25.77

34

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $17.64

35

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $27.77

40

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.42

44

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $0.97

1441

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $92.22

1610

DA63-05406B Samsung Refrigerator Cover Filter Backorder SMG DA63-05406B $18.55

1611

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $19.45

1611

DA97-08006D Samsung Refrigerator White Case F Backorder SMG DA97-08006D $104.31

1612

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $4.07

1614

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $18.55

2410

DA97-11539A Samsung Refrigerator Right Pantry Backorder SMG DA97-11539A $43.87

6111

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.97

6112

DA62-02429G Samsung Refrigerator Water Line P Backorder SMG DA62-02429G $4.98
