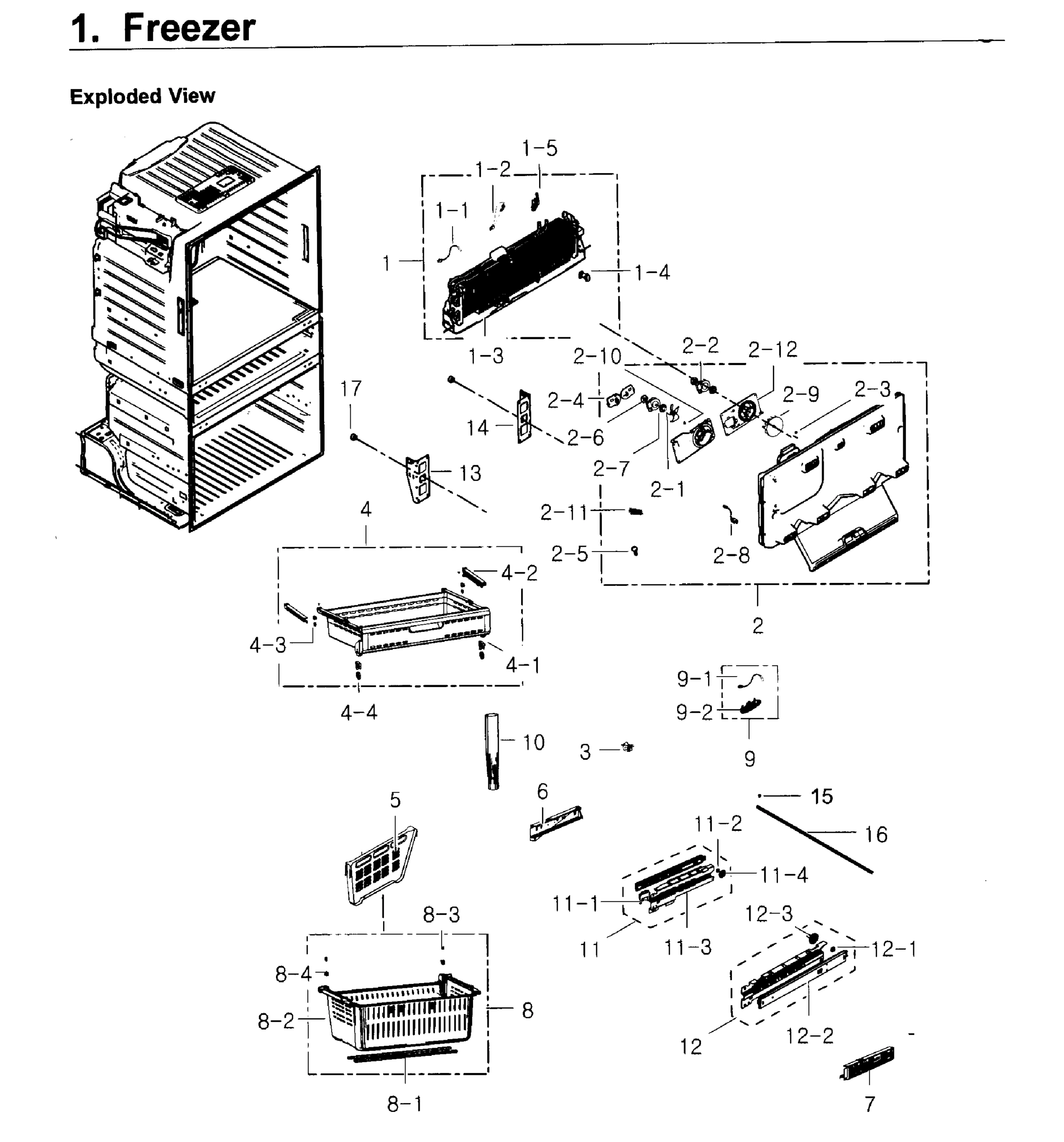

Model Samsung RF4267HARS/XAA-03 Refrigerator – Common Parts &amp; Diagrams

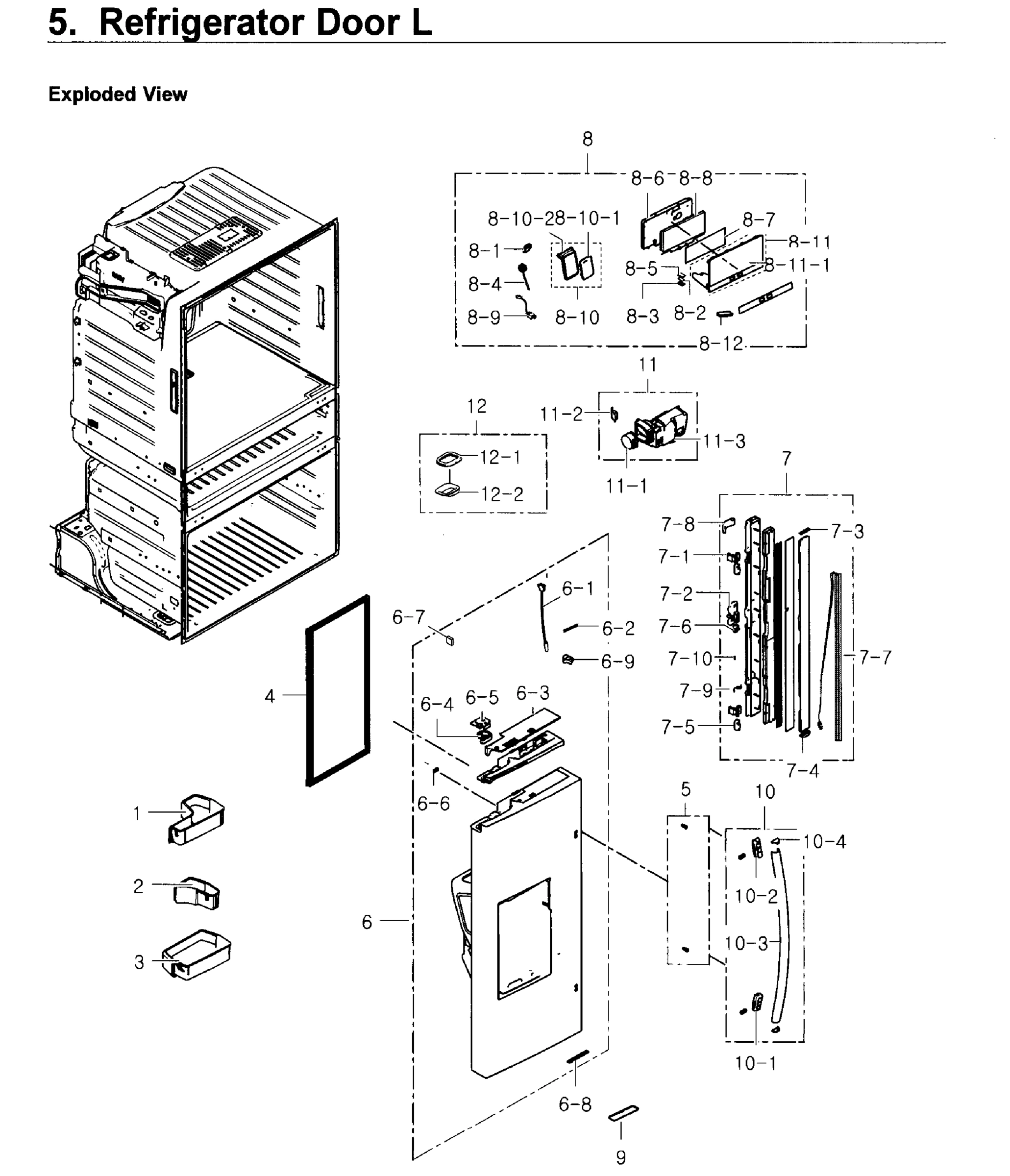

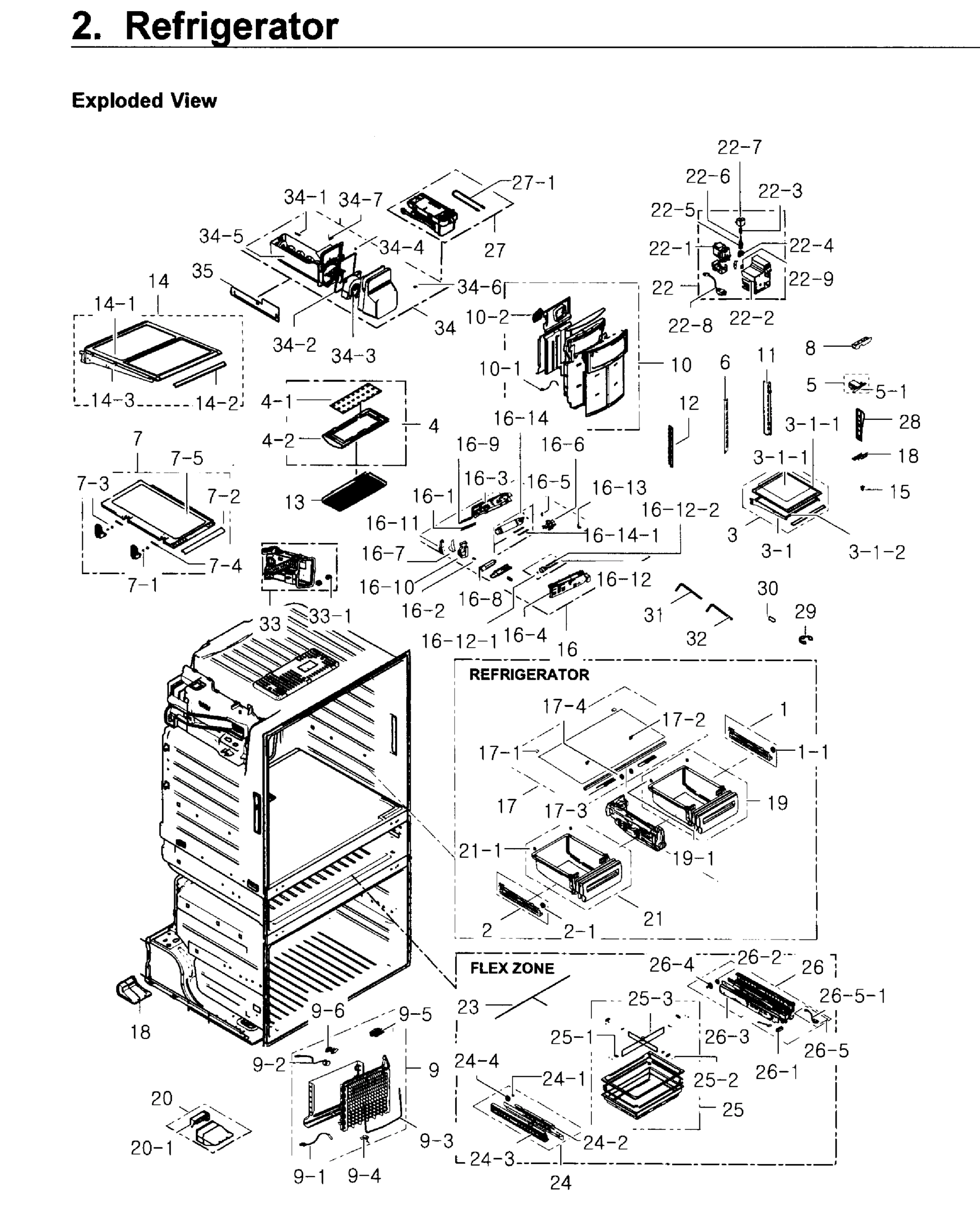

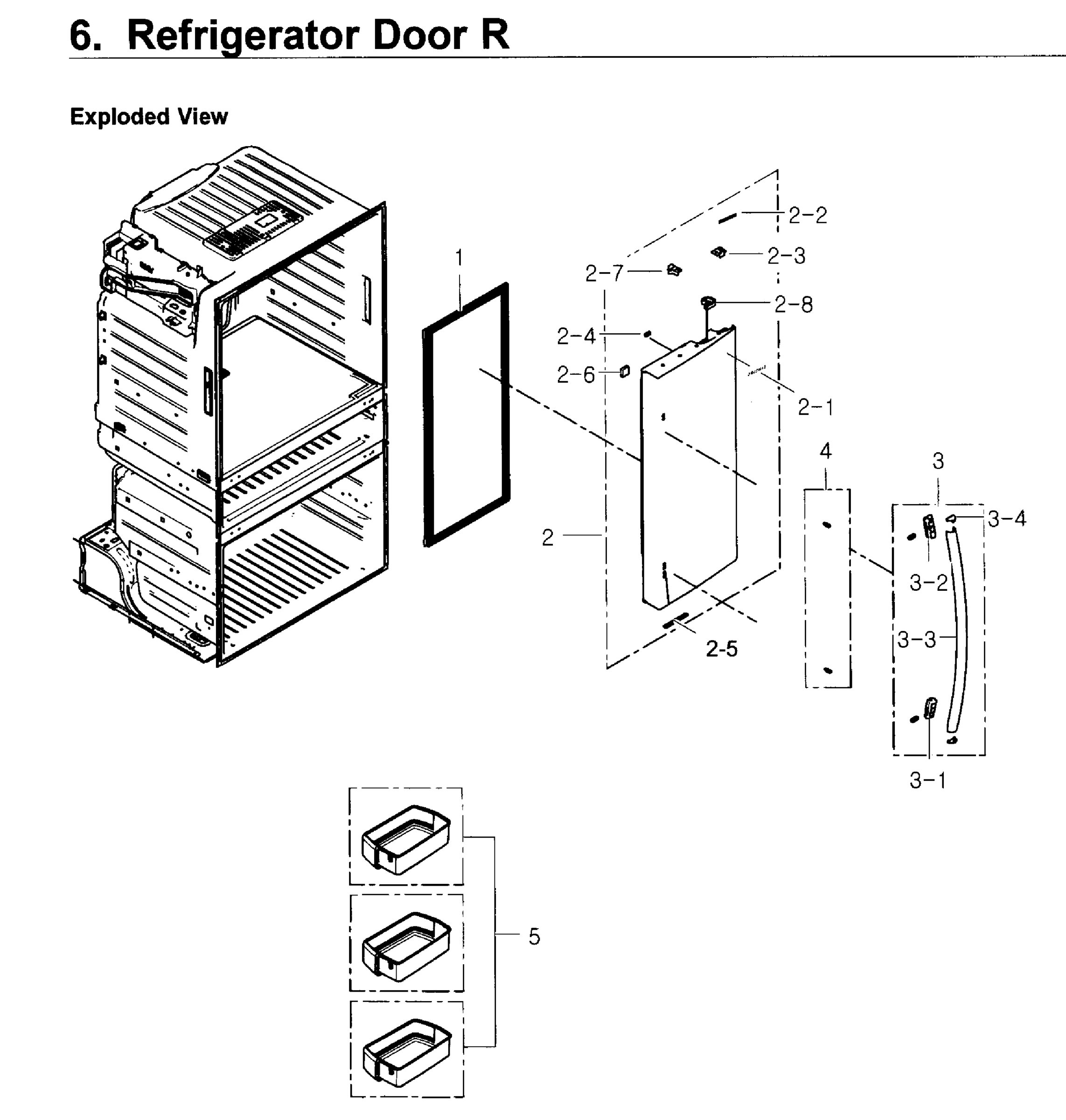

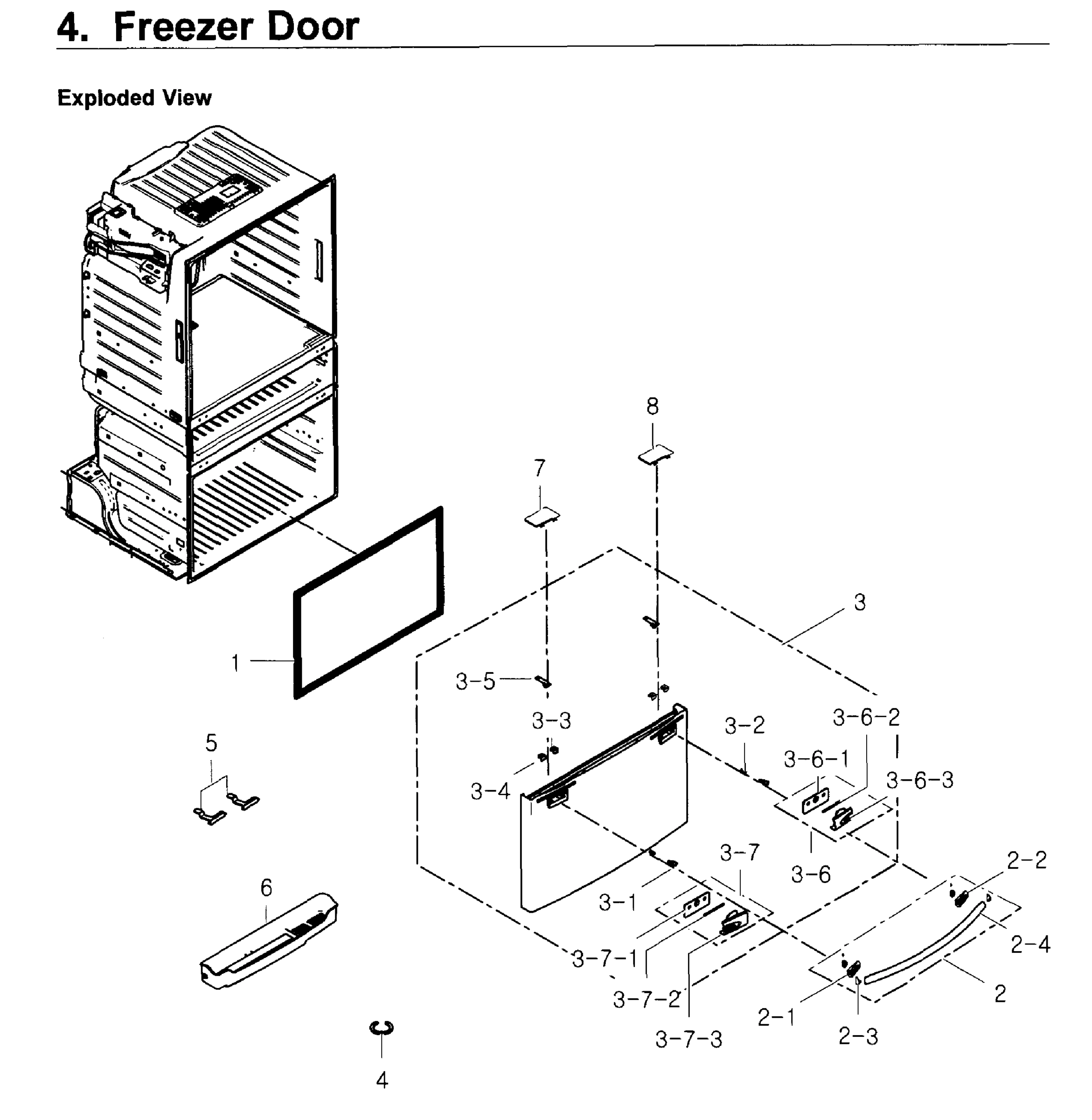

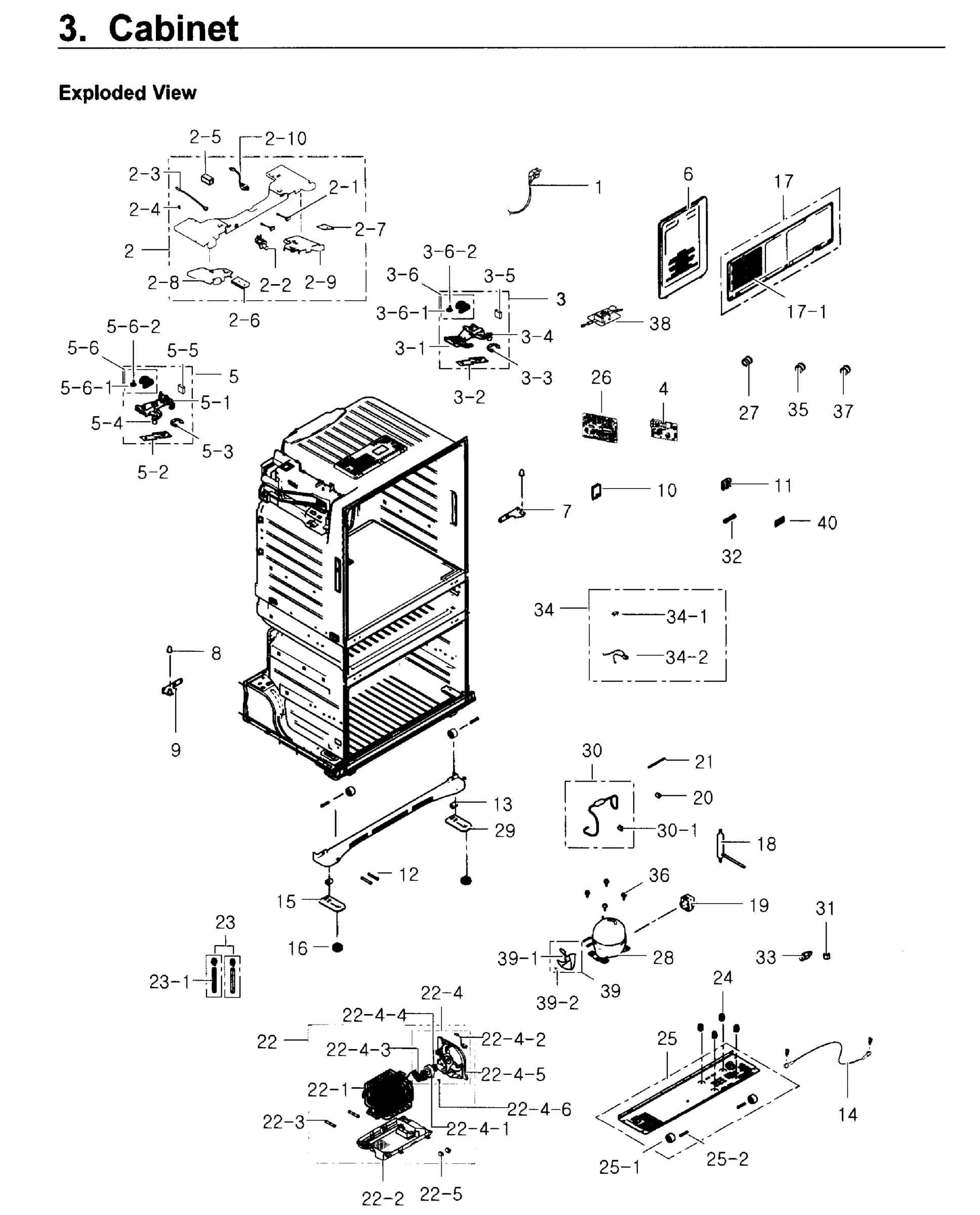

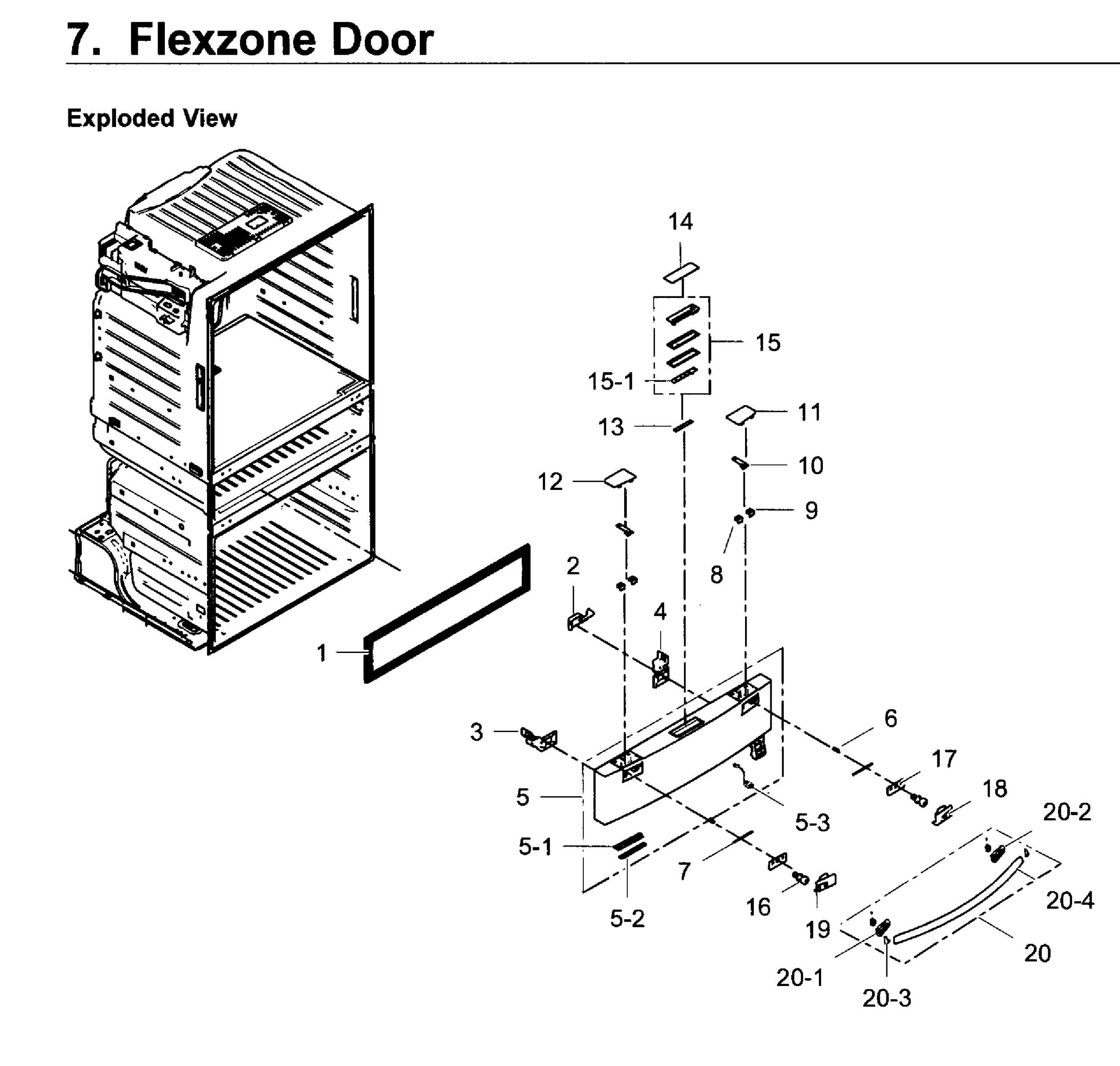

1

DA96-00843A Samsung Refrigerator Evaporator A Backorder SMG DA96-00843A $225.51

1

DA97-11291A Samsung Refrigerator Right Vegeta Backorder SMG DA97-11291A $33.18

1

DA97-11523B Samsung Refrigerator Dispenser Gu Backorder SMG DA97-11523B $141.01

1

DA97-12522E Samsung Refrigerator Gas Door Gas Backorder SMG DA97-12522E $134.69

1

DA97-12522G Samsung Refrigerator Convection D Backorder SMG DA97-12522G $101.36

1-3

DA47-00318E Samsung Refrigerator Heater Metal Backorder SMG DA47-00318E $159.11

1-4

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $7.47

1-5

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.87

2

DA63-05462C Samsung Refrigerator Convection D Backorder SMG DA63-05462C $2.98

2

DA97-11522B Samsung Refrigerator Middle Guard Backorder SMG DA97-11522B $124.44

2

Refrigerator door handle assembly SMG DA97-13074C Contact Us For Availability

2

Refrigerator evaporator cover SMG DA97-11321A Contact Us For Availability

2-1

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $23.61

2-1

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $117.25

2-2

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $18.32

2-3

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $23.97

2-5

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.71

2-7

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.31

2-10

DA31-00146E Samsung Refrigerator Evaporator F In Stock SMG DA31-00146E $118.33

2-11

DA47-00261E Samsung Refrigerator Duct Heater Backorder SMG DA47-00261E $40.42

3

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.02

3

DA97-11454A Samsung Refrigerator Shelf Slide Backorder SMG DA97-11454A $177.47

3

DA97-11521B Samsung Refrigerator Door Bin Gua Backorder SMG DA97-11521B $119.14

3

Refrigerator door handle SMG DA97-12714C Contact Us For Availability

3-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $9.11

3-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $22.38

3-4

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $5.80

3-4

DA67-02788A Samsung Refrigerator Handle Suppo Backorder SMG DA67-02788A $10.78

3-5

DA61-06014A Samsung Refrigerator Handle Assem Backorder SMG DA61-06014A $2.49

3-6

DA97-13438A Samsung Refrigerator Right Handle Backorder SMG DA97-13438A $42.40

3-7

DA97-13439A Samsung Refrigerator Left Handle Backorder SMG DA97-13439A $39.82

4

DA92-00215C Samsung Refrigerator Inverter Pow In Stock SMG DA92-00215C $218.80

4

DA97-05253S Samsung Refrigerator Door Gasket Backorder SMG DA97-05253S $174.44

4

DA97-11319A Samsung Refrigerator Freezer Tray Backorder SMG DA97-11319A $174.44

4-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $7.47

4-2

DA66-00554A Samsung Refrigerator Upper Freeze In Stock SMG DA66-00554A $4.56

5

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

5

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.15

5

DA97-11470B Samsung Refrigerator Upper Hinge Backorder SMG DA97-11470B $73.65

5

DA97-11520B Samsung Refrigerator Door Bin Gua Backorder SMG DA97-11520B $122.78

5-1

DA41-00519R Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519R $9.64

5-3

DA96-00641B Samsung Refrigerator Display Wire In Stock SMG DA96-00641B $19.23

6

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $2.07

6

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $34.29

6

DA91-03612A Samsung Refrigerator Door Foam As Backorder SMG DA91-03612A $248.16

6

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $38.94

6

DA97-08459A Samsung Refrigerator Mid Shelf As Backorder SMG DA97-08459A $96.17

6-1

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $56.89

6-4

DA61-02383E Samsung Refrigerator Door Closing Backorder SMG DA61-02383E $4.65

6-5

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $23.22

6-6

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.07

6-7

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

6-8

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

6-9

DA66-00442B Samsung Refrigerator Auto Close C Backorder SMG DA66-00442B $3.73

7

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $42.77

7

DA66-00579B Samsung Refrigerator Handle Cap S Backorder SMG DA66-00579B $5.80

7

DA97-08512G Samsung Refrigerator French Door In Stock SMG DA97-08512G $125.88

7-1

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $2.49

7-2

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.22

7-5

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.15

7-6

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.15

7-8

DA67-02306A Samsung Refrigerator French Door Backorder SMG DA67-02306A $0.92

7-9

DA81-01345B Samsung Refrigerator Door Spring In Stock SMG DA81-01345B $2.91

7-10

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $0.92

8

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $5.80

8

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $1.67

8

DA63-05433A Samsung Refrigerator Handle Cover Backorder SMG DA63-05433A $12.85

8

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.67

8

DA97-12088R Samsung Refrigerator Dispenser Co In Stock SMG DA97-12088R $229.12

8-1

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $12.02

8-2

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $36.14

8-4

DA61-06033B Samsung Refrigerator Ice Dispense Backorder SMG DA61-06033B $3.73

8-6

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $9.11

8-8

DA92-00153A Samsung Refrigerator PCB Kit for Backorder SMG DA92-00153A $185.31

8-9

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $42.04

8-10

DA97-11867A Samsung Refrigerator Dispenser Le Backorder SMG DA97-11867A $55.24

8-11

DA97-12275A Samsung Refrigerator Dispenser Co Backorder SMG DA97-12275A $80.40

9

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.24

9

DA63-05506D Samsung Refrigerator Tray Dispens In Stock SMG DA63-05506D $9.11

9

DA96-00842A Samsung Refrigerator Evaporator A Backorder SMG DA96-00842A $228.20

9

DA97-08608A Samsung Refrigerator Sensor Cover In Stock SMG DA97-08608A $24.87

9-1

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $19.07

9-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $18.59

9-2

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.31

9-3

DA47-00434A Samsung Refrigerator Metal Sheath In Stock SMG DA47-00434A $138.25

9-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.87

9-5

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

9-6

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $4.98

10

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.40

10

DA97-11704B Samsung Refrigerator Evaporator C Backorder SMG DA97-11704B $164.53

10

Refrigerator door handle SMG DA97-12715C Contact Us For Availability

10-1

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $9.97

10-2

DA81-06013A Samsung Refrigerator Evaporator F In Stock SMG DA81-06013A $91.18

11

DA97-08680C Samsung Refrigerator Ice Dispense In Stock SMG DA97-08680C $43.72

11

DA97-13661C Samsung Refrigerator Left Rail As In Stock SMG DA97-13661C $151.35

11-1

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $79.39

11-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.33

11-3

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $41.07

11-4

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

DA63-05432A Samsung Refrigerator Handle Cover Backorder SMG DA63-05432A $12.02

DA97-05353A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-05353A $42.71

DA97-13662A Samsung Refrigerator Lower Slide Backorder SMG DA97-13662A $128.05

12-1

DA63-03698A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-03698A $46.01

12-2

DA67-01729A Samsung Refrigerator Ice Chute Ca Backorder SMG DA67-01729A $5.80

12-3

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

13

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $75.95

13

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

13

DA63-05630A Samsung Refrigerator Control Cove Backorder SMG DA63-05630A $9.96

14

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $84.55

15

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.92

15

DA97-10605B Samsung Refrigerator Display Cont Backorder SMG DA97-10605B $92.53

16

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $5.80

16

DA97-11340A Samsung Refrigerator Water Filter In Stock SMG DA97-11340A $231.51

16-1

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $49.61

16-7

DA63-05406B Samsung Refrigerator Cover Filter Backorder SMG DA63-05406B $17.00

17

DA97-11287A Samsung Refrigerator Vegetable Cr Backorder SMG DA97-11287A $174.44

17-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $0.92

17-3

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $4.98

19

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $11.60

19

DA97-11322B Samsung Refrigerator Right Vegeta Backorder SMG DA97-11322B $144.22

20

DA97-08430A Samsung Refrigerator Convection I In Stock SMG DA97-08430A $200.89

20-1

DA31-00101C Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00101C $139.32

20-1

DA61-08754A Samsung Refrigerator Freezer Hand Backorder SMG DA61-08754A $9.53

20-3

DA67-02633A Samsung Refrigerator Freezer Hand Backorder SMG DA67-02633A $33.56

21

DA97-11323B Samsung Refrigerator Left Vegetab Backorder SMG DA97-11323B $101.36

22

DA97-05246G Samsung Refrigerator Auger Motor In Stock SMG DA97-05246G $215.14

22-1

DA31-00105G Samsung Refrigerator Geared Auger Backorder SMG DA31-00105G $180.29

22-1

DA97-11491A Samsung Refrigerator Spiral Conde Backorder SMG DA97-11491A $111.66

22-4

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $0.92

22-4

DA97-08462H Samsung Refrigerator Circuit Moto Backorder SMG DA97-08462H $126.88

22-6

DA66-90003A Samsung Refrigerator Solenoid Gea Backorder SMG DA66-90003A $0.92

22-7

DA74-40151G Samsung Refrigerator Ice Dispense In Stock SMG DA74-40151G $96.04

22-8

DA96-00036W Samsung Refrigerator Assembly wit Backorder SMG DA96-00036W $56.58

23

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $17.56

23-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $3.31

25

DA97-12434A Samsung Refrigerator FlexZone Rol Backorder SMG DA97-12434A $232.69

25-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

25-2

DA66-00649A Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649A $3.09

26

DA92-00357A Samsung Refrigerator Main PCB Ass Backorder SMG DA92-00357A $257.88

26

DA97-08809D Samsung Refrigerator Right Hand S Backorder SMG DA97-08809D $210.06

26-1

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.80

26-5

DA96-00640A Samsung Refrigerator Wire Harness In Stock SMG DA96-00640A $146.11

27

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.38

27

DA97-07365G Samsung Refrigerator Ice Maker As In Stock SMG DA97-07365G $167.72

28

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $289.71

29

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $0.92

31

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.62

32

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $42.16

33

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

34

DA97-08310H Samsung Refrigerator Compressor W Backorder SMG DA97-08310H $55.66

34

DA97-11117A Samsung Refrigerator Freezer Ice In Stock SMG DA97-11117A $165.66

34-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $26.31

34-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $4.98

34-2

DA39-00154J Samsung Refrigerator Compressor W Backorder SMG DA39-00154J $32.08

34-2

Refrigerator ice container front cover gasket SMG DA63-03737A Contact Us For Availability

35

DA63-03691A Samsung Refrigerator Ice Room Har Backorder SMG DA63-03691A $9.11

38

DA27-00019K Samsung Refrigerator Coil Filter Backorder SMG DA27-00019K $76.87

39

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $14.09

1611

DA67-02505B Samsung Refrigerator Tank Filter Backorder SMG DA67-02505B $7.87

1612

DA97-08006D Samsung Refrigerator White Case F In Stock SMG DA97-08006D $97.70

2241

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $89.38

2242

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $11.60

2244

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $3.73

6122

DA62-02429G Samsung Refrigerator Water Line P Backorder SMG DA62-02429G $6.22

8101

DA61-07362A Samsung Refrigerator Door Plate L Backorder SMG DA61-07362A $33.93

8102

DA66-00850A Samsung Refrigerator Dispenser Le In Stock SMG DA66-00850A $13.27

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.24

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.91

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $7.05

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.24

DA97-04903G Samsung Refrigerator Auto Close L Backorder SMG DA97-04903G $22.40

DA97-14447A Samsung Refrigerator Roller Assem Backorder SMG DA97-14447A $15.76
