Model Samsung RF30HDEDTSR/AA-06 Refrigerator – Common Parts &amp; Diagrams

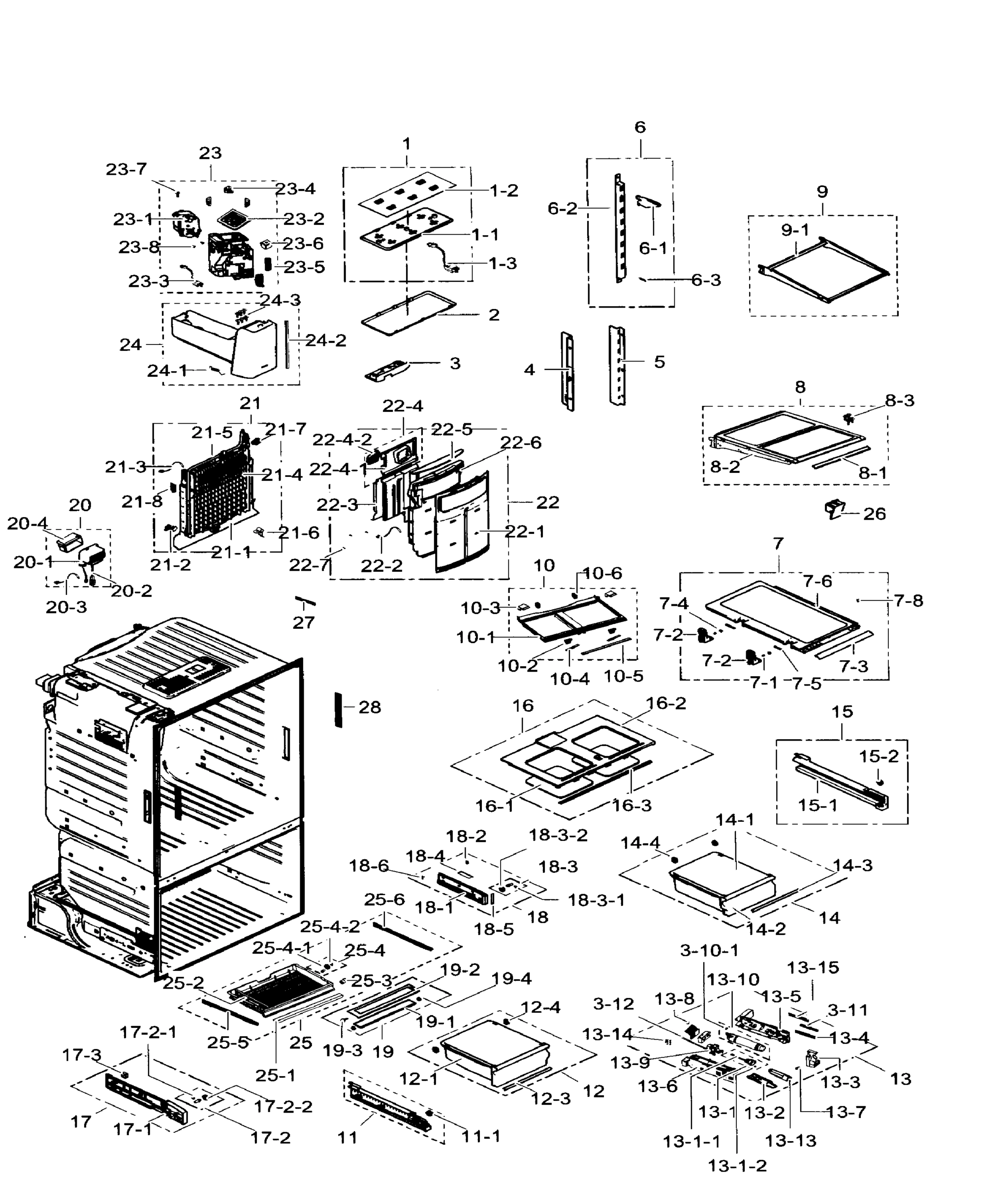

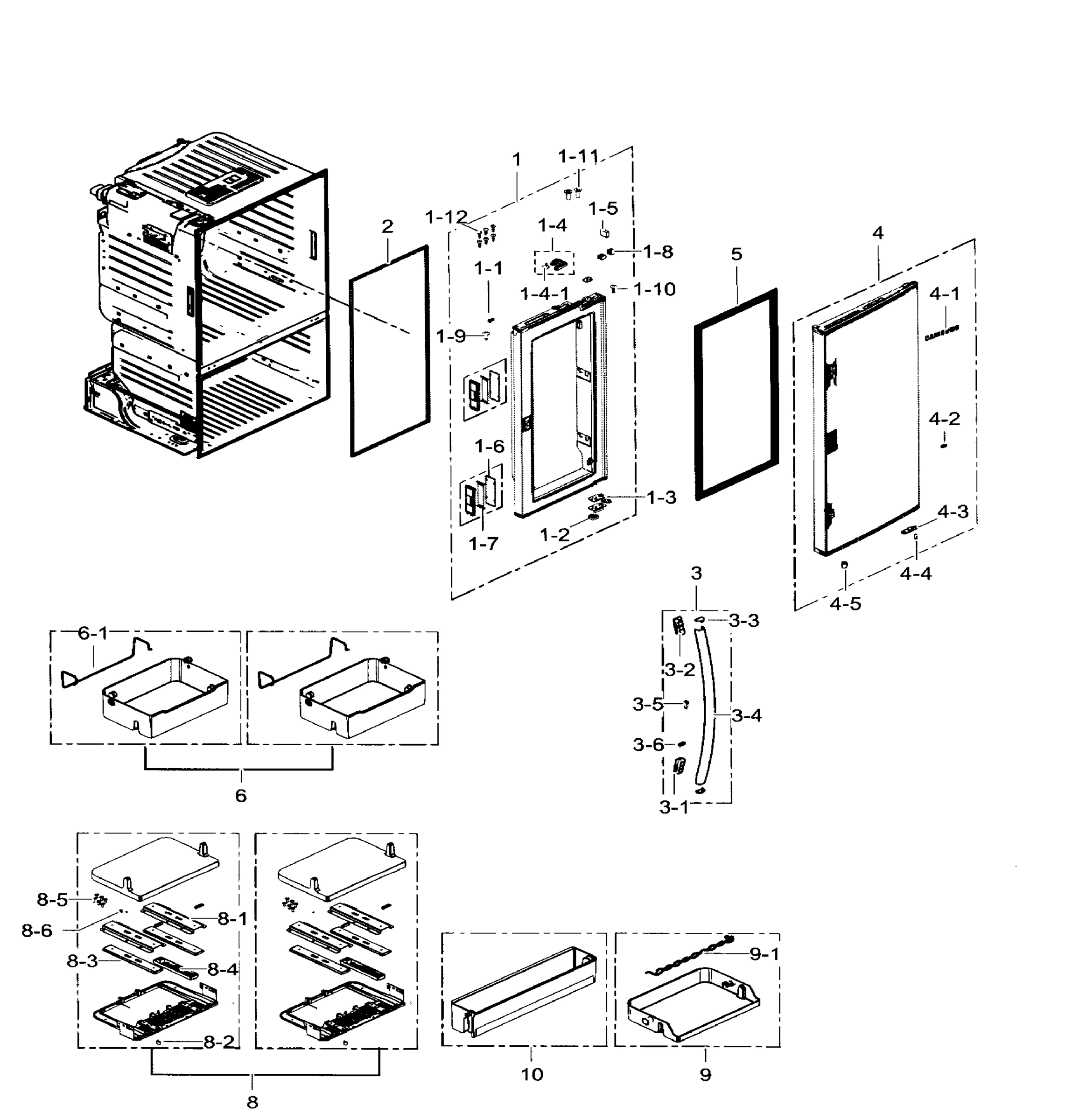

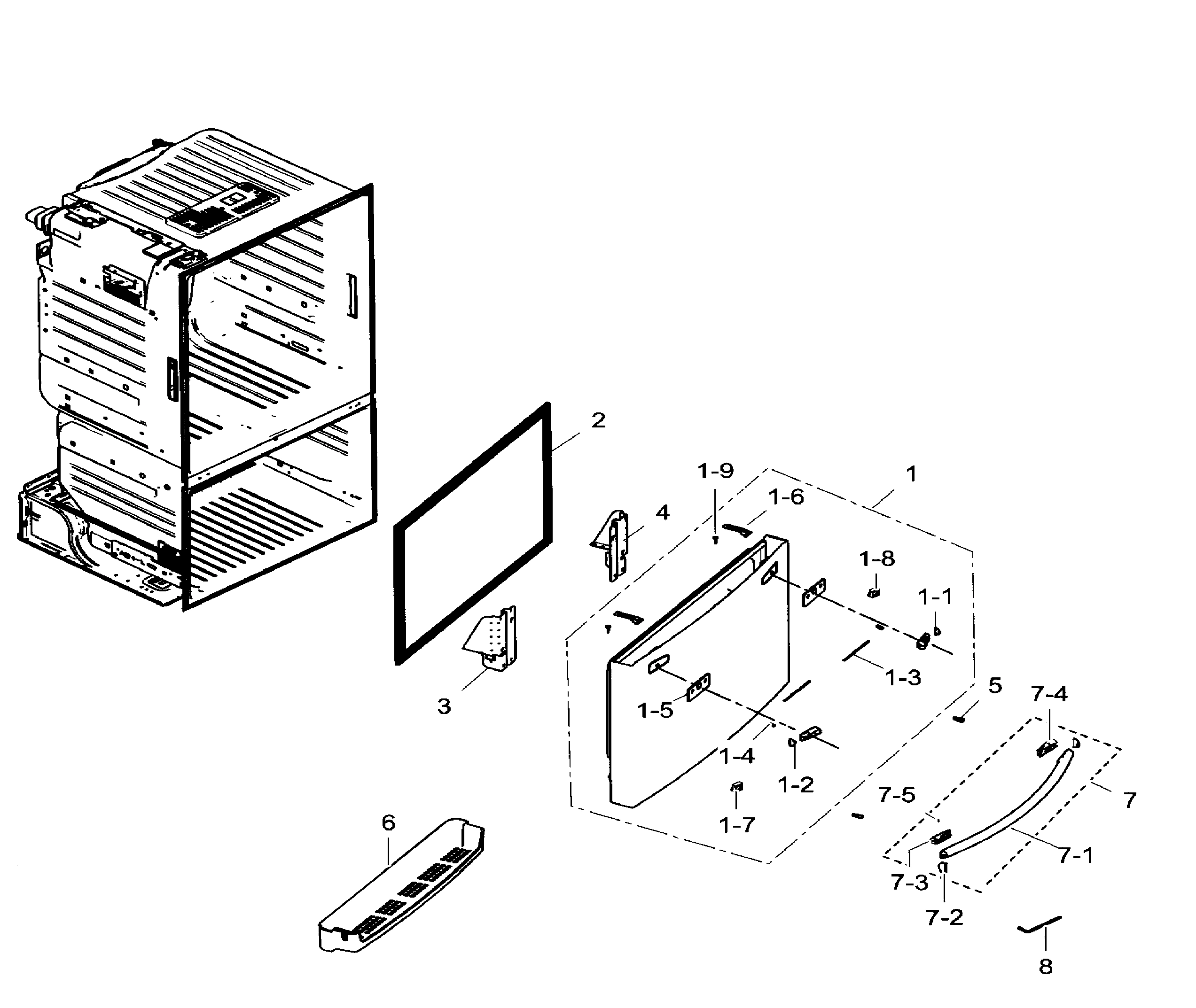

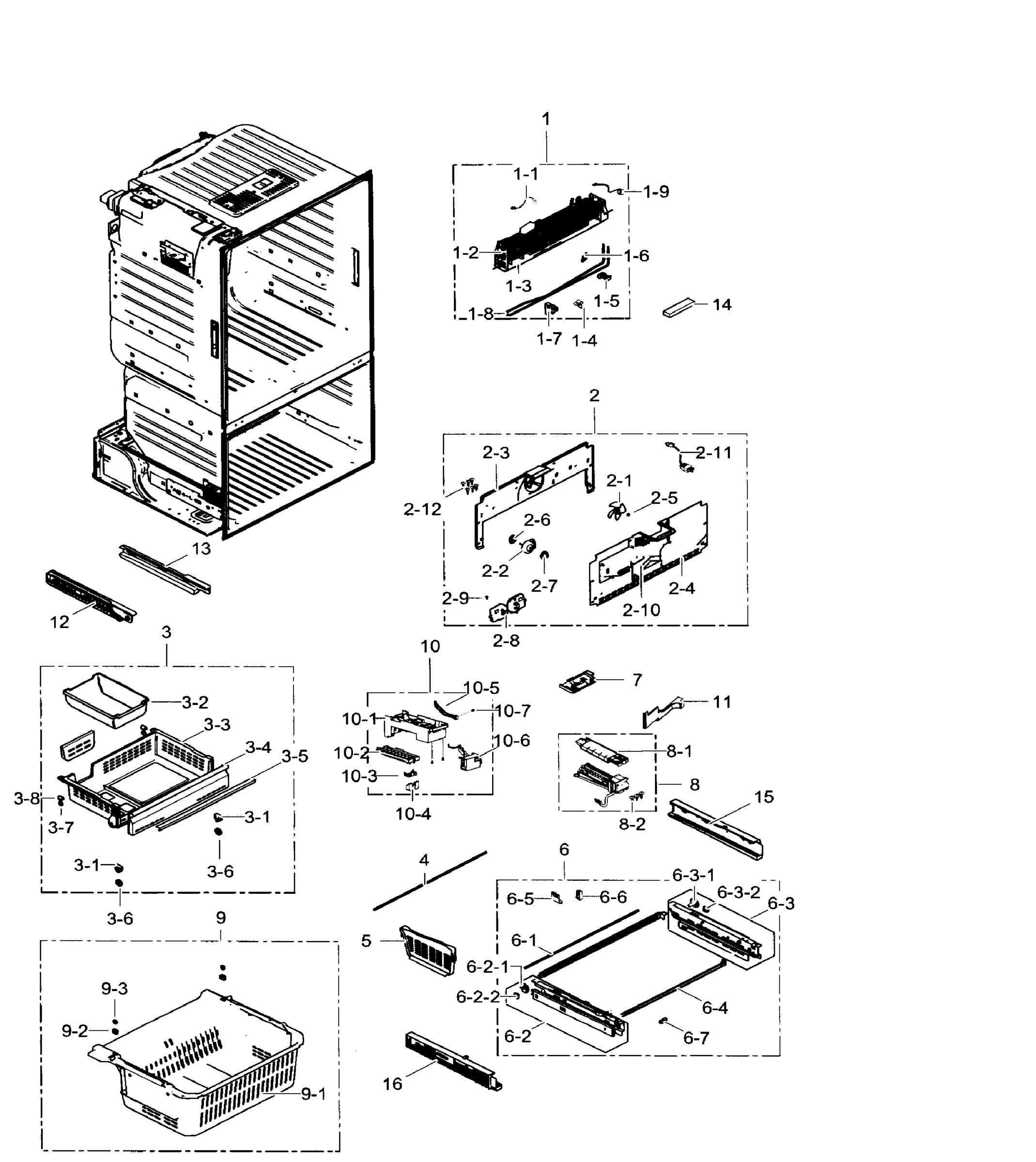

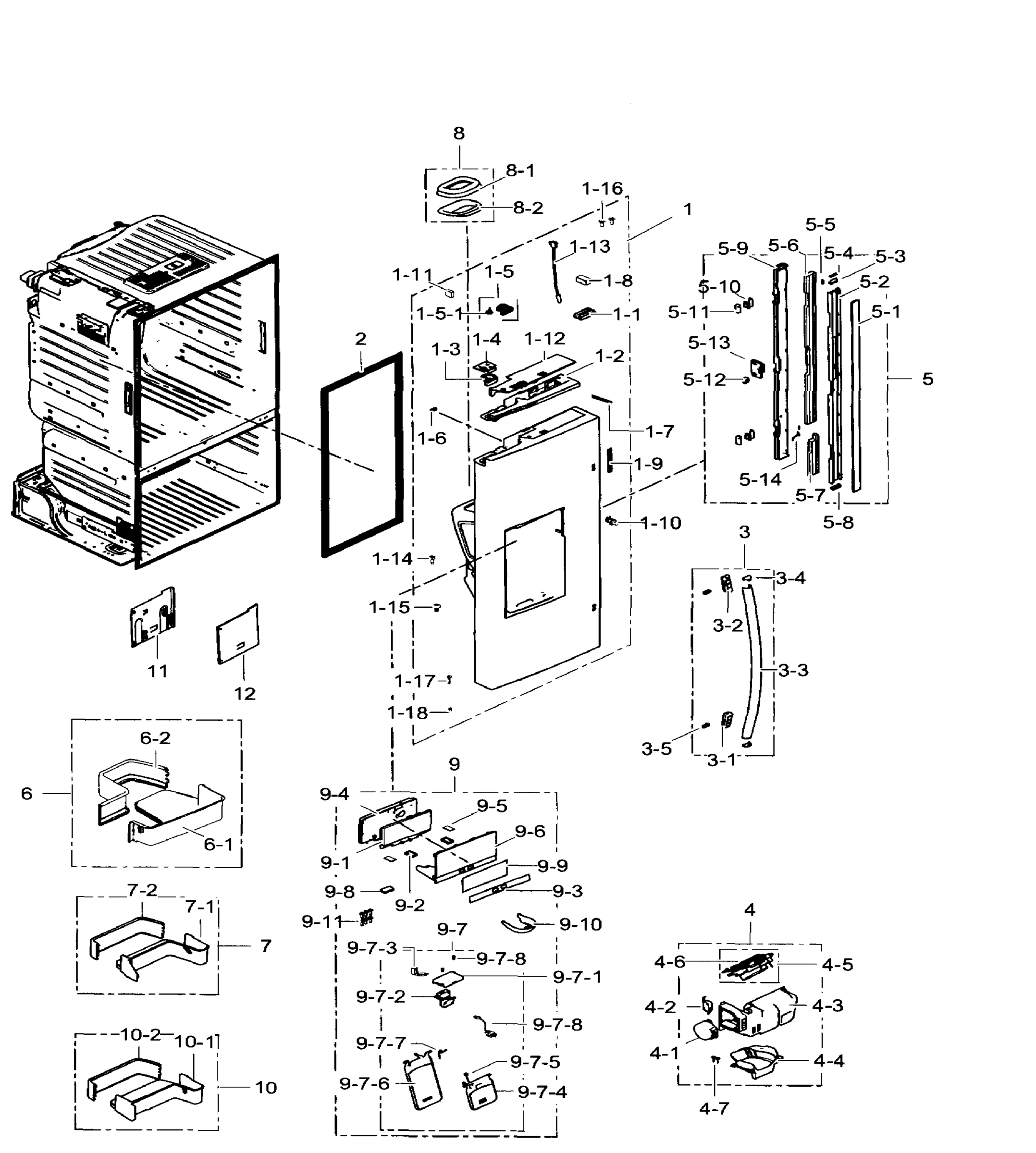

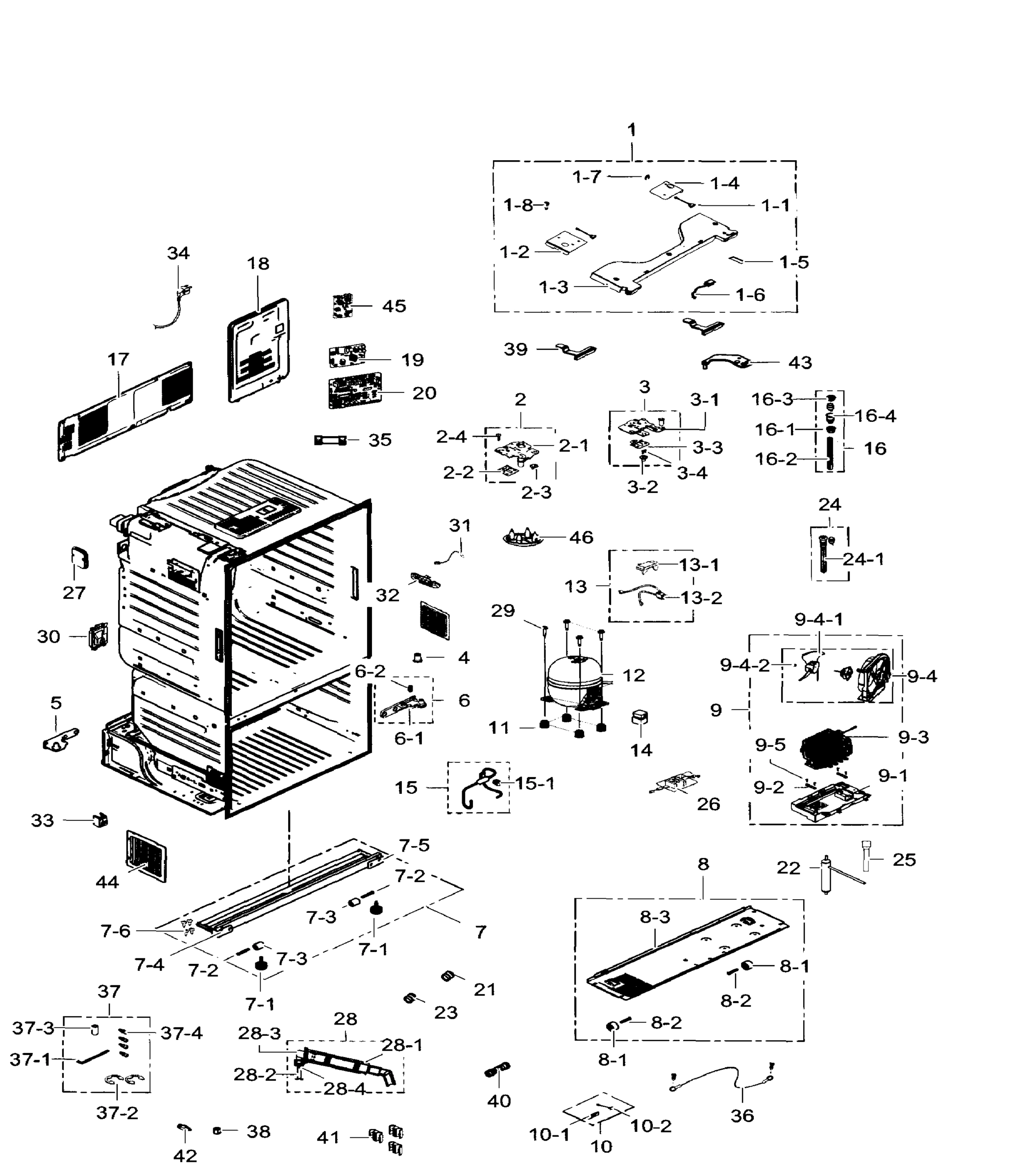

1

DA97-14978A Samsung Assembly Refrigerator Top Backorder SMG DA97-14978A $144.54

1-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $24.47

1-1

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.49

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $14.51

1-2

DA61-09950A Samsung Refrigerator Middle Door Backorder SMG DA61-09950A $1.99

1-3

DA61-02383E Samsung Refrigerator Door Closing Backorder SMG DA61-02383E $4.65

1-3

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $7.05

1-4

DA61-04335A Samsung Refrigerator Handle Sprin Backorder SMG DA61-04335A $1.17

1-4

DA97-14992A Samsung Refrigerator Auto Close A Backorder SMG DA97-14992A $24.47

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $7.47

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.91

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $16.58

1-6

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.87

1-6

DA61-08234A Samsung Refrigerator Slider Assem Backorder SMG DA61-08234A $3.73

1-7

DA41-00676G Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00676G $41.72

1-7

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $1.67

1-8

DA47-00318A Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318A $106.23

1-8

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.71

1-8

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.24

1-9

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

1-10

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $18.32

1-12

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.92

1-13

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $56.89

1-17

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $0.92

1-51

DA66-00440A Samsung Refrigerator Auto Close R In Stock SMG DA66-00440A $1.24

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $27.29

2

DA97-12522J Samsung Refrigerator Freezer Door Backorder SMG DA97-12522J $174.44

2

DA97-12573A Samsung Refrigerator Upper Left H In Stock SMG DA97-12573A $60.53

2

DA97-12690A Samsung Refrigerator Evaporator C Backorder SMG DA97-12690A $183.25

2

DA97-13015E Samsung Refrigerator Door Gasket In Stock SMG DA97-13015E $113.81

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $49.61

2-1

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $117.25

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl In Stock SMG DA66-00950A $4.56

2-6

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $3.73

2-7

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.31

3

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $5.80

3

DA97-12638A Samsung Refrigerator Upper Tray A Backorder SMG DA97-12638A $174.44

3

DA97-14976A Samsung Refrigerator Upper Right Backorder SMG DA97-14976A $54.22

3

DA97-15014A Samsung Refrigerator Door Handle Backorder SMG DA97-15014A $211.24

3

Refrigerator door handle SMG DA97-12715C Contact Us For Availability

3-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $7.47

3-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $9.11

3-2

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $56.54

3-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $22.38

3-2

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $4.15

3-4

DA67-02788A Samsung Refrigerator Handle Suppo Backorder SMG DA67-02788A $10.78

3-6

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.56

3-8

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.24

4

DA61-08294A Samsung Refrigerator Front Hanger Backorder SMG DA61-08294A $75.95

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.67

4

DA97-13829C Samsung Refrigerator Ice Route Gu In Stock SMG DA97-13829C $135.33

4-1

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $79.39

4-1

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $23.22

4-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $9.53

4-2

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.07

4-3

DA61-09951A Samsung Refrigerator Low Door Sto Backorder SMG DA61-09951A $83.33

4-4

DA63-07545B Samsung Refrigerator Middle Hinge Backorder SMG DA63-07545B $2.49

4-5

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $0.92

4-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $41.07

4-6

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $15.76

5

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.15

5

DA97-12624A Samsung Refrigerator French Door In Stock SMG DA97-12624A $138.48

5

DA97-13915D Samsung Refrigerator Door Gasket Backorder SMG DA97-13915D $89.29

5-4

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $4.56

5-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

5-11

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.15

5-12

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.15

5-13

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.22

6

DA97-12861B Samsung Refrigerator Low Hanger In Stock SMG DA97-12861B $208.40

6

DA97-14977A Samsung Refrigerator Right Hand M Backorder SMG DA97-14977A $140.39

6

DA97-14996A Samsung Refrigerator Lower Right Backorder SMG DA97-14996A $130.08

6-2

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.24

6-7

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.80

6-21

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

6-31

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

7

DA97-12682A Samsung Refrigerator Folding Shel Backorder SMG DA97-12682A $98.48

7

DA97-12712C Samsung Refrigerator Freezer Door In Stock SMG DA97-12712C $133.62

7

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $42.38

7-1

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $5.80

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

7-2

DA67-02787A Samsung Refrigerator Freezer Door In Stock SMG DA67-02787A $9.94

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

7-3

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $9.53

7-4

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $23.63

7-4

DA63-06389E Samsung Refrigerator Front Left C Backorder SMG DA63-06389E $3.31

7-5

Refrigerator door handle set screw SMG 6009-001526 No Longer Available

7-5

DA63-06405D Samsung Refrigerator Front Right Backorder SMG DA63-06405D $3.31

8

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $52.25

8-1

DA63-06945A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-06945A $57.20

8-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $9.96

8-5

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

9-4

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $9.11

9-4

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $152.80

9-5

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $36.14

9-11

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.92

9-41

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $20.31

9-72

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $12.02

10

DA97-07603B Samsung Refrigerator Ice Maker In Stock SMG DA97-07603B $167.62

10-1

DA61-05227A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-05227A $35.39

10-2

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $19.49

10-2

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $28.77

10-3

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $0.92

10-3

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.07

10-4

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $27.65

10-4

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $4.98

10-5

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $118.03

10-5

DA61-05435A Samsung Refrigerator Ice Maker Sh In Stock SMG DA61-05435A $4.98

10-6

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $129.08

10-6

DA97-14447B Samsung Refrigerator Latour Rolle Backorder SMG DA97-14447B $15.34

11

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $11.20

11

DA97-11292B Samsung Refrigerator Vegetable Ra Backorder SMG DA97-11292B $31.71

12

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $162.92

12

DA97-12687F Samsung Refrigerator Left Vegetab Backorder SMG DA97-12687F $131.63

12

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $289.71

13

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $172.38

13

DA97-12668A Samsung Refrigerator Filter Tank In Stock SMG DA97-12668A $257.03

13-1

DA97-08006G Samsung Refrigerator White Case F Backorder SMG DA97-08006G $85.49

13-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $49.61

13-7

DA60-00258C Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258C $25.80

13-8

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $18.65

14

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $11.60

14

DA72-60040W Samsung Refrigerator Seal-Cutt Ru Backorder SMG DA72-60040W $1.24

14

DA97-12686F Samsung Refrigerator Right Vegeta Backorder SMG DA97-12686F $123.53

15

DA63-06953A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-06953A $35.03

15

DA97-11291B Samsung Refrigerator Right Slide Backorder SMG DA97-11291B $39.77

16

DA63-06952A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-06952A $35.03

16

DA97-12689A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-12689A $182.44

16-1

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $37.61

17

Refrigerator pantry shelf slide rail cover SMG DA97-12635A Contact Us For Availability

19

DA97-12637A Samsung Refrigerator Pantry Slide Backorder SMG DA97-12637A $84.15

19-1

DA63-06910A Samsung Refrigerator Slide Pantry Backorder SMG DA63-06910A $36.51

19-2

DA63-06911A Samsung Refrigerator Pantry Slide Backorder SMG DA63-06911A $39.82

20

DA97-06324C Samsung Refrigerator Motor Damper In Stock SMG DA97-06324C $106.23

20-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $150.48

20-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $19.49

21-1

DA61-06186B Samsung Refrigerator Drain Plate In Stock SMG DA61-06186B $39.45

21-2

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $4.98

21-3

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $18.59

21-5

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $108.11

21-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.87

21-7

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

21-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $0.99

22

DA97-12608A Samsung Refrigerator Evaporator C Backorder SMG DA97-12608A $167.38

22-2

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $9.97

23

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $222.00

23-1

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $177.25

23-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $73.94

23-3

DA96-00682D Samsung Refrigerator Auger Motor In Stock SMG DA96-00682D $100.54

23-6

DA74-40151G Samsung Refrigerator Ice Dispense In Stock SMG DA74-40151G $96.04

24

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $173.14

24-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $4.98

24-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $3.31

24-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $2.49

25

DA97-12634A Samsung Refrigerator Pantry Case Backorder SMG DA97-12634A $174.44

25-4

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $11.20

26

DA97-12654A Samsung Refrigerator Cap Angle As Backorder SMG DA97-12654A $1.99

27

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $20.15

28

DA97-00209Z Samsung Refrigerator Water Pipe F In Stock SMG DA97-00209Z $79.68

28-1

DA47-00192E Samsung Refrigerator Ice Maker Fi In Stock SMG DA47-00192E $57.20

32

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.31

42

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

45

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $120.19

1310

DA97-11283E Samsung Refrigerator Water Tank A Backorder SMG DA97-11283E $91.44

1311

DA62-02429G Samsung Refrigerator Water Line P Backorder SMG DA62-02429G $6.22

2242

DA81-06013A Samsung Refrigerator Evaporator F In Stock SMG DA81-06013A $91.18

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.24

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.24

DA66-00437F Samsung Gear Shaft Refrigerator Backorder SMG DA66-00437F $49.94

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $12.44

DA97-12815B Samsung Refrigerator Evaporator F In Stock SMG DA97-12815B $108.31

DA97-13386A Samsung Refrigerator Roller Assem Backorder SMG DA97-13386A $10.07

Refrigerator roller SMG DA66-00548A Contact Us For Availability
