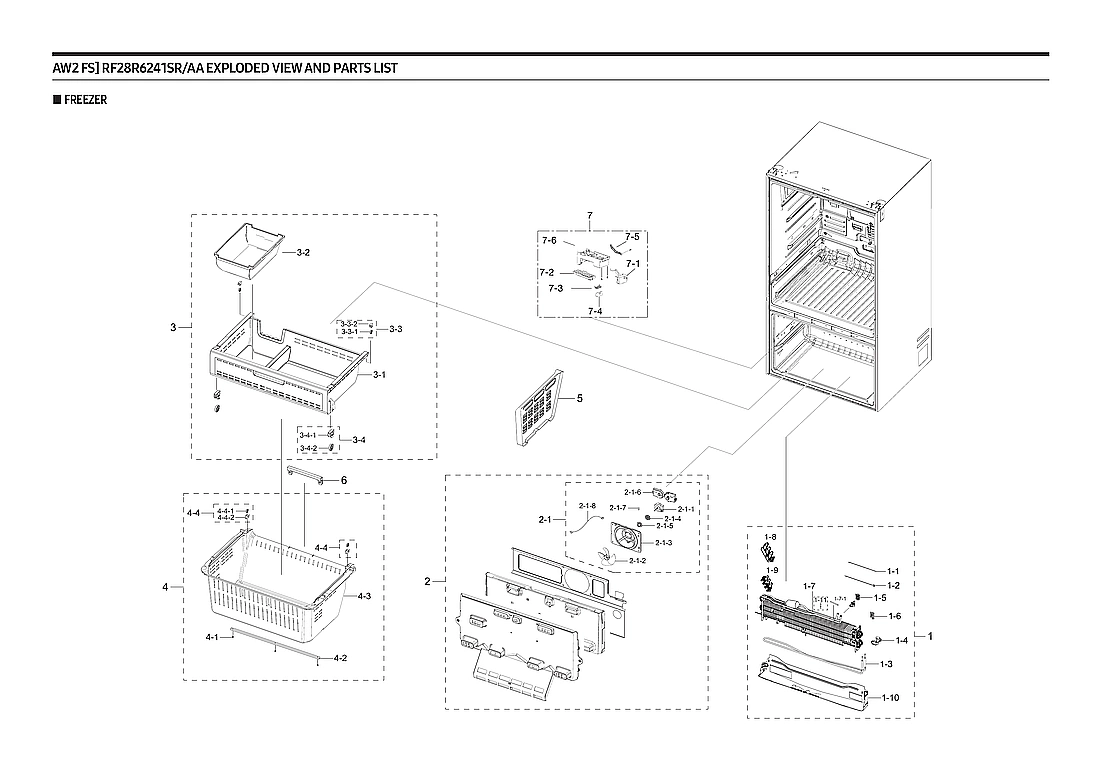

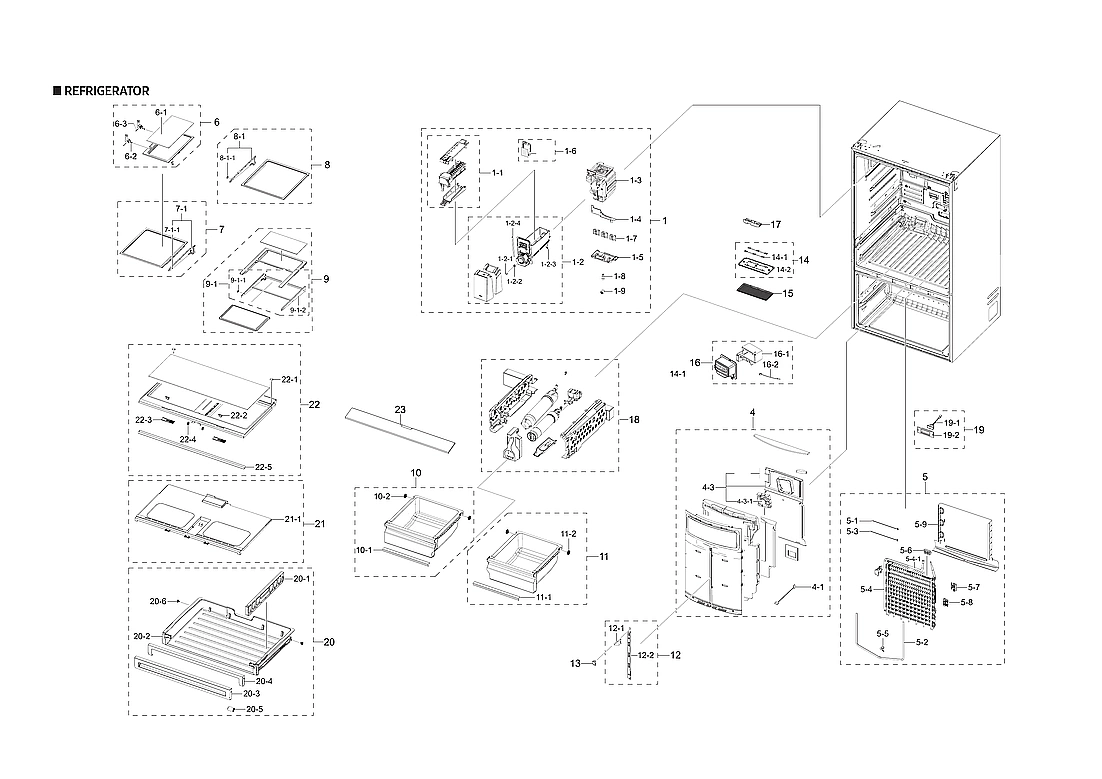

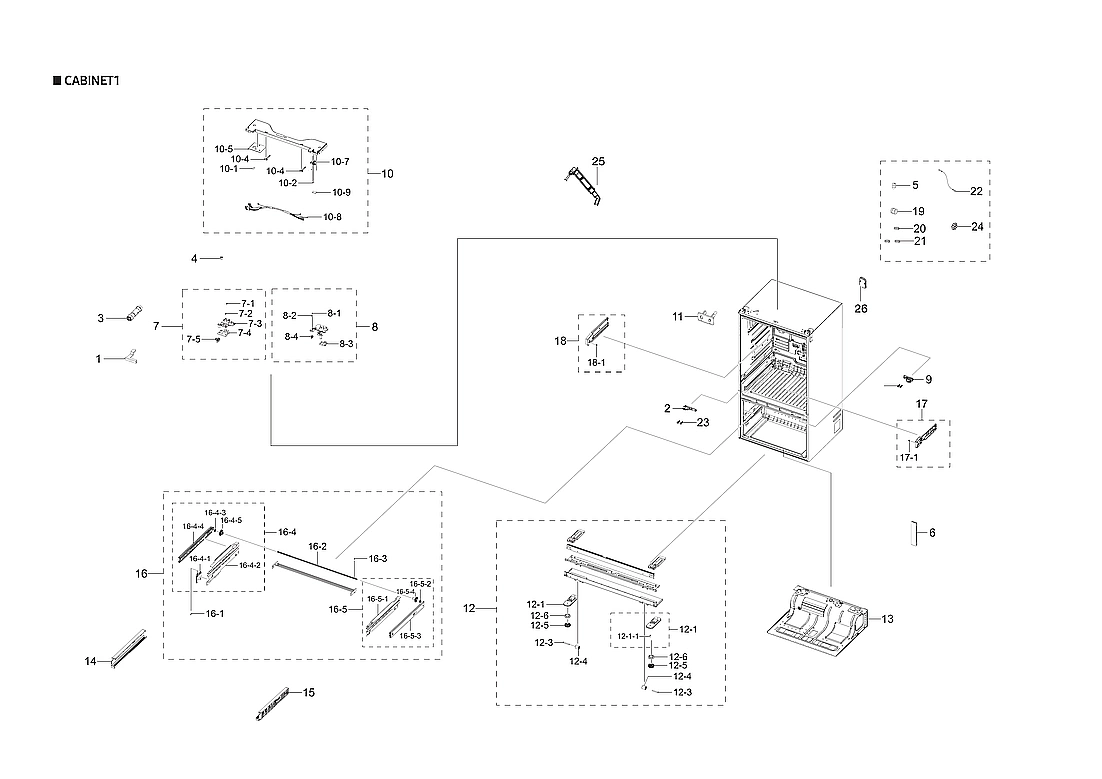

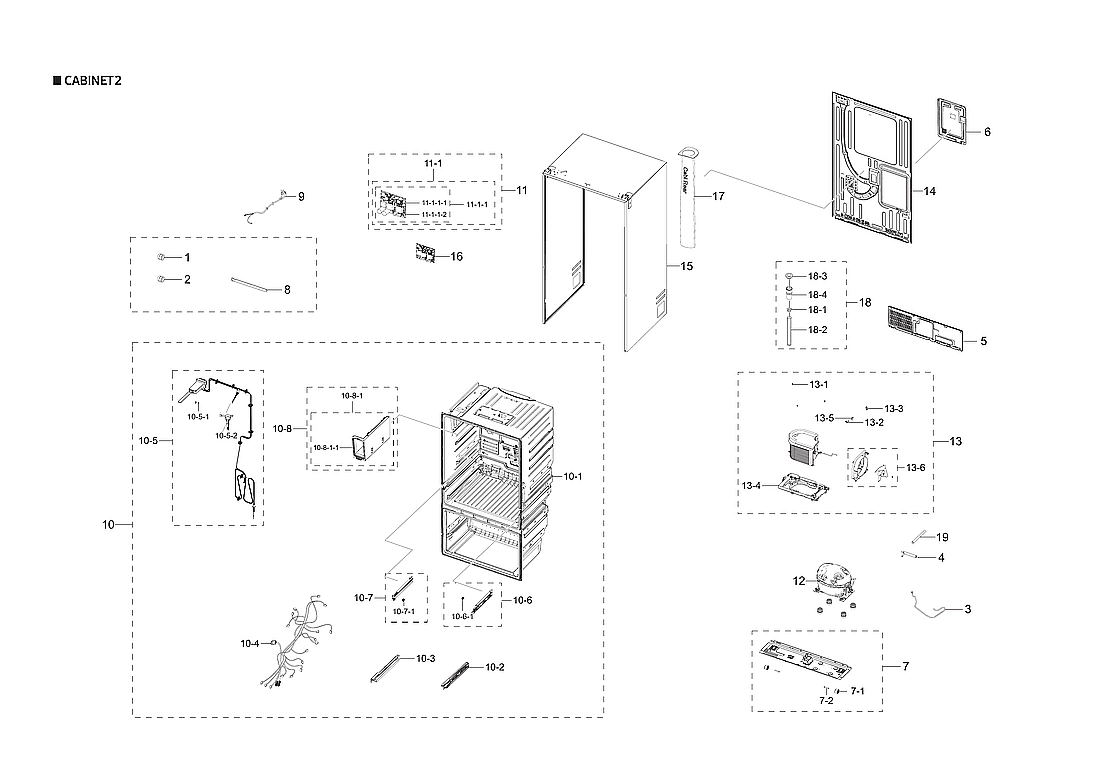

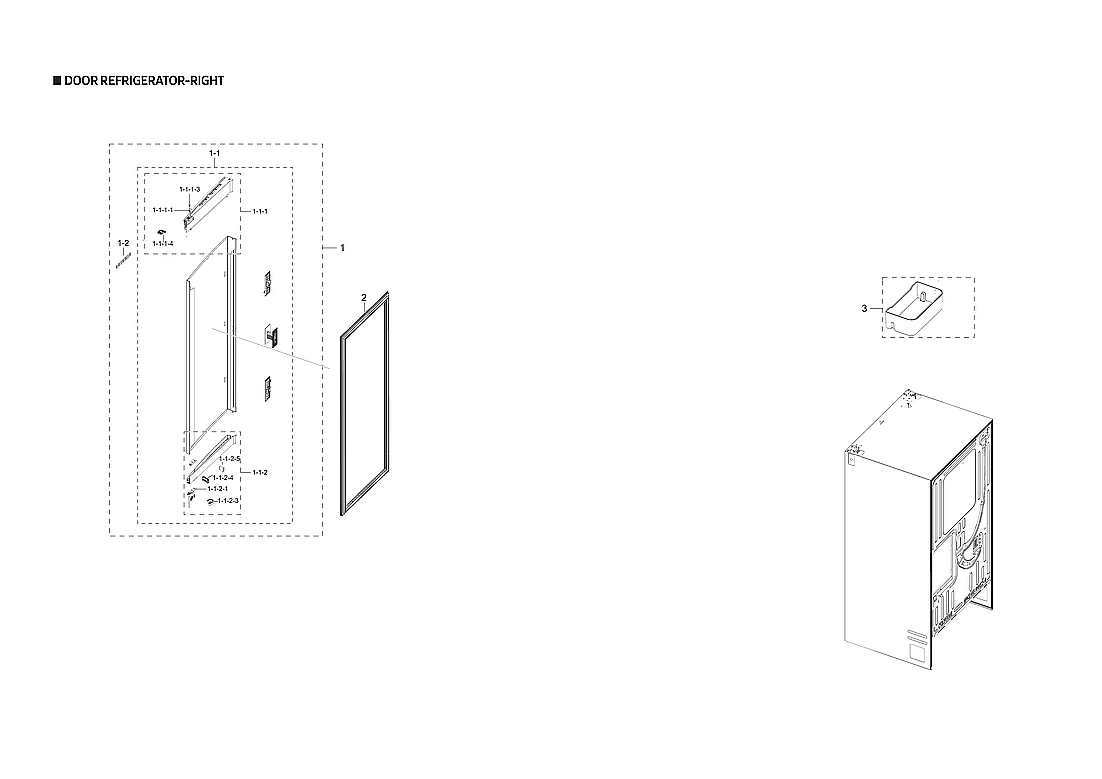

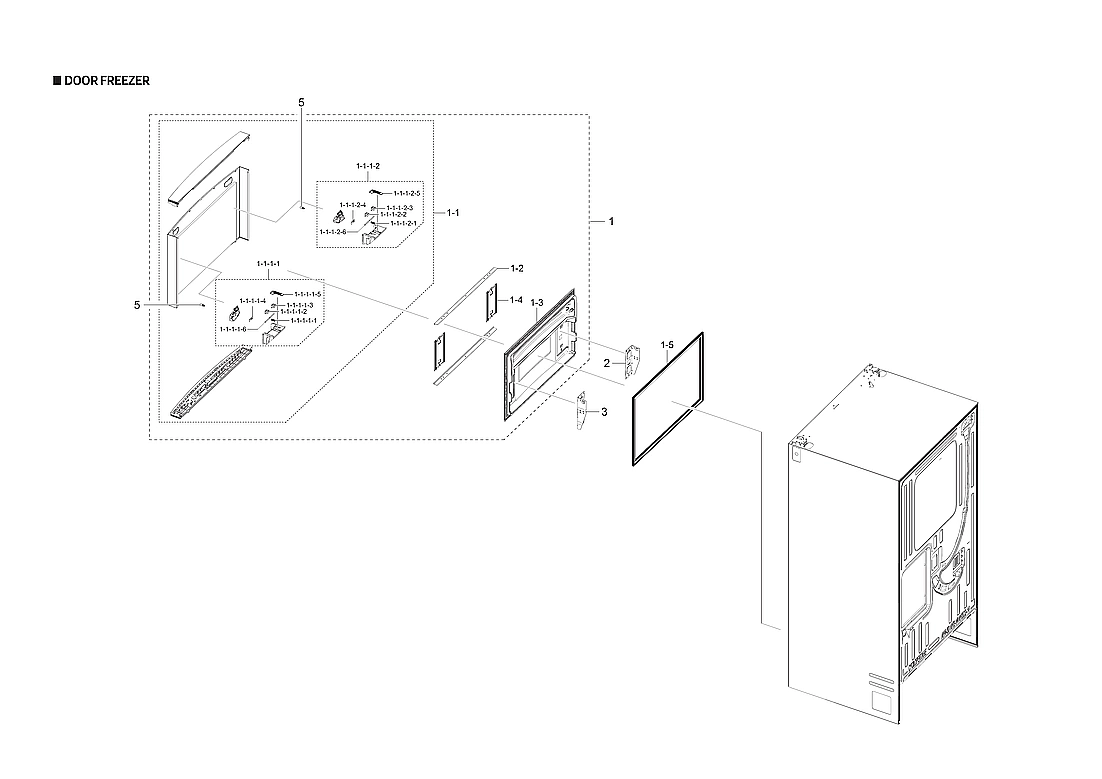

Model Samsung RF28R6241SR/AA-00 Bottom-Mount Refrigerator – Common Parts &amp; Diagrams

1

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

1-1

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $99.55

1-1

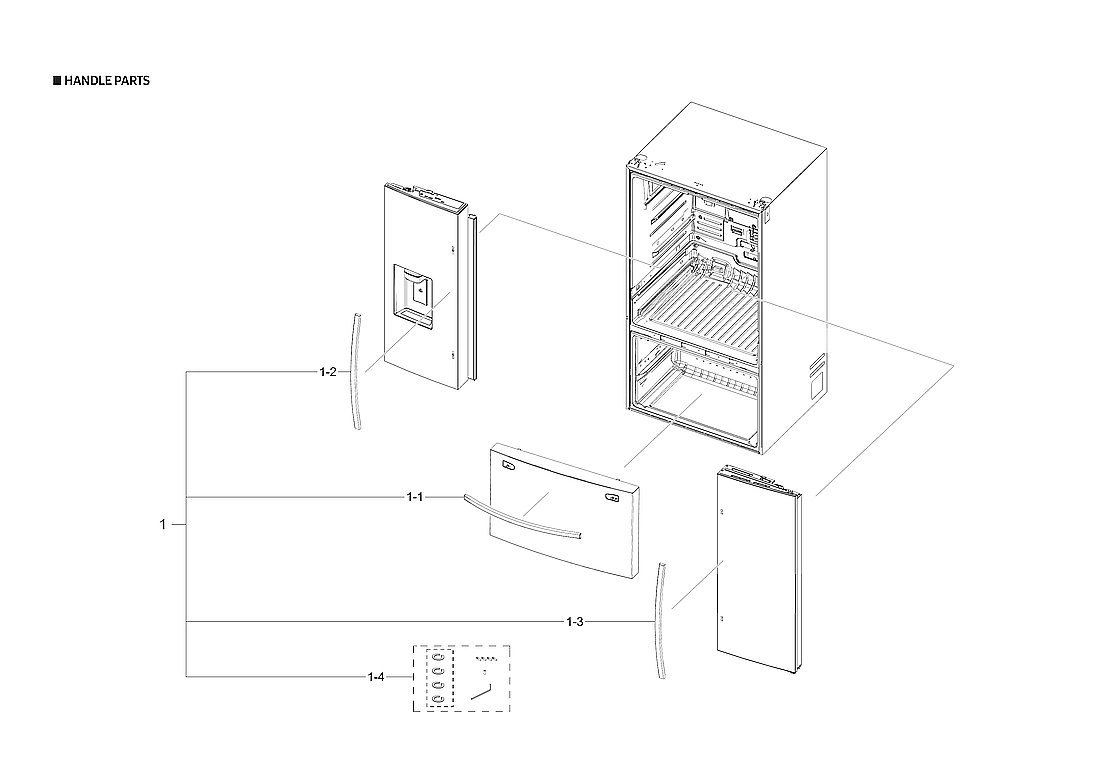

Refrigerator freezer door handle assembly SMG DA97-20017A Contact Us For Availability

1-1-1

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $14.29

1-1-4-1

DA61-08816A Samsung Refrigerator Door Stopper Backorder SMG DA61-08816A $28.26

1-1-4-2

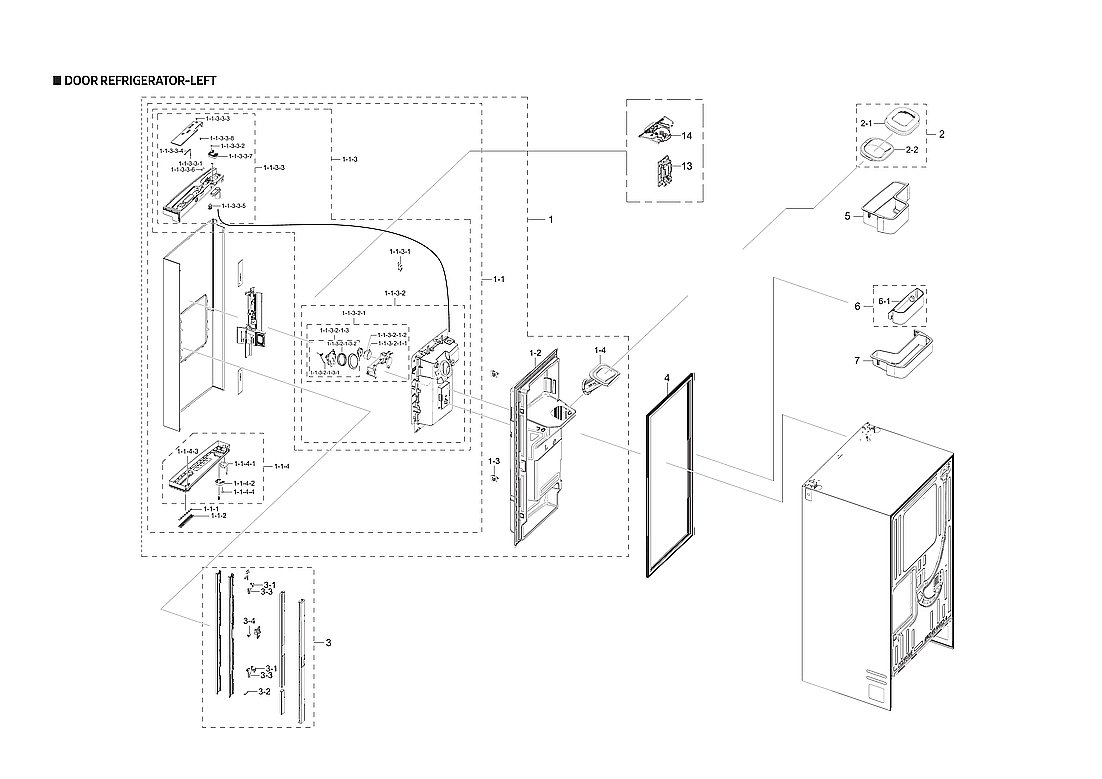

DA61-10856B Samsung Refrigerator Left Door Su Backorder SMG DA61-10856B $7.36

1-1-4-3

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.32

1-1-4-4

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

DA47-00301B Samsung Refrigerator Thermal Fuse In Stock SMG DA47-00301B $22.47

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $32.04

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $166.66

DA97-20021A Samsung Refrigerator Left Handle In Stock SMG DA97-20021A $116.82

1-2-2

DA60-30108A Samsung Refrigerator Hex Nut Backorder SMG DA60-30108A $3.09

1-2-3

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $4.65

1-2-4

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $2.32

1-3

DA47-00318M Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318M $109.58

1-3

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $219.16

1-3

Refrigerator door handle, right SMG DA97-20019A Contact Us For Availability

1-4

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $6.97

1-4

DA63-06894A Samsung Refrigerator Ice Maker Wi In Stock SMG DA63-06894A $10.47

1-5

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.36

1-6

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $16.27

1-7

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $19.76

1-8

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $17.06

1-9

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.20

2

DA61-10859A Samsung Refrigerator Left Middle Backorder SMG DA61-10859A $80.91

2

DA97-08541A Samsung Refrigerator Evaporator C In Stock SMG DA97-08541A $276.28

2

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $48.82

2-1

DA63-08248A Samsung Gasket Refrigerator Backorder SMG DA63-08248A $29.30

2-1

DA96-01177A Samsung Refrigerator Fan Motor Backorder SMG DA96-01177A $148.99

2-1-1

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $109.58

2-1-2

DA31-00230A Samsung Refrigerator Fan Assembly Backorder SMG DA31-00230A $55.71

2-1-4

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $3.50

2-1-5

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.09

2-1-8

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $15.50

2-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $9.30

3

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $57.70

3

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $32.04

3

DA97-12624A Samsung Refrigerator French Door In Stock SMG DA97-12624A $129.42

3

DA97-14314B Samsung Refrigerator Right Guard Backorder SMG DA97-14314B $96.33

3-1

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.65

3-2

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $53.44

3-3

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $6.97

3-4

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $4.26

3-4-1

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $2.98

3-4-2

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $2.71

4

DA62-04309F Samsung Refrigerator Single Dryer Backorder SMG DA62-04309F $28.60

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.56

4

DA97-06276E Samsung Refrigerator Drawer Tray Backorder SMG DA97-06276E $123.67

4

DA97-12608B Samsung Refrigerator Evaporator F Backorder SMG DA97-12608B $190.10

4-1

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $9.97

4-3-1

DA31-00287A Samsung Refrigerator Box Fan BLDC Backorder SMG DA31-00287A $105.65

5

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $3.88

5

DA97-12749B Samsung Refrigerator Compressor C Backorder SMG DA97-12749B $129.92

5-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $17.37

5-2

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $87.48

5-3

DA47-00301D Samsung Refrigerator Defrost Sens In Stock SMG DA47-00301D $19.76

5-5

DA61-03644A Samsung Refrigerator Defrost Evap In Stock SMG DA61-03644A $7.36

5-8

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $4.65

5-9

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $36.87

6

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $38.94

7

DA97-07603B Samsung Refrigerator Ice Maker In Stock SMG DA97-07603B $156.66

7

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $56.56

7-1

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $165.34

7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.42

7-2

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $26.88

7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.26

7-3

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $46.37

7-3

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $1.94

7-4

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $25.84

7-5

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $4.26

8

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $52.30

8-4

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $3.88

9

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $52.52

10

Samsung refrigerator crisper drawer, left SMG DA97-08438G Contact Us For Availability

10-2

DA61-07329A Samsung Refrigerator Right Hand U In Stock SMG DA61-07329A $161.11

10-3

DA61-07328A Samsung Refrigerator Freezer Rail In Stock SMG DA61-07328A $152.26

10-5

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $13.56

10-6

DA97-11291A Samsung Refrigerator Right Vegeta In Stock SMG DA97-11291A $31.02

10-7

DA64-04477B Samsung Refrigerator Table Top As Backorder SMG DA64-04477B $61.40

10-8-2-1

DA97-13405A Samsung Refrigerator Ice Room Cas Backorder SMG DA97-13405A $205.34

10-9

DA92-00817A Samsung Refrigerator Module Buzze Backorder SMG DA92-00817A $34.81

11

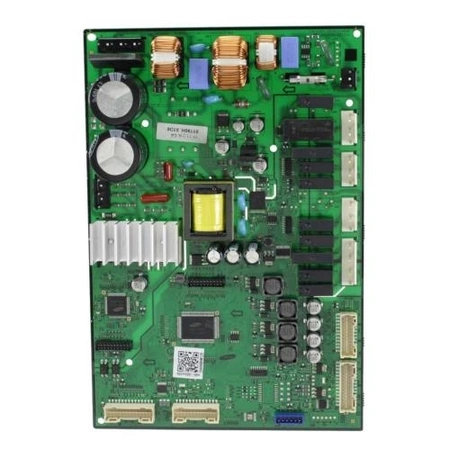

DA92-01190H Samsung Refrigerator Main PCB Backorder SMG DA92-01190H $226.44

11

DA97-08437G Samsung Refrigerator Right Drawer Backorder SMG DA97-08437G $87.48

12

NF54M7151ANTT3 Samsung Refrigerator R600A Com Backorder SMG NF54M7151ANTT3 $265.44

12-2

DA60-10123E Samsung Refrigerator Hex Bolt M6 In Stock SMG DA60-10123E $1.17

12-3

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.09

12-4

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $6.59

12-5

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $7.36

12-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.71

13

DA97-17297C Samsung Refrigerator Dispenser Le Backorder SMG DA97-17297C $90.12

13-6

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $142.79

14

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $107.04

14

DA97-17299E Samsung Refrigerator Assembly Dis In Stock SMG DA97-17299E $187.51

15

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $66.43

16

DA92-00945F Samsung Refrigerator Fuse Block P Backorder SMG DA92-00945F $49.74

16

DA97-07189E Samsung Refrigerator Motor Damper In Stock SMG DA97-07189E $138.73

16-1

DA31-00071G Samsung Refrigerator DC Motor Dam In Stock SMG DA31-00071G $140.64

16-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $18.21

16-4-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.33

16-4-4

Refrigerator freezer basket slide rail assemb SMG DA61-09087A Contact Us For Availability

16-5-3

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $145.80

17

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $5.42

18

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $22.40

18

DA97-11541B Samsung Refrigerator Left Pantry Backorder SMG DA97-11541B $43.30

19-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $18.21

20-1

DA61-04290A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04290A $96.84

20-4

DA63-04276B Samsung Refrigerator Pantry Trim Backorder SMG DA63-04276B $31.37

22

Refrigerator crisper drawer cover assembly SMG DA97-20333A Contact Us For Availability

22-1

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $0.92

22-5

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $118.03

23

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $1.56

23

DA97-20341A Samsung Refrigerator Pantry Slide Backorder SMG DA97-20341A $104.55

25

DA97-00209Z Samsung Refrigerator Water Pipe F Backorder SMG DA97-00209Z $74.46

1131

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $8.91

11321

Refrigerator dispenser ice chute door and mot SMG DA97-17296A Contact Us For Availability

11331

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.92

11333

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

11334

DA32-00074A Samsung Refrigerator 5V Humidity Backorder SMG DA32-00074A $63.11

11335

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $16.29

11336

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $1.94

11337

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $15.50

11338

DA67-02795B Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795B $26.54

113212

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $74.19

1132131

DA61-01914A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01914A $2.71

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $1.94

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $18.94

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.17

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $1.56

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.71

DA61-08234A Samsung Refrigerator Slider Assem Backorder SMG DA61-08234A $3.50

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.17

DA66-00579B Samsung Refrigerator Handle Cap S Backorder SMG DA66-00579B $5.42
