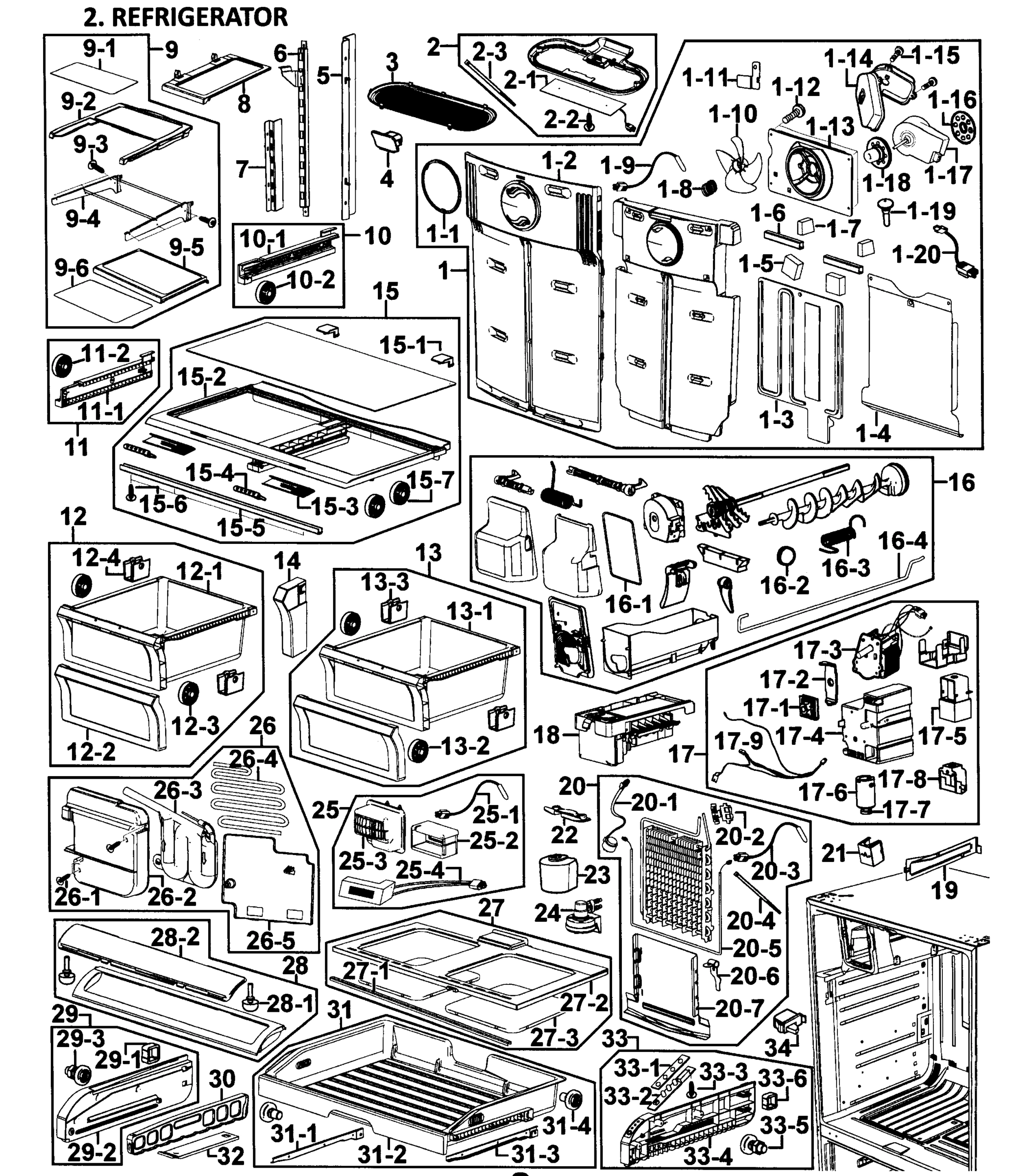

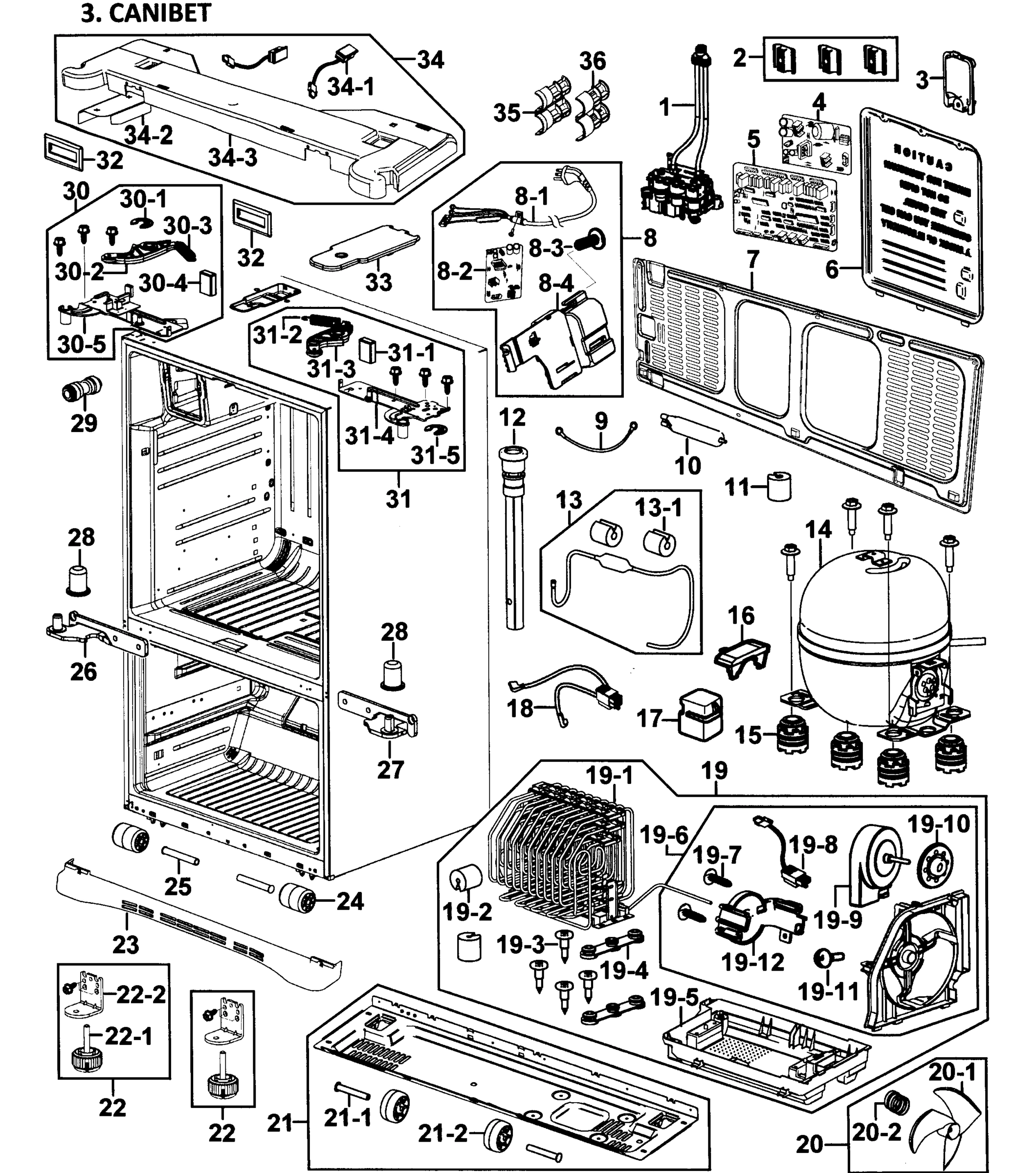

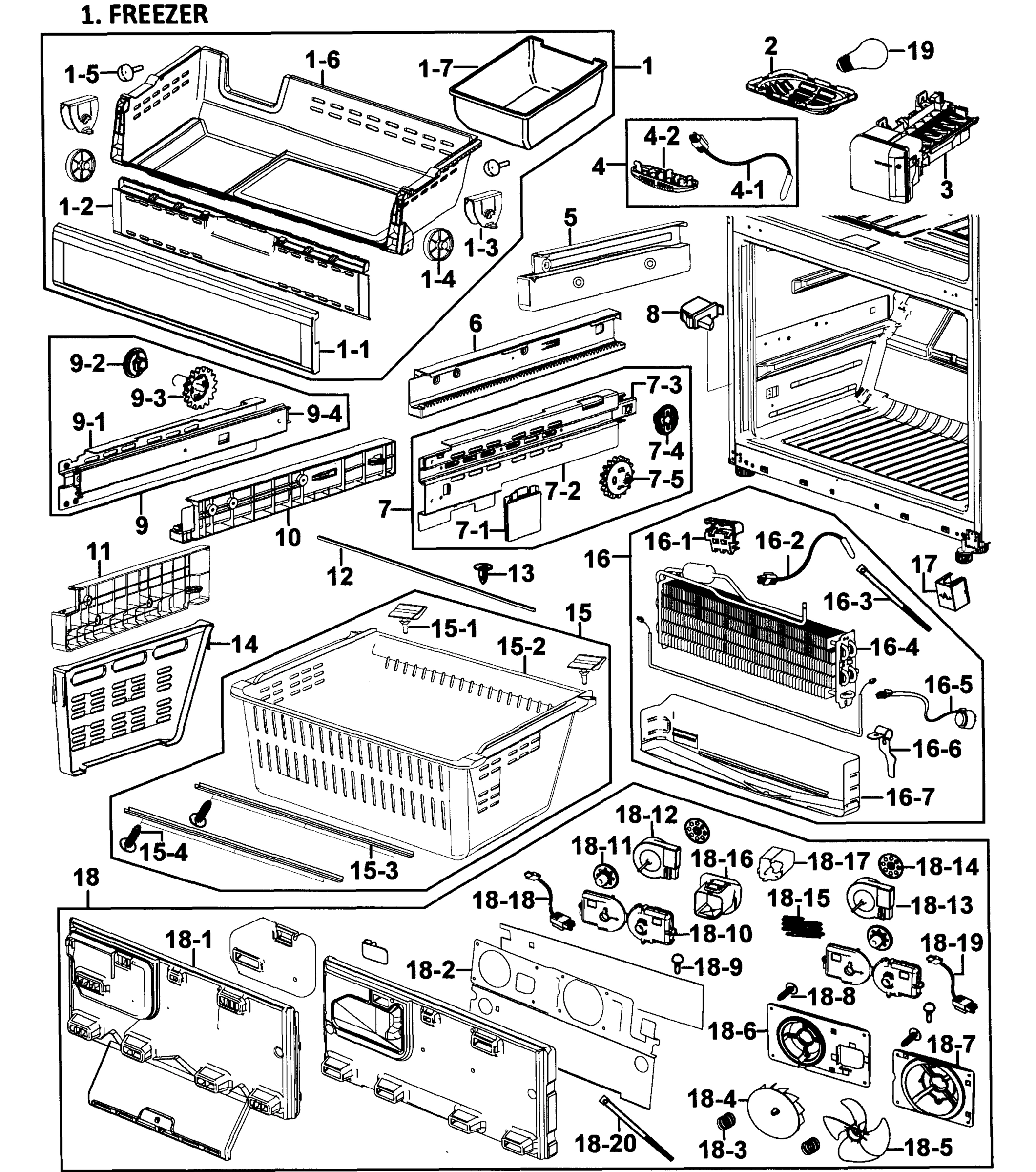

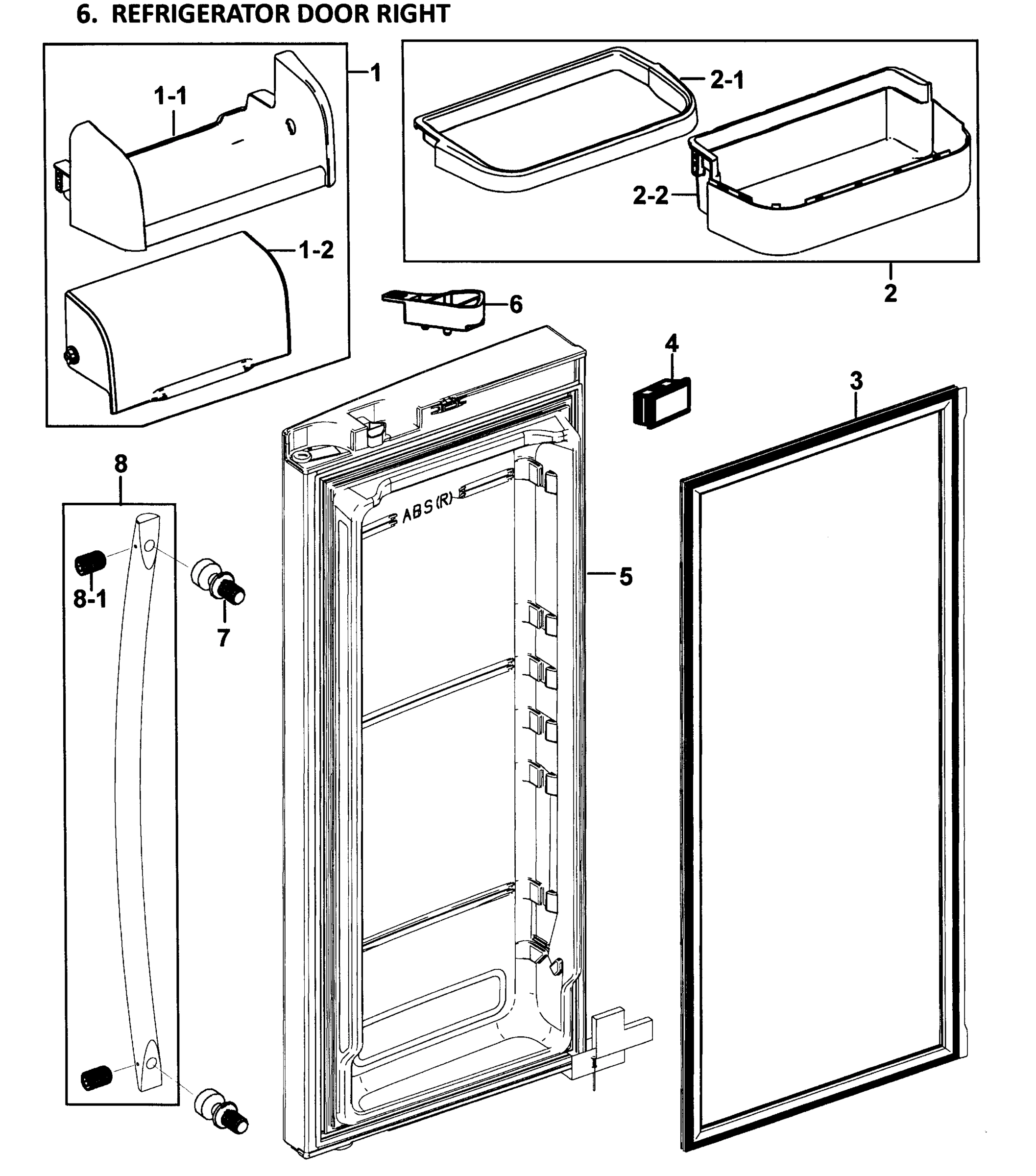

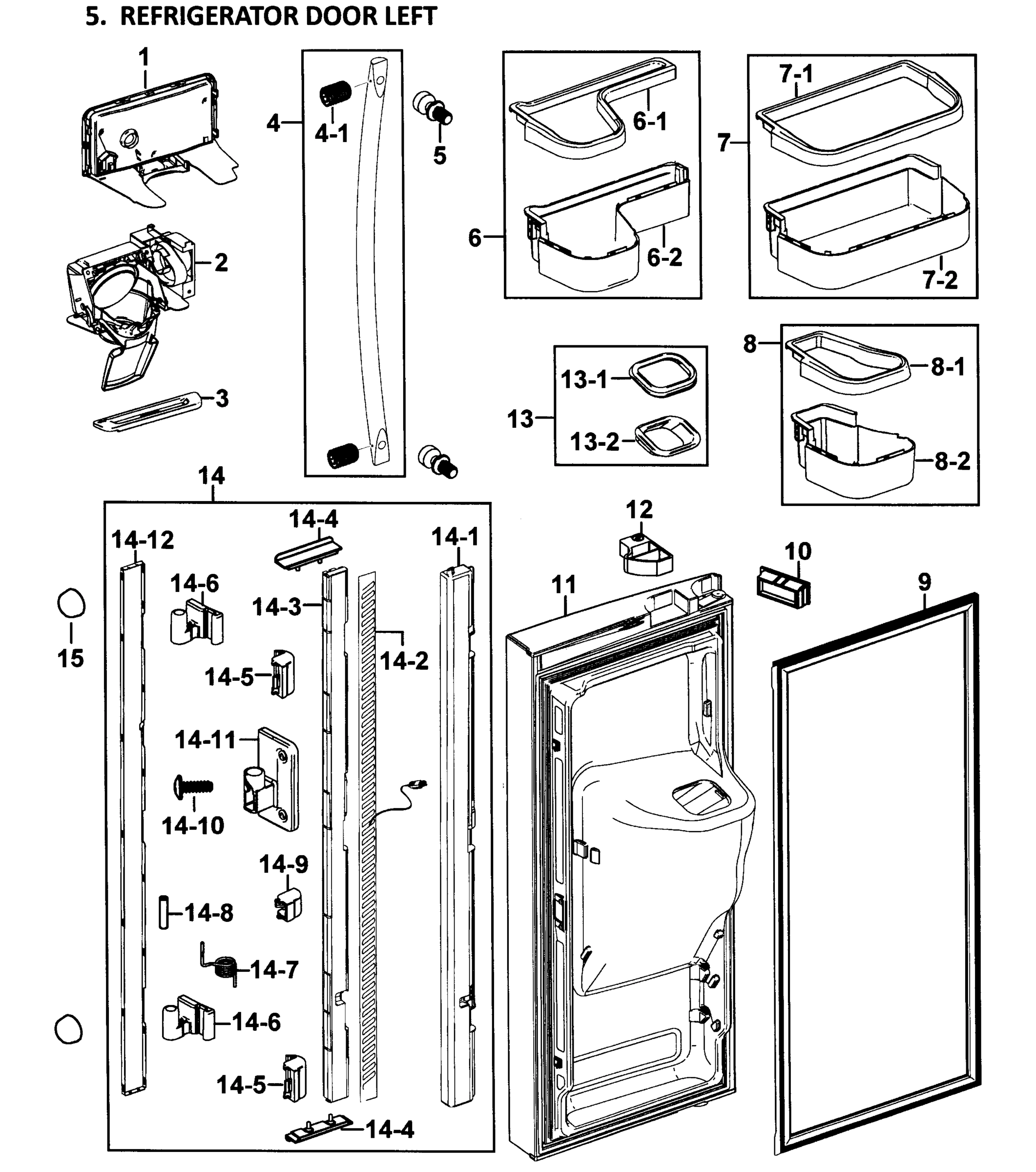

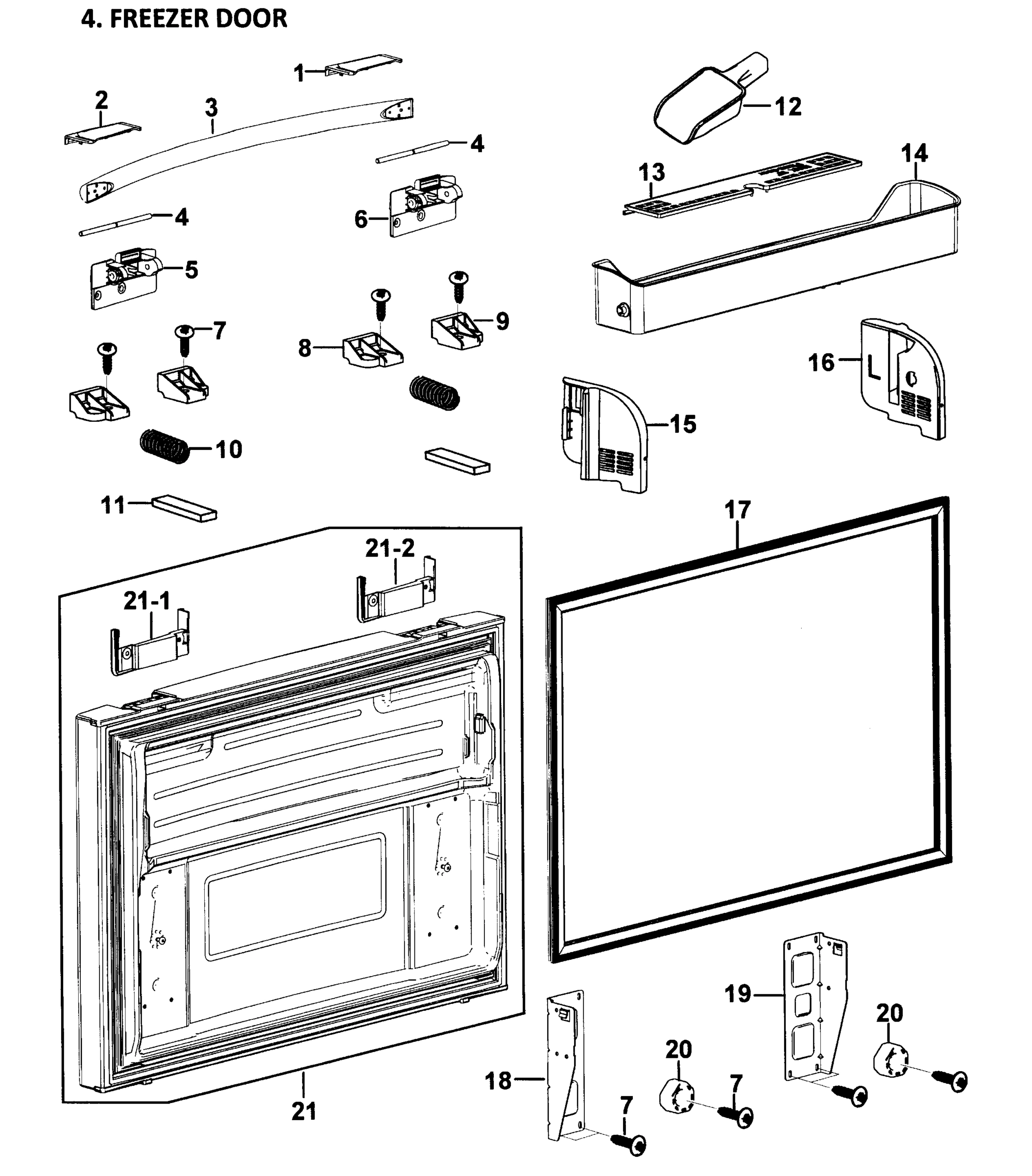

Model Samsung RF268ABWP/XAA-00 Refrigerator – Common Parts &amp; Diagrams

1

Refrigerator Water Inlet Valve SMG DA97-07695A Contact Us For Availability

1

Refrigerator dispenser control board and pane SMG DA97-05401R Contact Us For Availability

1

Refrigerator dairy bin and cover SMG DA97-04881B Contact Us For Availability

1-1

DA63-03455A Samsung Refrigerator Dairy Guard Backorder SMG DA63-03455A $34.22

1-2

DA63-04139B Samsung Refrigerator Evaporator C Backorder SMG DA63-04139B $68.44

1-2

Refrigerator dairy bin cover SMG DA63-03462A Contact Us For Availability

1-3

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $7.70

1-3

Refrigerator Evaporator Insulation SMG DA62-01382A Contact Us For Availability

1-4

DA61-03186C Samsung Refrigerator Evaporator I Backorder SMG DA61-03186C $31.00

1-5

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.52

1-7

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $55.24

1-9

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $18.10

1-10

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

1-11

DA61-03599A Samsung Refrigerator Galvanized H Backorder SMG DA61-03599A $1.81

1-13

DA61-03181A Samsung Refrigerator Bubble Pjt A Backorder SMG DA61-03181A $13.12

1-17

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $126.00

1-20

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $130.23

2

DA97-07361A Samsung Refrigerator Ice Route Ca Backorder SMG DA97-07361A $178.81

2

Refrigerator freezer handle cover, right SMG DA63-04248C Contact Us For Availability

2-1

DA96-00398G Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-00398G $101.12

2-2

DA63-03461A Samsung Refrigerator Guard Cover Backorder SMG DA63-03461A $15.38

3

DA63-03695B Samsung Refrigerator Dispenser Tr In Stock SMG DA63-03695B $22.18

4

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $7.70

4

DA67-01688A Samsung Refrigerator Angle Cap As Backorder SMG DA67-01688A $0.97

4

Refrigerator Inverter SMG DA41-00614F Contact Us For Availability

4-2

DA32-10105B Samsung Refrigerator Temperature In Stock SMG DA32-10105B $16.29

5

DA41-00620C Samsung Refrigerator Main PCB Ass In Stock SMG DA41-00620C $206.36

5

DA61-04108A Samsung Refrigerator Upper Slide Backorder SMG DA61-04108A $118.40

5

Refrigerator door assembly SMG DA91-02927D Contact Us For Availability

6

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $37.83

6

DA66-00441C Samsung Refrigerator Auto Close C Backorder SMG DA66-00441C $4.98

6

DA97-05242A Samsung Refrigerator Assembly Dis Backorder SMG DA97-05242A $50.93

7

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.98

7

DA97-04878D Samsung Refrigerator Door Bin Gua Backorder SMG DA97-04878D $60.47

7-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.63

7-1

DA63-03456A Samsung Refrigerator Guard Backorder SMG DA63-03456A $36.63

7-4

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.35

7-5

Refrigerator Freezer Drawer Gear SMG DA66-00751A Contact Us For Availability

8

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.18

8

DA61-04255A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04255A $0.97

8

DA97-04957F Samsung Refrigerator Noise Filter Backorder SMG DA97-04957F $125.88

8

DA97-05240E Samsung Refrigerator Shelf Folder Backorder SMG DA97-05240E $106.37

8

Refrigerator door bin, left SMG DA97-05241A Contact Us For Availability

8

Refrigerator door handle assembly SMG DA97-11081A Contact Us For Availability

8-1

3903-000400 Samsung Power Cord Refrigerator In Stock SMG 3903-000400 $78.06

8-1

6004-001082 Samsung Refrigerator Screw Set Backorder SMG 6004-001082 $3.63

8-2

DA27-00019D Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019D $93.59

8-3

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.97

9

DA97-05253B Samsung Refrigerator Door Gasket In Stock SMG DA97-05253B $80.75

9

DA97-08806A Samsung Refrigerator Low Slide Ra Backorder SMG DA97-08806A $291.98

9

Refrigerator freezer door handle mounting blo SMG DA61-04254A Contact Us For Availability

9-3

Refrigerator Gear Rail SMG DA66-00750A Contact Us For Availability

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.42

DA61-04335B Samsung E Assembly Handle Spring In Stock SMG DA61-04335B $2.26

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $41.86

DA97-04839A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04839A $24.55

10-1

DA61-03172A Samsung Refrigerator Crisper Draw Backorder SMG DA61-03172A $22.62

11

DA61-04109A Samsung Refrigerator Upper Slide Backorder SMG DA61-04109A $128.18

11

DA61-04258A Samsung Refrigerator Handle Slide Backorder SMG DA61-04258A $1.81

11

DA97-04840A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04840A $23.08

11-1

DA61-03177A Samsung Refrigerator Vegetable Cr Backorder SMG DA61-03177A $23.99

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $30.59

DA66-00442B Samsung Refrigerator Auto Close C Backorder SMG DA66-00442B $4.07

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $19.01

DA97-04846A Samsung Refrigerator Vegetable Ca Backorder SMG DA97-04846A $125.88

13

DA97-00918E Samsung Refrigerator Connection P Backorder SMG DA97-00918E $57.75

13

DA97-05353A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-05353A $51.28

13-1

DA63-03698A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-03698A $47.50

13-2

DA67-01729A Samsung Refrigerator Ice Chute Ca Backorder SMG DA67-01729A $6.33

14

DA97-07244K Samsung Refrigerator French Assem Backorder SMG DA97-07244K $167.02

14

Refrigerator Compressor SMG BK190CL2C/E02 Contact Us For Availability

14-1

DA61-03234A Samsung Refrigerator French Door Backorder SMG DA61-03234A $49.85

14-5

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.07

14-6

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $2.72

14-7

DA81-01345B Samsung Refrigerator Door Spring In Stock SMG DA81-01345B $3.63

14-8

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $0.97

14-9

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.52

15

Refrigerator Drawer Cover SMG DA97-07019A Contact Us For Availability

15

Refrigerator freezer door shelf rail end cap SMG DA61-03763A Contact Us For Availability

15-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.35

15-4

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.97

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $25.77

DA61-03762A Samsung Refrigerator Left Side Su In Stock SMG DA61-03762A $15.38

DA97-10609A Samsung Refrigerator Ice Bucket T Backorder SMG DA97-10609A $183.36

Refrigerator Evaporator Assembly SMG DA96-00459E Contact Us For Availability

16-1

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.35

16-1

Refrigerator Ice Container Front Cover Gasket SMG DA63-03737A Contact Us For Availability

16-3

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $6.33

17

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $9.50

17

DA97-05246G Samsung Refrigerator Auger Motor In Stock SMG DA97-05246G $225.67

17

DA97-05557Y Samsung Freezer Door Gasket Assem In Stock SMG DA97-05557Y $142.00

17-2

Refrigerator Ice Dispenser Auger Drive Plate SMG DA61-01659B Contact Us For Availability

17-3

DA31-00105G Samsung Refrigerator Geared Auger Backorder SMG DA31-00105G $182.83

17-5

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $91.30

17-7

DA66-90003A Samsung Refrigerator Solenoid Gea Backorder SMG DA66-90003A $0.97

17-8

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $0.97

17-9

DA96-00036W Samsung Refrigerator Assembly wit Backorder SMG DA96-00036W $61.79

18

DA39-00154D Samsung Refrigerator Wire Harness Backorder SMG DA39-00154D $47.50

18

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $58.22

18

DA97-07906B Samsung Refrigerator Evaporator I Backorder SMG DA97-07906B $206.53

19

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $61.77

19

DA63-03691A Samsung Refrigerator Ice Room Har Backorder SMG DA63-03691A $9.96

19-3

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $0.97

19-6

DA97-07754C Samsung Refrigerator Circuit Moto Backorder SMG DA97-07754C $140.77

19-9

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $92.22

20

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $14.48

20

DA96-00762R Samsung Refrigerator Evaporator A Backorder SMG DA96-00762R $180.14

20-2

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.35

20-3

DA32-00006S Samsung Refrigerator Freezer Defr In Stock SMG DA32-00006S $21.71

20-5

DA47-00244Q Samsung Refrigerator Metal Sheath Backorder SMG DA47-00244Q $105.03

20-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $8.14

21-1

DA66-00649A Samsung Refrigerator Caster Shaft Backorder SMG DA66-00649A $3.63

21-2

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $4.98

24

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $5.89

25

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $2.26

25

Refrigerator Damper Motor Assembly SMG DA97-06324B Contact Us For Availability

25-1

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $19.45

25-3

DA63-04274A Samsung Refrigerator DC Motor Dam Backorder SMG DA63-04274A $10.40

26

DA97-07129A Samsung Refrigerator T/Water Cove Backorder SMG DA97-07129A $142.82

26-3

DA97-07150A Samsung Refrigerator Water Tank A Backorder SMG DA97-07150A $135.06

26-4

DA63-04674A Samsung Refrigerator Water Tank H Backorder SMG DA63-04674A $17.20

26-5

DA47-00295A Samsung Refrigerator Water Tank H Backorder SMG DA47-00295A $49.14

27

DA97-05370A Samsung Assembly Refrigerator Cri Backorder SMG DA97-05370A $188.66

27-1

DA61-03174A Samsung Refrigerator Reinforcemen Backorder SMG DA61-03174A $24.90

27-2

DA67-01781A Samsung Refrigerator Pantry Shelf Backorder SMG DA67-01781A $60.30

27-3

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $41.05

28

Refrigerator Crisper Drawer Slide Cover SMG DA97-05383E Contact Us For Availability

28-2

DA63-03764A Samsung Refrigerator Pantry Drawe Backorder SMG DA63-03764A $33.00

29

DA97-05371B Samsung Refrigerator Left Pantry Backorder SMG DA97-05371B $54.87

29-1

DA61-03176A Samsung Refrigerator Pantry Suppo Backorder SMG DA61-03176A $1.35

29-2

DA63-03762A Samsung Refrigerator Pantry Rail Backorder SMG DA63-03762A $41.86

29-3

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $12.22

30

DA61-03167A Samsung Refrigerator Cool White P Backorder SMG DA61-03167A $13.12

31

DA97-04847D Samsung Refrigerator Case Pantry Backorder SMG DA97-04847D $188.66

31-1

DA97-04837A Samsung Pantry Rail Assembly Backorder SMG DA97-04837A $24.55

31-2

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $6.33

31-2

Refrigerator Case SMG DA61-03164A Contact Us For Availability

31-3

DA97-04838A Samsung Refrigerator Right Pantry Backorder SMG DA97-04838A $25.36

31-4

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $16.29

32

DA61-03175A Samsung Refrigerator Pantry Suppo Backorder SMG DA61-03175A $6.33

33

Refrigerator Pantry Drawer Slide Cover Assemb SMG DA97-05384C Contact Us For Availability

33-1

DA64-02246C Samsung Refrigerator Control Pane Backorder SMG DA64-02246C $17.64

33-2

DA41-00423C Samsung Refrigerator Printed Circ Backorder SMG DA41-00423C $31.79

33-3

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.97

33-4

Refrigerator Slide Rail Cover, Right SMG DA63-03763A Contact Us For Availability

34

DA34-00033B Samsung Refrigerator Door Switch Backorder SMG DA34-00033B $49.14

34-1

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $26.25

1411

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.79

1810

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $11.77

1811

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.63

1813

DA31-00146E Samsung Refrigerator Evaporator F In Stock SMG DA31-00146E $120.24

1818

DA96-00042N Samsung Refrigerator Motor Wire H Backorder SMG DA96-00042N $14.48

1819

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $19.01

1910

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.07

NI

DA67-02270A Samsung Refrigerator Water Filter In Stock SMG DA67-02270A $1.37
