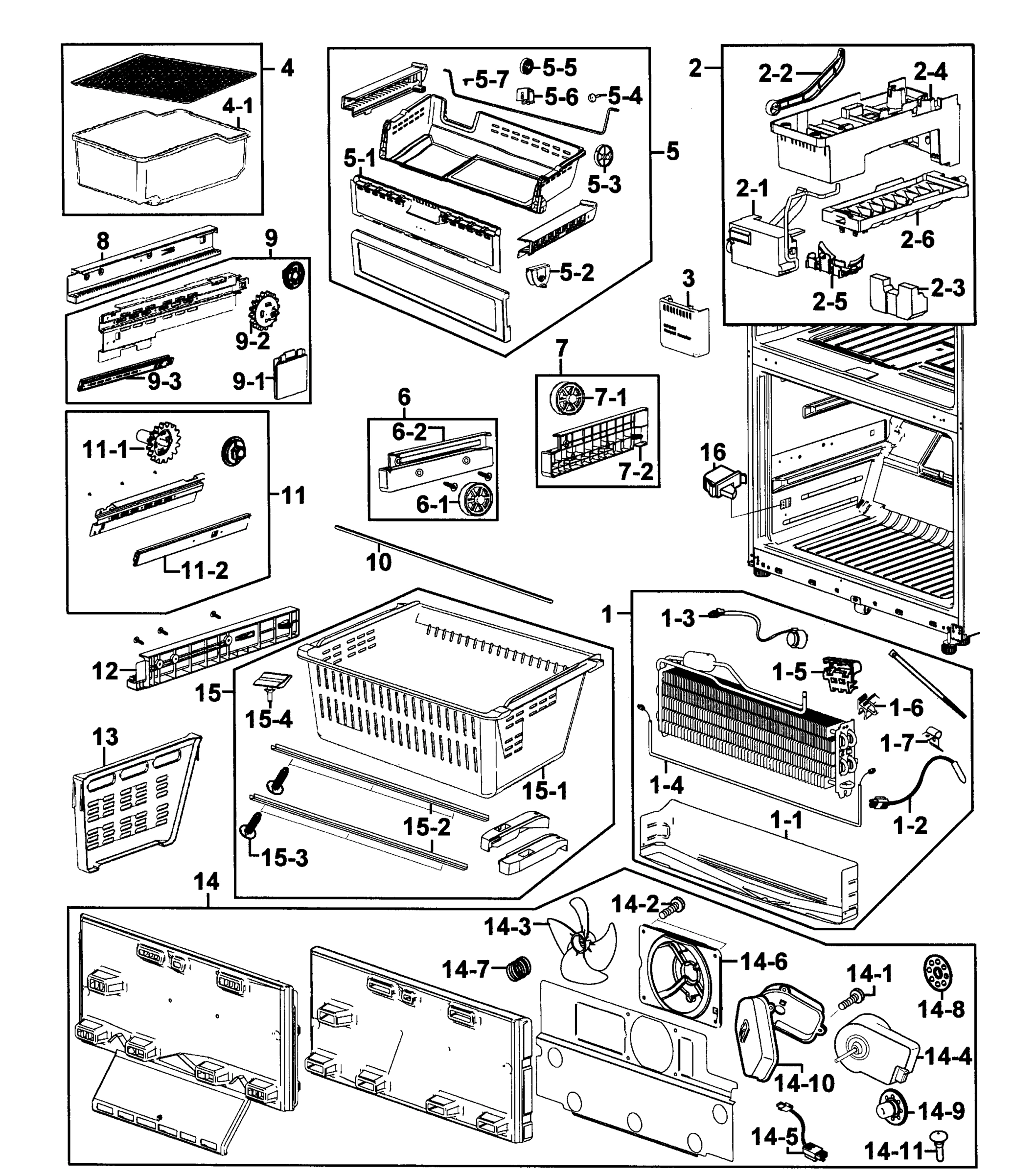

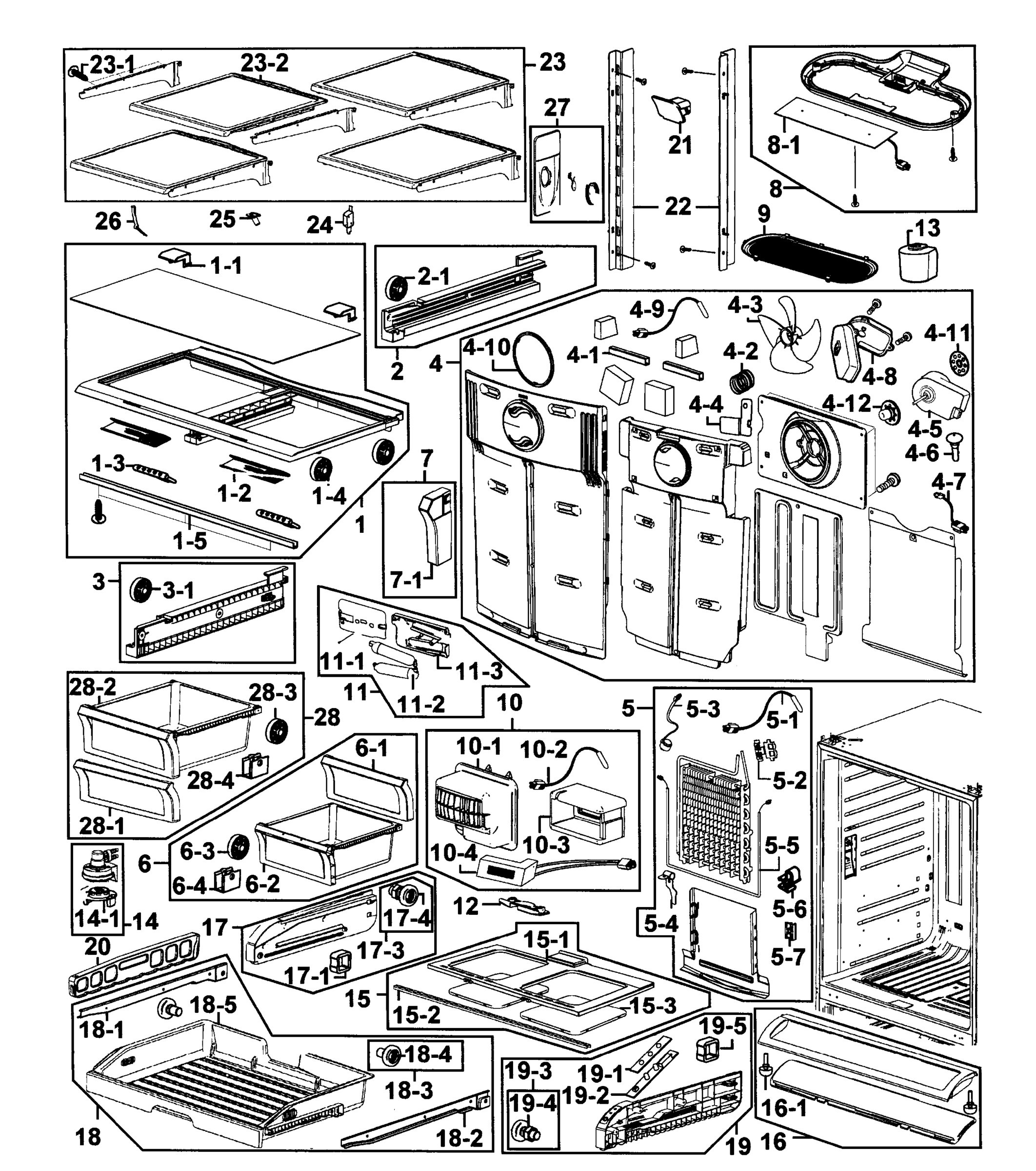

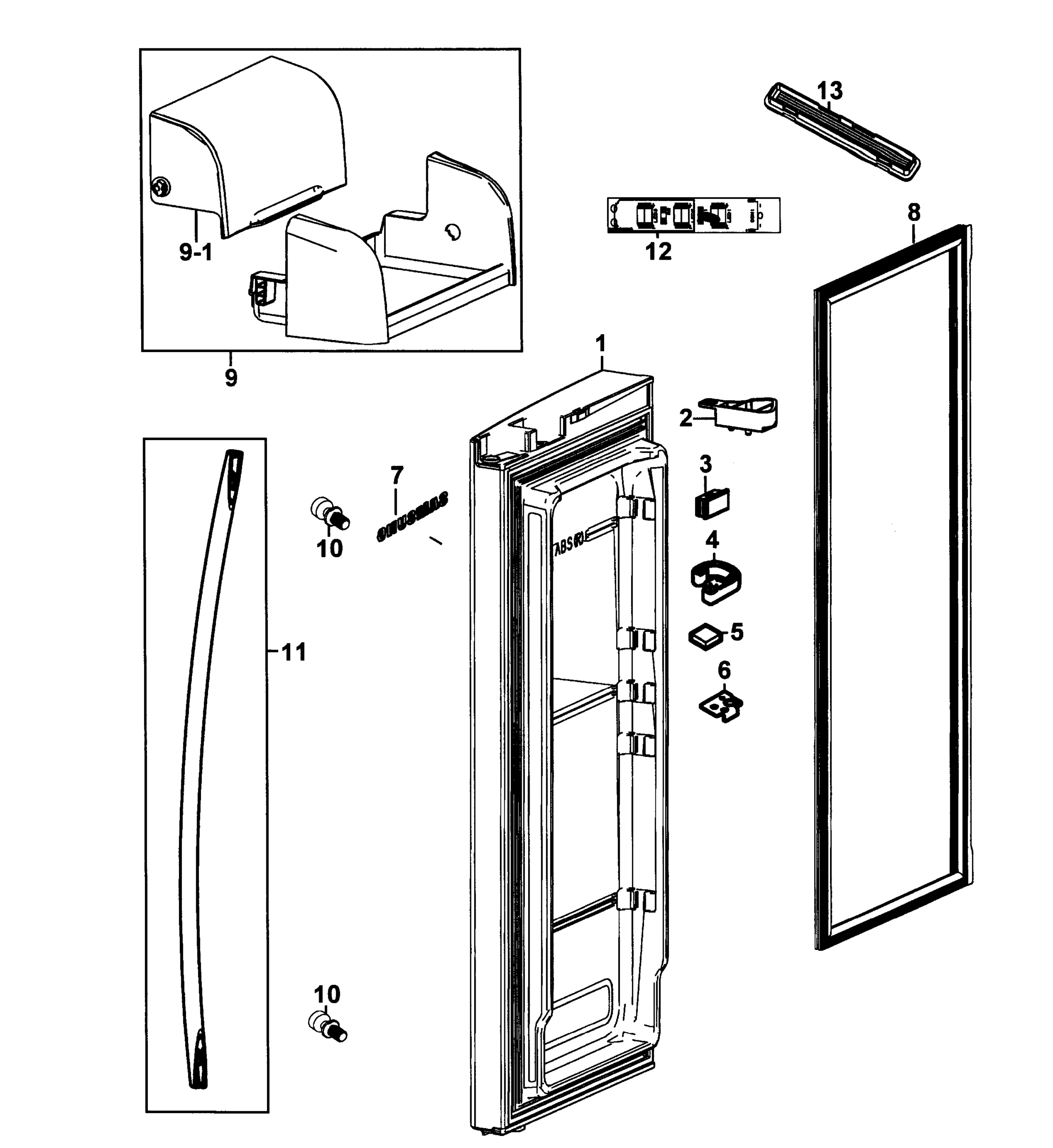

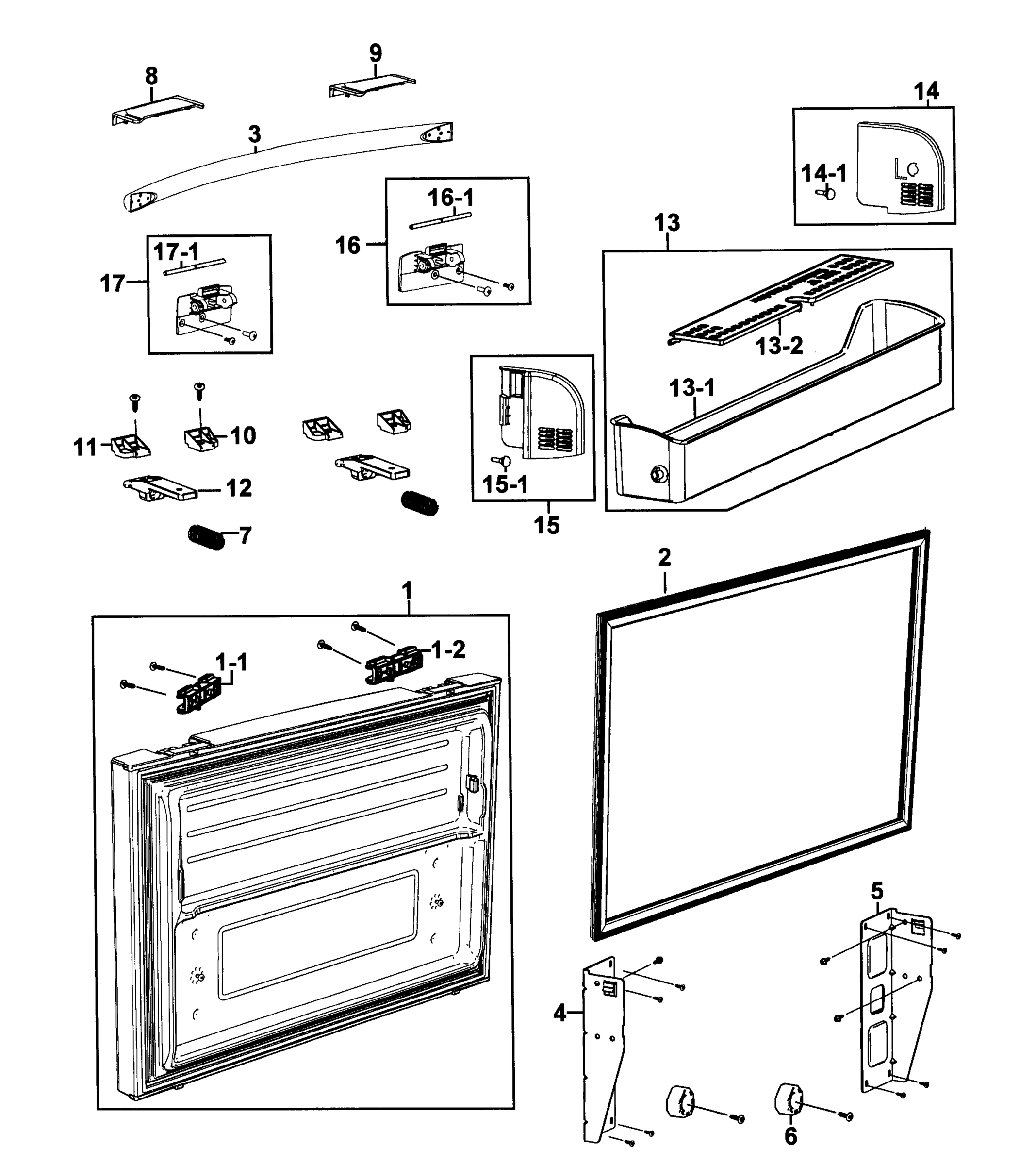

Model Samsung RF266AERS/XAA-01 Refrigerator – Common Parts &amp; Diagrams

1-1

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $0.92

1-2

DA32-00006Q Samsung Refrigerator Defrost Temp In Stock SMG DA32-00006Q $20.73

1-4

DA47-00424A Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424A $118.09

1-5

DA61-04799A Samsung Refrigerator Evaporator S Backorder SMG DA61-04799A $1.24

2

DA63-06541D Samsung Refrigerator Freezer Door In Stock SMG DA63-06541D $147.50

2

DA97-07006A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-07006A $108.03

2

DA97-07603B Samsung Refrigerator Ice Maker In Stock SMG DA97-07603B $167.62

2

Refrigerator user interface and top cover ass SMG DA97-07049N Contact Us For Availability

2-1

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $23.61

2-1

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $129.08

2-2

DA61-05435A Samsung Refrigerator Ice Maker Sh In Stock SMG DA61-05435A $4.98

2-3

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $27.65

2-3

Refrigerator power control board SMG DA41-00412K Contact Us For Availability

2-4

DA61-05227A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-05227A $35.39

2-5

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.07

2-6

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $28.77

3

DA61-02738F Samsung Refrigerator Magnet Assem Backorder SMG DA61-02738F $4.15

3

DA97-07007A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-07007A $105.02

4

DA61-05001C Samsung Refrigerator Door Close S Backorder SMG DA61-05001C $44.25

4

DA97-00209T Samsung Refrigerator Water Pipe A Backorder SMG DA97-00209T $91.44

4

Refrigerator fresh food evaporator cover asse SMG DA97-07190G Contact Us For Availability

4-1

DA61-05358A Samsung Refrigerator Ice Cube Cas In Stock SMG DA61-05358A $31.93

4-3

DA31-00230A Samsung Refrigerator Fan Assembly Backorder SMG DA31-00230A $59.62

4-5

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $117.25

4-7

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $119.35

4-9

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $18.65

4-11

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $3.73

4-12

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.31

5

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $23.22

5

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $61.74

5

Refrigerator evaporator SMG DA96-00516R Contact Us For Availability

5-1

DA32-00006S Samsung Refrigerator Freezer Defr In Stock SMG DA32-00006S $22.38

5-2

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $2.98

5-3

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $2.71

5-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.87

5-5

DA47-00424B Samsung Refrigerator Metal Sheath Backorder SMG DA47-00424B $84.26

5-7

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $0.99

5-7

DA67-02138A Samsung Refrigerator Hinge Hole C Backorder SMG DA67-02138A $1.24

6

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $23.97

6

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

6

DA97-07009D Samsung Refrigerator Assembly Cas Backorder SMG DA97-07009D $116.96

6

DA97-07022A Samsung Refrigerator Upper Slide Backorder SMG DA97-07022A $89.16

7

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $2.07

7

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $32.04

7

DA97-07023A Samsung Refrigerator Upper Slide Backorder SMG DA97-07023A $37.57

8

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $112.64

8

Refrigerator freezer handle cover, left SMG DA63-04640A Contact Us For Availability

8-1

DA96-00398J Samsung Refrigerator Led Lamp Ass Backorder SMG DA96-00398J $116.80

9

DA63-04641A Samsung Refrigerator Freezer Door Backorder SMG DA63-04641A $8.71

9

DA63-06600A Samsung Refrigerator Mid Hinge Gr Backorder SMG DA63-06600A $3.50

9

Refrigerator freezer drawer slide rail, left SMG DA97-10594B Contact Us For Availability

9

Refrigerator guard assembly SMG DA97-07032A Contact Us For Availability

9-2

DA66-00771A Samsung Refrigerator Rail Gear Le Backorder SMG DA66-00771A $4.98

DA61-04837A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04837A $2.07

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.15

DA63-06542A Samsung Refrigerator Door Gasket In Stock SMG DA63-06542A $144.87

DA97-07189E Samsung Refrigerator Motor Damper In Stock SMG DA97-07189E $148.45

10-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $19.49

10-4

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $150.48

DA61-04838A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04838A $2.91

DA97-07129E Samsung Refrigerator Cover Assemb In Stock SMG DA97-07129E $119.97

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $165.90

DA97-11081C Samsung Refrigerator Handle Bar A In Stock SMG DA97-11081C $136.67

DA97-12683D Samsung Refrigerator French Flipp In Stock SMG DA97-12683D $149.13

11-2

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $156.02

11-3

DA97-07150C Samsung Refrigerator Water Tank A Backorder SMG DA97-07150C $114.38

11-3

Refrigerator flipper housing SMG DA61-04848B Contact Us For Availability

11-4

DA63-04645A Samsung Refrigerator Door Heater Backorder SMG DA63-04645A $12.44

11-5

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $4.56

11-6

DA81-01345B Samsung Refrigerator Door Spring In Stock SMG DA81-01345B $2.91

11-7

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $7.47

11-8

DA61-04866A Samsung Refrigerator French Door Backorder SMG DA61-04866A $4.56

11-9

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $0.92

DA61-04795A Samsung Refrigerator French Door Backorder SMG DA61-04795A $9.11

DA61-04839A Samsung Refrigerator Handle Slide Backorder SMG DA61-04839A $6.62

DA63-04621A Samsung Refrigerator Guard Backorder SMG DA63-04621A $54.68

DA63-05079A Samsung Refrigerator Front Leg Co Backorder SMG DA63-05079A $29.98

13

DA41-00519R Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519R $9.64

13

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

13

DA61-04796A Samsung Refrigerator Drawer Guide Backorder SMG DA61-04796A $40.92

14

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

14

DA97-06317A Samsung Refrigerator Replacement In Stock SMG DA97-06317A $96.31

14

DA97-07186B Samsung Refrigerator Freon Evapor Backorder SMG DA97-07186B $220.55

14-1

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

14-1

DA67-02270A Samsung Refrigerator Water Filter Backorder SMG DA67-02270A $1.58

14-2

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.92

14-5

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $16.58

15

DA97-07015A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-07015A $182.44

15

DA97-07024C Samsung Refrigerator Drawer Box T Backorder SMG DA97-07024C $174.44

15

Refrigerator freezer door bin support, left SMG DA97-07035A Contact Us For Availability

15-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

15-2

DA66-00649A Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649A $3.09

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.02

DA97-07020C Samsung Refrigerator Pantry Drawe Backorder SMG DA97-07020C $147.38

Refrigerator condenser coil and fan motor ass SMG DA97-07825F Contact Us For Availability

Refrigerator freezer door handle mounting cap SMG DA97-11891D Contact Us For Availability

16-5

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $89.38

17

DA97-07016A Samsung Refrigerator Pantry Rail Backorder SMG DA97-07016A $109.13

17

Refrigerator condenser fan blade SMG DA96-00504A Contact Us For Availability

17

Refrigerator freezer door handle mounting cap SMG DA97-11895D Contact Us For Availability

18

MKV190CL2J/SM1 Samsung Refrigerator Compresso In Stock SMG MKV190CL2J/SM1 $351.31

18-2

DA63-04553A Samsung Refrigerator Cover Relay Backorder SMG DA63-04553A $33.56

18-3

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $11.20

19

DA39-00154D Samsung Refrigerator Wire Harness In Stock SMG DA39-00154D $43.88

19

DA97-07017A Samsung Refrigerator Pantry Rail Backorder SMG DA97-07017A $77.63

19-2

DA41-00423C Samsung Refrigerator Printed Circ In Stock SMG DA41-00423C $29.13

20

DA61-04794A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04794A $26.19

21

DA67-02130A Samsung Refrigerator Angle Cap As Backorder SMG DA67-02130A $1.24

23-2

DA67-01606D Samsung Refrigerator Glass Shelf Backorder SMG DA67-01606D $57.79

24

DA62-00914B Samsung Refrigerator Water Inlet In Stock SMG DA62-00914B $99.14

25

DA61-04756A Samsung Refrigerator Water Hose F Backorder SMG DA61-04756A $39.82

26

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $21.14

26

DA66-00626A Samsung Refrigerator Dispenser Le Backorder SMG DA66-00626A $2.49

27

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $12.39

27

Refrigerator display cover SMG DA97-06995A Contact Us For Availability

27-1

DA62-01266D Samsung Refrigerator PVC Tube Backorder SMG DA62-01266D $3.73

28

DA97-07018C Samsung Refrigerator Veg Case Ass Backorder SMG DA97-07018C $145.92

28-1

3903-000400 Samsung Power Cord Refrigerator In Stock SMG 3903-000400 $71.48

28-2

DA27-00019D Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019D $85.69

30

DA92-00111B Samsung Refrigerator Inverter PCB In Stock SMG DA92-00111B $169.07

31

DA97-07852A Samsung Refrigerator Assembly Cov Backorder SMG DA97-07852A $43.13

33

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

34

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.62

37

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $0.92

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $5.80

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $18.94

DA61-04805A Samsung Refrigerator Natural Proj Backorder SMG DA61-04805A $29.87

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $7.05

DA66-00767A Samsung Refrigerator Rail Gear Ri Backorder SMG DA66-00767A $5.80

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $12.44
