Model Samsung RF266AEBP/XAA-00 Refrigerator – Common Parts & Diagrams
Compressor
Freezer Assembly

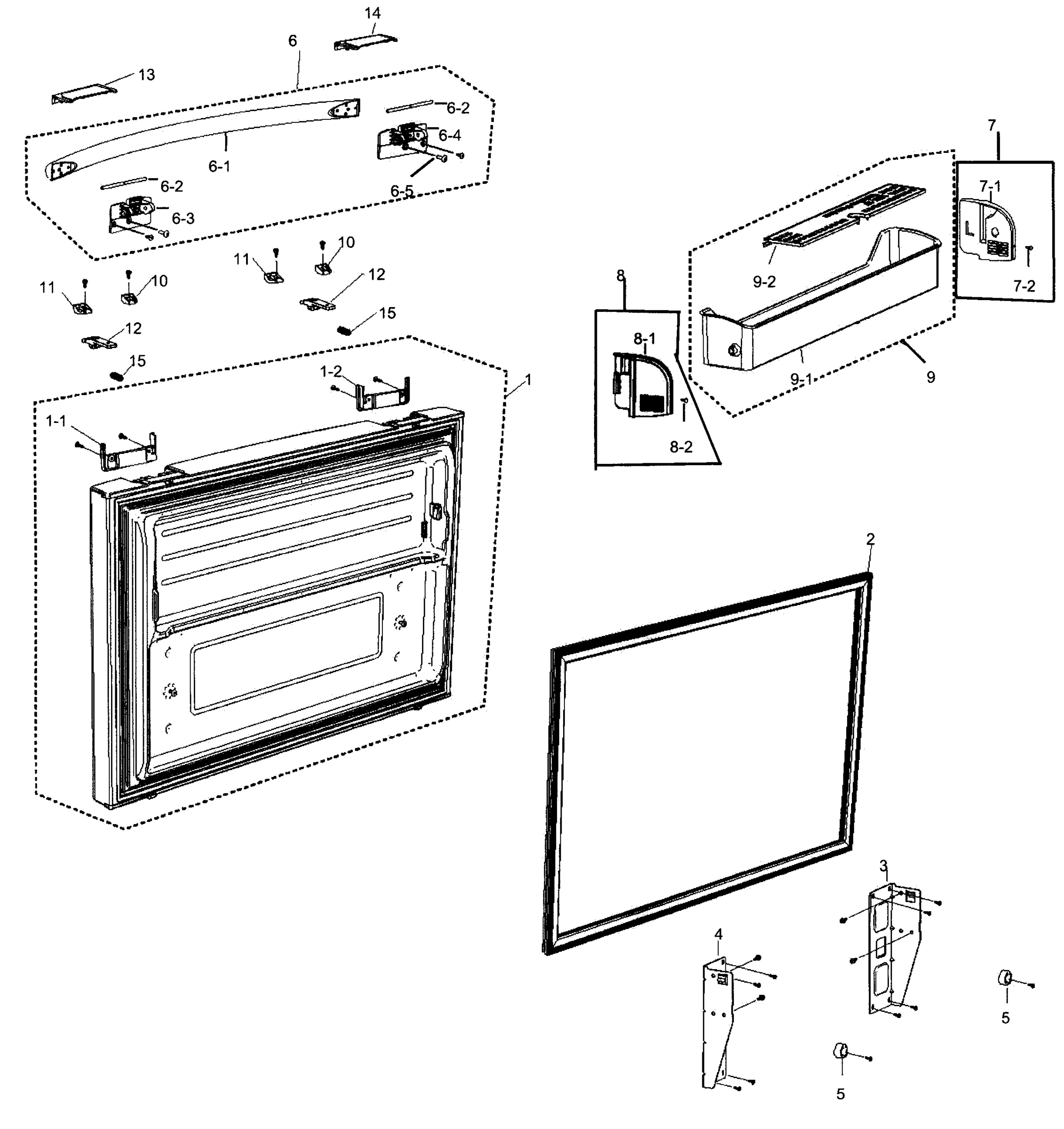

Freezer Door
Friger Assembly

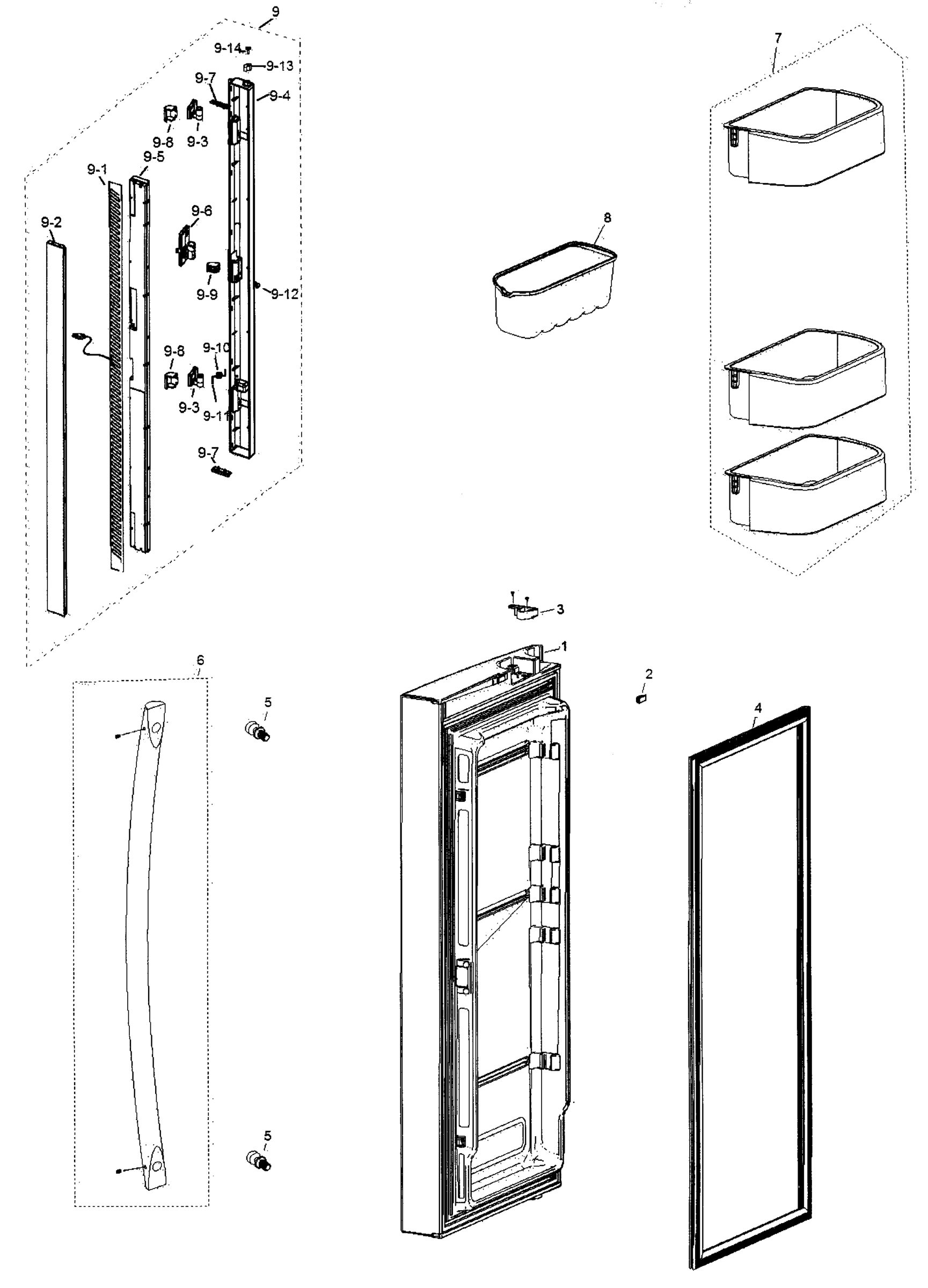

L Friger Door

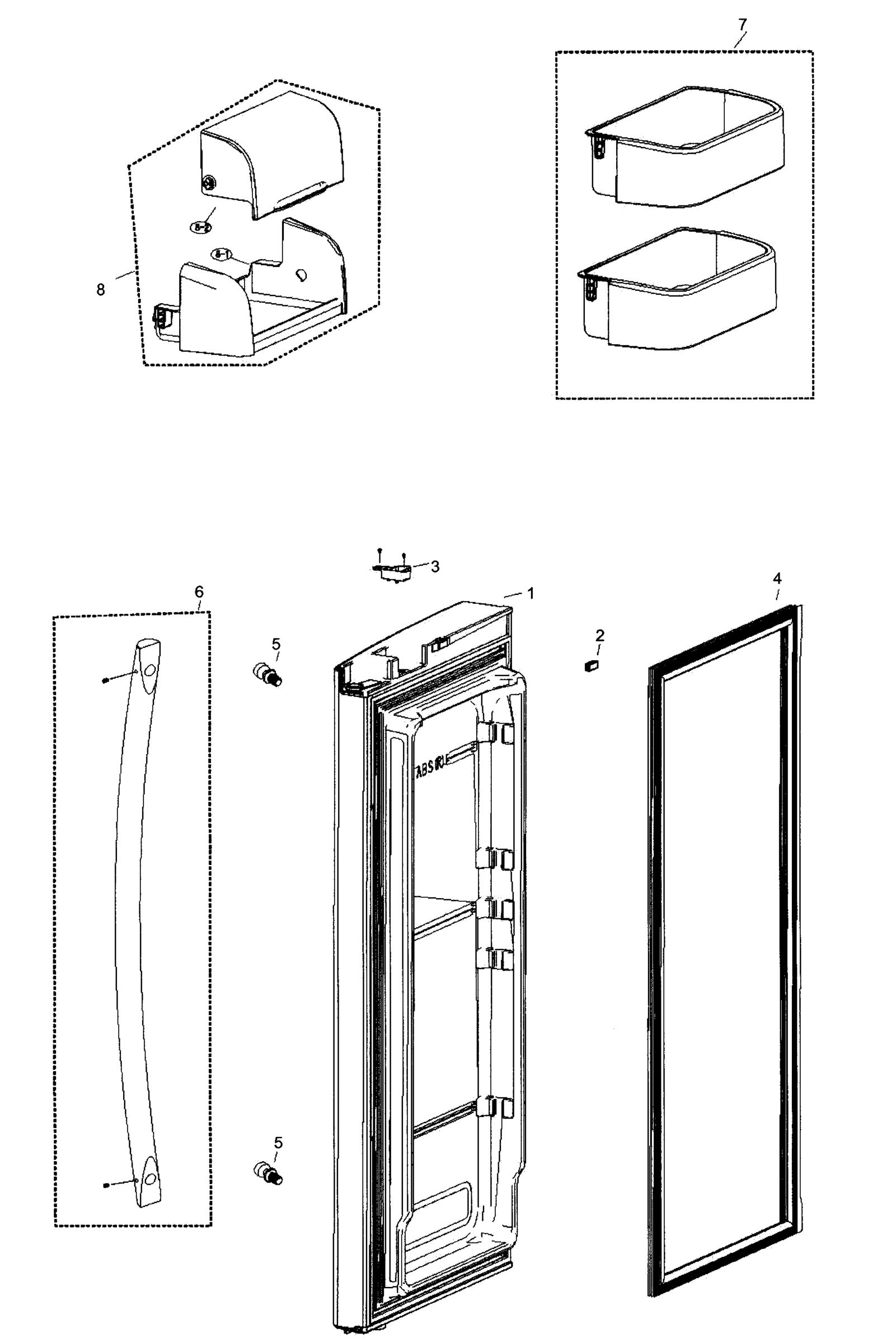

R Friger Door
Common parts from model Samsung RF266AEBP/XAA-00 Refrigerator
1
Refrigerator freezer door assembly SMG DA91-02826C Contact Us For Availability
1
Refrigerator evaporator SMG DA96-00516B Contact Us For Availability
1
Lft dr blk SMG DA91-02966C Contact Us For Availability
1
Refrigerator door assembly, right SMG DA91-02945C Contact Us For Availability
1-2
Refrigerator freezer door handle mounting cap SMG DA67-02142B Contact Us For Availability
2-4
Refrigerator power control board SMG DA41-00412K Contact Us For Availability
2-9
Inlay dsp. SMG DA64-02076D Contact Us For Availability
3
Refrigerator cover assembly SMG DA97-07190D Contact Us For Availability
3-6
Refrigerator case SMG DA61-04849A Contact Us For Availability
3-8
Refrigerator plate SMG DA61-04854A Contact Us For Availability
3-10
Refrigerator insulation SMG DA62-02055A Contact Us For Availability
3-11
Refrigerator insulation SMG DA62-02053A Contact Us For Availability
3-12
Refrigerator insulation SMG DA62-02058A Contact Us For Availability
3-13
Refrigerator insulation SMG DA62-02050A Contact Us For Availability
3-17
Refrigerator cover SMG DA63-04653A Contact Us For Availability
4
Refrigerator lamp case SMG DA97-08181A Contact Us For Availability
4-2
Refrigerator lamp case SMG DA61-05670A Contact Us For Availability
5
Refrigerator ice maker SMG DA97-07603A Contact Us For Availability
6-3
Refrigerator freezer door handle end cap SMG DA67-02058A Contact Us For Availability
7
Refrigerator support SMG DA97-07036A Contact Us For Availability
7
Refrigerator angle SMG DA61-04781A Contact Us For Availability
7-1
Spprt,guar SMG DA61-04826A Contact Us For Availability
8
Refrigerator freezer door bin support, left SMG DA97-07035A Contact Us For Availability
8
Refrigerator guard assembly SMG DA97-07032A Contact Us For Availability
8
Refrigerator tray SMG DA63-04639A Contact Us For Availability
8-1
Refrigerator guard SMG DA61-04828A Contact Us For Availability
9
Refrigerator flipper assembly SMG DA97-07276B Contact Us For Availability
9-2
Refrigerator plate SMG DA61-04869B Contact Us For Availability
9-4
Refrigerator door french seal housing SMG DA61-04848A Contact Us For Availability
9-5
Refrigerator insulation SMG DA62-02048A Contact Us For Availability
9-7
Refrigerator flipper seal SMG DA63-03508A Contact Us For Availability
9-13
Refrigerator cap guide SMG DA67-02366A Contact Us For Availability
9-14
Refrigerator screw SMG 6003-000333 Contact Us For Availability
10
Refrigerator glass shelf SMG DA97-07051A Contact Us For Availability
10-2
Refrigerator glass shelf SMG DA67-01606A Contact Us For Availability
10-3
Refrigerator shelf SMG DA67-02133A Contact Us For Availability
10-4
Refrigerator shelf SMG DA67-02132A Contact Us For Availability
11-2
Refrigerator glass cover SMG DA01-00400B Contact Us For Availability
11-5
Refrigerator vegetable bin cover SMG DA63-04609A Contact Us For Availability
13-1
Refrigerator rail SMG DA61-04803A Contact Us For Availability
14
Refrigerator vegetable case SMG DA97-07009A Contact Us For Availability
14-1
Refrigerator case SMG DA61-04798A Contact Us For Availability
14-2
Refrigerator cover SMG DA63-04610A Contact Us For Availability
15
Refrigerator condenser fan blade SMG DA96-00504A Contact Us For Availability
15
Refrigerator case assembly SMG DA97-07018A Contact Us For Availability
15-1
Refrigerator vegetable case SMG DA61-04807A Contact Us For Availability
15-2
Refrigerator cover SMG DA63-04613A Contact Us For Availability
18
Refrigerator display cover SMG DA97-06995A Contact Us For Availability
18-1
Refrigerator cover SMG DA63-04587A Contact Us For Availability
22
Refrigerator cover assembly SMG DA97-07020A Contact Us For Availability
22-2
Refrigerator cover SMG DA63-04614A Contact Us For Availability
22-3
Refrigerator cover SMG DA63-04615A Contact Us For Availability
23-2
Refrigerator shelf SMG DA67-02139A Contact Us For Availability
24-3
Refrigerator insulation SMG DA62-02057A Contact Us For Availability
28-4
Refrigerator power cord SMG DA39-10165E Contact Us For Availability
29-2
Refrigerator cover SMG DA63-04611A Contact Us For Availability
30-4
Refrigerator rail assembly SMG DA97-07013A Contact Us For Availability
31-5
Refrigerator cover SMG DA63-04612A Contact Us For Availability
32
Samsung refrigerator water filter SMG DA29-00003G Contact Us For Availability
33
Refrigerator electronic control board SMG DA41-00651J Contact Us For Availability
34
Refrigerator power control board SMG DA41-00404E Contact Us For Availability
NI
Refrigerator nameplate SMG DA64-01985A Contact Us For Availability
NI
Hanger rail SMG DA61-04816A Contact Us For Availability
NI
Hanger rail SMG DA61-04817A Contact Us For Availability
NI
Refrigerator rail SMG DA61-04820A Contact Us For Availability
NI
Refrigerator rail SMG DA61-04821A Contact Us For Availability
NI
Reinforcement cap SMG DA61-04842A Contact Us For Availability
NI
Reinforcement panel SMG DA61-04843A Contact Us For Availability
NI
Reinforcement panel SMG DA61-04844A Contact Us For Availability
NI
Refrigerator case SMG DA61-04851A Contact Us For Availability
NI
Refrigerator pipe SMG DA62-00040L Contact Us For Availability
NI
Refrigerator water pipe SMG DA62-01368A Contact Us For Availability
NI
Refrigerator water pipe SMG DA62-01368B Contact Us For Availability
NI
Refrigerator shaft SMG DA66-00546A Contact Us For Availability
NI
Refrigerator shaft SMG DA66-00547A Contact Us For Availability
NI
Refrigerator roller SMG DA66-00548A Contact Us For Availability
NI
Refrigerator drain hose SMG DA67-01622A Contact Us For Availability
NI
Refrigerator drain hose SMG DA67-01623A Contact Us For Availability
NI
Refrigerator drain hose SMG DA67-01624A Contact Us For Availability
NI
Refrigerator drain cap SMG DA67-02117A Contact Us For Availability
NI
Refrigerator drain cap SMG DA67-02128A Contact Us For Availability
NI
Refrigerator partition SMG DA67-02140A Contact Us For Availability
NI
Samsung refrigerator door cap SMG DA67-02144B Contact Us For Availability
NI
Samsung refrigerator door cap SMG DA67-02145B Contact Us For Availability
NI
Refrigerator label SMG DA68-01636A Contact Us For Availability
NI
Refrigerator owner's manual SMG DA68-01812F Contact Us For Availability
NI
Harness SMG DA96-00333Z Contact Us For Availability
NI
Harness SMG DA96-00334C Contact Us For Availability
NI
W/harness- SMG DA96-00444S Contact Us For Availability
NI
Refrigerator pipe assembly SMG DA97-06940A Contact Us For Availability
NI
Refrigerator drain assembly SMG DA97-06960A Contact Us For Availability
NI
Refrigerator drain assembly SMG DA97-06961A Contact Us For Availability
NI
Refrigerator grommet SMG DA97-07277A Contact Us For Availability
× ![]()
