Bosch HII8055U/01 Range Oven Parts List

0101

12009062 Bosch Oven Induction Hotplate Backorder BOS 12009062 $69.23

View on Model

0102

11016788 Bosch Oven Induction Hotplate Backorder BOS 11016788 $133.06

View on Model

0103

11019840 Bosch Oven Induction Hotplate Backorder BOS 11019840 $121.93

View on Model

0104

12009069 Bosch Oven NTC Sensor In Stock BOS 12009069 $16.01

View on Model

0107

12009071 Bosch Sensor-Ntc Backorder BOS 12009071 $16.01

View on Model

0112

11009073 Bosch Oven Lid Backorder BOS 11009073 $3.66

View on Model

0113

11009074 Bosch Oven Lid Backorder BOS 11009074 $4.12

View on Model

0141

00716393 Bosch Range Ceramic Glass Hob Top Backorder BOS 00716393 $581.24

View on Model

0145

00636575 Bosch Oven Cover In Stock BOS 00636575 $3.66

View on Model

0148

00424665 Bosch Oven Spring In Stock BOS 00424665 $4.12

View on Model

0199

00267971 Bosch Oven Sealing Strip Backorder BOS 00267971 $48.04

View on Model

0199

00618647 Bosch Lubricant Backorder BOS 00618647 $74.19

View on Model

0199

10004633 Bosch Range Trim Plate Backorder BOS 10004633 $43.92

View on Model

0202

11019879 Bosch Range Power Module Backorder BOS 11019879 $238.92

View on Model

0202

11028413 Bosch Oven Power Module Backorder BOS 11028413 $212.08

View on Model

0204

11019876 Bosch Range Programmed Power Module Backorder BOS 11019876 $314.16

View on Model

0212

11009108 Bosch Oven PCB Board Backorder BOS 11009108 $68.33

View on Model

0213

12008984 Bosch Oven Fan Backorder BOS 12008984 $40.72

View on Model

0230

10003019 Bosch Oven Connection Piece In Stock BOS 10003019 $14.64

View on Model

0240

11019143 Bosch Oven Operating Module Backorder BOS 11019143 $123.71

View on Model

0241

11008965 Bosch Oven Fixture Backorder BOS 11008965 $4.58

View on Model

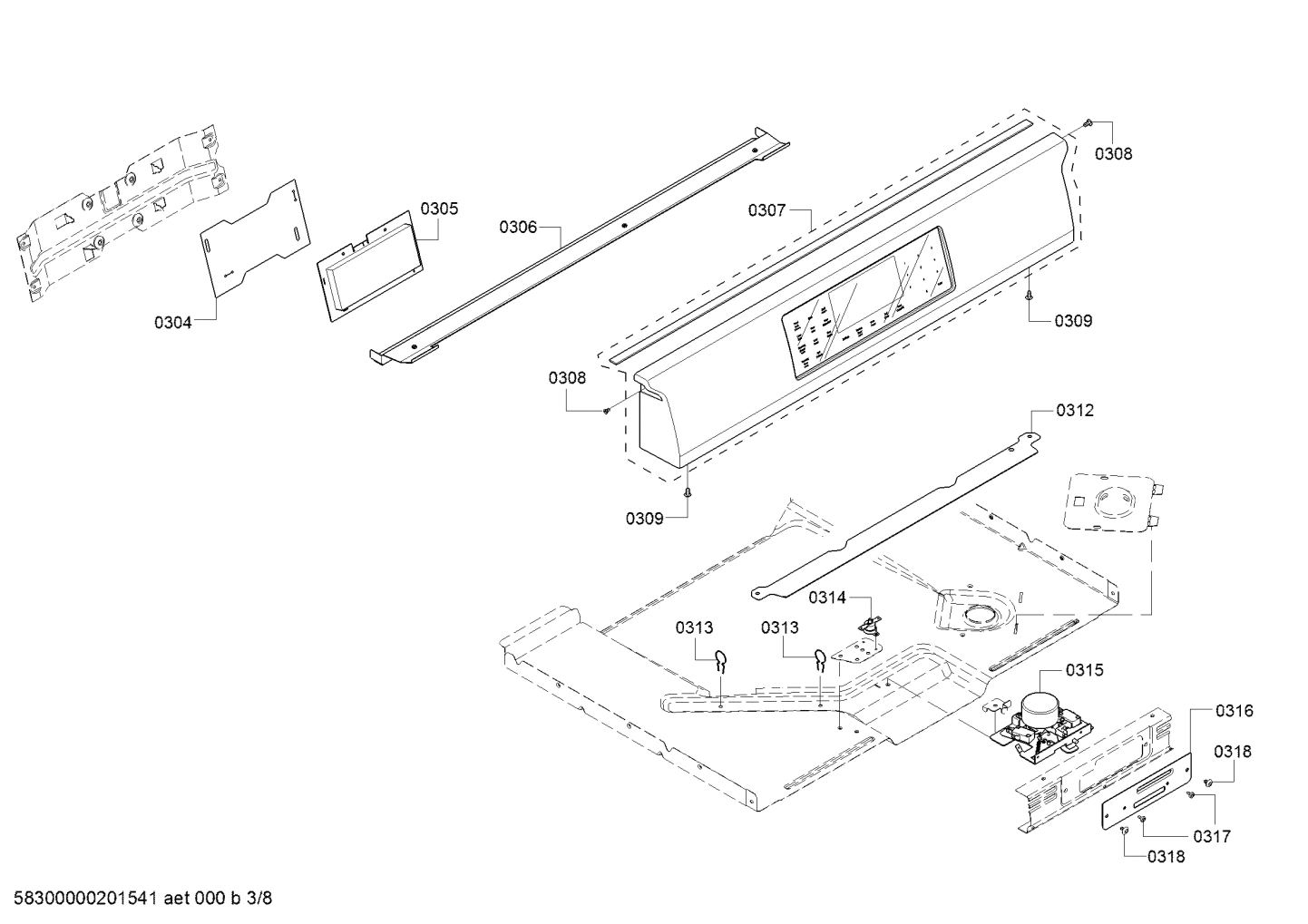

0305

12029207 Bosch Oven Display Module In Stock BOS 12029207 $189.20

View on Model

0306

11002178 Bosch Range Trim Plate Backorder BOS 11002178 $91.41

View on Model

0309

00608089 Bosch Range Screw Backorder BOS 00608089 $8.24

View on Model

0312

00798849 Bosch Oven Air Duct Assembly Backorder BOS 00798849 $66.07

View on Model

0314

10012286 Bosch Oven Temperature Limiter In Stock BOS 10012286 $37.52

View on Model

0315

12024390 Bosch Oven Latch In Stock BOS 12024390 $64.26

View on Model

0316

00758203 Bosch Oven Plate Backorder BOS 00758203 $53.99

View on Model

0317

00620814 Bosch Oven Screw Backorder BOS 00620814 $22.88

View on Model

0350

00755412 Bosch Oven Cable Harness Backorder BOS 00755412 $18.30

View on Model

0351

Cable harness BOS 00755377 Contact Us For Availability

View on Model

0353

00755399 Bosch Range Cable Harness Backorder BOS 00755399 $57.02

View on Model

0354

00755402 Bosch Range Cable Harness Backorder BOS 00755402 $16.01

View on Model

0355

00755371 Bosch Range Cable Harness Backorder BOS 00755371 $25.62

View on Model

0356

11033493 Bosch Oven Cable Harness Backorder BOS 11033493 $23.33

View on Model

0357

00755408 Bosch Range Cable Harness In Stock BOS 00755408 $63.00

View on Model

0401

Oven Lamp Assembly BOS 00415045 Contact Us For Availability

View on Model

0402

00623710 Bosch Oven Lamp In Stock BOS 00623710 $4.58

View on Model

0403

00414513 Bosch Oven Lens In Stock BOS 00414513 $19.22

View on Model

0404

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $49.87

View on Model

0405

10007567 Bosch Oven Socket Backorder BOS 10007567 $311.96

View on Model

0406

00631116 Bosch Oven Spacer Backorder BOS 00631116 $23.33

View on Model

0407

00758209 Bosch Oven Hinge Holder Backorder BOS 00758209 $27.91

View on Model

0408

00755053 Bosch Oven Door Seal Assembly In Stock BOS 00755053 $50.33

View on Model

0411

00777053 Bosch Oven Reflector Backorder BOS 00777053 $54.44

View on Model

0413

00791650 Bosch Oven Heating Element In Stock BOS 00791650 $83.26

View on Model

0414

00642845 Bosch Oven Motor In Stock BOS 00642845 $121.23

View on Model

0415

00603860 Bosch Oven Spacer Backorder BOS 00603860 $31.57

View on Model

0416

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $28.37

View on Model

0417

00422090 Bosch Oven Washer Backorder BOS 00422090 $14.64

View on Model

0418

00471532 Bosch Oven Nut Backorder BOS 00471532 $9.15

View on Model

0419

00755059 Bosch Oven Heating Element Backorder BOS 00755059 $60.18

View on Model

0421

00605039 Bosch Oven Washer Backorder BOS 00605039 $10.98

View on Model

0422

00608199 Bosch Oven Nut Backorder BOS 00608199 $9.15

View on Model

0450

00755410 Bosch Oven Cable Harness Backorder BOS 00755410 $31.57

View on Model

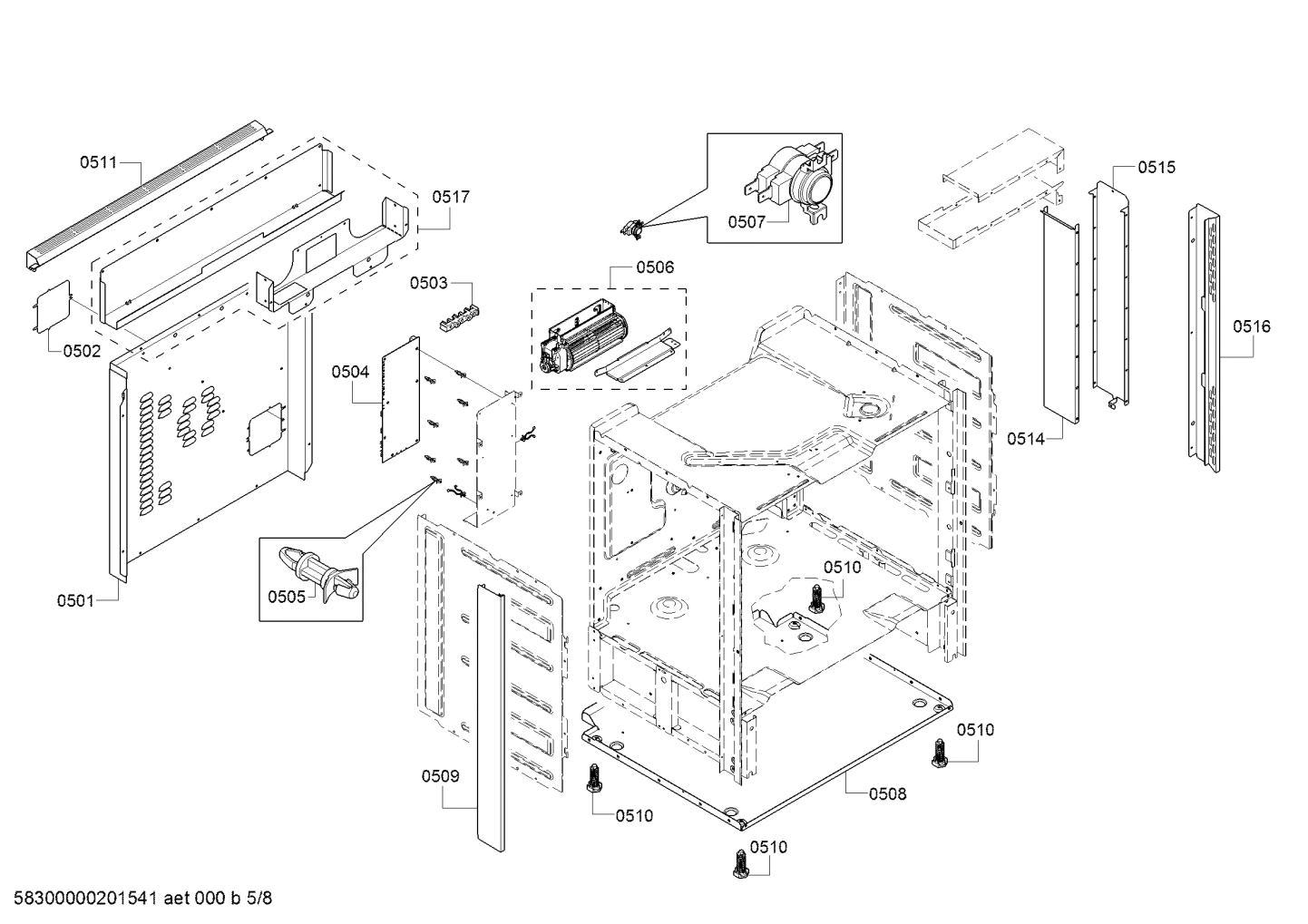

0502

00632609 Bosch Range Cover Backorder BOS 00632609 $22.88

View on Model

0503

00436364 Bosch Oven Terminal Box In Stock BOS 00436364 $27.91

View on Model

0504

12026566 Bosch Range Control Module In Stock BOS 12026566 $266.64

View on Model

0506

12011471 Bosch Range Fan In Stock BOS 12011471 $178.64

View on Model

0507

00617041 Bosch Range Temperature Limiter Backorder BOS 00617041 $59.28

View on Model

0509

11008981 Bosch Range Side Panel Backorder BOS 11008981 $116.59

View on Model

0510

00429065 Bosch Range Foot In Stock BOS 00429065 $25.16

View on Model

0511

11002273 Bosch Range Trim Plate Backorder BOS 11002273 $169.10

View on Model

0516

11008980 Bosch Range Side Panel Backorder BOS 11008980 $191.84

View on Model

0517

11017275 Bosch Range Fan Cover In Stock BOS 11017275 $139.29

View on Model

0520

00617527 Bosch Oven Screw In Stock BOS 00617527 $26.54

View on Model

0603

00630873 Bosch Oven Sensor In Stock BOS 00630873 $39.80

View on Model

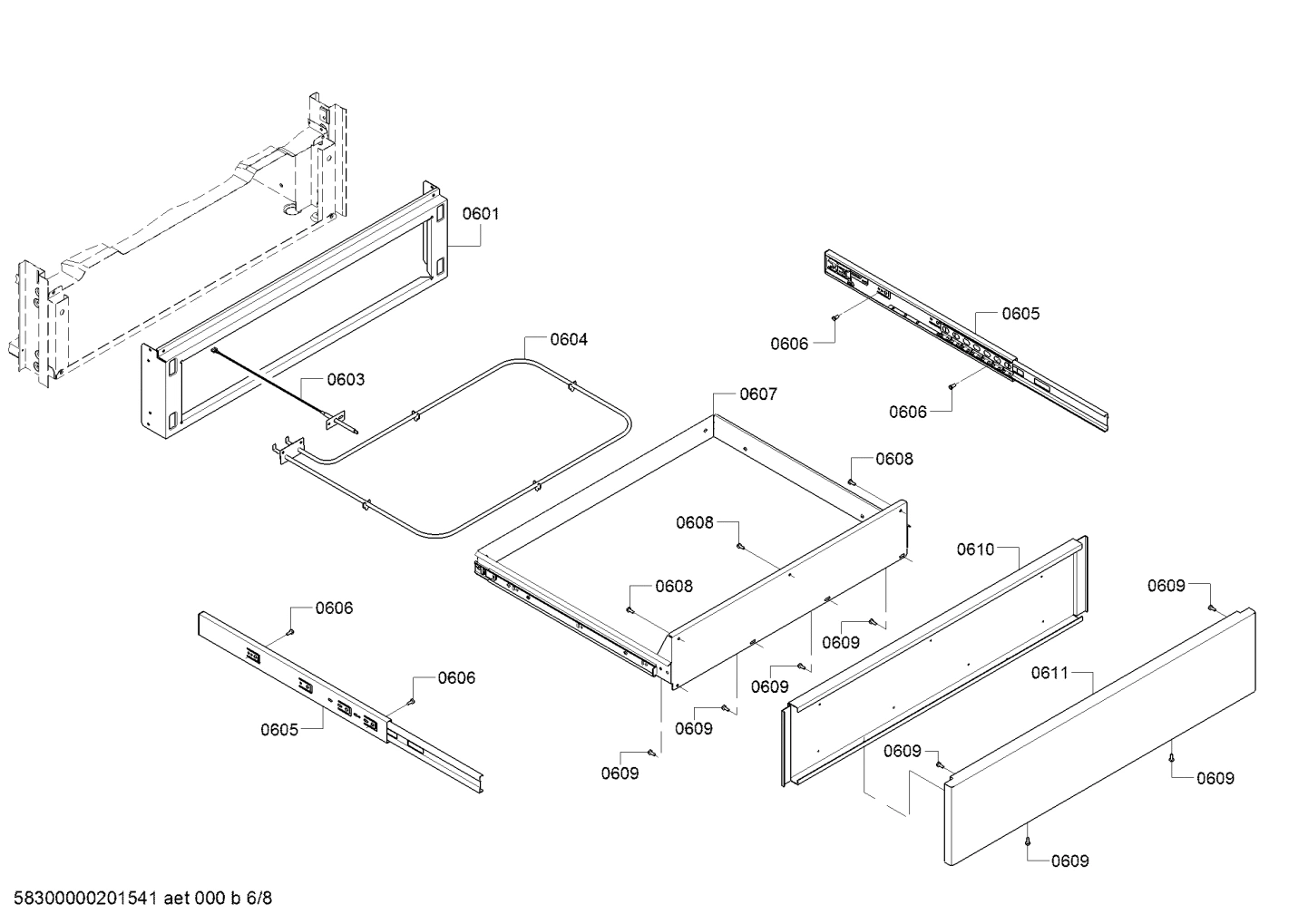

0605

12024638 Bosch Range Slide In Stock BOS 12024638 $91.70

View on Model

0606

00422098 Bosch Oven Screw In Stock BOS 00422098 $25.16

View on Model

0607

00775744 Bosch Range Drawer Backorder BOS 00775744 $206.36

View on Model

0608

00614573 Bosch Oven Screw Backorder BOS 00614573 $26.99

View on Model

0609

00189345 Bosch Oven Screw In Stock BOS 00189345 $20.13

View on Model

0610

11014918 Bosch Range Panel In Stock BOS 11014918 $91.86

View on Model

0611

11002375 Bosch Range Drawer Front Backorder BOS 11002375 $145.52

View on Model

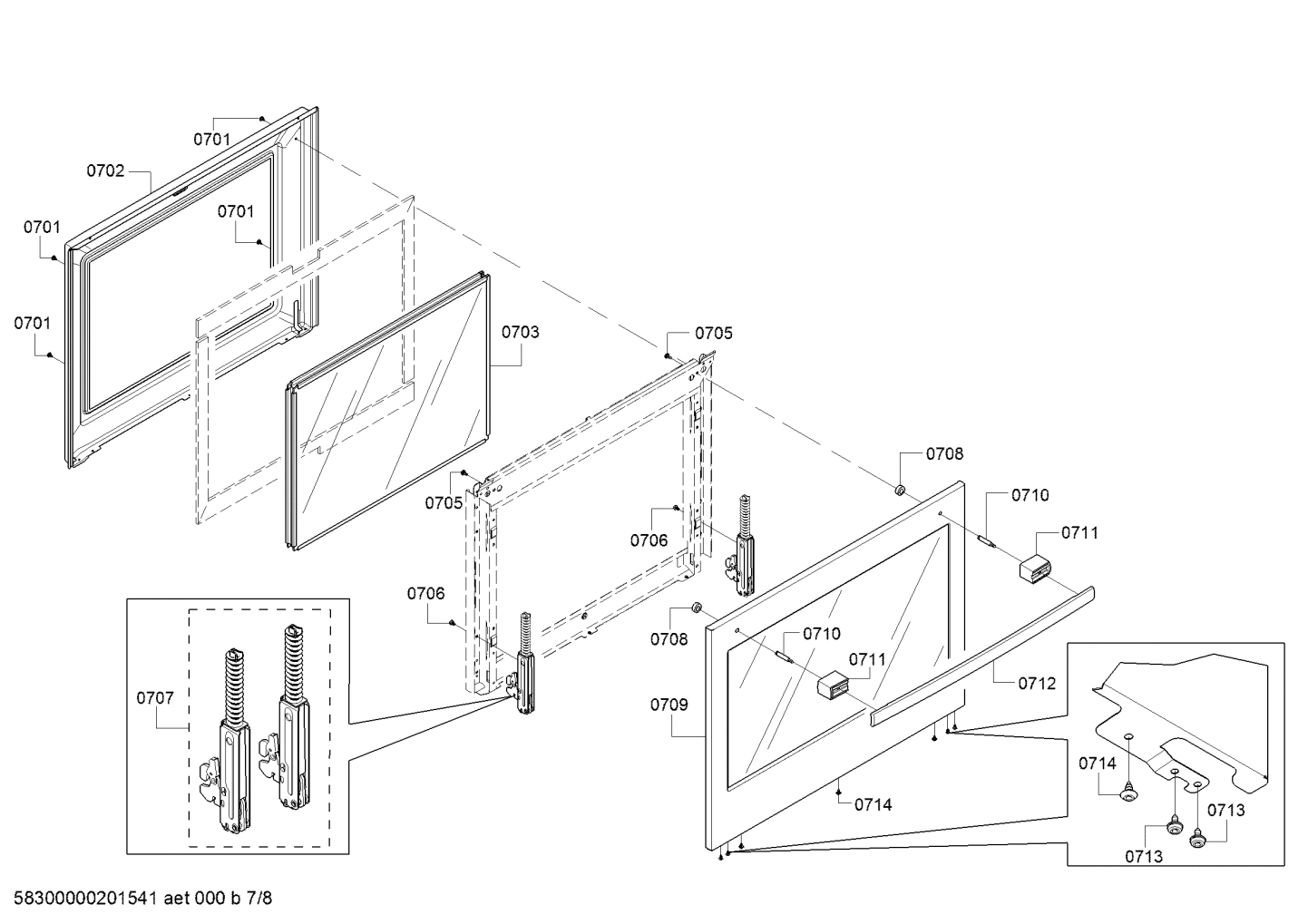

0702

00771360 Bosch Oven Inner Door In Stock BOS 00771360 $123.27

View on Model

0703

11016269 Bosch Range Glass Panel Backorder BOS 11016269 $193.60

View on Model

0705

00632735 Bosch Oven Screw Backorder BOS 00632735 $22.88

View on Model

0706

00421507 Bosch Oven Screw In Stock BOS 00421507 $20.13

View on Model

0708

00631616 Bosch Oven Insert Backorder BOS 00631616 $23.33

View on Model

0709

00771361 Bosch Oven Outer Door Backorder BOS 00771361 $278.96

View on Model

0710

00631615 Bosch Oven Insert Backorder BOS 00631615 $23.33

View on Model

0711

00631899 Bosch Oven Spacer Backorder BOS 00631899 $41.18

View on Model

0712

00798648 Bosch Oven Door Handle In Stock BOS 00798648 $70.14

View on Model

0713

00626588 Bosch Oven Screw Backorder BOS 00626588 $10.07

View on Model

0714

00422102 Bosch Oven Screw In Stock BOS 00422102 $20.13

View on Model

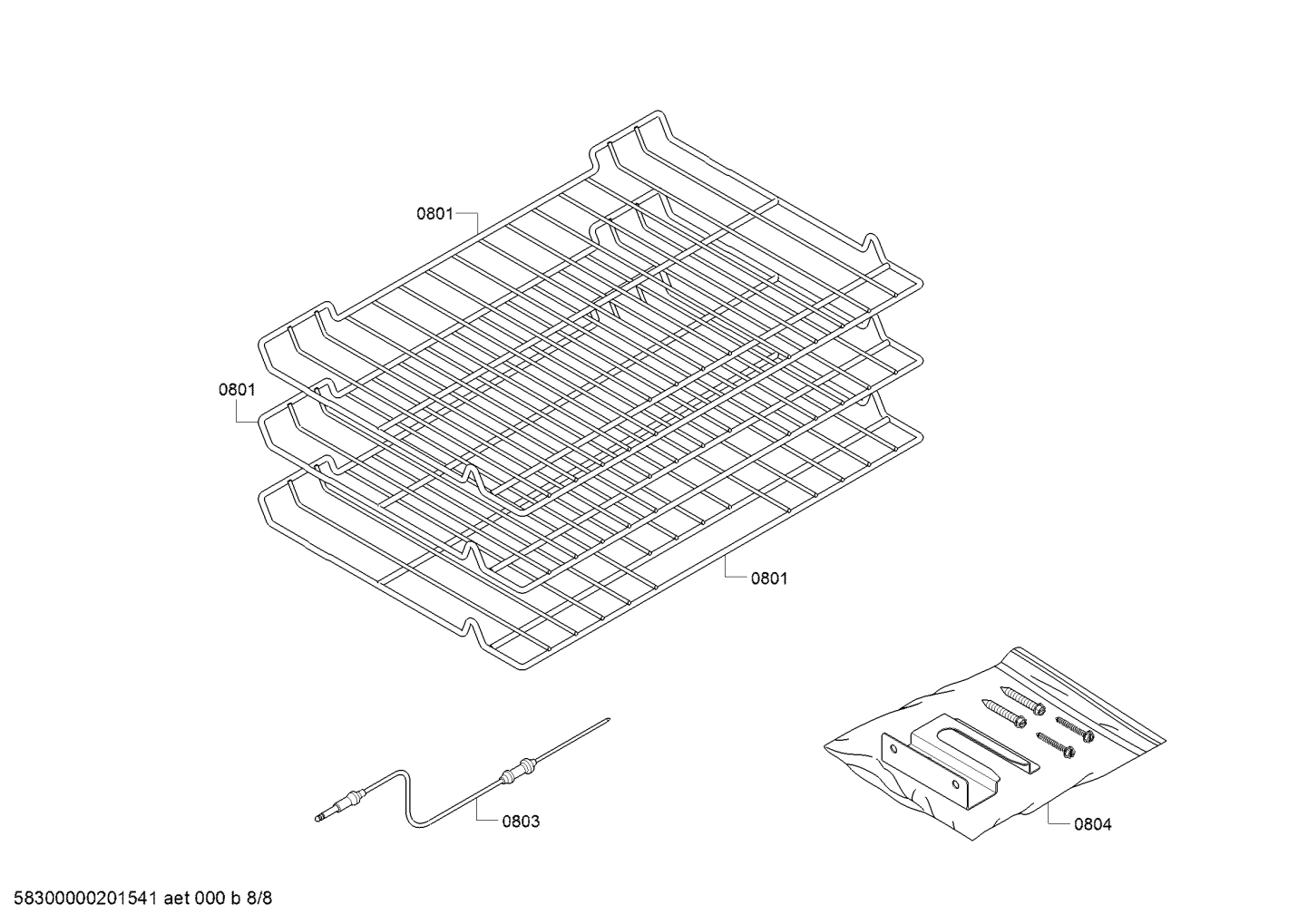

0801

00798845 Bosch Oven Shelf In Stock BOS 00798845 $57.02

View on Model

0803

00755060 Bosch Oven Sensor In Stock BOS 00755060 $70.23

View on Model

0804

00632523 Bosch Range Bracket Backorder BOS 00632523 $32.03

View on Model

0851

00424823 Bosch Range Terminal Backorder BOS 00424823 $25.16

View on Model

Model Bosch HII8055U/01 Range Oven – Common Parts & Diagrams

Common parts from model Bosch HII8055U/01 Range Oven
