Bosch HDIP054U/01 Range Oven Parts List

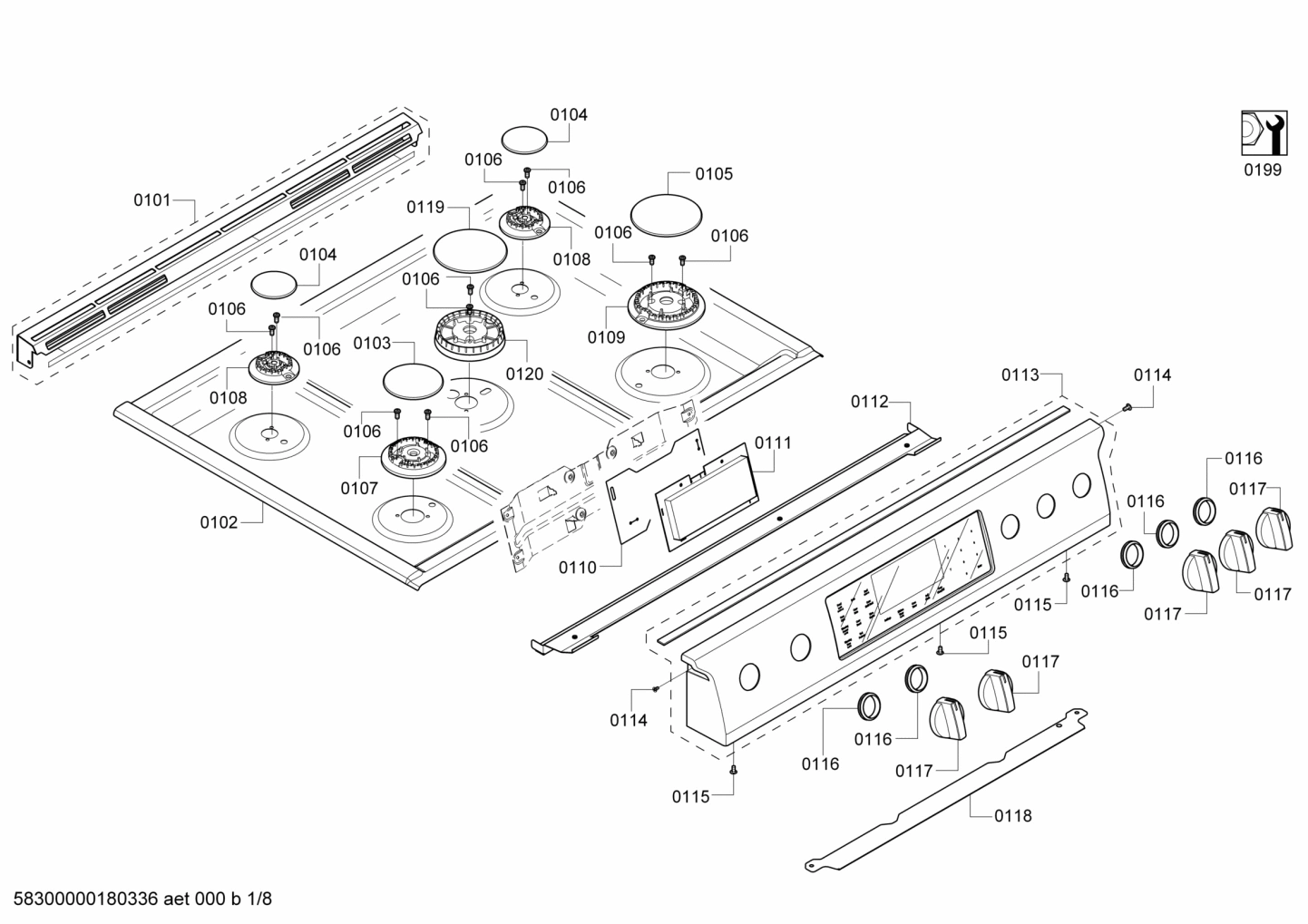

0101

11002182 Bosch Range Trim Plate Backorder BOS 11002182 $139.71

View on Model

0102

00771648 Bosch Range Hob Top Backorder BOS 00771648 $246.38

View on Model

0103

00631626 Bosch Oven Burner Cap In Stock BOS 00631626 $30.18

View on Model

0104

00631625 Bosch Oven Burner Cap Backorder BOS 00631625 $27.43

View on Model

0105

00631627 Bosch Oven Burner Cap In Stock BOS 00631627 $30.18

View on Model

0106

00422126 Bosch Oven Screw In Stock BOS 00422126 $19.20

View on Model

0107

00631630 Bosch Oven Burner In Stock BOS 00631630 $20.11

View on Model

0108

00631629 Bosch Oven Burner In Stock BOS 00631629 $15.54

View on Model

0111

12029207 Bosch Oven Display Module In Stock BOS 12029207 $182.14

View on Model

0112

11002178 Bosch Range Trim Plate Backorder BOS 11002178 $87.77

View on Model

0115

00618862 Bosch Range Screw Backorder BOS 00618862 $2.73

View on Model

0116

00611957 Bosch Range Burner Ring In Stock BOS 00611957 $24.69

View on Model

0117

00632515 Bosch Range Knob Assembly In Stock BOS 00632515 $48.48

View on Model

0118

00798849 Bosch Oven Air Duct Assembly Backorder BOS 00798849 $64.24

View on Model

0119

00631628 Bosch Oven Burner Cap In Stock BOS 00631628 $49.39

View on Model

0120

00631632 Bosch Oven Burner Backorder BOS 00631632 $66.95

View on Model

0199

00634014 Bosch Range Bracket Backorder BOS 00634014 $66.95

View on Model

0199

00634737 Bosch Range Trim Plate Backorder BOS 00634737 $42.99

View on Model

0199

00635045 Bosch Oven Spring Strip Backorder BOS 00635045 $29.26

View on Model

0199

11013101 Bosch Oven Repair Set Backorder BOS 11013101 $263.98

View on Model

0199

11017276 Bosch Range Fan Cover Backorder BOS 11017276 $126.36

View on Model

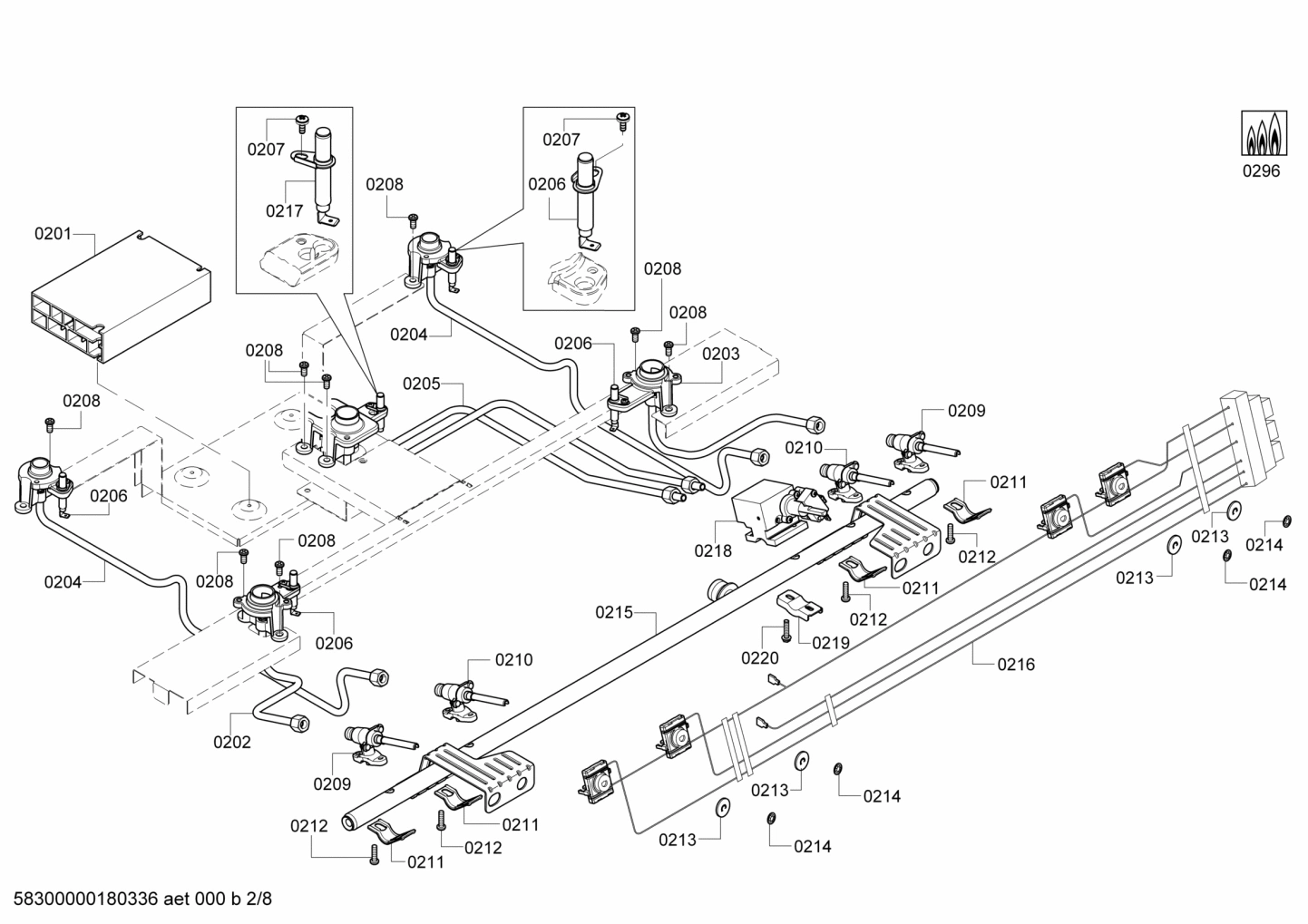

0201

12004873 Bosch Oven Ignition Device In Stock BOS 12004873 $95.20

View on Model

0202

12003348 Bosch Range Tube In Stock BOS 12003348 $42.07

View on Model

0204

12003352 Bosch Range Tube Backorder BOS 12003352 $42.07

View on Model

0205

12003353 Bosch Range Tube Backorder BOS 12003353 $45.73

View on Model

0206

00631633 Bosch Oven Electrode In Stock BOS 00631633 $17.37

View on Model

0207

00612818 Bosch Oven Screw Backorder BOS 00612818 $4.56

View on Model

0208

00617527 Bosch Oven Screw In Stock BOS 00617527 $25.60

View on Model

0209

00492444 Bosch Range Valve Backorder BOS 00492444 $39.33

View on Model

0210

00492443 Bosch Range Valve In Stock BOS 00492443 $24.69

View on Model

0212

00619838 Bosch Oven Screw In Stock BOS 00619838 $10.05

View on Model

0213

00619526 Bosch Oven Seal Backorder BOS 00619526 $13.71

View on Model

0214

00619525 Bosch Oven Retaining Washer Backorder BOS 00619525 $11.88

View on Model

0216

11005885 Bosch Range Cable Harness Backorder BOS 11005885 $68.76

View on Model

0217

00631634 Bosch Oven Electrode Backorder BOS 00631634 $13.71

View on Model

0218

00632521 Bosch Range Valve In Stock BOS 00632521 $113.90

View on Model

0255

12003605 Bosch Range Cable Harness Backorder BOS 12003605 $76.00

View on Model

0296

12003867 Bosch Range Jet Set Backorder BOS 12003867 $42.99

View on Model

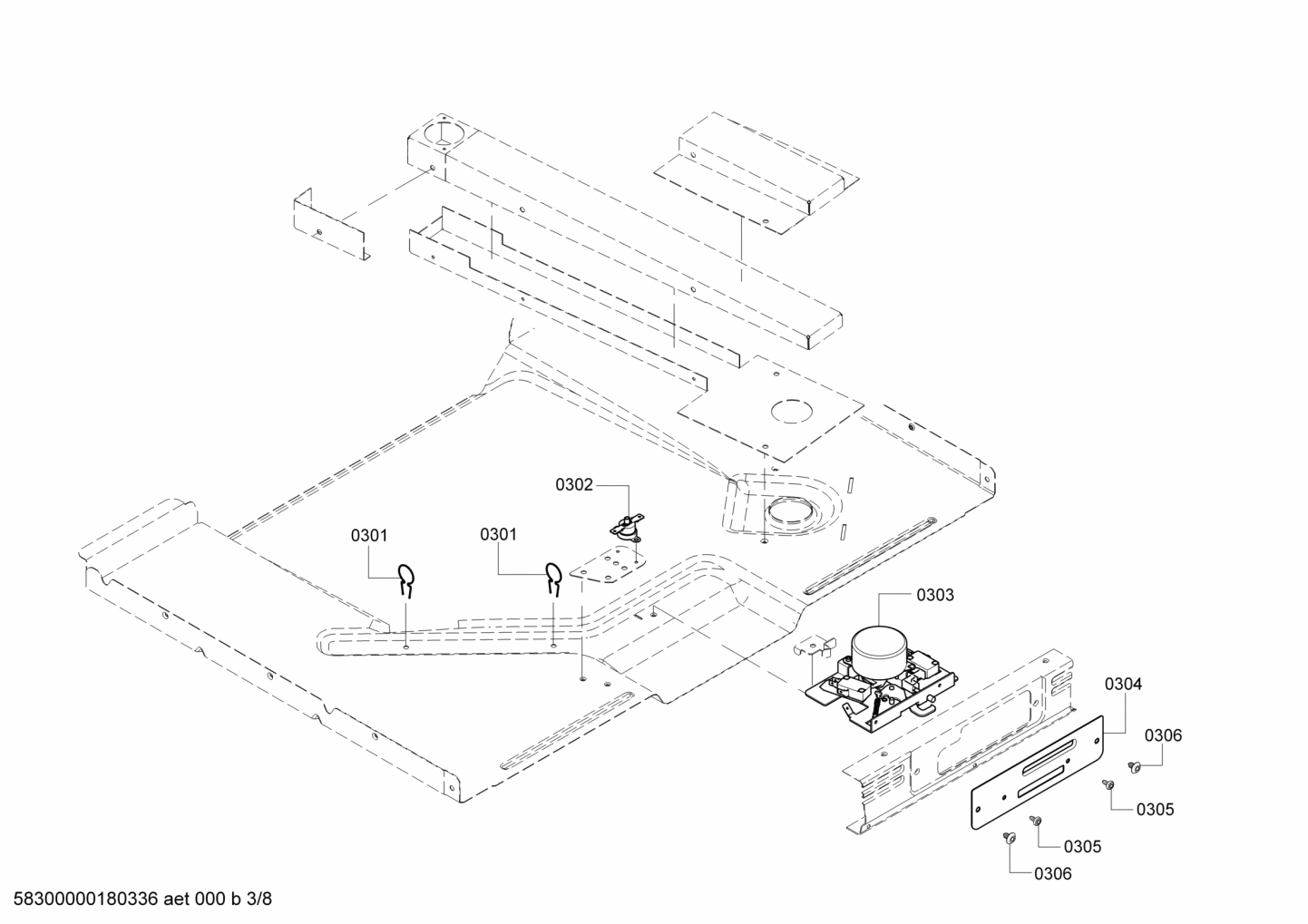

0302

10012286 Bosch Oven Temperature Limiter In Stock BOS 10012286 $36.58

View on Model

0303

12024390 Bosch Oven Latch In Stock BOS 12024390 $62.43

View on Model

0304

00758203 Bosch Oven Plate Backorder BOS 00758203 $53.05

View on Model

0305

00620814 Bosch Oven Screw Backorder BOS 00620814 $21.94

View on Model

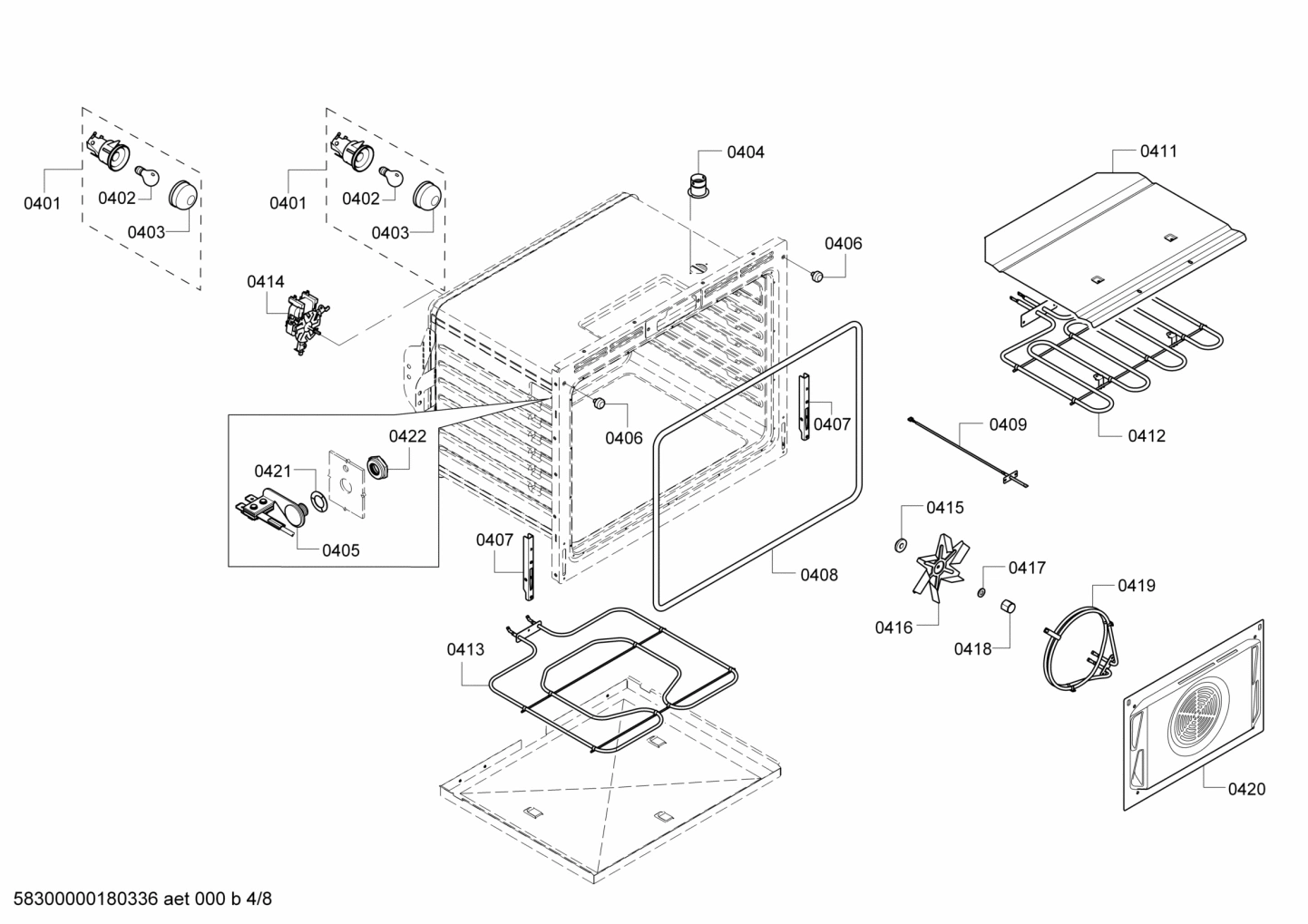

0401

Oven Lamp Assembly BOS 00415045 Contact Us For Availability

View on Model

0402

00623710 Bosch Oven Lamp In Stock BOS 00623710 $4.56

View on Model

0403

00414513 Bosch Oven Lens In Stock BOS 00414513 $18.28

View on Model

0404

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $48.48

View on Model

0405

10007567 Bosch Oven Socket In Stock BOS 10007567 $302.70

View on Model

0406

00631116 Bosch Oven Spacer Backorder BOS 00631116 $22.86

View on Model

0407

00758209 Bosch Oven Hinge Holder Backorder BOS 00758209 $27.43

View on Model

0408

00755053 Bosch Oven Door Seal Assembly In Stock BOS 00755053 $48.48

View on Model

0411

00777053 Bosch Oven Reflector Backorder BOS 00777053 $53.05

View on Model

0413

00791650 Bosch Oven Heating Element In Stock BOS 00791650 $80.53

View on Model

0414

00642845 Bosch Oven Motor In Stock BOS 00642845 $121.23

View on Model

0415

00603860 Bosch Oven Spacer Backorder BOS 00603860 $11.88

View on Model

0416

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $27.43

View on Model

0417

00422090 Bosch Oven Washer Backorder BOS 00422090 $14.62

View on Model

0418

00471532 Bosch Oven Nut Backorder BOS 00471532 $9.13

View on Model

0419

00755059 Bosch Oven Heating Element Backorder BOS 00755059 $57.90

View on Model

0421

00605039 Bosch Oven Washer Backorder BOS 00605039 $10.96

View on Model

0422

00608199 Bosch Oven Nut Backorder BOS 00608199 $9.13

View on Model

0450

00755410 Bosch Oven Cable Harness Backorder BOS 00755410 $31.09

View on Model

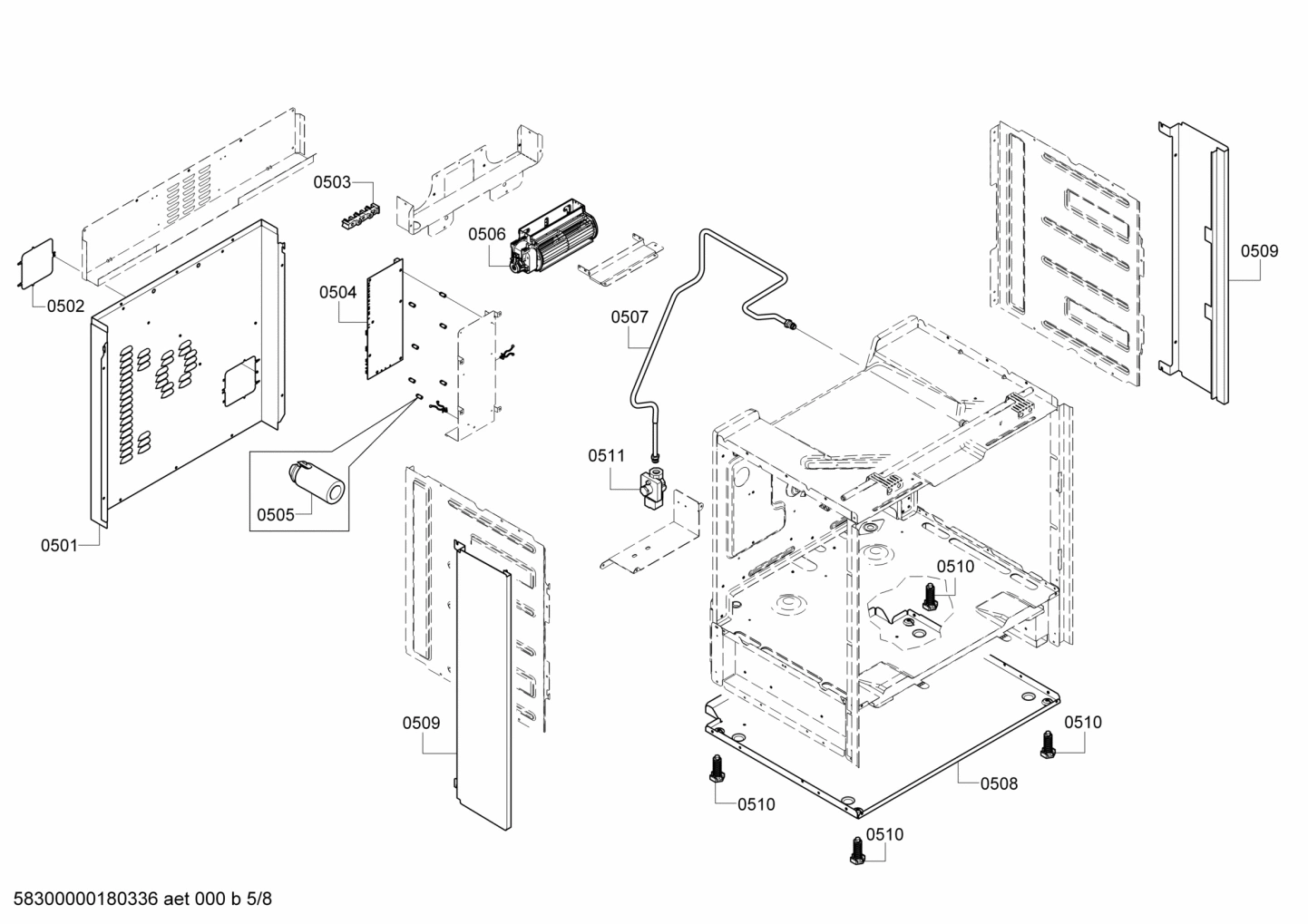

0502

00632609 Bosch Range Cover Backorder BOS 00632609 $21.94

View on Model

0503

00436364 Bosch Oven Terminal Box Backorder BOS 00436364 $27.43

View on Model

0504

12011384 Bosch Range Control Module In Stock BOS 12011384 $256.06

View on Model

0505

Spacer BOS 00422100 Contact Us For Availability

View on Model

0506

12011471 Bosch Range Fan In Stock BOS 12011471 $175.31

View on Model

0507

11025218 Bosch Range Tube Backorder BOS 11025218 $38.41

View on Model

0509

11008980 Bosch Range Side Panel Backorder BOS 11008980 $186.54

View on Model

0510

00429065 Bosch Range Foot In Stock BOS 00429065 $24.69

View on Model

0511

00632664 Bosch Range Regulator Backorder BOS 00632664 $90.48

View on Model

0550

00755412 Bosch Oven Cable Harness Backorder BOS 00755412 $18.28

View on Model

0551

Cable harness BOS 00755377 Contact Us For Availability

View on Model

0553

00755399 Bosch Range Cable Harness Backorder BOS 00755399 $56.09

View on Model

0554

00755402 Bosch Range Cable Harness Backorder BOS 00755402 $15.54

View on Model

0555

00755371 Bosch Range Cable Harness Backorder BOS 00755371 $25.60

View on Model

0556

11033493 Bosch Oven Cable Harness Backorder BOS 11033493 $22.86

View on Model

0557

00755408 Bosch Range Cable Harness In Stock BOS 00755408 $62.54

View on Model

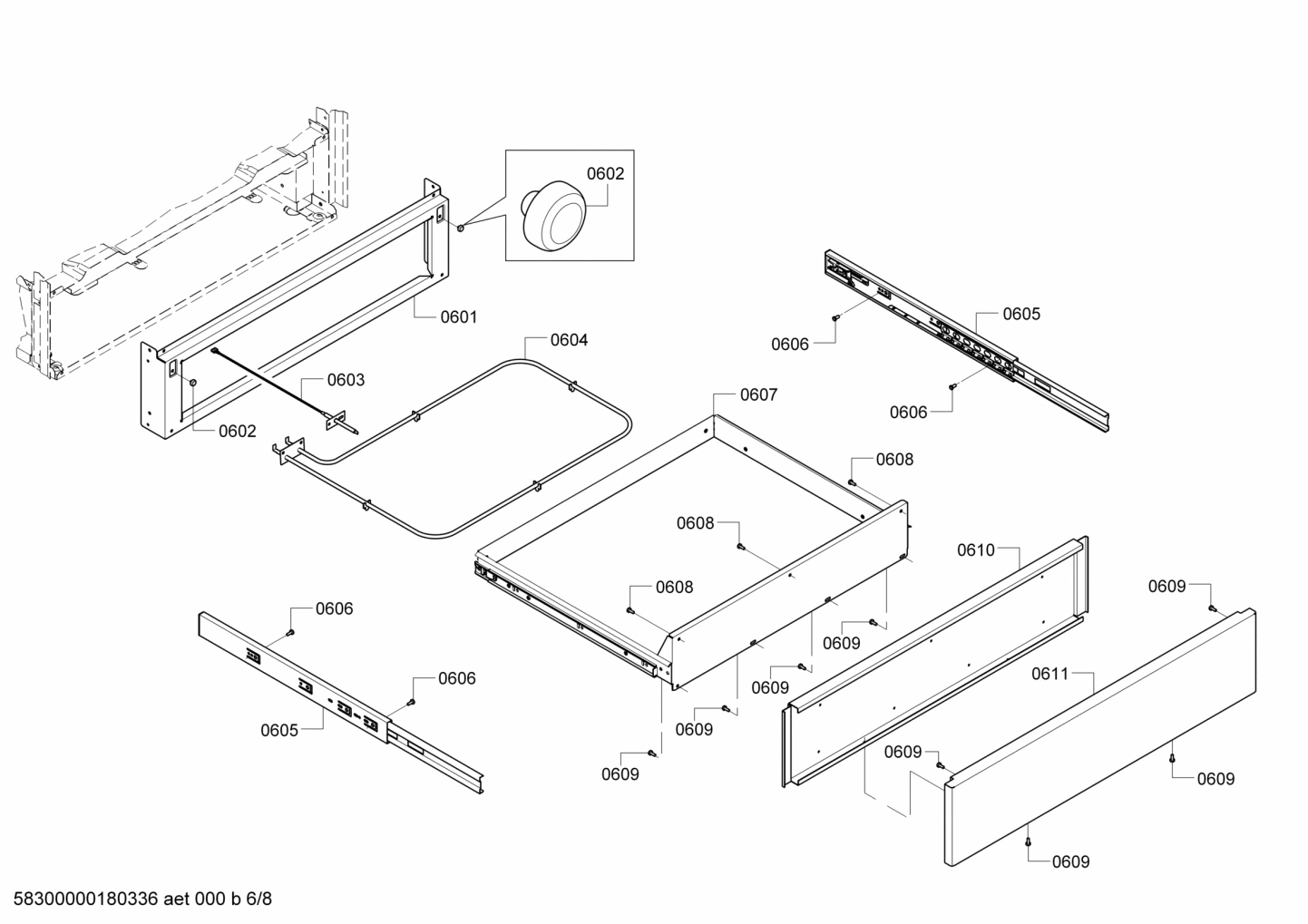

0603

00630873 Bosch Oven Sensor In Stock BOS 00630873 $39.33

View on Model

0605

12024638 Bosch Range Slide In Stock BOS 12024638 $88.89

View on Model

0606

00422098 Bosch Oven Screw In Stock BOS 00422098 $24.69

View on Model

0607

00775744 Bosch Range Drawer Backorder BOS 00775744 $198.86

View on Model

0608

00614573 Bosch Oven Screw Backorder BOS 00614573 $25.60

View on Model

0609

00189345 Bosch Oven Screw In Stock BOS 00189345 $19.20

View on Model

0610

11014918 Bosch Range Panel In Stock BOS 11014918 $88.67

View on Model

0611

11002375 Bosch Range Drawer Front Backorder BOS 11002375 $138.82

View on Model

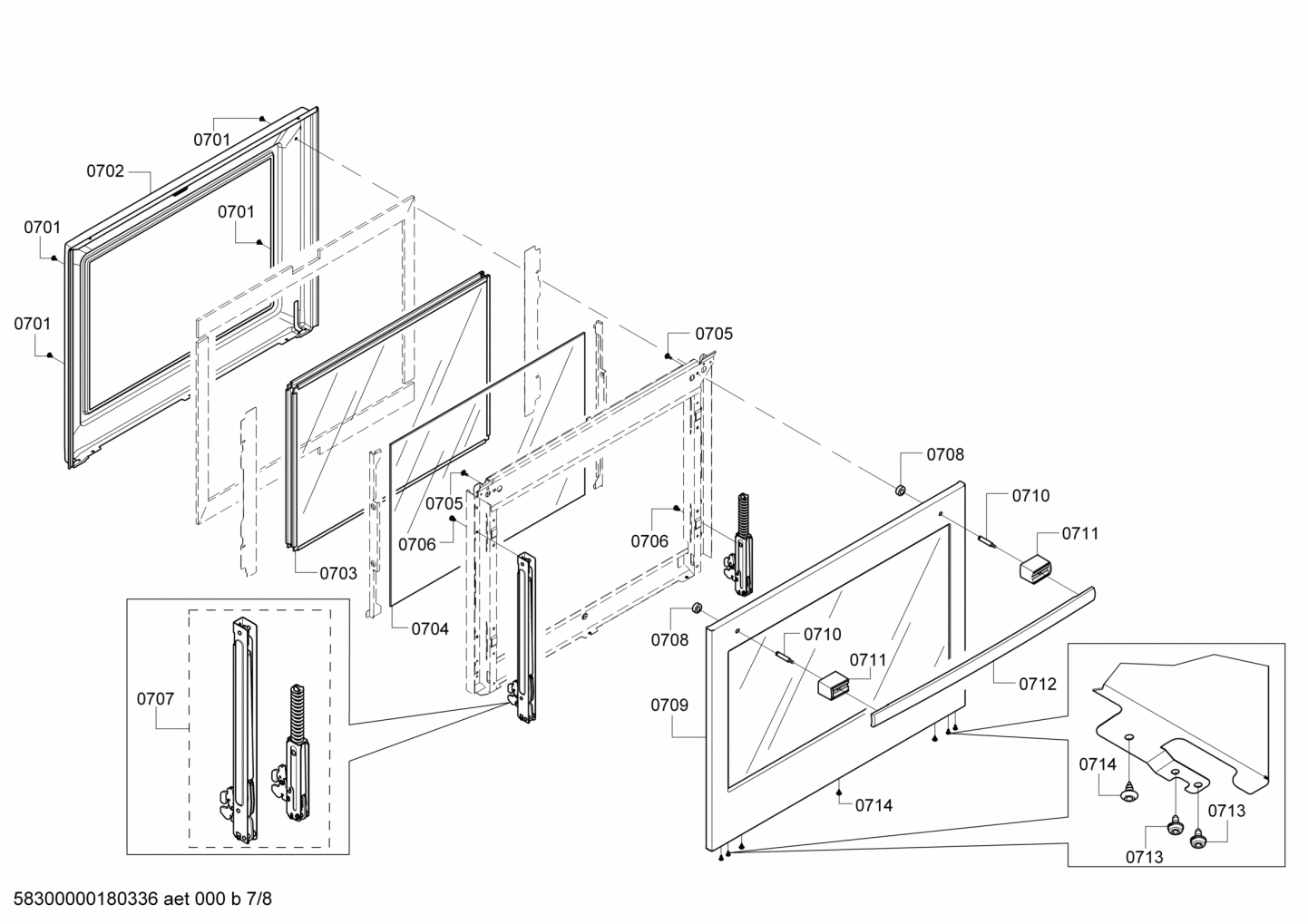

0702

00771360 Bosch Oven Inner Door In Stock BOS 00771360 $119.24

View on Model

0703

Glass panel BOS 00791632 Contact Us For Availability

View on Model

0705

00632735 Bosch Oven Screw Backorder BOS 00632735 $21.94

View on Model

0706

00421507 Bosch Oven Screw In Stock BOS 00421507 $19.20

View on Model

0707

11005285 Bosch Range Hinge Backorder BOS 11005285 $220.86

View on Model

0708

00631616 Bosch Oven Insert Backorder BOS 00631616 $22.86

View on Model

0709

00771361 Bosch Oven Outer Door Backorder BOS 00771361 $265.74

View on Model

0710

00631615 Bosch Oven Insert Backorder BOS 00631615 $22.86

View on Model

0711

00631899 Bosch Oven Spacer Backorder BOS 00631899 $40.24

View on Model

0712

00798648 Bosch Oven Door Handle In Stock BOS 00798648 $68.76

View on Model

0713

00626588 Bosch Oven Screw Backorder BOS 00626588 $10.05

View on Model

0714

00422102 Bosch Oven Screw In Stock BOS 00422102 $19.20

View on Model

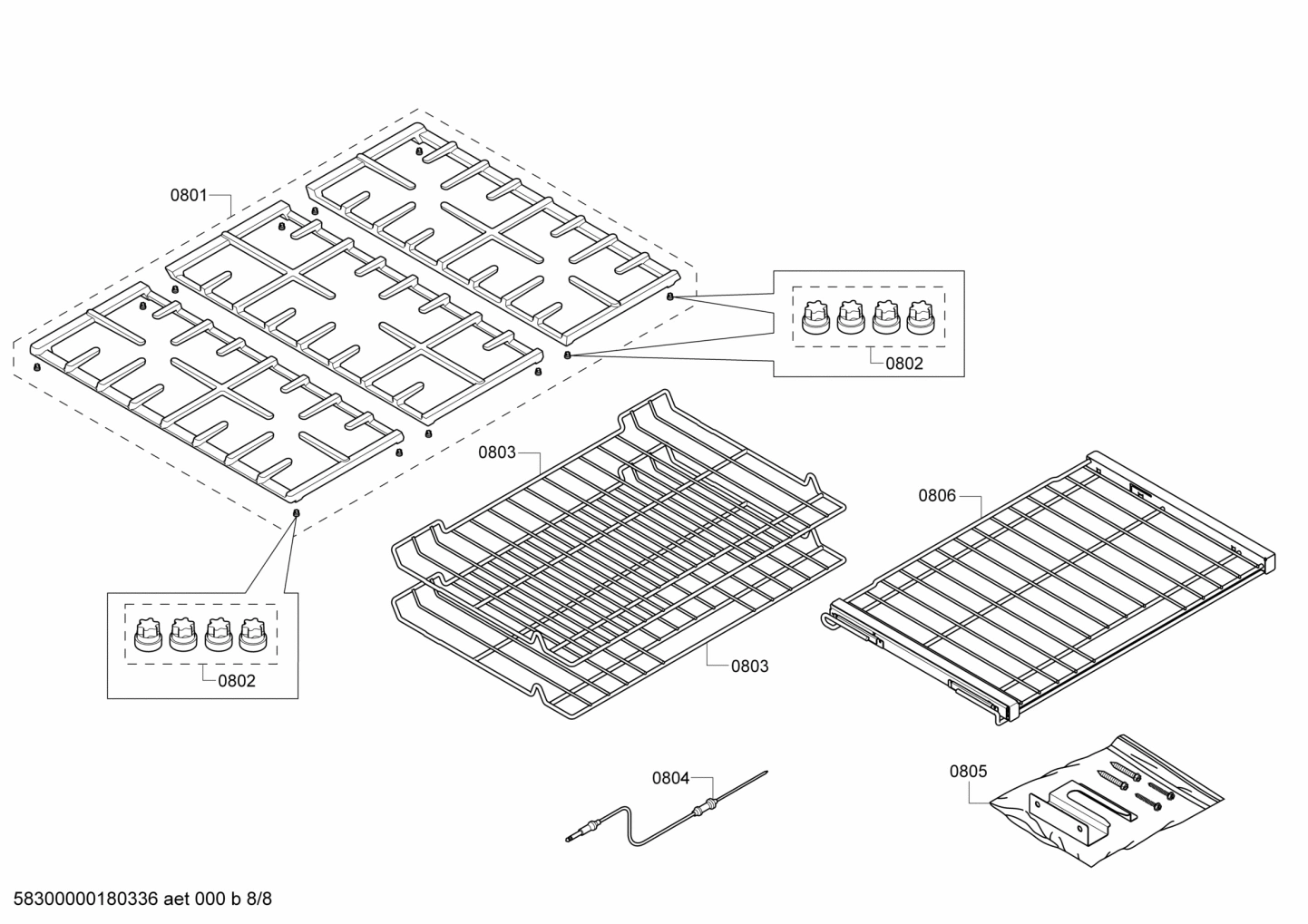

0801

11012878 Bosch Range Grid Backorder BOS 11012878 $211.18

View on Model

0802

00637940 Bosch Oven Rubber Foot In Stock BOS 00637940 $45.73

View on Model

0803

00798845 Bosch Oven Shelf In Stock BOS 00798845 $53.99

View on Model

0804

00755060 Bosch Oven Sensor In Stock BOS 00755060 $85.05

View on Model

0805

00632523 Bosch Range Bracket Backorder BOS 00632523 $31.09

View on Model

0806

00798846 Bosch Oven Shelf In Stock BOS 00798846 $271.92

View on Model

0850

00424823 Bosch Range Terminal Backorder BOS 00424823 $24.69

View on Model
