Samsung DVE52A5500W/A3-00 Dryer Parts List

1

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $36.38

View on Model

1

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $26.48

View on Model

1

DC61-00553C Samsung Dryer Clamp Cable Backorder SMG DC61-00553C $0.97

View on Model

1-2-1

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $9.50

View on Model

1-5

DC60-00103A Samsung Fastener Plain Backorder SMG DC60-00103A $1.81

View on Model

1-6

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.72

View on Model

1-7

DC61-02281A Samsung Fixer Lamp Backorder SMG DC61-02281A $9.05

View on Model

1-10-1

DC61-02740A Samsung Dryer Lint Screen Filter In Stock SMG DC61-02740A $0.97

View on Model

1-10-2

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $11.77

View on Model

1-11

Dryer Lint Screen SMG DC97-16742A Contact Us For Availability

View on Model

1-11-1

DC61-02610A Samsung Dryer Lint Screen Case Fi In Stock SMG DC61-02610A $15.85

View on Model

1-12

DC97-16782E Samsung Dryer Plastic Support In Stock SMG DC97-16782E $93.38

View on Model

1-13

DC97-17081A Samsung Dryer Front Drum Assembly Backorder SMG DC97-17081A $184.24

View on Model

2

DC61-40081A Samsung Wire Holder Assembly Backorder SMG DC61-40081A $0.97

View on Model

2

DC93-00101U Samsung Washer DV7000H Assembly M In Stock SMG DC93-00101U $288.62

View on Model

2

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $36.63

View on Model

2

DC97-08855A Samsung Assembly Cover Power MDE9 Backorder SMG DC97-08855A $4.71

View on Model

2-1

DC32-00007A Samsung Dryer Thermistor Sensor Backorder SMG DC32-00007A $17.64

View on Model

2-1

DC47-00015A Samsung Dryer 250V Thermostat In Stock SMG DC47-00015A $25.78

View on Model

2-2

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $13.07

View on Model

2-3

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $5.42

View on Model

2-3

DC66-00664A Samsung Dryer Drum Lifter In Stock SMG DC66-00664A $25.84

View on Model

2-4

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.72

View on Model

2-5

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $90.19

View on Model

2-6

DC93-00098D Samsung Assembly Cover Duct Backorder SMG DC93-00098D $188.66

View on Model

2-6-1

Dryer Blower Housing SMG DC61-02348B Contact Us For Availability

View on Model

2-6-2

DC61-03364A Samsung Guide Fan Backorder SMG DC61-03364A $15.85

View on Model

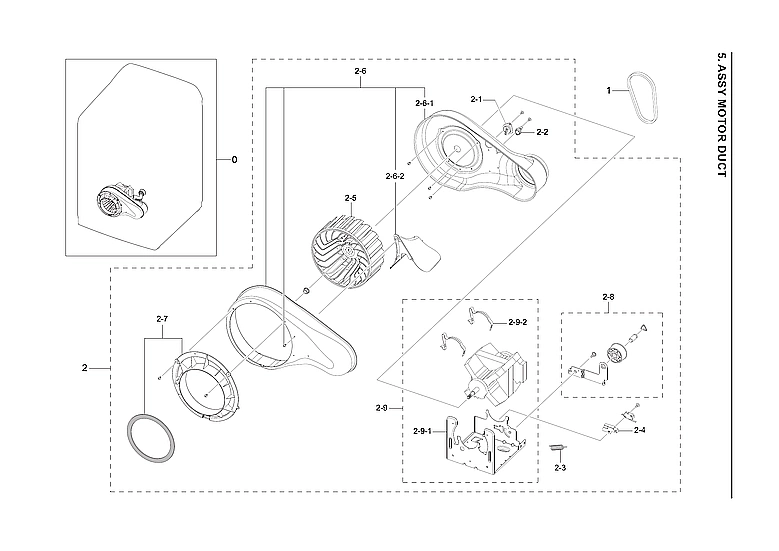

2-7

DC93-00282A Samsung Assembly Duct Connector Backorder SMG DC93-00282A $24.55

View on Model

2-8

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $44.37

View on Model

2-9

DC96-00790G Samsung BIGBANG Motor Bracket Ass In Stock SMG DC96-00790G $252.90

View on Model

2-9-1

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $79.07

View on Model

2-9-2

DC61-04225A Samsung Dryer Spring Plate Assemb In Stock SMG DC61-04225A $3.26

View on Model

3

6502-000127 Samsung Cable Clamp Backorder SMG 6502-000127 $8.14

View on Model

3

DC61-01428A Samsung Power Holder Assembly Backorder SMG DC61-01428A $0.97

View on Model

3-4

DC61-02826A Samsung Drum Back Bracket Assembl Backorder SMG DC61-02826A $16.29

View on Model

3-8

Dryer Heat Duct SMG DC97-07521A Contact Us For Availability

View on Model

3-10

DC97-16919B Samsung Dryer Steam Kit Assembly Backorder SMG DC97-16919B $168.60

View on Model

4

6046-000310 Samsung Stand Off Backorder SMG 6046-000310 $0.97

View on Model

4

DC61-03400A Samsung Clip Backorder SMG DC61-03400A $1.81

View on Model

4

DC92-02401A Samsung Jog Control Module Assemb In Stock SMG DC92-02401A $125.19

View on Model

4-2

DC61-03174A Samsung Fixer Cover Top Backorder SMG DC61-03174A $5.75

View on Model

4-6

DC64-00828B Samsung Washer Dryer Door Switch In Stock SMG DC64-00828B $31.40

View on Model

4-7

Dryer Door Switch SMG DC97-16970B Contact Us For Availability

View on Model

5

DC61-00133A Samsung Clamp Hose Backorder SMG DC61-00133A $0.97

View on Model

5-1

DC67-00607A Samsung Cap Cover Top Assembly DV Backorder SMG DC67-00607A $17.64

View on Model

5-3

DC97-21430B Samsung Cover Top Backorder SMG DC97-21430B $231.29

View on Model

5-3-1

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $0.97

View on Model

5-5-1

DC62-00344A Samsung Dryer Air Seal In Stock SMG DC62-00344A $35.86

View on Model

6

DC61-00553B Samsung Cable Clamp Assembly Backorder SMG DC61-00553B $0.97

View on Model

13

DC97-07519G Samsung Dryer Exhaust Duct Assemb Backorder SMG DC97-07519G $129.12

View on Model

14

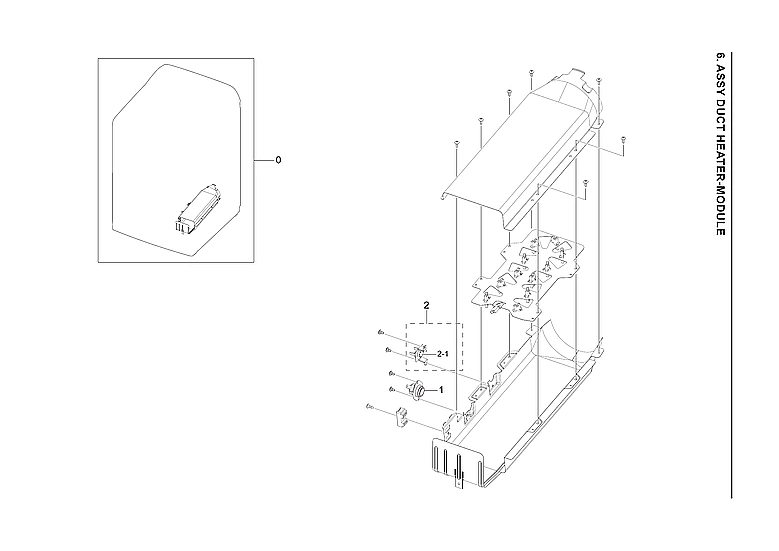

DC97-14486A Samsung Dryer Heating Element Duc In Stock SMG DC97-14486A $184.11

View on Model

15

Dryer Steam Hose Installation Kit SMG DC98-02087B Contact Us For Availability

View on Model

15-1

DC97-15249D Samsung Steam Hose Connector Asse Backorder SMG DC97-15249D $50.57

View on Model

16

DC61-03754A Samsung Duct Bracket Assembly Backorder SMG DC61-03754A $69.43

View on Model

52111

ASSY PCB SMD SMG DC94-11857A Contact Us For Availability

View on Model

NI

6001-002674 Samsung Machine Screw M4 × 10 Backorder SMG 6001-002674 $0.97

View on Model

NI

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.97

View on Model

NI

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.97

View on Model

NI

6002-000231 Samsung Tapping Screw Backorder SMG 6002-000231 $0.97

View on Model

NI

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.97

View on Model

NI

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $0.97

View on Model

NI

6002-000471 Samsung Refrigerator Screw Backorder SMG 6002-000471 $0.97

View on Model

NI

6002-000473 Samsung Tapping Screw Backorder SMG 6002-000473 $0.97

View on Model

NI

6002-000520 Samsung Tapping Screw Backorder SMG 6002-000520 $0.97

View on Model

NI

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.97

View on Model

NI

6002-001436 Samsung Tapping Screw Backorder SMG 6002-001436 $14.94

View on Model

NI

6003-001768 Samsung Screw Tap Type Backorder SMG 6003-001768 $0.97

View on Model

NI

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $0.97

View on Model

NI

6009-001522 Samsung Washer Dryer Hex Screw M5 Backorder SMG 6009-001522 $3.17

View on Model

NI

DC97-15847A Samsung Screw Assembly Backorder SMG DC97-15847A $0.97

View on Model

NI

Refrigerator Tapping Screw SMG 6002-000470 Contact Us For Availability

View on Model

NI

Tapping Screw SMG 6002-001149 Contact Us For Availability

View on Model

NI

Dryer Screw SMG 6002-000488 Contact Us For Availability

View on Model

NI

Dryer Screw SMG 6002-000524 Contact Us For Availability

View on Model

NI

Tapping Screw SMG 6002-001320 Contact Us For Availability

View on Model

NI

Screw SMG 6002-001384 Contact Us For Availability

View on Model

NI

Screw SMG 6003-000226 Contact Us For Availability

View on Model

Model Samsung DVE52A5500W/A3-00 Dryer – Common Parts & Diagrams

Common parts from model Samsung DVE52A5500W/A3-00 Dryer
