Model Samsung DVE52A5500V/A3-00 Dryer – Common Parts & Diagrams
Control Panel Assembly
Drum-Module Assembly
Front Assembly

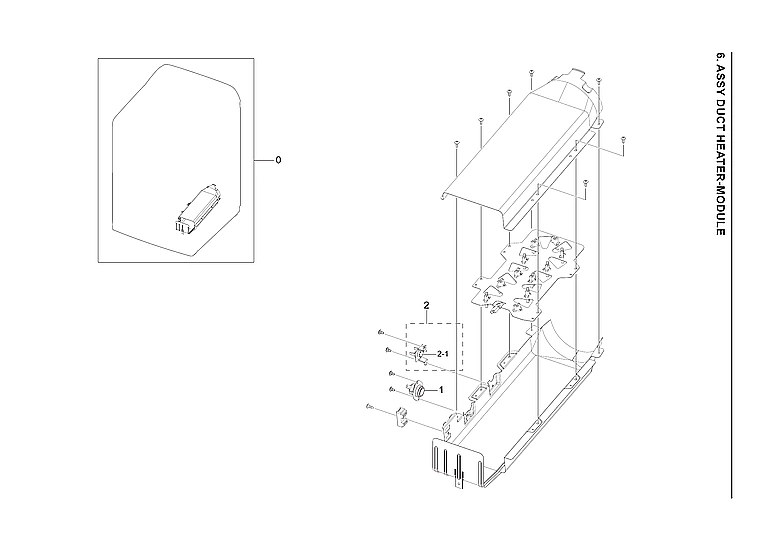

Hetaer Module Duct Assembly

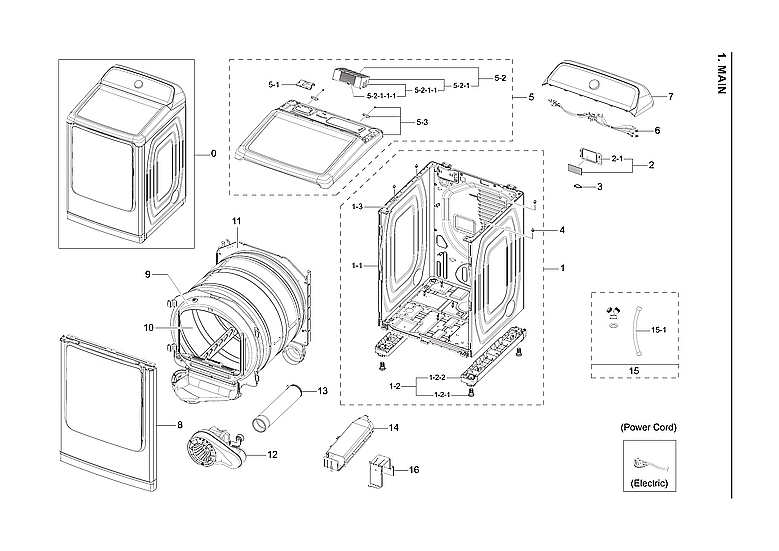

Main Assembly

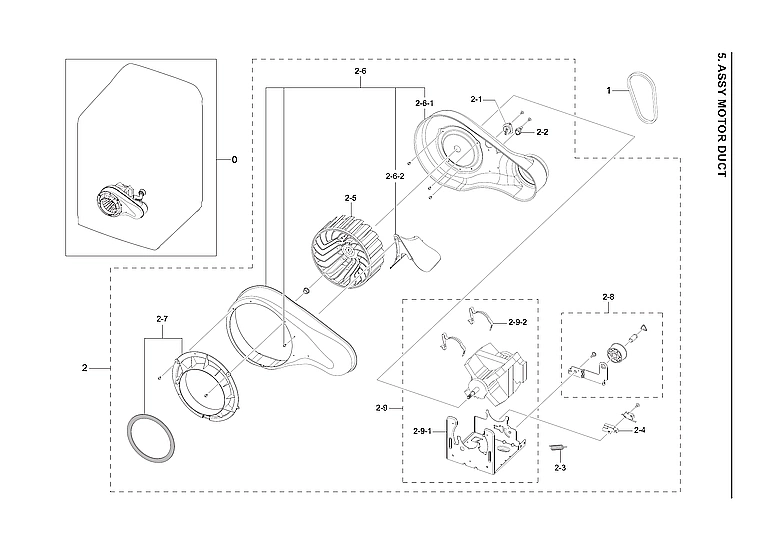

Motor Duct Assembly

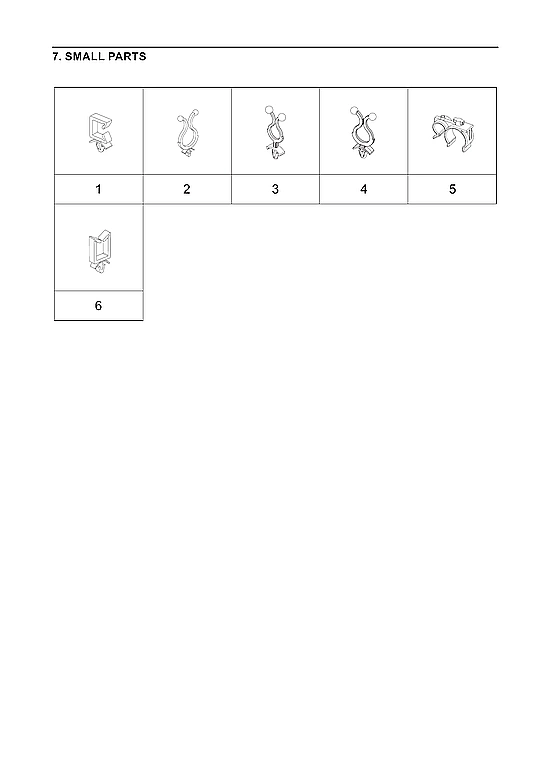

Small Parts
Common parts from model Samsung DVE52A5500V/A3-00 Dryer
1
Dryer wire harness retainer SMG DC61-00553C Contact Us For Availability
1-11
Dryer lint screen SMG DC97-16742A Contact Us For Availability
1-13
Dryer drum front cover assembly SMG DC97-17081A Contact Us For Availability
2
dryer terminal block cover SMG DC97-08855A Contact Us For Availability
2
Laundry appliance hex screw SMG 6009-001522 Contact Us For Availability
2
Laundry appliance wire harness retainer SMG DC61-40081A Contact Us For Availability
2-4
Dryer belt switch housing SMG DC63-00919A Contact Us For Availability
2-6-1
Dryer blower housing SMG DC61-02348B Contact Us For Availability
2-6-2
Dryer blower fan guide SMG DC61-03364A Contact Us For Availability
2-9
Dryer drive motor assembly SMG DC96-00790G Contact Us For Availability
3
Appliance wire harness retainer SMG 6502-000127 Contact Us For Availability
3-8
Dryer heat duct SMG DC97-07521A Contact Us For Availability
3-10
Dryer steam nozzle SMG DC97-16919B Contact Us For Availability
4
Dryer user interface SMG DC92-02401A Contact Us For Availability
4
Fastener SMG 6046-000310 Contact Us For Availability
4-7
Dryer door catch SMG DC97-16970B Contact Us For Availability
5
Dryer retainer clip SMG DC61-00133A Contact Us For Availability
5-1
Dryer top panel clip cover SMG DC67-00607A Contact Us For Availability
6
Dryer wire harness retainer SMG DC61-00553B Contact Us For Availability
10
Dryer drum assembly SMG DC97-14849Q Contact Us For Availability
11
Rear drum SMG DC97-21492A Contact Us For Availability
12
Duct motor SMG DC90-20077A Contact Us For Availability
13
Dryer exhaust duct SMG DC97-07519G Contact Us For Availability
15
Dryer steam hose installation kit SMG DC98-02087B Contact Us For Availability
15-1
Assembly hose connector SMG DC97-15249D Contact Us For Availability
16
Dryer heater housing bracket SMG DC61-03754A Contact Us For Availability
52111
Assy pcb smd SMG DC94-11857A Contact Us For Availability
NI
Dryer drum support roller SMG DC97-16782E Contact Us For Availability
NI
Dryer screw, 4-mm SMG 6006-001174 Contact Us For Availability
NI
Dryer washer SMG DC60-00103A Contact Us For Availability
NI
Dryer roller wheel nut SMG DC60-50145A Contact Us For Availability
NI
Laundry appliance screw, m4-18 x 22 SMG 6002-000445 Contact Us For Availability
NI
Dryer screw, 4-mm SMG DC97-15847A Contact Us For Availability
NI
Dryer screw SMG 6002-000488 Contact Us For Availability
NI
Machine screw SMG 6001-002674 Contact Us For Availability
NI
Amana refrigerator screw SMG 6002-000215 Contact Us For Availability
NI
Tapping screw SMG 6002-000231 Contact Us For Availability
NI
Dryer screw SMG 6002-000524 Contact Us For Availability
NI
Tapping screw SMG 6002-001320 Contact Us For Availability
NI
Screw SMG 6002-001384 Contact Us For Availability
NI
Screw SMG 6002-001436 Contact Us For Availability
NI
Screw SMG 6003-000226 Contact Us For Availability
NI
Screw SMG 6003-001768 Contact Us For Availability
NI
Tapping screw SMG 6002-001149 Contact Us For Availability
NI
Refrigerator tapping screw SMG 6002-000470 Contact Us For Availability
NI
Refrigerator self-tapping screw, 4-mm SMG 6002-000471 Contact Us For Availability
NI
refrigerator screw SMG 6002-000473 Contact Us For Availability
NI
Refrigerator tapping screw SMG 6002-000520 Contact Us For Availability
× ![]()
