Model Samsung DVE50M7450P/A3-00 Dryer – Common Parts & Diagrams

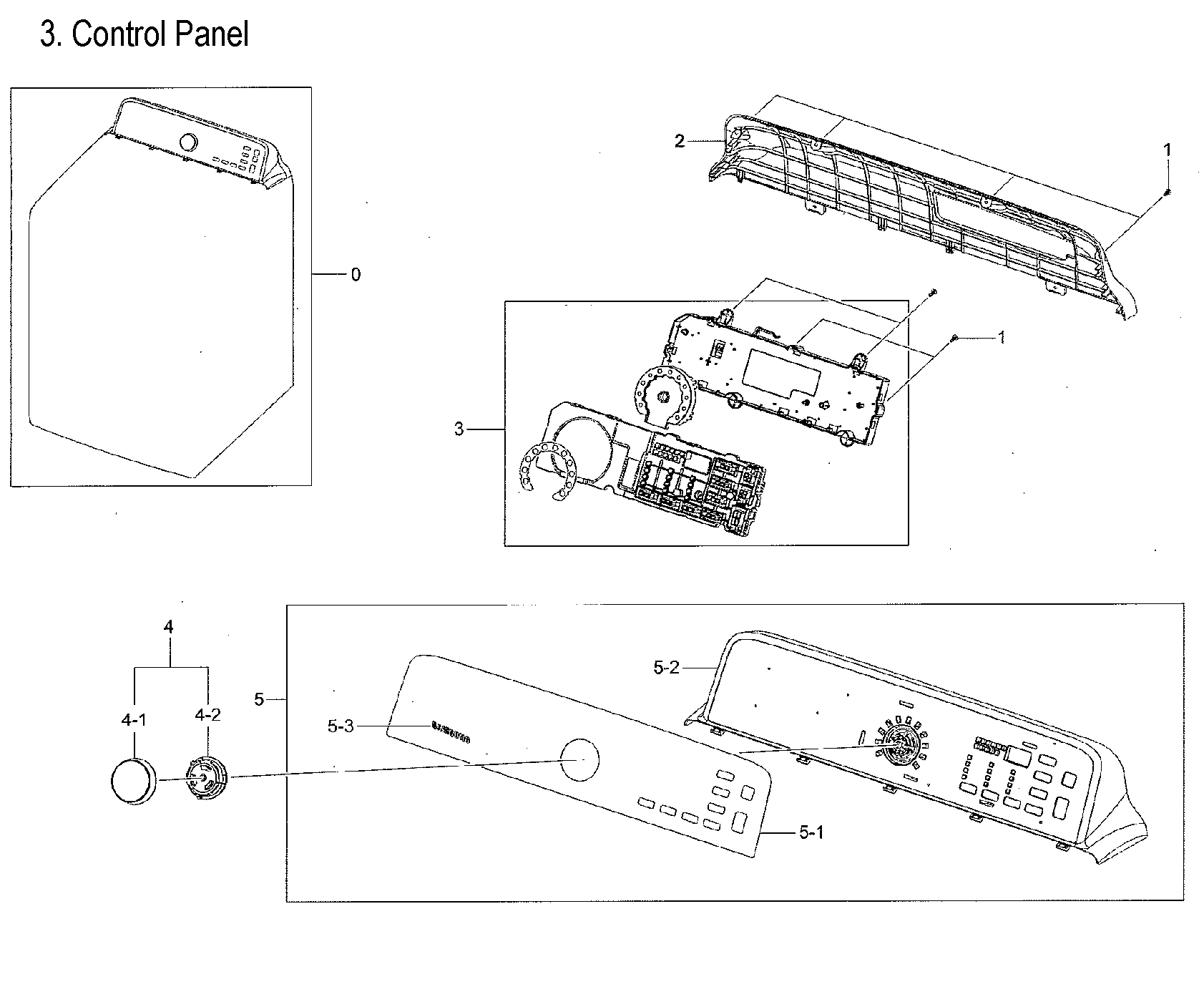

Control Panel

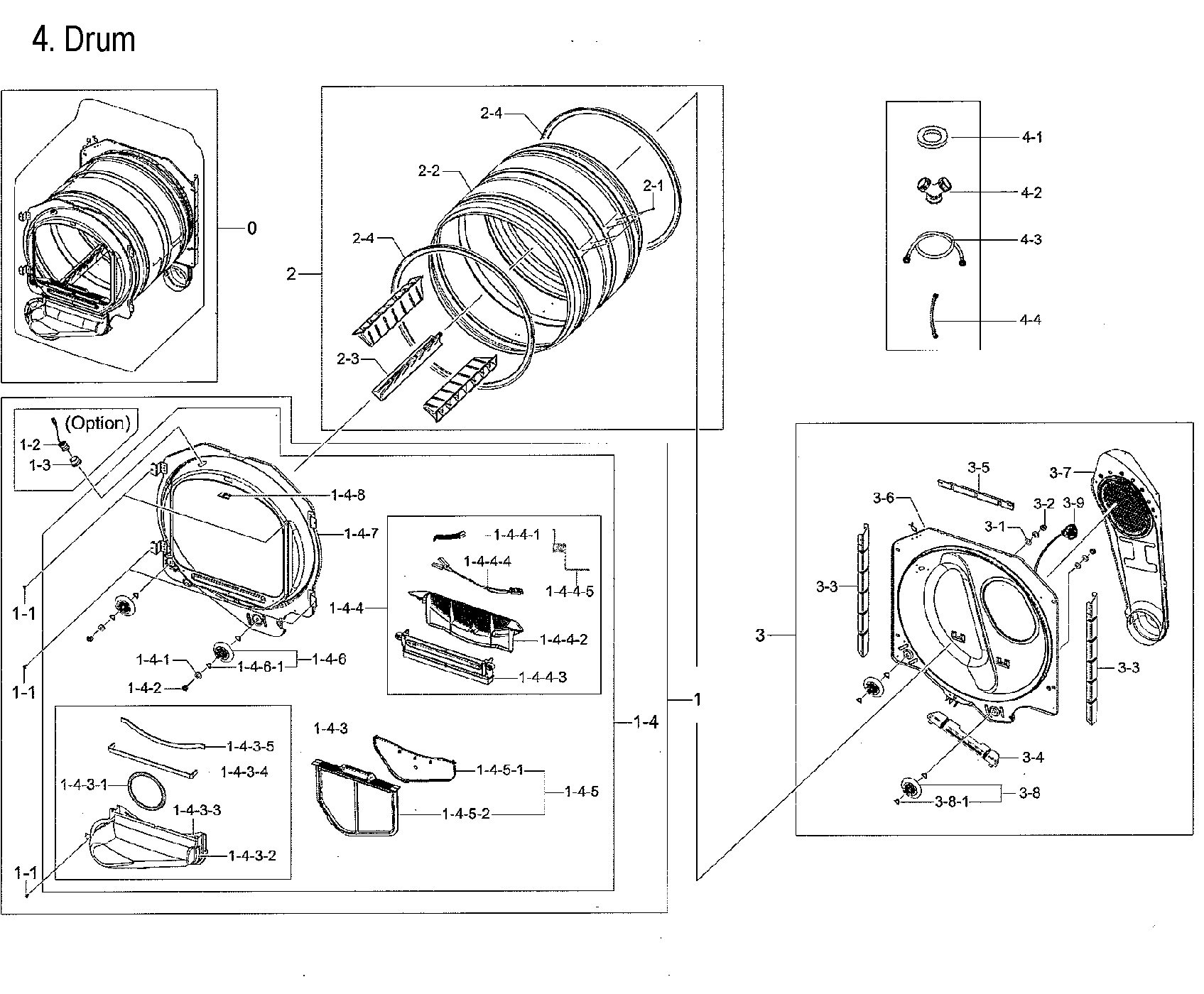

Drum Parts

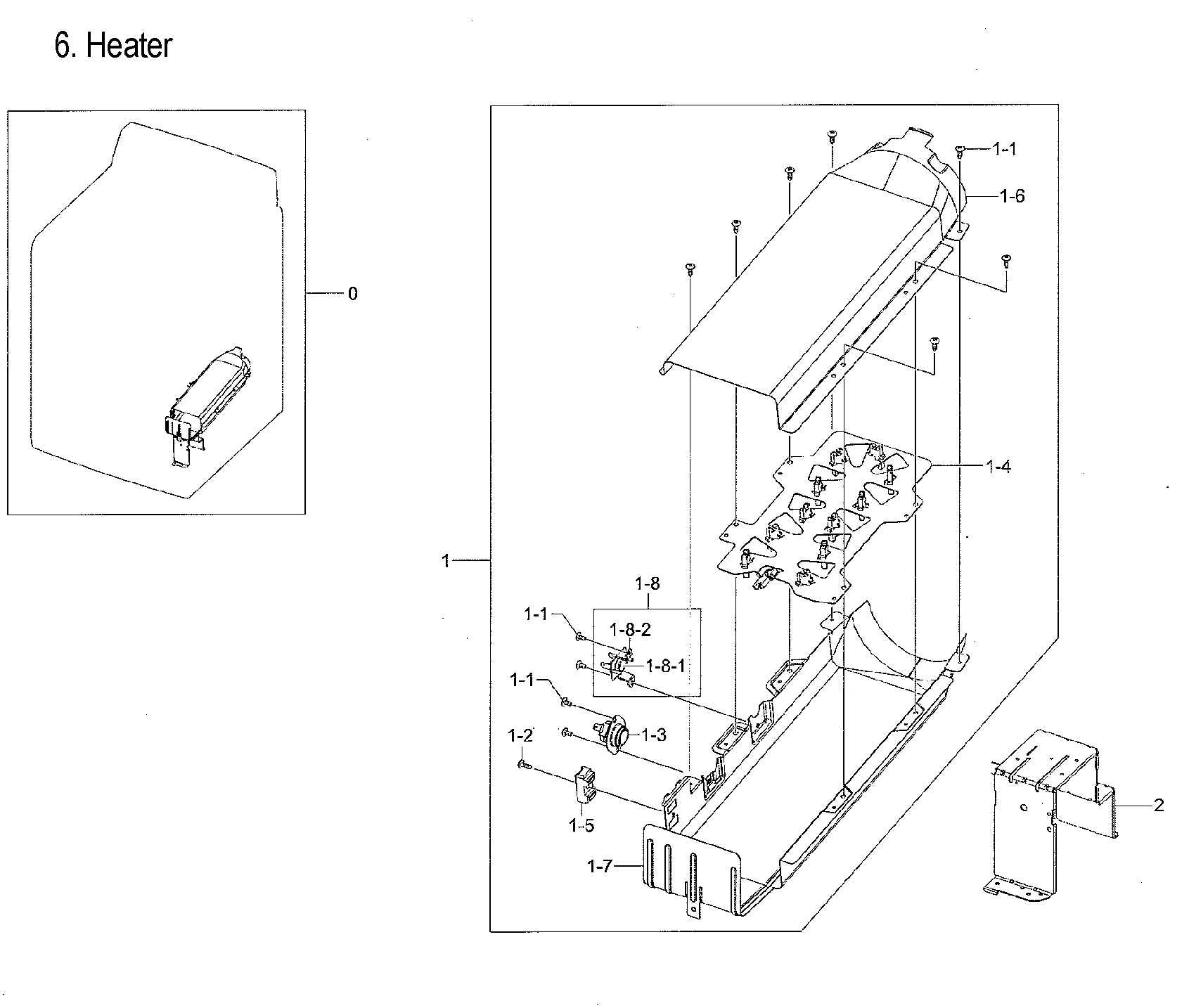

Duct Heater

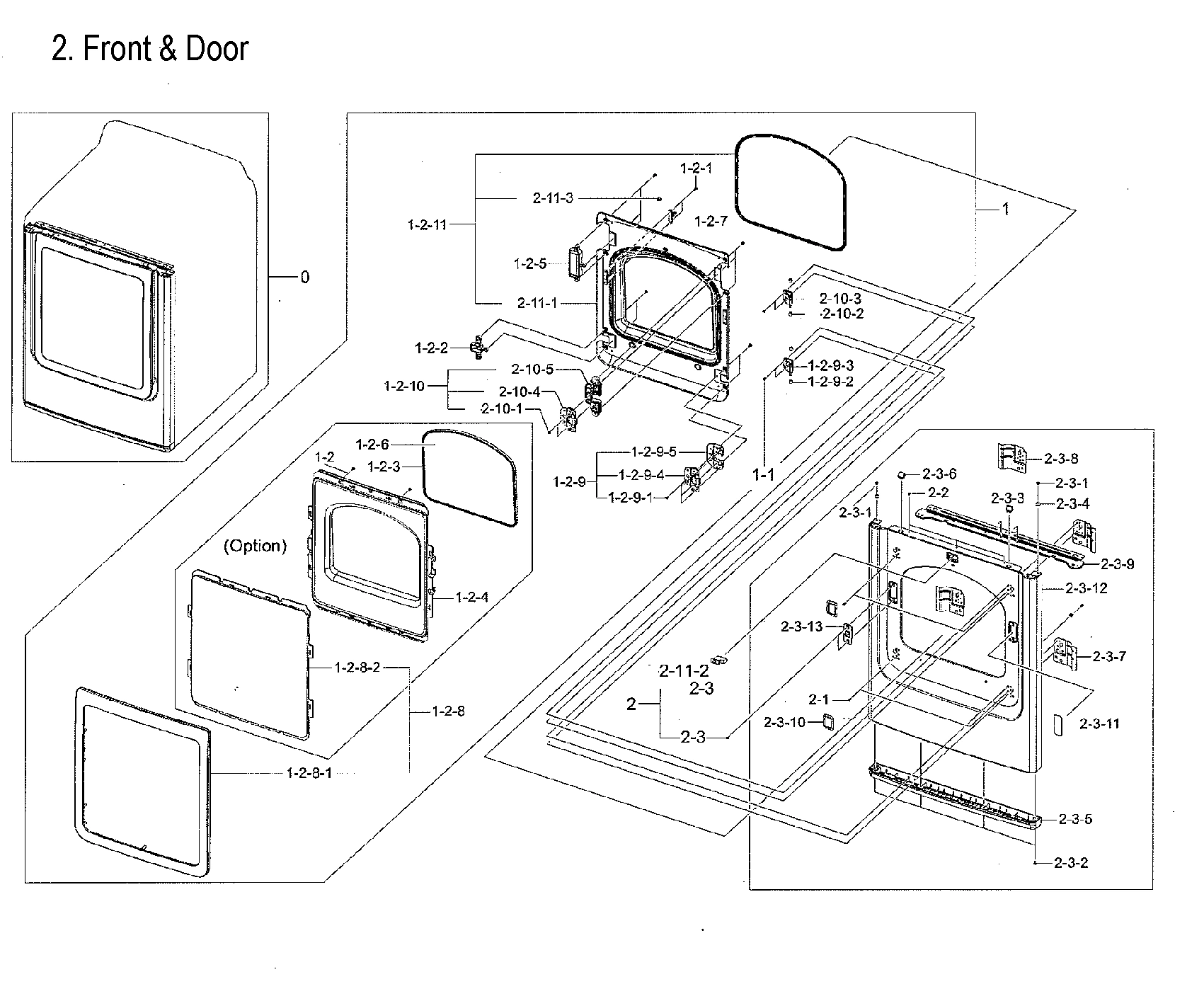

Frame Front & Door

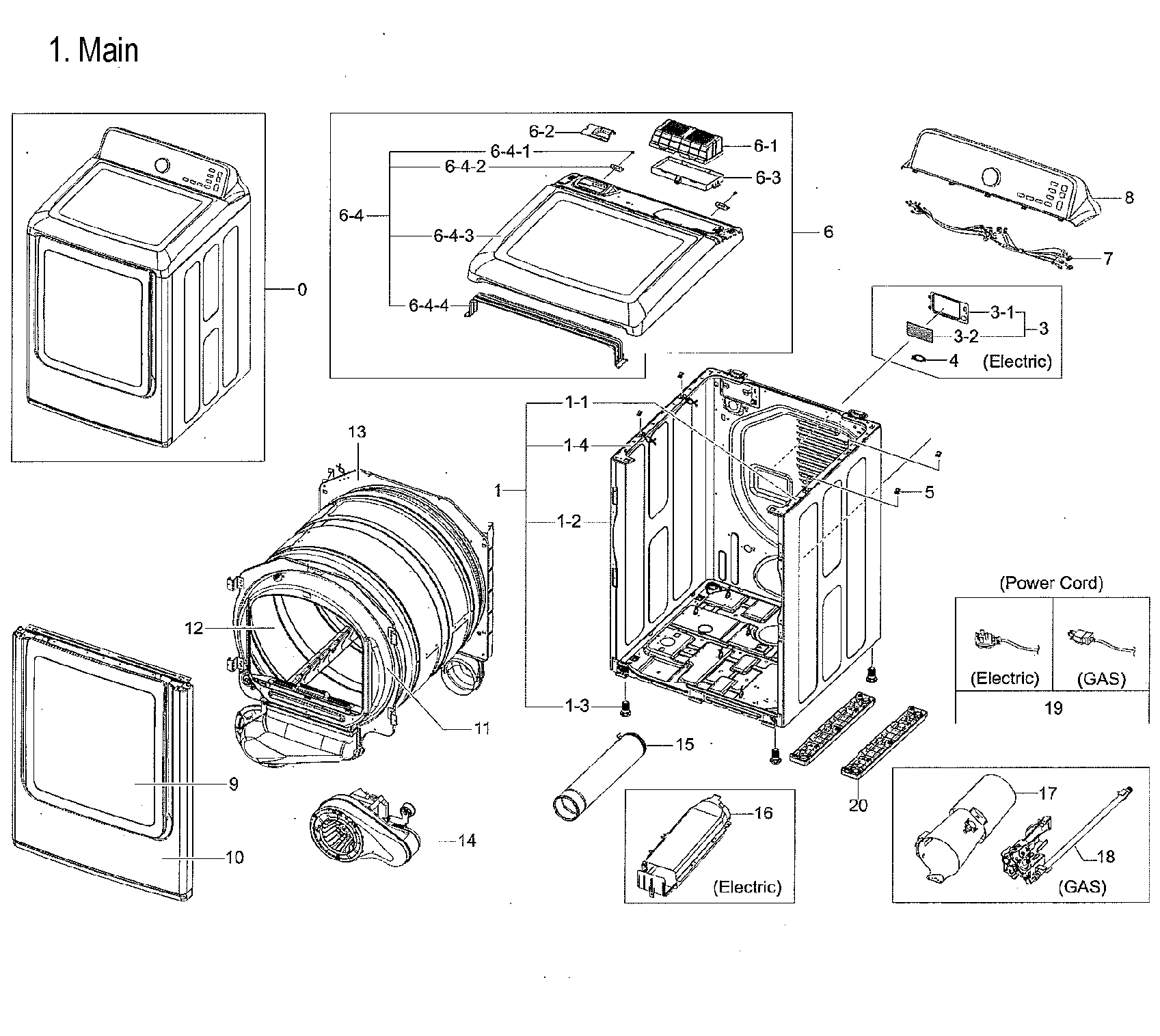

Main Assembly

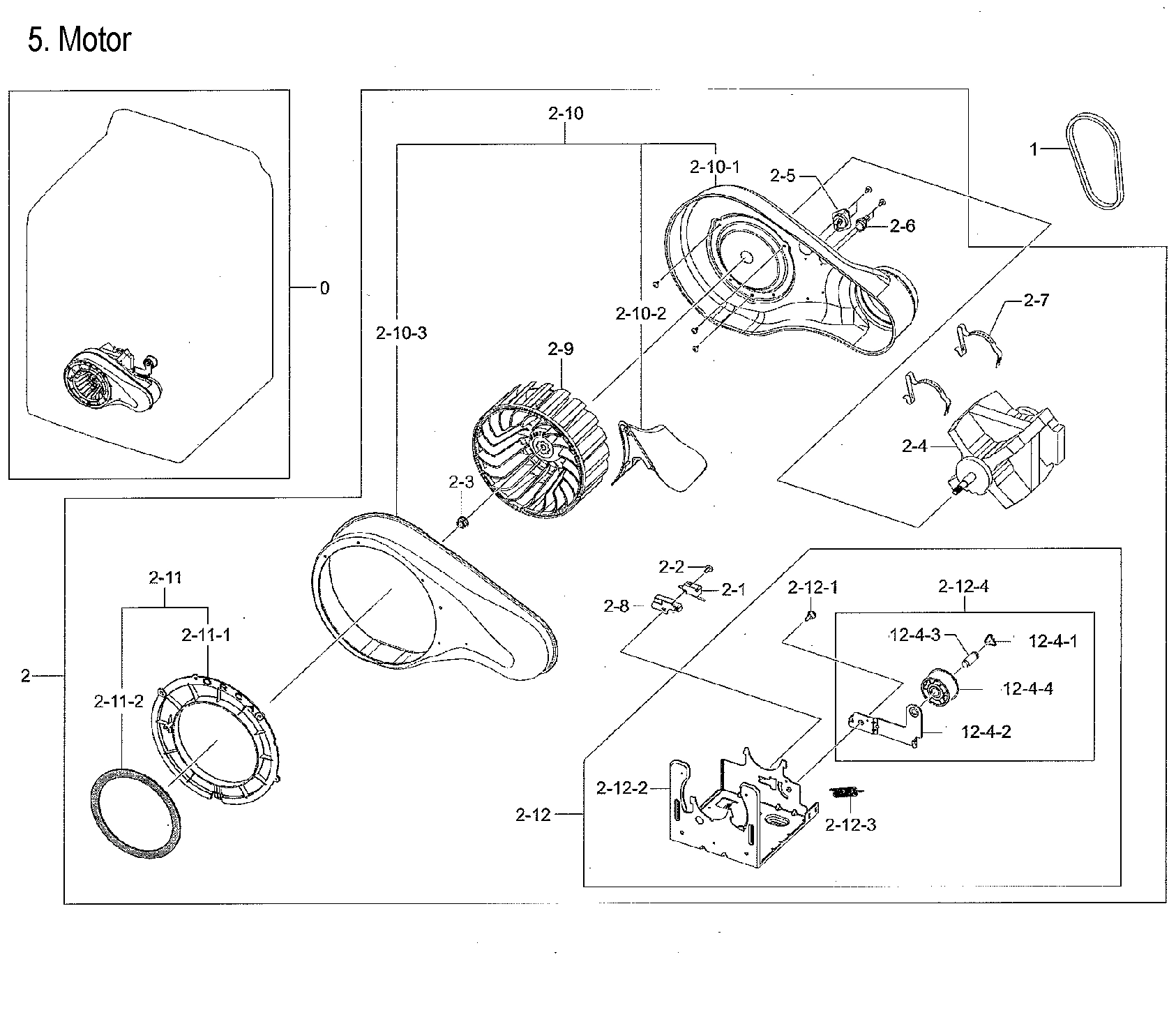

Motor Duct
Common parts from model Samsung DVE50M7450P/A3-00 Dryer
1
Dryer drum belt SMG 6602-001655 Contact Us For Availability
1-2
Dryer drum light assembly SMG DC47-00027F Contact Us For Availability
1-3
Dryer high-limit thermostat SMG DC47-00018A Contact Us For Availability
1-3
Dryer leveling leg SMG DC61-03128A Contact Us For Availability
1-3
Dryer drum light support bracket SMG DC61-02281A Contact Us For Availability
1-5
Dryer heating element terminal block SMG DC65-00013A Contact Us For Availability
1-6
Dryer heater box, upper SMG DC67-00132A Contact Us For Availability
1-7
Dryer heating element housing, lower SMG DC67-00133A Contact Us For Availability
1-23
Dryer door seal SMG DC62-00339A Contact Us For Availability
1-26
Dryer door glass SMG DC64-02789A Contact Us For Availability
1-27
Dryer door strike SMG DC66-00395A Contact Us For Availability
1-45
Dryer lint screen SMG DC97-16742A Contact Us For Availability
1-47
Dryer drum front cover assembly SMG DC97-17081A Contact Us For Availability
1-48
Dryer bulkhead cap SMG DC67-00652A Contact Us For Availability
1-81
Dryer thermal cut-off fuse, 320-degree f SMG DC47-00015A Contact Us For Availability
1-82
Dryer thermostat bracket SMG DC61-01204A Contact Us For Availability
2
Dryer motor assembly SMG DC93-00101Y Contact Us For Availability
2-1
Dryer belt switch SMG 3405-001118 Contact Us For Availability
2-3
Dryer blower wheel nut SMG 6021-001201 Contact Us For Availability
2-4
Dryer drum seal SMG DC97-07618A Contact Us For Availability
2-4
Motor ac drive SMG DC31-00055L Contact Us For Availability
2-5
Dryer thermistor SMG DC32-00007A Contact Us For Availability
2-6
Dryer thermal cut-off thermostat SMG DC47-00016A Contact Us For Availability
2-7
Dryer motor clamp SMG DC61-04225A Contact Us For Availability
2-8
Dryer belt switch housing SMG DC63-00919A Contact Us For Availability
2-9
Dryer blower wheel SMG DC67-00180B Contact Us For Availability
2-10
Dryer blower housing SMG DC93-00098D Contact Us For Availability
2-11
Dryer exhaust duct connector SMG DC93-00282A Contact Us For Availability
2-33
Laundry appliance spring clip SMG DC61-03174A Contact Us For Availability
3
Dryer user interface SMG DC92-01624M Contact Us For Availability
3
dryer terminal block cover SMG DC97-08855A Contact Us For Availability
3-4
Drive bracket SMG DC61-02826A Contact Us For Availability
3-7
Dryer heat duct SMG DC97-07521A Contact Us For Availability
3-9
Dryer steam nozzle SMG DC97-16919B Contact Us For Availability
4
Dryer control knob SMG DC97-16931B Contact Us For Availability
4
Dryer power cord strain relief SMG DC61-01428A Contact Us For Availability
4-4
Dryer inlet hose connector SMG DC97-15249A Contact Us For Availability
5
Washer cabinet panel guide pin cover SMG DC61-03400A Contact Us For Availability
6-2
Dryer top panel clip cover SMG DC67-00607A Contact Us For Availability
6-3
Samsung dryer electronic control board SMG DC92-01729P Contact Us For Availability
6-4
Dryer top panel SMG DC97-16954P Contact Us For Availability
7
Dryer wire harness SMG DC93-00153M Contact Us For Availability
9
Dryer door assembly SMG DC97-18995A Contact Us For Availability
12
Dryer drum and baffle assembly SMG DC97-16812G Contact Us For Availability
13
Dryer bulkhead assembly SMG DC97-17076V Contact Us For Availability
16
Dryer heating element assembly SMG DC97-14486A Contact Us For Availability
1242
Idler bracket SMG DC61-01230C Contact Us For Availability
1243
Shaft idler SMG DC66-00902A Contact Us For Availability
1244
Roller assembly SMG DC97-07509C Contact Us For Availability
1292
Dryer door hinge guide SMG DC61-00891A Contact Us For Availability
1441
Dryer moisture sensor SMG DC61-02627A Contact Us For Availability
1444
Dryer wire harness SMG DC96-00766A Contact Us For Availability
1445
Dryer lint screen cover spring SMG DC61-02740A Contact Us For Availability
1451
Dryer lint screen case SMG DC61-02610A Contact Us For Availability
1452
Dryer lint filter SMG DC61-03048A Contact Us For Availability
2101
Dryer blower housing SMG DC61-02348B Contact Us For Availability
2102
Dryer blower fan guide SMG DC61-03364A Contact Us For Availability
2103
Duct cover SMG DC63-01026A Contact Us For Availability
2105
Dryer front panel air seal SMG DC62-00344A Contact Us For Availability
2111
Connector SMG DC67-00586A Contact Us For Availability
2112
Dryer door switch SMG DC64-00828B Contact Us For Availability
2112
Sponge SMG DC72-00032E Contact Us For Availability
2122
Dryer motor bracket SMG DC61-01213A Contact Us For Availability
2123
Dryer idler spring SMG DC61-01215B Contact Us For Availability
2124
Dryer idler assembly SMG DC96-00882F Contact Us For Availability
NI
Samsung dryer heating element SMG DC47-00019A Contact Us For Availability
NI
Dryer retainer clip SMG DC61-01228A Contact Us For Availability
NI
Refrigerator screw SMG 6002-000213 Contact Us For Availability
NI
Refrigerator screw, m4 x 0.8 SMG 6002-000239 Contact Us For Availability
NI
Dryer screw, 4-mm SMG 6006-001174 Contact Us For Availability
NI
Plastic supportor SMG DC97-16782B Contact Us For Availability
NI
Dryer washer SMG DC60-00103A Contact Us For Availability
NI
Laundry appliance hex screw SMG 6009-001522 Contact Us For Availability
NI
Dryer screw SMG 6002-001306 Contact Us For Availability
NI
Dryer door catch SMG DC97-16970B Contact Us For Availability
NI
Dryer retainer clip SMG DC61-00133A Contact Us For Availability
NI
Dryer roller wheel nut SMG DC60-50145A Contact Us For Availability
NI
Laundry appliance screw, m4-18 x 22 SMG 6002-000445 Contact Us For Availability
NI
Screw SMG 6002-001436 Contact Us For Availability
NI
Screw SMG 6003-000226 Contact Us For Availability
NI
Screw SMG 6003-001768 Contact Us For Availability
NI
Dryer wire harness retainer SMG DC61-00553C Contact Us For Availability
NI
Laundry appliance wire harness retainer SMG DC61-40081A Contact Us For Availability
NI
Wire clamp SMG DC61-60074A Contact Us For Availability
NI
Own manu SMG DC68-03170Z Contact Us For Availability
NI
Refrigerator tapping screw SMG 6002-000470 Contact Us For Availability
NI
Refrigerator self-tapping screw, 4-mm SMG 6002-000471 Contact Us For Availability
NI
refrigerator screw SMG 6002-000473 Contact Us For Availability
NI
Tapping screw SMG 6002-001149 Contact Us For Availability
NI
Motor duct assembly SMG DC93-00657A Contact Us For Availability
× ![]()
