Model Samsung DVE41A3000W/A3-00 Dryer – Common Parts & Diagrams

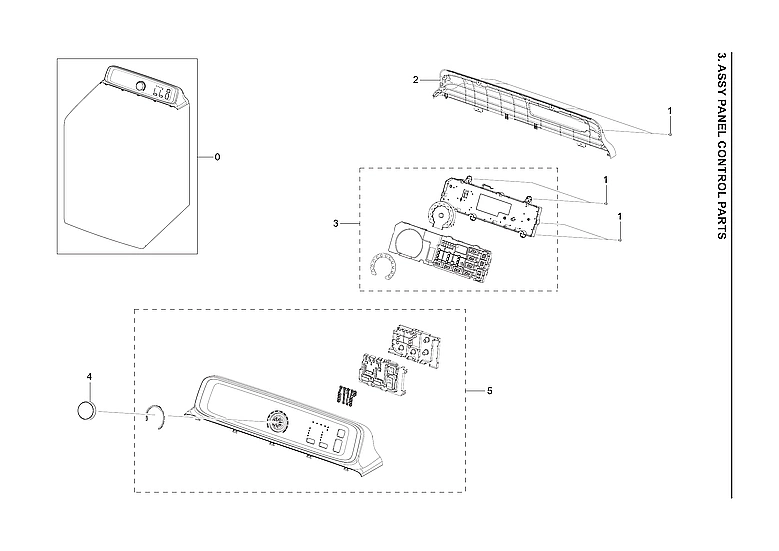

Control Panel Assembly

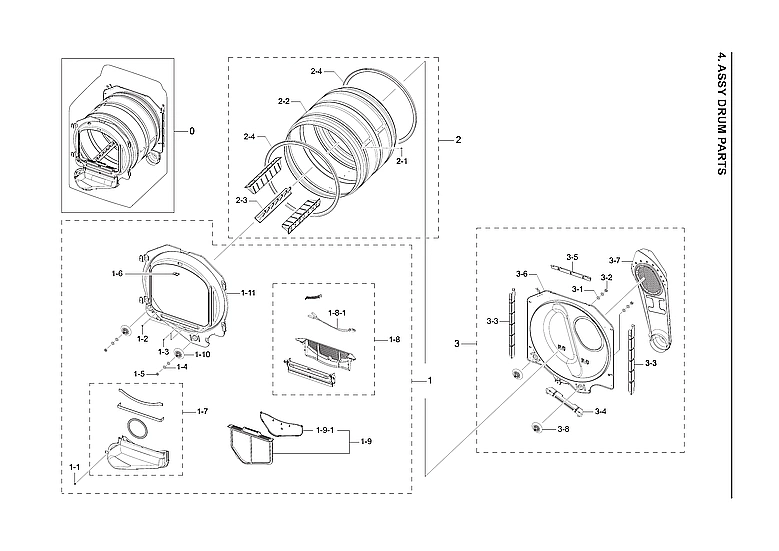

Drum Assembly

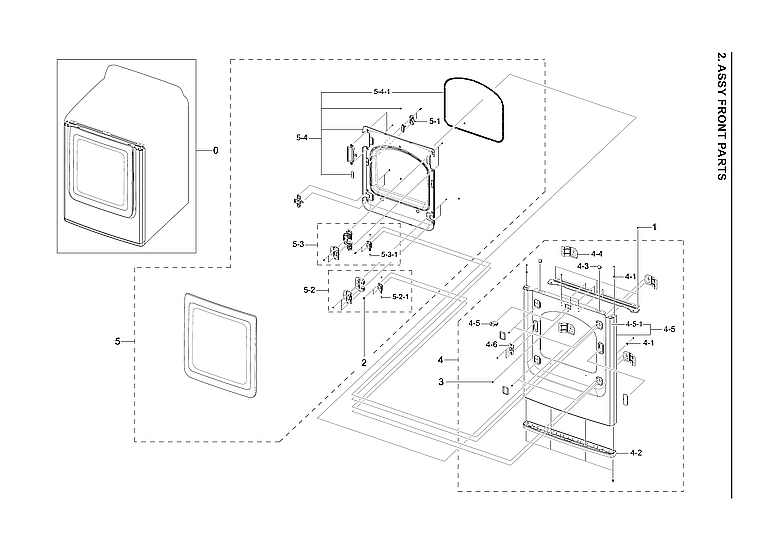

Front Parts Assembly

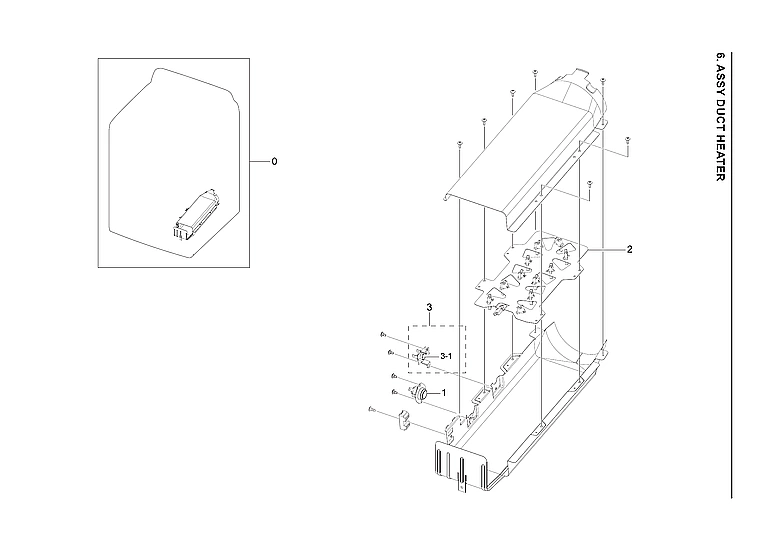

Heater Duct Assembly

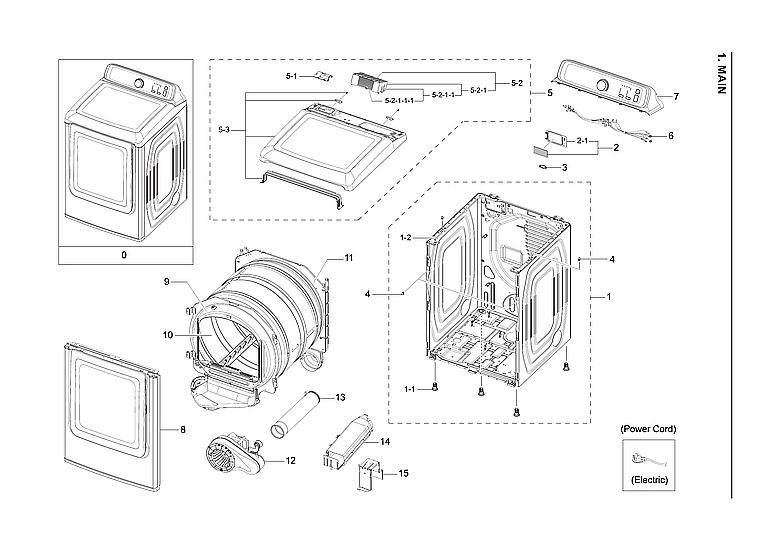

Main Assembly

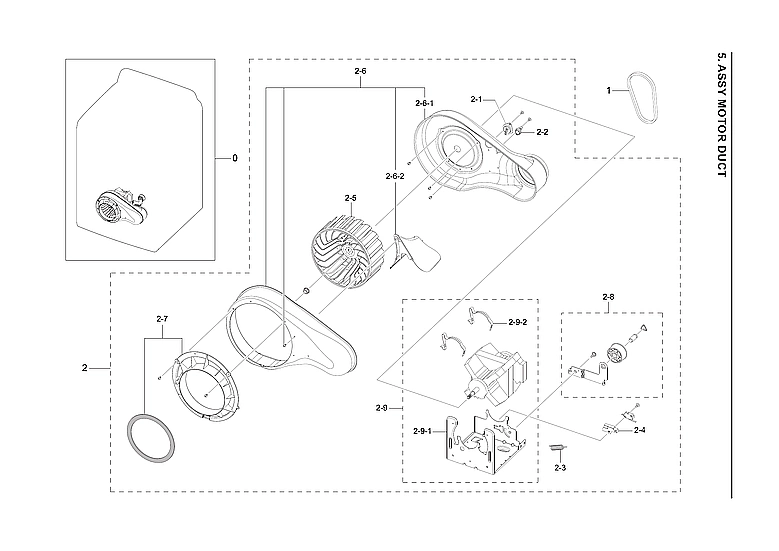

Motor Duct Assembly

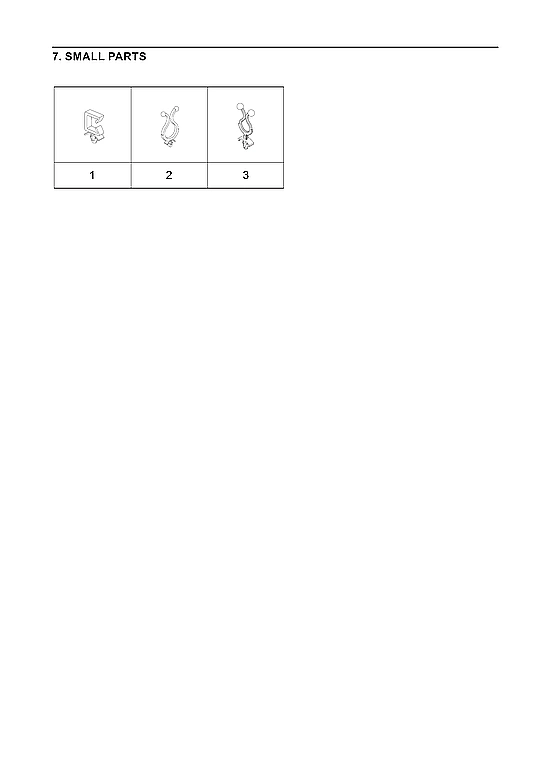

Small Parts
Common parts from model Samsung DVE41A3000W/A3-00 Dryer
1
Dryer drum belt SMG 6602-001655 Contact Us For Availability
1
Dryer high-limit thermostat SMG DC47-00018A Contact Us For Availability
1
Refrigerator screw SMG 6002-000213 Contact Us For Availability
1
Dryer wire harness retainer SMG DC61-00553C Contact Us For Availability
1-1
Dryer leveling leg SMG DC61-03128A Contact Us For Availability
1-8-1
Dryer wire harness SMG DC96-00766A Contact Us For Availability
1-9
Dryer lint screen SMG DC97-16742A Contact Us For Availability
1-9-1
Dryer lint screen case SMG DC61-02610A Contact Us For Availability
2
Samsung dryer heating element SMG DC47-00019A Contact Us For Availability
2
Dryer motor and blower assembly SMG DC93-00101U Contact Us For Availability
2
dryer terminal block cover SMG DC97-08855A Contact Us For Availability
2
Laundry appliance hex screw SMG 6009-001522 Contact Us For Availability
2
Laundry appliance wire harness retainer SMG DC61-40081A Contact Us For Availability
2-1
Dryer thermistor SMG DC32-00007A Contact Us For Availability
2-2
Dryer thermal cut-off thermostat SMG DC47-00016A Contact Us For Availability
2-3
Dryer idler spring SMG DC61-01215B Contact Us For Availability
2-4
Dryer drum seal SMG DC97-07618A Contact Us For Availability
2-4
Dryer belt switch housing SMG DC63-00919A Contact Us For Availability
2-5
Dryer blower wheel SMG DC67-00180B Contact Us For Availability
2-6
Dryer blower housing SMG DC93-00098D Contact Us For Availability
2-7
Dryer exhaust duct connector SMG DC93-00282A Contact Us For Availability
2-8
Samsung dryer idler assembly SMG DC93-00634A Contact Us For Availability
2-9
Dryer drive motor assembly SMG DC96-00790G Contact Us For Availability
2-9-1
Dryer motor bracket SMG DC61-01213A Contact Us For Availability
2-9-2
Dryer motor clamp SMG DC61-04225A Contact Us For Availability
3
Dryer power cord strain relief SMG DC61-01428A Contact Us For Availability
3
Appliance wire harness retainer SMG 6502-000127 Contact Us For Availability
3-1
Dryer thermal cut-off fuse, 320-degree f SMG DC47-00015A Contact Us For Availability
3-4
Drive bracket SMG DC61-02826A Contact Us For Availability
3-7
Dryer heat duct SMG DC97-07521A Contact Us For Availability
4
Washer cabinet panel guide pin cover SMG DC61-03400A Contact Us For Availability
4-3
Laundry appliance spring clip SMG DC61-03174A Contact Us For Availability
4-4
Dryer door switch SMG DC64-00828B Contact Us For Availability
4-6
Dryer door catch SMG DC97-16970B Contact Us For Availability
5-1
Dryer top panel clip cover SMG DC67-00607A Contact Us For Availability
5-4-1
Dryer front panel air seal SMG DC62-00344A Contact Us For Availability
10
Dryer drum and baffle assembly SMG DC97-14849L Contact Us For Availability
11
Dryer bulkhead, rear SMG DC97-19083G Contact Us For Availability
14
Dryer heating element assembly SMG DC97-14486A Contact Us For Availability
NI
Dryer drum support roller SMG DC97-16782E Contact Us For Availability
NI
Dryer screw, 4-mm SMG 6006-001174 Contact Us For Availability
NI
Dryer door hinge guide SMG DC61-00891A Contact Us For Availability
NI
Dryer washer SMG DC60-00103A Contact Us For Availability
NI
Dryer screw SMG 6002-001306 Contact Us For Availability
NI
Laundry appliance screw, m4-18 x 22 SMG 6002-000445 Contact Us For Availability
NI
Dryer roller wheel nut SMG DC60-50145A Contact Us For Availability
NI
Dryer screw, 4-mm SMG DC97-15847A Contact Us For Availability
NI
Dryer screw SMG 6002-000488 Contact Us For Availability
NI
Machine screw SMG 6001-002674 Contact Us For Availability
NI
Tapping screw SMG 6002-001320 Contact Us For Availability
NI
Refrigerator tapping screw SMG 6002-000470 Contact Us For Availability
NI
Refrigerator self-tapping screw, 4-mm SMG 6002-000471 Contact Us For Availability
NI
refrigerator screw SMG 6002-000473 Contact Us For Availability
NI
Refrigerator tapping screw SMG 6002-000520 Contact Us For Availability
NI
Tapping screw SMG 6002-001149 Contact Us For Availability
NI
Amana refrigerator screw SMG 6002-000215 Contact Us For Availability
NI
Tapping screw SMG 6002-000231 Contact Us For Availability
NI
Dryer screw SMG 6002-000524 Contact Us For Availability
NI
Screw SMG 6002-001384 Contact Us For Availability
NI
Screw SMG 6002-001436 Contact Us For Availability
NI
Screw SMG 6003-001768 Contact Us For Availability
× ![]()
