Samsung DV484ETHASU/A1-01 Dryer

0

Duct motor SMG DC90-06576A Contact Us For Availability

View on Model

1

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $35.36

View on Model

1-1

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.92

View on Model

1-1

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $0.92

View on Model

1-2

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.92

View on Model

1-3

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $21.75

View on Model

1-4

DC47-00019A Samsung Dryer Heating Element Ass In Stock SMG DC47-00019A $63.35

View on Model

1-5

DC65-00013A Samsung Dryer Terminal Block Backorder SMG DC65-00013A $6.62

View on Model

1-6

Dryer heater box, upper SMG DC67-00132A Contact Us For Availability

View on Model

1-7

DC67-00133A Samsung Heater Lower Duct Assembl Backorder SMG DC67-00133A $45.75

View on Model

1-8

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $45.28

View on Model

1-21

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

View on Model

1-21

DC47-00027F Samsung Lamp Backorder SMG DC47-00027F $32.72

View on Model

1-22

6002-000241 Samsung Self Tapping Screw Backorder SMG 6002-000241 $0.92

View on Model

1-24

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $0.92

View on Model

1-24

DC61-02281A Samsung Fixer Lamp Backorder SMG DC61-02281A $9.96

View on Model

1-25

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $32.08

View on Model

1-26

DC97-07526B Samsung Duct Outlet Assembly Backorder SMG DC97-07526B $65.67

View on Model

1-27

DC97-16741D Samsung Assembly Cover Filter In Stock SMG DC97-16741D $158.61

View on Model

1-28

Dryer lint screen SMG DC97-16742A Contact Us For Availability

View on Model

1-29

DC61-03310A Samsung Hinge Door Assembly DV547 Backorder SMG DC61-03310A $31.02

View on Model

1-81

DC47-00015A Samsung Dryer 250V Thermostat In Stock SMG DC47-00015A $23.22

View on Model

1-82

DC61-01204A Samsung Dryer Thermostat Bracket Backorder SMG DC61-01204A $2.07

View on Model

2

DC61-02016A Samsung Die Heater Backorder SMG DC61-02016A $22.80

View on Model

2

DC63-01499A Samsung Cover Back Dryer Hudson G Backorder SMG DC63-01499A $24.34

View on Model

2

DC93-00101G Samsung Dryer Orca Motor Assembly Backorder SMG DC93-00101G $227.29

View on Model

2-1

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $2.07

View on Model

2-2

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $281.60

View on Model

2-3

DC32-00007A Samsung Dryer Thermistor Sensor In Stock SMG DC32-00007A $18.25

View on Model

2-3

DC66-00664A Samsung Dryer Drum Lifter Backorder SMG DC66-00664A $23.68

View on Model

2-4

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $10.73

View on Model

2-4

DC97-07618A Samsung Dryer Drum Gasket Seal As In Stock SMG DC97-07618A $106.80

View on Model

2-5

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.50

View on Model

2-6

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $114.17

View on Model

2-7

dryer blower housing SMG DC93-00098C Contact Us For Availability

View on Model

2-8

DC93-00282A Samsung Assembly Duct Connector Backorder SMG DC93-00282A $22.49

View on Model

2-9

Dryer motor bracket SMG DC96-00790C Contact Us For Availability

View on Model

2-29

DC64-00828B Samsung Washer Dryer Door Switch In Stock SMG DC64-00828B $32.45

View on Model

2-71

Dryer blower housing SMG DC61-02348B Contact Us For Availability

View on Model

2-72

Fan guide SMG DC61-02641A Contact Us For Availability

View on Model

2-73

Duct cover SMG DC63-01026A Contact Us For Availability

View on Model

2-81

Connector SMG DC67-00586A Contact Us For Availability

View on Model

2-82

Sponge SMG DC72-00032E Contact Us For Availability

View on Model

2-91

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $17.40

View on Model

2-92

Dryer screw SMG 6002-000488 Contact Us For Availability

View on Model

2-93

6009-001342 Samsung Dryer Special Puller Scre In Stock SMG 6009-001342 $1.24

View on Model

2-94

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $97.45

View on Model

2-95

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $4.98

View on Model

2-96

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.07

View on Model

2-97

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $40.64

View on Model

3

Dryer display control board SMG DC92-00619B Contact Us For Availability

View on Model

3-4

DC61-02063A Samsung Nozzle Guide Assembly Backorder SMG DC61-02063A $3.88

View on Model

3-5

DC61-02826A Samsung Drum Back Bracket Assembl Backorder SMG DC61-02826A $14.93

View on Model

3-7

DC66-00411E Samsung Dryer Drum Back for DV545 Backorder SMG DC66-00411E $174.44

View on Model

3-8

Dryer heat duct SMG DC97-07521A Contact Us For Availability

View on Model

4

DC61-01428A Samsung Power Holder Assembly Backorder SMG DC61-01428A $1.24

View on Model

4

DC61-03052A Samsung Dryer Dry Rack Assembly Backorder SMG DC61-03052A $122.98

View on Model

4

DC92-00621B Samsung Assembly Printed Circuit Backorder SMG DC92-00621B $130.35

View on Model

5

DC97-16931A Samsung Encoder Knob Assembly Backorder SMG DC97-16931A $40.31

View on Model

6

DC61-00133A Samsung Clamp Hose Backorder SMG DC61-00133A $1.67

View on Model

6-2

DC67-00607A Samsung Cap Cover Top Assembly DV Backorder SMG DC67-00607A $16.16

View on Model

6-3

Dryer electronic control board SMG DC92-00322E Contact Us For Availability

View on Model

8

Panel SMG DC90-11707A Contact Us For Availability

View on Model

9

Door assembly SMG DC90-09447A Contact Us For Availability

View on Model

10

Frame SMG DC97-17016A Contact Us For Availability

View on Model

11

Drum SMG DC97-17020A Contact Us For Availability

View on Model

12

DC97-16812A Samsung Assembly Drum Wrapper DV5 Backorder SMG DC97-16812A $191.22

View on Model

13

Drum SMG DC97-16813A Contact Us For Availability

View on Model

15

DC97-07519D Samsung Door Assembly Exhaust Duc Backorder SMG DC97-07519D $42.40

View on Model

16

DC97-14486A Samsung Dryer Heating Element Duc In Stock SMG DC97-14486A $210.57

View on Model

17

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $14.51

View on Model

18

DC97-15103A Samsung Connector Assembly Backorder SMG DC97-15103A $122.02

View on Model

18-2

Hose connector SMG DC67-00324A Contact Us For Availability

View on Model

19

DC97-15249A Samsung Hose Connector Assembly Backorder SMG DC97-15249A $79.97

View on Model

20

DC97-15692A Samsung Water Hose Assembly Backorder SMG DC97-15692A $65.38

View on Model

20-1

DC62-00075B Samsung Cold Water Hose Backorder SMG DC62-00075B $53.12

View on Model

20-2

DC62-40178A Samsung Seal Water Backorder SMG DC62-40178A $1.17

View on Model

1261

DC63-10001K Samsung Dryer Absorber Sponge Backorder SMG DC63-10001K $2.91

View on Model

1271

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $6.22

View on Model

1272

Dryer lint screen cover SMG DC63-01319A Contact Us For Availability

View on Model

1274

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $9.96

View on Model

1281

DC61-02610A Samsung Dryer Lint Screen Case Fi In Stock SMG DC61-02610A $22.80

View on Model

1282

DC61-03048A Samsung Dryer Lint Screen Filter Backorder SMG DC61-03048A $89.83

View on Model

2210

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $14.09

View on Model

2972

Bracket SMG DC61-01230B Contact Us For Availability

View on Model

2973

Idler shaft SMG DC66-00401A Contact Us For Availability

View on Model

2974

Dryer idler pulley SMG DC97-07509B Contact Us For Availability

View on Model

2975

Dryer idler pulley SMG DC66-00402A Contact Us For Availability

View on Model

3101

DC62-30042A Samsung Dryer Steam Water Valve A Backorder SMG DC62-30042A $114.54

View on Model

NI

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.67

View on Model

NI

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.07

View on Model

NI

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.67

View on Model

NI

DC62-40178B Samsung Water Seal Backorder SMG DC62-40178B $2.07

View on Model

NI

DC97-07523B Samsung Dryer Drum Roller Assembl Backorder SMG DC97-07523B $44.21

View on Model

All Categories

Brands

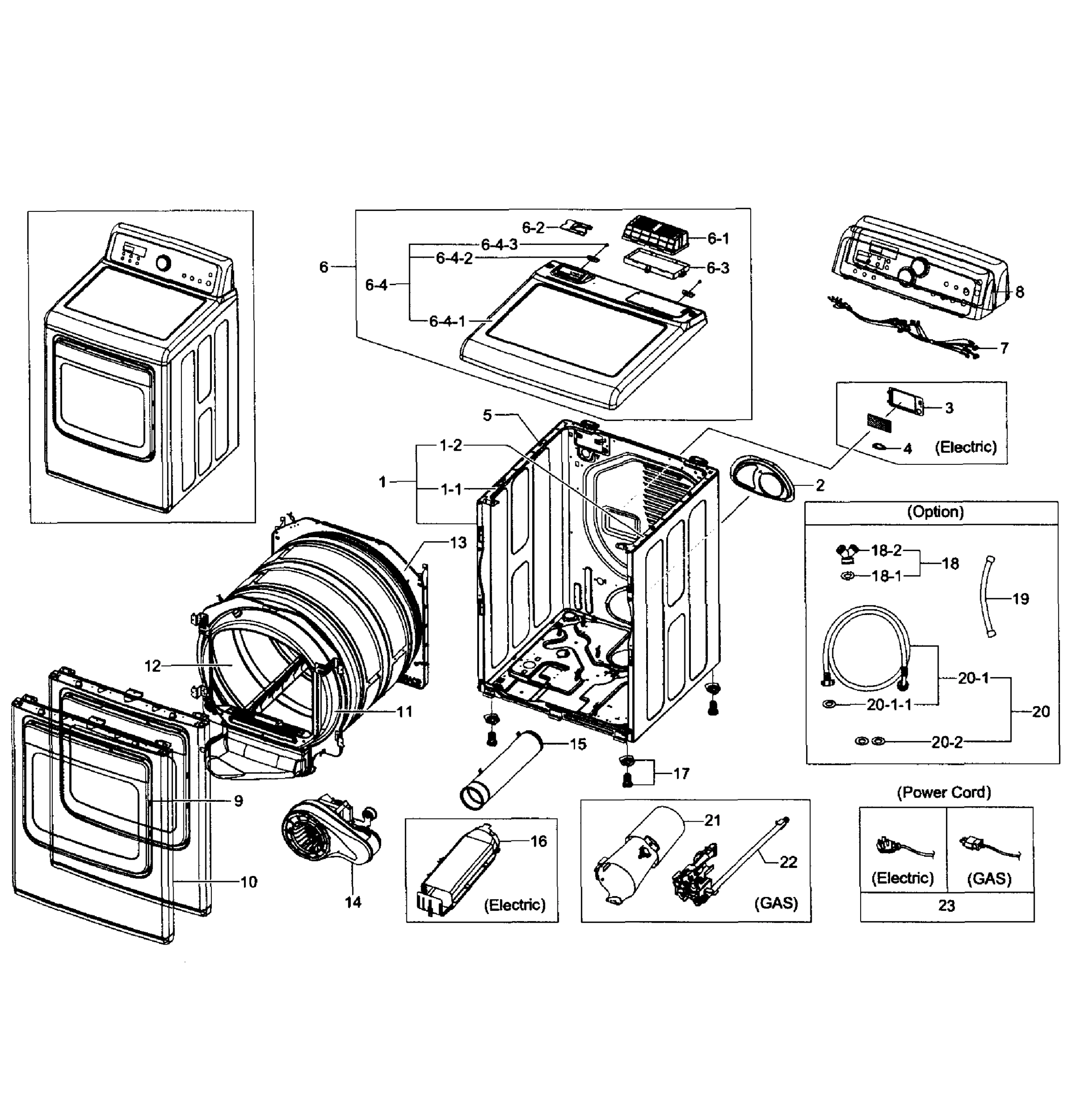

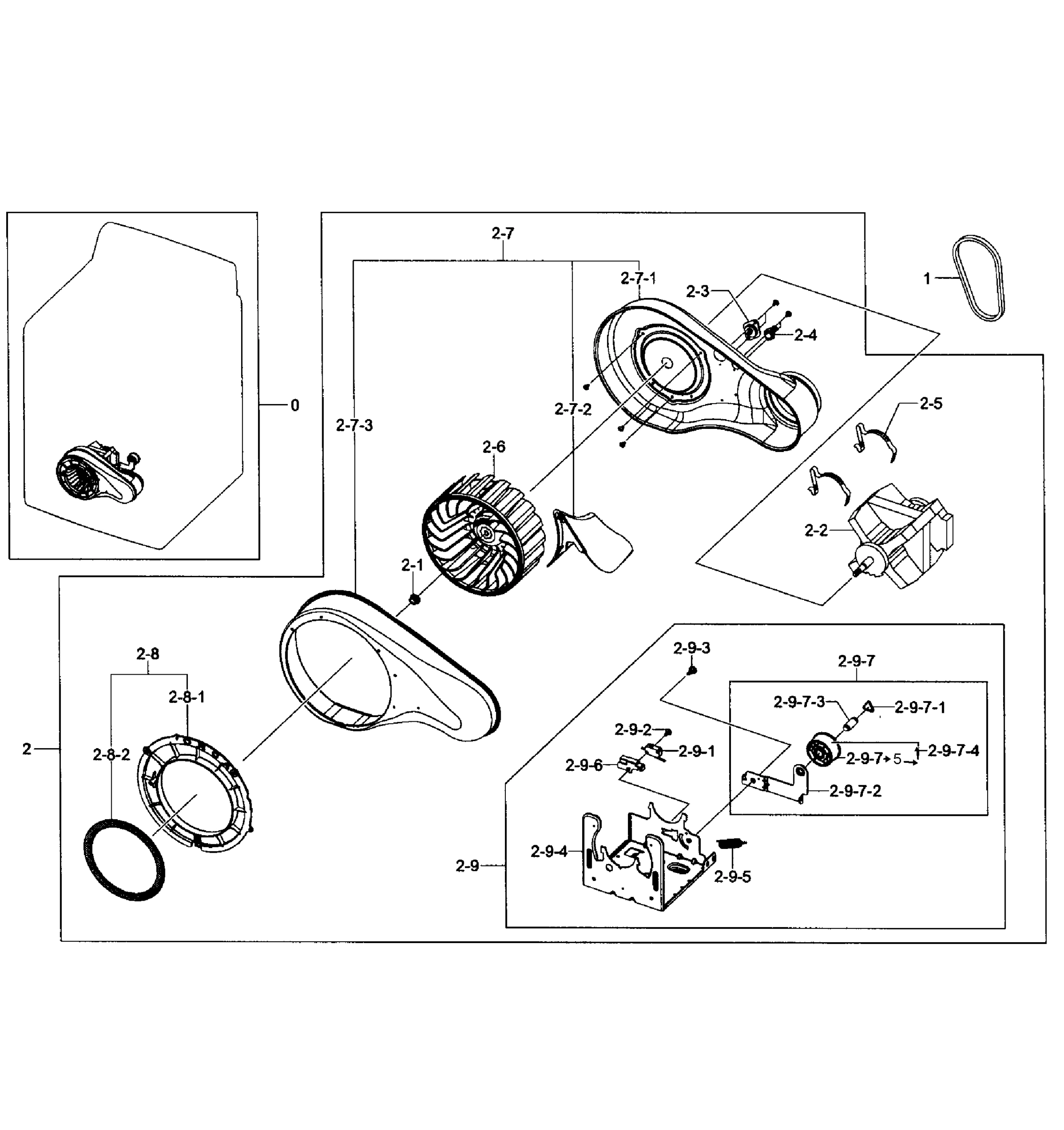

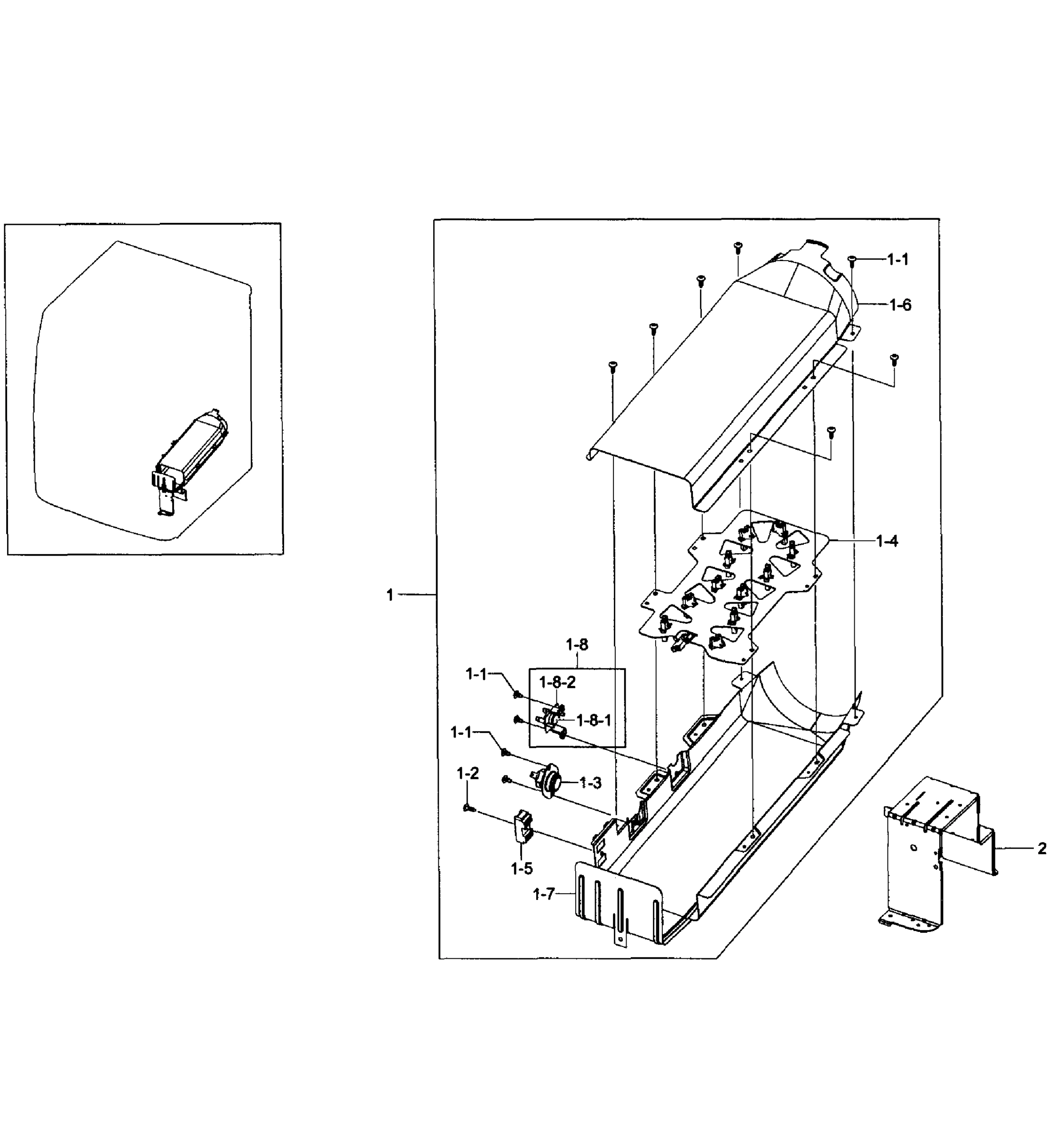

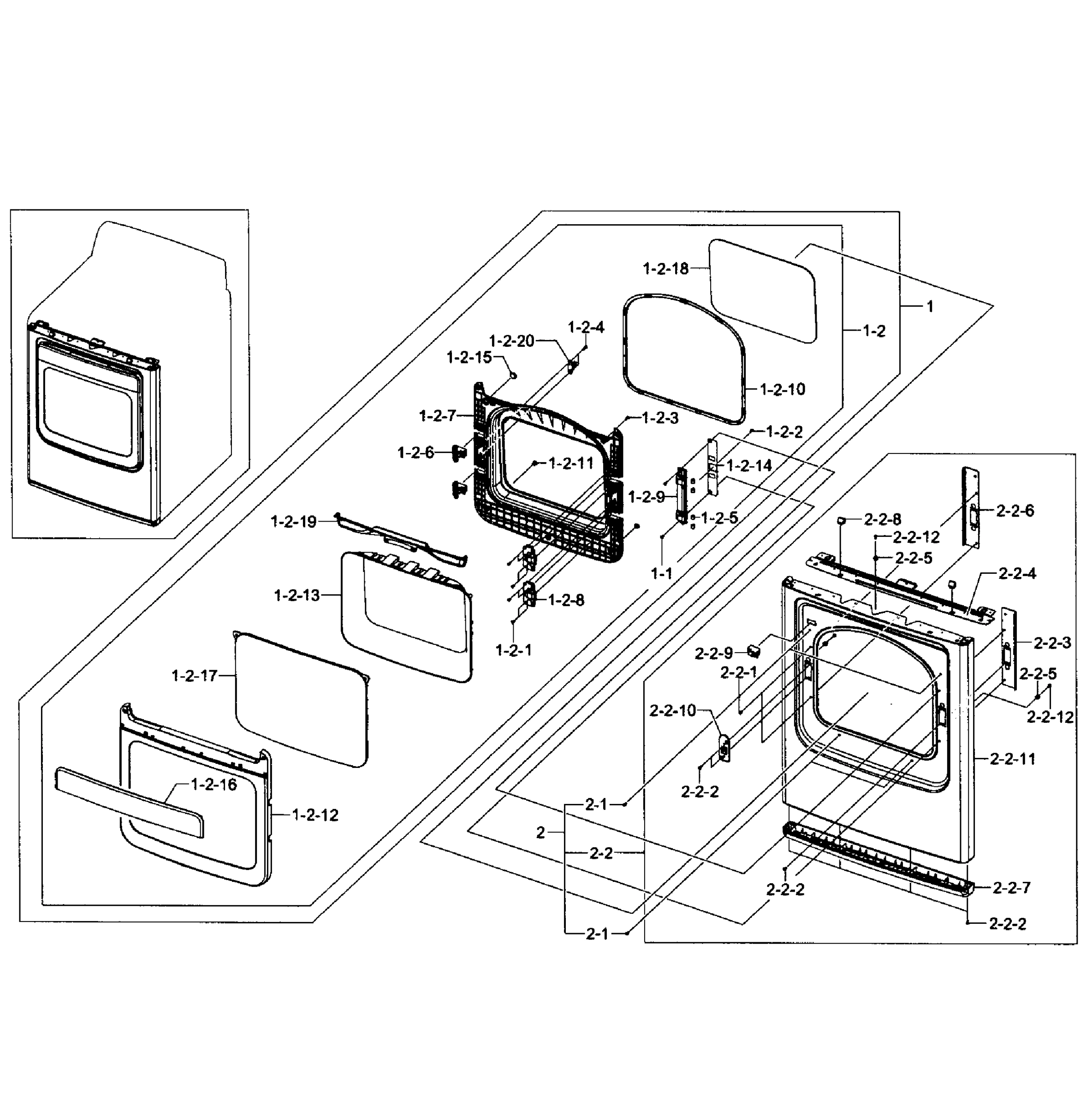

Model Samsung DV484ETHASU/A1-01 Dryer – Common Parts & Diagrams

Common parts from model Samsung DV484ETHASU/A1-01 Dryer
