Model Samsung DV476ETHASU/A1-00 Dryer – Common Parts & Diagrams

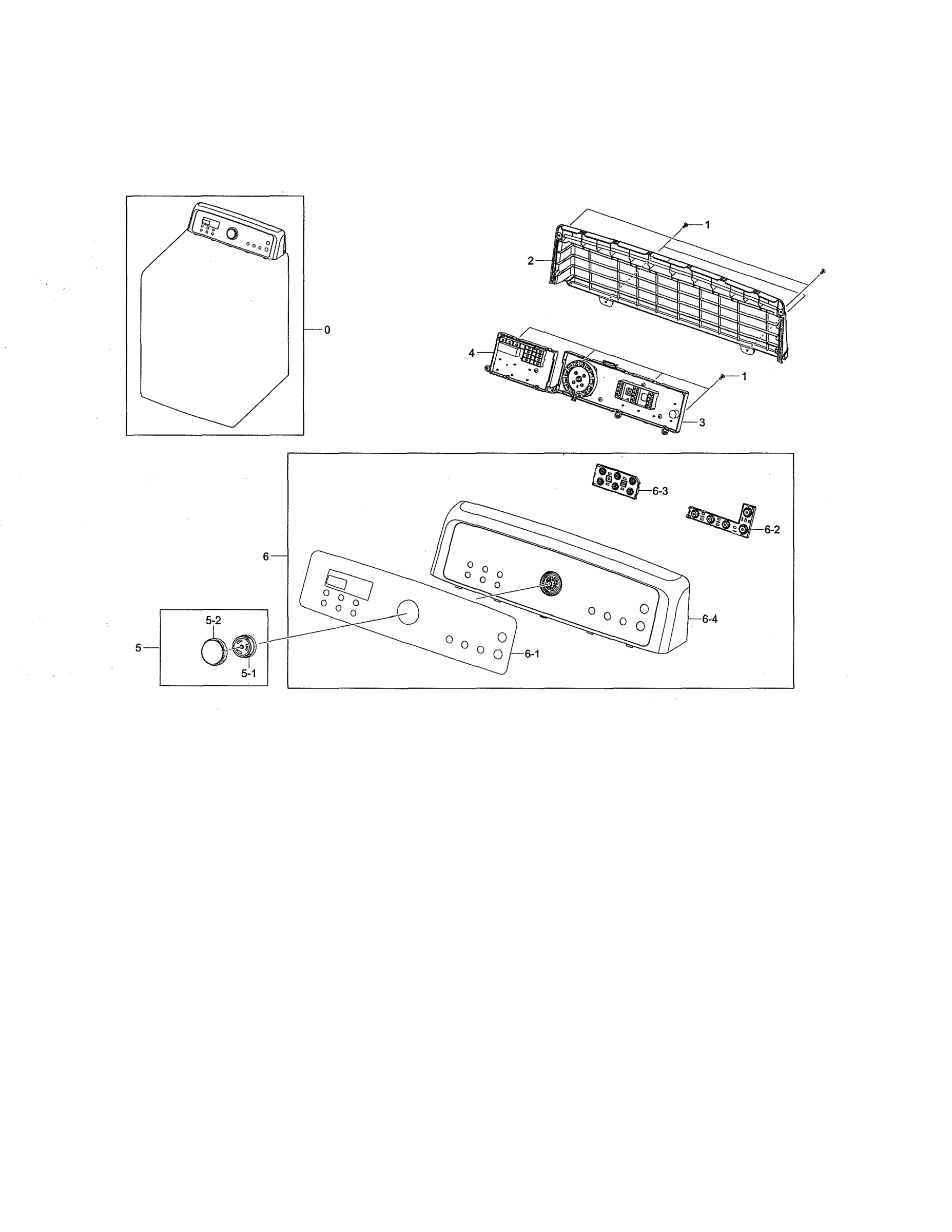

Control Panel

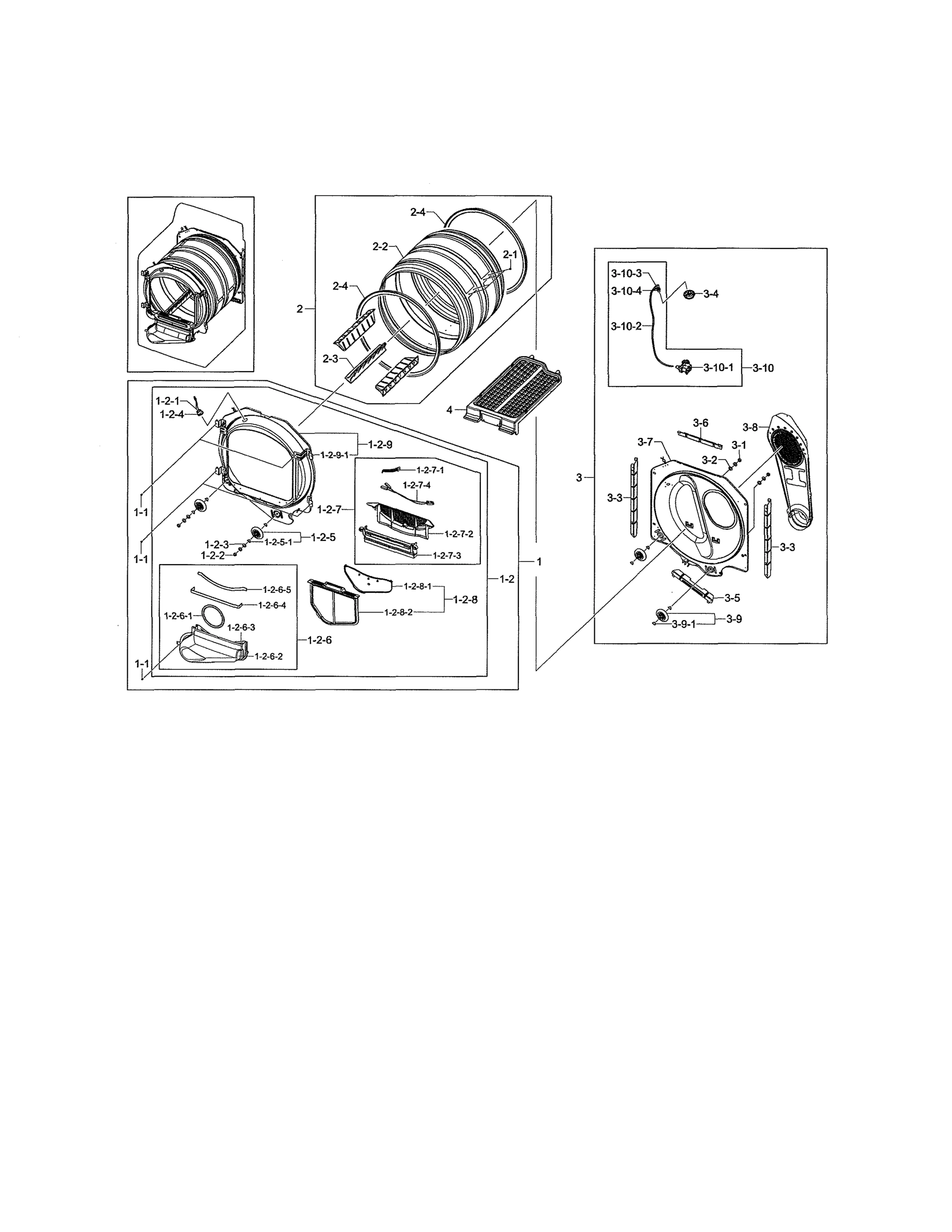

Drum

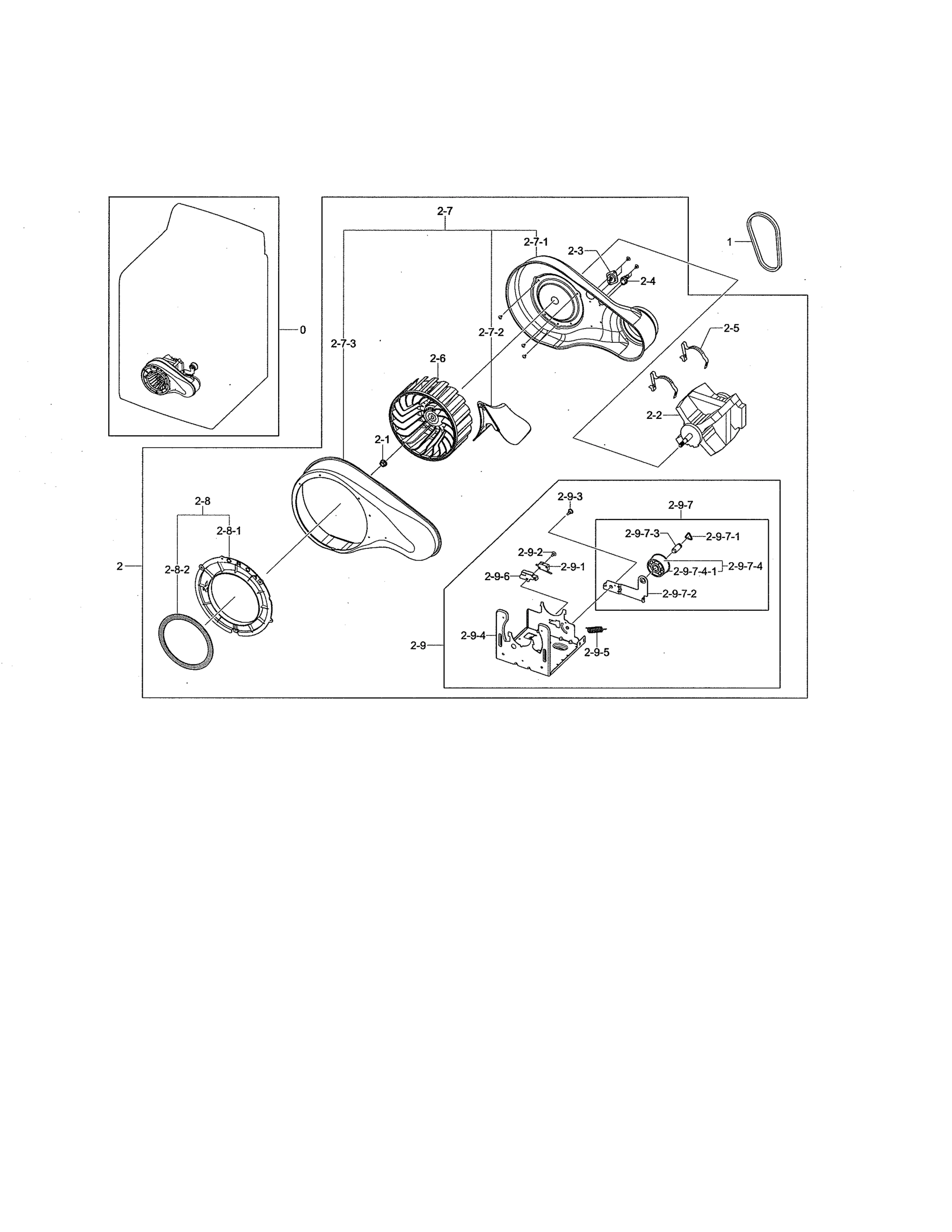

Duct Motor

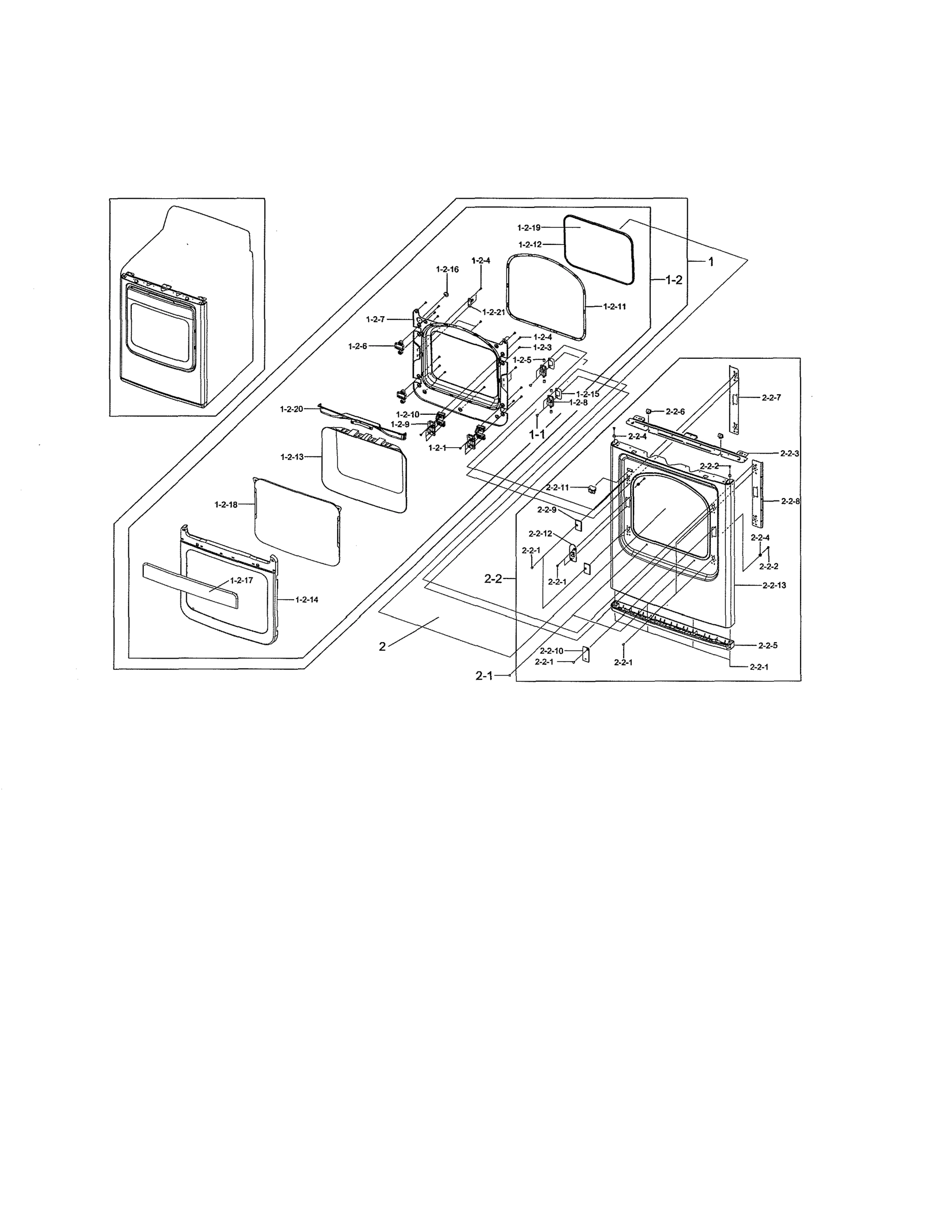

Front & Door

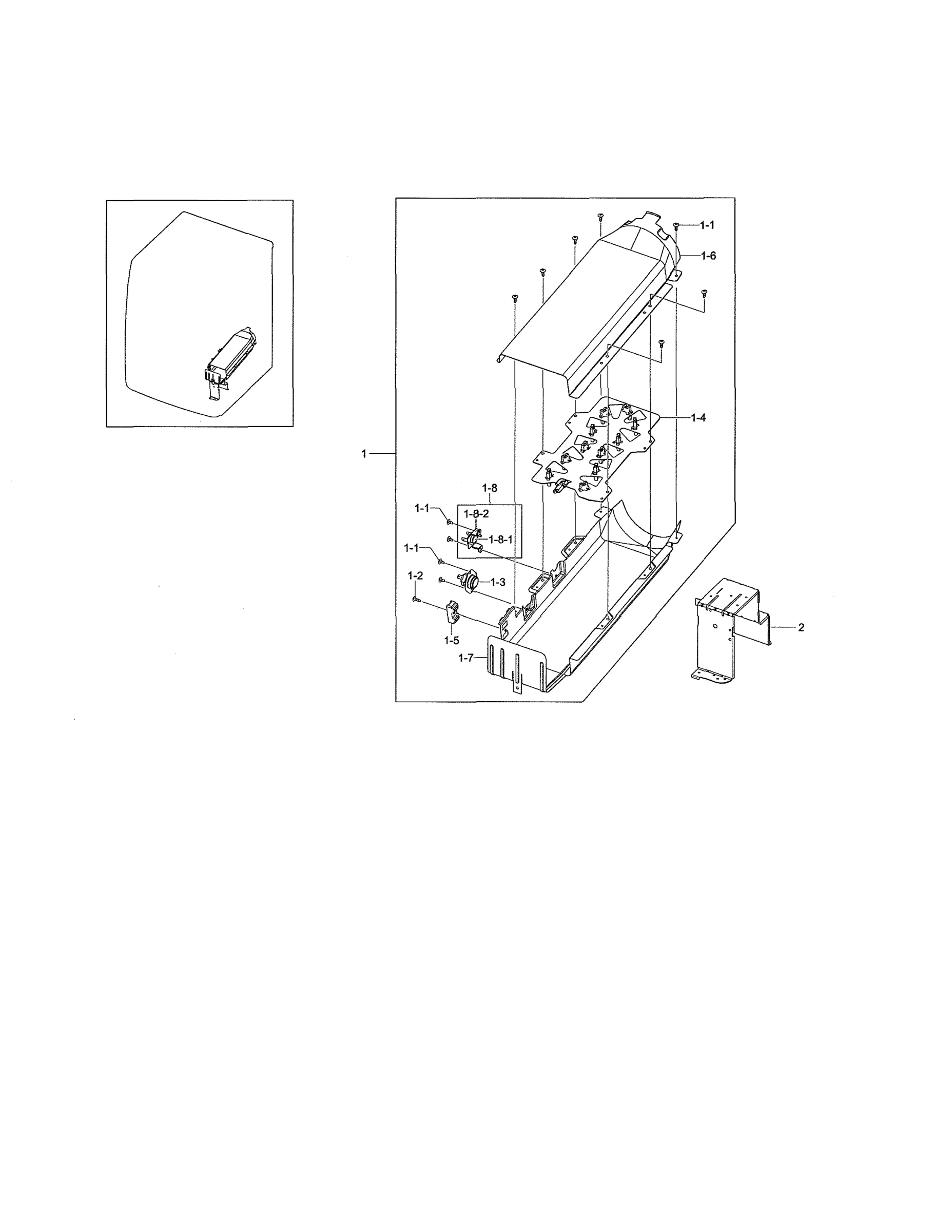

Heater Duct

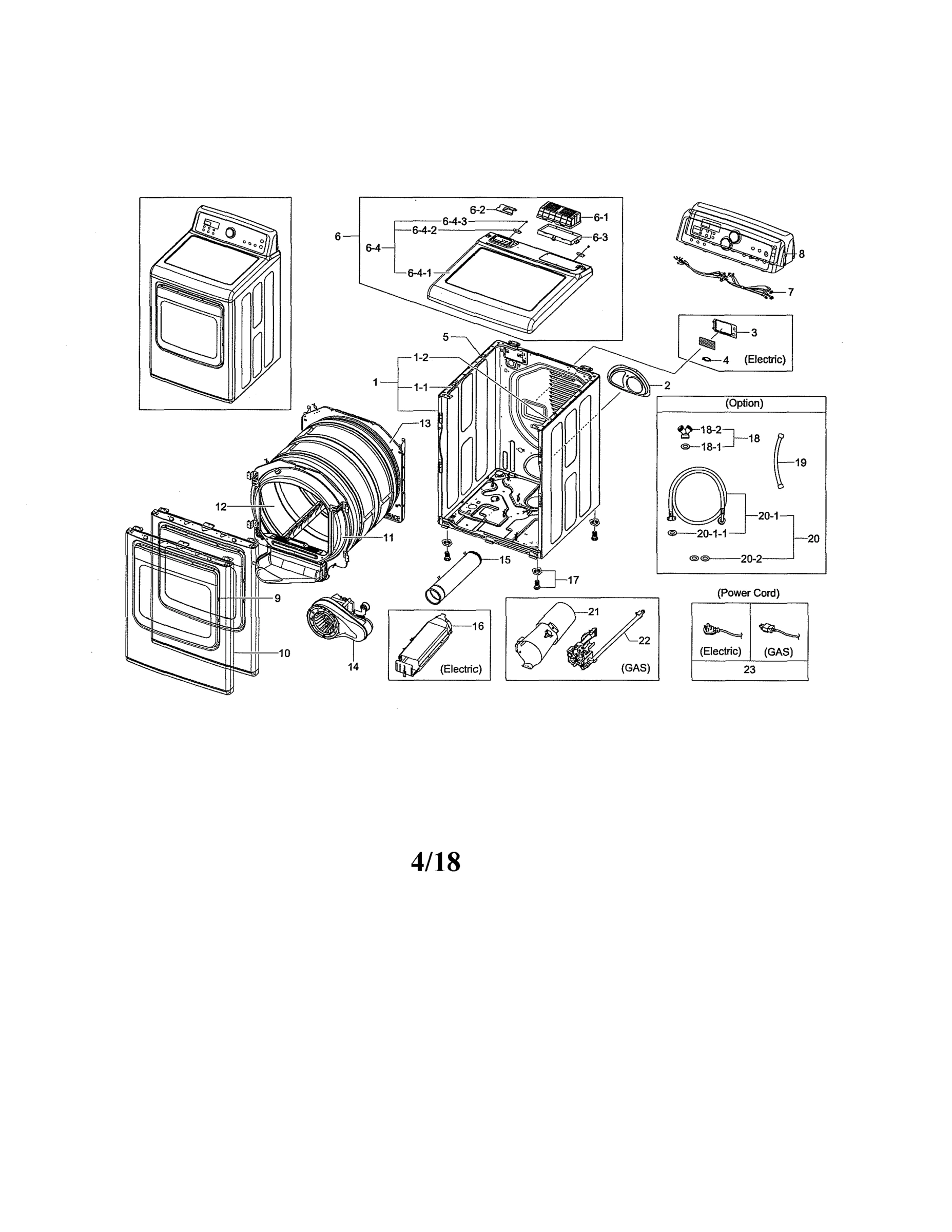

Main Parts

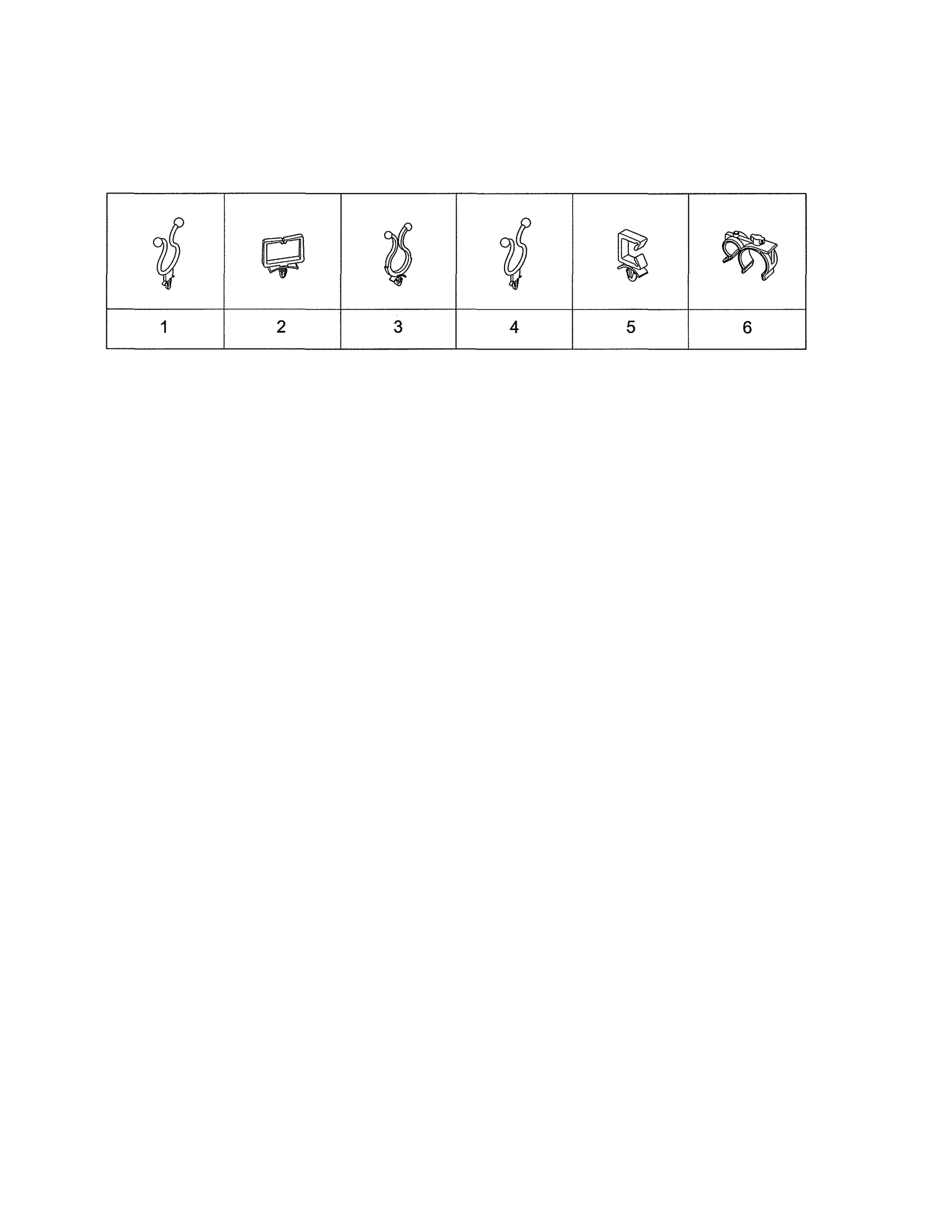

Small Parts
Common parts from model Samsung DV476ETHASU/A1-00 Dryer
1
Fastener SMG 6046-000310 Contact Us For Availability
1-1
Dryer screw, 4-mm SMG 6006-001174 Contact Us For Availability
1-2-4
Laundry appliance screw, m4-18 x 22 SMG 6002-000445 Contact Us For Availability
1-2-6-1
Dryer exhaust duct seal SMG DC63-10001K Contact Us For Availability
1-2-7-2
Dryer lint screen cover SMG DC63-01319A Contact Us For Availability
1-2-8
Dryer lint screen SMG DC97-16742A Contact Us For Availability
1-2-8
Door hinge SMG DC61-03310A Contact Us For Availability
1-6
Dryer heater box, upper SMG DC67-00132A Contact Us For Availability
1-8-2
Dryer thermostat bracket SMG DC61-01204A Contact Us For Availability
2
Dryer rear cover SMG DC63-01499A Contact Us For Availability
2
Dryer motor assembly SMG DC93-00101G Contact Us For Availability
2
Dryer heater housing bracket SMG DC61-02016A Contact Us For Availability
2
Dryer wire harness retainer SMG DC61-00553C Contact Us For Availability
2-1
Dryer blower wheel nut SMG 6021-001201 Contact Us For Availability
2-7
dryer blower housing SMG DC93-00098C Contact Us For Availability
2-9-6
Dryer belt switch housing SMG DC63-00919A Contact Us For Availability
2-9-7-4
Dryer idler pulley SMG DC97-07509B Contact Us For Availability
2-9-7-4-1
Dryer idler pulley SMG DC66-00402A Contact Us For Availability
3
Dryer display control board SMG DC92-00619B Contact Us For Availability
3
Laundry appliance wire harness retainer SMG DC61-40081A Contact Us For Availability
3-8
Dryer heat duct SMG DC97-07521A Contact Us For Availability
3-10-1
Dryer water inlet valve SMG DC62-30042A Contact Us For Availability
4
Holder SMG DC61-40086A Contact Us For Availability
5
Guide cover SMG DC61-03127A Contact Us For Availability
5
Appliance wire harness retainer SMG 6502-000127 Contact Us For Availability
6
Dryer retainer clip SMG DC61-00133A Contact Us For Availability
6
Cover SMG DC90-11706A Contact Us For Availability
6-1
Washer electronic control board cover SMG DC63-01360A Contact Us For Availability
6-2
Dryer top panel clip cover SMG DC67-00607A Contact Us For Availability
6-3
Dryer electronic control board SMG DC92-00322E Contact Us For Availability
6-4
Dryer cover SMG DC97-16751C Contact Us For Availability
6-4-1
Dryer cover SMG DC63-01325C Contact Us For Availability
6-4-2
Cover bracket SMG DC61-03134A Contact Us For Availability
6-4-3
Tapping screw SMG 6002-000520 Contact Us For Availability
7

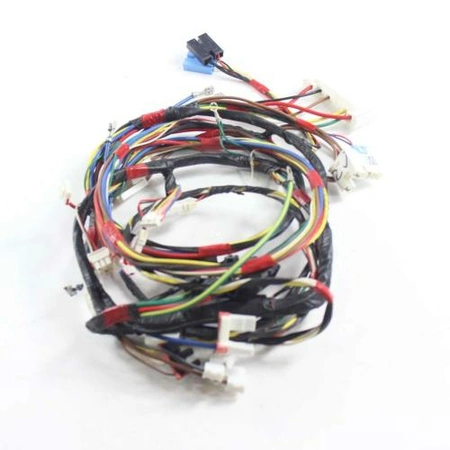

Dryer wire harness SMG DC93-00153F Contact Us For Availability
8
Panel SMG DC90-11707A Contact Us For Availability
9
Door assembly SMG DC90-09447A Contact Us For Availability
10
Frame SMG DC97-17016A Contact Us For Availability
11
Drum SMG DC97-17020A Contact Us For Availability
13
Dryer drum rear cover SMG DC97-16759A Contact Us For Availability
14
Duct motor SMG DC90-06576A Contact Us For Availability
15
Dryer exhaust duct SMG DC97-07519D Contact Us For Availability
18-1
Dryer inlet hose y-connector seal SMG DC62-40178B Contact Us For Availability
18-2
Hose connector SMG DC67-00324A Contact Us For Availability
20
Asy water SMG DC97-15692A Contact Us For Availability
20-1
Water hose SMG DC62-00075B Contact Us For Availability
NI
Washer fill hose seal SMG DC62-40178A Contact Us For Availability
NI
Roller SMG DC97-07523B Contact Us For Availability
NI
Dryer roller wheel nut SMG DC60-50145A Contact Us For Availability
× ![]()
