Samsung DV433ETGJWR/A1-00 Dryer Parts List

1

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $36.38

View on Model

1

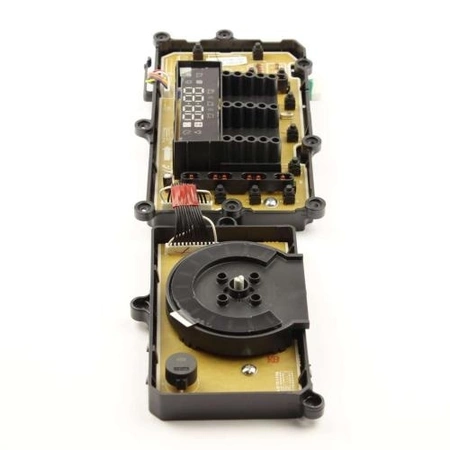

DC92-00775G Samsung Printed Circuit Board Ass Backorder SMG DC92-00775G $224.52

View on Model

1-1

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.97

View on Model

1-1

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.72

View on Model

1-1

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $0.97

View on Model

1-2

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.97

View on Model

1-2

DC60-00103A Samsung Fastener Plain Backorder SMG DC60-00103A $1.81

View on Model

1-2

Dryer door window frame SMG DC61-02596A Contact Us For Availability

View on Model

1-3

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $26.48

View on Model

1-4

DC47-00019A Samsung Dryer Heating Element Ass In Stock SMG DC47-00019A $74.91

View on Model

1-5

DC62-00262A Samsung Dryer Door Seal Assembly In Stock SMG DC62-00262A $49.85

View on Model

1-5

DC65-00013A Samsung Dryer Terminal Block Backorder SMG DC65-00013A $5.42

View on Model

1-5

DC97-16919A Samsung Steam Kit Assembly Backorder SMG DC97-16919A $149.50

View on Model

1-6

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $36.44

View on Model

1-6

Dryer Heater Box, Upper SMG DC67-00132A Contact Us For Availability

View on Model

1-6

Dryer door outer frame SMG DC63-01141A Contact Us For Availability

View on Model

1-7

Dryer Heat Duct SMG DC97-07521A Contact Us For Availability

View on Model

1-7

Dryer Heating Element Housing, Lower SMG DC67-00133A Contact Us For Availability

View on Model

1-8

DC66-00411E Samsung Dryer Drum Back for DV545 Backorder SMG DC66-00411E $188.66

View on Model

1-8

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $36.63

View on Model

1-8

Dryer door glass SMG DC64-02637A Contact Us For Availability

View on Model

1-9

DC61-02826A Samsung Drum Back Bracket Assembl Backorder SMG DC61-02826A $16.29

View on Model

1-9

Dryer door glass SMG DC64-02144A Contact Us For Availability

View on Model

1-11

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $9.50

View on Model

1-51

DC62-30042A Samsung Dryer Steam Water Valve A Backorder SMG DC62-30042A $113.72

View on Model

1-81

DC47-00015A Samsung Dryer 250V Thermostat In Stock SMG DC47-00015A $25.78

View on Model

1-82

DC61-01204A Samsung Dryer Thermostat Bracket Backorder SMG DC61-01204A $2.26

View on Model

2

DC61-02016A Samsung Die Heater Backorder SMG DC61-02016A $24.90

View on Model

2

DC63-01499A Samsung Cover Back Dryer Hudson G Backorder SMG DC63-01499A $26.56

View on Model

2

Dryer Drum SMG DC97-14849C Contact Us For Availability

View on Model

2-1

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.35

View on Model

2-1

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $2.72

View on Model

2-2

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $253.44

View on Model

2-3

DC32-00007A Samsung Dryer Thermistor Sensor Backorder SMG DC32-00007A $17.64

View on Model

2-3

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $14.03

View on Model

2-3

DC97-07618A Samsung Dryer Drum Gasket Seal As In Stock SMG DC97-07618A $88.64

View on Model

2-4

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $13.07

View on Model

2-5

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.69

View on Model

2-5

DC64-00828B Samsung Washer Dryer Door Switch In Stock SMG DC64-00828B $31.40

View on Model

2-6

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $90.19

View on Model

2-7

DC93-00098D Samsung Assembly Cover Duct Backorder SMG DC93-00098D $188.66

View on Model

2-9

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $40.65

View on Model

2-81

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $17.20

View on Model

2-83

6009-001342 Samsung Dryer Special Puller Scre Backorder SMG 6009-001342 $1.35

View on Model

2-84

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $79.07

View on Model

2-85

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $5.42

View on Model

2-86

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.72

View on Model

2-87

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $44.37

View on Model

3-1

4713-001199 Samsung Dryer Drum Incandescent L Backorder SMG 4713-001199 $8.59

View on Model

3-2

DC47-00021A Samsung Socket Lamp Assembly Backorder SMG DC47-00021A $22.62

View on Model

3-6

DC61-05489A Samsung Case Filter Assembly In Stock SMG DC61-05489A $147.77

View on Model

3-8

DC93-00187A Samsung Assembly Duct Outlet Backorder SMG DC93-00187A $110.91

View on Model

3-11

Dryer Drum Light Lens SMG DC63-00531A Contact Us For Availability

View on Model

3-71

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $5.42

View on Model

3-72

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $11.77

View on Model

3-73

DC61-02740A Samsung Dryer Lint Screen Filter In Stock SMG DC61-02740A $0.97

View on Model

3-74

DC63-01140A Samsung Dryer Lint Filter Screen In Stock SMG DC63-01140A $15.38

View on Model

3-75

Dryer Lint Screen Cover SMG DC63-01139A Contact Us For Availability

View on Model

3-76

DC63-01143A Samsung Cover Filter Assembly Backorder SMG DC63-01143A $101.67

View on Model

3-81

DC63-10001C Samsung EPDM Sponge Backorder SMG DC63-10001C $3.17

View on Model

4

DC61-01428A Samsung Power Holder Assembly Backorder SMG DC61-01428A $0.97

View on Model

7-2

DC92-00322L Samsung Circuit Board Assembly Ma Backorder SMG DC92-00322L $259.10

View on Model

8-1

DC61-02008B Samsung Dryer Guide Panel Backorder SMG DC61-02008B $20.82

View on Model

8-2

DC61-02600A Samsung Frame Plate Assembly Up G Backorder SMG DC61-02600A $62.78

View on Model

13

DC93-00101F Samsung Motor Assembly Backorder SMG DC93-00101F $258.97

View on Model

14

DC97-07519D Samsung Door Assembly Exhaust Duc Backorder SMG DC97-07519D $46.28

View on Model

15-1

DC93-00374D Samsung Dryer Drying Rack Assembl Backorder SMG DC93-00374D $105.32

View on Model

16-2

DC97-15249A Samsung Hose Connector Assembly Backorder SMG DC97-15249A $36.63

View on Model

16-4

DC62-40178A Samsung Seal Water Backorder SMG DC62-40178A $1.35

View on Model

17

DC97-14486A Samsung Dryer Heating Element Duc In Stock SMG DC97-14486A $184.11

View on Model

2871

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.81

View on Model

2874

Dryer Idler Pulley SMG DC97-07509B Contact Us For Availability

View on Model

8741

Dryer Idler Pulley SMG DC66-00402A Contact Us For Availability

View on Model

NI

DC61-00133A Samsung Clamp Hose Backorder SMG DC61-00133A $0.97

View on Model
