Samsung DV395ETPAWR/A1-00 Dryer Parts List

1

DC93-00101F Samsung Motor Assembly Backorder SMG DC93-00101F $225.04

View on Model

1

DC97-07526B Samsung Duct Outlet Assembly Backorder SMG DC97-07526B $66.76

View on Model

1-1

DC62-00262A Samsung Dryer Door Seal Assembly Backorder SMG DC62-00262A $48.04

View on Model

1-1

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $44.42

View on Model

1-1

Dryer Heating Element Housing, Lower SMG DC67-00133A Contact Us For Availability

View on Model

1-2

Kenmore Dryer Blower Housing SMG DC93-00098C Contact Us For Availability

View on Model

1-2

Dryer Door Glass SMG DC64-02637A Contact Us For Availability

View on Model

1-3

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $25.52

View on Model

1-3

DC66-00737A Samsung Door Lever Assembly Backorder SMG DC66-00737A $5.47

View on Model

1-4

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $0.93

View on Model

1-4

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $2.62

View on Model

1-5

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $90.19

View on Model

1-5

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $35.30

View on Model

1-6

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.93

View on Model

1-6

DC32-00007A Samsung Dryer Thermistor Sensor Backorder SMG DC32-00007A $17.00

View on Model

1-6

DC61-01204A Samsung Dryer Thermostat Bracket Backorder SMG DC61-01204A $2.10

View on Model

1-7

6002-000241 Samsung Self Tapping Screw Backorder SMG 6002-000241 $0.93

View on Model

1-7

DC47-00015A Samsung Dryer 250V Thermostat In Stock SMG DC47-00015A $24.85

View on Model

1-7

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $12.59

View on Model

1-8

DC47-00019A Samsung Dryer Heating Element Ass In Stock SMG DC47-00019A $72.16

View on Model

1-8

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.55

View on Model

1-8

DC61-03202A Samsung Washer Dryer Door Hinge Backorder SMG DC61-03202A $37.63

View on Model

1-9

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $253.44

View on Model

1-9

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $0.93

View on Model

1-9

Dryer Heater Box, Upper SMG DC67-00132A Contact Us For Availability

View on Model

1-11

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $5.23

View on Model

1-11

DC61-01576A Samsung Support Hinge Assembly Backorder SMG DC61-01576A $8.85

View on Model

1-12

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $76.18

View on Model

1-13

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.62

View on Model

1-13

DC64-02215A Samsung Door Safety Backorder SMG DC64-02215A $112.98

View on Model

1-14

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $16.57

View on Model

1-16

6009-001342 Samsung Dryer Special Puller Scre Backorder SMG 6009-001342 $1.30

View on Model

1-17

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $42.76

View on Model

1-19

Dryer Idler Pulley SMG DC97-07509B Contact Us For Availability

View on Model

1-20

Dryer Idler Pulley SMG DC66-00402A Contact Us For Availability

View on Model

1-21

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.75

View on Model

2

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $36.38

View on Model

2

DC61-02016A Samsung Die Heater Backorder SMG DC61-02016A $23.18

View on Model

2

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $35.12

View on Model

2-1

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.93

View on Model

2-1

DC64-02707A MASCOT WF431 DV431 Ni T0.0 Backorder SMG DC64-02707A $18.32

View on Model

2-3

DC64-00828A Samsung Dryer Door Switch Assembl Backorder SMG DC64-00828A $27.68

View on Model

2-5

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $13.52

View on Model

2-9

DC63-10001C Samsung EPDM Sponge Backorder SMG DC63-10001C $3.05

View on Model

3

DC61-01428A Samsung Power Holder Assembly Backorder SMG DC61-01428A $0.93

View on Model

3

DC92-00774M Samsung Dryer Printed Circuit Boa Backorder SMG DC92-00774M $247.70

View on Model

4

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.62

View on Model

5

Dryer Electronic Control Board SMG DC92-00669J Contact Us For Availability

View on Model

6

Dryer Drum Light Lens SMG DC63-00531A Contact Us For Availability

View on Model

6-1

DC61-02008B Samsung Dryer Guide Panel Backorder SMG DC61-02008B $19.38

View on Model

8

4713-001199 Samsung Dryer Drum Incandescent L Backorder SMG 4713-001199 $8.28

View on Model

8

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $9.15

View on Model

9

DC47-00021A Samsung Socket Lamp Assembly Backorder SMG DC47-00021A $20.65

View on Model

9

DC63-01499A Samsung Cover Back Dryer Hudson G Backorder SMG DC63-01499A $24.74

View on Model

10

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $5.23

View on Model

10

Dryer Wire Harness SMG DC93-00067F Contact Us For Availability

View on Model

11

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $11.35

View on Model

12

DC61-02740A Samsung Dryer Lint Screen Filter In Stock SMG DC61-02740A $0.93

View on Model

12

DC97-15249A Samsung Hose Connector Assembly Backorder SMG DC97-15249A $81.29

View on Model

13

DC63-01144A Samsung Dryer Filter Cover Backorder SMG DC63-01144A $12.20

View on Model

14

DC62-40178A Samsung Seal Water Backorder SMG DC62-40178A $1.26

View on Model

14

Dryer Lint Screen Cover, Rear SMG DC63-01149A Contact Us For Availability

View on Model

15

DC97-14486A Samsung Dryer Heating Element Duc In Stock SMG DC97-14486A $184.11

View on Model

16

DC97-07519D Samsung Door Assembly Exhaust Duc Backorder SMG DC97-07519D $43.10

View on Model

16

DC97-16013A Samsung Dryer Lint Screen Case Fi Backorder SMG DC97-16013A $81.00

View on Model

16-1

DC61-02613A Samsung Dryer Lint Filter Case Ho Backorder SMG DC61-02613A $66.88

View on Model

17

Dryer Drum SMG DC97-14849A Contact Us For Availability

View on Model

18

DC61-02773A Samsung Dryer Drying Rack Backorder SMG DC61-02773A $98.50

View on Model

19

DC97-16603J Samsung Assembly Control Semi Pan Backorder SMG DC97-16603J $134.72

View on Model

19

DC97-16919A Samsung Steam Kit Assembly Backorder SMG DC97-16919A $139.06

View on Model

19-1

DC62-30042A Samsung Dryer Steam Water Valve A Backorder SMG DC62-30042A $109.55

View on Model

20

Dryer Heat Duct SMG DC97-07521A Contact Us For Availability

View on Model

25

DC61-00133A Samsung Clamp Hose Backorder SMG DC61-00133A $0.93

View on Model

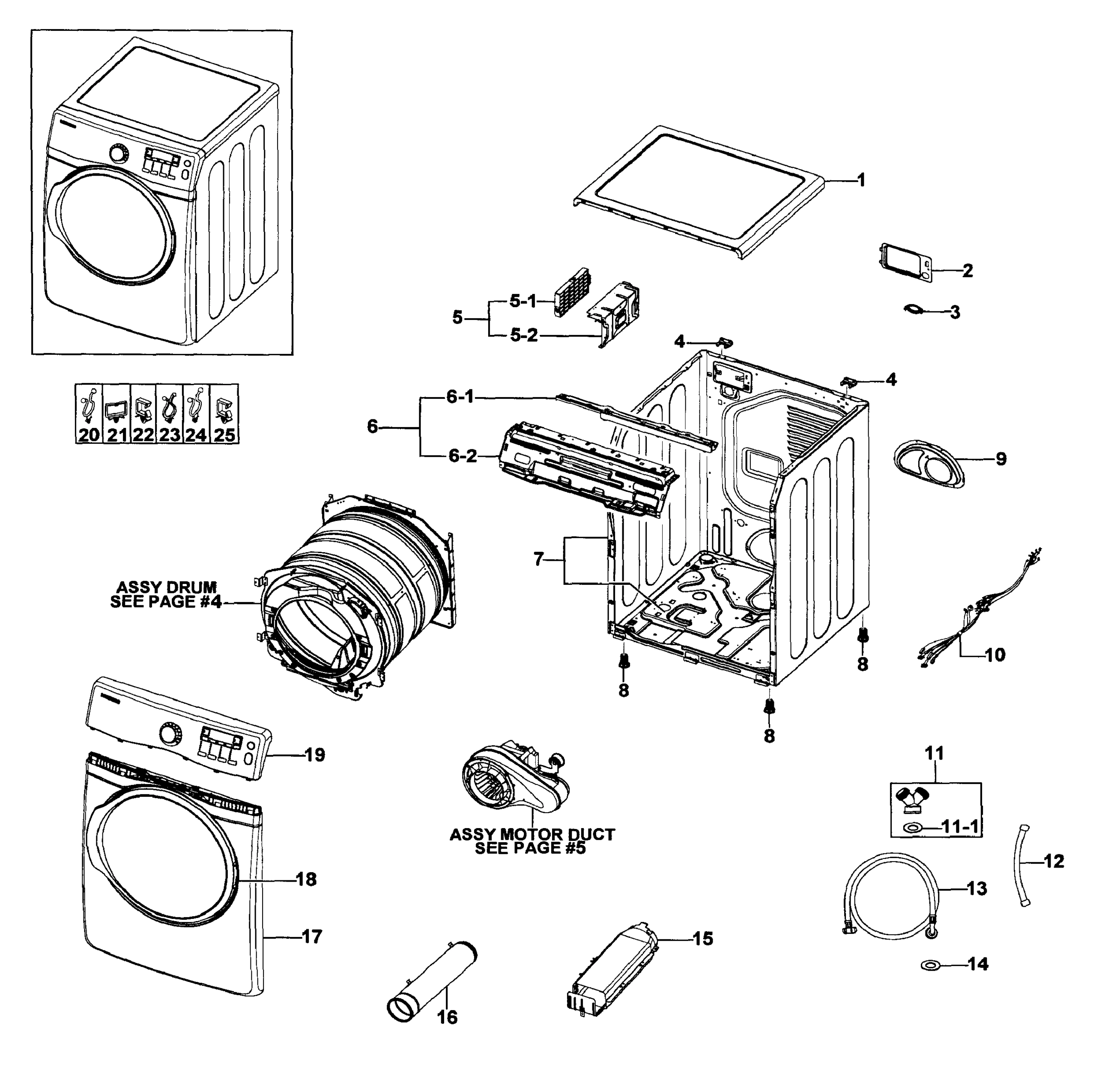

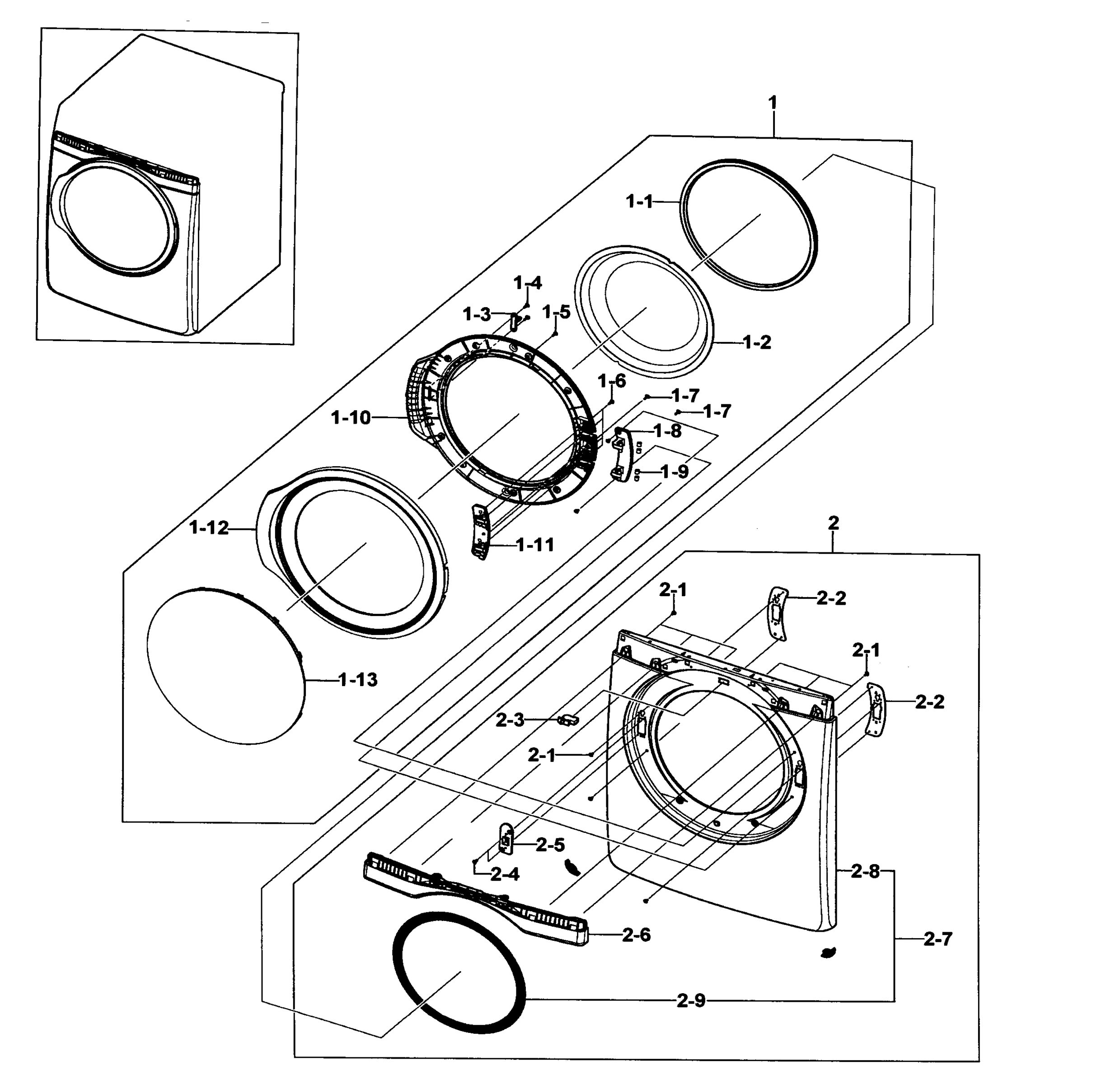

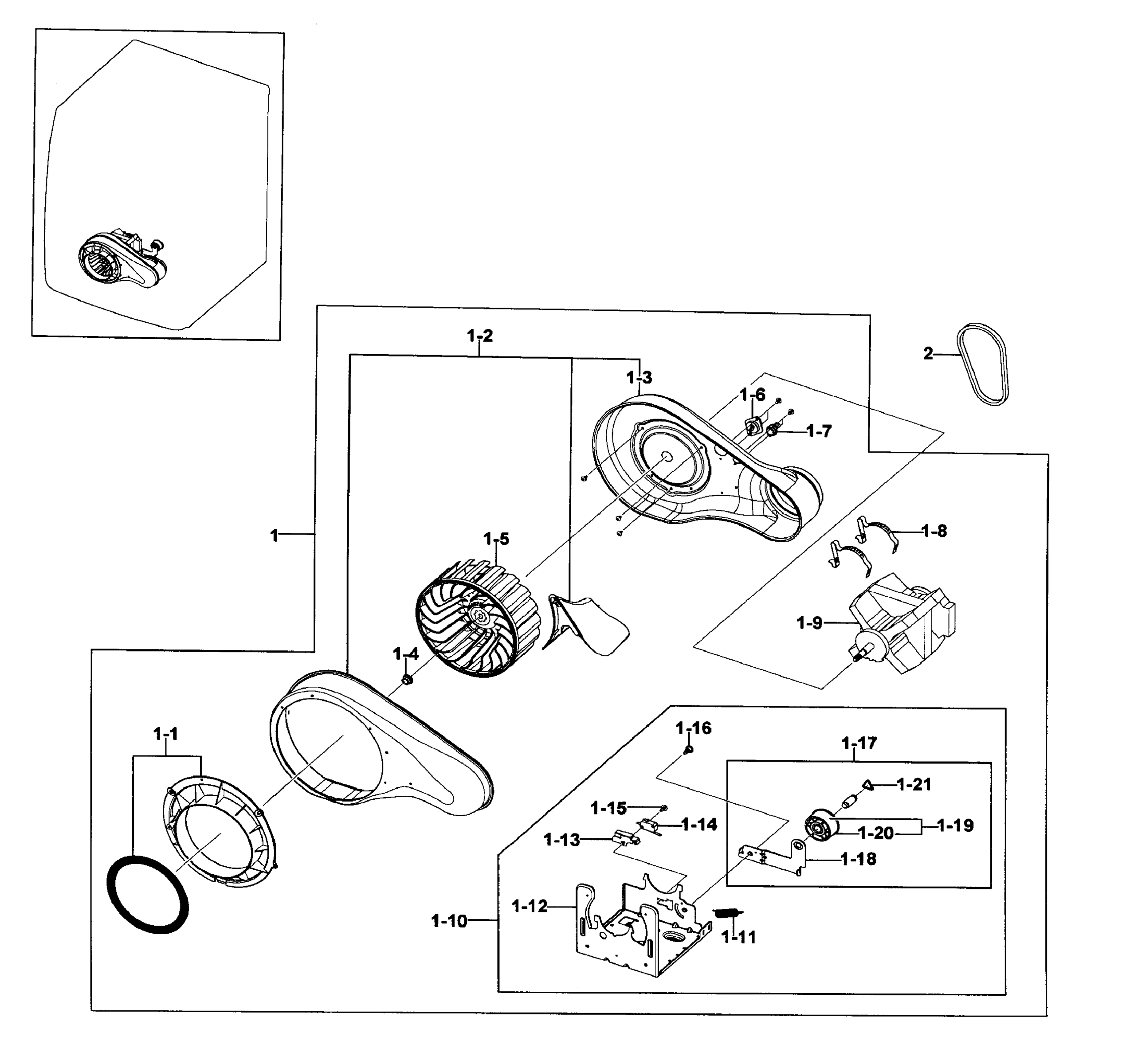

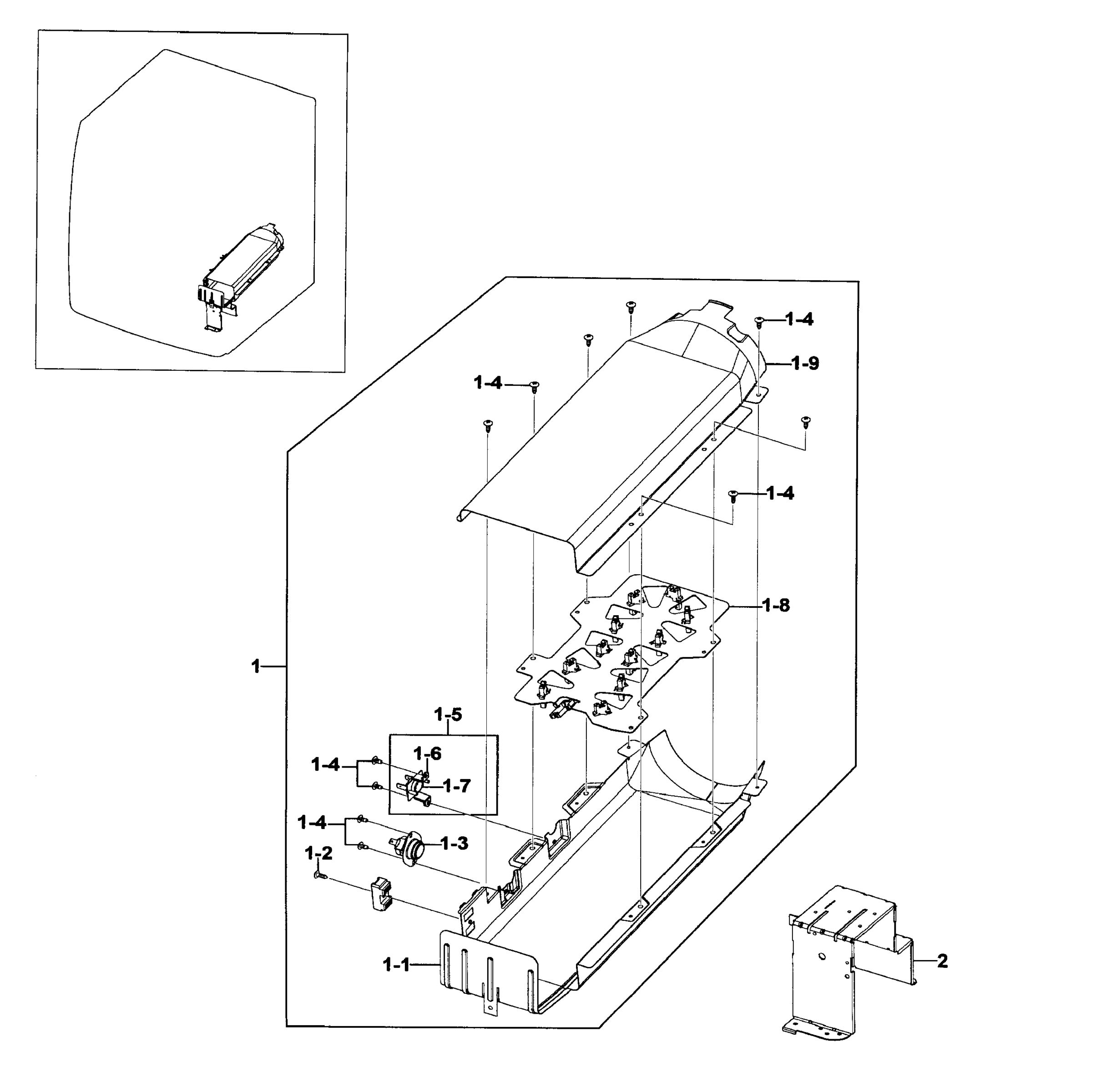

Model Samsung DV395ETPAWR/A1-00 Dryer – Common Parts & Diagrams

Common parts from model Samsung DV395ETPAWR/A1-00 Dryer
