Model Samsung DV393GTPARA/A1-01 Dryer – Common Parts & Diagrams
Control Panel
Drum Assembly

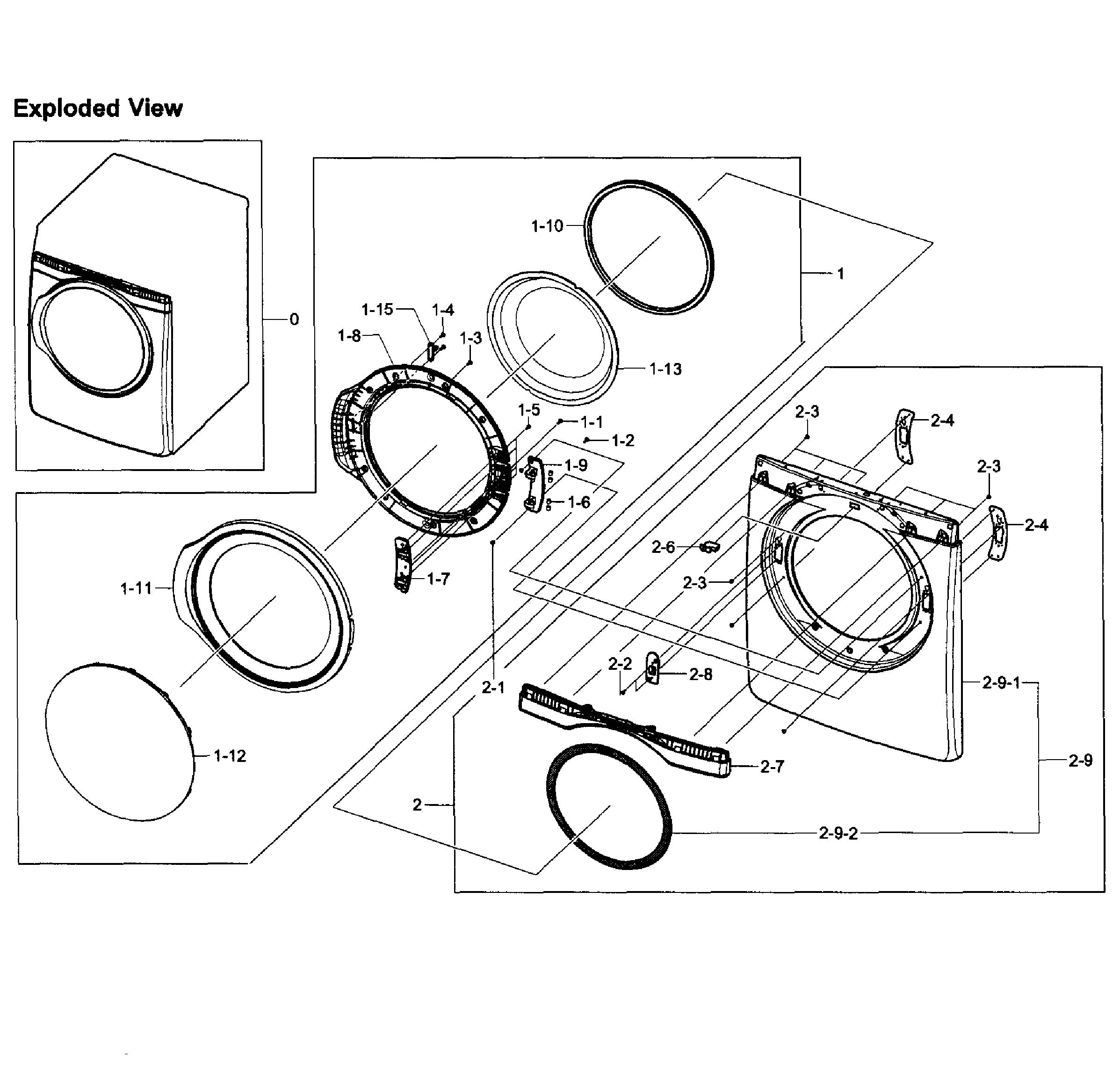

Front Assembly

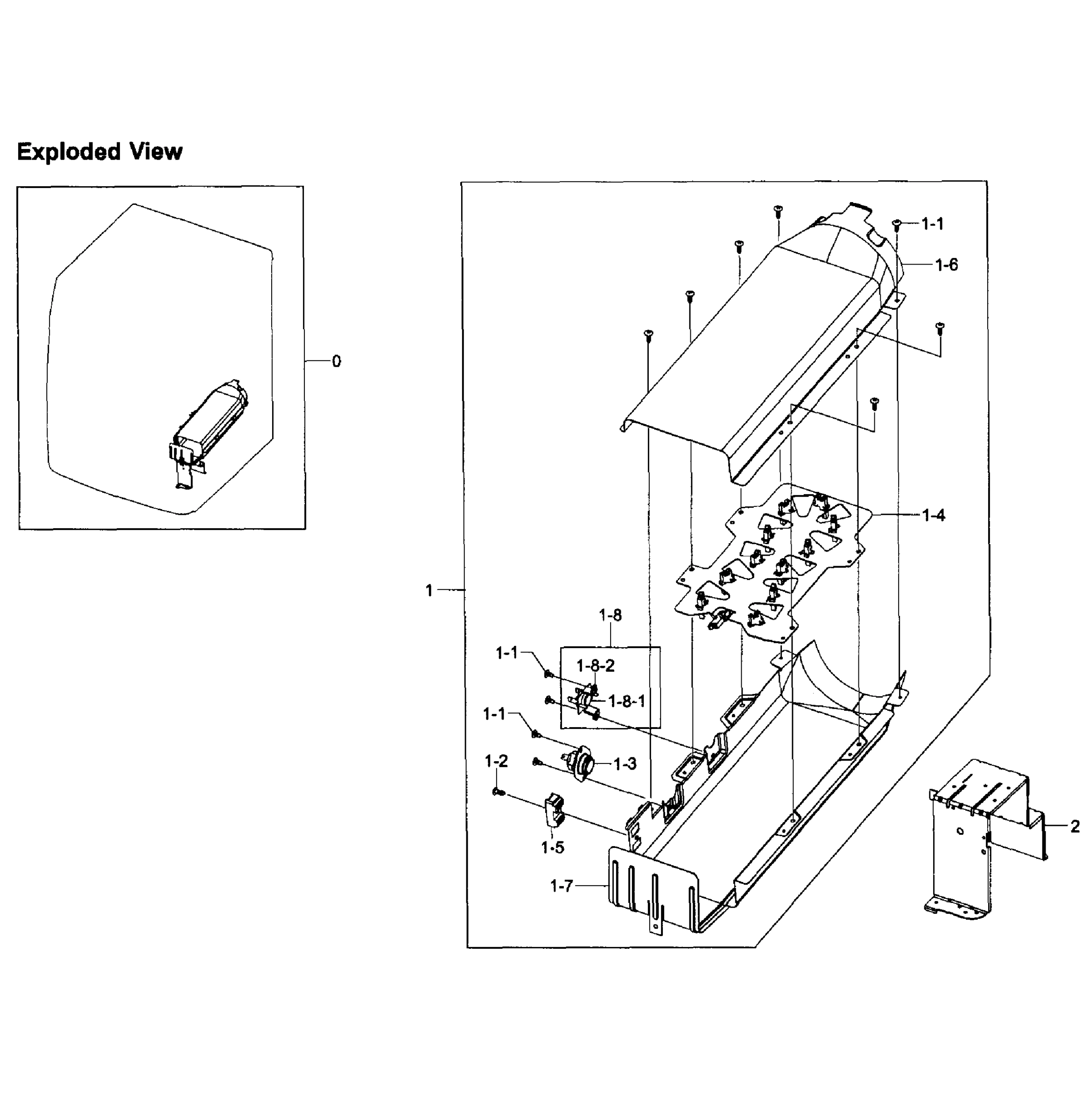

Heater

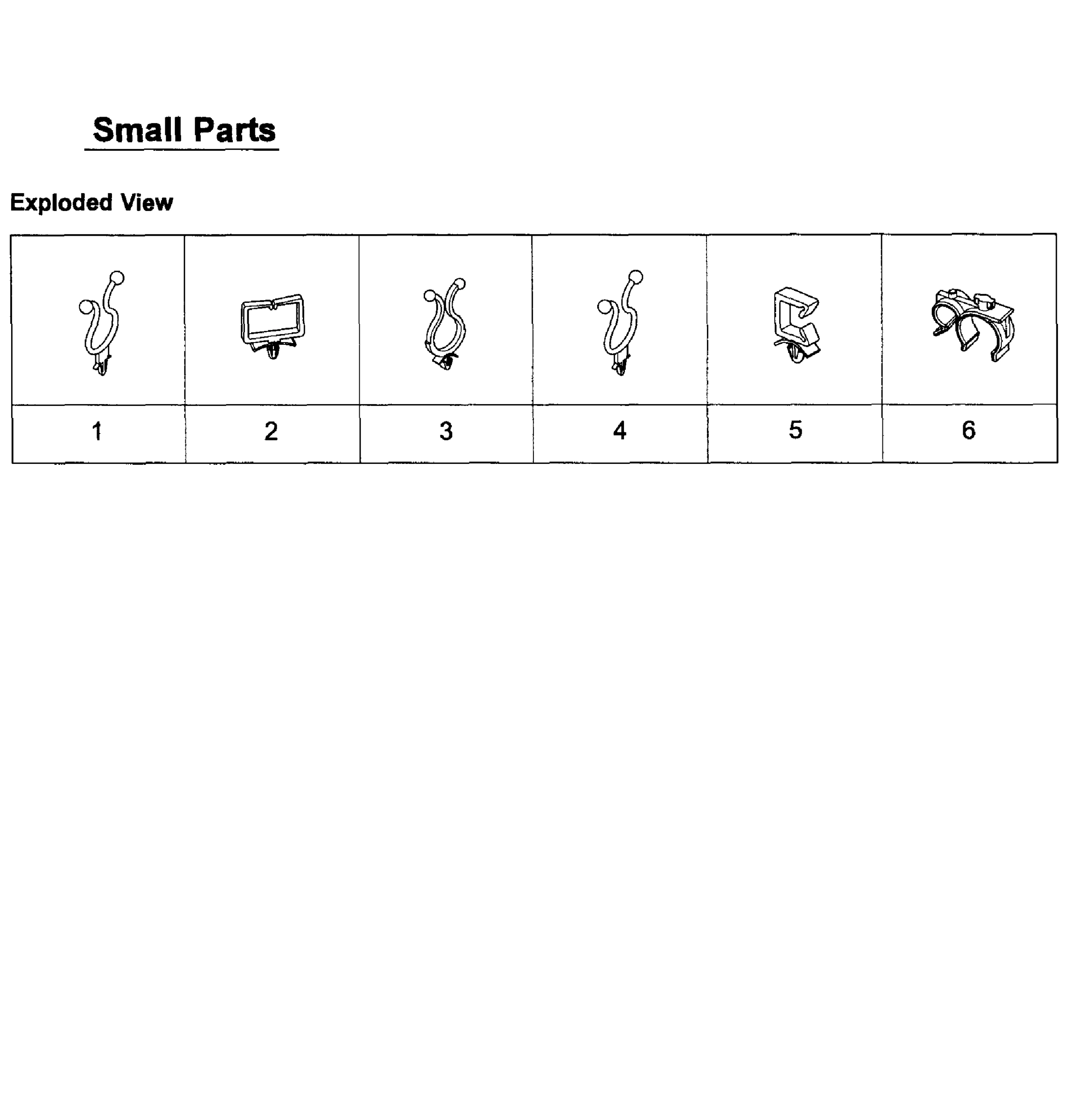

Holders

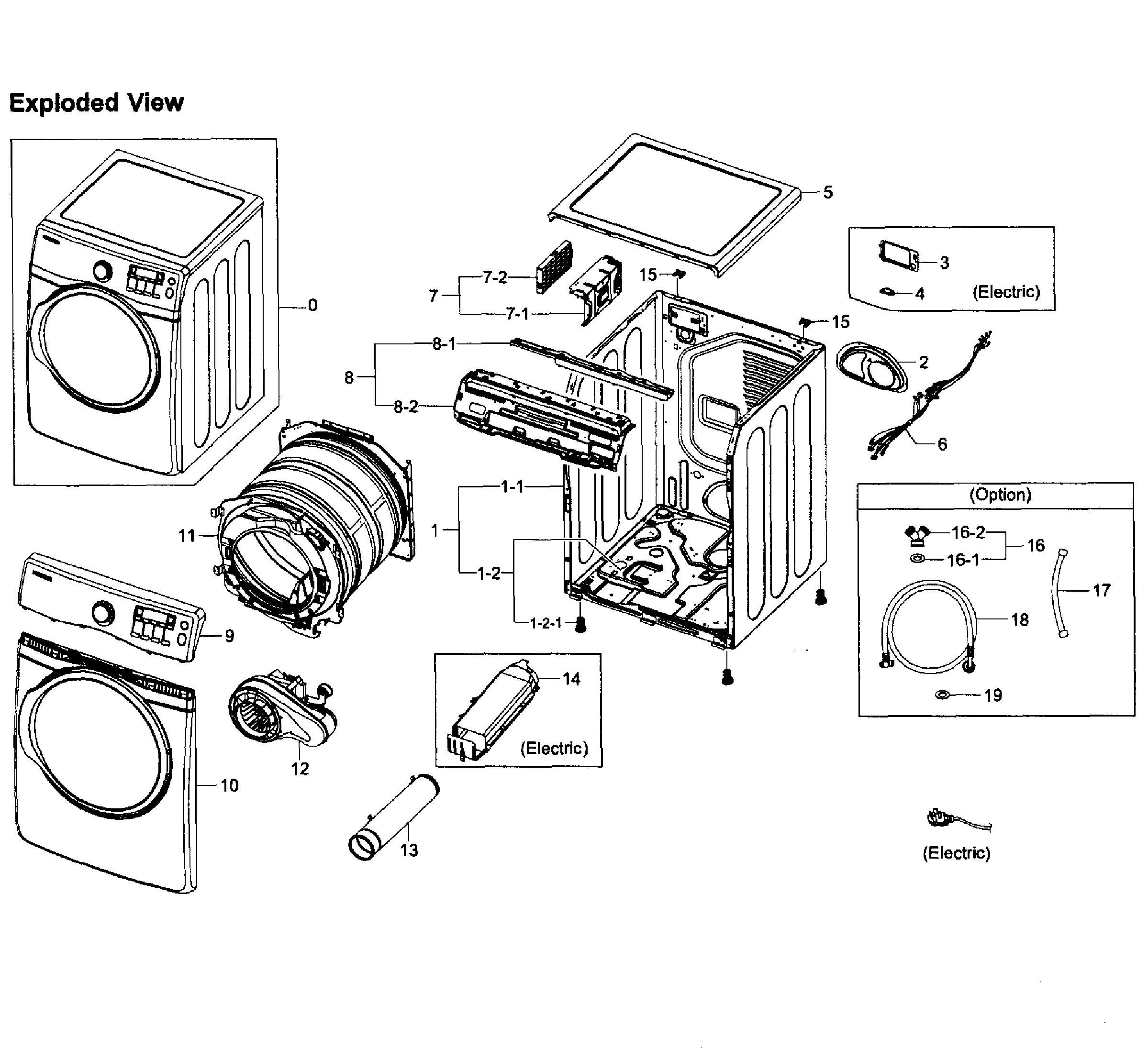

Main Assembly

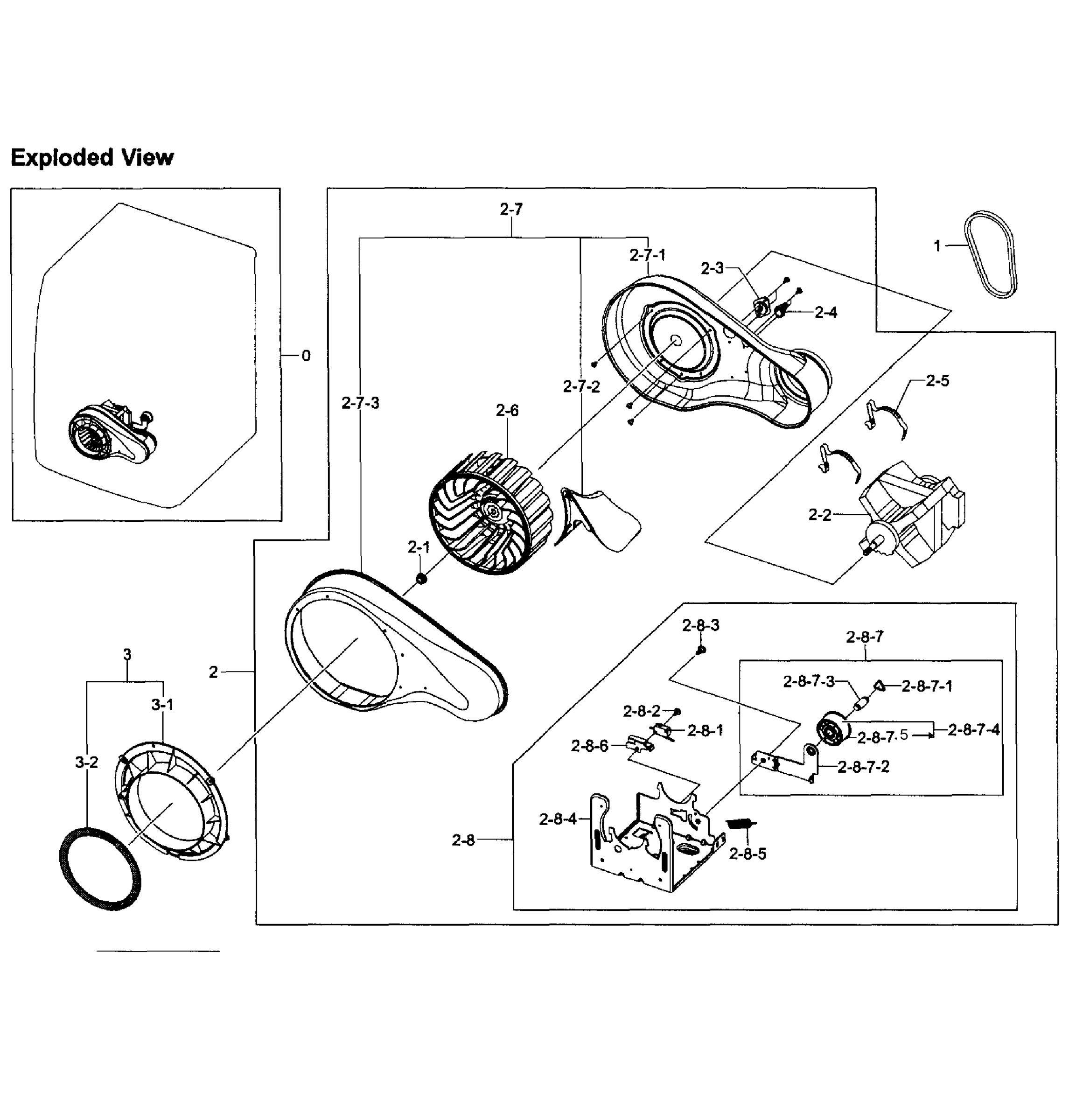

Motor Assembly
Common parts from model Samsung DV393GTPARA/A1-01 Dryer
1
Dryer drum belt SMG 6602-001655 Contact Us For Availability
1
Dryer display control board SMG DC92-00774M Contact Us For Availability
1-1
Refrigerator screw, m4 x 0.8 SMG 6002-000239 Contact Us For Availability
1-2
Dryer screw SMG 6002-001306 Contact Us For Availability
1-3
Dryer high-limit thermostat SMG DC47-00018A Contact Us For Availability
1-4
Samsung dryer heating element SMG DC47-00019A Contact Us For Availability
1-4
Laundry appliance screw, m4-18 x 22 SMG 6002-000445 Contact Us For Availability
1-5
Dryer heating element terminal block SMG DC65-00013A Contact Us For Availability
1-6
Dryer door hinge guide SMG DC61-00891A Contact Us For Availability
1-6
Dryer heater box, upper SMG DC67-00132A Contact Us For Availability
1-7
Dryer drum rear cover SMG DC66-00411E Contact Us For Availability
1-7
Dryer door hinge support SMG DC61-01576A Contact Us For Availability
1-7
Dryer heating element housing, lower SMG DC67-00133A Contact Us For Availability
1-8
Dryer heat duct SMG DC97-07521A Contact Us For Availability
1-9
Dryer steam kit SMG DC97-16919A Contact Us For Availability
1-9
Dryer door hinge SMG DC61-03202A Contact Us For Availability
1-10
Dryer door seal SMG DC62-00262A Contact Us For Availability
1-12
Dryer door outer panel SMG DC64-02215A Contact Us For Availability
1-13
Dryer door glass SMG DC64-02637A Contact Us For Availability
1-15
Door lever SMG DC66-00737A Contact Us For Availability
1-21
Dryer leveling leg SMG DC61-03128A Contact Us For Availability
1-81
Dryer thermal cut-off fuse, 320-degree f SMG DC47-00015A Contact Us For Availability
1-82
Dryer thermostat bracket SMG DC61-01204A Contact Us For Availability
1-91
Dryer water inlet valve SMG DC62-30042A Contact Us For Availability
2
Dryer rear cover SMG DC63-01499A Contact Us For Availability
2
Laundry appliance control knob SMG DC97-16931A Contact Us For Availability
2
Dryer drum SMG DC97-14849C Contact Us For Availability
2
Dryer heater housing bracket SMG DC61-02016A Contact Us For Availability
2
Dryer drive motor SMG DC93-00101F Contact Us For Availability
2-1
Dryer blower wheel nut SMG 6021-001201 Contact Us For Availability
2-1
Appliance machine screw SMG 6001-001773 Contact Us For Availability
2-3
Dryer thermistor SMG DC32-00007A Contact Us For Availability
2-3
Dryer drum seal SMG DC97-07618A Contact Us For Availability
2-4
Dryer thermal cut-off thermostat SMG DC47-00016A Contact Us For Availability
2-5
Dryer motor clamp SMG DC61-01214A Contact Us For Availability
2-6
Dryer blower wheel SMG DC67-00180B Contact Us For Availability
2-6
Dryer door switch SMG DC64-00828A Contact Us For Availability
2-7
dryer blower housing SMG DC93-00098C Contact Us For Availability
2-8
Dryer door catch SMG DC97-07510B Contact Us For Availability
2-81
Dryer belt switch SMG 3405-001077 Contact Us For Availability
2-83
Dryer idler arm spacer SMG 6009-001342 Contact Us For Availability
2-84
Dryer motor bracket SMG DC61-01213A Contact Us For Availability
2-85
Dryer idler spring SMG DC61-01215B Contact Us For Availability
2-86
Dryer belt switch housing SMG DC63-00919A Contact Us For Availability
2-92
Dryer front panel air seal SMG DC63-10001C Contact Us For Availability
3
Dryer exhaust duct connector SMG DC97-07895A Contact Us For Availability
3-1
Dryer drum light bulb SMG 4713-001199 Contact Us For Availability
3-2
Lamp socket SMG DC47-00021A Contact Us For Availability
3-5
Door glass SMG DC64-02707A Contact Us For Availability
3-6
Dryer drum light lens SMG DC63-00531A Contact Us For Availability
3-7
Dryer lint duct SMG DC97-07526B Contact Us For Availability
3-9
Dryer moisture sensor SMG DC61-02627A Contact Us For Availability
3-10
Dryer lint screen cover spring SMG DC61-02740A Contact Us For Availability
3-11
Dryer lint screen cover SMG DC63-01144A Contact Us For Availability
3-12
Dryer lint screen cover, rear SMG DC63-01149A Contact Us For Availability
3-14
Dryer wire harness SMG DC96-00766A Contact Us For Availability
3-71
Dryer exhaust duct seal SMG DC63-10001K Contact Us For Availability
4
Dryer lint screen SMG DC97-16013A Contact Us For Availability
4
Dryer power cord strain relief SMG DC61-01428A Contact Us For Availability
4-1
Dryer lint screen SMG DC61-02613A Contact Us For Availability
6
Dryer wire harness SMG DC93-00067F Contact Us For Availability
6
Dryer retainer clip SMG DC61-00133A Contact Us For Availability
7
Dryer electronic control board SMG DC92-00669J Contact Us For Availability
8-1
Dryer guide panel SMG DC61-02008B Contact Us For Availability
13
Dryer exhaust duct SMG DC97-07519D Contact Us For Availability
14
Dryer heating element assembly SMG DC97-14486A Contact Us For Availability
17
Dryer inlet hose connector SMG DC97-15249A Contact Us For Availability
19
Washer fill hose seal SMG DC62-40178A Contact Us For Availability
2871
Dryer retainer clip SMG DC61-01228A Contact Us For Availability
2874
Dryer idler pulley SMG DC97-07509B Contact Us For Availability
2875
Dryer idler pulley SMG DC66-00402A Contact Us For Availability
NI
Samsung dryer drum support roller SMG DC97-16782A Contact Us For Availability
NI
Dryer roller wheel nut SMG DC60-50145A Contact Us For Availability
NI
Washer screw, m5 x 12 SMG 6002-000241 Contact Us For Availability
× ![]()
