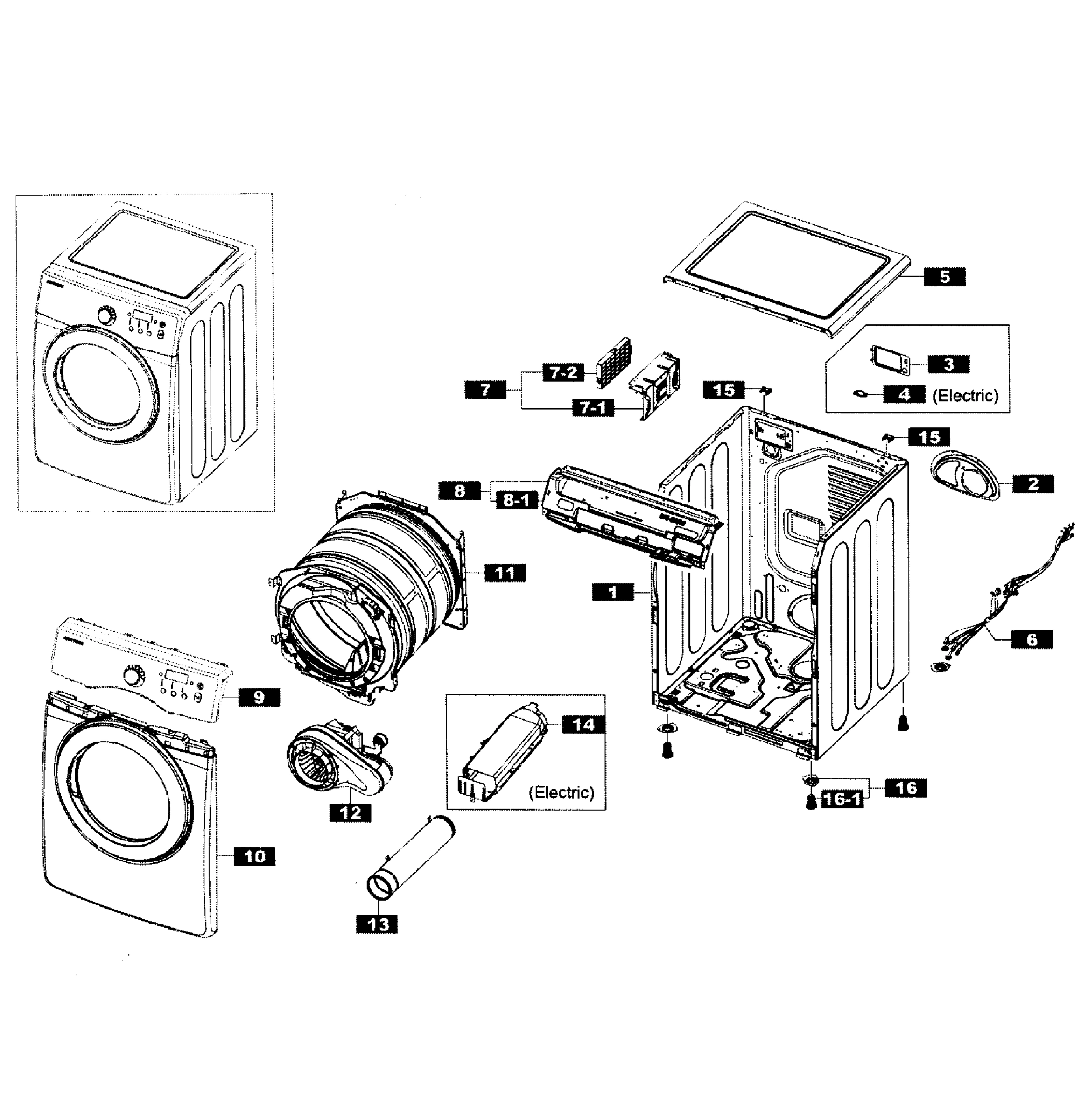

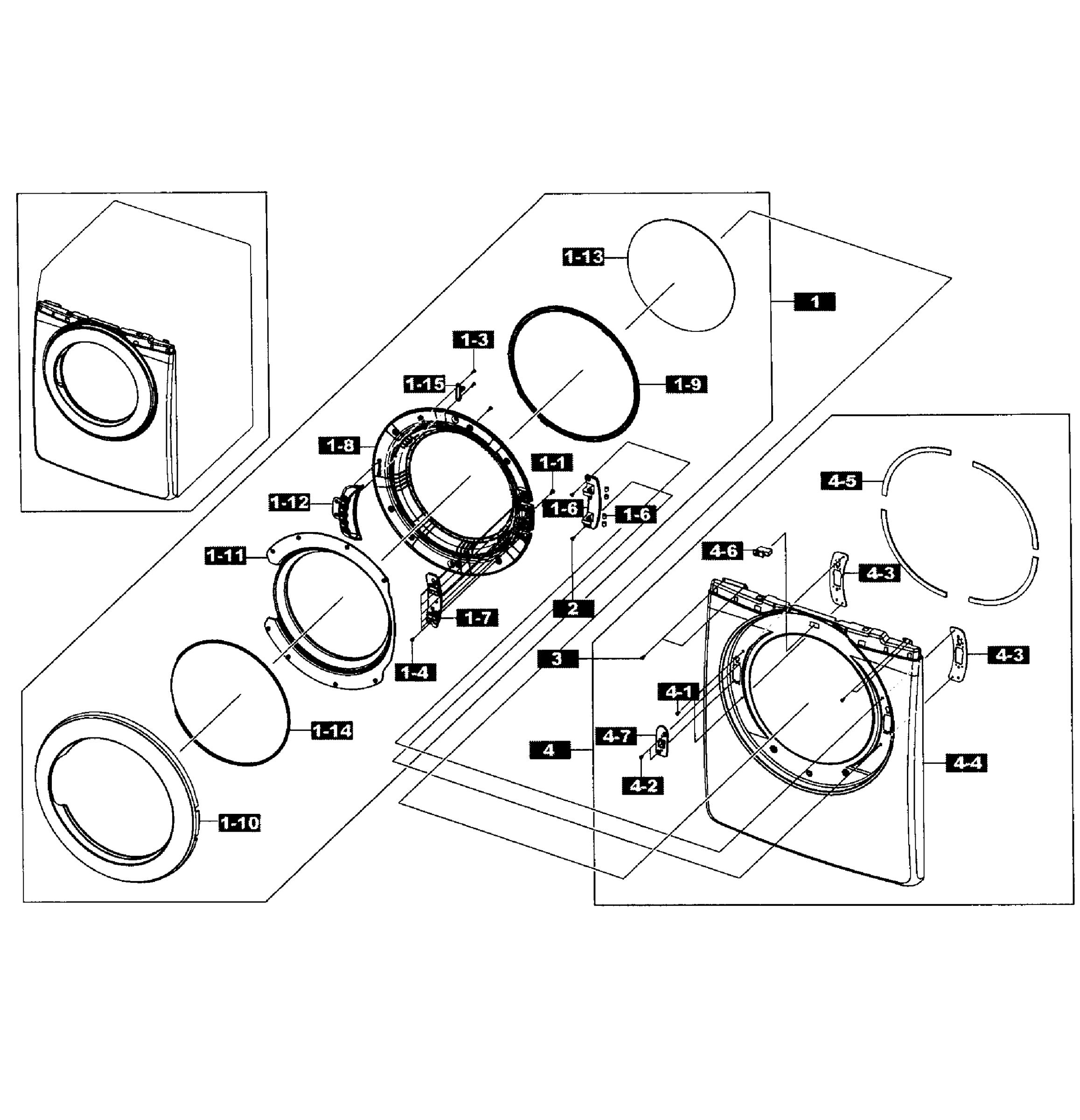

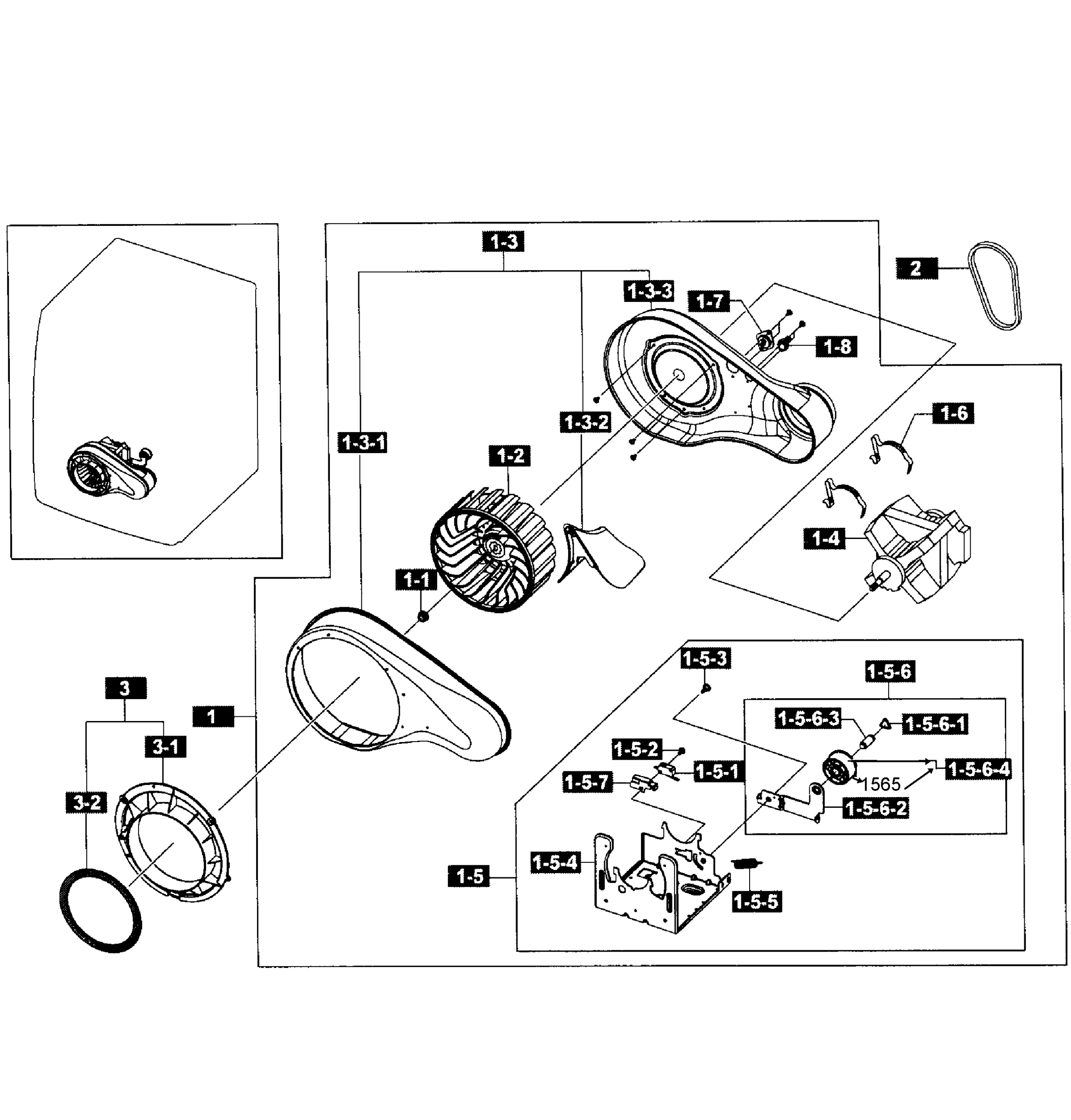

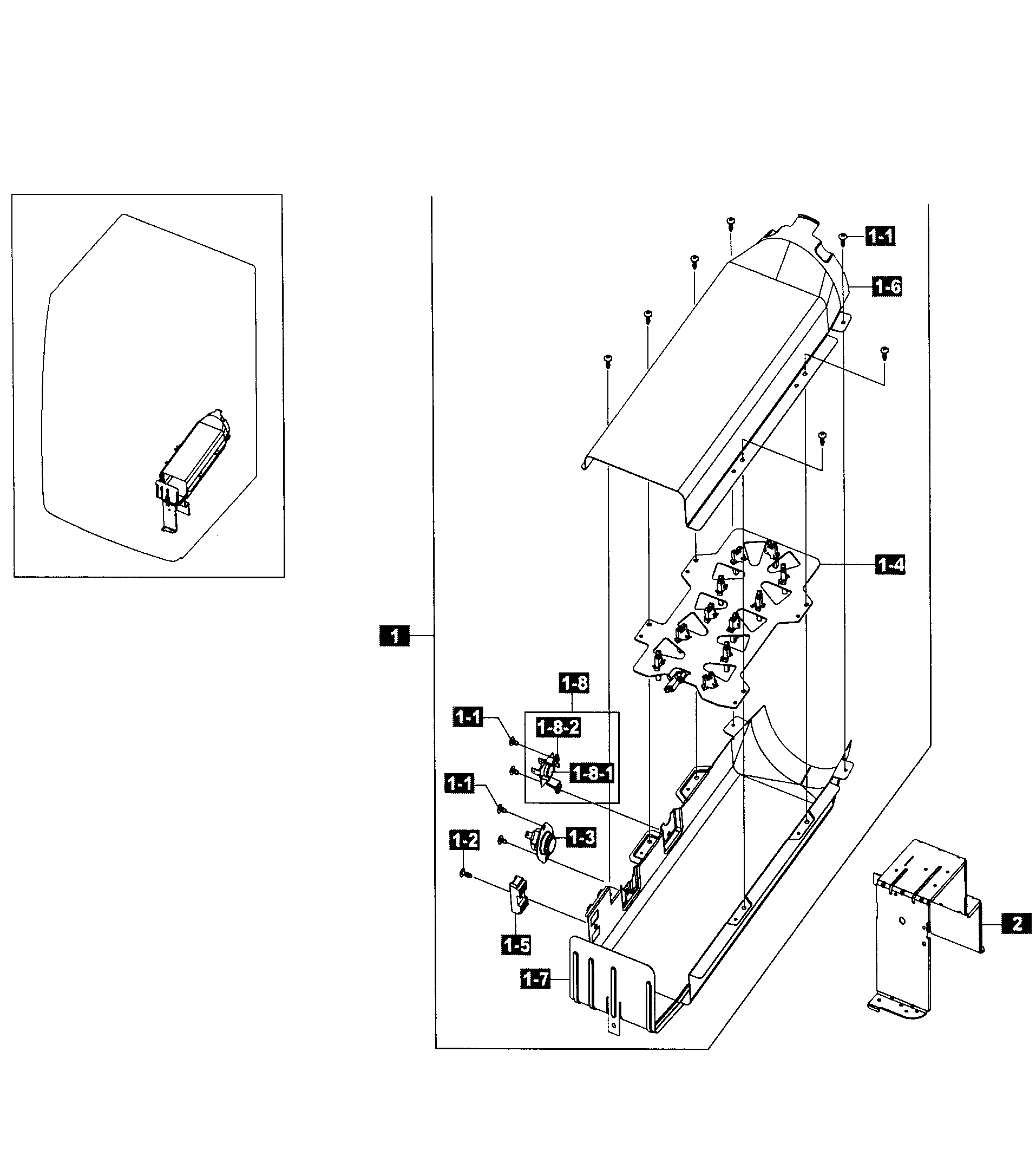

Samsung DV365ETBGWR/A3-01 Dryer Parts List

1

Dryer Lint Screen SMG DC61-01521A Contact Us For Availability

View on Model

1-1

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $2.62

View on Model

1-2

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $90.19

View on Model

1-4

6002-000241 Samsung Self Tapping Screw Backorder SMG 6002-000241 $0.93

View on Model

1-4

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $253.44

View on Model

1-5

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $0.93

View on Model

1-6

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.55

View on Model

1-6

DC61-03202A Samsung Washer Dryer Door Hinge Backorder SMG DC61-03202A $37.63

View on Model

1-7

DC32-00007A Samsung Dryer Thermistor Sensor Backorder SMG DC32-00007A $17.00

View on Model

1-7

DC61-01576A Samsung Support Hinge Assembly Backorder SMG DC61-01576A $8.85

View on Model

1-11

DC63-01127A Samsung Cover Door Assembly (I) Backorder SMG DC63-01127A $49.62

View on Model

1-15

DC66-00395A Samsung Dryer Door Lever Strike L In Stock SMG DC66-00395A $6.10

View on Model

1-33

DC61-02348A Samsung Duct Fan Guide Assembly Backorder SMG DC61-02348A $71.34

View on Model

1-51

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $16.57

View on Model

1-54

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $76.18

View on Model

1-55

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $5.23

View on Model

1-56

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $42.76

View on Model

1-57

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.62

View on Model

2

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $36.38

View on Model

2

DC63-01499A Samsung Cover Back Dryer Hudson G Backorder SMG DC63-01499A $24.74

View on Model

2

DC97-07526B Samsung Duct Outlet Assembly Backorder SMG DC97-07526B $66.76

View on Model

2

DC97-16931A Samsung Encoder Knob Assembly Backorder SMG DC97-16931A $40.98

View on Model

3

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $44.42

View on Model

3-1

DC47-00021A Samsung Socket Lamp Assembly Backorder SMG DC47-00021A $20.65

View on Model

3-2

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.62

View on Model

3-3

DC60-00103A Samsung Fastener Plain Backorder SMG DC60-00103A $1.75

View on Model

3-5

Dryer Drum Light Lens SMG DC63-00531A Contact Us For Availability

View on Model

3-6

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $35.12

View on Model

3-10

DC63-00675A Samsung Dryer Filter Cover Backorder SMG DC63-00675A $23.23

View on Model

3-12

4713-001199 Samsung Dryer Drum Incandescent L Backorder SMG 4713-001199 $8.28

View on Model

3-13

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $11.35

View on Model

3-14

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $5.23

View on Model

3-61

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.75

View on Model

4

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $25.52

View on Model

4

DC61-01428A Samsung Power Holder Assembly Backorder SMG DC61-01428A $0.93

View on Model

4-3

DC97-07618A Samsung Dryer Drum Gasket Seal As In Stock SMG DC97-07618A $88.64

View on Model

4-5

DC63-10001C Samsung EPDM Sponge Backorder SMG DC63-10001C $3.05

View on Model

4-6

DC64-00828B Samsung Washer Dryer Door Switch In Stock SMG DC64-00828B $30.26

View on Model

4-7

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $13.52

View on Model

5

DC47-00019A Samsung Dryer Heating Element Ass In Stock SMG DC47-00019A $72.16

View on Model

5-5

DC66-00411E Samsung Dryer Drum Back for DV545 Backorder SMG DC66-00411E $181.56

View on Model

5-6

Dryer Heat Duct SMG DC97-07521A Contact Us For Availability

View on Model

5-8

DC61-02826A Samsung Drum Back Bracket Assembl Backorder SMG DC61-02826A $15.18

View on Model

6

DC65-00013A Samsung Dryer Terminal Block Backorder SMG DC65-00013A $5.23

View on Model

6

Dryer Wire Harness SMG DC93-00067F Contact Us For Availability

View on Model

7

Dryer Electronic Control Board SMG DC92-00669R Contact Us For Availability

View on Model

7

Dryer Heater Box, Upper SMG DC67-00132A Contact Us For Availability

View on Model

7-2

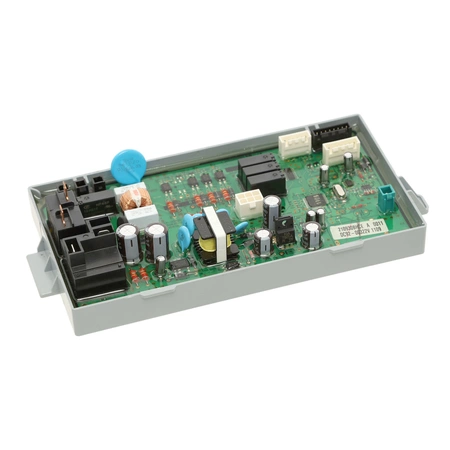

DC92-00322V Samsung Dryer Main PCB Assembly Backorder SMG DC92-00322V $270.84

View on Model

8

Dryer Heating Element Housing, Lower SMG DC67-00133A Contact Us For Availability

View on Model

9

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $35.30

View on Model

10

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $12.59

View on Model

11

DC61-01204A Samsung Dryer Thermostat Bracket Backorder SMG DC61-01204A $2.10

View on Model

12

DC61-02016A Samsung Die Heater Backorder SMG DC61-02016A $23.18

View on Model

13

DC97-07519D Samsung Door Assembly Exhaust Duc Backorder SMG DC97-07519D $43.10

View on Model

14

DC97-14486A Samsung Dryer Heating Element Duc In Stock SMG DC97-14486A $184.11

View on Model

16

DC97-12150A Samsung Dryer Leg Assembly In Stock SMG DC97-12150A $16.01

View on Model

1564

Dryer Idler Pulley SMG DC97-07509B Contact Us For Availability

View on Model

1565

Dryer Idler Pulley SMG DC66-00402A Contact Us For Availability

View on Model

NI

6001-001668 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001668 $1.30

View on Model

NI

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.30

View on Model

NI

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.93

View on Model

NI

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.93

View on Model

NI

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.93

View on Model

NI

6009-001342 Samsung Dryer Special Puller Scre Backorder SMG 6009-001342 $1.30

View on Model
