Samsung DV363EWBEUF/A1-00 Dryer Parts List

1

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $36.38

View on Model

1

Dryer Lint Screen SMG DC61-01521A Contact Us For Availability

View on Model

1

Dryer display control board SMG DC92-00303Q Contact Us For Availability

View on Model

1-1

6001-001668 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001668 $1.30

View on Model

1-1

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.93

View on Model

1-3

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $0.93

View on Model

1-3

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $25.52

View on Model

1-4

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.93

View on Model

1-4

DC47-00019A Samsung Dryer Heating Element Ass In Stock SMG DC47-00019A $72.16

View on Model

1-5

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $0.93

View on Model

1-5

DC65-00013A Samsung Dryer Terminal Block Backorder SMG DC65-00013A $5.23

View on Model

1-6

DC61-03202A Samsung Washer Dryer Door Hinge Backorder SMG DC61-03202A $37.63

View on Model

1-6

Dryer Heater Box, Upper SMG DC67-00132A Contact Us For Availability

View on Model

1-7

DC61-01576A Samsung Support Hinge Assembly Backorder SMG DC61-01576A $8.85

View on Model

1-7

Dryer Heating Element Housing, Lower SMG DC67-00133A Contact Us For Availability

View on Model

1-8

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $35.30

View on Model

1-11

DC63-01127A Samsung Cover Door Assembly (I) Backorder SMG DC63-01127A $49.62

View on Model

1-15

DC66-00395A Samsung Dryer Door Lever Strike L In Stock SMG DC66-00395A $6.10

View on Model

1-81

DC47-00015A Samsung Dryer 250V Thermostat In Stock SMG DC47-00015A $24.85

View on Model

1-82

DC61-01204A Samsung Dryer Thermostat Bracket Backorder SMG DC61-01204A $2.10

View on Model

2

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.30

View on Model

2

DC61-02016A Samsung Die Heater Backorder SMG DC61-02016A $23.18

View on Model

2

DC63-01499A Samsung Cover Back Dryer Hudson G Backorder SMG DC63-01499A $24.74

View on Model

2

DC97-07526B Samsung Duct Outlet Assembly Backorder SMG DC97-07526B $66.76

View on Model

2

DC97-16931A Samsung Encoder Knob Assembly Backorder SMG DC97-16931A $40.98

View on Model

2-1

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $2.62

View on Model

2-2

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $253.44

View on Model

2-3

DC32-00007A Samsung Dryer Thermistor Sensor Backorder SMG DC32-00007A $17.00

View on Model

2-3

DC63-10001K Samsung Dryer Absorber Sponge Backorder SMG DC63-10001K $2.96

View on Model

2-4

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $12.59

View on Model

2-5

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.55

View on Model

2-6

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $90.19

View on Model

2-7

Kenmore Dryer Blower Housing SMG DC93-00098C Contact Us For Availability

View on Model

2-81

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $16.57

View on Model

2-83

6009-001342 Samsung Dryer Special Puller Scre Backorder SMG 6009-001342 $1.30

View on Model

2-84

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $76.18

View on Model

2-85

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $5.23

View on Model

2-86

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.62

View on Model

2-87

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $42.76

View on Model

3

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $0.93

View on Model

3

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $44.42

View on Model

3-1

DC47-00021A Samsung Socket Lamp Assembly Backorder SMG DC47-00021A $20.65

View on Model

3-2

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.62

View on Model

3-5

Dryer Drum Light Lens SMG DC63-00531A Contact Us For Availability

View on Model

3-6

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $35.12

View on Model

3-10

DC63-00675A Samsung Dryer Filter Cover Backorder SMG DC63-00675A $23.23

View on Model

3-12

4713-001199 Samsung Dryer Drum Incandescent L Backorder SMG 4713-001199 $8.28

View on Model

3-13

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $11.35

View on Model

3-14

DC61-01231A Samsung Dryer Wings Plate Sensor Backorder SMG DC61-01231A $4.80

View on Model

3-61

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.75

View on Model

4

DC61-01428A Samsung Power Holder Assembly Backorder SMG DC61-01428A $0.93

View on Model

4

Dryer Drum Assembly SMG DC97-07520F Contact Us For Availability

View on Model

4-3

DC97-07618A Samsung Dryer Drum Gasket Seal As In Stock SMG DC97-07618A $88.64

View on Model

4-5

DC63-10001C Samsung EPDM Sponge Backorder SMG DC63-10001C $3.05

View on Model

4-6

DC64-00828A Samsung Dryer Door Switch Assembl Backorder SMG DC64-00828A $27.68

View on Model

4-7

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $13.52

View on Model

5

Dryer Top Panel SMG DC97-16803E Contact Us For Availability

View on Model

5-6

Dryer Heat Duct SMG DC97-07521A Contact Us For Availability

View on Model

7

Dryer Electronic Control Board SMG DC92-00669Q Contact Us For Availability

View on Model

7-2

Dryer Electronic Control Board SMG DC92-00123G Contact Us For Availability

View on Model

12

DC93-00101F Samsung Motor Assembly Backorder SMG DC93-00101F $225.04

View on Model

13

DC97-07519D Samsung Door Assembly Exhaust Duc Backorder SMG DC97-07519D $43.10

View on Model

14

DC97-14486A Samsung Dryer Heating Element Duc In Stock SMG DC97-14486A $184.11

View on Model

16

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $9.15

View on Model

2874

Dryer Idler Pulley SMG DC97-07509B Contact Us For Availability

View on Model

8741

Dryer Idler Pulley SMG DC66-00402A Contact Us For Availability

View on Model

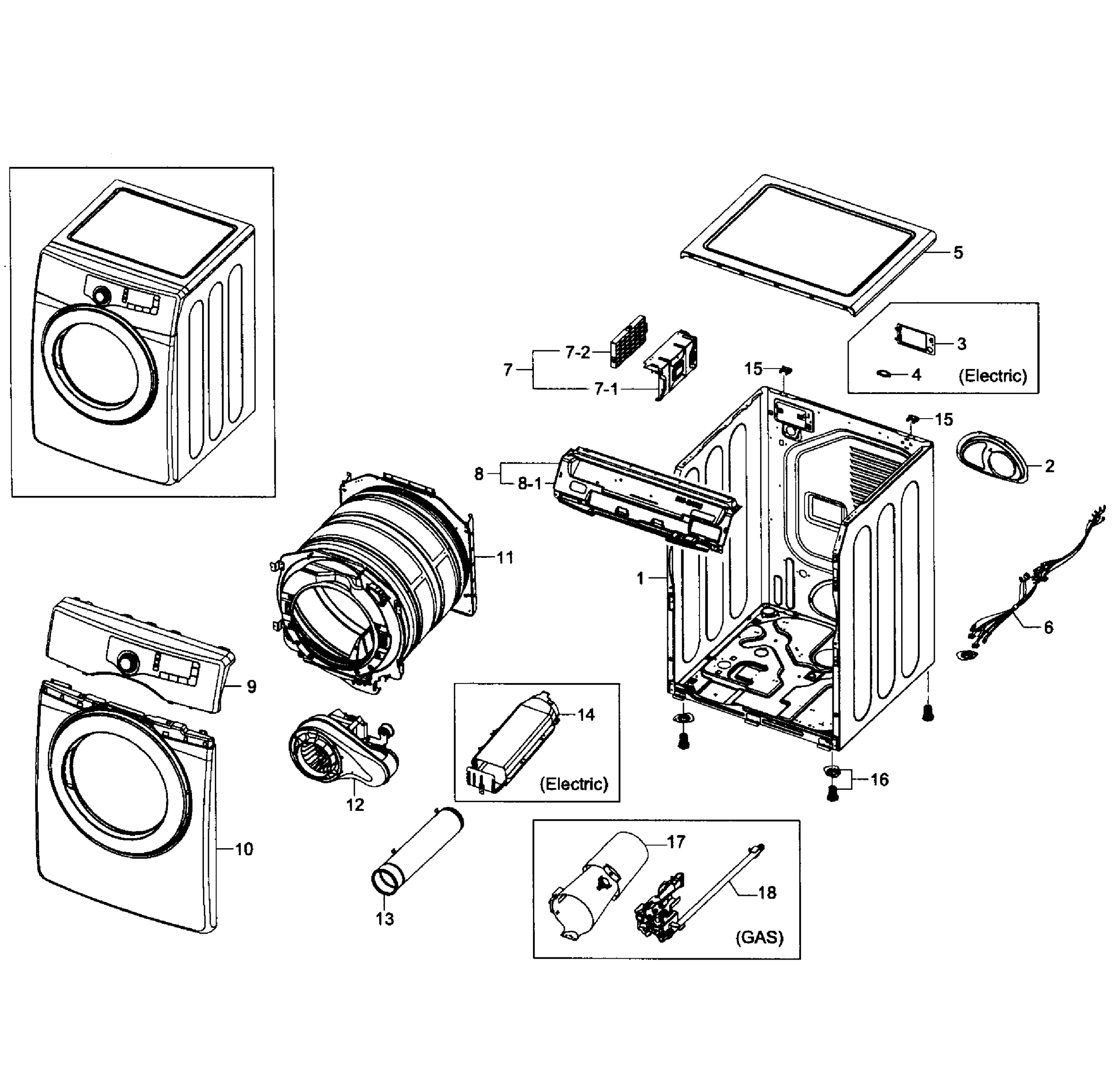

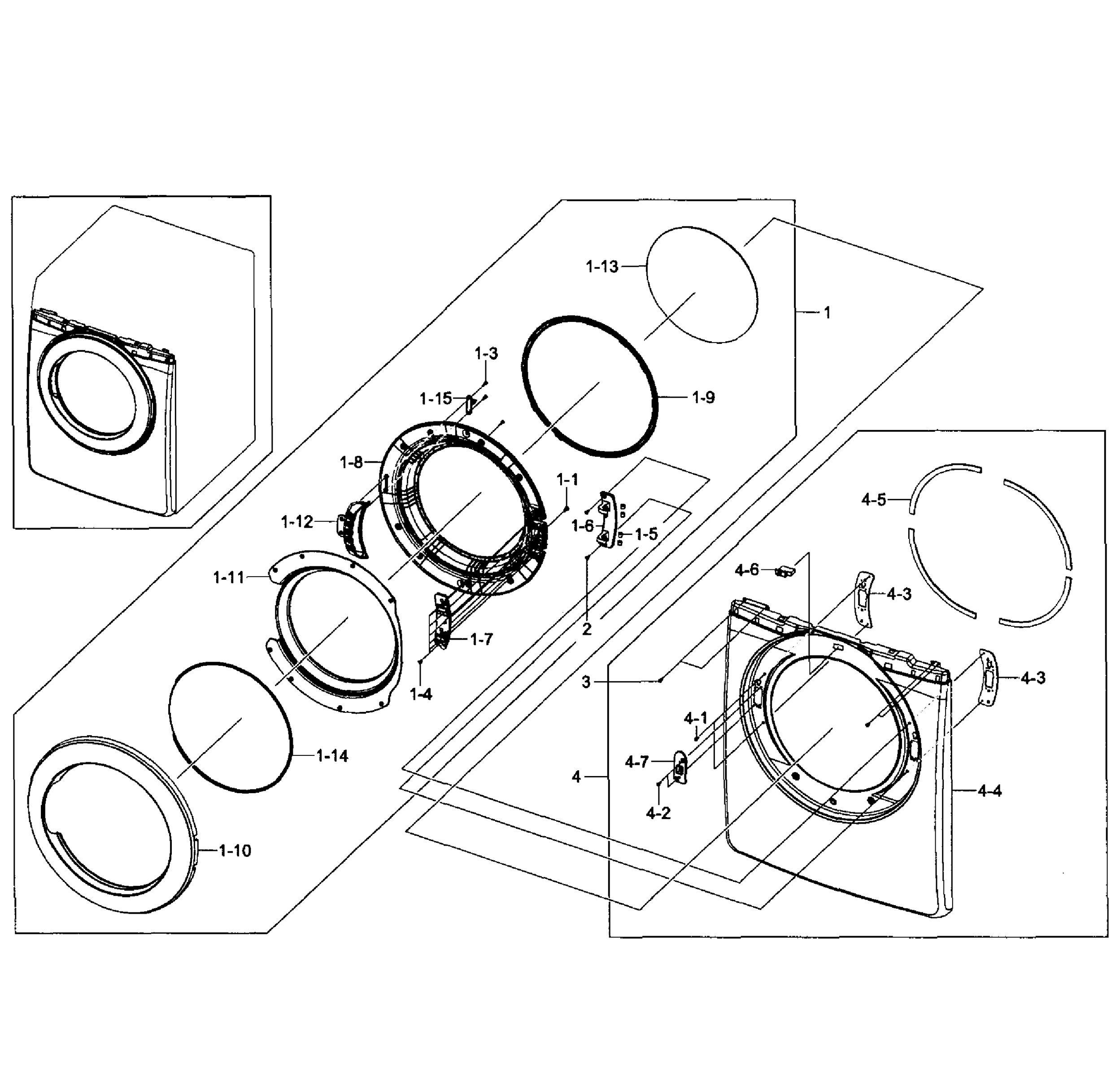

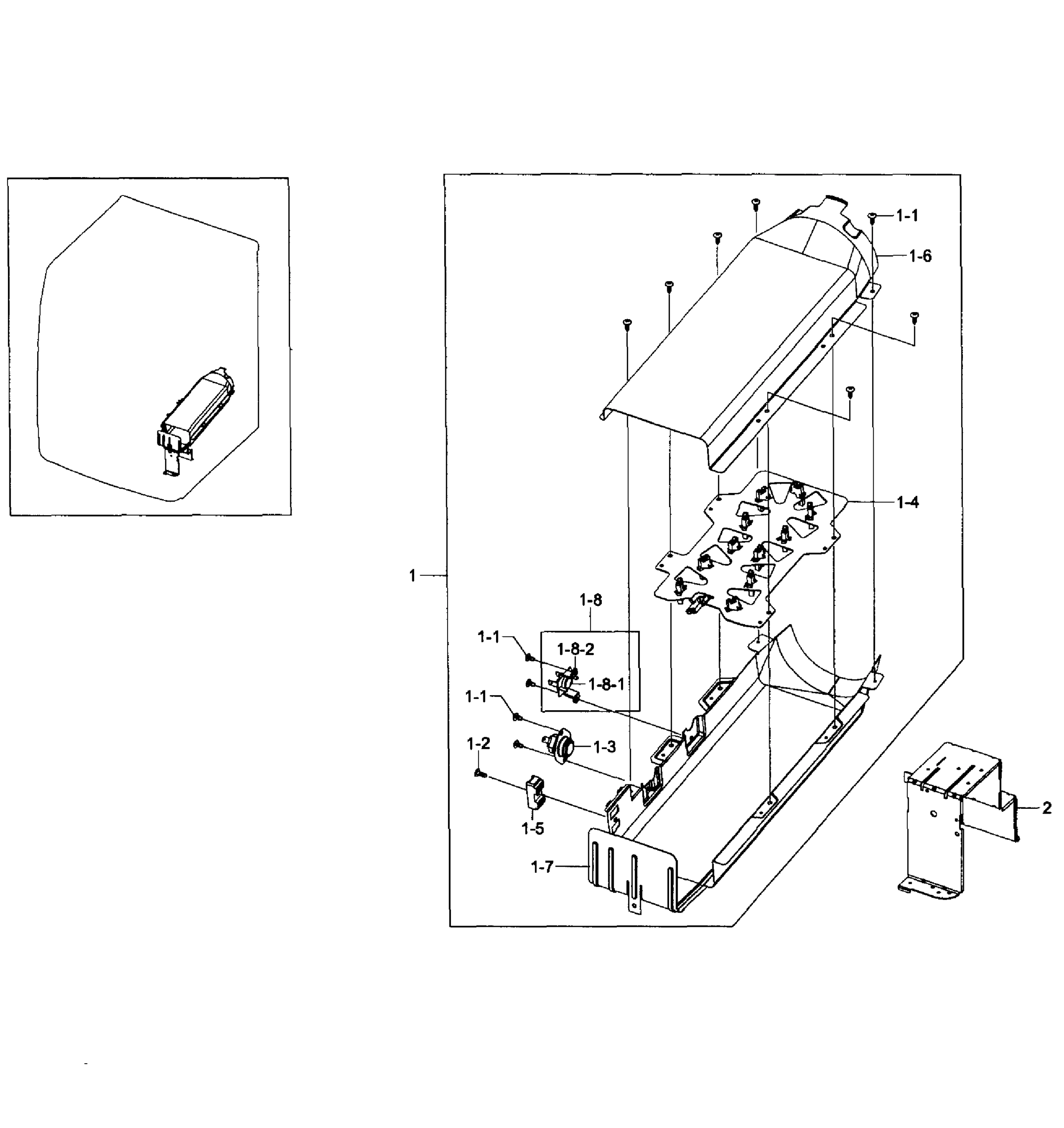

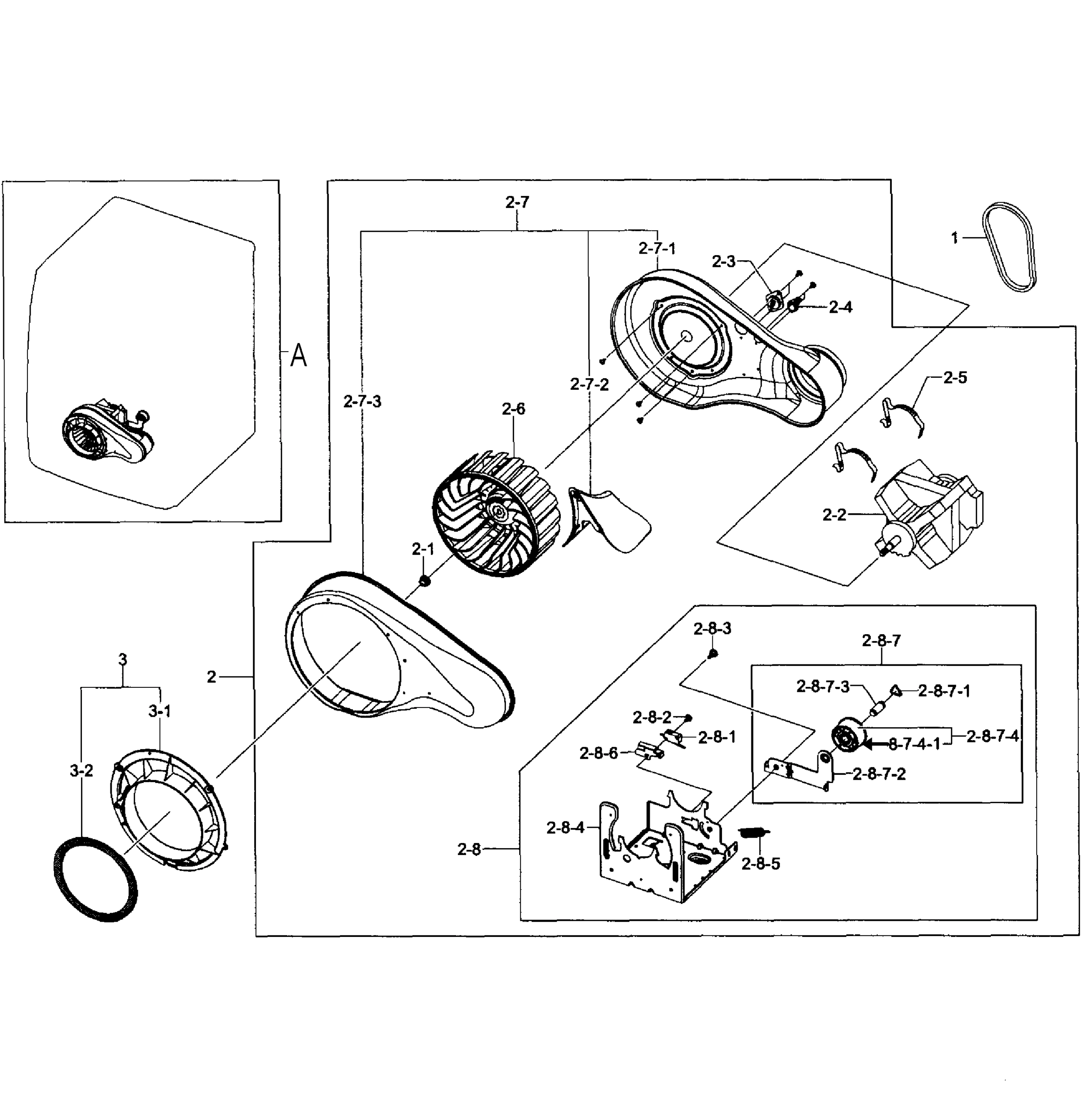

Model Samsung DV363EWBEUF/A1-00 Dryer – Common Parts & Diagrams

Common parts from model Samsung DV363EWBEUF/A1-00 Dryer
