Model Samsung DV350AER/XAA-00 Dryer – Common Parts &amp; Diagrams

1

Dryer user interface SMG DC92-00384A Contact Us For Availability

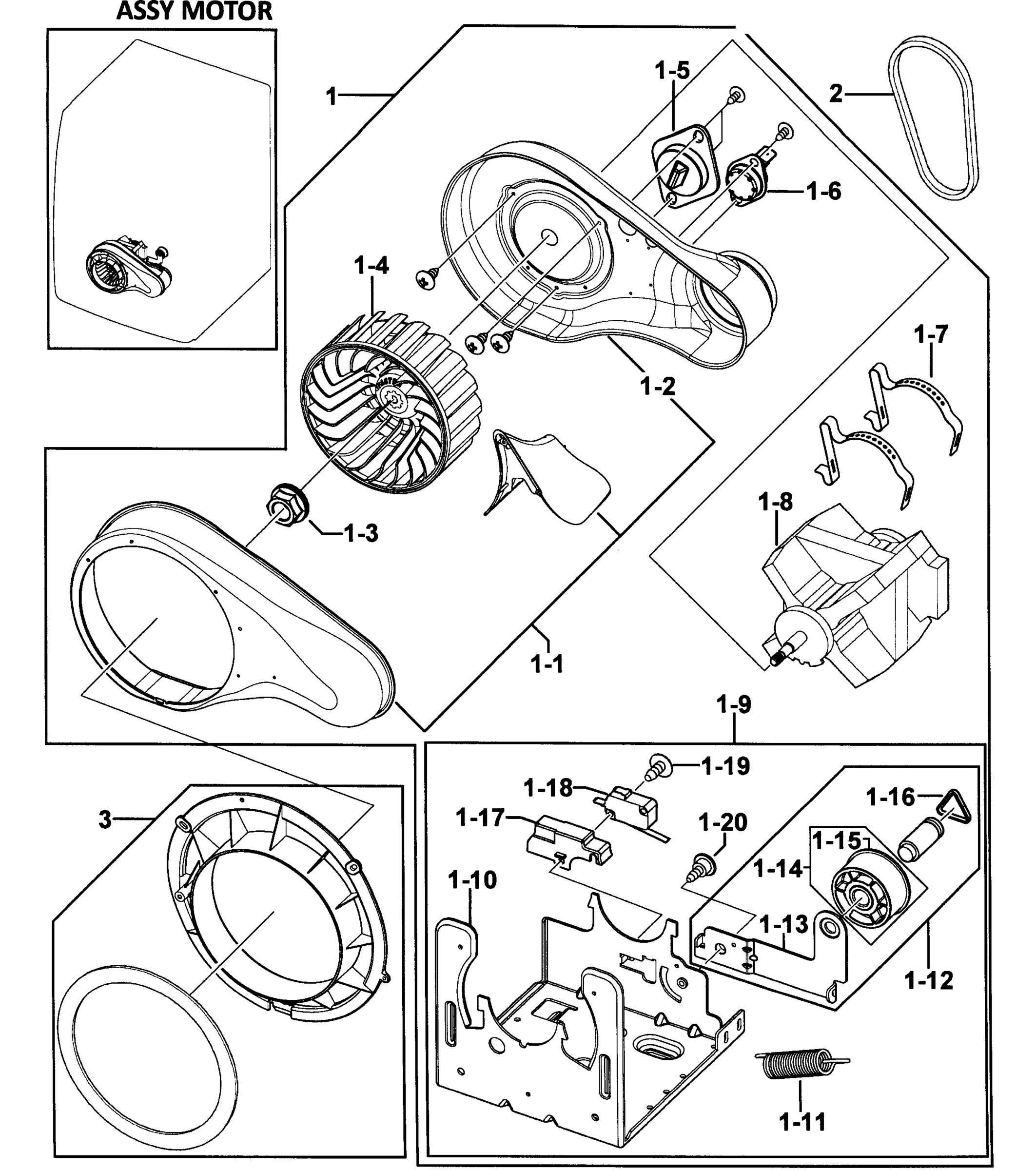

1-1

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.93

1-1

DC62-00262A Samsung Dryer Door Seal Assembly Backorder SMG DC62-00262A $48.04

1-2

DC61-02348A Samsung Duct Fan Guide Assembly Backorder SMG DC61-02348A $71.34

1-2

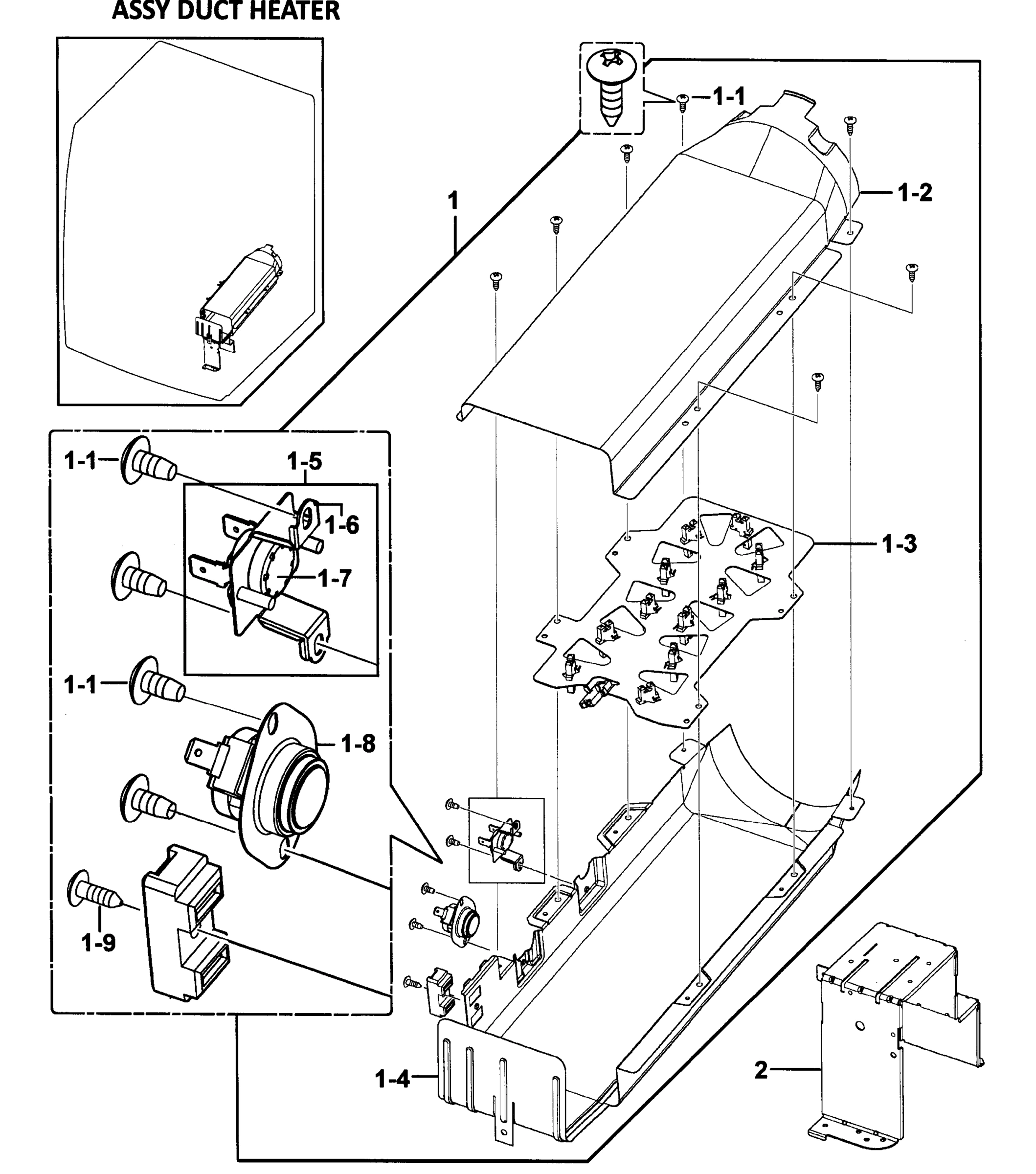

Dryer Heater Box, Upper SMG DC67-00132A Contact Us For Availability

1-2

Dryer Drum Light Lens SMG DC63-00531A Contact Us For Availability

1-3

6001-001668 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001668 $1.30

1-3

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $2.62

1-3

DC47-00019A Samsung Dryer Heating Element Ass In Stock SMG DC47-00019A $72.16

1-4

4713-001199 Samsung Dryer Drum Incandescent L Backorder SMG 4713-001199 $8.28

1-4

Dryer Heating Element Housing, Lower SMG DC67-00133A Contact Us For Availability

1-5

DC32-00007A Samsung Dryer Thermistor Sensor Backorder SMG DC32-00007A $17.00

1-5

DC47-00021A Samsung Socket Lamp Assembly Backorder SMG DC47-00021A $20.65

1-5

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $35.30

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $12.59

DC61-01204A Samsung Dryer Thermostat Bracket Backorder SMG DC61-01204A $2.10

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $5.23

DC66-00395A Samsung Dryer Door Lever Strike L In Stock SMG DC66-00395A $6.10

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $0.93

DC47-00015A Samsung Dryer 250V Thermostat In Stock SMG DC47-00015A $24.85

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.55

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $11.35

1-8

DC31-00055D Samsung Clothes Dryer Induction M In Stock SMG DC31-00055D $212.46

1-8

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $25.52

1-8

DC63-00675A Samsung Dryer Filter Cover Backorder SMG DC63-00675A $23.23

1-9

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.93

1-9

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $0.93

1-10

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.62

1-10

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $76.18

1-10

DC61-03202A Samsung Washer Dryer Door Hinge Backorder SMG DC61-03202A $37.63

1-11

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $5.23

1-11

DC61-01576A Samsung Support Hinge Assembly Backorder SMG DC61-01576A $8.85

1-12

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $42.76

1-12

DC97-07523B Samsung Dryer Drum Roller Assembl Backorder SMG DC97-07523B $44.94

1-13

DC64-02215A Samsung Door Safety Backorder SMG DC64-02215A $112.98

1-14

Dryer Idler Pulley SMG DC97-07509B Contact Us For Availability

1-15

Dryer Idler Pulley SMG DC66-00402A Contact Us For Availability

1-16

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.75

1-17

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.62

1-18

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $16.57

1-20

6009-001342 Samsung Dryer Special Puller Scre Backorder SMG 6009-001342 $1.30

2

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.30

2

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $36.38

2

DC61-02016A Samsung Die Heater Backorder SMG DC61-02016A $23.18

2

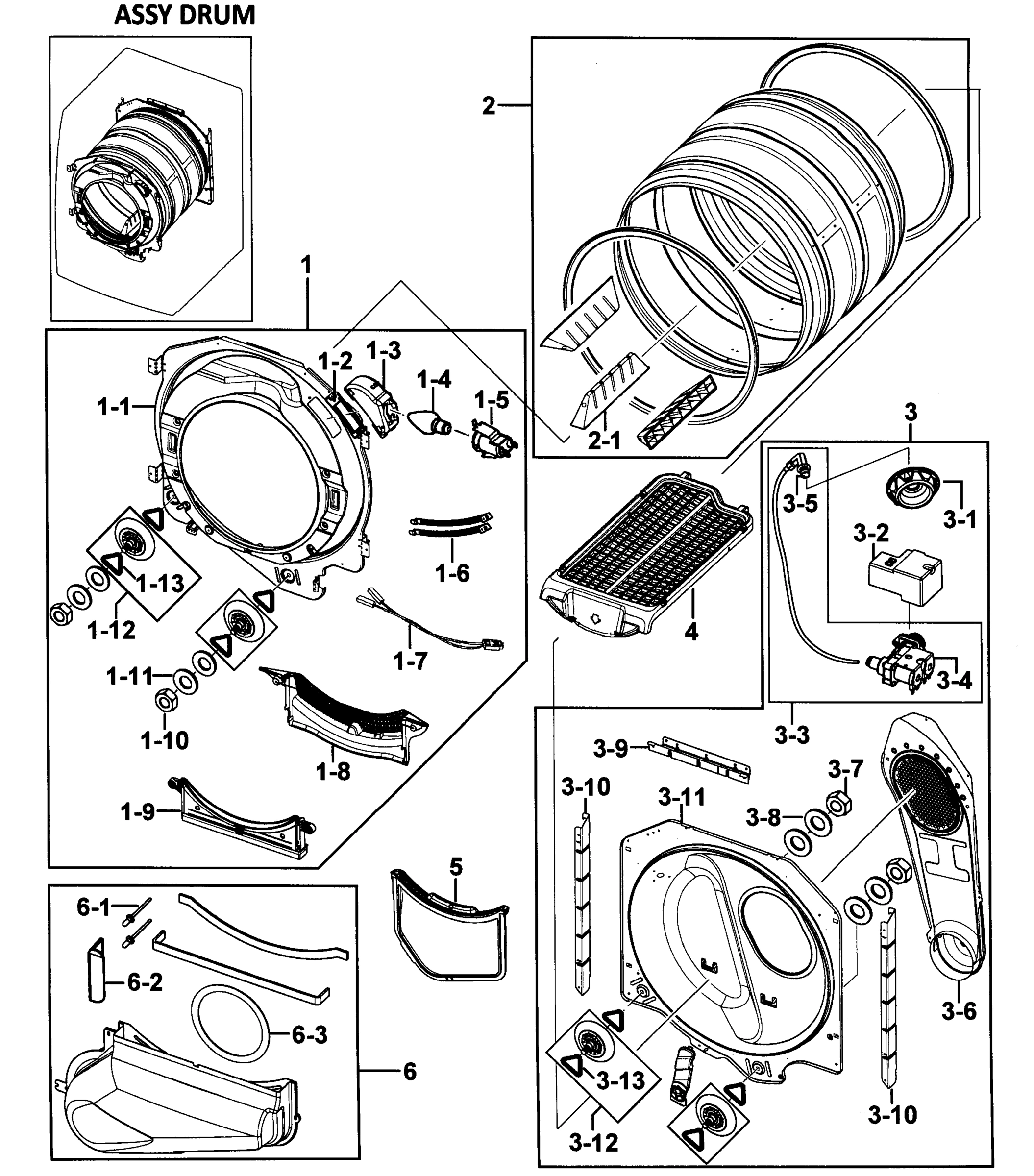

Dryer Drum SMG DC97-14849A Contact Us For Availability

2

Dryer Electronic Control Board SMG DC92-00382A Contact Us For Availability

3

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $0.93

3

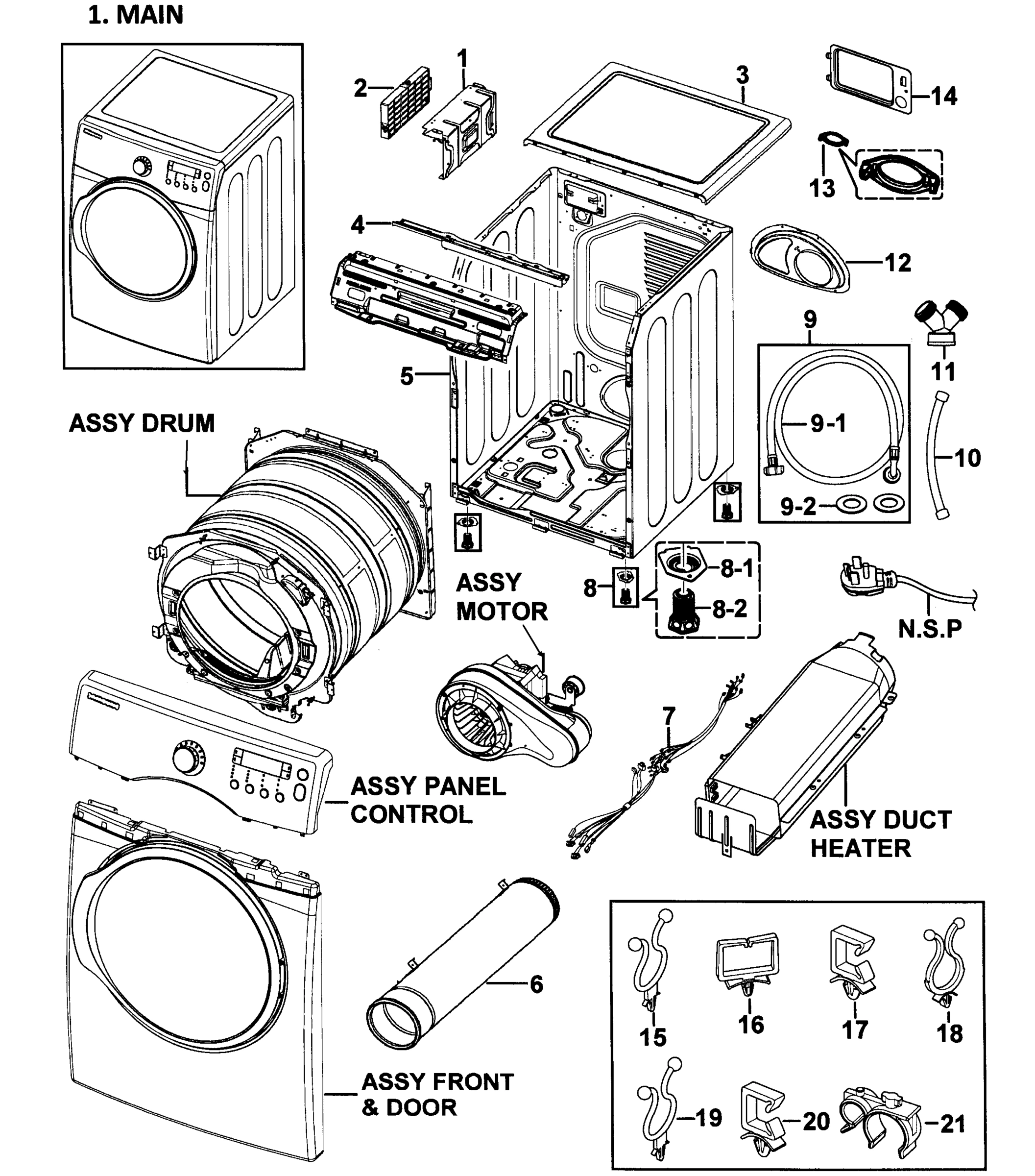

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $44.42

3-1

DC61-02063A Samsung Nozzle Guide Assembly Backorder SMG DC61-02063A $3.94

3-4

DC62-30042A Samsung Dryer Steam Water Valve A Backorder SMG DC62-30042A $109.55

3-6

Dryer Heat Duct SMG DC97-07521A Contact Us For Availability

4

DC61-01522A Samsung Dryer Drying Rack Assembl Backorder SMG DC61-01522A $113.49

4-1

DC63-10001C Samsung EPDM Sponge Backorder SMG DC63-10001C $3.05

4-2

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $13.52

4-4

DC64-00828A Samsung Dryer Door Switch Assembl Backorder SMG DC64-00828A $27.68

5

Dryer Lint Screen SMG DC61-01521A Contact Us For Availability

6

DC97-07519A Samsung Dryer Exhaust Duct Assemb Backorder SMG DC97-07519A $62.08

6

DC97-07526B Samsung Duct Outlet Assembly Backorder SMG DC97-07526B $66.76

6-2

DC61-02610A Samsung Dryer Lint Screen Case Fi In Stock SMG DC61-02610A $15.27

6-3

DC63-10001K Samsung Dryer Absorber Sponge Backorder SMG DC63-10001K $2.96

7

DC93-00067B Samsung Dryer Main Wire Harness A Backorder SMG DC93-00067B $160.19

8

DC97-12150A Samsung Dryer Leg Assembly In Stock SMG DC97-12150A $16.01

8-2

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $9.15

9-2

DC62-40178A Samsung Seal Water Backorder SMG DC62-40178A $1.26

10

DC97-15249A Samsung Hose Connector Assembly Backorder SMG DC97-15249A $81.29

12

DC63-00534B Samsung Back Cover Assembly Backorder SMG DC63-00534B $41.74

13

DC61-01428A Samsung Power Holder Assembly Backorder SMG DC61-01428A $0.93

21

DC61-00133A Samsung Clamp Hose Backorder SMG DC61-00133A $0.93
