Model Samsung DV337AEW/XAA-00 Dryer – Common Parts & Diagrams

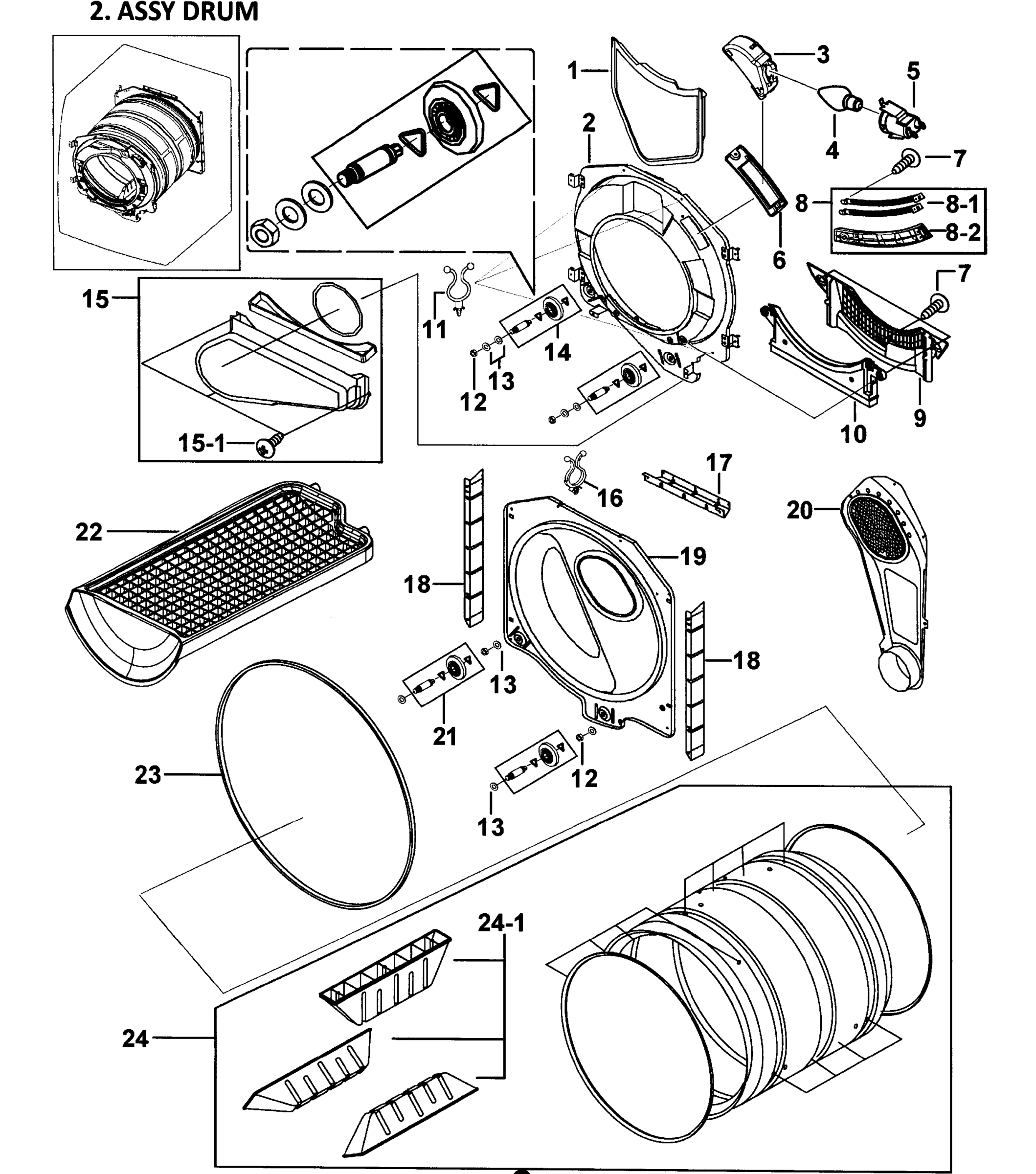

Drum Assembly

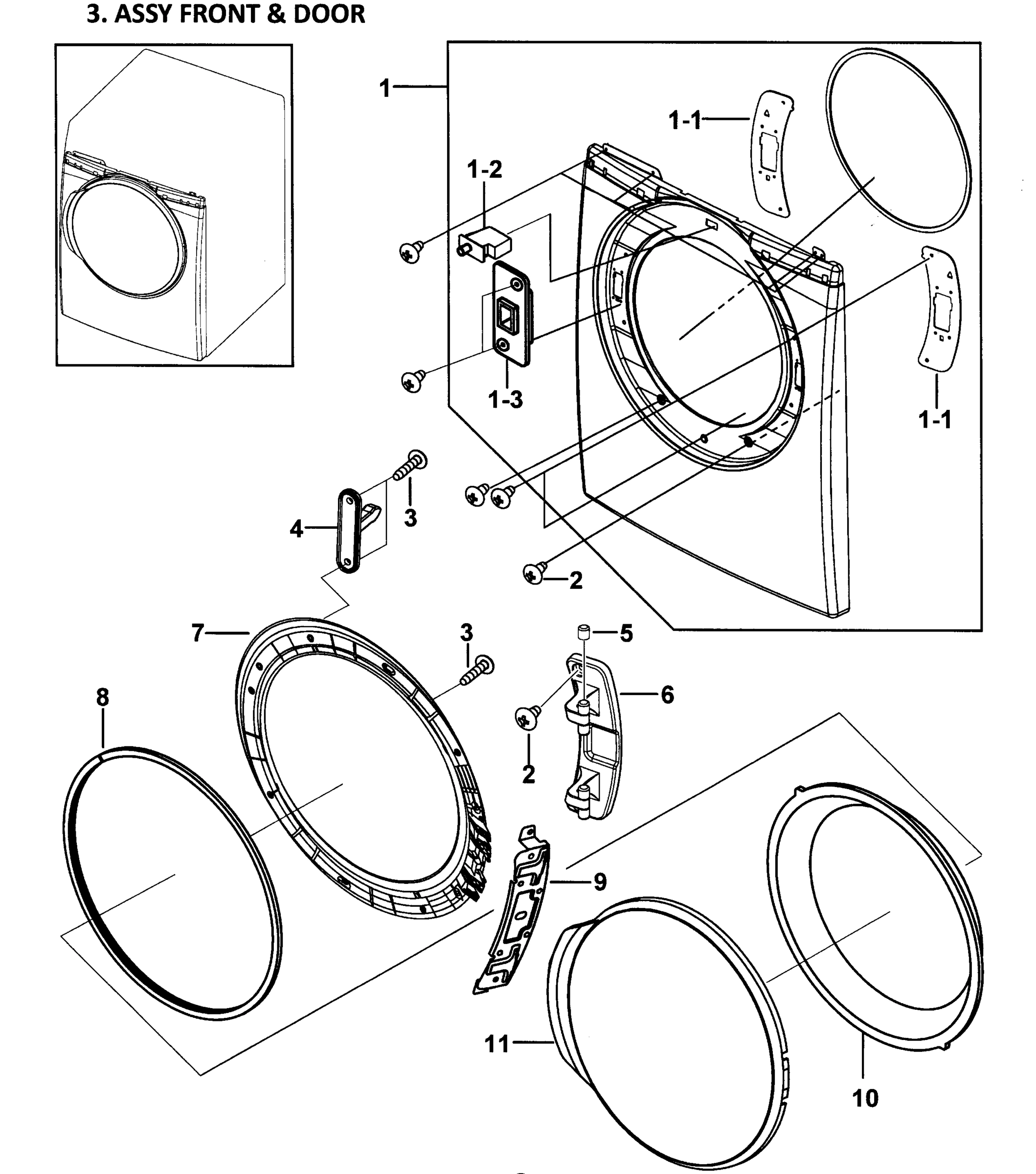

Front Assembly

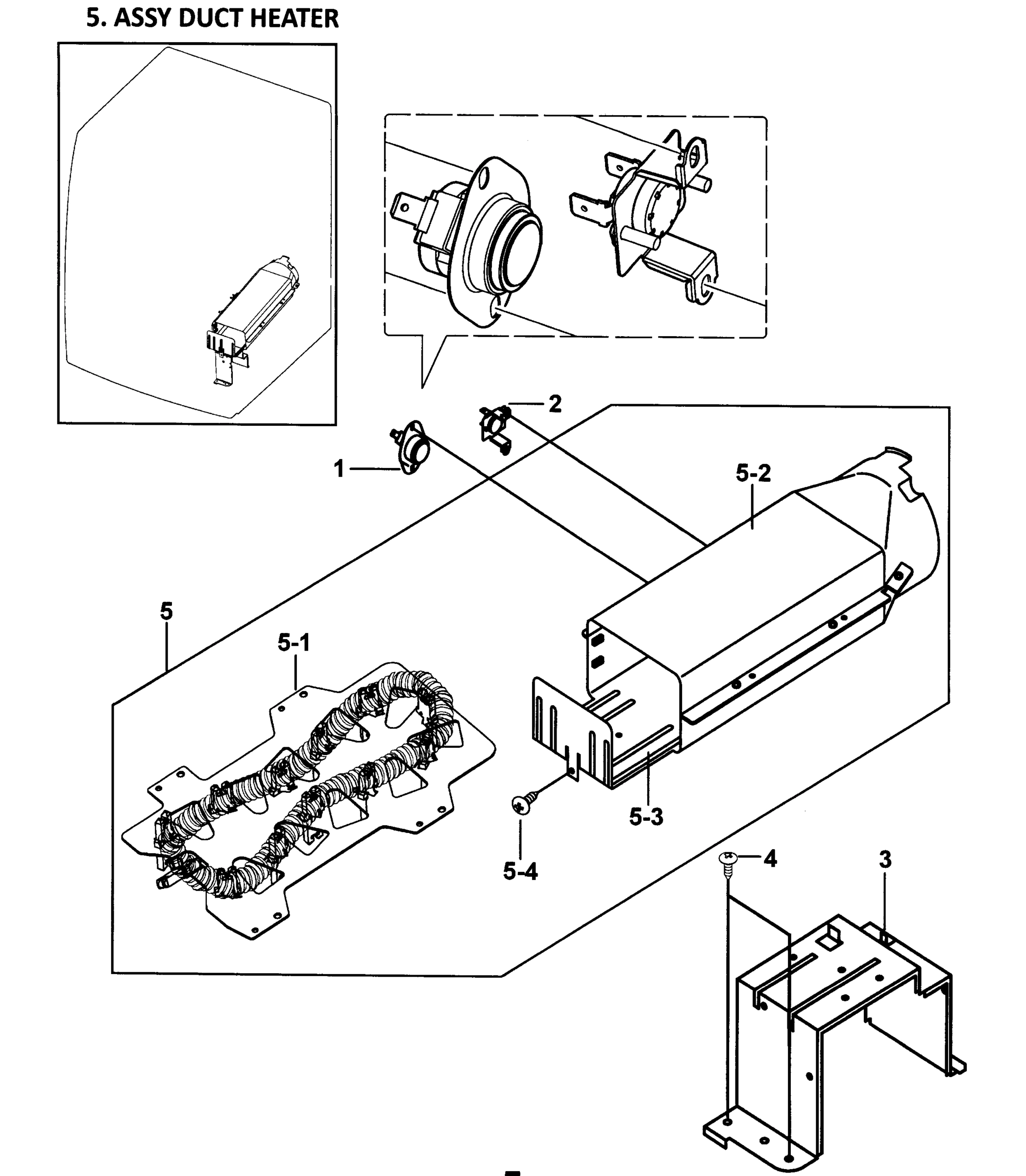

Heater Assembly

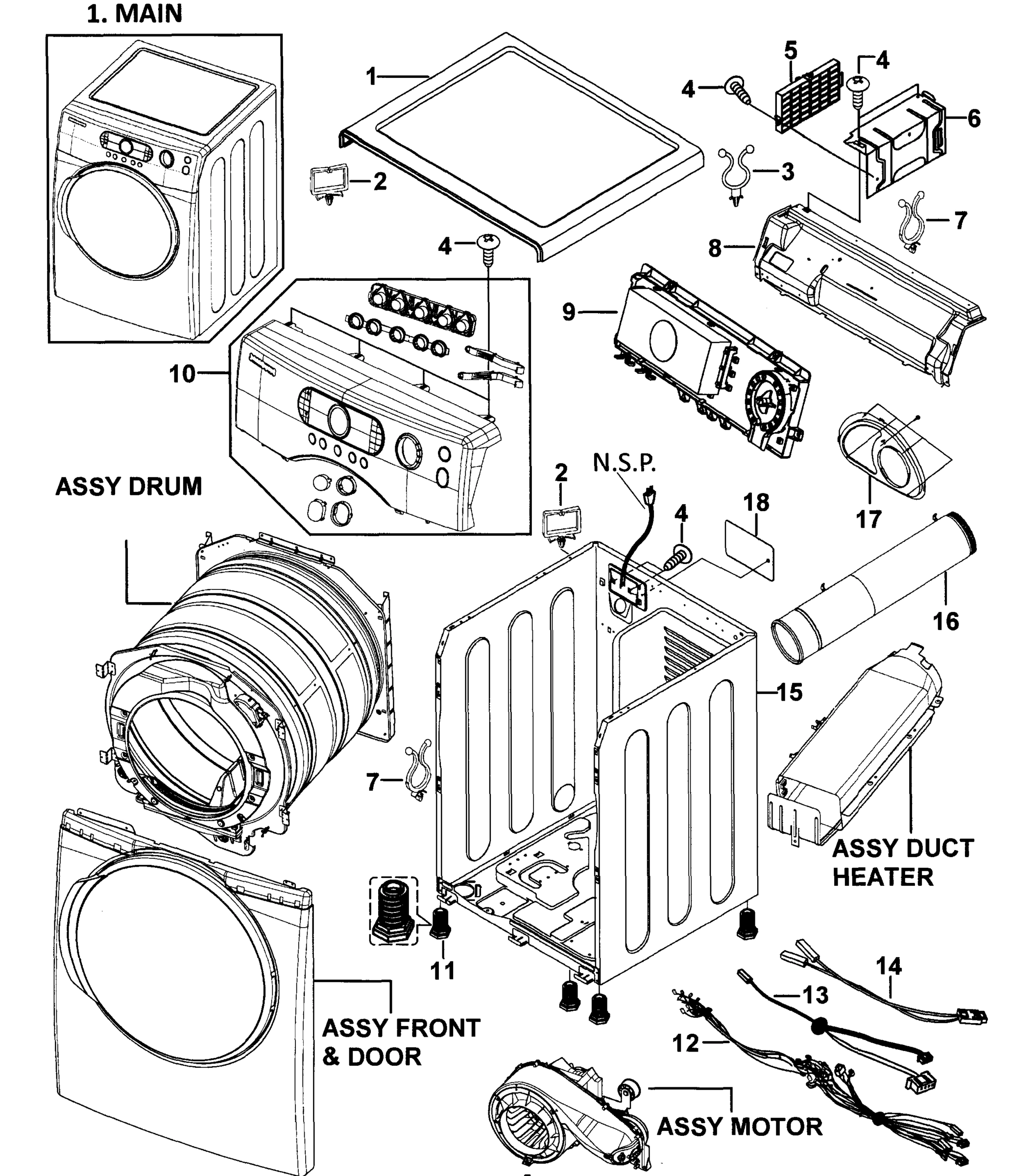

Main Assembly

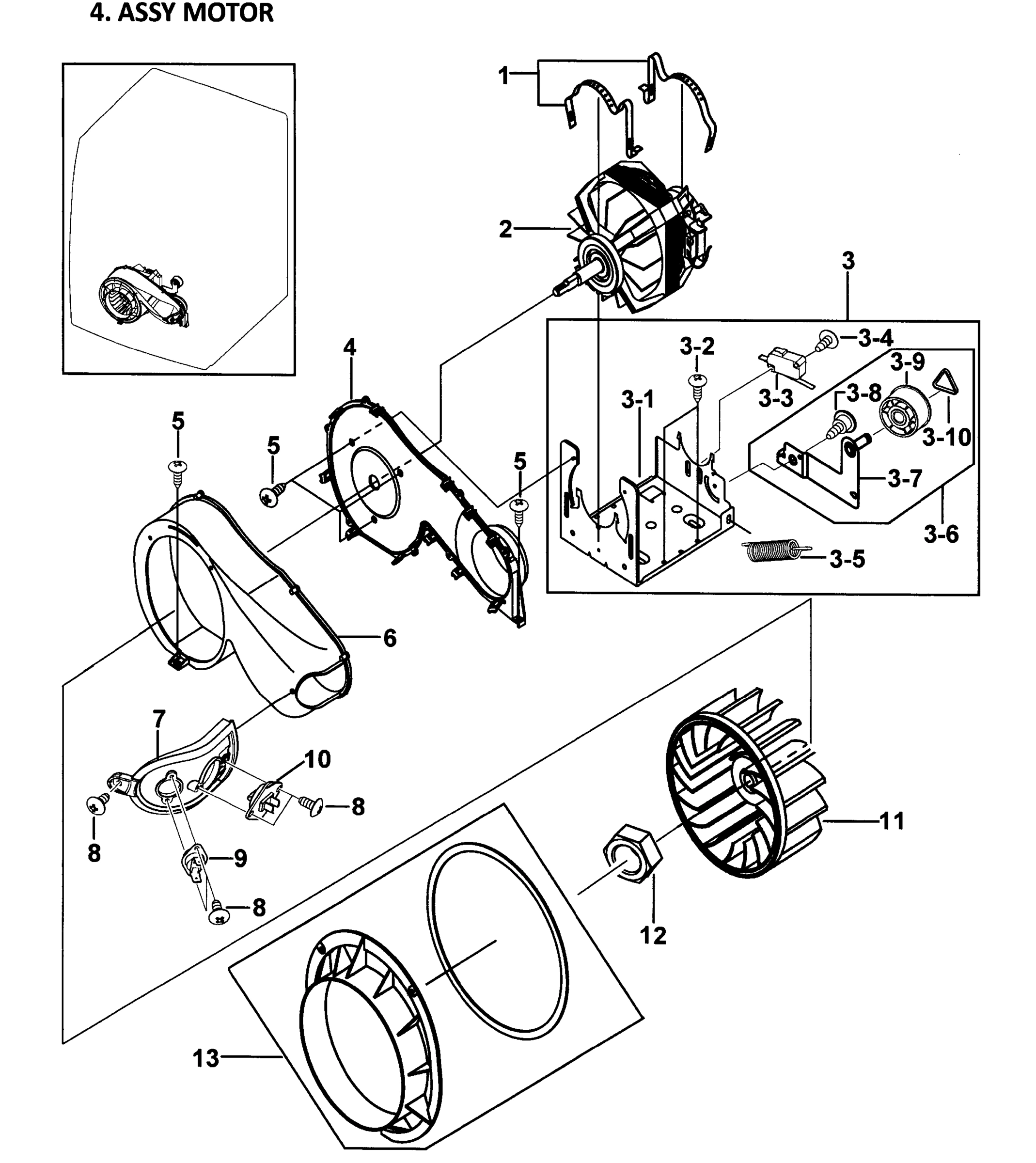

Motor Assembly
Common parts from model Samsung DV337AEW/XAA-00 Dryer
1
Dryer high-limit thermostat SMG DC47-00018A Contact Us For Availability
1
Dryer lint screen SMG DC61-01521A Contact Us For Availability
1
Dryer motor clamp SMG DC61-01214A Contact Us For Availability
1-2
Dryer door switch SMG DC64-00828A Contact Us For Availability
1-3
Dryer door catch SMG DC97-07510B Contact Us For Availability
2
Dryer motor and blower assembly SMG DC96-01112E Contact Us For Availability
2
Appliance machine screw SMG 6001-001773 Contact Us For Availability
3
Laundry appliance screw, m4-18 x 22 SMG 6002-000445 Contact Us For Availability
3-1
Dryer motor bracket SMG DC61-01213A Contact Us For Availability
3-3
Dryer belt switch SMG 3405-001077 Contact Us For Availability
3-5
Dryer idler spring SMG DC61-01215B Contact Us For Availability
3-8
Dryer idler arm spacer SMG 6009-001342 Contact Us For Availability
3-9
Dryer idler pulley SMG DC97-07509B Contact Us For Availability
3-10
Dryer retainer clip SMG DC61-01228A Contact Us For Availability
4
Dryer door strike SMG DC66-00395A Contact Us For Availability
4
Dryer drum light bulb SMG 4713-001199 Contact Us For Availability
5
Dryer heating element assembly SMG DC97-14486A Contact Us For Availability
5
Dryer electronic control board SMG MFS-DV327L-00 Contact Us For Availability
5
Dryer door hinge guide SMG DC61-00891A Contact Us For Availability
5
Lamp socket SMG DC47-00021A Contact Us For Availability
5-1
Samsung dryer heating element SMG DC47-00019A Contact Us For Availability
5-2
Dryer heater box, upper SMG DC67-00132A Contact Us For Availability
5-3
Dryer heating element housing, lower SMG DC67-00133A Contact Us For Availability
6
Dryer drum light lens SMG DC63-00531A Contact Us For Availability
7
Dryer thermistor bracket SMG DC61-01240A Contact Us For Availability
8
Dryer drum glide bearing SMG DC97-08889A Contact Us For Availability
8
Dryer door seal SMG DC62-00262A Contact Us For Availability
8-1
Dryer moisture sensor grille SMG DC61-01231A Contact Us For Availability
8-2
Dryer moisture sensor guide SMG DC61-01235A Contact Us For Availability
9
Dryer thermal cut-off thermostat SMG DC47-00016A Contact Us For Availability
9
Dryer lint screen grille SMG DC63-00675A Contact Us For Availability
9
Dryer door hinge support SMG DC61-01576A Contact Us For Availability
10
Dryer thermistor SMG DC32-00007A Contact Us For Availability
11
Dryer leveling leg SMG DC61-03128A Contact Us For Availability
11
Dryer door glass cover SMG DC97-12609B Contact Us For Availability
12
Dryer blower wheel nut SMG 6021-001201 Contact Us For Availability
12
Dryer roller wheel nut SMG DC60-50145A Contact Us For Availability
13
Dryer exhaust duct connector SMG DC97-07895A Contact Us For Availability
14
Dryer wire harness SMG DC96-00766A Contact Us For Availability
15
Dryer lint duct SMG DC97-07526B Contact Us For Availability
16
Dryer exhaust duct SMG DC97-07519A Contact Us For Availability
17
Dryer rear cover SMG DC63-00534B Contact Us For Availability
20
Dryer heat duct SMG DC97-07521A Contact Us For Availability
22
Dryer drying rack SMG DC61-01522A Contact Us For Availability
23
Dryer drum belt SMG 6602-001655 Contact Us For Availability
NI
Samsung dryer drum support roller SMG DC97-16782A Contact Us For Availability
× ![]()
