Samsung DV337AER/XAA-00 Dryer

1

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $21.75

View on Model

1

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.50

View on Model

1

Dryer lint screen SMG DC61-01521A Contact Us For Availability

View on Model

1-2

DC64-00828A Samsung Dryer Door Switch Assembl Backorder SMG DC64-00828A $27.23

View on Model

1-3

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $13.18

View on Model

2

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.56

View on Model

2

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $40.53

View on Model

2

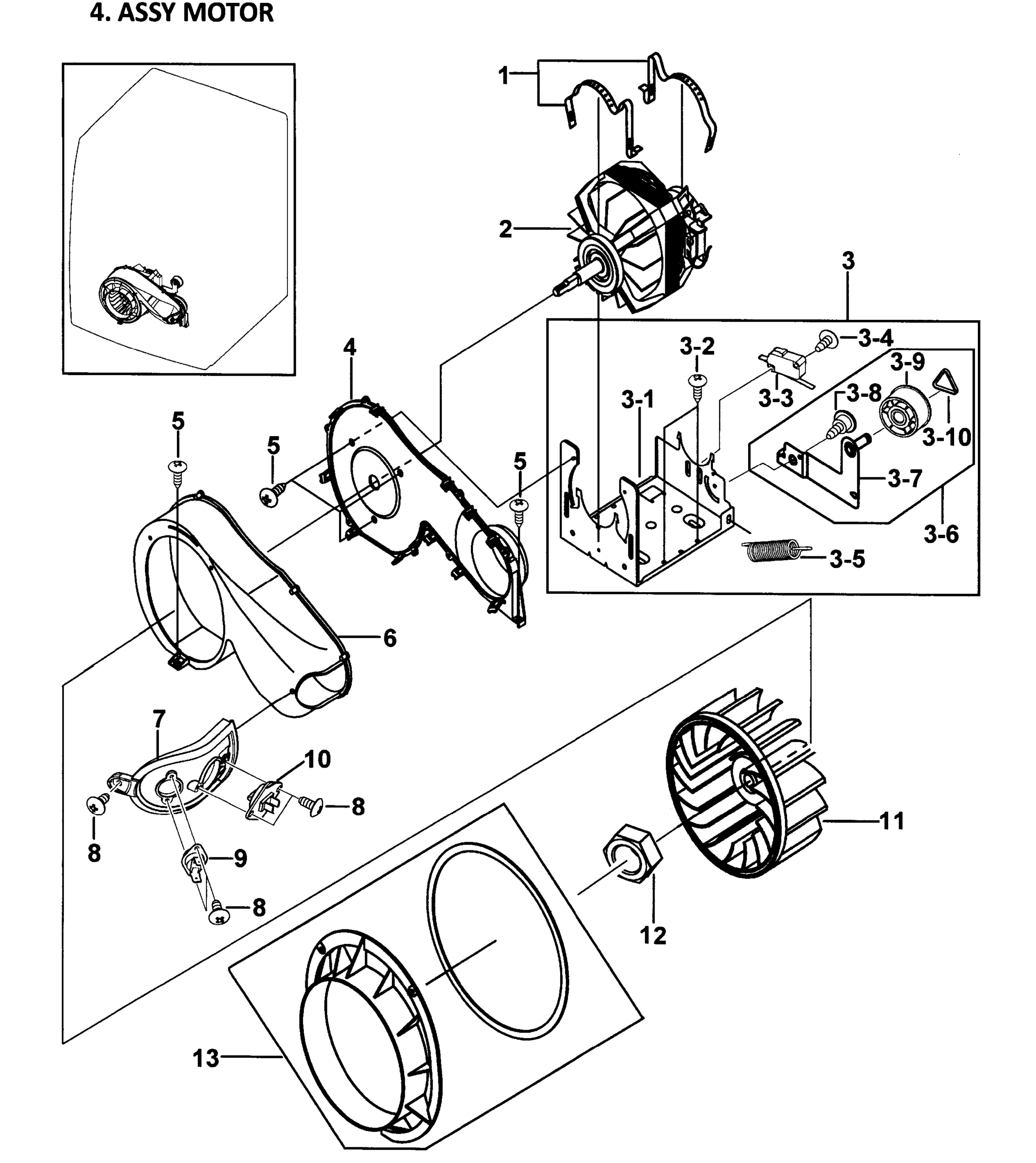

Dryer motor and blower assembly SMG DC96-01112E Contact Us For Availability

View on Model

3

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $0.92

View on Model

3-1

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $91.08

View on Model

3-3

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $16.27

View on Model

3-5

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $4.54

View on Model

3-6

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $40.64

View on Model

3-8

6009-001342 Samsung Dryer Special Puller Scre In Stock SMG 6009-001342 $1.17

View on Model

3-9

Dryer idler pulley SMG DC97-07509B Contact Us For Availability

View on Model

3-10

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.56

View on Model

4

4713-001199 Samsung Dryer Drum Incandescent L Backorder SMG 4713-001199 $8.14

View on Model

4

DC66-00395A Samsung Dryer Door Lever Strike L Backorder SMG DC66-00395A $7.36

View on Model

5

DC47-00021A Samsung Socket Lamp Assembly Backorder SMG DC47-00021A $18.98

View on Model

5

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $29.98

View on Model

5

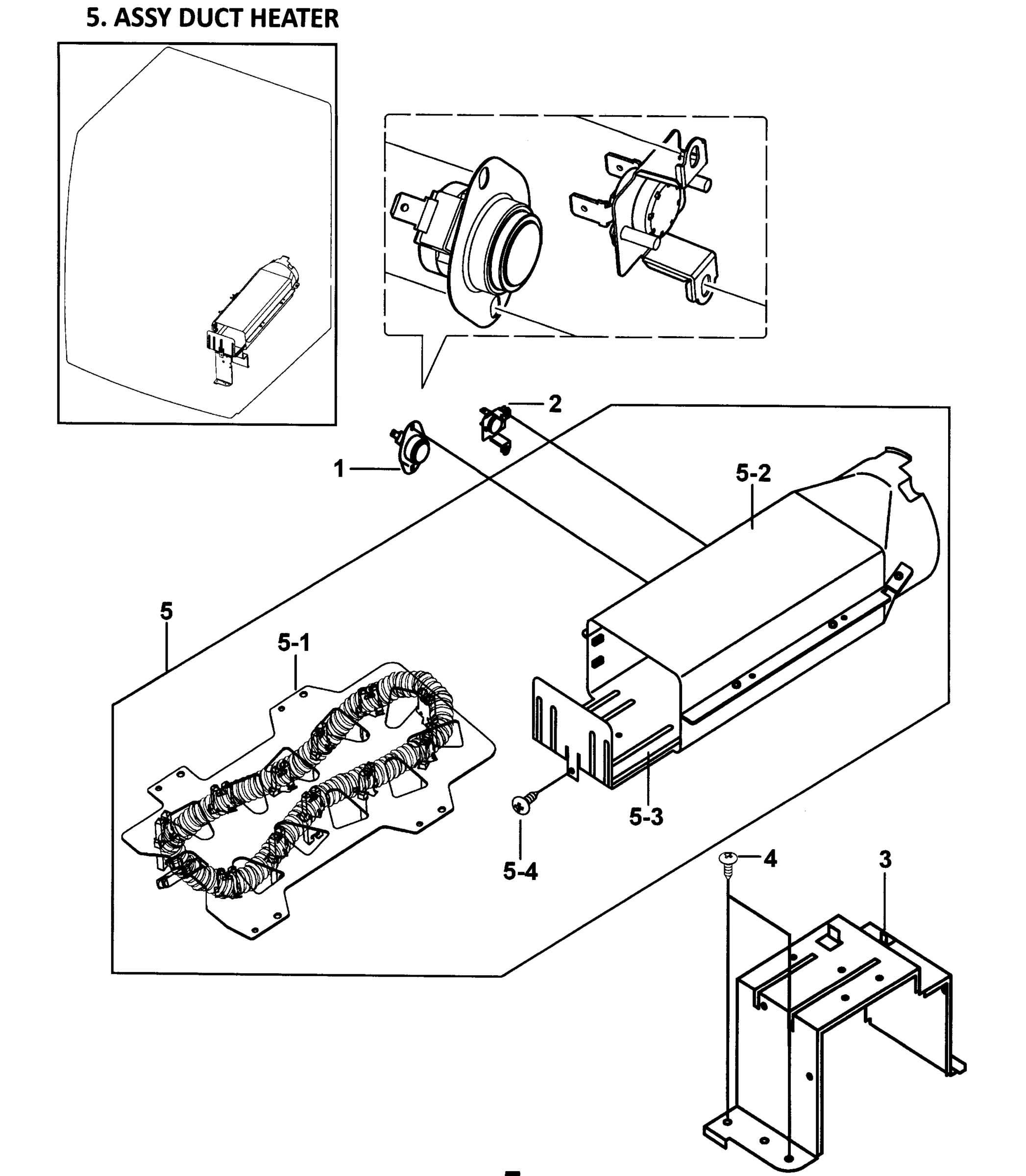

DC97-14486A Samsung Dryer Heating Element Duc In Stock SMG DC97-14486A $204.76

View on Model

5

Dryer electronic control board SMG MFS-DV327L-00 Contact Us For Availability

View on Model

5-1

DC47-00019A Samsung Dryer Heating Element Ass In Stock SMG DC47-00019A $63.35

View on Model

5-2

Dryer heater box, upper SMG DC67-00132A Contact Us For Availability

View on Model

5-3

DC67-00133A Samsung Heater Lower Duct Assembl Backorder SMG DC67-00133A $45.75

View on Model

6

Dryer drum light lens SMG DC63-00531A Contact Us For Availability

View on Model

7

DC61-01240A Samsung Thermistor Bracket Backorder SMG DC61-01240A $6.20

View on Model

8

DC62-00262A Samsung Dryer Door Seal Assembly In Stock SMG DC62-00262A $48.22

View on Model

8

DC97-08889A Guide Sensor Assembly MDE9700A fo In Stock SMG DC97-08889A $18.21

View on Model

8-1

DC61-01231A Samsung Dryer Wings Plate Sensor Backorder SMG DC61-01231A $5.03

View on Model

8-2

DC61-01235A Samsung Sensor Guide Assembly Backorder SMG DC61-01235A $4.65

View on Model

9

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $10.73

View on Model

9

DC61-01576A Samsung Support Hinge Assembly Backorder SMG DC61-01576A $8.14

View on Model

9

DC63-00675A Samsung Dryer Filter Cover Backorder SMG DC63-00675A $21.36

View on Model

10

DC32-00007A Samsung Dryer Thermistor Sensor In Stock SMG DC32-00007A $17.06

View on Model

11

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $13.56

View on Model

11

Dryer door glass cover SMG DC97-12609B Contact Us For Availability

View on Model

12

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $1.94

View on Model

12

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $1.94

View on Model

13

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $40.85

View on Model

14

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $9.30

View on Model

15

DC97-07526B Samsung Duct Outlet Assembly Backorder SMG DC97-07526B $65.67

View on Model

16

DC97-07519A Samsung Dryer Exhaust Duct Assemb Backorder SMG DC97-07519A $51.90

View on Model

17

DC63-00534B Samsung Back Cover Assembly Backorder SMG DC63-00534B $38.39

View on Model

20

Dryer heat duct SMG DC97-07521A Contact Us For Availability

View on Model

22

DC61-01522A Samsung Dryer Drying Rack Assembl Backorder SMG DC61-01522A $102.46

View on Model

23

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $35.36

View on Model

NI

DC97-16782A Samsung Dryer Plastic Roller Whee Backorder SMG DC97-16782A $33.38

View on Model
