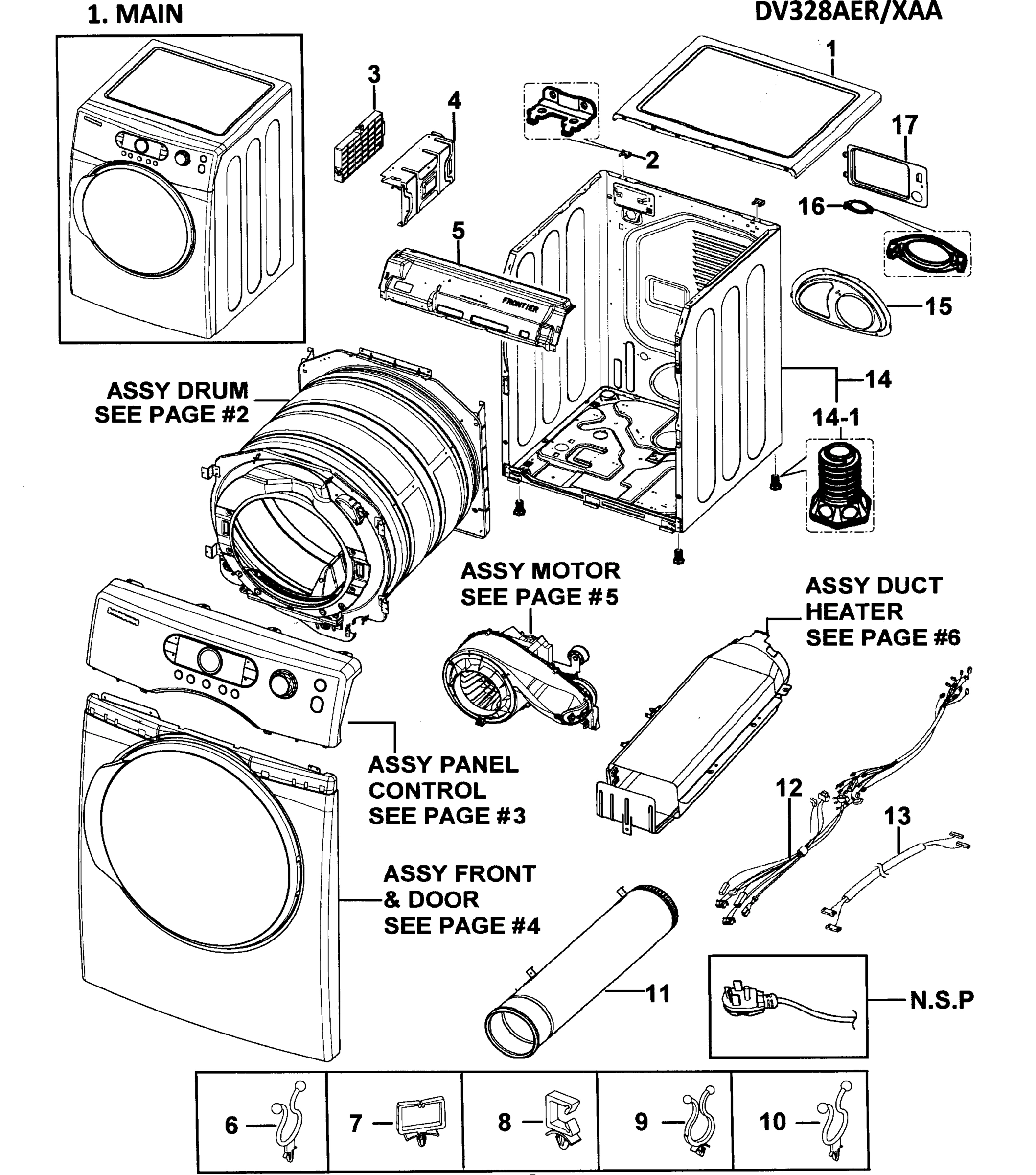

Model Samsung DV328AER/XAA Dryer – Common Parts &amp; Diagrams

1

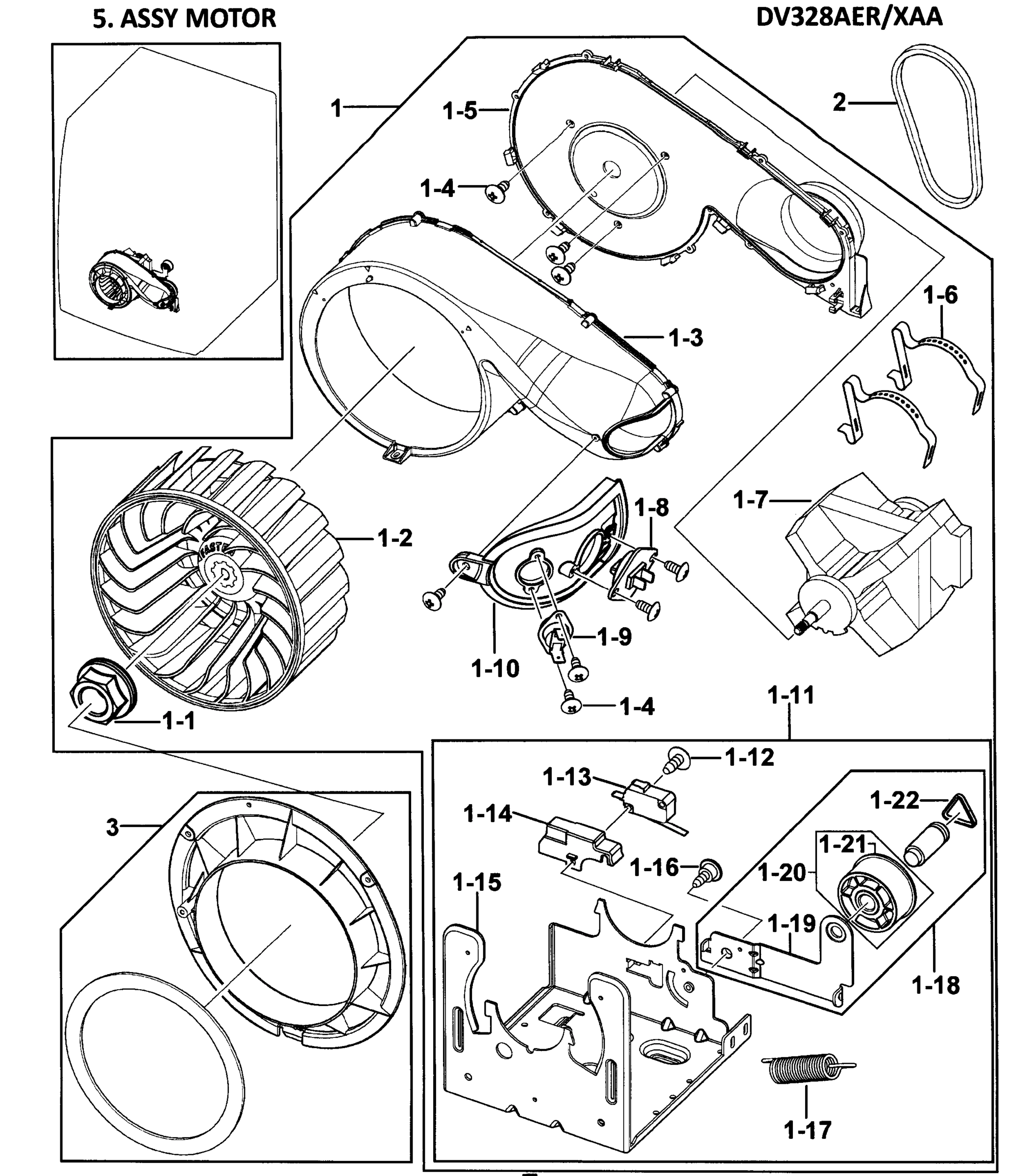

Dryer motor and blower assembly SMG DC96-01112E Contact Us For Availability

1

Dryer electronic control board SMG MFS-DV318A-S0 Contact Us For Availability

1

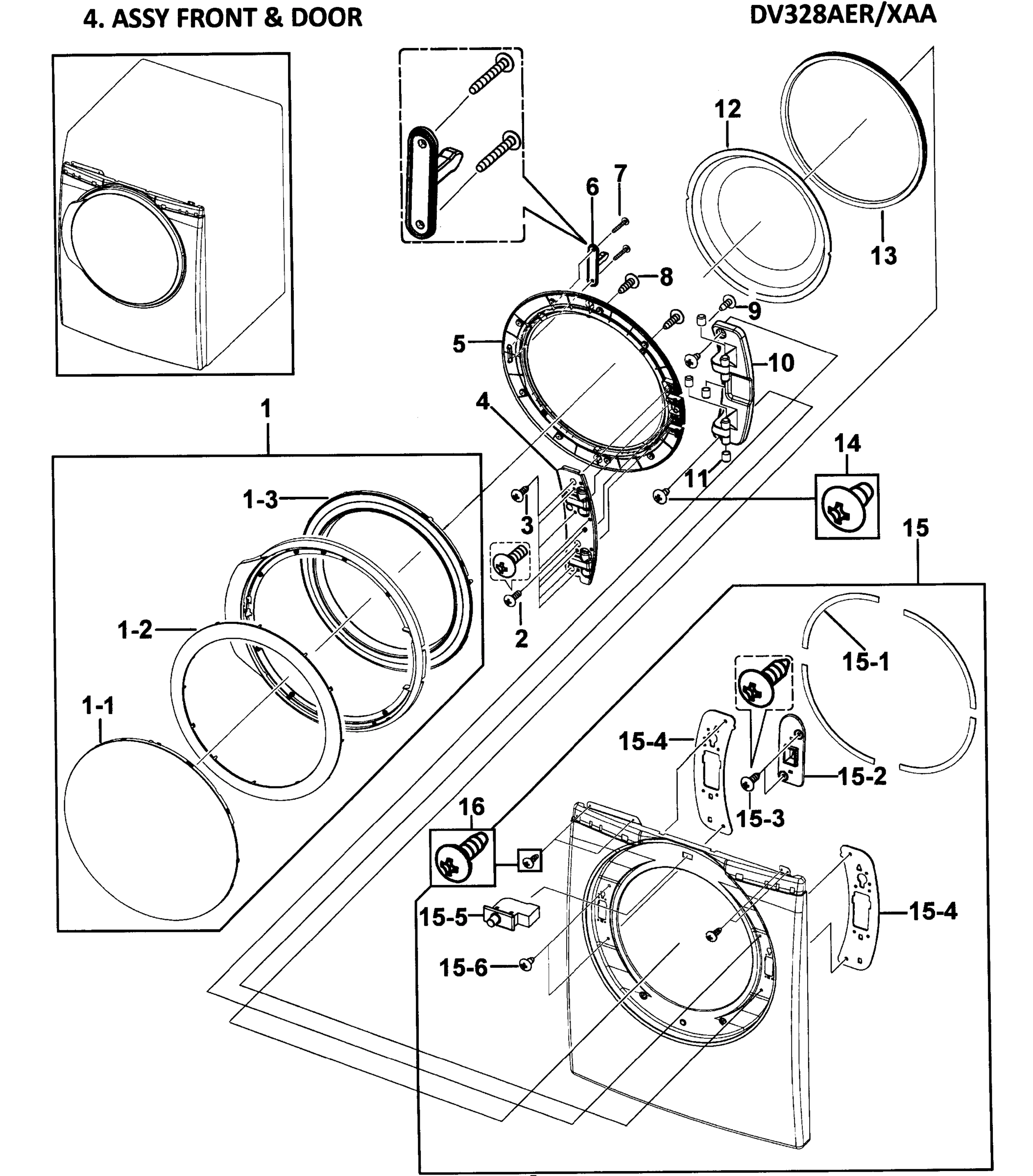

Dryer door glass cover SMG DC97-12609B Contact Us For Availability

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.92

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $1.94

DC64-01354B Samsung Door Safety Backorder SMG DC64-01354B $81.67

Dryer drum light lens SMG DC63-00531A Contact Us For Availability

1-2

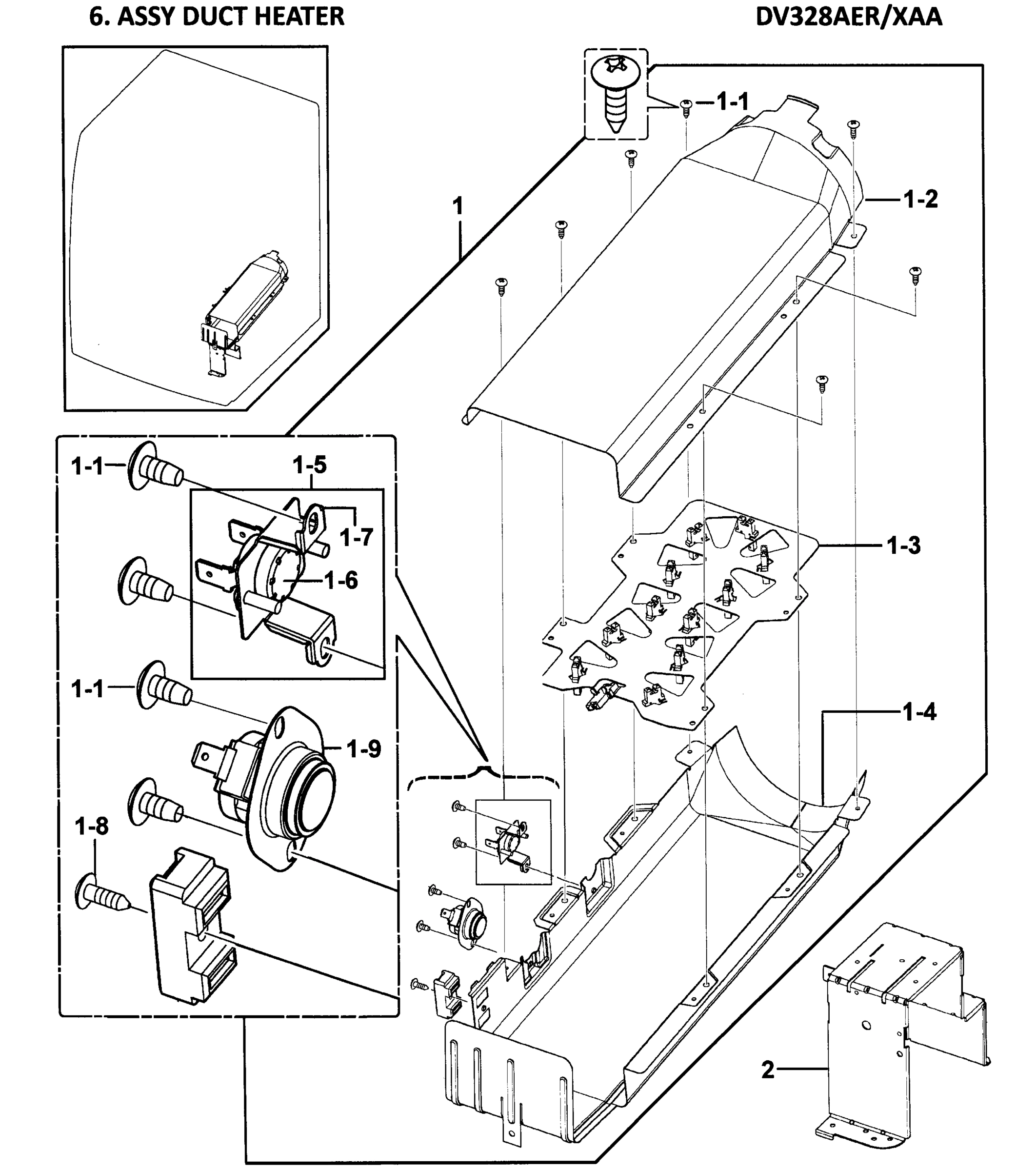

Dryer heater box, upper SMG DC67-00132A Contact Us For Availability

1-3

4713-001199 Samsung Dryer Drum Incandescent L Backorder SMG 4713-001199 $8.14

1-3

DC47-00019A Samsung Dryer Heating Element Ass In Stock SMG DC47-00019A $63.35

1-4

DC47-00021A Samsung Socket Lamp Assembly Backorder SMG DC47-00021A $18.98

1-4

DC67-00133A Samsung Heater Lower Duct Assembl Backorder SMG DC67-00133A $45.75

1-5

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $40.53

1-6

DC47-00015A Samsung Dryer 250V Thermostat In Stock SMG DC47-00015A $21.70

1-6

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.50

1-7

DC31-00055D Samsung Clothes Dryer Induction M In Stock SMG DC31-00055D $220.63

1-7

DC61-01204A Samsung Dryer Thermostat Bracket Backorder SMG DC61-01204A $1.94

1-8

DC32-00007A Samsung Dryer Thermistor Sensor In Stock SMG DC32-00007A $17.06

1-9

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $10.73

1-9

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $21.75

1-10

DC61-01240A Samsung Thermistor Bracket Backorder SMG DC61-01240A $6.20

1-10

DC97-08894A Samsung Dryer Moisture Sensor Gui Backorder SMG DC97-08894A $31.70

1-11

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $9.30

1-12

DC97-08889A Guide Sensor Assembly MDE9700A fo In Stock SMG DC97-08889A $18.21

1-13

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $16.27

1-13

DC61-01231A Samsung Dryer Wings Plate Sensor Backorder SMG DC61-01231A $5.03

1-14

DC61-01235A Samsung Sensor Guide Assembly Backorder SMG DC61-01235A $4.65

1-14

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $1.94

1-15

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $91.08

1-15

DC63-00675A Samsung Dryer Filter Cover Backorder SMG DC63-00675A $21.36

1-16

6009-001342 Samsung Dryer Special Puller Scre In Stock SMG 6009-001342 $1.17

1-17

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $4.54

1-18

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $40.64

1-20

Dryer idler pulley SMG DC97-07509B Contact Us For Availability

1-21

Dryer idler pulley SMG DC66-00402A No Longer Available

2

6001-001668 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001668 $1.56

2

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $35.36

2

Dryer lint screen SMG DC61-01521A Contact Us For Availability

3

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.92

3

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $40.85

3

Dryer electronic control board SMG MFS-DV327L-00 Contact Us For Availability

4

DC61-01522A Samsung Dryer Drying Rack Assembl Backorder SMG DC61-01522A $102.46

4

DC61-01576A Samsung Support Hinge Assembly Backorder SMG DC61-01576A $8.14

5

DC97-07526B Samsung Duct Outlet Assembly Backorder SMG DC97-07526B $65.67

5-2

DC63-10001K Samsung Dryer Absorber Sponge Backorder SMG DC63-10001K $2.71

6

DC66-00395A Samsung Dryer Door Lever Strike L Backorder SMG DC66-00395A $7.36

6-6

Dryer heat duct SMG DC97-07521A Contact Us For Availability

9

6002-000241 Samsung Self Tapping Screw Backorder SMG 6002-000241 $0.92

11

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $29.98

11

DC97-07519A Samsung Dryer Exhaust Duct Assemb Backorder SMG DC97-07519A $51.90

13

DC62-00262A Samsung Dryer Door Seal Assembly In Stock SMG DC62-00262A $48.22

15

DC63-00534B Samsung Back Cover Assembly Backorder SMG DC63-00534B $38.39

15-1

DC63-10001C Samsung EPDM Sponge Backorder SMG DC63-10001C $3.09

15-2

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $13.18

15-5

DC64-00828A Samsung Dryer Door Switch Assembl Backorder SMG DC64-00828A $27.23

16

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $0.92

16

DC61-01428A Samsung Power Holder Assembly Backorder SMG DC61-01428A $1.17

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.56

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $1.94

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.56

DC97-16782A Samsung Dryer Plastic Roller Whee Backorder SMG DC97-16782A $33.38
