Samsung DV317AES/XAA-00 Dryer

1

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $21.75

View on Model

1

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.50

View on Model

1-1

Dryer lint screen SMG DC61-01521A Contact Us For Availability

View on Model

1-3

DC97-08889A Guide Sensor Assembly MDE9700A fo In Stock SMG DC97-08889A $19.49

View on Model

1-4

DC61-01231A Samsung Dryer Wings Plate Sensor Backorder SMG DC61-01231A $5.38

View on Model

1-5

DC61-01235A Samsung Sensor Guide Assembly Backorder SMG DC61-01235A $4.98

View on Model

1-7

DC63-00675A Samsung Dryer Filter Cover Backorder SMG DC63-00675A $22.86

View on Model

2

DC31-00055D Samsung Clothes Dryer Induction M In Stock SMG DC31-00055D $228.23

View on Model

2

DC64-00828A Samsung Dryer Door Switch Assembl Backorder SMG DC64-00828A $27.23

View on Model

2

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $45.28

View on Model

2

DC97-07526B Samsung Duct Outlet Assembly Backorder SMG DC97-07526B $65.67

View on Model

3

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $14.09

View on Model

3

Dryer heat duct SMG DC97-07521A Contact Us For Availability

View on Model

3

Dryer motor bracket SMG DC96-00790C Contact Us For Availability

View on Model

3-1

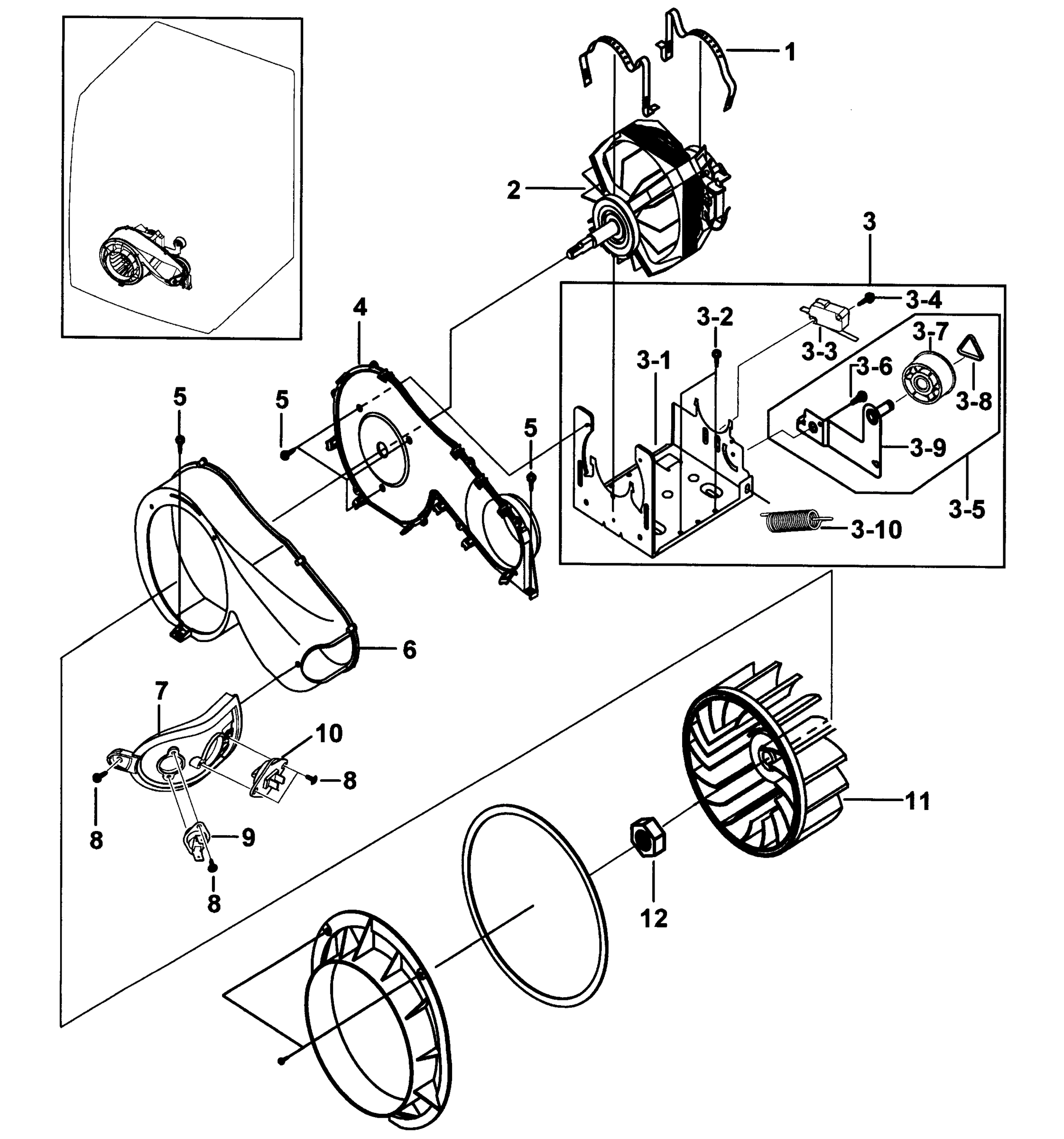

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $97.45

View on Model

3-3

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $17.40

View on Model

3-4

Dryer screw SMG 6002-000488 Contact Us For Availability

View on Model

3-5

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $40.64

View on Model

3-6

6009-001342 Samsung Dryer Special Puller Scre In Stock SMG 6009-001342 $1.24

View on Model

3-7

Dryer idler pulley SMG DC97-07509B Contact Us For Availability

View on Model

3-8

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.67

View on Model

3-9

Bracket SMG DC61-01230B Contact Us For Availability

View on Model

3-10

DC61-01295A Samsung Spring Tension Backorder SMG DC61-01295A $0.92

View on Model

4

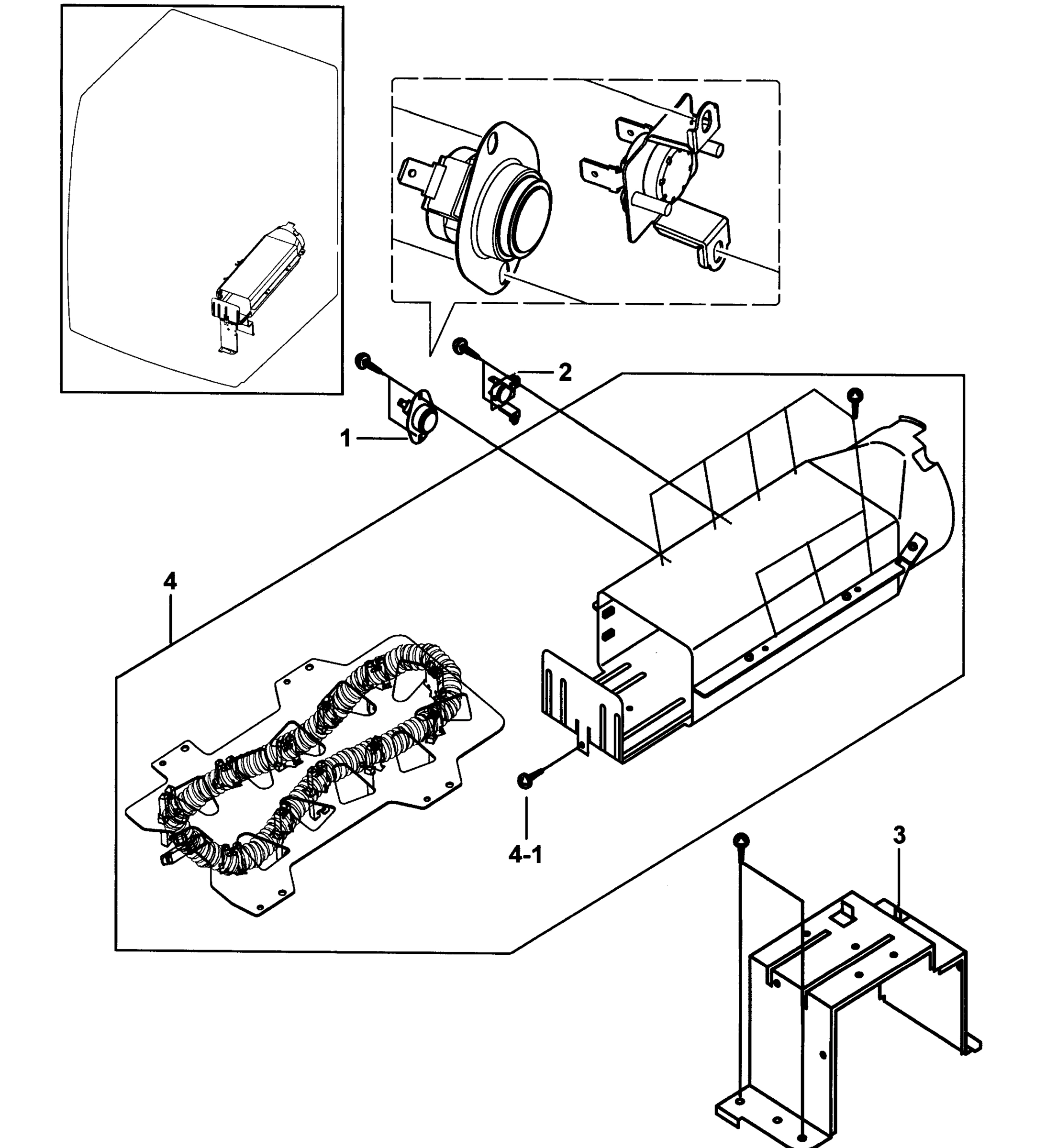

DC97-14486A Samsung Dryer Heating Element Duc In Stock SMG DC97-14486A $210.57

View on Model

4

Duct guide SMG DC61-01241A Contact Us For Availability

View on Model

4-1

Dryer electronic control board SMG MFS-FTDT-00 Contact Us For Availability

View on Model

5-1

DC66-00395A Samsung Dryer Door Lever Strike L In Stock SMG DC66-00395A $7.87

View on Model

5-3

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $32.08

View on Model

5-5

DC61-01576A Samsung Support Hinge Assembly Backorder SMG DC61-01576A $8.71

View on Model

5-7

DC62-00262A Samsung Dryer Door Seal Assembly Backorder SMG DC62-00262A $51.59

View on Model

6

DC63-00536A Samsung Duct Fan Cover Assembly Backorder SMG DC63-00536A $38.59

View on Model

7

DC61-01240A Samsung Thermistor Bracket Backorder SMG DC61-01240A $6.62

View on Model

8

Refrigerator tapping screw SMG 6002-000470 Contact Us For Availability

View on Model

9

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $10.73

View on Model

10

DC32-00007A Samsung Dryer Thermistor Sensor In Stock SMG DC32-00007A $18.25

View on Model

11

DC61-01522A Samsung Dryer Drying Rack Assembl Backorder SMG DC61-01522A $107.83

View on Model

11

Wings fan SMG DC67-00180A Contact Us For Availability

View on Model

12

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $2.07

View on Model

12

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $35.36

View on Model

12

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $14.51

View on Model

15

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $9.96

View on Model

17

DC97-07519A Samsung Dryer Exhaust Duct Assemb Backorder SMG DC97-07519A $54.92

View on Model

18

DC63-00534B Samsung Back Cover Assembly Backorder SMG DC63-00534B $41.07

View on Model

NI

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.67

View on Model

NI

6002-000231 Samsung Tapping Screw Backorder SMG 6002-000231 $0.92

View on Model

NI

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.07

View on Model

NI

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $33.38

View on Model

All Categories

Brands

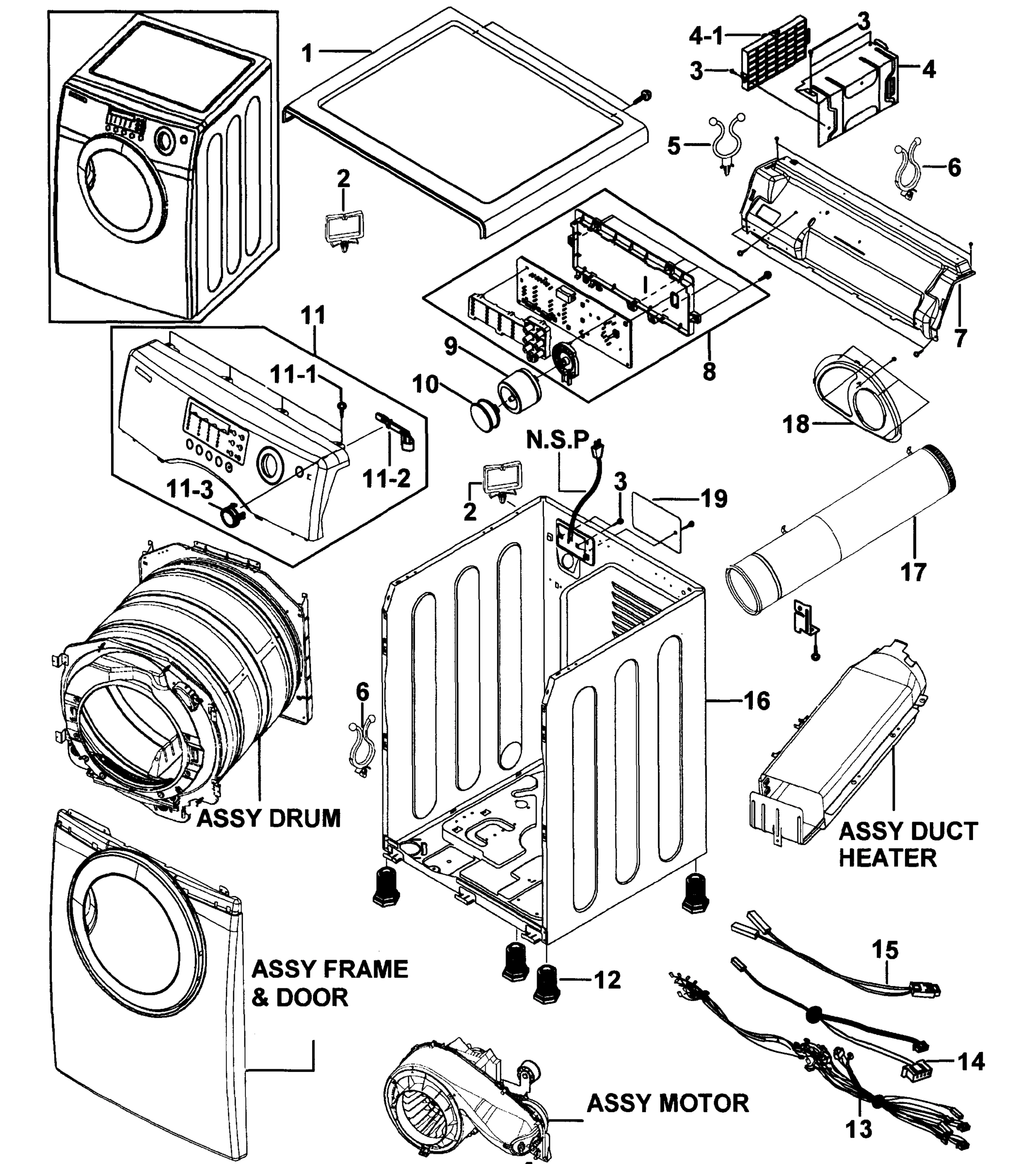

Model Samsung DV317AES/XAA-00 Dryer – Common Parts & Diagrams

Common parts from model Samsung DV317AES/XAA-00 Dryer
