Samsung DV220AEW/XAA-01 Dryer Parts List

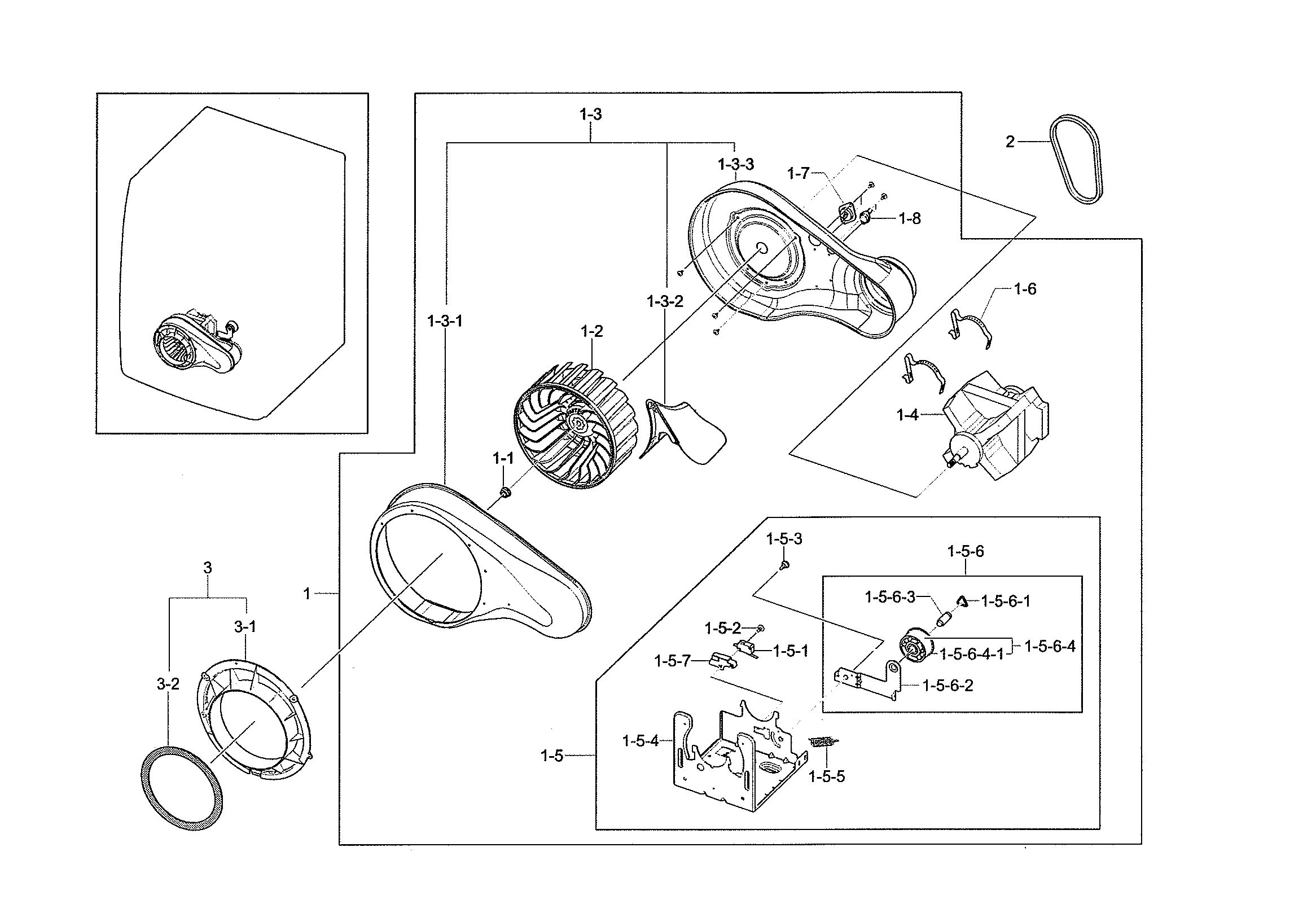

1

6046-000310 Samsung Stand Off Backorder SMG 6046-000310 $0.97

View on Model

1

DC61-02613A Samsung Dryer Lint Filter Case Ho Backorder SMG DC61-02613A $69.43

View on Model

1

Dryer display control board SMG DC92-00303B Contact Us For Availability

View on Model

1-1

6001-001668 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001668 $1.35

View on Model

1-1

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $0.97

View on Model

1-1

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $2.72

View on Model

1-2

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $90.19

View on Model

1-3

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $0.97

View on Model

1-3

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $26.48

View on Model

1-3-3

DC61-02348A Samsung Duct Fan Guide Assembly Backorder SMG DC61-02348A $74.05

View on Model

1-4

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $0.97

View on Model

1-4

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $253.44

View on Model

1-4

DC47-00019A Samsung Dryer Heating Element Ass In Stock SMG DC47-00019A $74.91

View on Model

1-5

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $0.97

View on Model

1-5

DC65-00013A Samsung Dryer Terminal Block Backorder SMG DC65-00013A $5.42

View on Model

1-5-1

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $17.20

View on Model

1-5-2

Dryer Screw SMG 6002-000488 Contact Us For Availability

View on Model

1-5-3

6009-001342 Samsung Dryer Special Puller Scre Backorder SMG 6009-001342 $1.35

View on Model

1-5-4

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $79.07

View on Model

1-5-5

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $5.42

View on Model

1-5-6

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $44.37

View on Model

1-5-6-2

Bracket SMG DC61-01230B Contact Us For Availability

View on Model

1-5-6-3

Idler Shaft SMG DC66-00401A Contact Us For Availability

View on Model

1-5-6-4

Dryer Idler Pulley SMG DC97-07509B Contact Us For Availability

View on Model

1-5-6-4-1

Dryer Idler Pulley SMG DC66-00402A Contact Us For Availability

View on Model

1-5-7

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.72

View on Model

1-6

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $3.69

View on Model

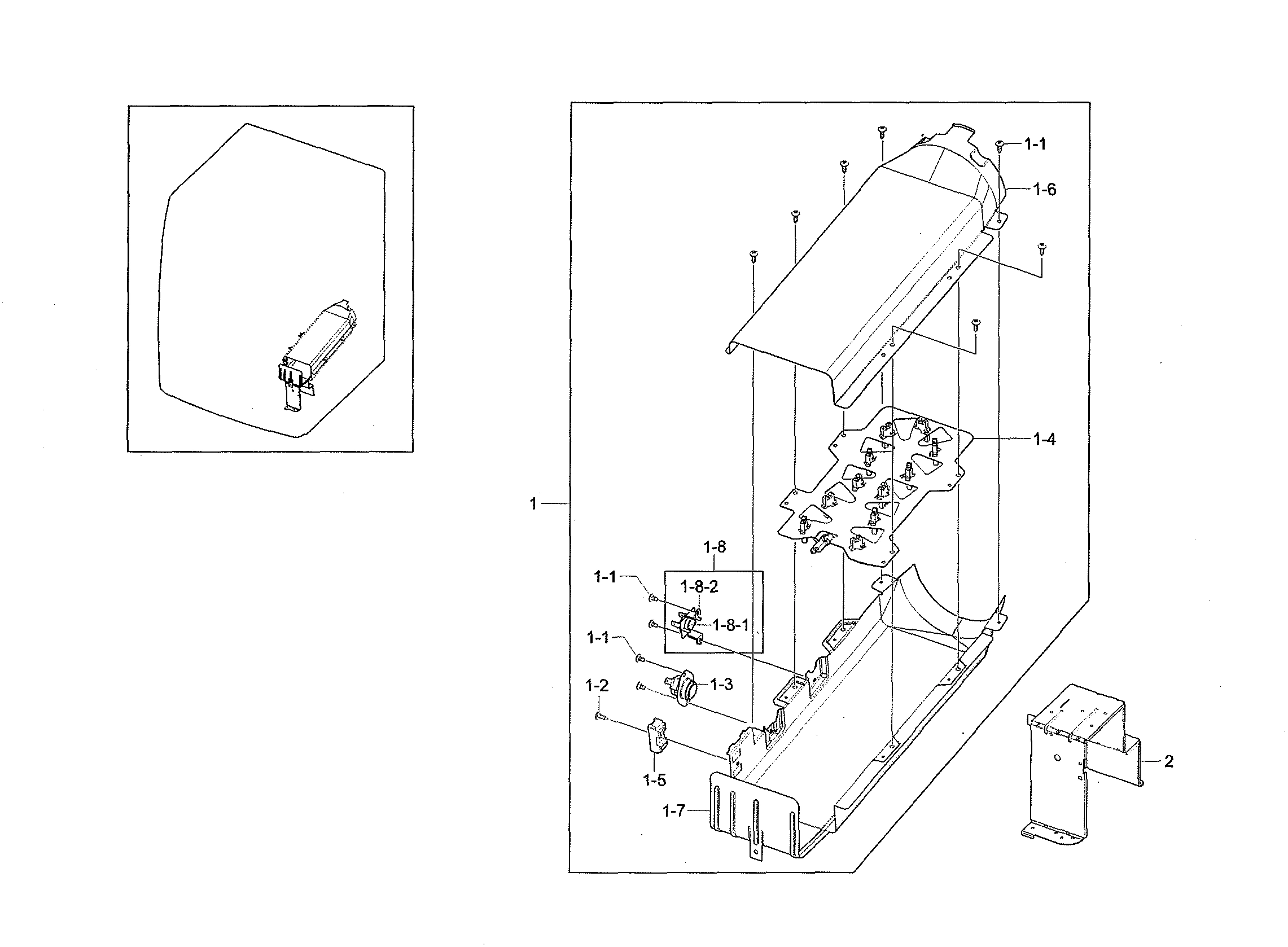

1-6

Dryer Heater Box, Upper SMG DC67-00132A Contact Us For Availability

View on Model

1-7

DC32-00007A Samsung Dryer Thermistor Sensor Backorder SMG DC32-00007A $17.64

View on Model

1-7

DC61-01576A Samsung Support Hinge Assembly Backorder SMG DC61-01576A $10.87

View on Model

1-7

Dryer Heating Element Housing, Lower SMG DC67-00133A Contact Us For Availability

View on Model

1-8

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $13.07

View on Model

1-8

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $36.63

View on Model

1-8-1

DC47-00015A Samsung Dryer 250V Thermostat In Stock SMG DC47-00015A $25.78

View on Model

1-8-2

DC61-01204A Samsung Dryer Thermostat Bracket Backorder SMG DC61-01204A $2.26

View on Model

1-11

DC63-01127A Samsung Cover Door Assembly (I) Backorder SMG DC63-01127A $57.03

View on Model

1-15

DC66-00395A Samsung Dryer Door Lever Strike L In Stock SMG DC66-00395A $6.33

View on Model

2

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.35

View on Model

2

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $36.38

View on Model

2

DC61-02016A Samsung Die Heater Backorder SMG DC61-02016A $24.90

View on Model

2

DC61-60074A Samsung Wire Holder Backorder SMG DC61-60074A $0.97

View on Model

2

DC63-00534B Samsung Back Cover Assembly Backorder SMG DC63-00534B $44.83

View on Model

2

DC97-07526B Samsung Duct Outlet Assembly Backorder SMG DC97-07526B $69.29

View on Model

2-3

DC63-10001K Samsung Dryer Absorber Sponge Backorder SMG DC63-10001K $3.17

View on Model

3

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $0.97

View on Model

3

DC61-00553C Samsung Dryer Clamp Cable Backorder SMG DC61-00553C $0.97

View on Model

3

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $40.65

View on Model

3

Dryer control panel assembly SMG DC97-15940A Contact Us For Availability

View on Model

3-1

DC47-00021A Samsung Socket Lamp Assembly Backorder SMG DC47-00021A $22.62

View on Model

3-1

Duct-conne SMG DC67-00130A Contact Us For Availability

View on Model

3-2

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.72

View on Model

3-2

Sponge SMG DC72-00032E Contact Us For Availability

View on Model

3-5

Dryer Drum Light Lens SMG DC63-00531A Contact Us For Availability

View on Model

3-6-1

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $1.81

View on Model

3-10

Dryer Lint Screen Cover, Rear SMG DC63-01149A Contact Us For Availability

View on Model

3-12

4713-001199 Samsung Dryer Drum Incandescent L Backorder SMG 4713-001199 $8.59

View on Model

3-13

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $11.77

View on Model

3-14

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $5.42

View on Model

4

DC61-01428A Samsung Power Holder Assembly Backorder SMG DC61-01428A $0.97

View on Model

4

DC61-40081A Samsung Wire Holder Assembly Backorder SMG DC61-40081A $0.97

View on Model

4

Dryer Drum Assembly SMG DC97-07520F Contact Us For Availability

View on Model

4-3

DC97-07618A Samsung Dryer Drum Gasket Seal As In Stock SMG DC97-07618A $88.64

View on Model

4-5

DC63-10001C Samsung EPDM Sponge Backorder SMG DC63-10001C $3.17

View on Model

4-6

DC64-00828A Samsung Dryer Door Switch Assembl Backorder SMG DC64-00828A $28.72

View on Model

4-7

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $14.03

View on Model

5

6502-000127 Samsung Cable Clamp Backorder SMG 6502-000127 $8.14

View on Model

5-6

Dryer Heat Duct SMG DC97-07521A Contact Us For Availability

View on Model

7-2

Dryer Control Board SMG DC92-00123C Contact Us For Availability

View on Model

13

DC97-07519A Samsung Dryer Exhaust Duct Assemb Backorder SMG DC97-07519A $64.44

View on Model

14

DC97-14486A Samsung Dryer Heating Element Duc In Stock SMG DC97-14486A $184.11

View on Model

16

DC97-12150A Samsung Dryer Leg Assembly In Stock SMG DC97-12150A $17.20

View on Model
