Model GE ZKD90DSSN1SS Electric Range – Common Parts & Diagrams

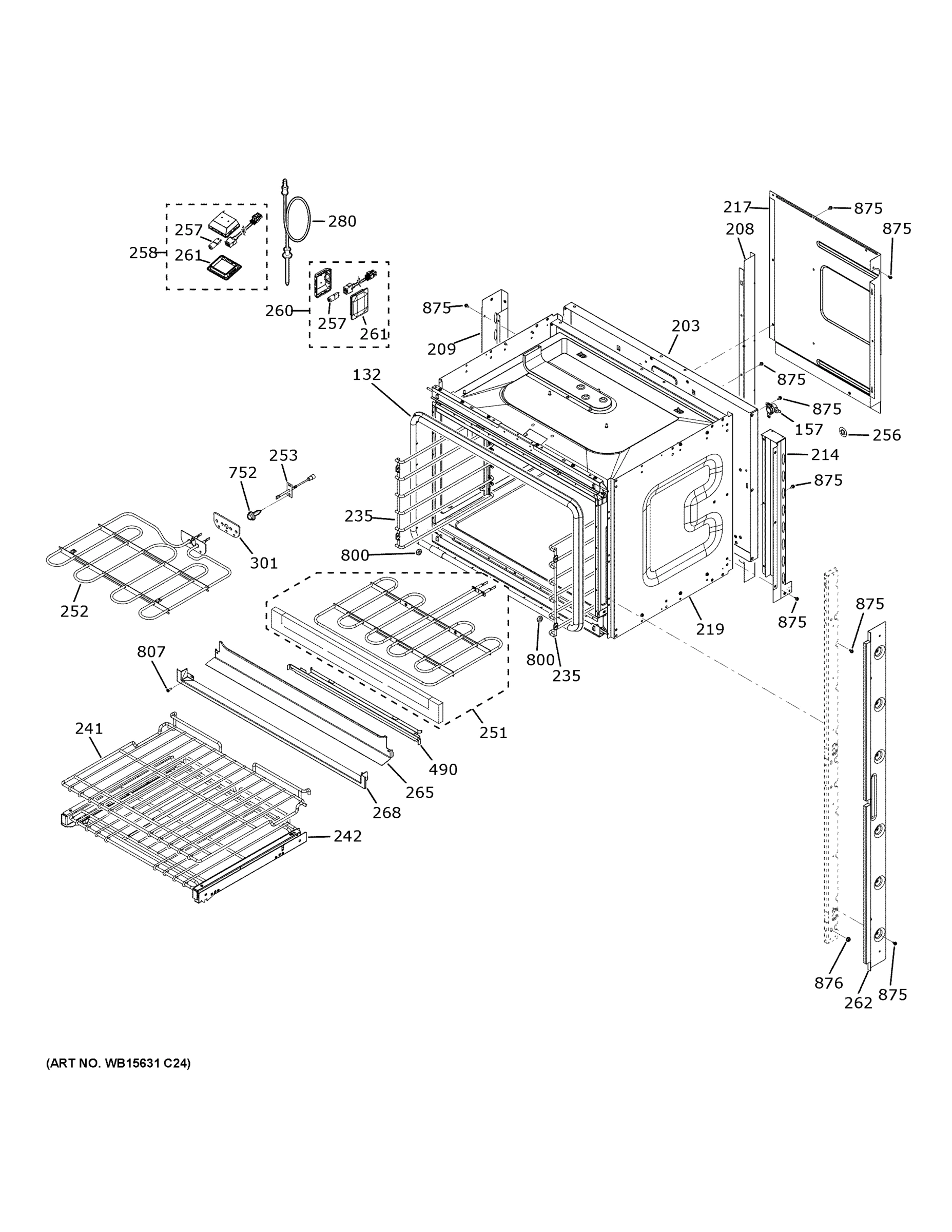

CONTROL PANEL
UPPER OVEN
CENTER SPACER
LOWER OVEN
UPPER DOOR
LOWER DOOR
DOOR LOCK
CONVECTION FAN
Common parts from model GE ZKD90DSSN1SS Electric Range
13
JUMPER GEN WB18X30704 Contact Us For Availability
32
FAN BLOWER GEN WB26X31060 Contact Us For Availability
43
BLADE FAN CONVECTION GEN WB02T10598 Contact Us For Availability
102
DOOR SIDE INSULATION GEN WB35X31513 Contact Us For Availability
112
OVEN DOOR LINER ASM GEN WB63X32570 Contact Us For Availability
113
DOOR INSULATION RETAINER GEN WB34X31515 Contact Us For Availability
132
GASKET OVEN DOOR GEN WB35X34867 Contact Us For Availability
133
BUMPER DOOR GEN WB03T10341 Contact Us For Availability
136
STAINLESS HANDLE W/O LOGO 27" GEN WB15X34661 Contact Us For Availability
140
GLASS OUTER DOOR W/ LOGO GEN WB56X36285 Contact Us For Availability
141
GLASS OUTER DOOR W/O LOGO GEN WB56X36286 Contact Us For Availability
145
DEFLECTOR OUTER GLASS DOOR GEN WB34X33868 Contact Us For Availability
146
DOOR LINER PLUG GEN WB02X32816 Contact Us For Availability
150
LATCH ASM GEN WB10X28391 Contact Us For Availability
208
DIVIDER AIR DOUBLE OVEN GEN WB34T10140 Contact Us For Availability
223
INSULATION CONVECT FAN GEN WB35T10259 Contact Us For Availability
235
GUIDE OVN RACK RT GEN WB48X21765 Contact Us For Availability
235
GUIDE OVN RACK LT GEN WB48X21766 Contact Us For Availability
251
HIDDEN BAKE ELEMENT KIT GEN WB44X21668 Contact Us For Availability
253
SENSOR ASM GEN WB21X10165 Contact Us For Availability
256
RETAINER BOLT GEN WB01T10107 Contact Us For Availability
257
LAMP HALOGEN BULB G9 GEN WB25T10102 Contact Us For Availability
258
HALOGEN LAMP ASM GEN WB25X31223 Contact Us For Availability
260
HALOGEN LAMP ASM GEN WB25X31221 Contact Us For Availability
261
OVEN LIGHT LENS GEN WB34X31317 Contact Us For Availability
265
TRIM VENT LWR GEN WB07X21777 Contact Us For Availability
271
RELAY BOARD AND FRAME ASM GEN WB27X33083 Contact Us For Availability
280
MEAT PROBE GEN WB20T10024 Contact Us For Availability
281
SOFT CLOSE HINGE LEFT DOOR GEN WB10X33880 Contact Us For Availability
281
SOFT CLOSE HINGE RIGHT DOOR GEN WB10X33903 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X27502 Contact Us For Availability
402
COVER TOP LEFT EDGE GEN WB44T10126 Contact Us For Availability
416
COVER TOP FRONT GEN WB34T10159 Contact Us For Availability
424
COVER BOTTOM AIR DUCT GEN WB34T10155 Contact Us For Availability
490
COVER HIDDEN BAKE GEN WB55T10195 Contact Us For Availability
511
MOTOR CONVX GEN WB26X23813 Contact Us For Availability
514
COVER CONVECTION FAN GEN WB37T10019 Contact Us For Availability
516
DUCT CONVECTION OVEN GEN WB37T10020 Contact Us For Availability
579
CAPACITOR MOTOR GEN WB27T10662 Contact Us For Availability
599
BOARD FAN SENSOR GEN WB27T11463 Contact Us For Availability
606
UI COM AND RJ45 HARNESS GEN WB18X32919 Contact Us For Availability
701
SCR 8-18 AB TRT20NBS 5/8 GEN WB01X21650 Contact Us For Availability
702
SET SCREW GEN WR01X11014 Contact Us For Availability
800
RACK GUIDE NUT GEN WB01X21270 Contact Us For Availability
801
6-19 X 1/4 TORX PAN HEAD GEN WD02X10129 Contact Us For Availability
937
SPACER REINFORCEMENT GEN WB02X34689 Contact Us For Availability
951
SCREW 8-18 T20 3/8 IN GEN WB01T10134 Contact Us For Availability
977
NUT HEX GEN WB02T10608 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
