Model GE ZISB48DYA Refrigerator – Common Parts & Diagrams

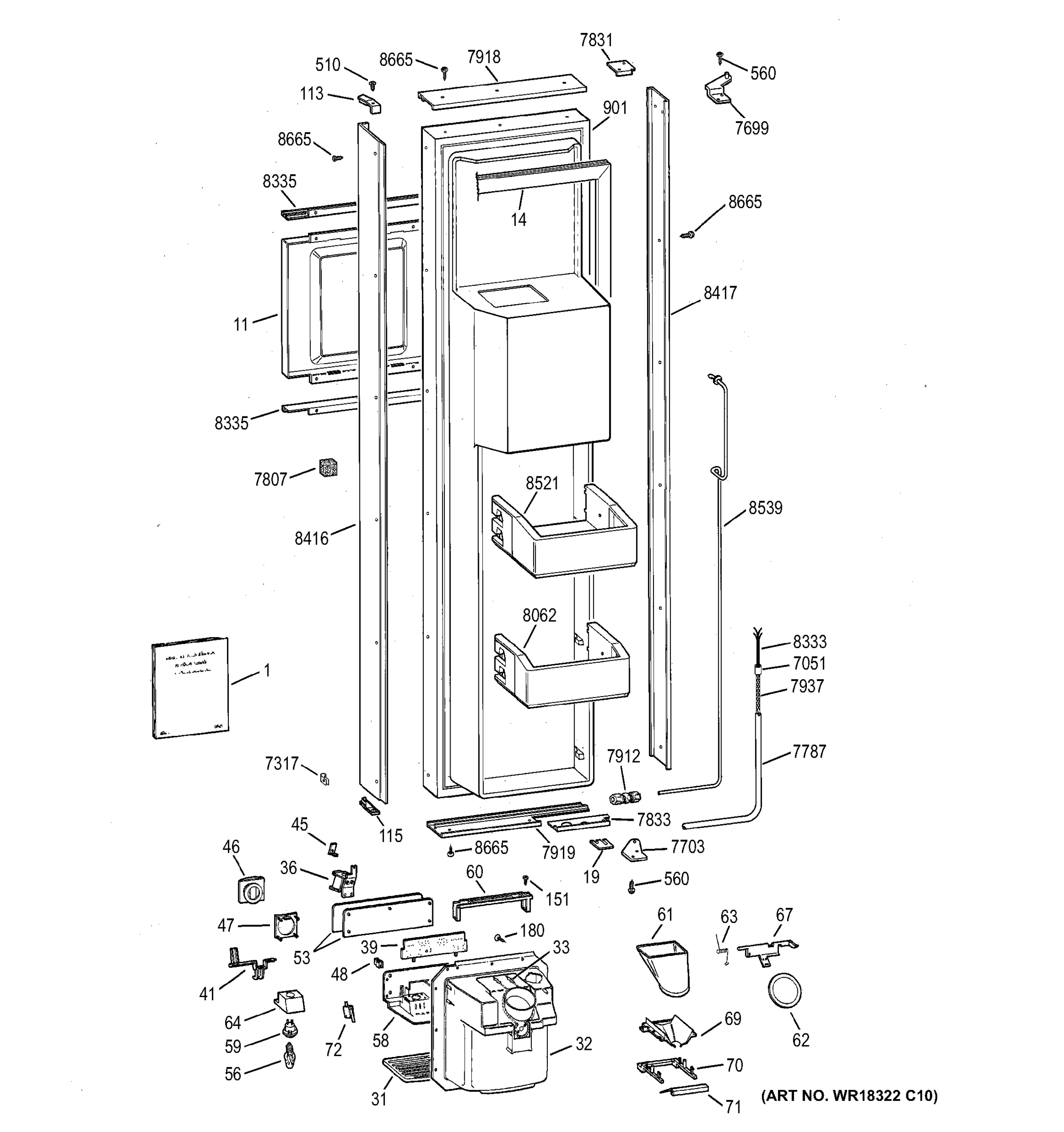

FREEZER DOOR

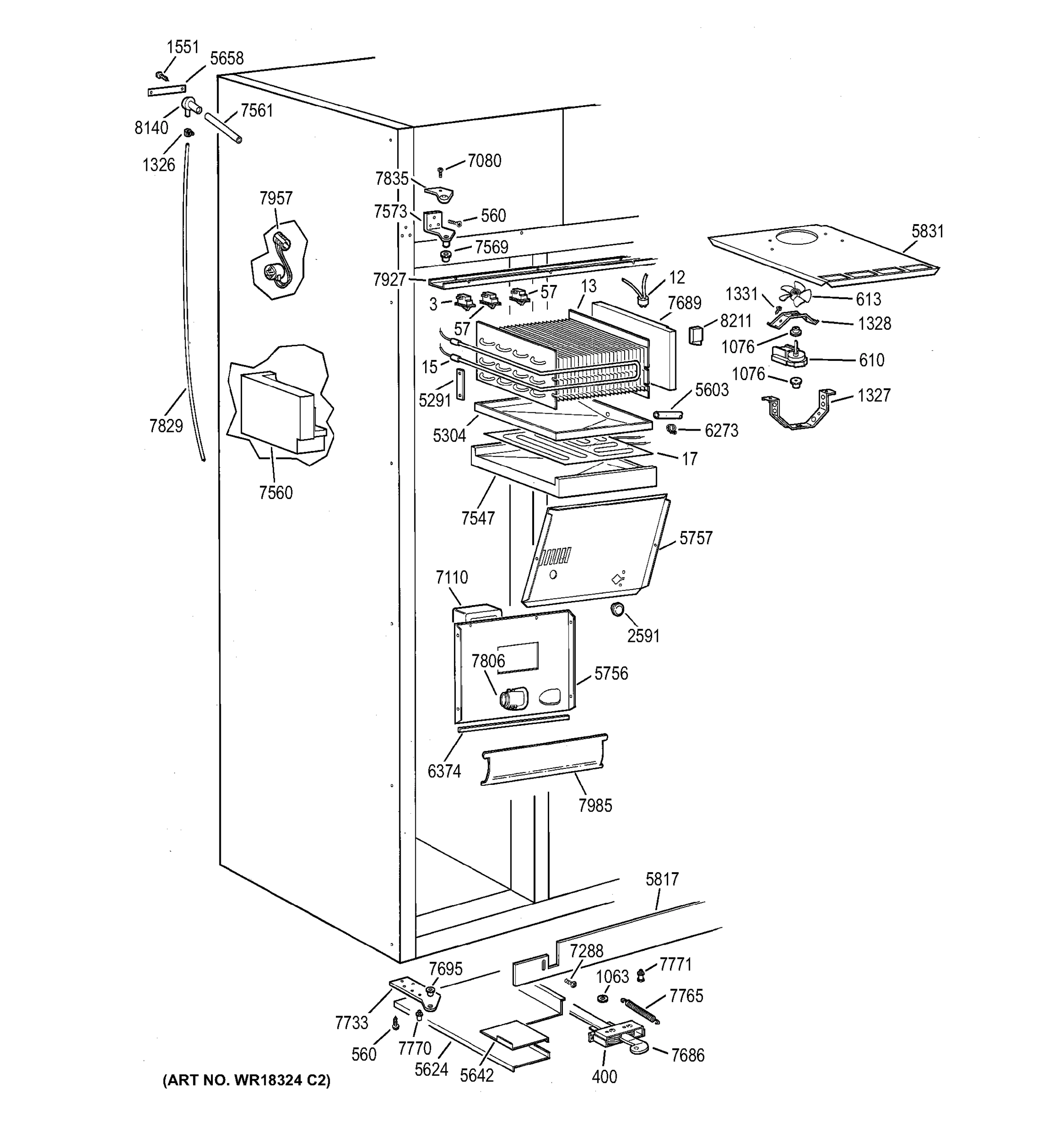

FREEZER SECTION

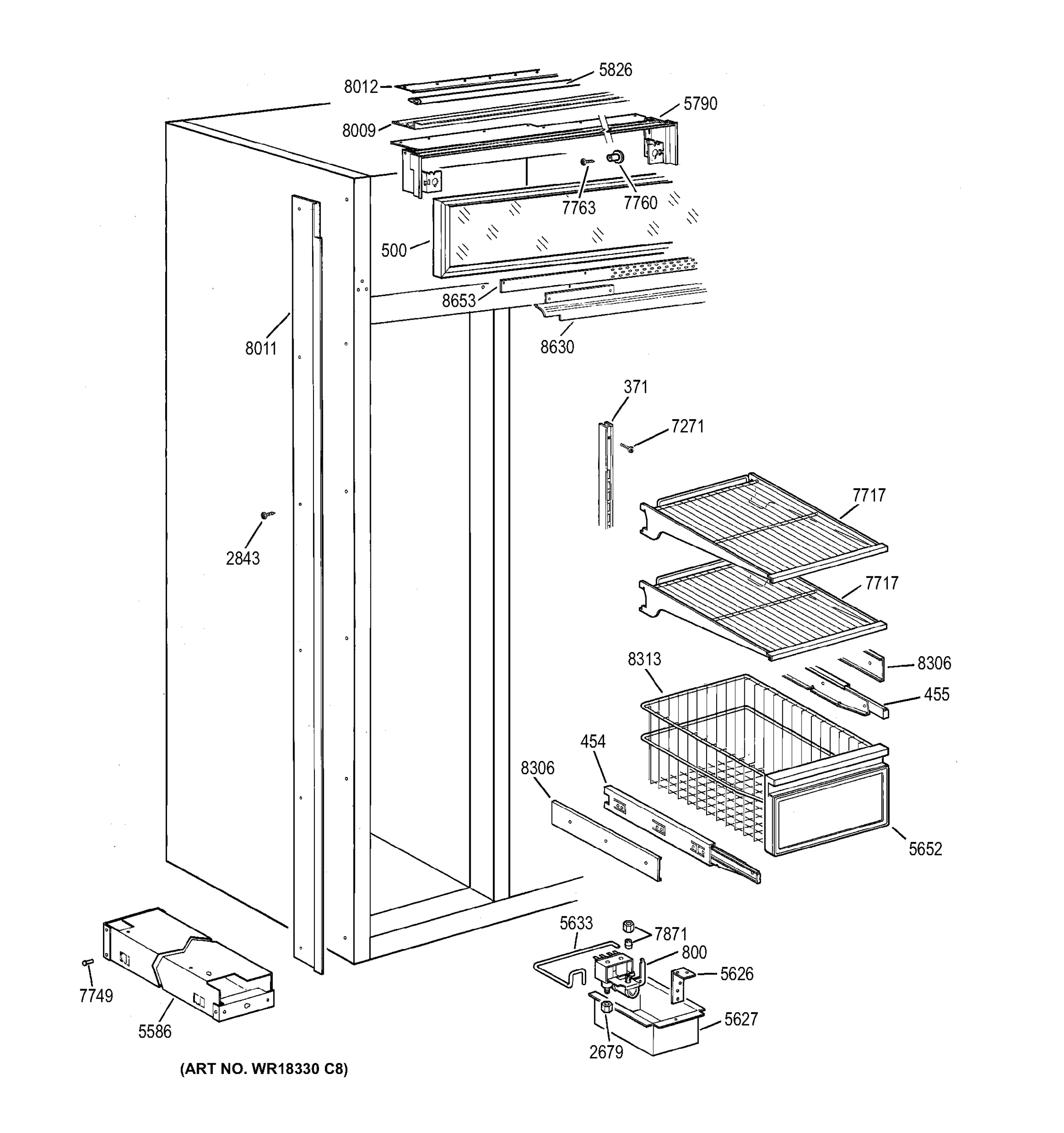

FREEZER SHELVES

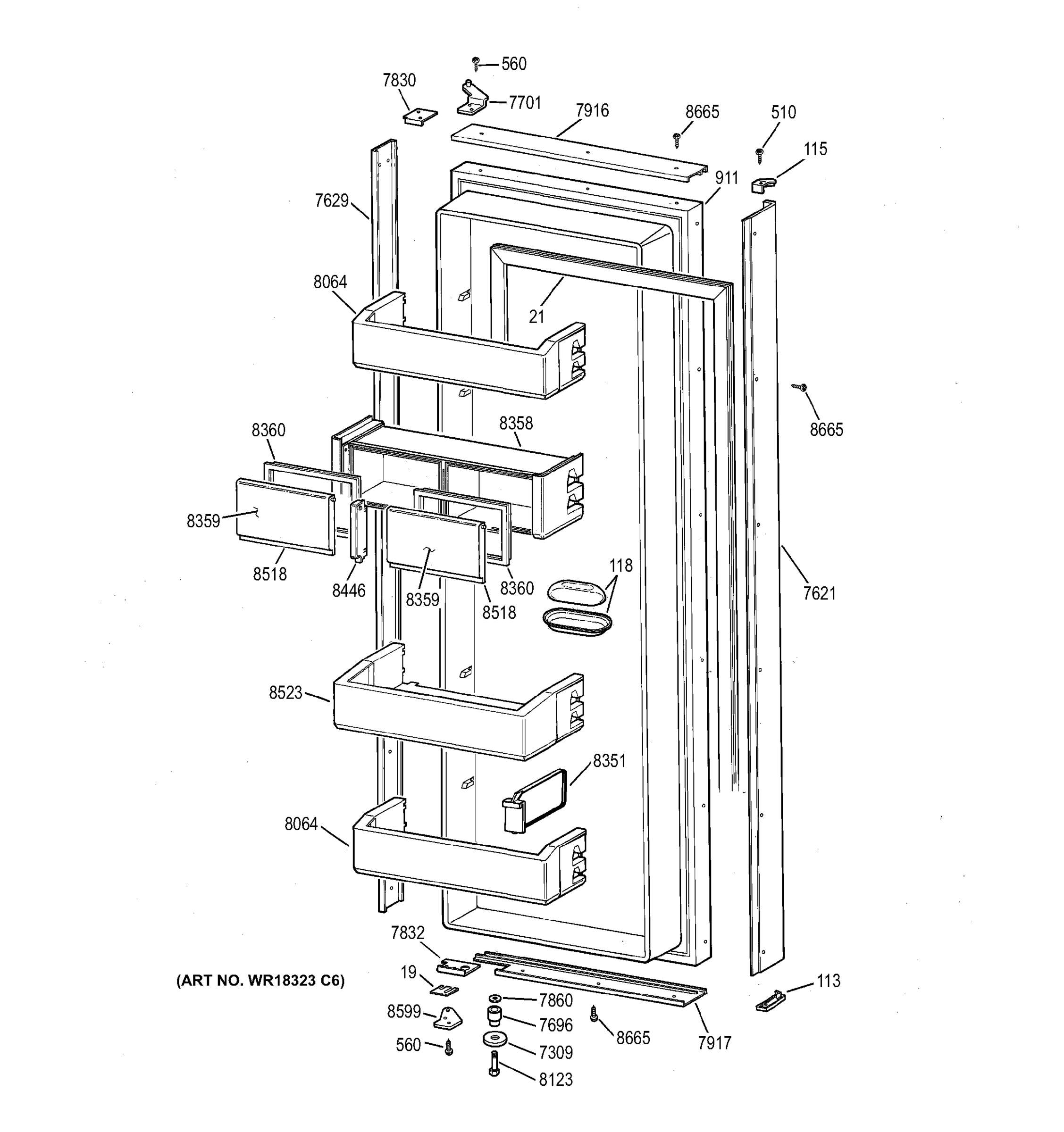

FRESH FOOD DOOR

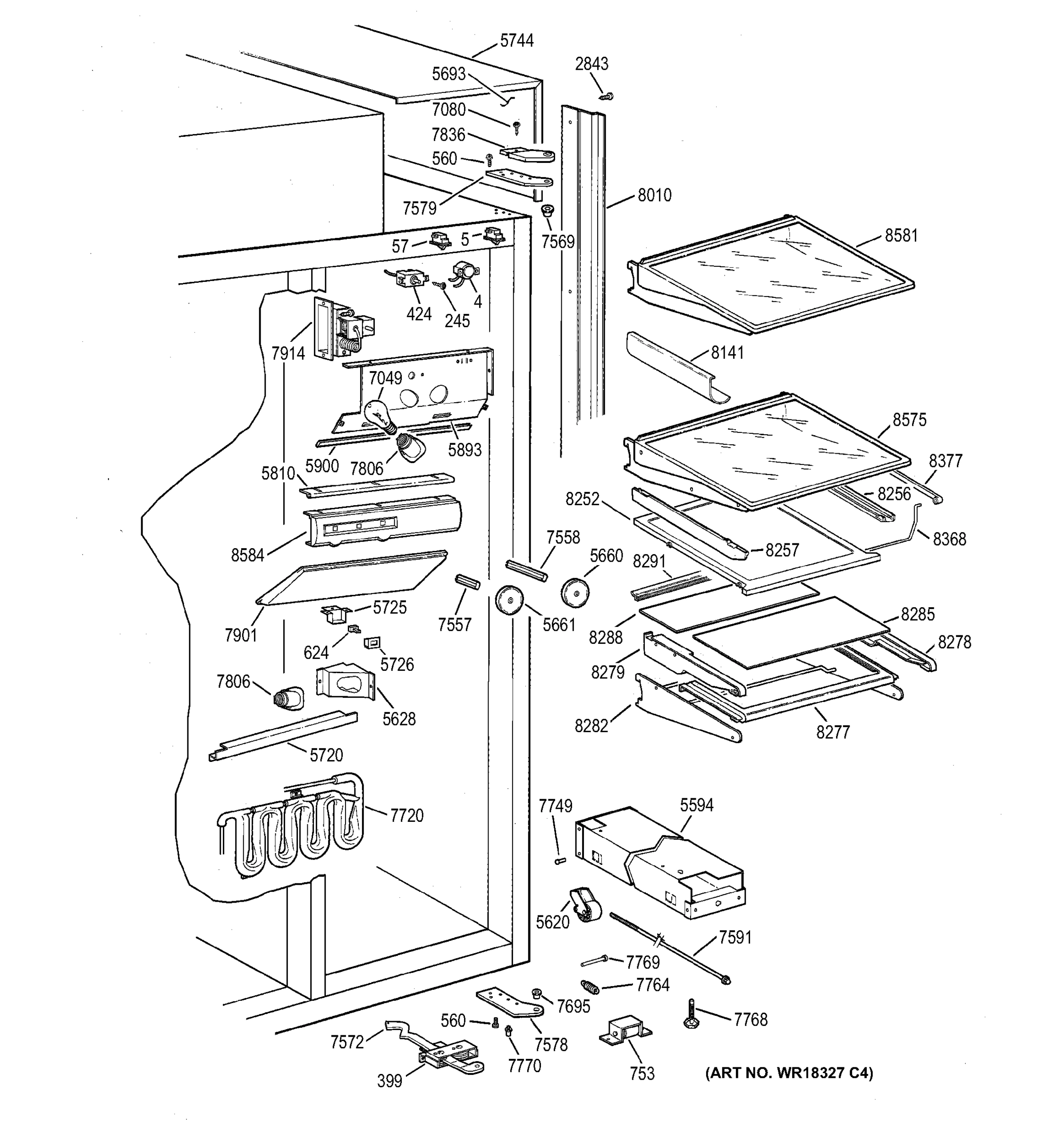

FRESH FOOD SECTION

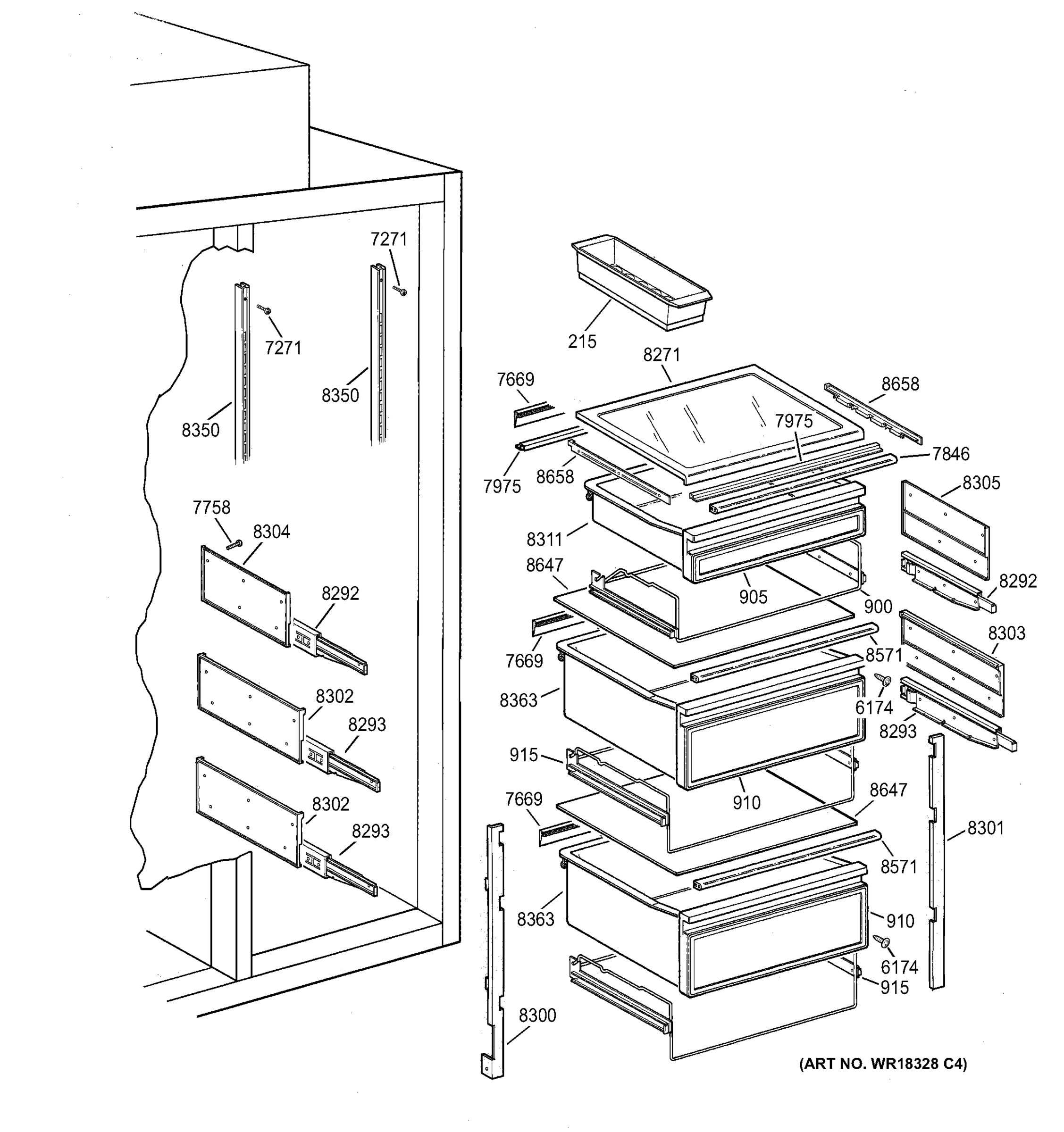

FRESH FOOD SHELVES

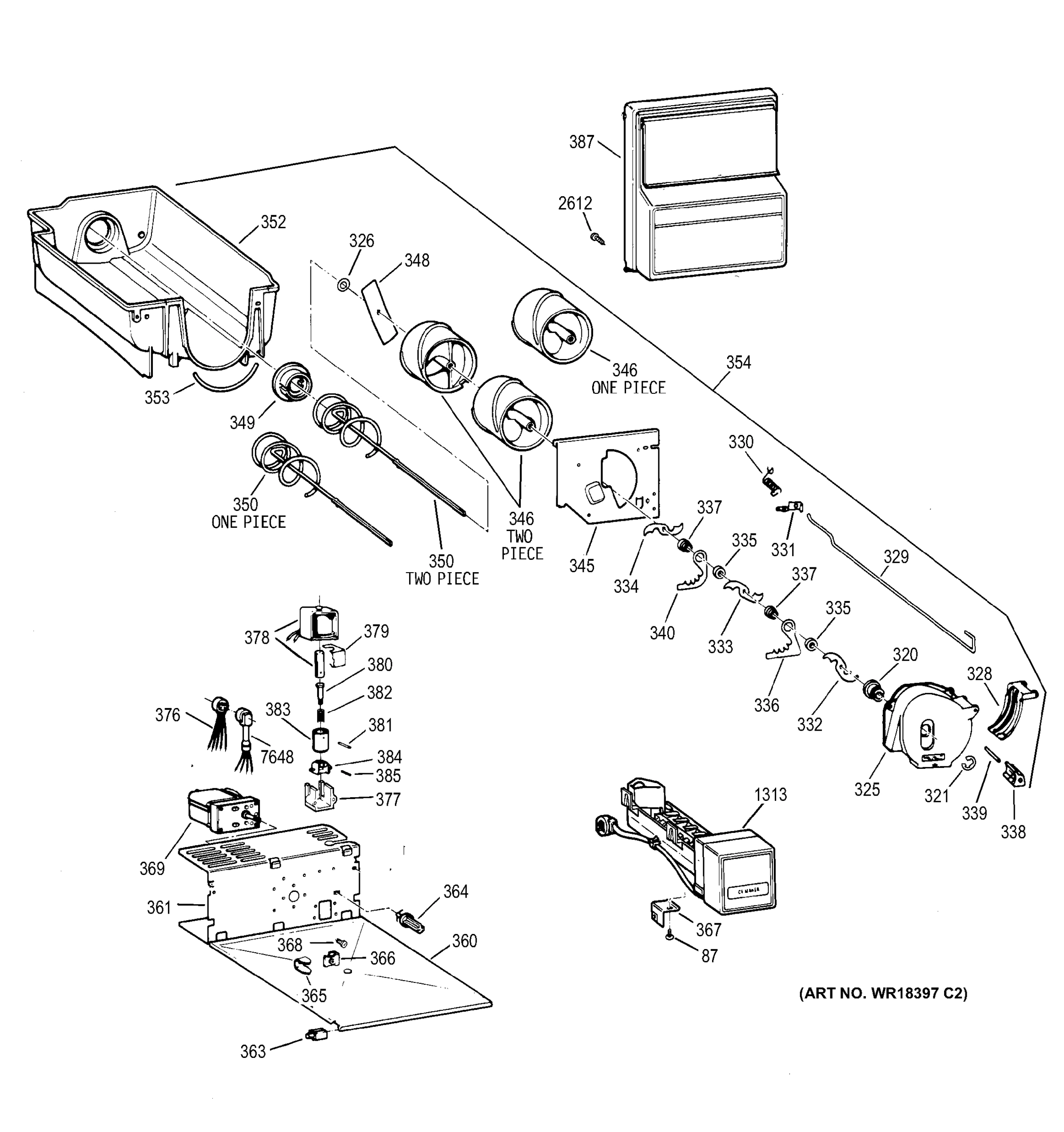

ICE MAKER & DISPENSER

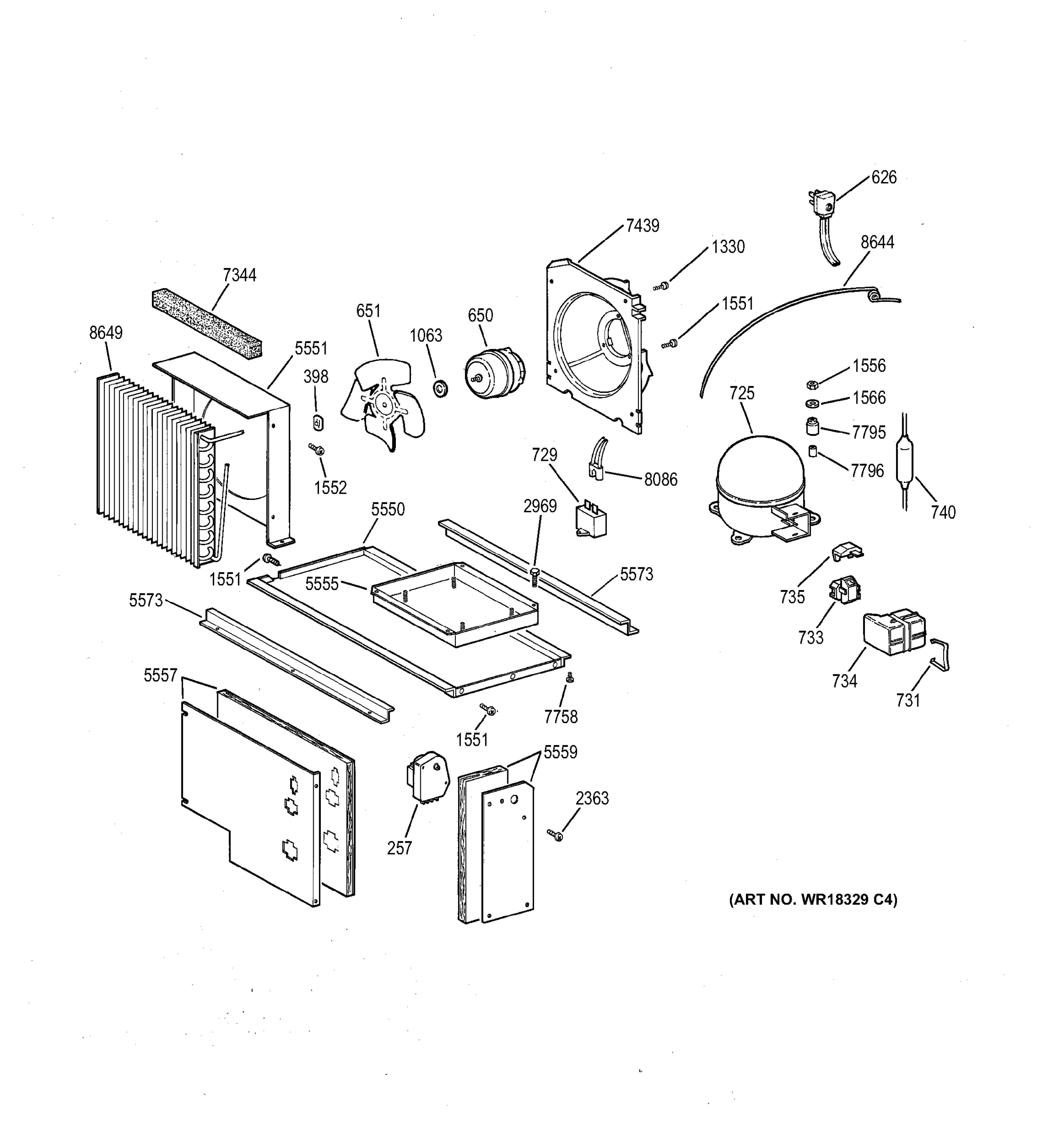

MACHINE COMPARTMENT
Common parts from model GE ZISB48DYA Refrigerator
4
GEN WR29X5163 GEN WR29X5163 Contact Us For Availability
4
GEN WR50X0108 GEN WR50X0108 Contact Us For Availability
5
GEN WR29X5191 GEN WR29X5191 Contact Us For Availability
12
GEN WR29X5171 GEN WR29X5171 Contact Us For Availability
12
GEN WR50X0109 GEN WR50X0109 Contact Us For Availability
13
GEN WR29X5188 GEN WR29X5188 Contact Us For Availability
13
GEN WR85X0223 GEN WR85X0223 Contact Us For Availability
15
GEN WR29X5167 GEN WR29X5167 Contact Us For Availability
17
GEN WR29X5185 GEN WR29X5185 Contact Us For Availability
19
SHIM GEN WR02X8589 Contact Us For Availability
19
SHIM GEN WR02X8590 Contact Us For Availability
19
GEN WR29X5184 GEN WR29X5184 Contact Us For Availability
21
GEN WR29X0190 GEN WR29X0190 Contact Us For Availability
31
GRILLE RECESS BLACK GEN WR17X3366 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
57
GEN WR23X0192 GEN WR23X0192 Contact Us For Availability
59
GEN WR02X8662 GEN WR02X8662 Contact Us For Availability
60
GEN WR02X8685 GEN WR02X8685 Contact Us For Availability
61
GEN WR02X8591 GEN WR02X8591 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
64
GEN WR02X8686 GEN WR02X8686 Contact Us For Availability
69
FUNNEL RECESS SHIELD BLA GEN WR17X3095 Contact Us For Availability
70
SUPT. FUNNEL GUARD BK GEN WR02X8943 Contact Us For Availability
71
WR17X10282 GEN WR17X3478 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
113
END CAP FZ TOP/FF BTM GEN WR12X0864 Contact Us For Availability
115
GEN WR12X0866 GEN WR12X0866 Contact Us For Availability
320
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
328
GEN WR17X2059 GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
GEN WR17X2060 GEN WR17X2060 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
GEN WR02X4139 GEN WR02X4139 Contact Us For Availability
336
BLADE STATIONARY DISPLAY GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
GEN WR17X2062 GEN WR17X2062 Contact Us For Availability
346
GEN WR17X2056 GEN WR17X2056 Contact Us For Availability
346
GEN WR17X2057 GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
AUGER HELIX DISPLAY GEN WR17X2740 Contact Us For Availability
360
WR71X2431 GEN WR71X5728 Contact Us For Availability
361
GEN WR71X2430 GEN WR71X2430 Contact Us For Availability
363
GEN WR02X8952 GEN WR02X8952 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
367
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
371
GEN WR17X3300 GEN WR17X3300 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
COVER & DOOR ASSY GEN WR17X3439 Contact Us For Availability
398
GEN WR01X1715 GEN WR01X1715 Contact Us For Availability
399
GEN WR02X9467 GEN WR02X9467 Contact Us For Availability
400
GEN WR02X9468 GEN WR02X9468 Contact Us For Availability
424
GEN WR09X0588 GEN WR09X0588 Contact Us For Availability
454
SLIDE FRZ ASM RH GEN WR72X0284 Contact Us For Availability
455
SLIDE FRZ ASM LH GEN WR72X0285 Contact Us For Availability
500
GRILLE PANEL ASM 48" GEN WR74X0275 Contact Us For Availability
610
GEN WR60X0182 GEN WR60X0182 Contact Us For Availability
624
SWITCH POWERSAVER GEN WR23X0396 Contact Us For Availability
651
GEN WR60X0167 GEN WR60X0167 Contact Us For Availability
731
GEN WR02X7226 GEN WR02X7226 Contact Us For Availability
733
GEN WR07X0253 GEN WR07X0253 Contact Us For Availability
734
GEN WR02X7834 GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0157 GEN WR08X0157 Contact Us For Availability
900
GEN WR72X0264 GEN WR72X0264 Contact Us For Availability
901
FZ O DOOR 48" GEN WR78X8837 Contact Us For Availability
905
GEN WR71X2664 GEN WR71X2664 Contact Us For Availability
910
GEN WR71X2667 GEN WR71X2667 Contact Us For Availability
911
GEN WR78X8838 GEN WR78X8838 Contact Us For Availability
915
GEN WR72X0267 GEN WR72X0267 Contact Us For Availability
1063
GEN WR01X1833 GEN WR01X1833 Contact Us For Availability
1076
GROMMET EVAP FAN GEN WR02X7391 Contact Us For Availability
1327
BRACKET EVAP. FAN LARGE GEN WR02X8806 Contact Us For Availability
1328
BRACKET EVAP. FAN SMALL GEN WR02X8805 Contact Us For Availability
1330
SCREW COND HSG GEN WR01X1825 Contact Us For Availability
1331
SCREW BRKT. EVAP. FAN GEN WZ06X0133 Contact Us For Availability
1552
SCREW SHROUD COND GEN WR29X5175 Contact Us For Availability
1556
WASHER COMP GEN WR01X1898 Contact Us For Availability
1566
GEN WR01X5649 GEN WR01X5649 Contact Us For Availability
2591
GEN WR01X1932 GEN WR01X1932 Contact Us For Availability
2612
SCREW COVER BUCKET ASM. GEN WR01X1937 Contact Us For Availability
2969
GEN WR01X5653 GEN WR01X5653 Contact Us For Availability
5550
GEN WR17X3041 GEN WR17X3041 Contact Us For Availability
5555
PAN EVAPORATION GEN WR17X3043 Contact Us For Availability
5557
GEN WR17X3044 GEN WR17X3044 Contact Us For Availability
5586
GEN WR13X0670 GEN WR13X0670 Contact Us For Availability
5594
GEN WR13X0671 GEN WR13X0671 Contact Us For Availability
5603
GEN WR17X3030 GEN WR17X3030 Contact Us For Availability
5624
GEN WR17X3423 GEN WR17X3423 Contact Us For Availability
5626
GEN WR02X8605 GEN WR02X8605 Contact Us For Availability
5627
GEN WR02X8604 GEN WR02X8604 Contact Us For Availability
5628
HINGE BTM & PIN ASSY FZ GEN WR17X3027 Contact Us For Availability
5633
GEN WR02X8959 GEN WR02X8959 Contact Us For Availability
5642
PAN UMBILICAL LARGE GEN WR17X3424 Contact Us For Availability
5652
GEN WR71X2669 GEN WR71X2669 Contact Us For Availability
5660
GEN WR02X8600 GEN WR02X8600 Contact Us For Availability
5661
GEN WR02X8601 GEN WR02X8601 Contact Us For Availability
5693
GEN WR17X3617 GEN WR17X3617 Contact Us For Availability
5720
GEN WR02X8917 GEN WR02X8917 Contact Us For Availability
5725
GEN WR02X8918 GEN WR02X8918 Contact Us For Availability
5726
HOUSING FRONT PSS GEN WR02X8919 Contact Us For Availability
5744
WR17X3428 GEN WR17X3448 Contact Us For Availability
5756
GEN WR17X3429 GEN WR17X3429 Contact Us For Availability
5757
GEN WR17X3430 GEN WR17X3430 Contact Us For Availability
5790
GEN WR74X0246 GEN WR74X0246 Contact Us For Availability
5810
GEN WR14X0486 GEN WR14X0486 Contact Us For Availability
5817
GEN WR74X0237 GEN WR74X0237 Contact Us For Availability
5826
GEN WR02X9487 GEN WR02X9487 Contact Us For Availability
5831
GEN WR17X4272 GEN WR17X4272 Contact Us For Availability
5893
GEN WR17X4273 GEN WR17X4273 Contact Us For Availability
5900
GEN WR38X2094 GEN WR38X2094 Contact Us For Availability
6273
GEN WR01X1843 GEN WR01X1843 Contact Us For Availability
6374
GEN WR38X2022 GEN WR38X2022 Contact Us For Availability
7051
PLUG ELECTRIC NYLON GEN WR02X8810 Contact Us For Availability
7080
GEN WR01X1933 GEN WR01X1933 Contact Us For Availability
7110
GEN WR14X0450 GEN WR14X0450 Contact Us For Availability
7271
SCREW GEN WR01X5635 Contact Us For Availability
7288
GEN WR01X1831 GEN WR01X1831 Contact Us For Availability
7344
COND TOP BAFFLE FOAM GEN WR14X0313 Contact Us For Availability
7547
GEN WR17X3037 GEN WR17X3037 Contact Us For Availability
7557
GEN WR02X8602 GEN WR02X8602 Contact Us For Availability
7558
GEN WR02X8603 GEN WR02X8603 Contact Us For Availability
7560
GEN WR17X3039 GEN WR17X3039 Contact Us For Availability
7569
BUSHING HINGE GEN WR02X8587 Contact Us For Availability
7572
ARM ACTUATOR GEN WR02X8925 Contact Us For Availability
7573
GEN WR13X0640 GEN WR13X0640 Contact Us For Availability
7578
GEN WR13X0643 GEN WR13X0643 Contact Us For Availability
7579
GEN WR13X0642 GEN WR13X0642 Contact Us For Availability
7621
GEN WR12X0862 GEN WR12X0862 Contact Us For Availability
7629
GEN WR17X3016 GEN WR17X3016 Contact Us For Availability
7648
GEN WR02X8964 GEN WR02X8964 Contact Us For Availability
7669
GEN WR14X0446 GEN WR14X0446 Contact Us For Availability
7686
ARM ACTUATOR GEN WR02X8926 Contact Us For Availability
7689
GEN WR17X3040 GEN WR17X3040 Contact Us For Availability
7695
BUSHING BTM HINGE GEN WR02X8588 Contact Us For Availability
7696
BUSHING ACTUATOR ARM GEN WR01X1836 Contact Us For Availability
7699
GEN WR13X0635 GEN WR13X0635 Contact Us For Availability
7701
GEN WR13X0633 GEN WR13X0633 Contact Us For Availability
7703
HINGE TOP FZ GEN WR13X0636 Contact Us For Availability
7717
GEN WR71X2428 GEN WR71X2428 Contact Us For Availability
7733
GEN WR13X0641 GEN WR13X0641 Contact Us For Availability
7749
GEN WR01X1838 GEN WR01X1838 Contact Us For Availability
7758
SCREW GEN WR01X1840 Contact Us For Availability
7760
8-32*5/16 BARREL NUT GEN WR01X1900 Contact Us For Availability
7764
SPRING CLOSURE FF GEN WR02X8916 Contact Us For Availability
7765
SPRING CLOSURE FZ GEN WR02X8804 Contact Us For Availability
7768
GEN WR02X7560 GEN WR02X7560 Contact Us For Availability
7769
KEY PIVOT GEN WR02X8800 Contact Us For Availability
7771
GEN WR01X1839 GEN WR01X1839 Contact Us For Availability
7787
ELECTRICAL TUBE GEN WR02X8808 Contact Us For Availability
7795
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
7796
GEN WR01X5648 GEN WR01X5648 Contact Us For Availability
7806
LIGHT SOCKET #3407B GEN WR02X8928 Contact Us For Availability
7807
GEN WR02X8798 GEN WR02X8798 Contact Us For Availability
7830
GEN WR02X8585 GEN WR02X8585 Contact Us For Availability
7831
No Item Description GEN WR02X8592 Contact Us For Availability
7832
GEN WR02X8586 GEN WR02X8586 Contact Us For Availability
7833
SHIM HINGE GEN WR02X8593 Contact Us For Availability
7836
HINGE COVER RH GEN WR13X0639 Contact Us For Availability
7846
GEN WR14X0448 GEN WR14X0448 Contact Us For Availability
7860
WASHER GEN WR01X1835 Contact Us For Availability
7871
GEN WR57X0097 GEN WR57X0097 Contact Us For Availability
7901
GEN WR17X3433 GEN WR17X3433 Contact Us For Availability
7916
GEN WR17X4155 GEN WR17X4155 Contact Us For Availability
7917
GEN WR17X4156 GEN WR17X4156 Contact Us For Availability
7918
GEN WR17X4162 GEN WR17X4162 Contact Us For Availability
7919
GEN WR17X3450 GEN WR17X3450 Contact Us For Availability
7927
WR17X3435 GEN WR17X3896 Contact Us For Availability
7937
SLEEVE FIBERGLASS GEN WR02X8809 Contact Us For Availability
7957
GEN WR51X0369 GEN WR51X0369 Contact Us For Availability
7975
GEN WR17X3440 GEN WR17X3440 Contact Us For Availability
7985
GEN WR17X3441 GEN WR17X3441 Contact Us For Availability
8009
GEN WR17X3655 GEN WR17X3655 Contact Us For Availability
8010
GEN WR17X3442 GEN WR17X3442 Contact Us For Availability
8011
GEN WR17X3443 GEN WR17X3443 Contact Us For Availability
8012
GEN WR49X0360 GEN WR49X0360 Contact Us For Availability
8062
BIN 36" FF / 48" FRZ ASS GEN WR71X2723 Contact Us For Availability
8064
WR71X2427 GEN WR71X8064 Contact Us For Availability
8086
CAPACITOR HARNESS GEN WR23X0474 Contact Us For Availability
8123
SHOULDER BOLT, DOOR GEN WR01X2164 Contact Us For Availability
8141
GEN WR17X4141 GEN WR17X4141 Contact Us For Availability
8211
GEN WR02X9301 GEN WR02X9301 Contact Us For Availability
8252
GEN WR32X1548 GEN WR32X1548 Contact Us For Availability
8256
GEN WR72X0259 GEN WR72X0259 Contact Us For Availability
8257
GEN WR72X0258 GEN WR72X0258 Contact Us For Availability
8271
GEN WR32X1551 GEN WR32X1551 Contact Us For Availability
8277
GEN WR71X2659 GEN WR71X2659 Contact Us For Availability
8278
GEN WR72X0260 GEN WR72X0260 Contact Us For Availability
8279
GEN WR72X0261 GEN WR72X0261 Contact Us For Availability
8282
GEN WR71X2658 GEN WR71X2658 Contact Us For Availability
8285
GEN WR32X1550 GEN WR32X1550 Contact Us For Availability
8288
GEN WR32X1549 GEN WR32X1549 Contact Us For Availability
8291
GEN WR02X9415 GEN WR02X9415 Contact Us For Availability
8300
GEN WR17X4142 GEN WR17X4142 Contact Us For Availability
8301
GEN WR17X4143 GEN WR17X4143 Contact Us For Availability
8302
GEN WR02X9408 GEN WR02X9408 Contact Us For Availability
8303
GEN WR02X9407 GEN WR02X9407 Contact Us For Availability
8304
GEN WR02X9406 GEN WR02X9406 Contact Us For Availability
8305
GEN WR02X9405 GEN WR02X9405 Contact Us For Availability
8311
GEN WR32X1566 GEN WR32X1566 Contact Us For Availability
8313
GEN WR21X0206 GEN WR21X0206 Contact Us For Availability
8333
GEN WR23X0476 GEN WR23X0476 Contact Us For Availability
8335
GEN WR17X4159 GEN WR17X4159 Contact Us For Availability
8351
GEN WR02X9400 GEN WR02X9400 Contact Us For Availability
8358
GEN WR71X2682 GEN WR71X2682 Contact Us For Availability
8359
GEN WR22X0516 GEN WR22X0516 Contact Us For Availability
8360
GEN WR22X0517 GEN WR22X0517 Contact Us For Availability
8363
GEN WR32X1567 GEN WR32X1567 Contact Us For Availability
8368
GEN WR02X9428 GEN WR02X9428 Contact Us For Availability
8377
GEN WR02X9413 GEN WR02X9413 Contact Us For Availability
8416
GEN WR12X1051 GEN WR12X1051 Contact Us For Availability
8417
GEN WR17X3020 GEN WR17X3020 Contact Us For Availability
8446
GEN WR02X9401 GEN WR02X9401 Contact Us For Availability
8518
GEN WR38X2244 GEN WR38X2244 Contact Us For Availability
8521
GEN WR71X2678 GEN WR71X2678 Contact Us For Availability
8523
GEN WR71X2680 GEN WR71X2680 Contact Us For Availability
8539
GEN WR02X9414 GEN WR02X9414 Contact Us For Availability
8571
GEN WR14X0485 GEN WR14X0485 Contact Us For Availability
8575
GEN WR32X1546 GEN WR32X1546 Contact Us For Availability
8581
GEN WR32X1547 GEN WR32X1547 Contact Us For Availability
8584
GEN WR17X4274 GEN WR17X4274 Contact Us For Availability
8599
GEN WR13X0766 GEN WR13X0766 Contact Us For Availability
8630
GEN WR02X9449 GEN WR02X9449 Contact Us For Availability
8647
GEN WR32X1552 GEN WR32X1552 Contact Us For Availability
8653
GEN WR02X9427 GEN WR02X9427 Contact Us For Availability
8658
GEN WR02X9404 GEN WR02X9404 Contact Us For Availability
× ![]()
