Model GE ZIC360NXARH Refrigerator – Common Parts & Diagrams
CONTROLS & COMPONENTS

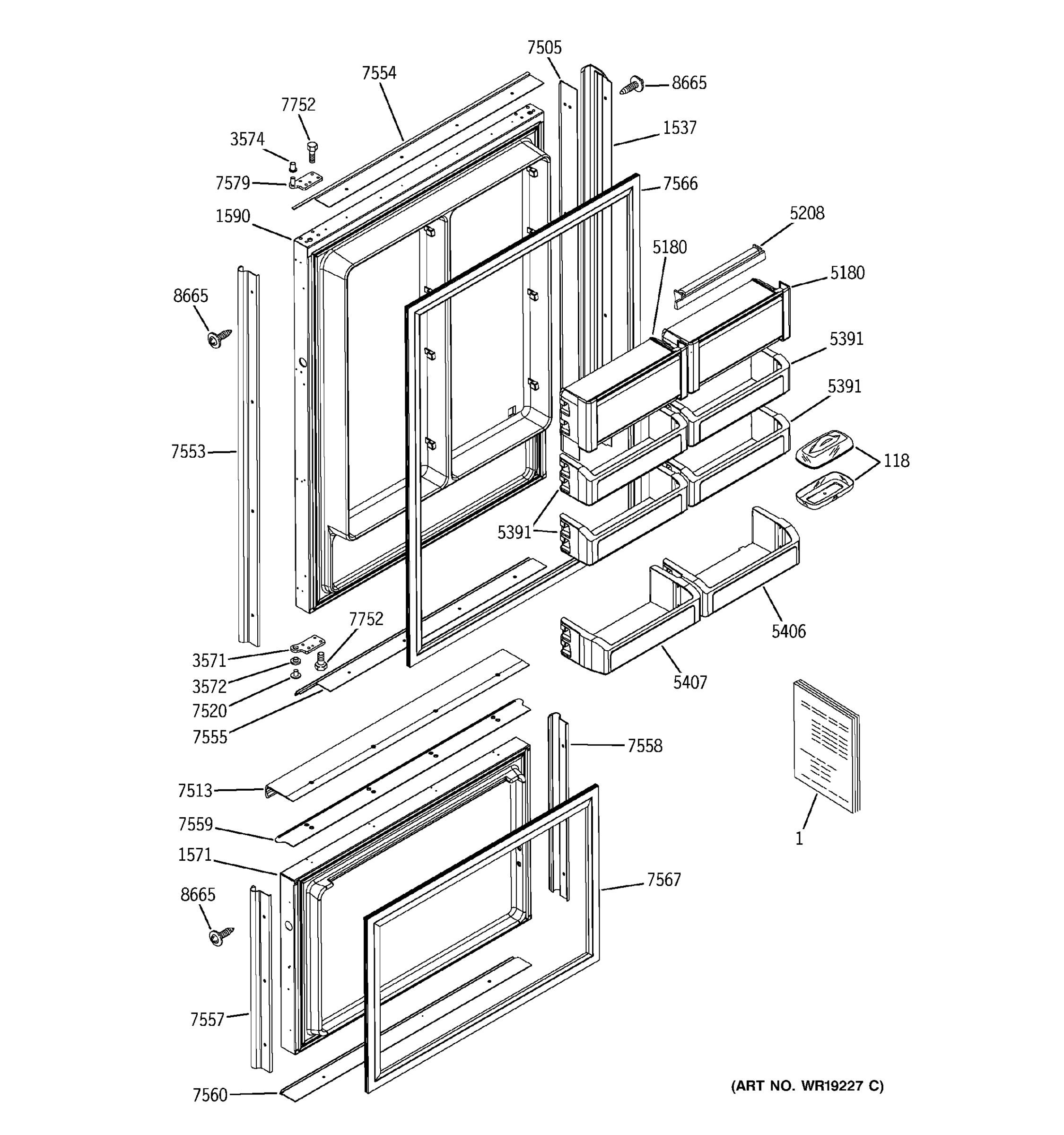

DOORS

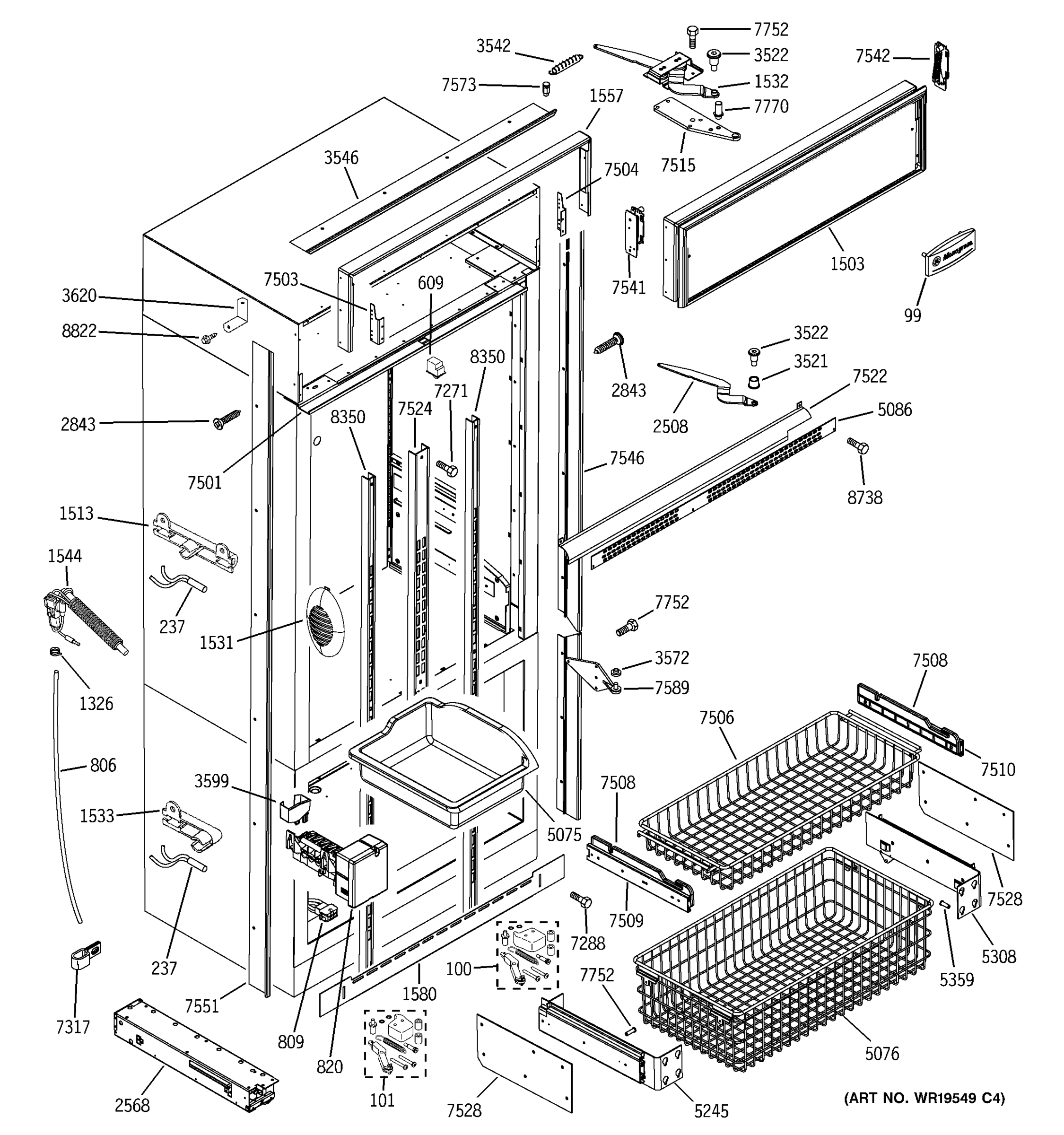

FREEZER SECTION, TRIM & COMPONENTS

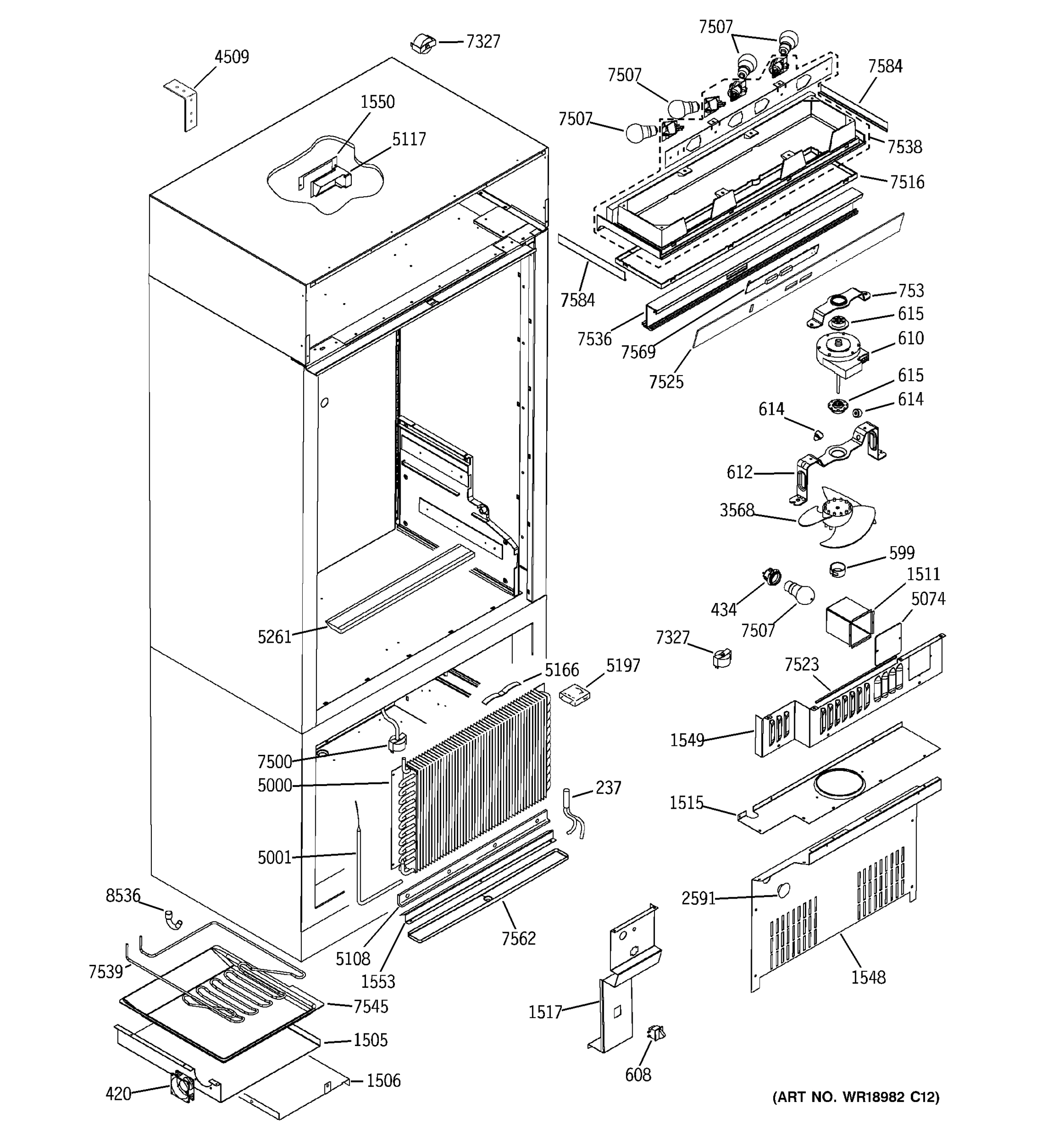

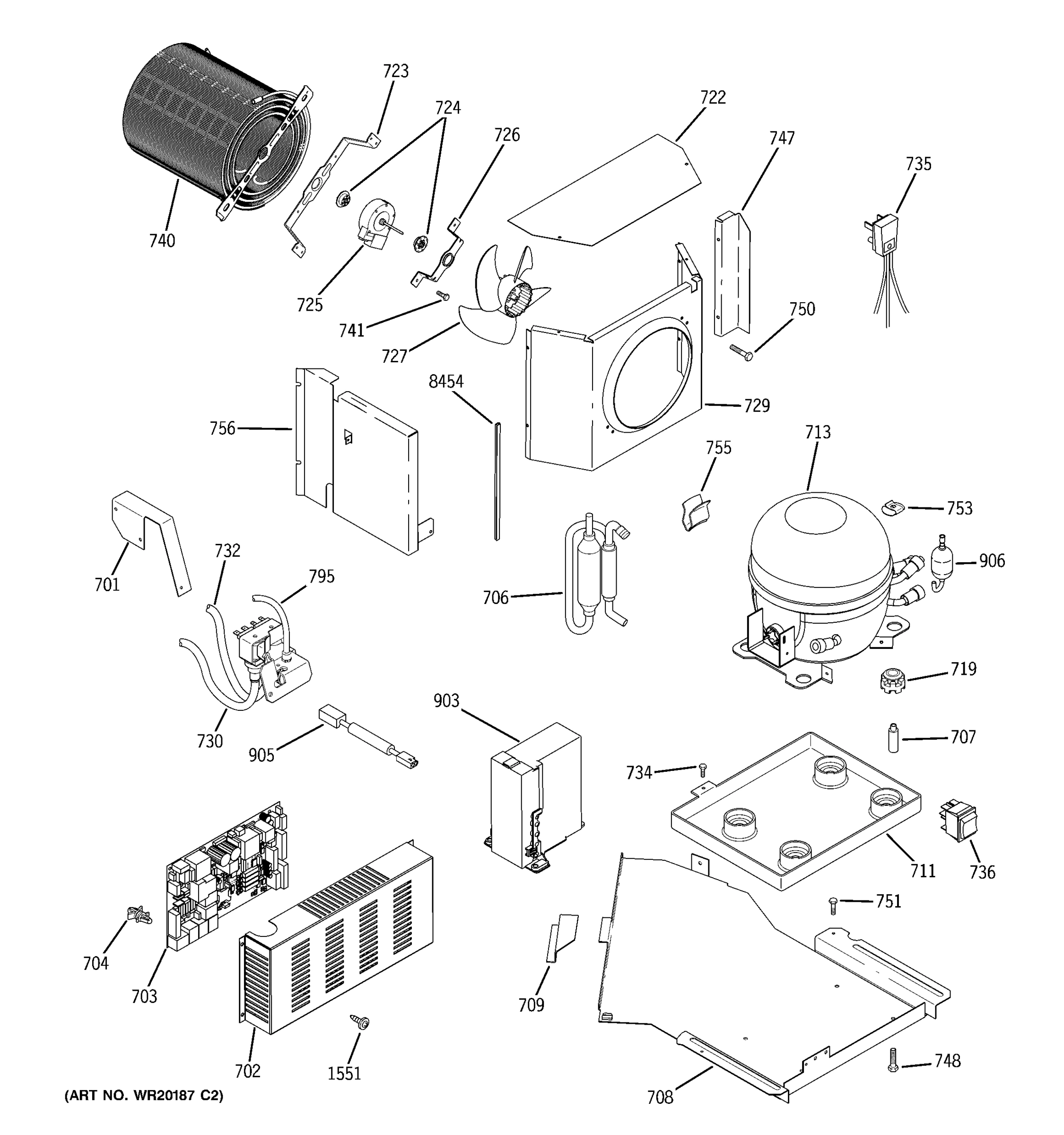

SEALED SYSTEM & MOTHER BOARD

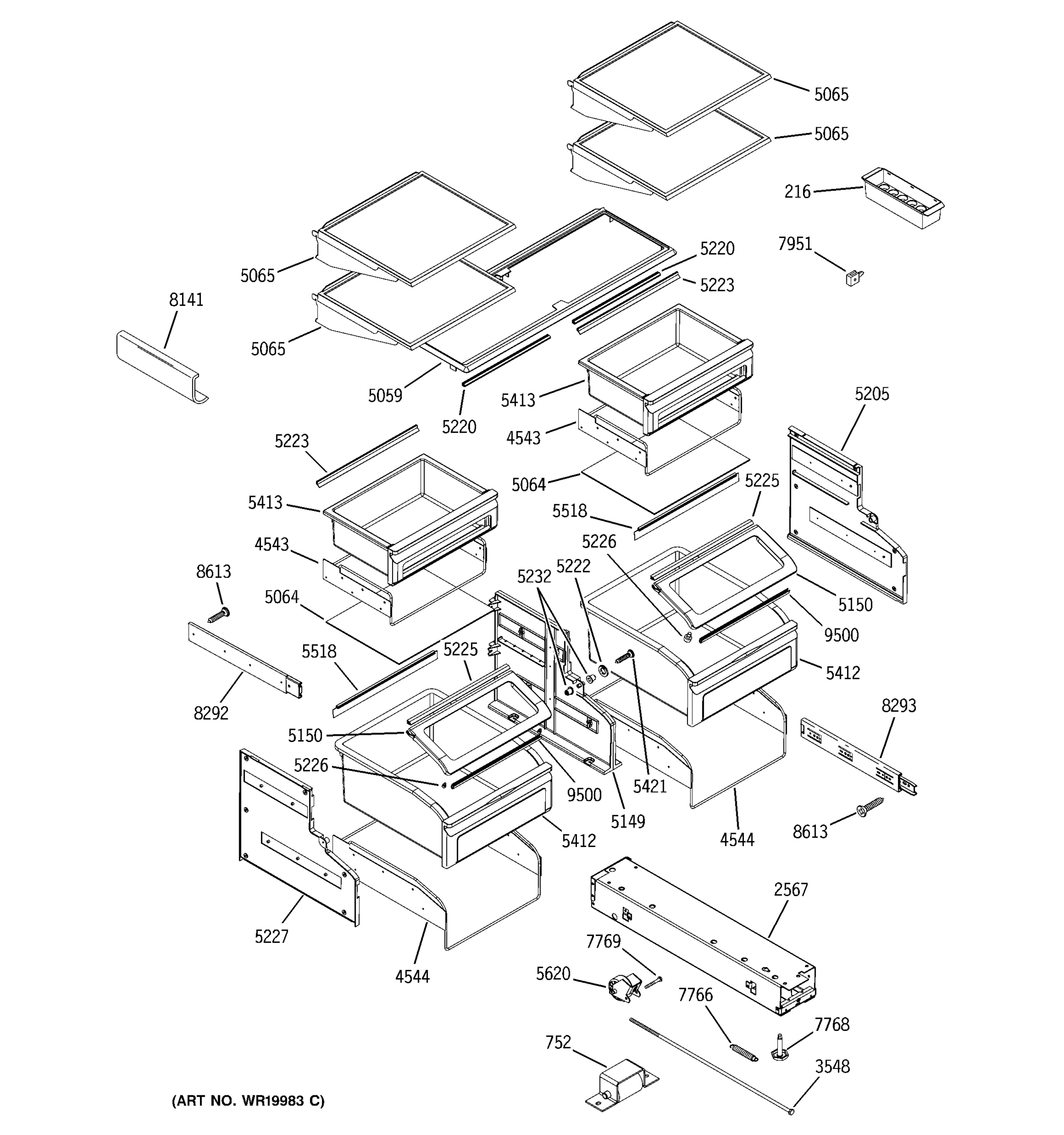

SHELVES & DRAWERS
Common parts from model GE ZIC360NXARH Refrigerator
100
GEN WR49X10168 GEN WR49X10168 Contact Us For Availability
101
GEN WR49X10169 GEN WR49X10169 Contact Us For Availability
216
GEN WR32X1435 GEN WR32X1435 Contact Us For Availability
420
GEN WR60X10225 GEN WR60X10225 Contact Us For Availability
434
LIGHT SOCKET #3407B GEN WR02X11626 Contact Us For Availability
599
GEN WR02X12149 GEN WR02X12149 Contact Us For Availability
612
GEN WR02X10653 GEN WR02X10653 Contact Us For Availability
614
GEN WR02X10540 GEN WR02X10540 Contact Us For Availability
703
GEN WR55X11070 GEN WR55X11070 Contact Us For Availability
723
GEN WR02X11863 GEN WR02X11863 Contact Us For Availability
724
GROMMET COND FAN GEN WR02X10520 Contact Us For Availability
725
GEN WR87X10111 GEN WR87X10111 Contact Us For Availability
735
POWER CORD ASM GEN WR23X10300 Contact Us For Availability
820
GEN WR30X10093 GEN WR30X10093 Contact Us For Availability
1548
GEN WR74X10293 GEN WR74X10293 Contact Us For Availability
1550
GEN WR17X11009 GEN WR17X11009 Contact Us For Availability
1580
GEN WR74X10089 GEN WR74X10089 Contact Us For Availability
2508
CAM ACTUATOR GEN WR02X10948 Contact Us For Availability
2843
GEN WR01X10065 GEN WR01X10065 Contact Us For Availability
3521
BUSHING ARM GEN WR02X10951 Contact Us For Availability
3522
GEN WR01X10752 GEN WR01X10752 Contact Us For Availability
3571
GEN WR13X10657 GEN WR13X10657 Contact Us For Availability
3572
GEN WR02X10953 GEN WR02X10953 Contact Us For Availability
3574
GEN WR02X10954 GEN WR02X10954 Contact Us For Availability
5000
GEN WR85X10118 GEN WR85X10118 Contact Us For Availability
5001
GEN WR51X10015 GEN WR51X10015 Contact Us For Availability
5064
GEN WR32X10073 GEN WR32X10073 Contact Us For Availability
5065
GEN WR32X10074 GEN WR32X10074 Contact Us For Availability
5074
GEN WR17X10347 GEN WR17X10347 Contact Us For Availability
5075
GEN WR32X10075 GEN WR32X10075 Contact Us For Availability
5108
GEN WR17X10349 GEN WR17X10349 Contact Us For Availability
5150
GEN WR32X10119 GEN WR32X10119 Contact Us For Availability
5166
WIRE RETAINER EVAP HEATE GEN WR01X10045 Contact Us For Availability
5197
GEN WR02X10145 GEN WR02X10145 Contact Us For Availability
5222
GEN WR01X10046 GEN WR01X10046 Contact Us For Availability
5223
SEAL, RR SNACK PAN GEN WR14X10011 Contact Us For Availability
5225
SEAL, FRT VEG PAN GLASS GEN WR14X10012 Contact Us For Availability
5226
GEN WR01X10047 GEN WR01X10047 Contact Us For Availability
5227
SUPPORT, SLIDE LH GEN WR72X10013 Contact Us For Availability
5232
BUSHING, SHOWCASE PIVOT GEN WR01X10048 Contact Us For Availability
5245
GEN WR72X10124 GEN WR72X10124 Contact Us For Availability
5359
SCREW, TRUSS HD 1/4-20 X GEN WR01X10049 Contact Us For Availability
5391
BIN, FF DOOR W/WINDOW GEN WR71X10138 Contact Us For Availability
5406
BIN, DOOR FF DEEP RH GEN WR71X10139 Contact Us For Availability
5407
BIN, DOOR FF DEEP LH GEN WR71X10140 Contact Us For Availability
5412
GEN WR32X10077 GEN WR32X10077 Contact Us For Availability
5413
GEN WR32X10078 GEN WR32X10078 Contact Us For Availability
5421
SCREW, #8 18 X 3/4 GEN WR01X10050 Contact Us For Availability
5518
GEN WR14X10014 GEN WR14X10014 Contact Us For Availability
7508
GEN WR72X10080 GEN WR72X10080 Contact Us For Availability
7509
GEN WR72X10081 GEN WR72X10081 Contact Us For Availability
7510
GEN WR72X10082 GEN WR72X10082 Contact Us For Availability
7515
GEN WR13X10656 GEN WR13X10656 Contact Us For Availability
7528
GEN WR72X10085 GEN WR72X10085 Contact Us For Availability
7539
GEN WR84X10083 GEN WR84X10083 Contact Us For Availability
7541
GRILL HINGE LEFT GEN WR13X10204 Contact Us For Availability
7545
GEN WR17X11016 GEN WR17X11016 Contact Us For Availability
7546
GEN WR17X11562 GEN WR17X11562 Contact Us For Availability
7562
GEN WR17X11098 GEN WR17X11098 Contact Us For Availability
7569
GEN WR55X10918 GEN WR55X10918 Contact Us For Availability
7573
GEN WR01X10258 GEN WR01X10258 Contact Us For Availability
7589
HINGE BTM RH FF CASE ASM GEN WR13X10209 Contact Us For Availability
7766
GEN WR02X11233 GEN WR02X11233 Contact Us For Availability
7768
GEN WR02X10479 GEN WR02X10479 Contact Us For Availability
8141
GEN WR17X10660 GEN WR17X10660 Contact Us For Availability
8292
GEN WR72X10191 GEN WR72X10191 Contact Us For Availability
8293
GEN WR72X10196 GEN WR72X10196 Contact Us For Availability
9500
GEN WR14X10040 GEN WR14X10040 Contact Us For Availability
× ![]()
