Model Whirlpool YWMH76719CS0 MICROWAVE – Common Parts & Diagrams

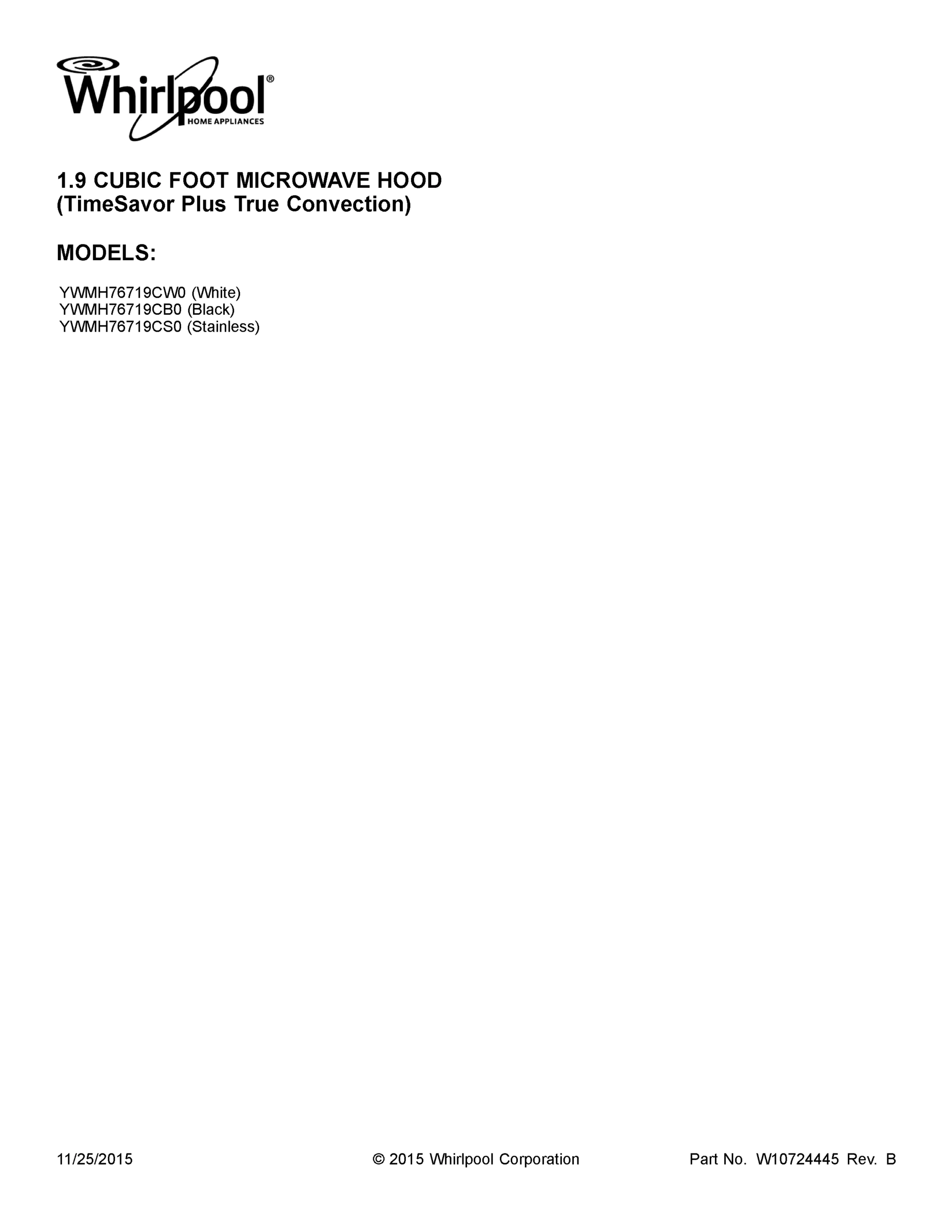

01 - COVER SHEET

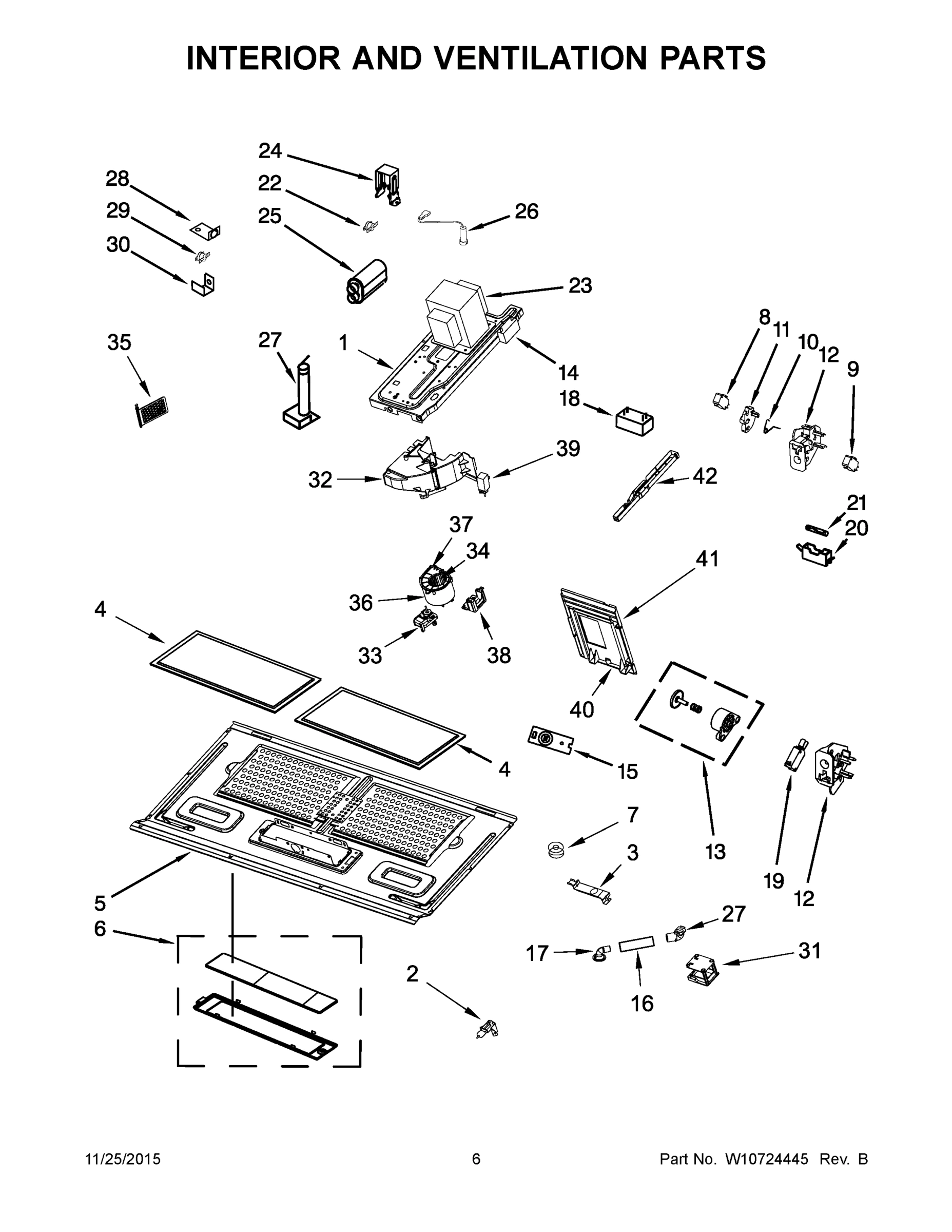

04 - INTERIOR AND VENTILATION PARTS

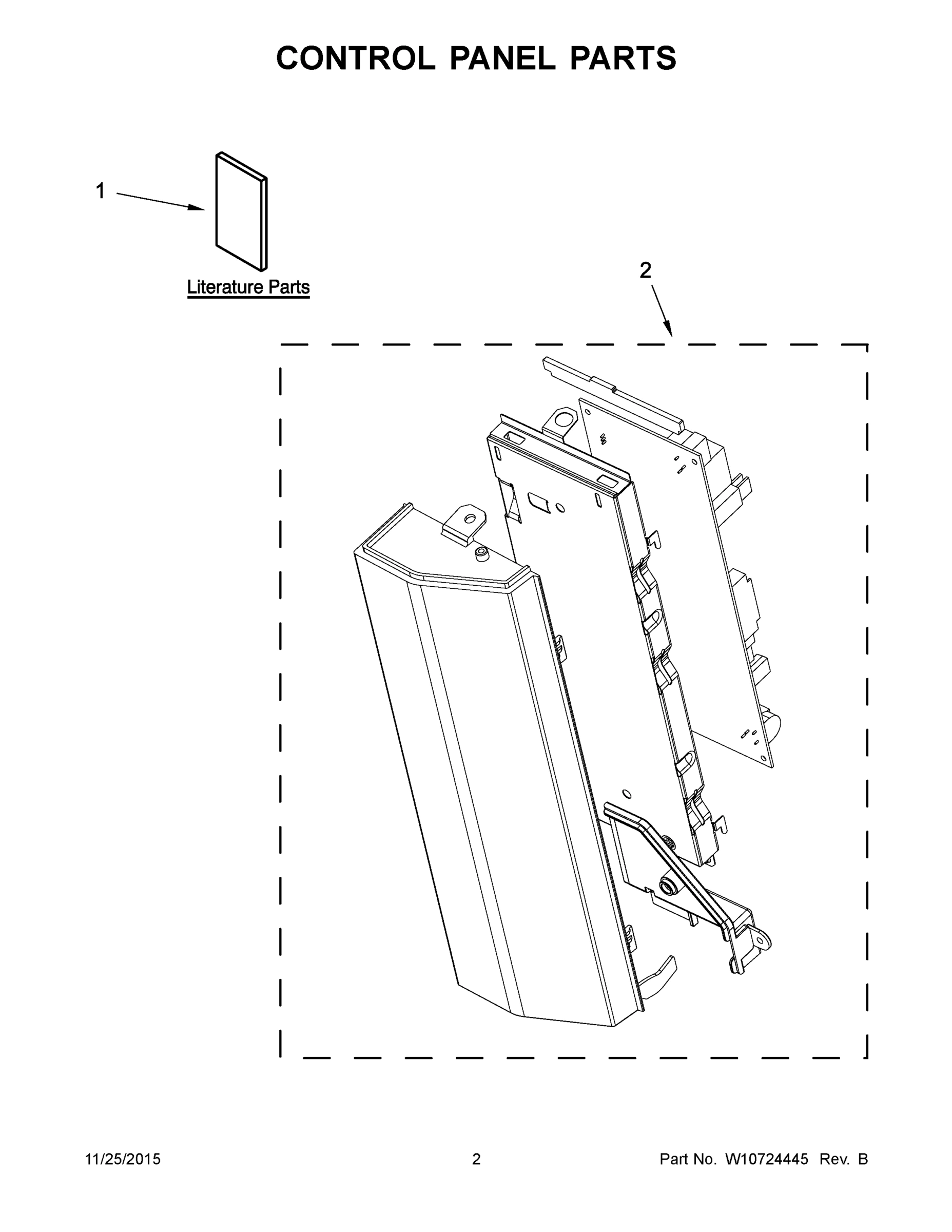

02 - CONTROL PANEL PARTS

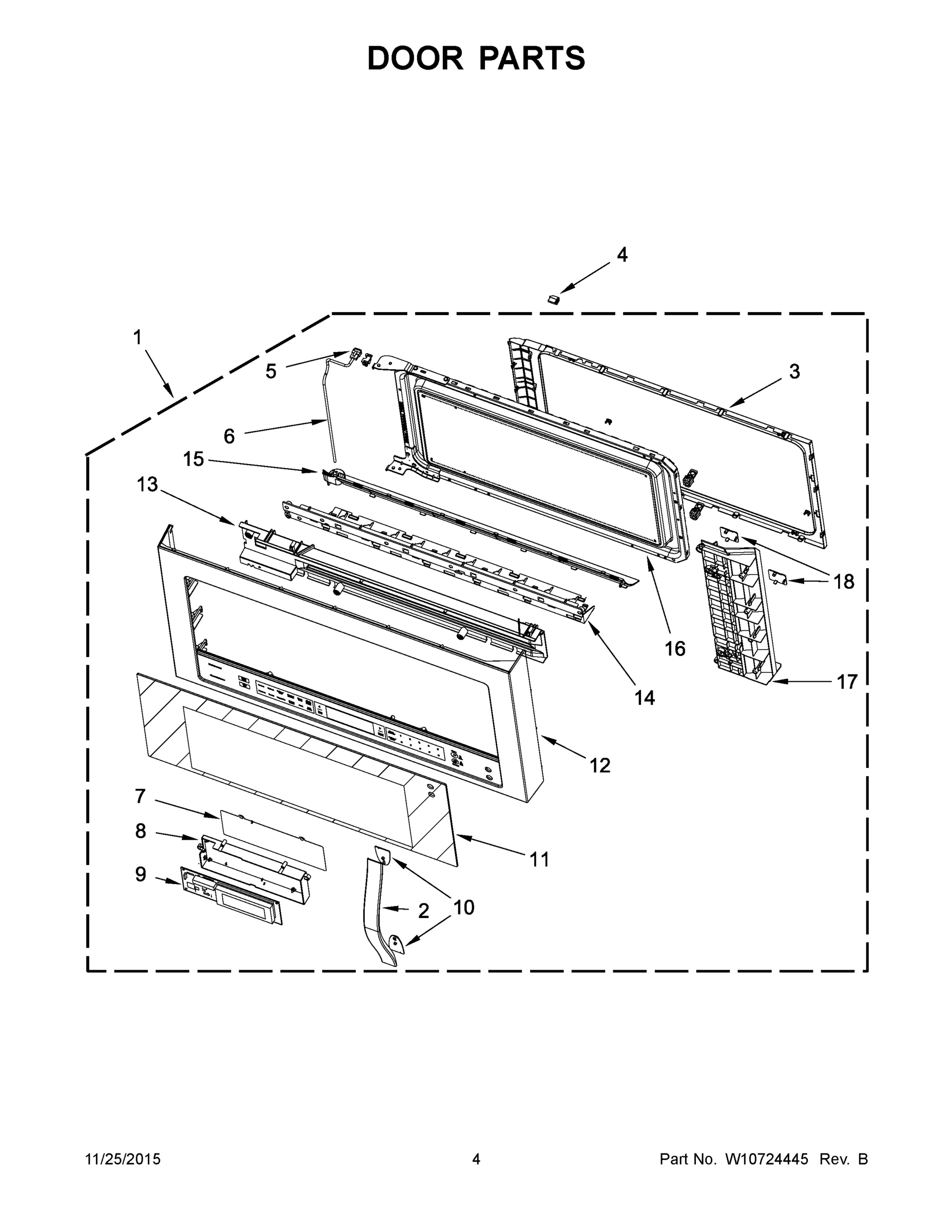

03 - DOOR PARTS

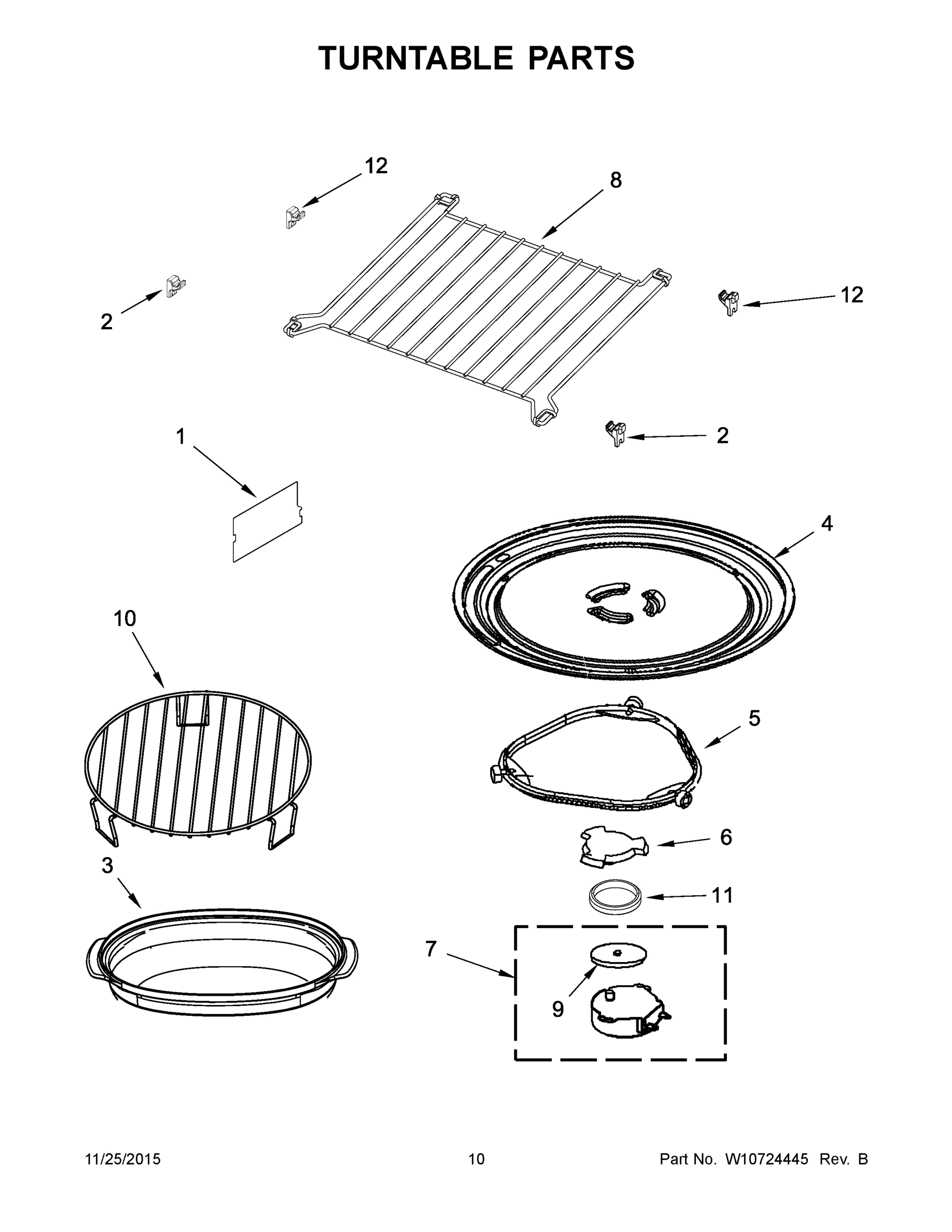

06 - TURNTABLE PARTS

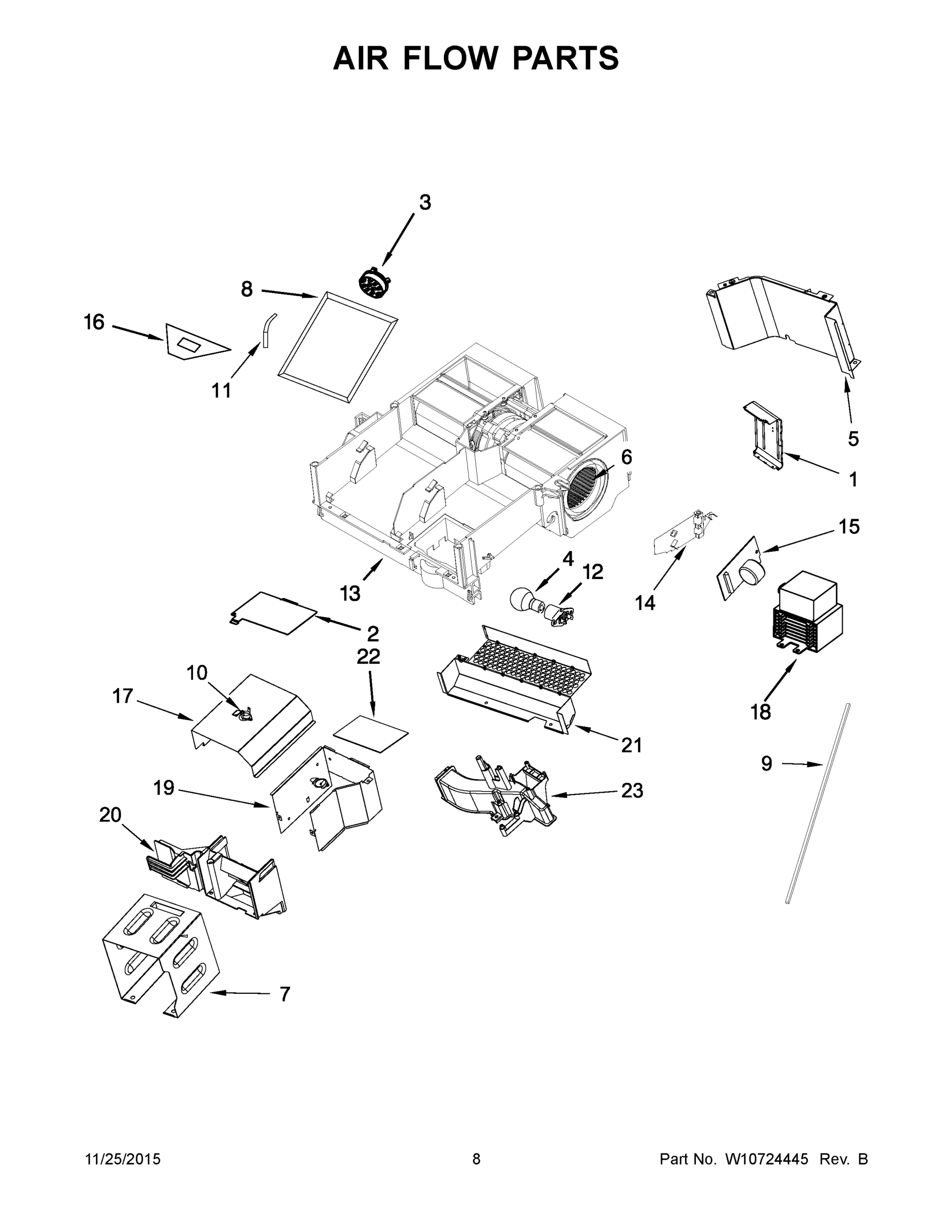

05 - AIR FLOW PARTS

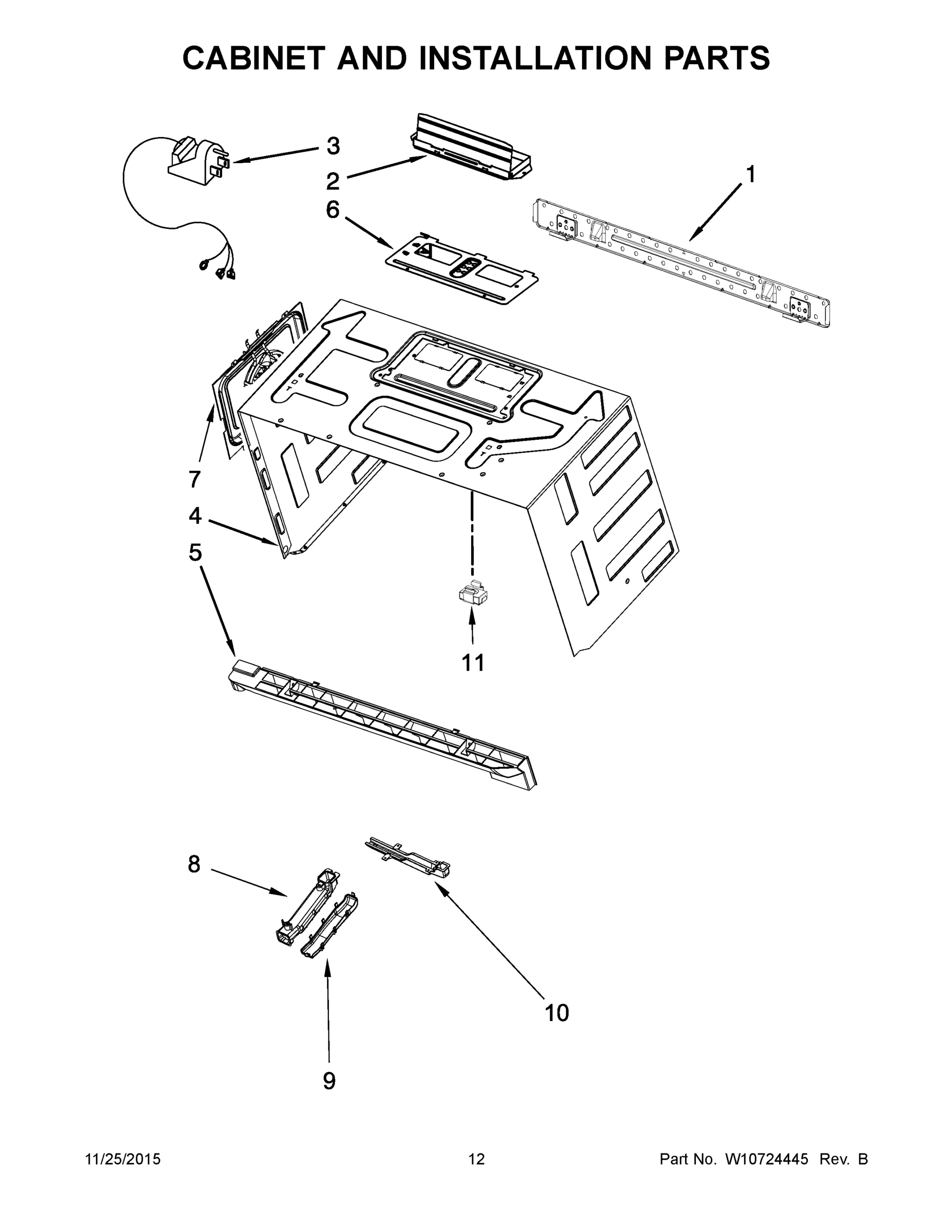

07 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool YWMH76719CS0 MICROWAVE
1B
DOOR, COMPLETE (STAINLESS) WPL W10622227 Contact Us For Availability
2
COVER, LAMP WPL 8206382 Contact Us For Availability
2A
HANDLE (BLACK) WPL W10571332 Contact Us For Availability
2B
HANDLE (STAINLESS) WPL W10478162 Contact Us For Availability
3
CORD, POWER WPL W10708076 Contact Us For Availability
3
SENSOR, HUMIDITY WPL W10557536 Contact Us For Availability
3
FRAME, INNER WPL W10648086 Contact Us For Availability
3
TERMINAL, SMART POP WPL W10525853 Contact Us For Availability
4
FILTER, GREASE WPL W10535950 Contact Us For Availability
4
STOPPER, DOOR WPL W10643448 Contact Us For Availability
5
PLATE, BOTTOM WPL W10571126 Contact Us For Availability
5
GRILLE, VENT (WHITE) WPL W10701700 Contact Us For Availability
5A
GRILLE, VENT (BLACK) WPL W10701701 Contact Us For Availability
6
DRIVER, TURNTABLE WPL W10337248 Contact Us For Availability
6
ASSEMBLY, LAMP GLASS AND HOLDER WPL W10240330 Contact Us For Availability
6
COVER, FAN MOTOR WPL W10625423 Contact Us For Availability
6
WIRE, DOOR CONTROL CABLE WPL W10508745 Contact Us For Availability
7
HOUSING, DAMPER WPL W10556824 Contact Us For Availability
7
ASSEMBLY, CONVECTION MOTOR AND FAN WPL W10722311 Contact Us For Availability
8
RACK, MICROWAVE WPL W10249618 Contact Us For Availability
9
MICROSWITCH V15T16-CC200/NC WPL W10269458 Contact Us For Availability
10
SPRING, INTERLOCK WPL W10156812 Contact Us For Availability
10
RACK, CONVECTION WPL W10440082 Contact Us For Availability
10
DUCT, AIR TURNTABLE MOTOR WPL W10570212 Contact Us For Availability
11
ASSEMBLY, MOUNTING NUT WPL W10596040 Contact Us For Availability
11
SEAL, TURNTABLE BLOCK WPL W10568148 Contact Us For Availability
11
SENSOR, CONVECTION WPL W10557537 Contact Us For Availability
12
ASSEMBLY, DOOR FRAME (WHITE) WPL W10648087 Contact Us For Availability
12B
ASSEMBLY, DOOR FRAME (STAINLESS) WPL W10579828 Contact Us For Availability
13
ASSEMBLY, PISTON WPL W10197758 Contact Us For Availability
14
BRACKET, DOOR WPL W10476546 Contact Us For Availability
15
THERMISTOR PCBA WPL W10536989 Contact Us For Availability
15
FRAME, BACK DECORATING (WHITE) WPL W10570992 Contact Us For Availability
15A
FRAME, BACK DECORATING (BLACK) WPL W10476550 Contact Us For Availability
16
BODY, DOOR (WITH GLASS) WPL W10568846 Contact Us For Availability
16
TUBE, SMART POP SOUND WPL W10510235 Contact Us For Availability
17
TERMINAL, SMART POP WPL W10510234 Contact Us For Availability
18
RESISTOR, CEMENT WPL W10568805 Contact Us For Availability
18A
COVER, SCREW (BLACK) WPL W10478657 Contact Us For Availability
19
SWITCH, MICRO WPL W10211974 Contact Us For Availability
19
DUCT, CAVITY (REAR) WPL W10533483 Contact Us For Availability
20
HOLDER, FUSE WPL W10245194 Contact Us For Availability
20
DUCT, CAVITY (FRONT) WPL W10570209 Contact Us For Availability
21
SHIELD, FINGER (INCLUDES SEAL) WPL W10629803 Contact Us For Availability
25
CAPACITOR, HIGH VOLTAGE WPL W10345331 Contact Us For Availability
27
TERMINAL, PCBA SMART POP WPL W10510233 Contact Us For Availability
28
COVER, THERMOSTAT WPL W10259248 Contact Us For Availability
32
MAGNETRON, AIR GUIDE WPL W10631701 Contact Us For Availability
34
WHEEL, COOLING FAN WPL W10533503 Contact Us For Availability
35
VALVE, DOOR WPL W10533486 Contact Us For Availability
36
HOUSING, COOLING FAN WPL W10533501 Contact Us For Availability
37
COVER, COOLING FAN WPL W10533502 Contact Us For Availability
38
HOLDER, NTC WPL W10533480 Contact Us For Availability
39
ACTUATOR WPL W10458325 Contact Us For Availability
40
DEFLECTOR, AIR WPL W10533107 Contact Us For Availability
41
INSULATION, SIDE WPL W10571453 Contact Us For Availability
42
BRACKET, CAVITY WPL W10540718 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR WPL W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER WPL W10190020 Contact Us For Availability
NI
MISCELLANEOUS PARTS, WIRE, DOOR CONTROL CABLE WPL W10508741 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAIN WPL W10622246 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, HEADLAMP AND TU WPL W10530090 Contact Us For Availability
× ![]()
