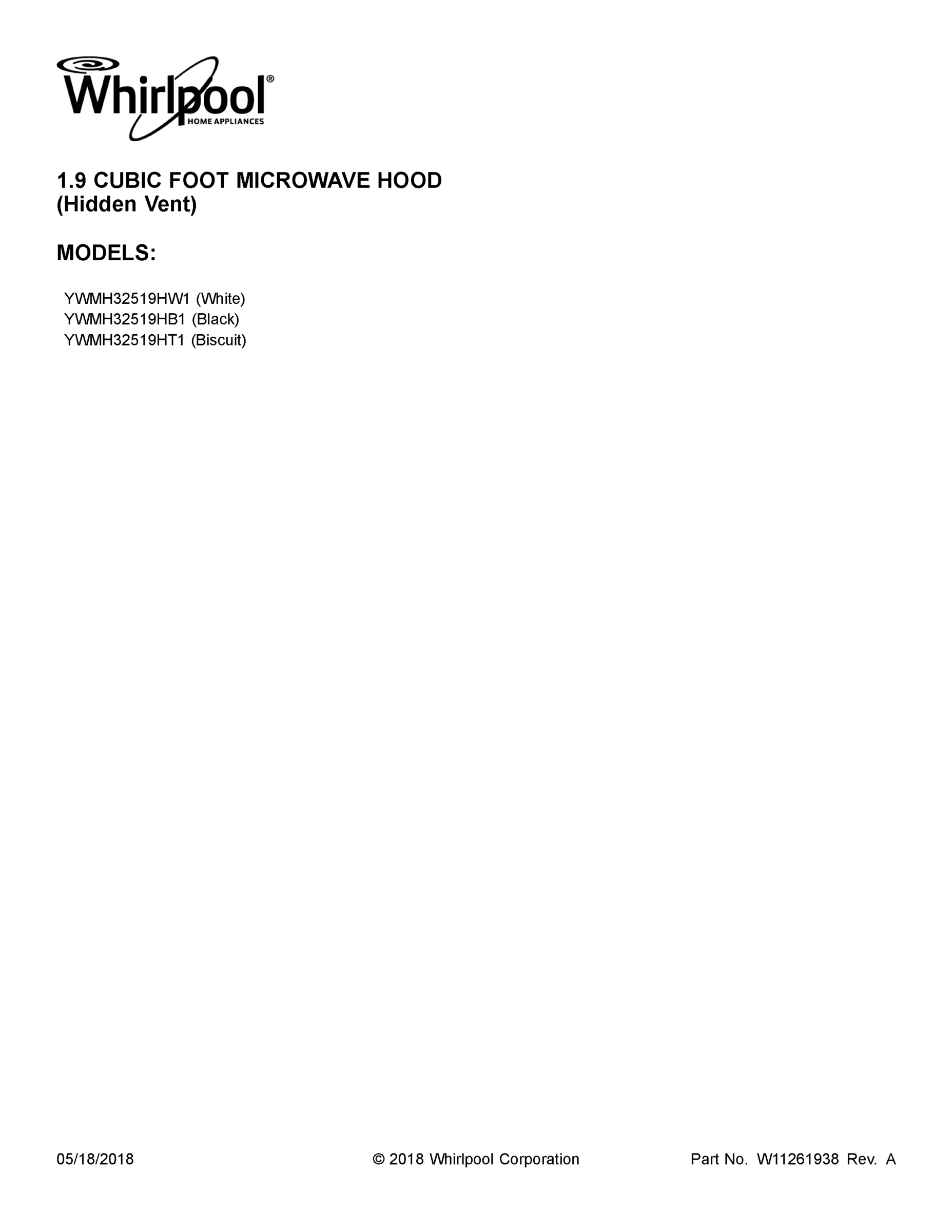

Model Whirlpool YWMH32519HW1 MICROWAVE HOOD, 1.9 CUBIC FOOT – Common Parts & Diagrams

1
PLATE, MOUNTING
PLATE, MOUNTING WPL W11025649 Contact Us For Availability
View on Model
1

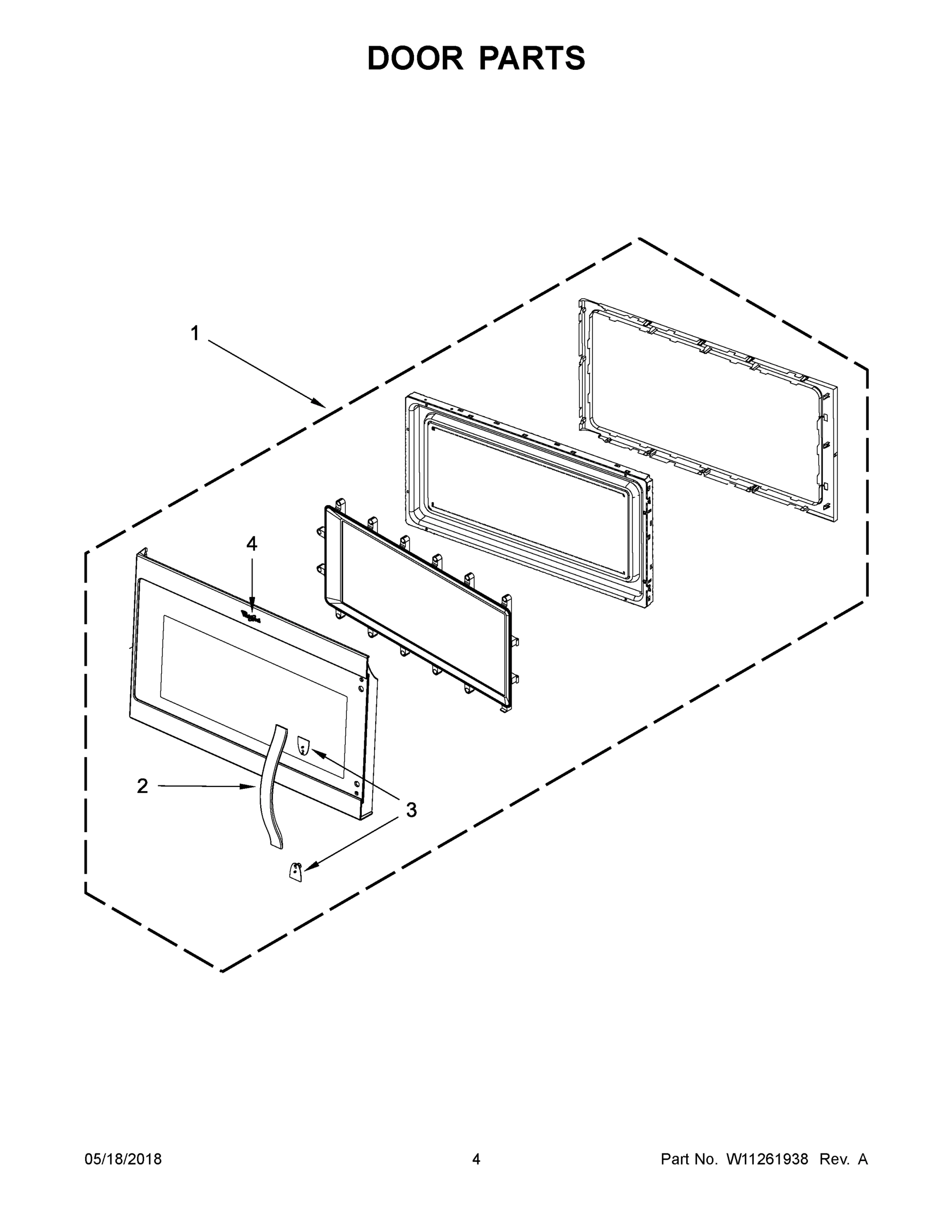

COMPLETE DOOR (WHITE)
COMPLETE DOOR (WHITE) WPL W11247220 Contact Us For Availability
View on Model
1
COVER, WAVEGUIDE
COVER, WAVEGUIDE WPL W10313272 Contact Us For Availability
View on Model
1
BRACKET, TOP CAVITY
BRACKET, TOP CAVITY WPL W10313275 Contact Us For Availability
View on Model
1
DEFLECTOR, AIR
DEFLECTOR, AIR WPL W10471570 Contact Us For Availability
View on Model
1A
COMPLETE DOOR (BLACK)
COMPLETE DOOR (BLACK) WPL W11247223 Contact Us For Availability
View on Model
1B
COMPLETE DOOR (BISCUIT)
COMPLETE DOOR (BISCUIT) WPL W11247375 Contact Us For Availability
View on Model
2
COVER, LAMP
COVER, LAMP WPL 8206382 Contact Us For Availability
View on Model
2
HANDLE (WHITE)
HANDLE (WHITE) WPL W11104884 Contact Us For Availability
View on Model
3
HOLDER, LAMP
HOLDER, LAMP WPL W10210871 Contact Us For Availability
View on Model
3
BACKER, CONTROL
BACKER, CONTROL WPL W10833366 Contact Us For Availability
View on Model
3
SPACER, HANDLE
SPACER, HANDLE WPL W10840544 Contact Us For Availability
View on Model
4
CORD, POWER
CORD, POWER WPL W10708076 Contact Us For Availability
View on Model
4
SEAL, CONTROL
SEAL, CONTROL WPL W10833531 Contact Us For Availability
View on Model
5
PLATE, BOTTOM
PLATE, BOTTOM WPL W10245196 Contact Us For Availability
View on Model
6
MOTOR, TURNTABLE
MOTOR, TURNTABLE WPL W10642989 Contact Us For Availability
View on Model
6
GRILLE, VENT (WHITE)
GRILLE, VENT (WHITE) WPL W10845642 Contact Us For Availability
View on Model
6A
GRILLE, VENT (BLACK)
GRILLE, VENT (BLACK) WPL W10845643 Contact Us For Availability
View on Model
7
ASSEMBLY, LAMP GLASS AND HOLDER
ASSEMBLY, LAMP GLASS AND HOLDER WPL W10240330 Contact Us For Availability
View on Model
7
COVER, FAN MOTOR
COVER, FAN MOTOR WPL W10625423 Contact Us For Availability
View on Model
9
SPRING, INTERLOCK
SPRING, INTERLOCK WPL W10156812 Contact Us For Availability
View on Model
10
PLATE, CAM
PLATE, CAM WPL W10562613 Contact Us For Availability
View on Model
12
PLATE, AIR GUIDE BASE
PLATE, AIR GUIDE BASE WPL W10828030 Contact Us For Availability
View on Model
13
THERMISTOR
THERMISTOR WPL W10163422 Contact Us For Availability
View on Model
13
SHIELD, FINGER
SHIELD, FINGER WPL W10342991 Contact Us For Availability
View on Model
16
THERMOSTAT, MAGNETRON
THERMOSTAT, MAGNETRON WPL W10832024 Contact Us For Availability
View on Model
19
THERMOSTAT, CAVITY
THERMOSTAT, CAVITY WPL W10269232 Contact Us For Availability
View on Model
21
BRACKET, CAPACITOR
BRACKET, CAPACITOR WPL W10532063 Contact Us For Availability
View on Model
22
CAPACITOR, HIGH VOLTAGE
CAPACITOR, HIGH VOLTAGE WPL 8206562 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION WPL W10821385 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH WPL W10190018 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR WPL W10539840 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARNESS, LAMP AND TURNTA
MISCELLANEOUS PARTS, HARNESS, LAMP AND TURNTA WPL W10543253 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HI
MISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HI WPL W10498567 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH WPL W10190020 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARNESS, MAIN
MISCELLANEOUS PARTS, HARNESS, MAIN WPL W11219761 Contact Us For Availability
View on Model
