Model Maytag YMER8600DH0 ELECTRIC RANGE – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS
03 - CONTROL PANEL PARTS

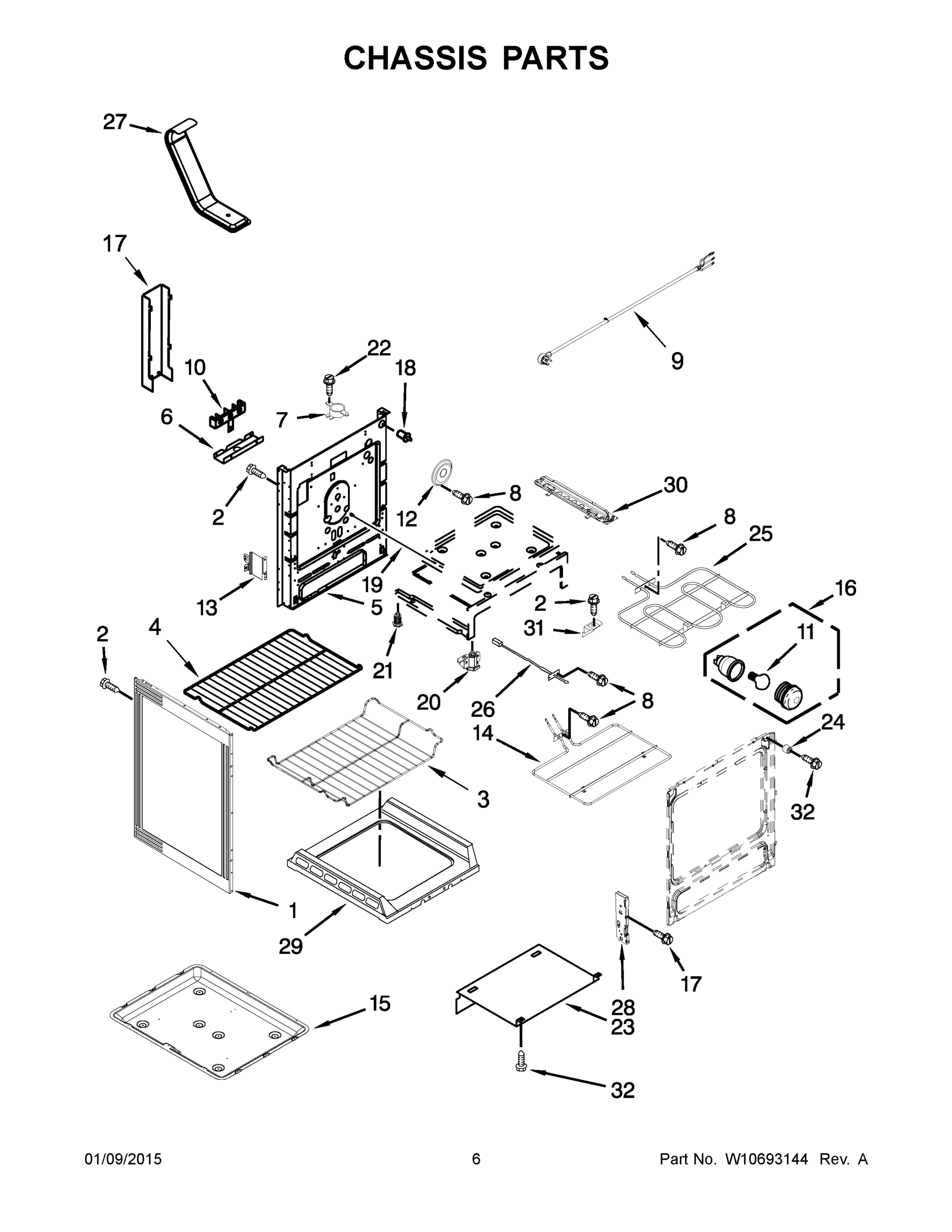

04 - CHASSIS PARTS

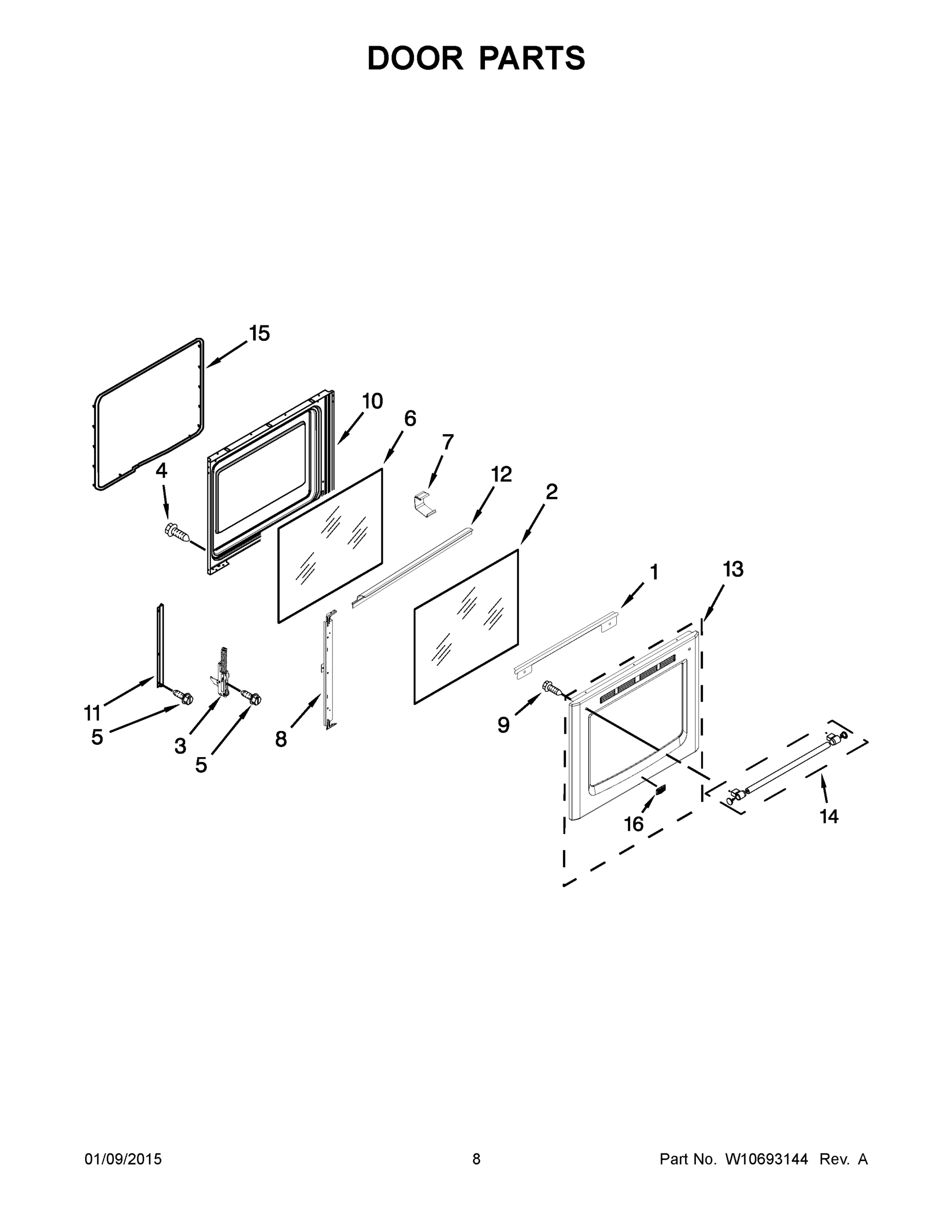

05 - DOOR PARTS

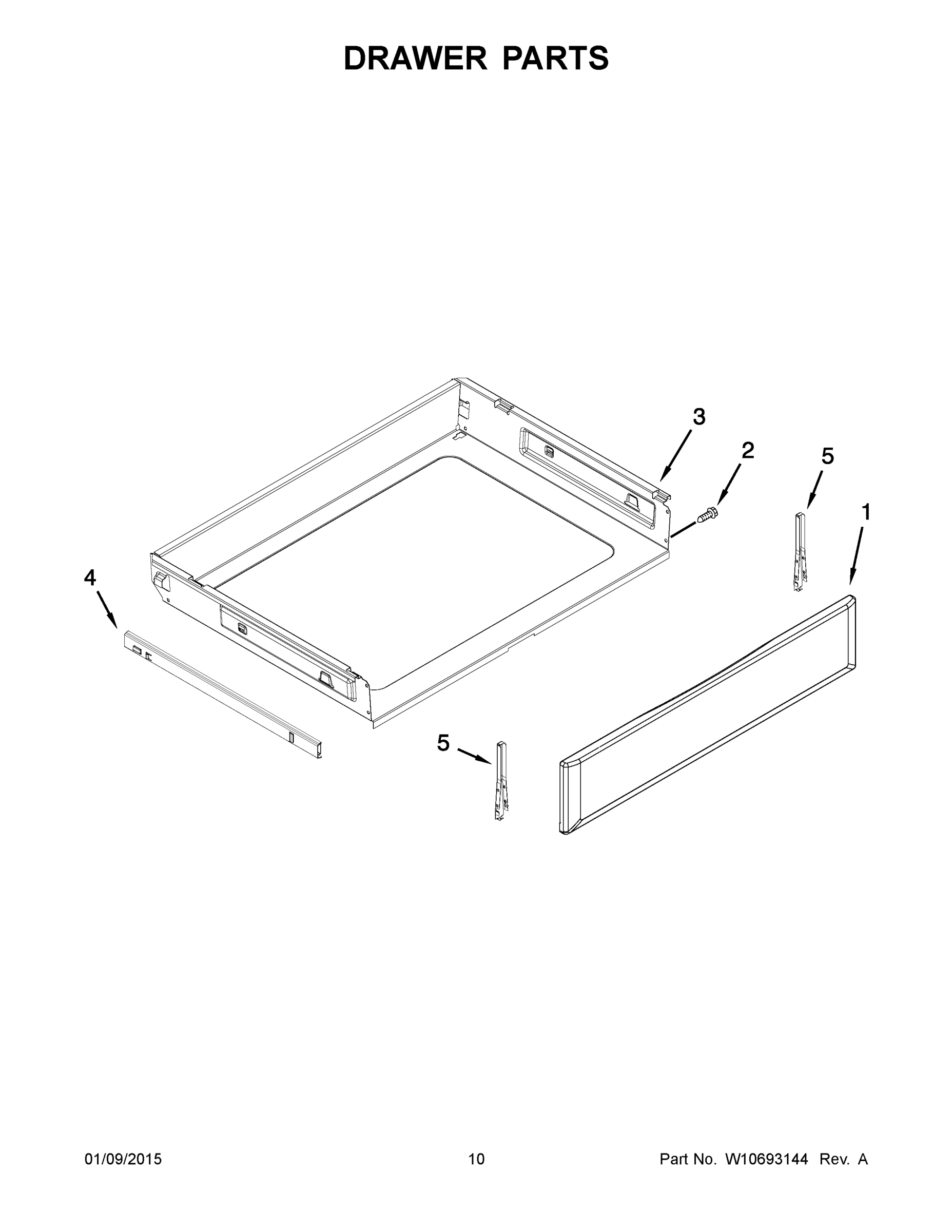

06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMER8600DH0 ELECTRIC RANGE
1
MAY W10667171 MAY W10667171 Contact Us For Availability
1
MAY W10655879 MAY W10655879 Contact Us For Availability
1
MAY W10322769 MAY W10322769 Contact Us For Availability
1
MAY W10330075 MAY W10330075 Contact Us For Availability
1
MAY W10289102 MAY W10289102 Contact Us For Availability
1A
MAY W10667167 MAY W10667167 Contact Us For Availability
1A
MAY W10655880 MAY W10655880 Contact Us For Availability
1A
MAY W10322770 MAY W10322770 Contact Us For Availability
1A
TRIM, VENT (BLACK) MAY W10339814 Contact Us For Availability
1A
MAY W10289103 MAY W10289103 Contact Us For Availability
1B
MAY W10667174 MAY W10667174 Contact Us For Availability
1B
MAY W10655881 MAY W10655881 Contact Us For Availability
1B
MAY W10289104 MAY W10289104 Contact Us For Availability
1C
MAY W10400064 MAY W10400064 Contact Us For Availability
1D
MAY W10400065 MAY W10400065 Contact Us For Availability
1E
MAY W10403811 MAY W10403811 Contact Us For Availability
1F
MAY 9762761 MAY 9762761 Contact Us For Availability
1G
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
MAY W10655892 MAY W10655892 Contact Us For Availability
2
MAY 3196165 MAY 3196165 Contact Us For Availability
2
MAY 3196178 MAY 3196178 Contact Us For Availability
2
MAY 8523265 MAY 8523265 Contact Us For Availability
2
MAY W10615599 MAY W10615599 Contact Us For Availability
2A
MAY W10655896 MAY W10655896 Contact Us For Availability
3
MAY 3195060 MAY 3195060 Contact Us For Availability
3
MAY 3400882 MAY 3400882 Contact Us For Availability
3
HINGE, DOOR (ACTIVE) MAY W10388635 Contact Us For Availability
3
MAY W10663433 MAY W10663433 Contact Us For Availability
4
ELEMENT (3000/1400W) (LEFT FRONT) MAY W10275048 Contact Us For Availability
4
MAY 3148951 MAY 3148951 Contact Us For Availability
4
MAY W10531060 MAY W10531060 Contact Us For Availability
4
MAY W10031790 MAY W10031790 Contact Us For Availability
4
MAY W10441804 MAY W10441804 Contact Us For Availability
4A
SWITCH, INFINITE (LEFT FRONT) MAY W10434452 Contact Us For Availability
4A
MAY W10441805 MAY W10441805 Contact Us For Availability
4B
SWITCH, INFINITE (RIGHT FRONT) MAY W10411934 Contact Us For Availability
5
ELEMENT (3200W) (RIGHT FRONT) MAY W10251108 Contact Us For Availability
5
MAY W10525121 MAY W10525121 Contact Us For Availability
5
MAY W10362924 MAY W10362924 Contact Us For Availability
5
MAY W10289149 MAY W10289149 Contact Us For Availability
5
MAY W10318027 MAY W10318027 Contact Us For Availability
6
MAY 8273994 MAY 8273994 Contact Us For Availability
6
MAY W10655829 MAY W10655829 Contact Us For Availability
6
MAY 3186034 MAY 3186034 Contact Us For Availability
6
GLASS, INNER MAY W10300487 Contact Us For Availability
6A
MAY W10655832 MAY W10655832 Contact Us For Availability
6B
MAY W10655837 MAY W10655837 Contact Us For Availability
7
MAY 7101P485-60 MAY 7101P485-60 Contact Us For Availability
7
END CAP (WHITE (LEFT HAND)) MAY W10184433 Contact Us For Availability
7
MAY 3196548 MAY 3196548 Contact Us For Availability
7
MAY W10137382 MAY W10137382 Contact Us For Availability
7A
END CAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
8
PAN, RADIANT ELEMENT MAY W10106409 Contact Us For Availability
8
MAY 3196068 MAY 3196068 Contact Us For Availability
8
MAY W10294851 MAY W10294851 Contact Us For Availability
9
MAY W10225448 MAY W10225448 Contact Us For Availability
9
MAY W10324410 MAY W10324410 Contact Us For Availability
9
CORD, POWER MAY W10233363 Contact Us For Availability
9
MAY W10241367 MAY W10241367 Contact Us For Availability
10
MAY 8272473 MAY 8272473 Contact Us For Availability
10
MAY W10246624 MAY W10246624 Contact Us For Availability
10
MAY W10297318 MAY W10297318 Contact Us For Availability
11
MAY W10134247 MAY W10134247 Contact Us For Availability
11
MAY 311255 MAY 311255 Contact Us For Availability
11
MAY W10294852 MAY W10294852 Contact Us For Availability
12
MAY W10306542 MAY W10306542 Contact Us For Availability
12
END CAP (WHITE (RIGHT HAND)) MAY W10184434 Contact Us For Availability
12
MAY W10346152 MAY W10346152 Contact Us For Availability
12
MAY W10294853 MAY W10294853 Contact Us For Availability
12A
END CAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
13
MAY W10666901 MAY W10666901 Contact Us For Availability
13
MAY W10273002 MAY W10273002 Contact Us For Availability
13
MAY W10655831 MAY W10655831 Contact Us For Availability
13A
MAY W10655834 MAY W10655834 Contact Us For Availability
13B
MAY W10655838 MAY W10655838 Contact Us For Availability
14
MAY W10289097 MAY W10289097 Contact Us For Availability
14
HANDLE, ASSEMBLY (STAINLESS) MAY W10665831 Contact Us For Availability
15
MAY W10346147 MAY W10346147 Contact Us For Availability
15
MAY W10162385 MAY W10162385 Contact Us For Availability
16
CIRCUIT BREAKER (WHITE) MAY 9757601 Contact Us For Availability
16
MAY W10454648 MAY W10454648 Contact Us For Availability
16
MAY W10636267 MAY W10636267 Contact Us For Availability
16A
CIRCUIT BREAKER (BLACK) MAY 9757602 Contact Us For Availability
17
RECEPTACLE (WHITE) MAY W10203476 Contact Us For Availability
17
MAY W10326122 MAY W10326122 Contact Us For Availability
17A
RECEPTACLE (BLACK) MAY W10203475 Contact Us For Availability
18
MAY W10627802 MAY W10627802 Contact Us For Availability
19
MAY W10273192 MAY W10273192 Contact Us For Availability
20
MAY W10341186 MAY W10341186 Contact Us For Availability
21
MAY W10058460 MAY W10058460 Contact Us For Availability
22
MAY 3196172 MAY 3196172 Contact Us For Availability
23
SHIELD, HEAT MAY W10289099 Contact Us For Availability
24
SPACER, DOOR MAY 9758701 Contact Us For Availability
25
ELEMENT, BROIL MAY W10544951 Contact Us For Availability
26
MAY W10181986 MAY W10181986 Contact Us For Availability
27
MAY W10134285 MAY W10134285 Contact Us For Availability
28
MAY W10289077 MAY W10289077 Contact Us For Availability
29
MAY W10289079 MAY W10289079 Contact Us For Availability
30
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
30A
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
31
MAY W10035900 MAY W10035900 Contact Us For Availability
32
MAY 3196560 MAY 3196560 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, SENSOR MAY W10083650 Contact Us For Availability
NI
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
NI
MAY W10349696 MAY W10349696 Contact Us For Availability
NI
HARNESS, MAIN MAY W10580274 Contact Us For Availability
NI
MAY W10580275 MAY W10580275 Contact Us For Availability
NI
ACCESSORIES, RACK, OVEN (GULL-WING) MAY W10289145 Contact Us For Availability
NI
MAY 4820F015-59 MAY 4820F015-59 Contact Us For Availability
NI
MAY W10194393 MAY W10194393 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10225523 Contact Us For Availability
NI
MAY W10225524 MAY W10225524 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, PROTECTANT, COOKTOP MAY 31463A Contact Us For Availability
NI
ACCESSORIES, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
ACCESSORY PARTS, GLASS CLEANER MAY 3191048 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
ACCESSORIES, GRIDDLE MAY 4396096RB Contact Us For Availability
NI
ACCESSORIES, BROILER PAN AND GRID MAY 4396923 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
MAY W10205524 MAY W10205524 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
NI
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORIES, KIT, OVEN CLEANING MAY W10423113RP Contact Us For Availability
NI
ACCESSORIES, ALT CLEANING KIT MAY W10432019 Contact Us For Availability
NI
ACCESSORIES, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
× ![]()
