Model Maytag YMER7765WW1 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

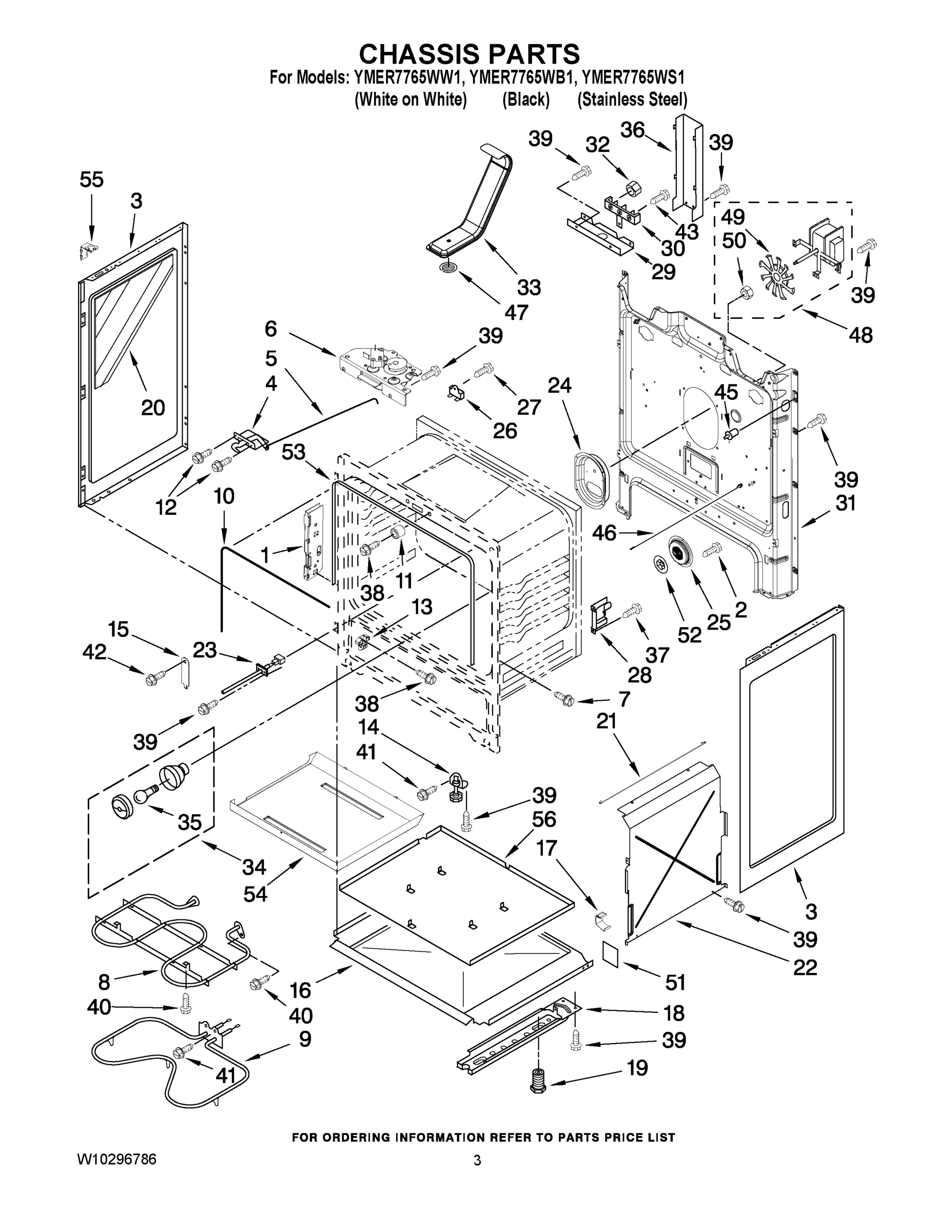

03 - CHASSIS PARTS
04 - DRAWER & BROILER PARTS
05 - DOOR PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag YMER7765WW1 ELECTRIC RANGE
1
Template, Anti-Tip (English/French) MAY 9757143 Contact Us For Availability
1
Safer Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
INSTRUCTIONS, INSTALLATION MAY W10196159 Contact Us For Availability
1
MAY W10234647 MAY W10234647 Contact Us For Availability
1
TECH SHEET (ENGLISH) MAY W10237522 Contact Us For Availability
1
MAY W10237523 MAY W10237523 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
Brkt-Mntg,Dr Hnge MAY 9760407 Contact Us For Availability
1
RACK, OVEN (2) MAY W10268578 Contact Us For Availability
1
MAY W10144869 MAY W10144869 Contact Us For Availability
1
Trim, Top (Black) MAY W10144870 Contact Us For Availability
2
MAY W10162042 MAY W10162042 Contact Us For Availability
2
Clip MAY 8273564 Contact Us For Availability
2
MAY 4449809 MAY 4449809 Contact Us For Availability
2
MAY 9761031 MAY 9761031 Contact Us For Availability
2
MAY W10200660 MAY W10200660 Contact Us For Availability
3
Screw MAY 3196170 Contact Us For Availability
3
MAY W10292026 MAY W10292026 Contact Us For Availability
3
MAY W10292027 MAY W10292027 Contact Us For Availability
3
MAY W10292028 MAY W10292028 Contact Us For Availability
3
MAY 8053830 MAY 8053830 Contact Us For Availability
3
MAY 8053832 MAY 8053832 Contact Us For Availability
3
Bracket, Drawer(2) MAY W10174396 Contact Us For Availability
3
MAY W10111309 MAY W10111309 Contact Us For Availability
3
MAY W10111310 MAY W10111310 Contact Us For Availability
3
HANDLE, DOOR (STAINLESS STEEL) MAY W10171750 Contact Us For Availability
4
MAY W10211392 MAY W10211392 Contact Us For Availability
4
MAY W10211393 MAY W10211393 Contact Us For Availability
4
Switch, Infinite (LR,RR) MAY 3148951 Contact Us For Availability
4
Switch, Infinite (LF,RF) MAY W10149355 Contact Us For Availability
4
Latch, Door MAY 9761013 Contact Us For Availability
4
Rivet, Push (2) (Black) MAY 3196813 Contact Us For Availability
4
Rivet, Push (2) (White) MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
ELEMENT, SURFACE (1200W (LR-RR)) MAY 8523698 Contact Us For Availability
5
ELEMENT, SURFACE (3000/1900W (LF)) MAY W10162040 Contact Us For Availability
5
ELEMENT, SURFACE (3000/1400W - RF) MAY W10169799 Contact Us For Availability
5
MAY W10078380 MAY W10078380 Contact Us For Availability
5
Drawer Front (White) MAY 8053339 Contact Us For Availability
5
Drawer Front (Black) MAY 8053341 Contact Us For Availability
5
MAY W10238912 MAY W10238912 Contact Us For Availability
6
Hinge, Pin/Cooktop MAY 3195060 Contact Us For Availability
6
Lens, Light (2) MAY 3196068 Contact Us For Availability
6
MAY W10107840 MAY W10107840 Contact Us For Availability
6
MAY 8053334 MAY 8053334 Contact Us For Availability
6
Glass, Inner (2) MAY 9758162 Contact Us For Availability
7
MAY 3196169 MAY 3196169 Contact Us For Availability
7
KNOB, INFINITE (4) (WHITE) MAY W10211371 Contact Us For Availability
7
KNOB, INFINITE (4) (BLACK) MAY W10211372 Contact Us For Availability
7
Screw MAY 3196168 Contact Us For Availability
7
MAY W10067840 MAY W10067840 Contact Us For Availability
7
MAY 3186289 MAY 3186289 Contact Us For Availability
8
MAY W10170526 MAY W10170526 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
MAY 9757340 MAY 9757340 Contact Us For Availability
8
INSULATION, DOOR MAY W10278991 Contact Us For Availability
9
Screw (White) MAY 3196166 Contact Us For Availability
9
MAY 9755770 MAY 9755770 Contact Us For Availability
9
CLIP(STLS.MODEL) MAY 9781235 Contact Us For Availability
9
Retainer, Insltn MAY 9761357 Contact Us For Availability
10
Cover, Upper MAY 8272473 Contact Us For Availability
10
Seal, Oven Door MAY 8522416 Contact Us For Availability
10
PANEL(STLS.MODEL) MAY W10217860 Contact Us For Availability
10
Hinge, Door (2) MAY 9761493 Contact Us For Availability
11
MAY W10182322 MAY W10182322 Contact Us For Availability
11
Spacer, Door MAY 9758701 Contact Us For Availability
11
Handle(Stls.Model) MAY W10197980 Contact Us For Availability
11
MAY W10106403 MAY W10106403 Contact Us For Availability
11
GLASS, OUTER DOOR (WHITE) MAY W10106404 Contact Us For Availability
11
GLASS, OUTER DOOR (BLACK) MAY W10106405 Contact Us For Availability
12
MAY W10236245 MAY W10236245 Contact Us For Availability
12
MAY W10236246 MAY W10236246 Contact Us For Availability
12
MAY 3196560 MAY 3196560 Contact Us For Availability
12
TRIM, SIDE (BLACK, RIGHT HAND) MAY 8523165 Contact Us For Availability
12
TRIM, SIDE (WHITE, RIGHT HAND) MAY 8523166 Contact Us For Availability
12
TRIM, SIDE (BLACK, LEFT HAND) MAY 8523171 Contact Us For Availability
12
TRIM, SIDE (WHITE, LEFT HAND) MAY 8523172 Contact Us For Availability
13
MAY W10114344 MAY W10114344 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
SWITCH, ROCKER (BLACK) MAY 3148564 Contact Us For Availability
14
SWITCH, ROCKER (WHITE) MAY 3149360 Contact Us For Availability
14
MAY 3196037 MAY 3196037 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
14
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
15
BRKT, MNTG EOC MAY W10138683 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
16
MAY 3400882 MAY 3400882 Contact Us For Availability
16
CLIP,DR MNTG(2) MAY 9761517 Contact Us For Availability
16
MAY W10134121 MAY W10134121 Contact Us For Availability
17
MAY 3196200 MAY 3196200 Contact Us For Availability
17
Clip, Panel (2) MAY W10137382 Contact Us For Availability
18
RECEPTACLE, BLK MAY W10203475 Contact Us For Availability
18
RECEPTACLE, WHT MAY W10203476 Contact Us For Availability
18
MAY 9760314 MAY 9760314 Contact Us For Availability
18
MAY 3196165 MAY 3196165 Contact Us For Availability
19
BRKR, CIRCUIT WHT MAY 9757601 Contact Us For Availability
19
BRKR, CIRCUIT BLK MAY 9757602 Contact Us For Availability
19
Foot, Rear (2) MAY W10058460 Contact Us For Availability
19
MAY W10031780 MAY W10031780 Contact Us For Availability
20
Insulation, Side MAY W10182346 Contact Us For Availability
20
STRAP, DOOR MAY W10113759 Contact Us For Availability
21
MAY W10196451 MAY W10196451 Contact Us For Availability
22
MAY 9758238 MAY 9758238 Contact Us For Availability
23
MAY W10181986 MAY W10181986 Contact Us For Availability
24
MAY W10134126 MAY W10134126 Contact Us For Availability
25
MAY W10134124 MAY W10134124 Contact Us For Availability
26
MAY 3196548 MAY 3196548 Contact Us For Availability
27
MAY 3196172 MAY 3196172 Contact Us For Availability
28
MAY 3186116 MAY 3186116 Contact Us For Availability
29
MAY 3186034 MAY 3186034 Contact Us For Availability
30
MAY W10246624 MAY W10246624 Contact Us For Availability
31
MAY 9757029 MAY 9757029 Contact Us For Availability
33
Vent Tube Asm MAY W10134285 Contact Us For Availability
34
MAY 3196701 MAY 3196701 Contact Us For Availability
35
MAY 311255 MAY 311255 Contact Us For Availability
36
MAY 9758283 MAY 9758283 Contact Us For Availability
39
MAY 3196178 MAY 3196178 Contact Us For Availability
40
Screw MAY 3196174 Contact Us For Availability
41
Screw MAY 3196179 Contact Us For Availability
43
MAY 3400016 MAY 3400016 Contact Us For Availability
45
Switch, Door MAY 9757238 Contact Us For Availability
46
Rod, Door Switch Rear Mount MAY 9757239 Contact Us For Availability
47
SCREEN, CATALYST MAY 9761301 Contact Us For Availability
48
Fan, Motor Cnvctn MAY W10167917 Contact Us For Availability
49
MAY W10116351 MAY W10116351 Contact Us For Availability
50
MAY W10213748 MAY W10213748 Contact Us For Availability
51
MAY 9759689 MAY 9759689 Contact Us For Availability
52
MAY 3400968 MAY 3400968 Contact Us For Availability
53
TRAY-BAKE, HIDDEN MAY W10183712 Contact Us For Availability
54
OVEN SEAL, FLANGE MAY W10010350 Contact Us For Availability
55
CLIP, SPRING MAY W10183541 Contact Us For Availability
56
MAY W10134125 MAY W10134125 Contact Us For Availability
NI
MAY 8272613 MAY 8272613 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
MAY W10219986 MAY W10219986 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3191048 MAY 3191048 Contact Us For Availability
NI
Screw, Ground MAY 3196154 Contact Us For Availability
NI
Screw MAY 3196173 Contact Us For Availability
NI
CLIP, GROUND WIRE MAY 3196520 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8523279 MAY 8523279 Contact Us For Availability
NI
MAY 9756779 MAY 9756779 Contact Us For Availability
NI
Harness, Wire (Bake, Hidden) MAY 9757339 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
Harness, Wire (Sensor/Dr Switch) MAY W10174428 Contact Us For Availability
NI
CORD, POWER 240V MAY W10244925 Contact Us For Availability
NI
MAY W10256898 MAY W10256898 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP RIGHT) MAY W10273582 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP LEFT) MAY W10273595 Contact Us For Availability
× ![]()
