Model Maytag YMER7660WS2 ELECTRIC RANGE – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

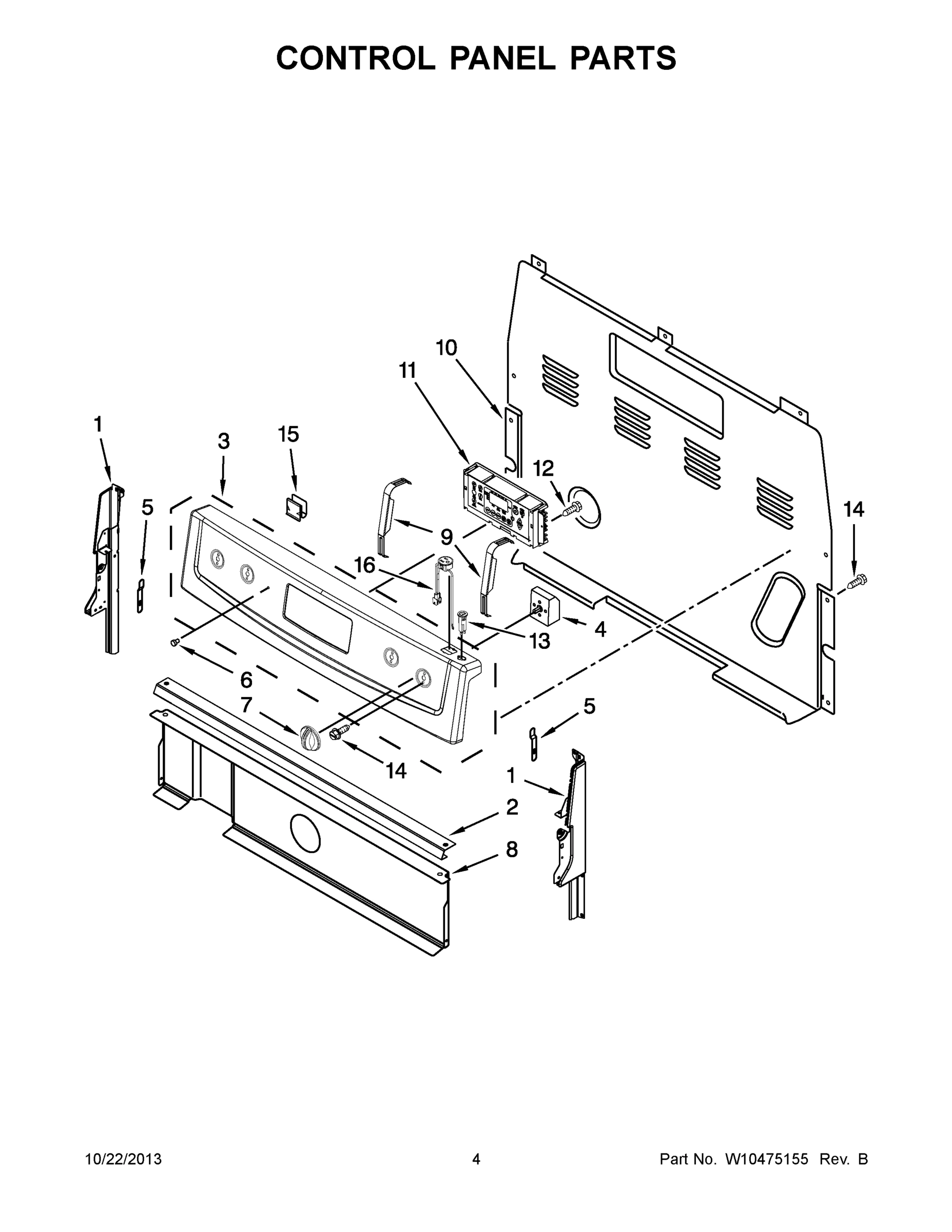

03 - CONTROL PANEL PARTS

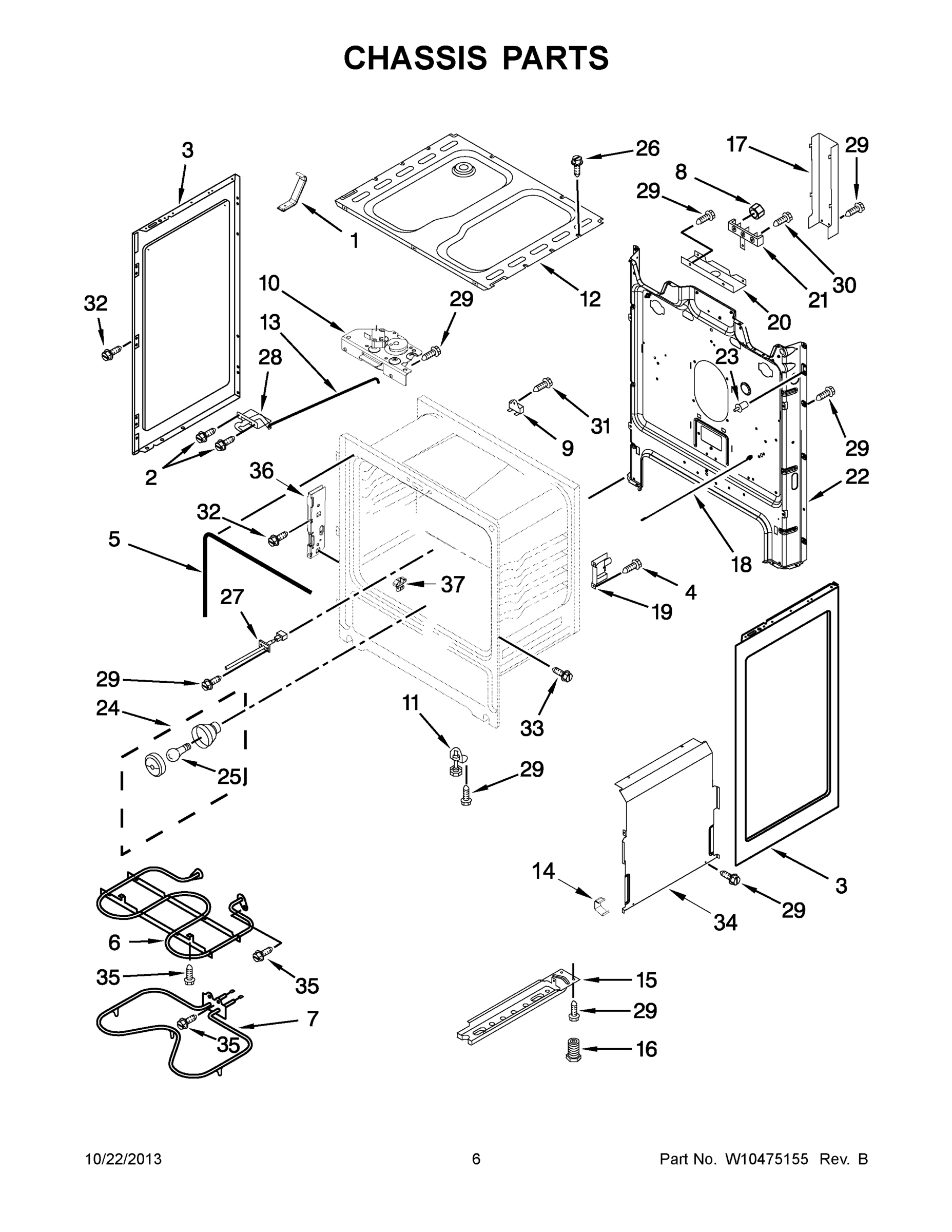

04 - CHASSIS PARTS

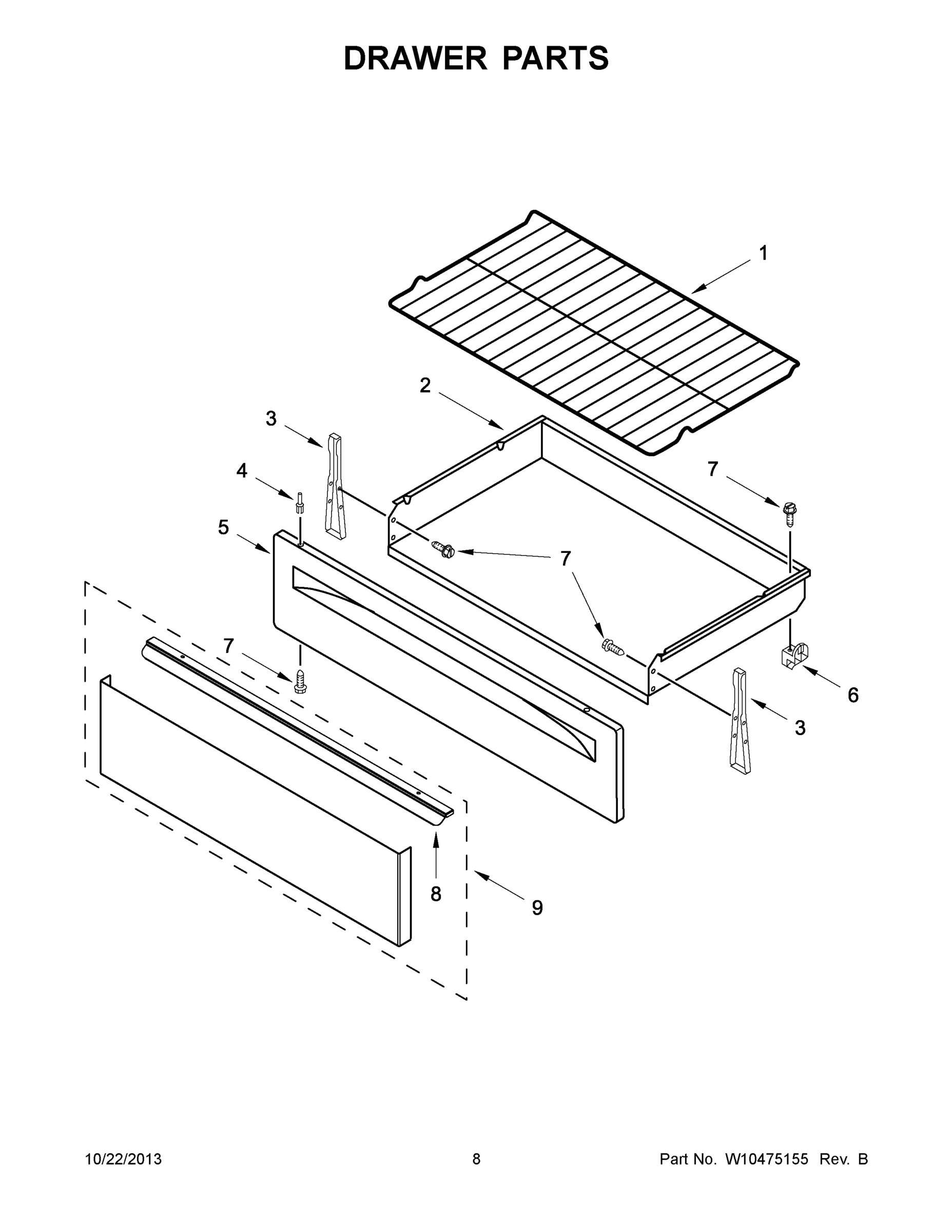

05 - DRAWER PARTS

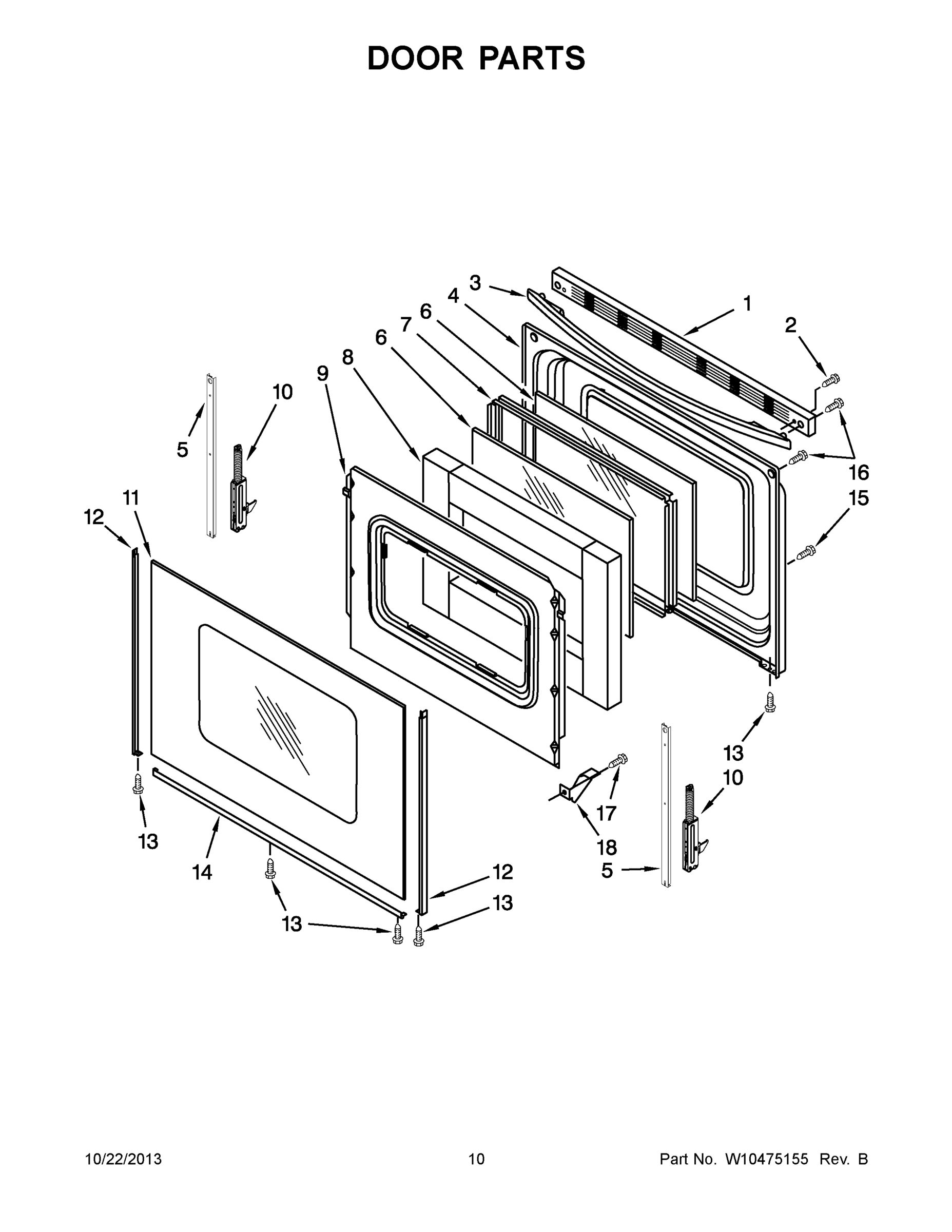

06 - DOOR PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag YMER7660WS2 ELECTRIC RANGE
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
SHEET, TECH (ENGLISH) MAY W10361708 Contact Us For Availability
1
SHEET, TECH (FRENCH) MAY W10361709 Contact Us For Availability
1
MAY W10403812 MAY W10403812 Contact Us For Availability
1
USER INSTRUCTIONS MAY W10419390 Contact Us For Availability
1
END CAP, LEFT (WHITE (LEFT HAND) MAY W10184433 Contact Us For Availability
1
ENDCAP LEFT (WHITE (RIGHT HAND)) MAY W10184434 Contact Us For Availability
1
END CAP, LEFT (BLACK (LEFT HAND) MAY W10184437 Contact Us For Availability
1
ENDCAP LEFT (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
Vent Tube MAY 9755804 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
2
MAY 3186231 MAY 3186231 Contact Us For Availability
2
MAY 3186233 MAY 3186233 Contact Us For Availability
2
MAY W10525121 MAY W10525121 Contact Us For Availability
2
MAY 3196560 MAY 3196560 Contact Us For Availability
2
MAY W10300032 MAY W10300032 Contact Us For Availability
2
MAY W10168559 MAY W10168559 Contact Us For Availability
3
ELEMENT (8``) (LEFT FRONT & RIGHT REAR) MAY W10259865 Contact Us For Availability
3
ELEMENT (6``) (RIGHT FRONT & LEFT REAR) MAY W10259868 Contact Us For Availability
3
MAY W10292017 MAY W10292017 Contact Us For Availability
3
MAY W10292019 MAY W10292019 Contact Us For Availability
3
MAY W10322769 MAY W10322769 Contact Us For Availability
3
MAY W10322770 MAY W10322770 Contact Us For Availability
3
BRACKET, MOUNTING (STAINLESS) MAY W10462910 Contact Us For Availability
3
MAY W10462912 MAY W10462912 Contact Us For Availability
3
MAY W10171750 MAY W10171750 Contact Us For Availability
3
MAY W10323581 MAY W10323581 Contact Us For Availability
4
MAY 4449154 MAY 4449154 Contact Us For Availability
4
SWITCH, INFINITE (YELLOW) (RIGHT FRONT & LEFT MAY 3148952 Contact Us For Availability
4
SWITCH, INFINITE (LEFT FRONT & RIGHT REAR) MAY 3148954 Contact Us For Availability
4
MAY 3196169 MAY 3196169 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
MAY 3195060 MAY 3195060 Contact Us For Availability
5
MAY 3196200 MAY 3196200 Contact Us For Availability
5
MAY 8522416 MAY 8522416 Contact Us For Availability
5
MAY 8053339 MAY 8053339 Contact Us For Availability
5
MAY W10544179 MAY W10544179 Contact Us For Availability
6
MAY 3196068 MAY 3196068 Contact Us For Availability
6
MAY 9757340 MAY 9757340 Contact Us For Availability
6
GLIDE, DRAWER (REAR) MAY W10317899 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
7
ROD, SUPPORT MAY 3195812 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10211371 Contact Us For Availability
7
MAY W10211372 MAY W10211372 Contact Us For Availability
7
MAY W10308477 MAY W10308477 Contact Us For Availability
7
MAY W10327235 MAY W10327235 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
8
PAN, BOWL, DRIP (8``) (LEFT FRONT & RIGHT REA MAY W10196405 Contact Us For Availability
8
PAN, BOWL, DRIP (6``) (RIGHT FRONT & LEFT REA MAY W10196406 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
Handle, Stainless MAY W10197980 Contact Us For Availability
8
MAY W10278991 MAY W10278991 Contact Us For Availability
9
MAY W10306542 MAY W10306542 Contact Us For Availability
9
MAY W10324410 MAY W10324410 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
PANEL, DRAWER (SS MODEL) MAY W10237657 Contact Us For Availability
9
MAY 9761357 MAY 9761357 Contact Us For Availability
10
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
10
MAY 8272473 MAY 8272473 Contact Us For Availability
10
MAY W10107820 MAY W10107820 Contact Us For Availability
10
HINGE, ACTIVE MAY W10299224 Contact Us For Availability
10
HINGE, PASSIVE MAY W10299227 Contact Us For Availability
11
CONTROL, RANGE (BLACK (LCC 95)) MAY N/P Contact Us For Availability
11
MAY W10476675 MAY W10476675 Contact Us For Availability
11
MAY W10341186 MAY W10341186 Contact Us For Availability
11
GLASS, OUTER (STAINLESS) MAY W10106403 Contact Us For Availability
11
GLASS, OUTER (WHITE) MAY W10106404 Contact Us For Availability
12
MAY W10209613 MAY W10209613 Contact Us For Availability
12
TRIM, SIDE (BLACK, RIGHT HAND) MAY 8523165 Contact Us For Availability
12
TRIM, SIDE (WHITE, RIGHT HAND) MAY 8523166 Contact Us For Availability
12
TRIM, SIDE (BLACK, LEFT HAND) MAY 8523171 Contact Us For Availability
12
TRIM, SIDE (WHITE, LEFT HAND) MAY 8523172 Contact Us For Availability
13
BREAKER, CIRCUIT (WHITE) MAY 9757601 Contact Us For Availability
13
BREAKER, CIRCUIT (BLACK) MAY 9757602 Contact Us For Availability
13
MAY W10078380 MAY W10078380 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 3400882 MAY 3400882 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
15
MAY 8273564 MAY 8273564 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
16
RECEPTACLE (BLACK) MAY W10203475 Contact Us For Availability
16
RECEPTACLE (WHITE) MAY W10203476 Contact Us For Availability
16
MAY W10058460 MAY W10058460 Contact Us For Availability
16
MAY W10031780 MAY W10031780 Contact Us For Availability
17
MAY W10326122 MAY W10326122 Contact Us For Availability
17
MAY W10200660 MAY W10200660 Contact Us For Availability
18
CLIP, GLASS MAY W10137382 Contact Us For Availability
18
MAY 9757239 MAY 9757239 Contact Us For Availability
19
MAY W10404688 MAY W10404688 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10246624 MAY W10246624 Contact Us For Availability
22
MAY W10289149 MAY W10289149 Contact Us For Availability
23
MAY 9757262 MAY 9757262 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
MAY 3196165 MAY 3196165 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
28
MAY 9761013 MAY 9761013 Contact Us For Availability
29
MAY 3196178 MAY 3196178 Contact Us For Availability
30
MAY 3400016 MAY 3400016 Contact Us For Availability
31
MAY 3196172 MAY 3196172 Contact Us For Availability
33
MAY W10067840 MAY W10067840 Contact Us For Availability
34
MAY W10450380 MAY W10450380 Contact Us For Availability
35
MAY 3196174 MAY 3196174 Contact Us For Availability
36
MAY W10289077 MAY W10289077 Contact Us For Availability
37
GLIDE, DRAWER (FRONT) MAY W10317898 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW MAY 3196154 Contact Us For Availability
NI
MAY 8054068 MAY 8054068 Contact Us For Availability
NI
MAY 8272612 MAY 8272612 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 3184478 MAY 3184478 Contact Us For Availability
NI
MAY 3196173 MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY W10084660 Contact Us For Availability
NI
WIRING HARNESS PARTS, CORD, POWER MAY W10244925 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, ASSEMBLY LCC MAY W10251768 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, COOKTOP MAY W10295595 Contact Us For Availability
× ![]()
