Whirlpool YKSEG700ESS3 RANGE/OVEN, ELECTRIC, SLIDE-IN, 30 INCH

1

W10647259 Whirlpool Hinge Receiver In Stock WPL W10647259 $3.33

View on Model

1

W11104399 Whirlpool Door Handle Backorder WPL W11104399 $86.54

View on Model

2

W11169708 Whirlpool Screw Backorder WPL W11169708 $9.59

View on Model

2

WPW10225448 Whirlpool Spring Assembly In Stock WPL WPW10225448 $5.20

View on Model

3

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $23.59

View on Model

3

W11730303 Whirlpool Side Panel In Stock WPL W11730303 $59.33

View on Model

3

WPW10318026 Whirlpool Mounting Bracket Backorder WPL WPW10318026 $13.05

View on Model

4

W10861216 Whirlpool Drawer Panel Backorder WPL W10861216 $81.02

View on Model

4

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $4.52

View on Model

5

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $30.52

View on Model

5

W11563195 Whirlpool Surface Element In Stock WPL W11563195 $117.31

View on Model

5

WPW10031790 Whirlpool Screw In Stock WPL WPW10031790 $3.33

View on Model

5

WPW10441804 Whirlpool Drawer Slide In Stock WPL WPW10441804 $40.66

View on Model

5A

WPW10441805 Whirlpool Slide Drawer In Stock WPL WPW10441805 $40.66

View on Model

6

W11171119 Whirlpool Radiant Surface Element In Stock WPL W11171119 $89.69

View on Model

6

W11238400 Whirlpool Broil Element In Stock WPL W11238400 $61.03

View on Model

7

W11162113 Whirlpool Door Hinge In Stock WPL W11162113 $59.97

View on Model

7

WPW10251108 Whirlpool Range Cooktop 3200W Rad In Stock WPL WPW10251108 $151.53

View on Model

8

WPW10342780 Whirlpool Surface Element In Stock WPL WPW10342780 $98.65

View on Model

8

WPW10634271 Whirlpool Range Outer Door Glass In Stock WPL WPW10634271 $287.29

View on Model

9

W10541911 Whirlpool Mounting Bracket Backorder WPL W10541911 $13.67

View on Model

9

W11122085 Whirlpool Vent Tube Backorder WPL W11122085 $41.49

View on Model

10

W10289168 Whirlpool Burner Box Backorder WPL W10289168 $82.45

View on Model

11

W10536275 Whirlpool Pan Backorder WPL W10536275 $68.07

View on Model

11

W10813140 Whirlpool Glass Bracket Backorder WPL W10813140 $65.29

View on Model

11

WPW10341186 Whirlpool Range Front Levelling L In Stock WPL WPW10341186 $11.62

View on Model

12

W10162253 Whirlpool Mounting Bracket Backorder WPL W10162253 $28.49

View on Model

12

WPW10067840 Whirlpool Screw In Stock WPL WPW10067840 $3.33

View on Model

12A

W10162252 Whirlpool Bracket Mounting Backorder WPL W10162252 $30.23

View on Model

13

W10289170 Whirlpool Support Bracket Backorder WPL W10289170 $10.19

View on Model

13

W10541959 Whirlpool Heat Shield Assembly Backorder WPL W10541959 $101.34

View on Model

13

WP8533988 Whirlpool Screw Fastener In Stock WPL WP8533988 $3.33

View on Model

13A

W10289169 Whirlpool Bracket Support Backorder WPL W10289169 $10.19

View on Model

14

W10137382 Whirlpool Clip Backorder WPL W10137382 $28.47

View on Model

14

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

View on Model

14

W11744483 Whirlpool Support In Stock WPL W11744483 $29.50

View on Model

15

W10555937 Whirlpool Endcap Panel Backorder WPL W10555937 $34.20

View on Model

15

W11251351 Whirlpool Vent Trim In Stock WPL W11251351 $49.45

View on Model

15A

W10555940 Whirlpool Endcap Panel Backorder WPL W10555940 $34.20

View on Model

16

W11673273 Whirlpool Spacer Glass Backorder WPL W11673273 $17.04

View on Model

16

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.52

View on Model

17

W10911303 Whirlpool Infinite Switch In Stock WPL W10911303 $45.90

View on Model

17

W11676355 Whirlpool Washer Backorder WPL W11676355 $8.11

View on Model

17

WP3196548 Whirlpool Thermal Fuse In Stock WPL WP3196548 $17.02

View on Model

18

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.59

View on Model

18

W10917724 Whirlpool Infinite Switch In Stock WPL W10917724 $56.82

View on Model

19

W10035900 Whirlpool Support Bracket Backorder WPL W10035900 $9.99

View on Model

19

W11628652 Whirlpool Knob Backorder WPL W11628652 $39.36

View on Model

19B

W11568640 Whirlpool Knob Backorder WPL W11568640 $39.36

View on Model

20

W10598048 Whirlpool Support Bracket Backorder WPL W10598048 $9.11

View on Model

20

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $30.10

View on Model

22

W11025100 Whirlpool Insert In Stock WPL W11025100 $5.64

View on Model

23

W11240519 Whirlpool Vent Trim Backorder WPL W11240519 $92.74

View on Model

24

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

View on Model

24

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $3.82

View on Model

25

W10555923 Whirlpool Mounting Bracket In Stock WPL W10555923 $42.57

View on Model

26

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

View on Model

27

W10833885 Whirlpool Temperature Sensor In Stock WPL W10833885 $92.90

View on Model

29

W10655441 Whirlpool Insulation Wire Backorder WPL W10655441 $55.06

View on Model

31

W10555934 Whirlpool Mounting Bracket Backorder WPL W10555934 $74.17

View on Model

31

W11370463 Whirlpool Door Rod Assembly Backorder WPL W11370463 $25.33

View on Model

32

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $28.09

View on Model

33

W10558372 Whirlpool Bracket Mounting Backorder WPL W10558372 $8.51

View on Model

34

W11129442 Whirlpool Surface Infinite Element In Stock WPL W11129442 $65.71

View on Model

35

W10757531 Whirlpool Shield Backorder WPL W10757531 $33.53

View on Model

35

WPW10281322 Whirlpool Connector Backorder WPL WPW10281322 $6.22

View on Model

36

W10882900 Whirlpool Gasket Backorder WPL W10882900 $8.86

View on Model

36

W11226497 Whirlpool Power Cord Backorder WPL W11226497 $40.31

View on Model

38

W11676564 Whirlpool Baffle Conveyor Backorder WPL W11676564 $85.47

View on Model

39

W10273002 Whirlpool Support Bracket Backorder WPL W10273002 $25.99

View on Model

40

W11379357 Whirlpool Overflow Pan In Stock WPL W11379357 $45.88

View on Model

42

W10162254 Whirlpool Air Duct Backorder WPL W10162254 $52.23

View on Model

45

W10162241 Whirlpool Channel Backorder WPL W10162241 $12.88

View on Model

46

W10162248 Whirlpool Wire Cover Backorder WPL W10162248 $55.06

View on Model

47

W11379354 Whirlpool Rear Cover Backorder WPL W11379354 $42.88

View on Model

48

W11403917 Whirlpool Reservoir Assembly Backorder WPL W11403917 $102.79

View on Model

49

W11673270 Whirlpool Range Rack Backorder WPL W11673270 $48.42

View on Model

50

W11256463 Whirlpool Range Rack Backorder WPL W11256463 $66.28

View on Model

51

W11699908 Whirlpool Rack Backorder WPL W11699908 $78.26

View on Model

NI

285006 Whirlpool Spray In Stock WPL 285006 $29.65

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

View on Model

NI

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

View on Model

NI

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

View on Model

NI

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

View on Model

NI

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

View on Model

NI

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

View on Model

NI

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

View on Model

NI

ACCESSORY PARTS, CLEANERS / POLISHES CLEANER, WPL W10355051 No Longer Available

View on Model

NI

W10391473 Whirlpool Replacement Scrubbing Pad Backorder WPL W10391473 $3.95

View on Model

NI

W10432545 Whirlpool Range Grille Grate Backorder WPL W10432545 $44.94

View on Model

NI

W10655448 Whirlpool Range Backsplash Backorder WPL W10655448 $278.15

View on Model

NI

W10655449 Whirlpool Range Backsplash Backorder WPL W10655449 $283.36

View on Model

NI

W10655450 Whirlpool Range Backsplash Backorder WPL W10655450 $245.15

View on Model

NI

W10675026 Whirlpool Range Cooktop Trim Backorder WPL W10675026 $94.16

View on Model

NI

W10675027 Whirlpool Range White Cooktop Trim In Stock WPL W10675027 $76.37

View on Model

NI

W10675028 Whirlpool Range Stainless Cooktop T In Stock WPL W10675028 $83.83

View on Model

NI

W11025616 Whirlpool Wire Harness In Stock WPL W11025616 $29.65

View on Model

NI

W11688363 Whirlpool Insulation Backorder WPL W11688363 $47.58

View on Model

NI

W11688567 Whirlpool Insulation Assembly Backorder WPL W11688567 $47.58

View on Model

NI

W11688730 Whirlpool Insulation Backorder WPL W11688730 $29.33

View on Model

NI

WA906B Whirlpool Cooktop Glass Scraper In Stock WPL WA906B $5.40

View on Model

NI

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

View on Model

NI

ACCESSORY PARTS, CLEANERS / POLISHES KIT, COO WPL 31605 Contact Us For Availability

View on Model

NI

ACCESSORY PARTS, CLEANERS / POLISHES CLEANER, WPL W10355016 Contact Us For Availability

View on Model

NI

ACCESSORY PARTS, CLEANERS / POLISHES WIPES, S WPL W10355049 Contact Us For Availability

View on Model

NI

ACCESSORY PARTS, CLEANERS / POLISHES PROTECTA WPL 31463A Contact Us For Availability

View on Model

NI

ACCESSORY PARTS, CLEANERS / POLISHES CLEANER, WPL 31617A Contact Us For Availability

View on Model

NI

ACCESSORY PARTS, CLEANERS / POLISHES CLEANER, WPL W10275756 Contact Us For Availability

View on Model

NI

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

View on Model

All Categories

Brands

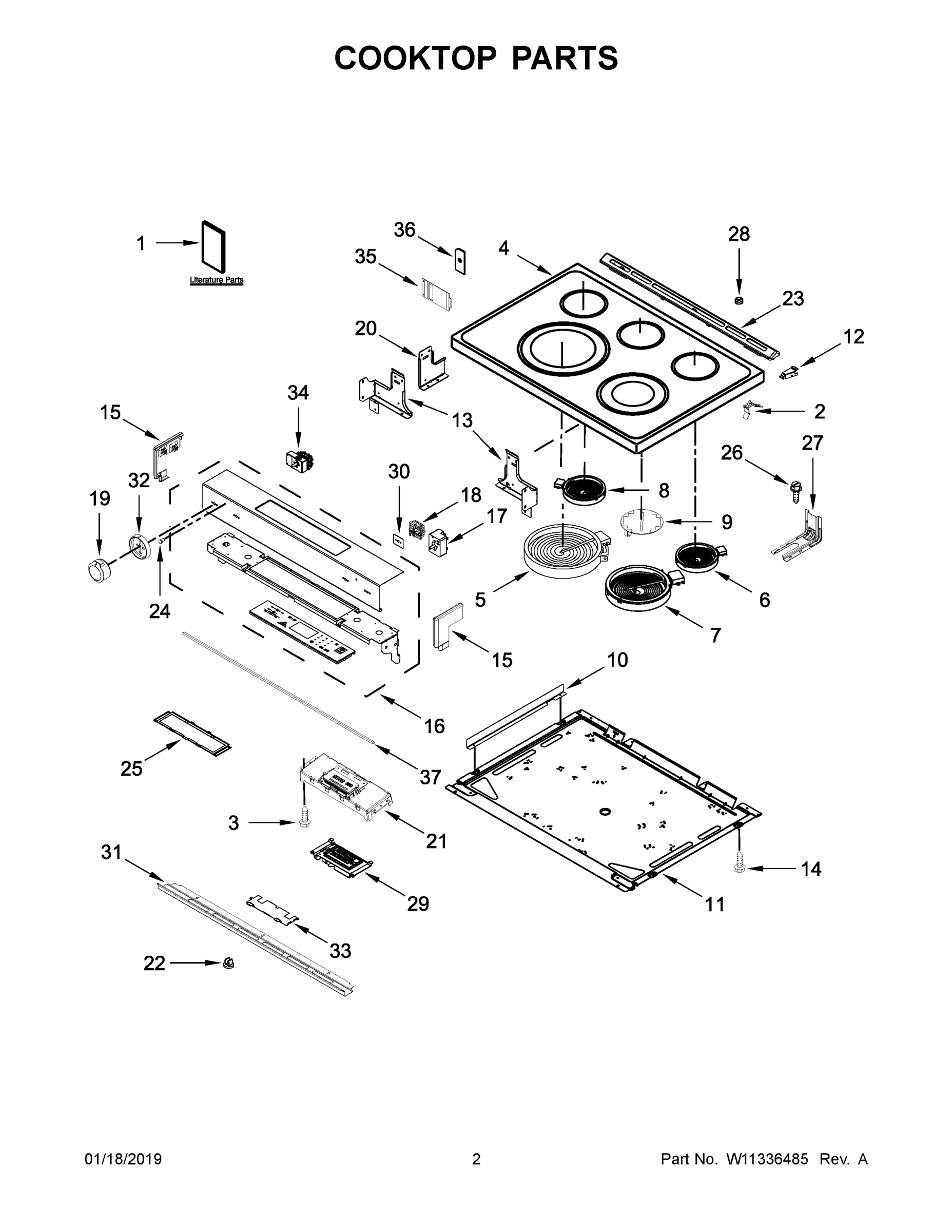

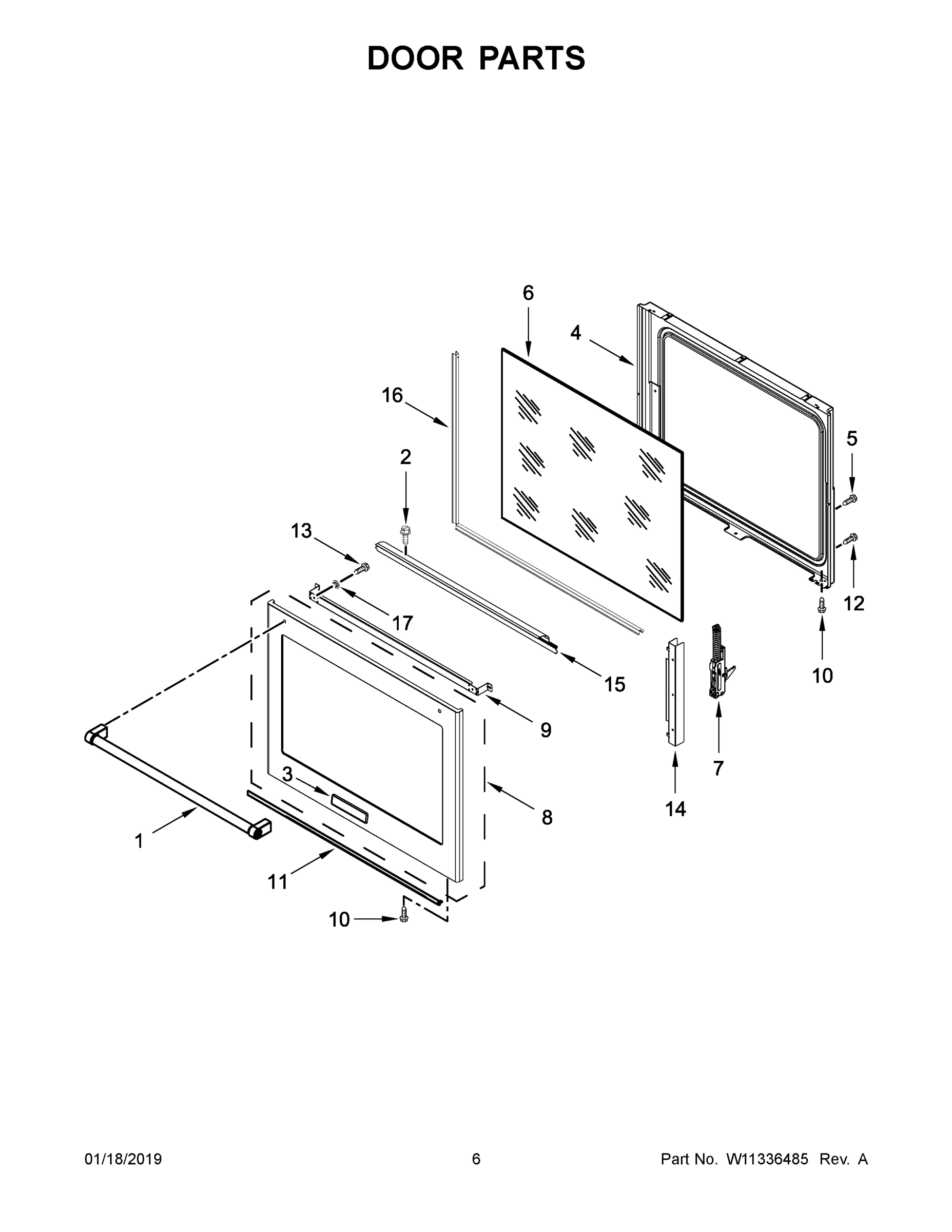

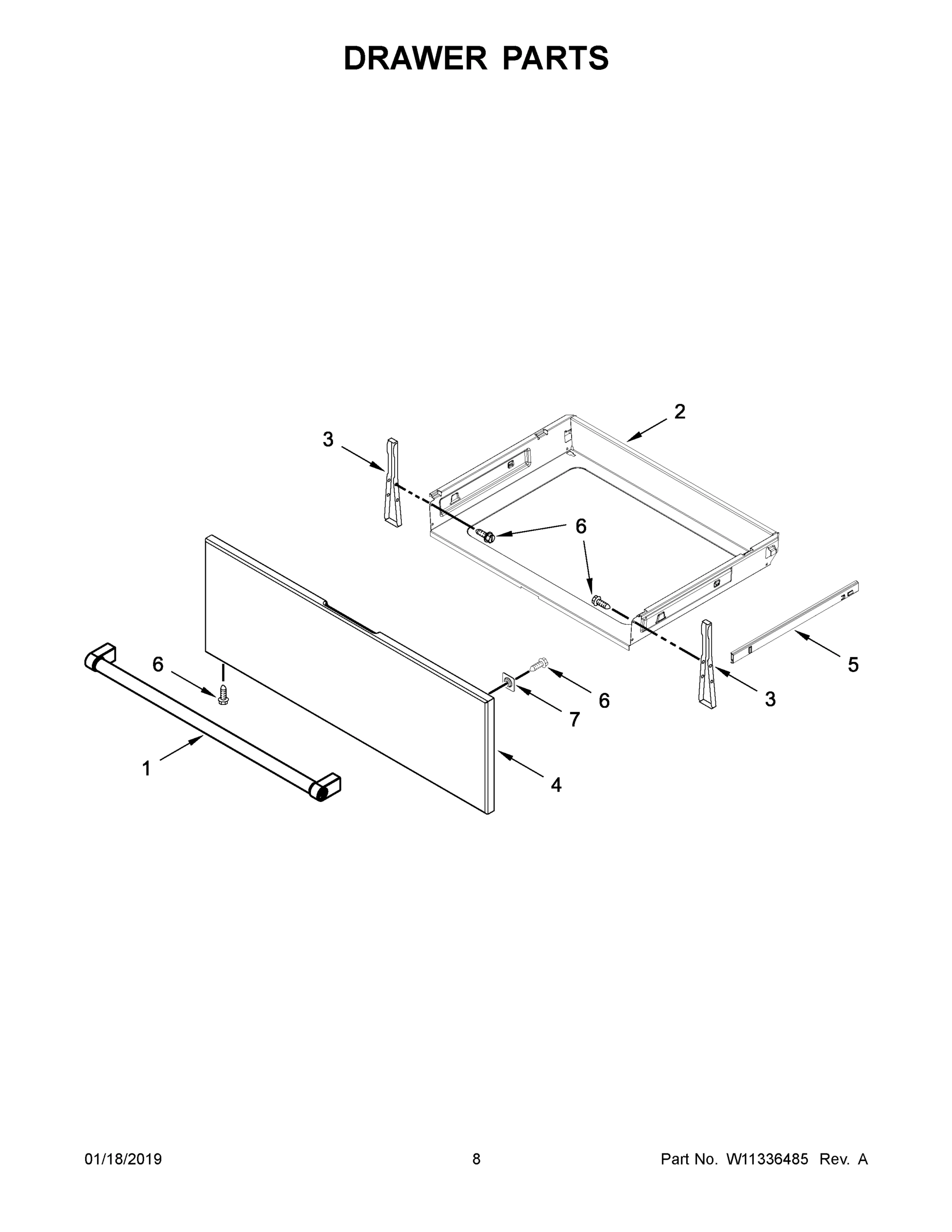

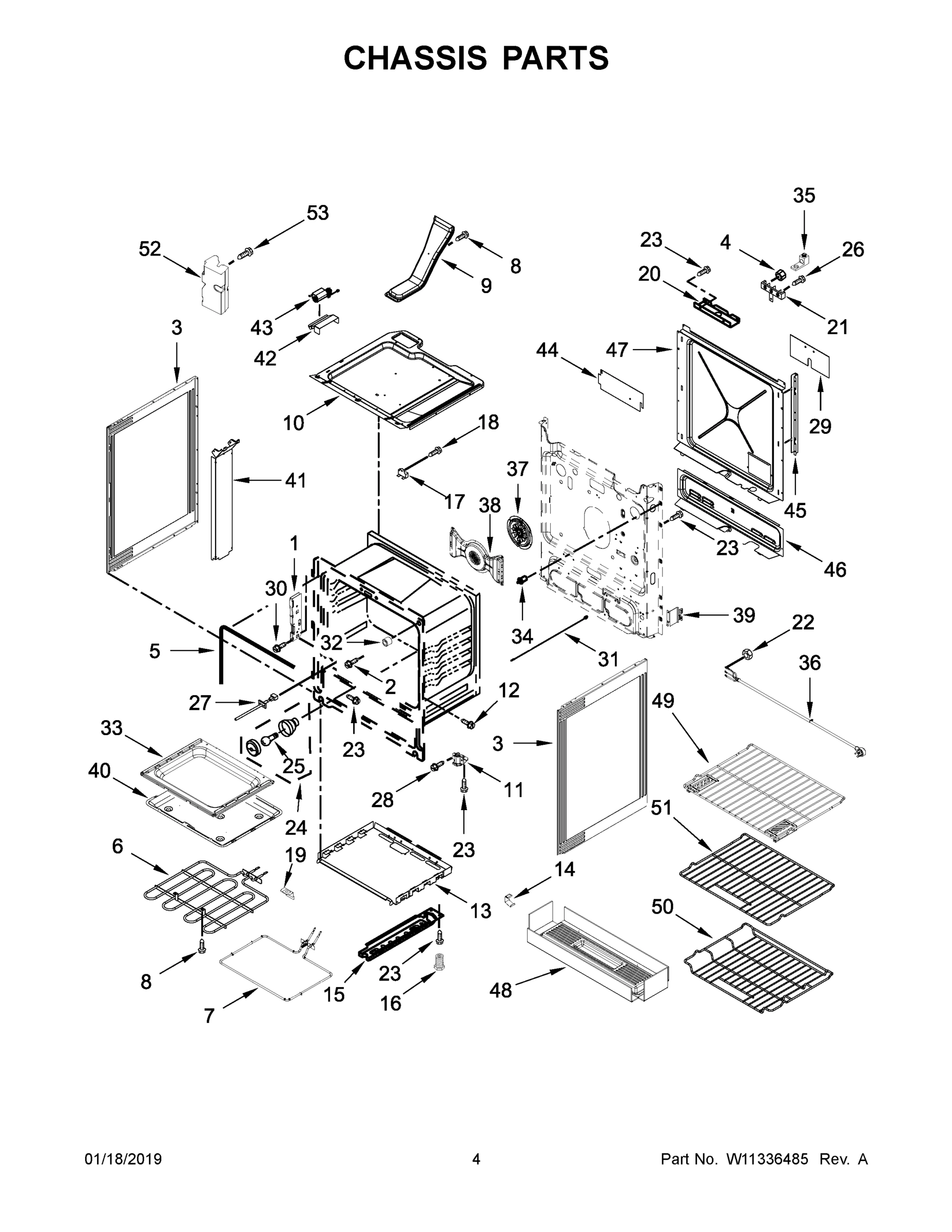

Model Whirlpool YKSEG700ESS3 RANGE/OVEN, ELECTRIC, SLIDE-IN, 30 INCH – Common Parts & Diagrams

Common parts from model Whirlpool YKSEG700ESS3 RANGE/OVEN, ELECTRIC, SLIDE-IN, 30 INCH
