Model Whirlpool YKEMC308KM0 30`` BUILT-IN ELECTRIC DOUBLE OVEN THERMAL CONVECT – Common Parts & Diagrams

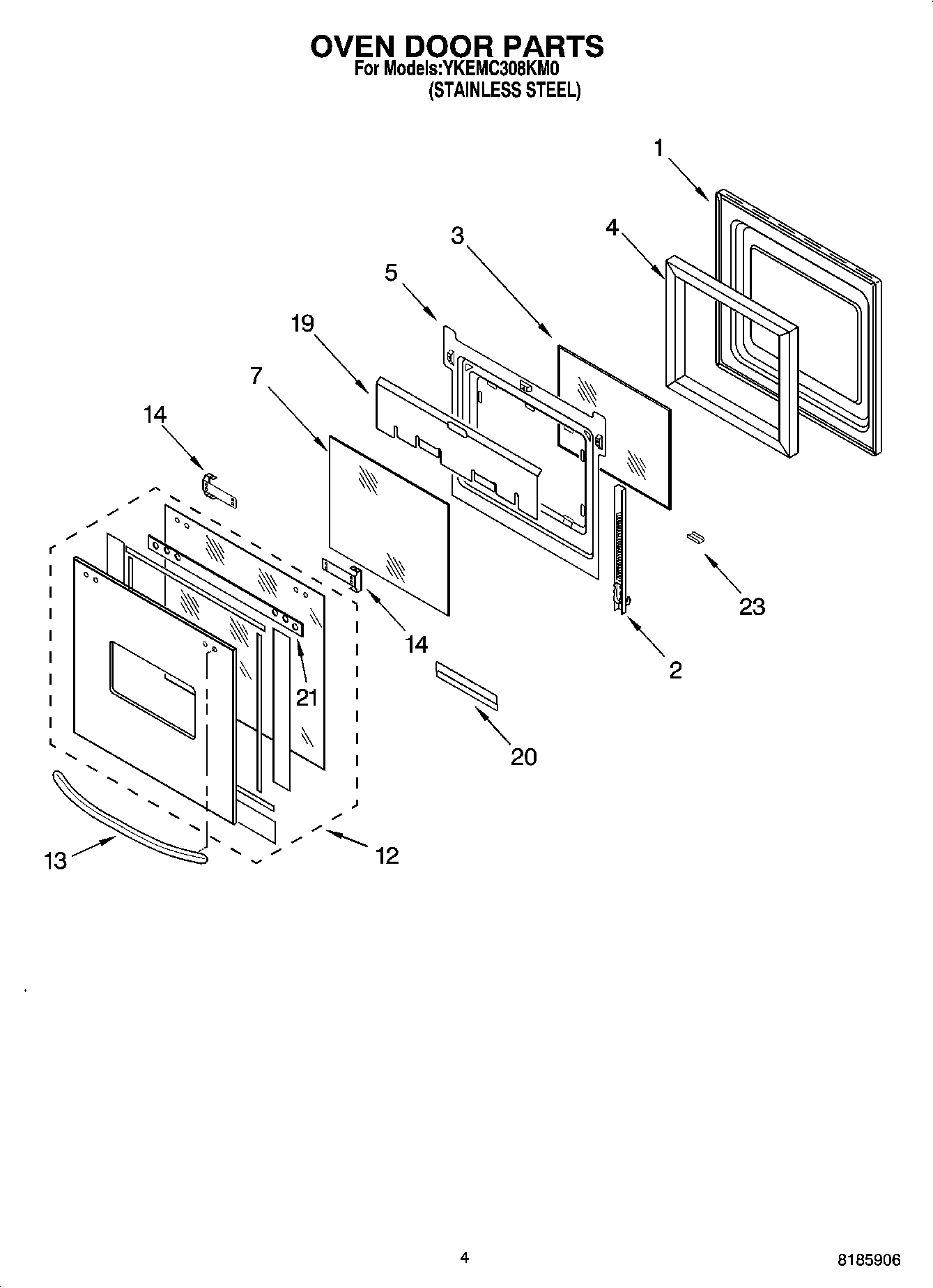

03 - OVEN DOOR PARTS

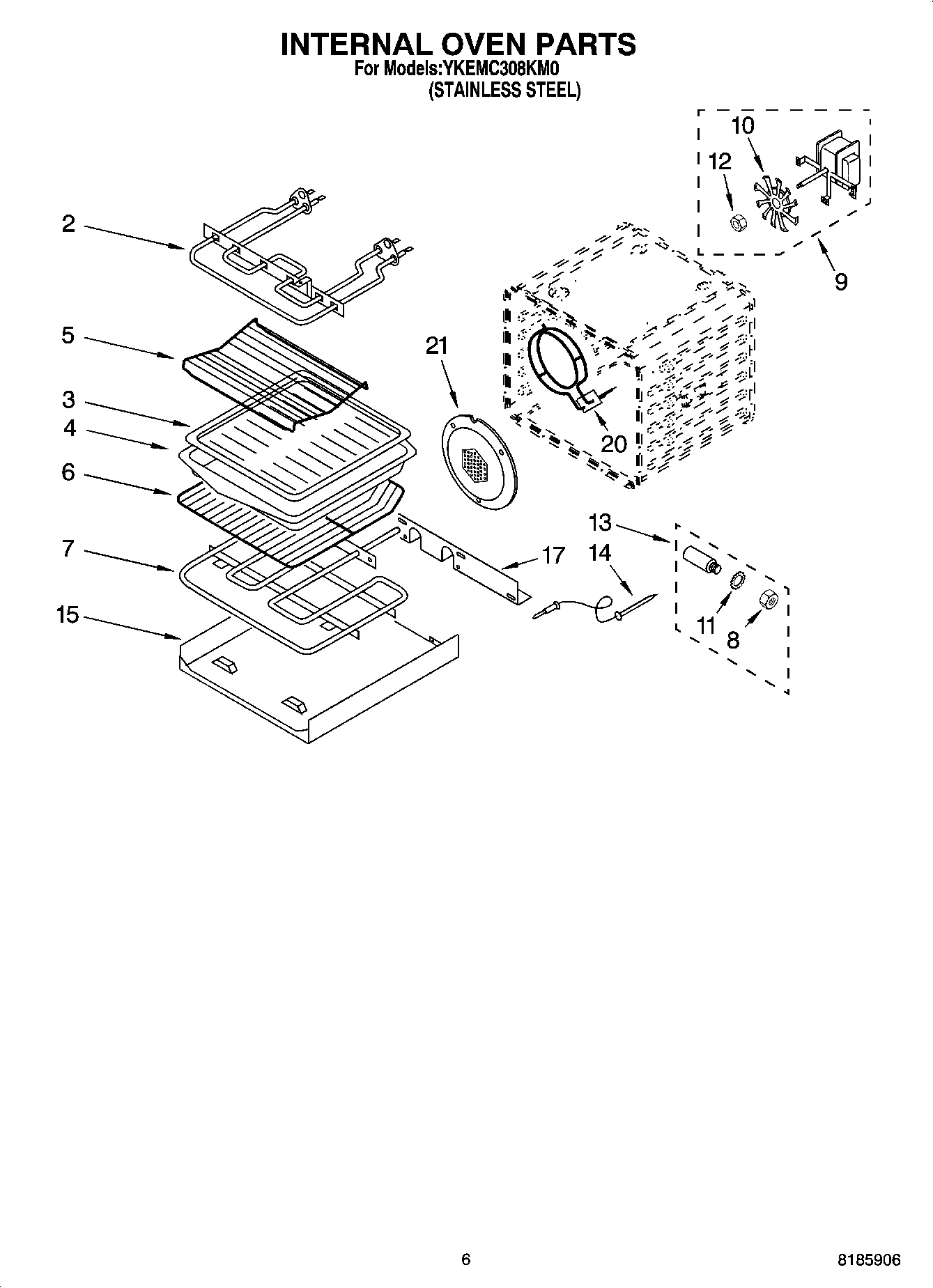

05 - INTERNAL OVEN PARTS
07 - MICROWAVE COMPARTMENT PARTS
04 - LATCH PARTS
06 - CABINET AND STIRRER PARTS
02 - CONTROL PANEL PARTS
09 - MICROWAVE DOOR PARTS, OPTIONAL PARTS
01 - OVEN PARTS
08 - TOP VENTING PARTS
Common parts from model Whirlpool YKEMC308KM0 30`` BUILT-IN ELECTRIC DOUBLE OVEN THERMAL CONVECT
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
WPL 814381 WPL 814381 Contact Us For Availability
Conduit, Combo WPL 4450950 Contact Us For Availability
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
Filler Kit (Bl) WPL 4378944 Contact Us For Availability
Filler Kit (Wh) WPL 4378945 Contact Us For Availability
Filler Kit (Al) WPL 4378946 Contact Us For Availability
Screw, Ground WPL 4450800 Contact Us For Availability
Ground (M/W) WPL 4450831 Contact Us For Availability
Spacer, Harness WPL 4452222 Contact Us For Availability
Harness, Latch WPL 4452239 Contact Us For Availability
Harness, Wire (Filter) WPL 4454845 Contact Us For Availability
ADHESIVE LOCTITE (1/3 OZ WPL 591014 Contact Us For Availability
WPL 8300490 WPL 8300490 Contact Us For Availability
WPL ARI137495A WPL ARI137495A Contact Us For Availability
WPL ARI137496A WPL ARI137496A Contact Us For Availability
WPL ARI137497A WPL ARI137497A Contact Us For Availability
WPL ARI137498A WPL ARI137498A Contact Us For Availability
WPL ARI137499A WPL ARI137499A Contact Us For Availability
1
Glass, Middle WPL 4448937 Contact Us For Availability
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Control Panel WPL 4451791 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Easy Set Guide (French)) WPL LIT4448687 Contact Us For Availability
1
Literature Parts (Cookbook (T/C Oven)) WPL LIT4449066 Contact Us For Availability
1
Literature Parts (Easy Set Guide (English)) WPL LIT4449264 Contact Us For Availability
1
Literature Parts (Guide, Easy Use (Microwave) WPL LIT4451052 Contact Us For Availability
1
Literature Parts (Tech Sheet (English)) WPL LIT8300487 Contact Us For Availability
1
Literature Parts (Tech Sheet (French)) WPL LIT8300543 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8300650 Contact Us For Availability
1
Literature Parts (Use & Care Guide Microwave WPL LIT8300884 Contact Us For Availability
1
Literature Parts (Use & Care Guide Microwave WPL LIT8300889 Contact Us For Availability
1
Literature Parts (Use & Care Guide Microwave WPL LIT8300890 Contact Us For Availability
1
Literature Parts (Use & Care Guide Microwave WPL LIT8300953 Contact Us For Availability
1
Cover, Top WPL 4450378 Contact Us For Availability
2
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
2
Safety Switch (Oven Temp) WPL 4450812 Contact Us For Availability
2
Switch, Membrane WPL 4452329 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
3
Rubber Ring WPL 4375252 Contact Us For Availability
3
Insulator, Board WPL 4452248 Contact Us For Availability
3
Tape, Foam WPL 4450265 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
4
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
4
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
4
Bumper, Door WPL 4448520 Contact Us For Availability
4
Insulator, Board Support WPL 4452249 Contact Us For Availability
4
Plate, Mounting WPL 4451789 Contact Us For Availability
5
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
5
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
5
Filler, Side (Left Side) WPL 4449086 Contact Us For Availability
5
Spacer, Foam WPL 4452260 Contact Us For Availability
5
Spacer, Foam WPL 4452490 Contact Us For Availability
6
Insulator, Dialectric WPL 4452345 Contact Us For Availability
6
Handle, Door WPL 4455851 Contact Us For Availability
6
Trim, Side (RH) WPL 4452083 Contact Us For Availability
6
Trim, Side (LH) WPL 4452084 Contact Us For Availability
6
Exhaust Duct WPL 4451634 Contact Us For Availability
7
Screw (7) 4-40 x .375 WPL 3400406 Contact Us For Availability
7
Microcomputer WPL 4453377 Contact Us For Availability
7
Top, Chassis WPL 4455865 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
8
Filter, R.F. WPL 4451592 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
9
Convection Motor WPL 4451583 Contact Us For Availability
9
Holder, Fuse WPL 4454949 Contact Us For Availability
9
Bracket, Handle WPL 4452331 Contact Us For Availability
9
Bracket, Filter WPL 4451632 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Vent, Control Panel WPL 4448549 Contact Us For Availability
10
Retainer, Glass Clip WPL 4451432 Contact Us For Availability
11
Screw WPL 3400080 Contact Us For Availability
11
Screw WPL 4449748 Contact Us For Availability
11
Door, Plate WPL 4375339 Contact Us For Availability
12
Microswitch N.C. WPL 4452312 Contact Us For Availability
12
Frame, Inner WPL 4375414 Contact Us For Availability
12
Side, Combo WPL 4450401 Contact Us For Availability
13
Strap, Door WPL 4375330 Contact Us For Availability
13
Insulation Bottom Vent WPL 4452337 Contact Us For Availability
13
Vent, (Control Panel) WPL 4449767 Contact Us For Availability
14
Bracket, Handle (Right Hand) WPL 4455803 Contact Us For Availability
14
Bracket, Handle (Left Hand) WPL 4455804 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4375313 Contact Us For Availability
14
Frame, Front WPL 4455612 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
16
Bracket, Mounting WPL 4452152 Contact Us For Availability
17
Clamp WPL 4448664 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
19
Transformer, Control WPL 4455038 Contact Us For Availability
20
Retainer, Glass WPL 4451668 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
22
Suppressor WPL 4451934 Contact Us For Availability
23
Rack WPL 4452220 Contact Us For Availability
26
Back, Chassis WPL 4452234 Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI137491A Contact Us For Availability
29
Motor, Blower WPL 4375278 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
30
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
34
WPL 4451667 WPL 4451667 Contact Us For Availability
43
WPL 4455530 WPL 4455530 Contact Us For Availability
47
Nut WPL 4375258 Contact Us For Availability
48
Insulation (Left Side) WPL 4375409 Contact Us For Availability
48
Insulation (Right Side) WPL 4375410 Contact Us For Availability
49
Plate, Side - Bottom WPL 4375411 Contact Us For Availability
50
Valve WPL 4375425 Contact Us For Availability
51
WPL 4455147 WPL 4455147 Contact Us For Availability
51
Screw To Valve WPL 4375428 Contact Us For Availability
51
WPL 4450289 WPL 4450289 Contact Us For Availability
52
WPL 4451756 WPL 4451756 Contact Us For Availability
53
Air Bleed WPL 4375426 Contact Us For Availability
54
Shield, Heat Right WPL 4375439 Contact Us For Availability
54
WPL 4451393 WPL 4451393 Contact Us For Availability
55
Sensor, Temp. WPL 4375422 Contact Us For Availability
55
WPL 4452492 WPL 4452492 Contact Us For Availability
56
Insulation WPL 4375420 Contact Us For Availability
56
WPL 4450365 WPL 4450365 Contact Us For Availability
56
WPL 4452491 WPL 4452491 Contact Us For Availability
56
WPL ARI137492A WPL ARI137492A Contact Us For Availability
57
Duct, Heater WPL 4375419 Contact Us For Availability
58
Washer WPL 4375416 Contact Us For Availability
59
Element, Heater WPL 4375417 Contact Us For Availability
61
Motor, Fan WPL 4375429 Contact Us For Availability
62
Left-Threaded Nut Serviced With Moter Item 61 WPL ARI137493A Contact Us For Availability
64
Shield, Heat WPL 4375431 Contact Us For Availability
65
Insulation WPL 4375432 Contact Us For Availability
66
Chamber, Heat WPL 4375433 Contact Us For Availability
66
Cabinet Parts WPL ARI137494A Contact Us For Availability
67
Isolation Plate WPL 4375437 Contact Us For Availability
68
Cover Plate WPL 4375338 Contact Us For Availability
71
Side Plate (Left) WPL 4375341 Contact Us For Availability
71
Side Plate (Right) WPL 4375342 Contact Us For Availability
77
Cable WPL 4375435 Contact Us For Availability
× ![]()
