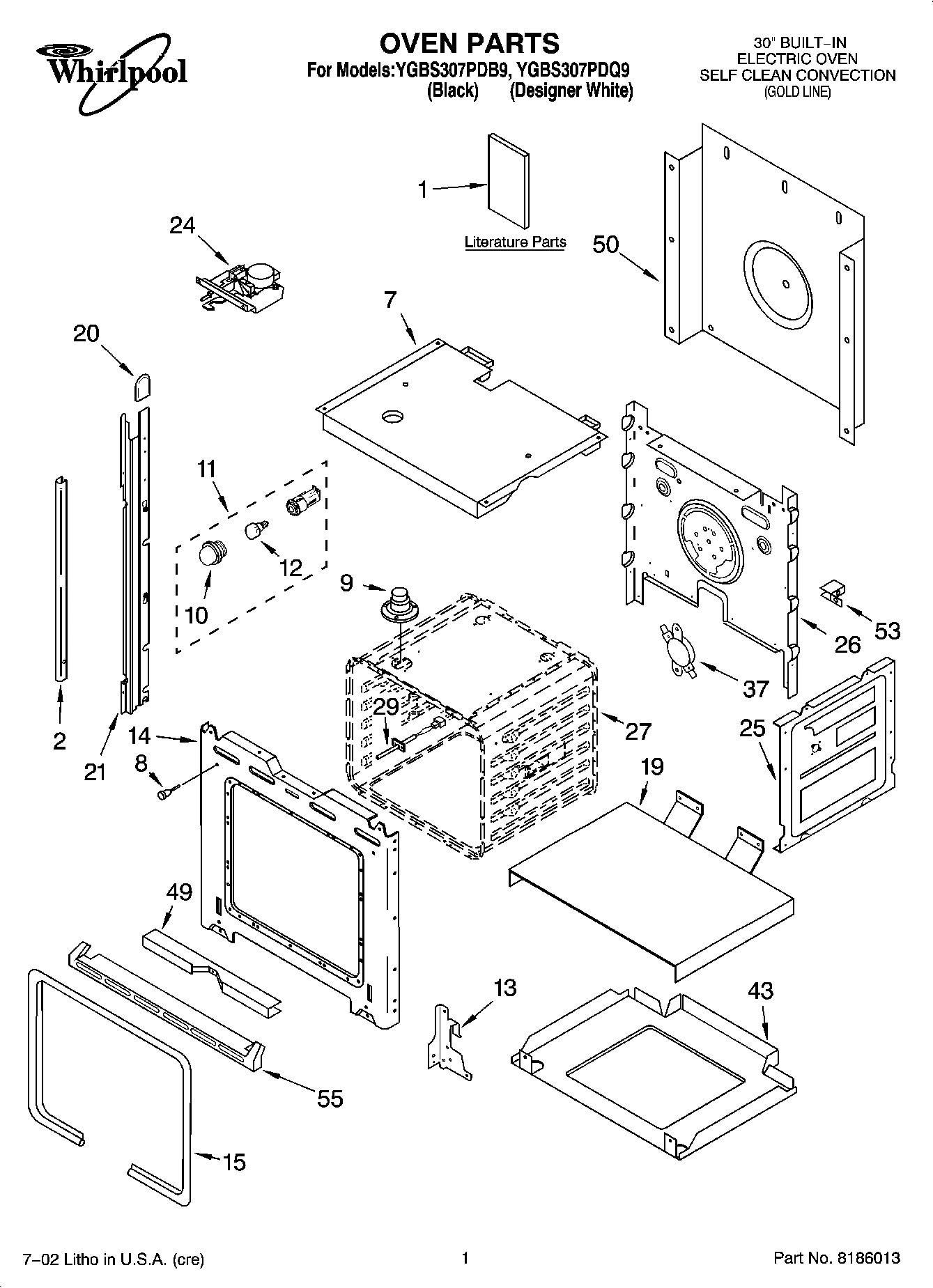

Model Whirlpool YGBS307PDB9 30`` BUILT-IN ELECTRIC OVEN SELF CLEAN CONVECTION – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

814381 Whirlpool Pin In Stock WPL 814381 $3.70

8301399 Whirlpool Oven Wire Harness Backorder WPL 8301399 $157.19

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $10.71

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $25.71

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $34.33

1

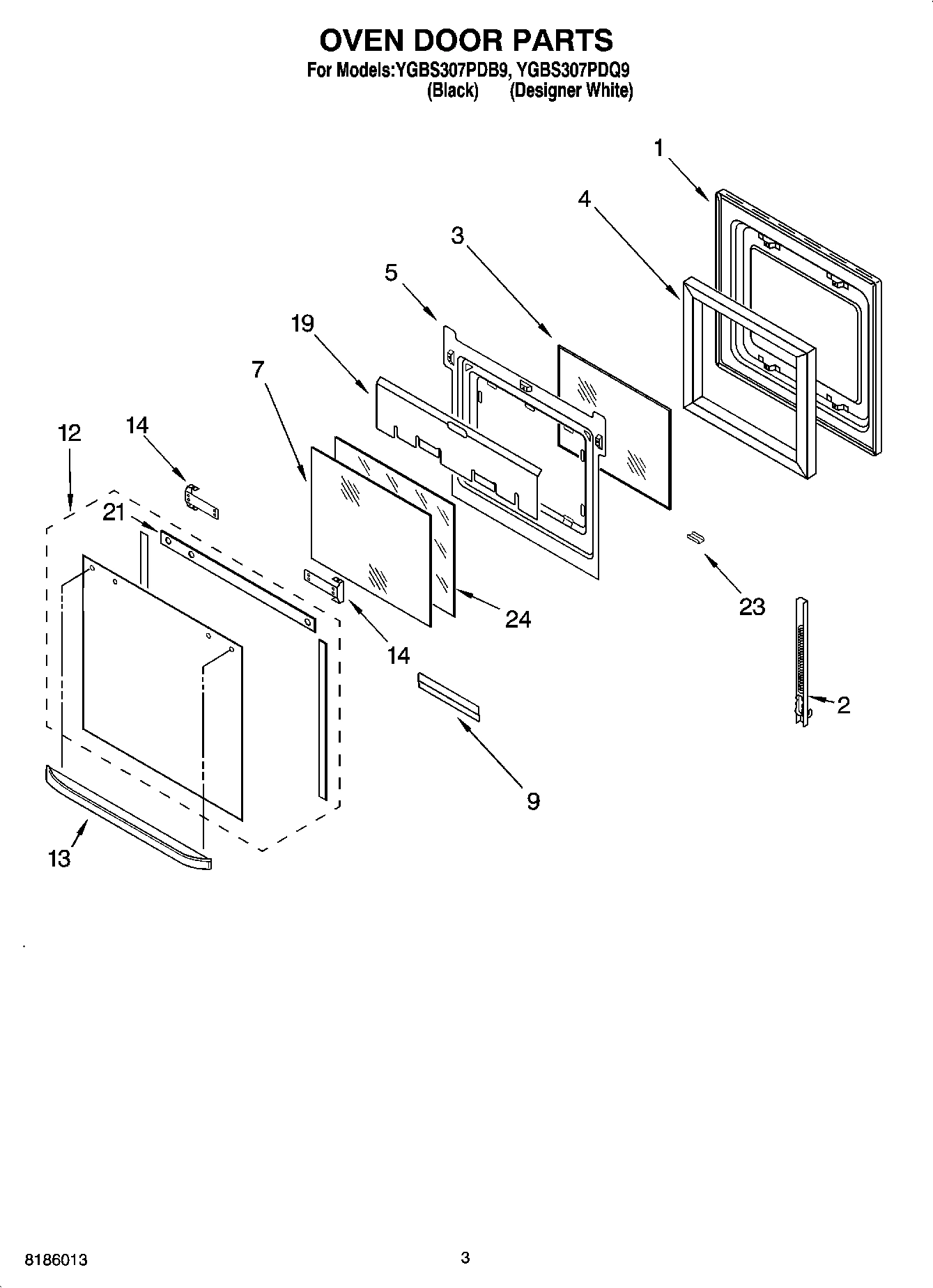

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $138.47

1

Screw WPL 4449040 Contact Us For Availability

1

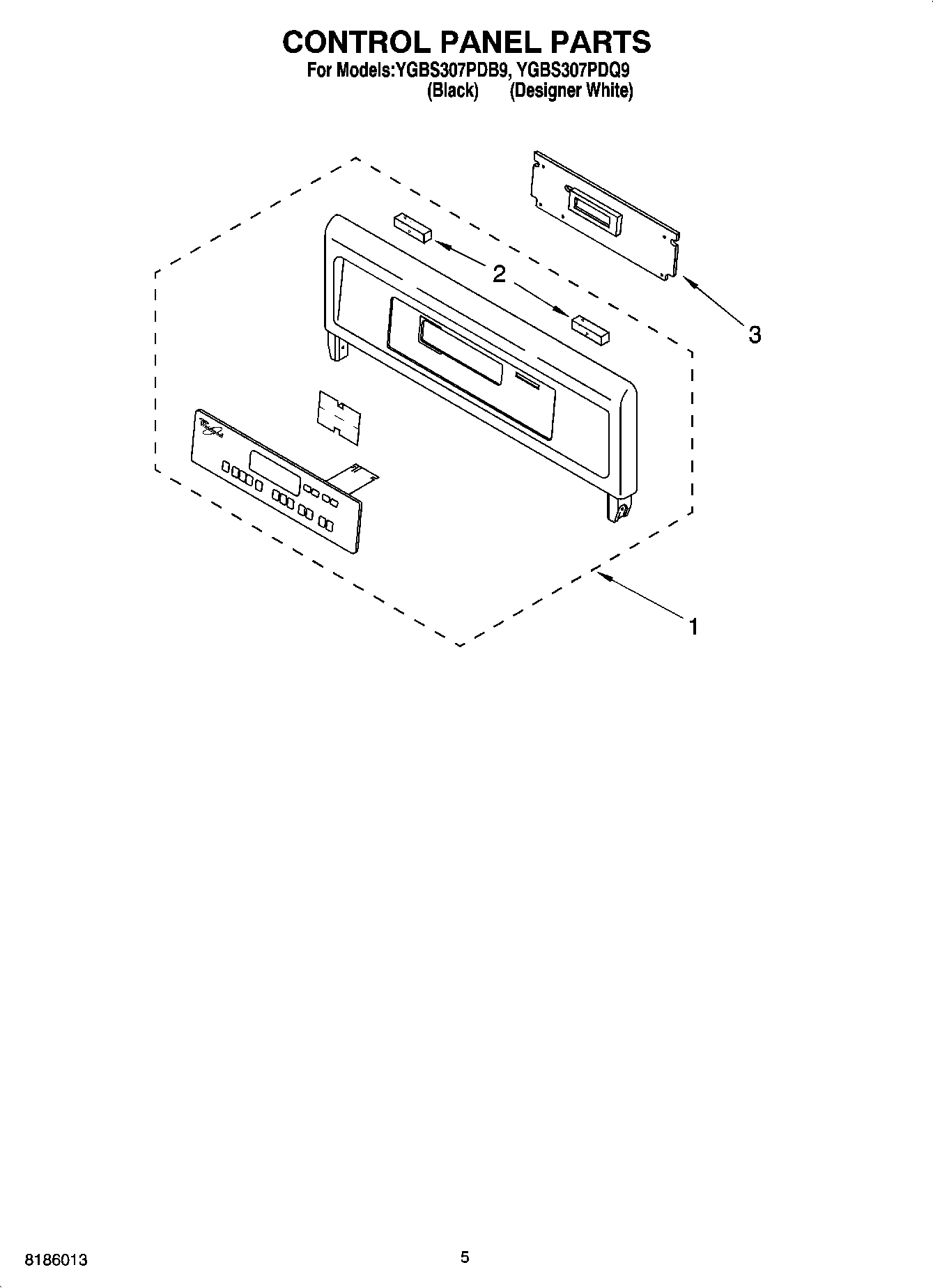

Control Panel Assy. W/Membrane Switch (Black WPL 8300447 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation/ Undercounter) WPL LIT3192225 Contact Us For Availability

1

Literature Parts (Use & Care Guide (French)) WPL LIT8300602 Contact Us For Availability

1

Literature Parts (Use & Care Guide (English)) WPL LIT8300609 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8300651 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8301350 Contact Us For Availability

2

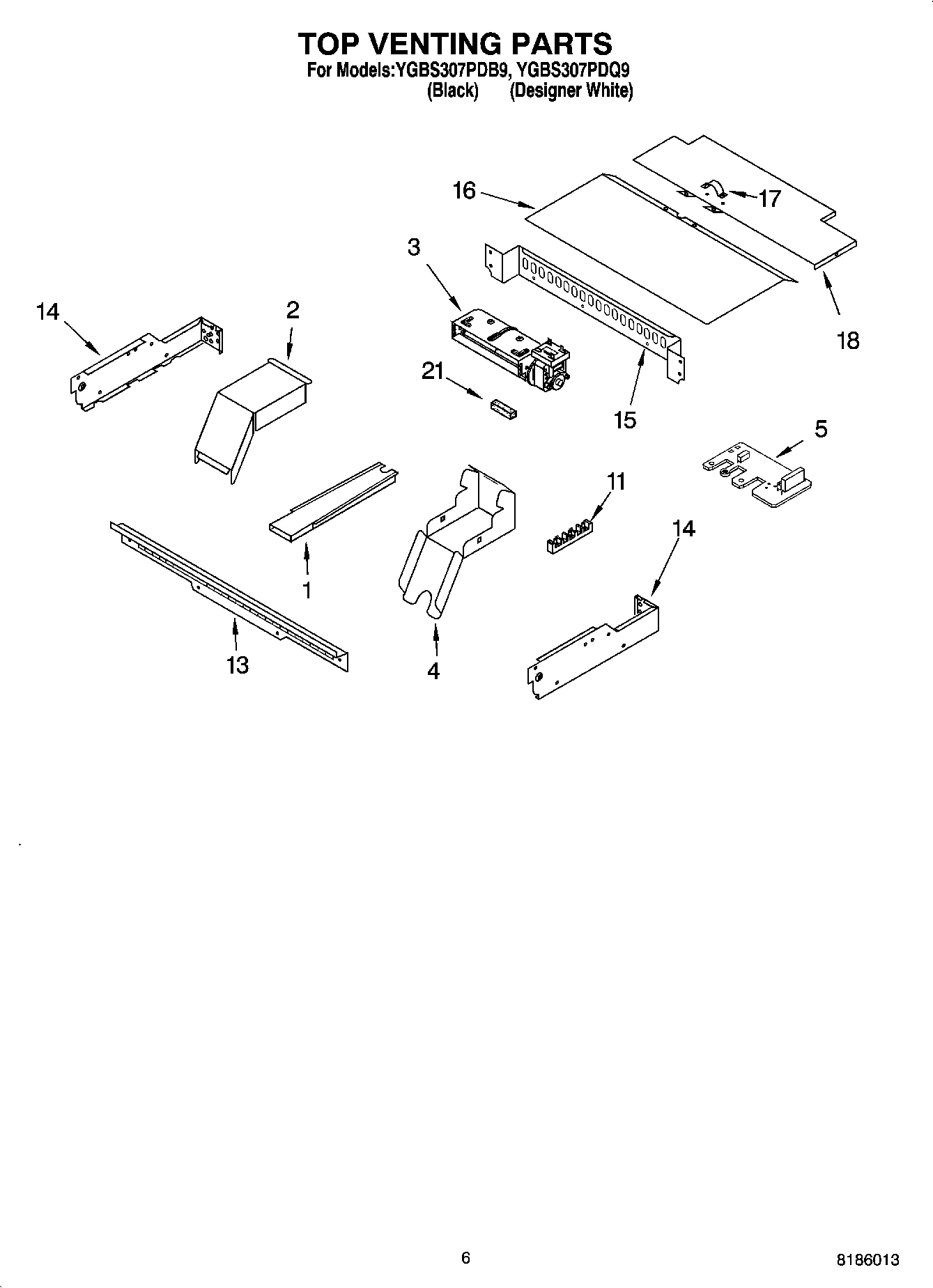

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $2.51

2

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $52.49

2

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $44.10

2

Gasket, Control Panel WPL 4451034 Contact Us For Availability

2

Trim, Side (Right Hand) (Black Model) WPL 4450844 Contact Us For Availability

2

Trim, Side (Right Hand) (White Model) WPL 4450845 Contact Us For Availability

2

Trim, Side (Left Hand) (Black Model) WPL 4450847 Contact Us For Availability

2

Trim, Side (Left Hand) (White Model) WPL 4450848 Contact Us For Availability

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $84.22

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

Blower 60MM WPL 4455334 Contact Us For Availability

3

Microcomputer WPL 8301352 Contact Us For Availability

4

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $68.58

5

WP4451985 Whirlpool Noise Filter Board In Stock WPL WP4451985 $59.77

5

Retainer, Glass WPL 8300778 Contact Us For Availability

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $85.49

7

Top, Chassis WPL 4455865 Contact Us For Availability

8

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $40.00

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

9

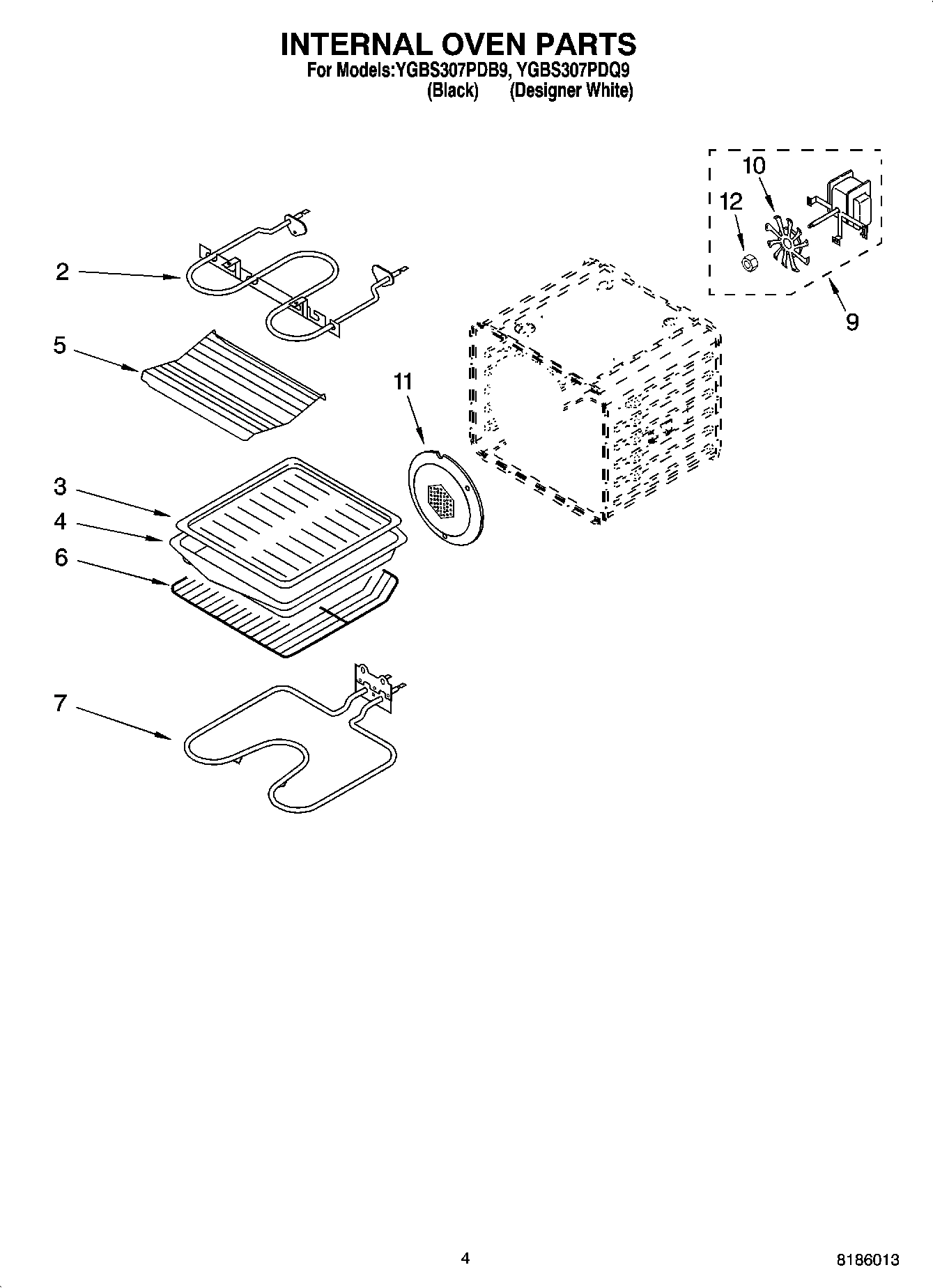

Motor Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $28.29

10

Lens, Light WPL 4452165 Contact Us For Availability

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $37.09

11

Screw WPL 3400080 Contact Us For Availability

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $29.35

12

WP9759641 Whirlpool Outer Door Glass Backorder WPL WP9759641 $144.25

12

Assy, Door Glass (White Model) WPL 8300899 Contact Us For Availability

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $2.51

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.92

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.92

Door Handle (Black Model) WPL 4448854 Contact Us For Availability

Door Handle (White Model) WPL 4448855 Contact Us For Availability

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Bracket, Handle WPL 4450813 Contact Us For Availability

Frame, Front WPL 4455612 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $44.23

19

Support, Insulation WPL 4451478 Contact Us For Availability

19

Shield, Heat WPL 4450362 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $40.63

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $42.93

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

Seal, Door Top WPL 8300820 Contact Us For Availability

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

23

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

24

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $193.95

24

Glass, Inner WPL 4455257 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $56.73

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI136390A Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $55.66

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $34.28

43

Base, Chassis WPL 4455530 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $51.94

53

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $3.46

53

Support, Bracket WPL 4449845 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $47.58

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability

Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability

Insulation, Back WPL 4450365 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED INSU WPL ARI136391A Contact Us For Availability
