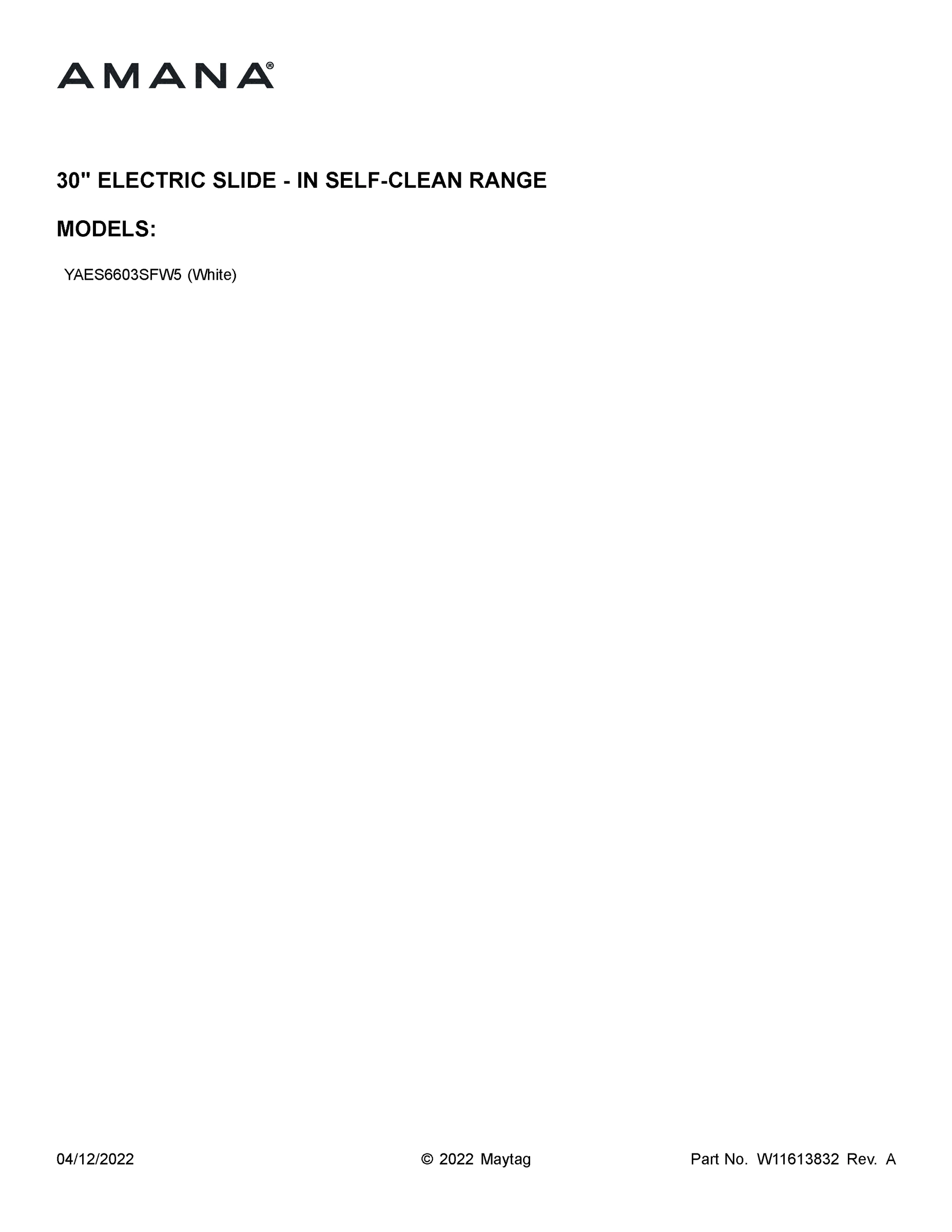

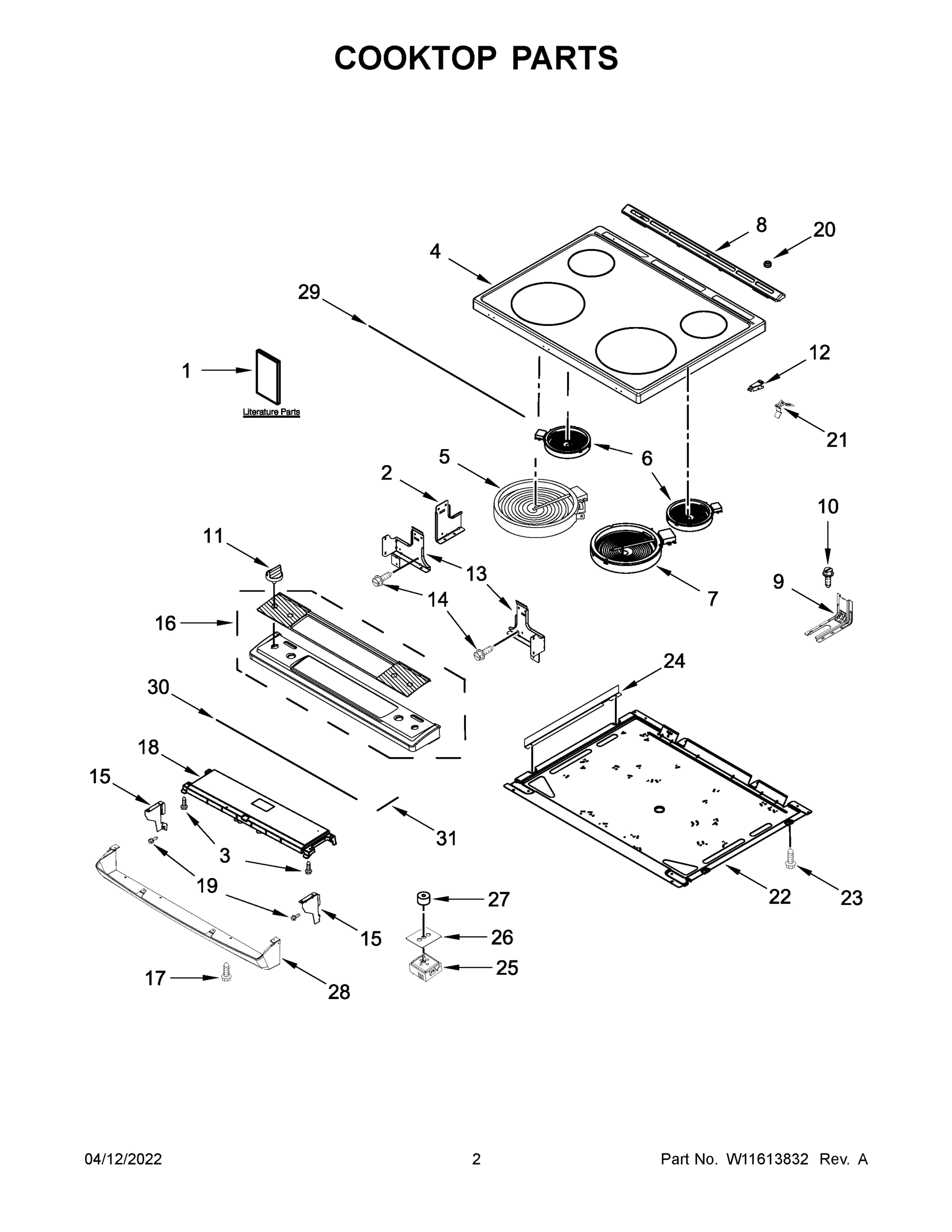

Model Whirlpool YAES6603SFW5 RANGE/OVEN, ELECTRIC, SLIDE-IN, 30 INCH – Common Parts & Diagrams

2
CHANNEL, REAR
CHANNEL, REAR WPL W10162241 Contact Us For Availability
View on Model
2
BRACKET, CONSOLE (CENTER)
BRACKET, CONSOLE (CENTER) WPL W10814305 Contact Us For Availability
View on Model
3
BRACKET, MOUNTING
BRACKET, MOUNTING WPL W10462911 Contact Us For Availability
View on Model
8
VENT, TRIM TOP (WHITE)
VENT, TRIM TOP (WHITE) WPL W10636527 Contact Us For Availability
View on Model
12
BRACE, CORNER (LEFT)
BRACE, CORNER (LEFT) WPL W10162253 Contact Us For Availability
View on Model
12A
BRACE, CORNER (RIGHT)
BRACE, CORNER (RIGHT) WPL W10162252 Contact Us For Availability
View on Model
13
CLIP, PANEL
CLIP, PANEL WPL W10137382 Contact Us For Availability
View on Model
15
BRACKET, CONSOLE (LEFT)
BRACKET, CONSOLE (LEFT) WPL W10547960 Contact Us For Availability
View on Model
15A
BRACKET, CONSOLE (RIGHT)
BRACKET, CONSOLE (RIGHT) WPL W10547961 Contact Us For Availability
View on Model
17
BADGE (WHITE)
BADGE (WHITE) WPL W10849465 Contact Us For Availability
View on Model
21
COVER, WIRE
COVER, WIRE WPL W10162248 Contact Us For Availability
View on Model
22
PAN, RADIANT
PAN, RADIANT WPL W10536275 Contact Us For Availability
View on Model
25
SCREW
SCREW WPL 3400080 Contact Us For Availability
View on Model
29
ROD, DOOR SWITCH
ROD, DOOR SWITCH WPL 9757239 Contact Us For Availability
View on Model
33
ROD, PUSH LATCH
ROD, PUSH LATCH WPL W10078370 Contact Us For Availability
View on Model
36
SCREW
SCREW WPL 3196172 Contact Us For Availability
View on Model
40
SHIELD, POWER CORD
SHIELD, POWER CORD WPL W10655441 Contact Us For Availability
View on Model
42
ASSEMBLY, FLUE
ASSEMBLY, FLUE WPL W11122085 Contact Us For Availability
View on Model
45
CLIP-PANEL, RATCHETING
CLIP-PANEL, RATCHETING WPL W10866583 Contact Us For Availability
View on Model
46
COVER, BACK
COVER, BACK WPL W11379354 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. WHITE)
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. BLACK)
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) WPL 285006 Contact Us For Availability
View on Model
NI
ACCESSORY PARTS, RACK, BROILER PAN AND ROASTI
ACCESSORY PARTS, RACK, BROILER PAN AND ROASTI WPL W10123240 Contact Us For Availability
View on Model
NI
WHITE PORCELAIN (2 OZ.)
WHITE PORCELAIN (2 OZ.) WPL 511873 Contact Us For Availability
View on Model
NI
PAINT, BULK (1 QT. WHITE (UNCUT))
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
NI
INSULATION, WRAP
INSULATION, WRAP WPL W10830993 Contact Us For Availability
View on Model
