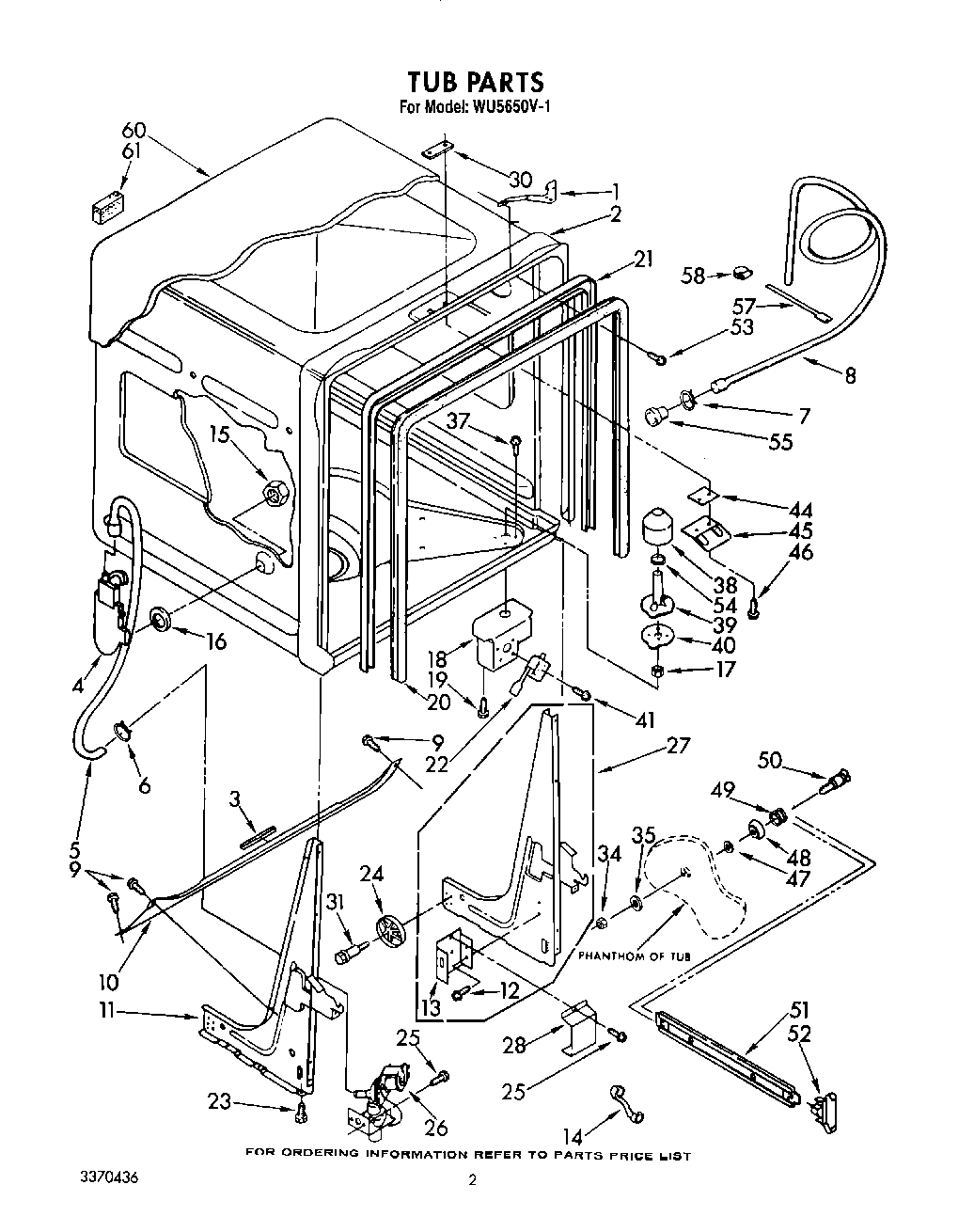

Model Whirlpool WU5650V1 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability

1

Pump Housing, Upper WPL 3367439 Contact Us For Availability

1

Switch, Pushbutton WPL 3368540 Contact Us For Availability

1

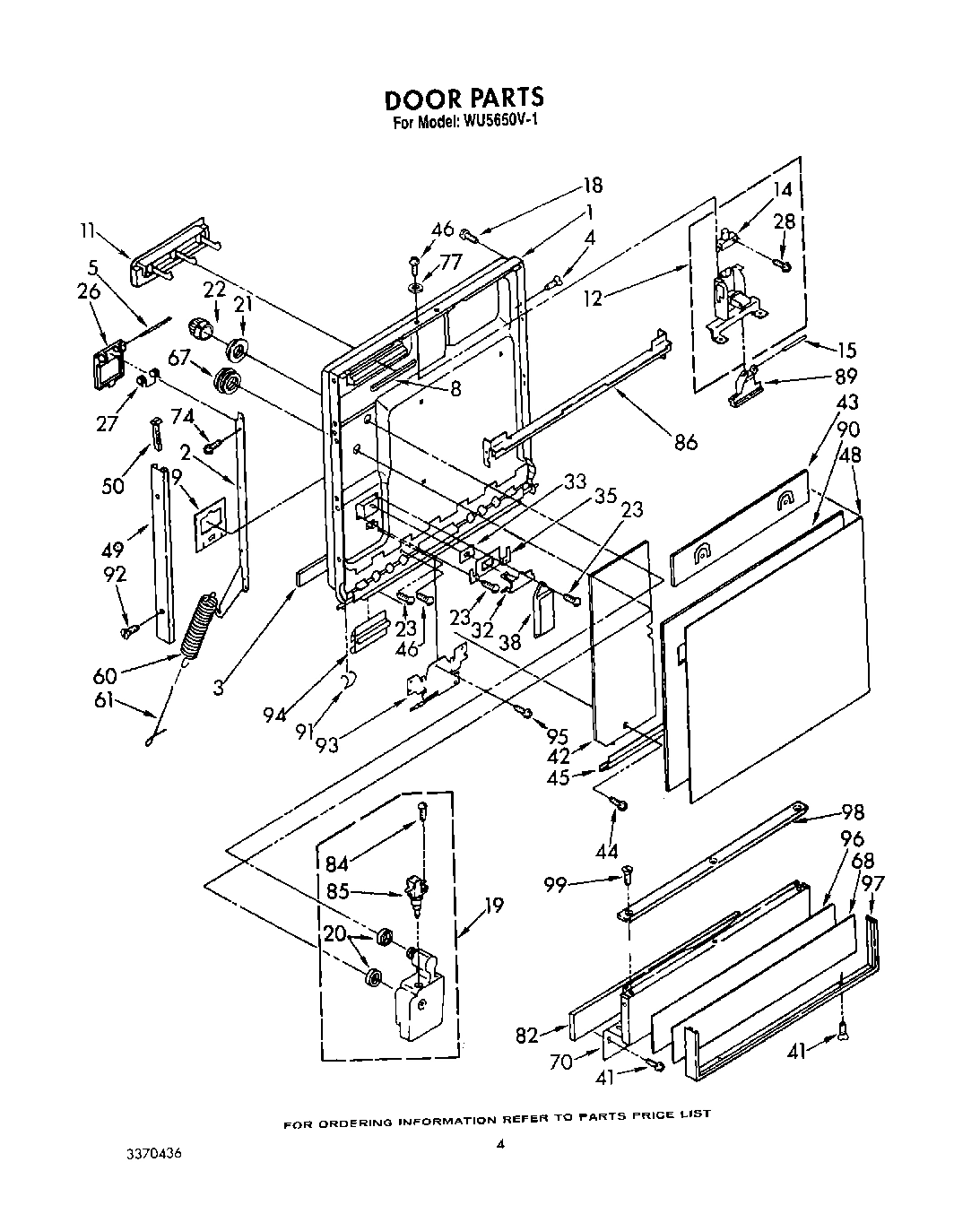

Door, Inner WPL 3367390 Contact Us For Availability

2

WP3376961 Whirlpool Dishwasher Wheel Backorder WPL WP3376961 $30.03

2

Seal, Ring WPL 718259 Contact Us For Availability

2

Button (6) WPL 304456 Contact Us For Availability

2

Support, Door (R.H.) WPL 3367201 Contact Us For Availability

2

Support, Door (L.H.) WPL 3367202 Contact Us For Availability

3

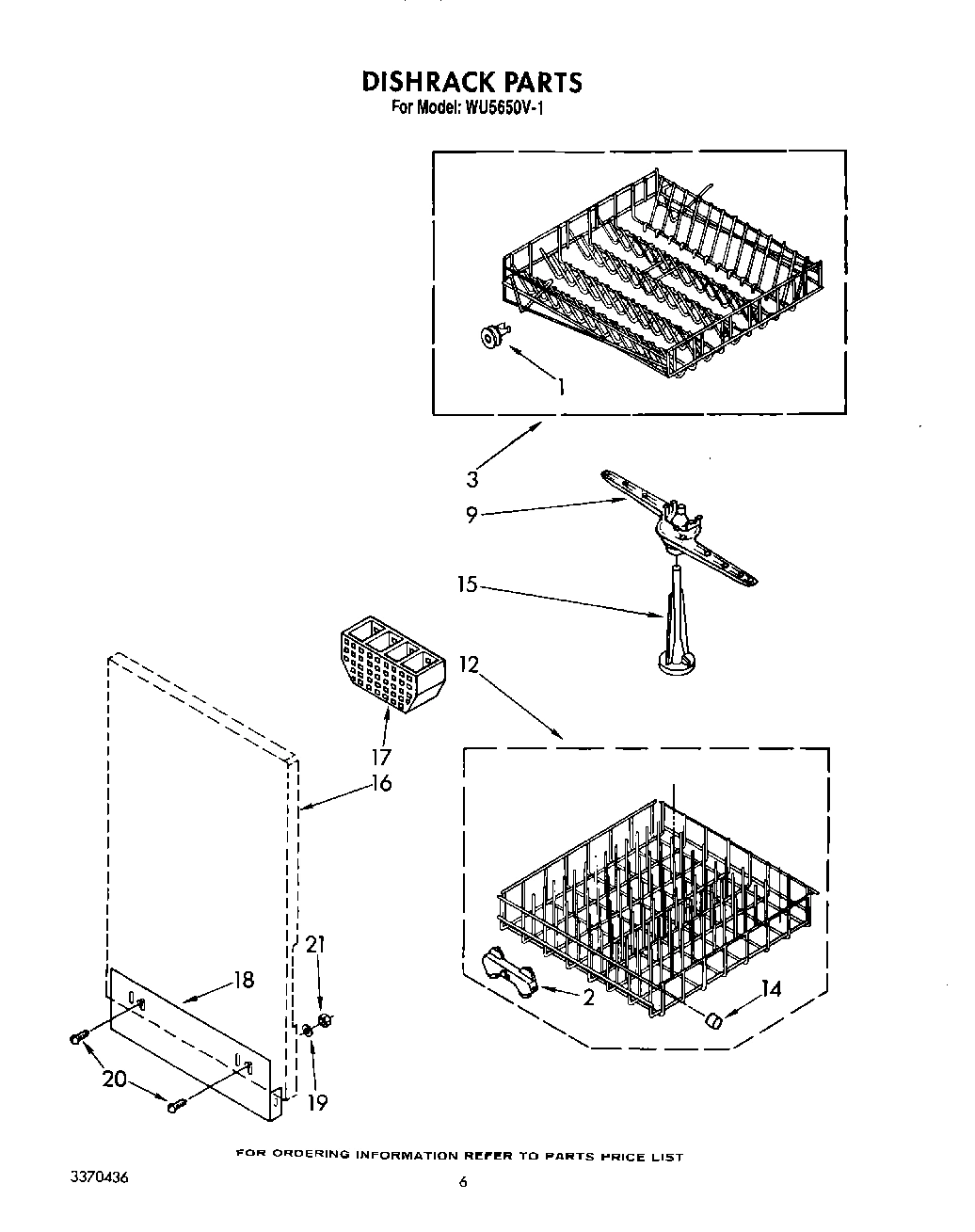

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

3

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

3

Gasket, Door WPL 717921 Contact Us For Availability

4

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

4

Impeller WPL 303517 Contact Us For Availability

4

Baffle WPL 3368537 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

Light, Indicator (For Electrical Connector On WPL 304422 Contact Us For Availability

6

Pump Housing, Lower WPL 718222 Contact Us For Availability

6

Shield, Switch WPL 3368538 Contact Us For Availability

7

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

8

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

8

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

8

Timer WPL 3368535 Contact Us For Availability

8

Baffle WPL 719860 Contact Us For Availability

9

WP304204 Whirlpool Dishwasher Spray Arm Backorder WPL WP304204 $94.36

9

Coverplate WPL 300084 Contact Us For Availability

9

Receptacle (5-Circuit) WPL 719585 Contact Us For Availability

9

Screw, 8-18 x 1-1/4 WPL 304232 Contact Us For Availability

9

Baffle WPL 303978 Contact Us For Availability

10

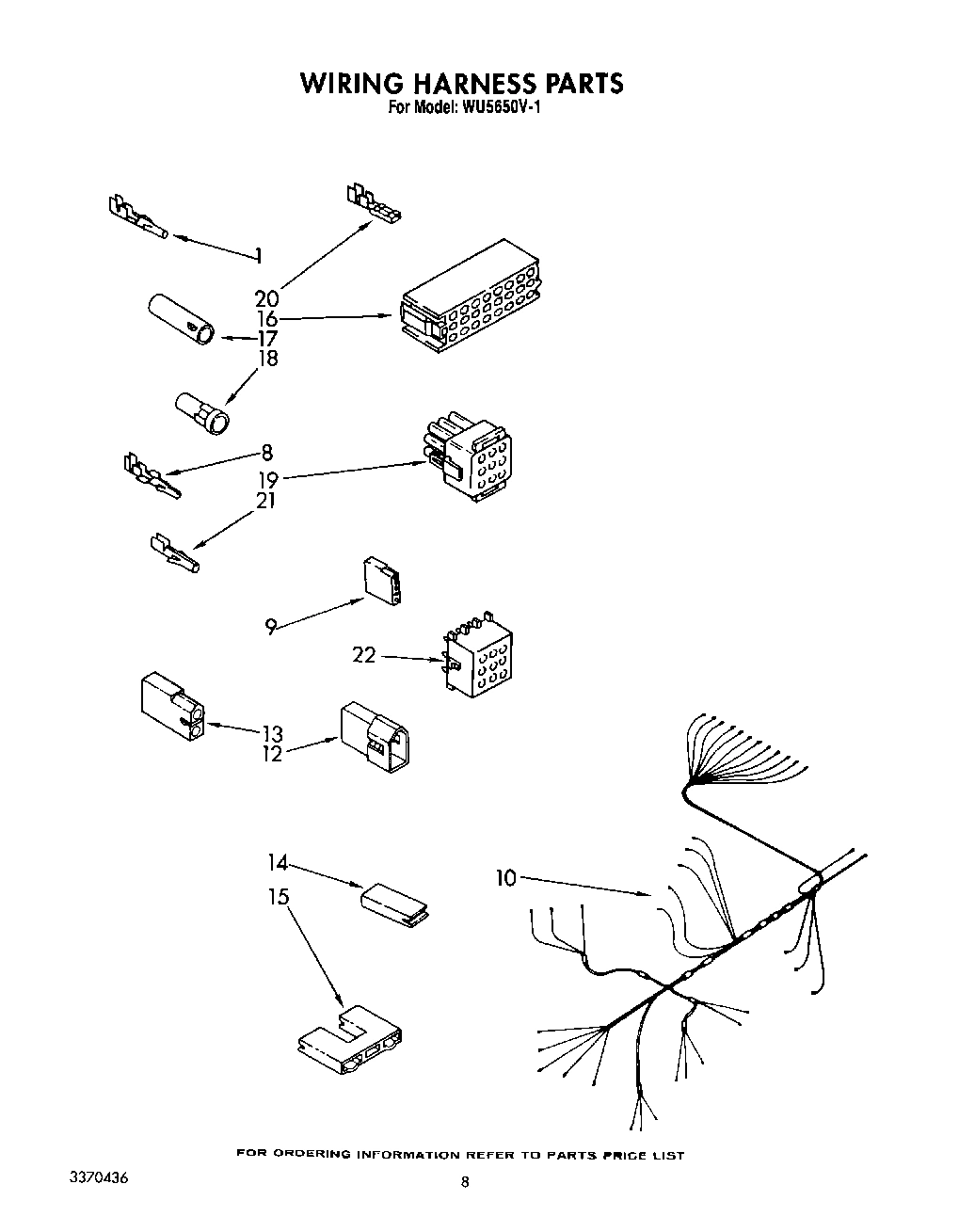

Harness, Wiring WPL 3367754 Contact Us For Availability

10

Relay, Start WPL 304409 Contact Us For Availability

11

Kit, Drain Impeller WPL 303555 Contact Us For Availability

11

Screen, Vent WPL 300246 Contact Us For Availability

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $170.17

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

Screw, 13-16 (4) WPL 3369331 Contact Us For Availability

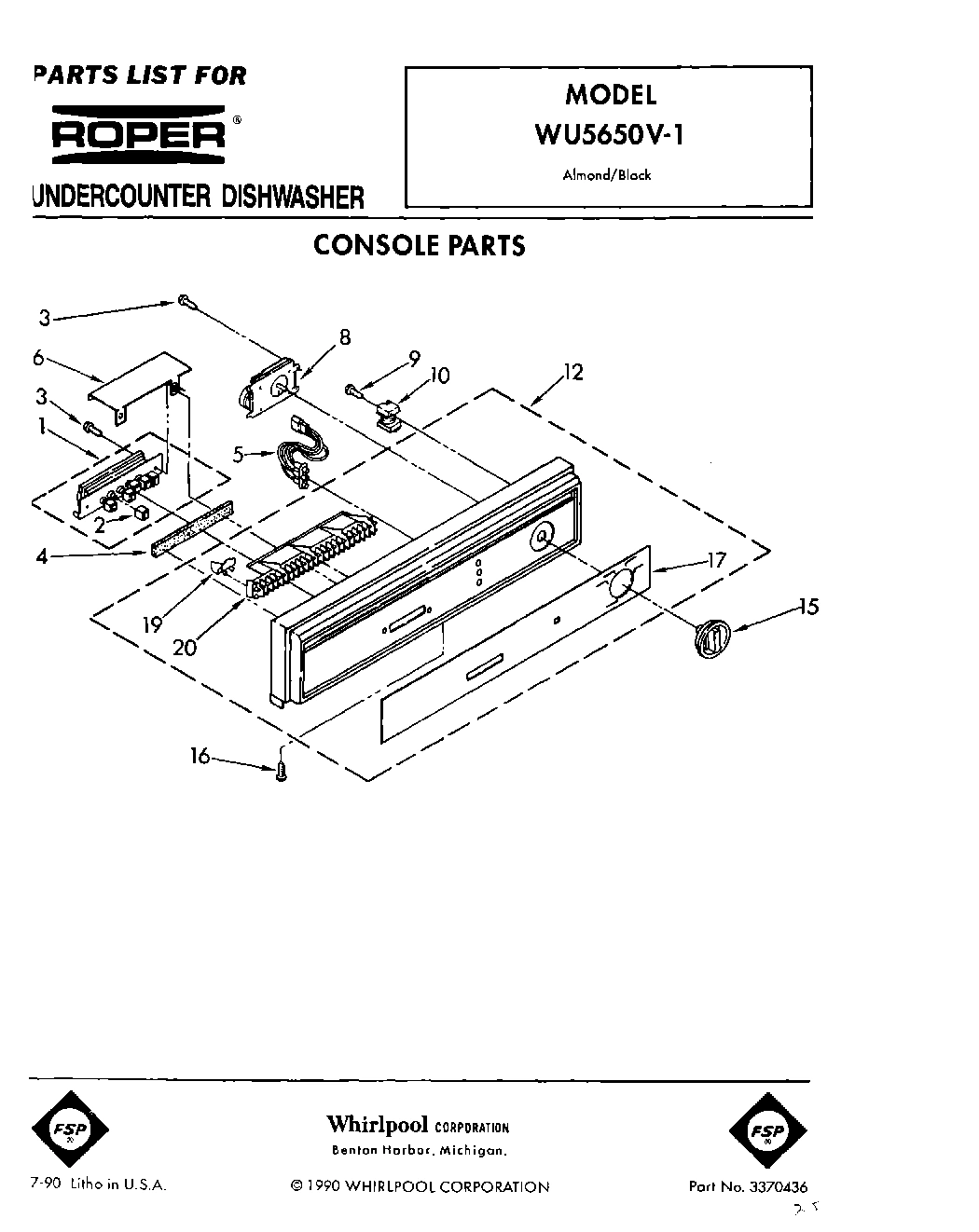

Console WPL 3369921 Contact Us For Availability

Latch Assembly WPL 3367058 Contact Us For Availability

13

Base, Pump WPL 3367203 Contact Us For Availability

13

Receptacle, Terminal (2-Way) WPL 717252 Contact Us For Availability

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

Bumper WPL 717970 Contact Us For Availability

Connector Block (Alternate) WPL 301219 Contact Us For Availability

Connector Block (Alternate) WPL 358736 Contact Us For Availability

Switch, Interlock WPL 660951 Contact Us For Availability

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

Tower WPL 304170 Contact Us For Availability

Knob, Timer WPL 3367843 Contact Us For Availability

Connector, Block (Alternate) WPL 300708 Contact Us For Availability

Connector Block (Alternate) WPL 374230 Contact Us For Availability

Pin, Pivot WPL 300234 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

xPanel, Reversible Side WPL ARI136023A Contact Us For Availability

Motor WPL 303574 Contact Us For Availability

Block, Disconnect (Timer) WPL 304758 Contact Us For Availability

WP8539066 Whirlpool Dishwasher Basket Ware Backorder WPL WP8539066 $38.52

Nut, 1/8 WPL 717488 Contact Us For Availability

Bleeder Assembly WPL 718629 Contact Us For Availability

Receptacle WPL 351296 Contact Us For Availability

Insert, Decorative WPL 3369920 Contact Us For Availability

Panel, Lower Side WPL 3367549 Contact Us For Availability

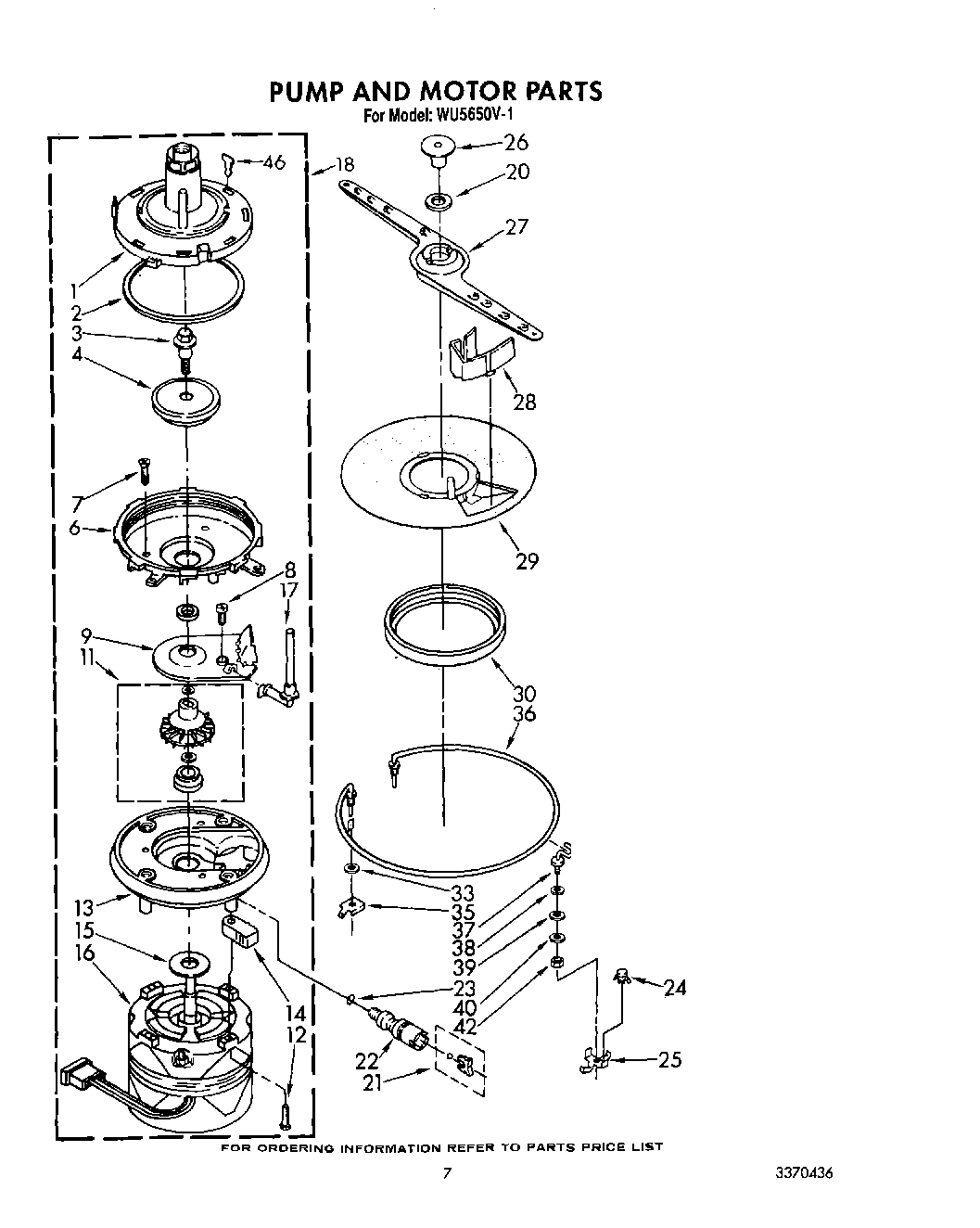

Pump & Motor Assembly WPL 3367440 Contact Us For Availability

Plug WPL 351297 Contact Us For Availability

Screw, 8-18 x 1-7/8 (2) WPL 304233 Contact Us For Availability

W11089212 Whirlpool Washer Backorder WPL W11089212 $3.29

Housing, Plug WPL 3367821 Contact Us For Availability

Cover, Grill WPL 304604 Contact Us For Availability

Dispenser, Wetting Agent WPL 304442 Contact Us For Availability

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

Gasket WPL 3368007 Contact Us For Availability

Screw (2) WPL 9419621 Contact Us For Availability

Terminal WPL 304759 Contact Us For Availability

Grill, Vent (Includes Item 19) WPL 304602 Contact Us For Availability

Washer (2) WPL 713080 Contact Us For Availability

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

Retainer & Seal WPL 3368002 Contact Us For Availability

Check Ball & Retainer WPL 675488 Contact Us For Availability

Terminal WPL 304412 Contact Us For Availability

Nut, 1-14 WPL 718575 Contact Us For Availability

22

675238 Whirlpool Check Valve Backorder WPL 675238 $28.04

22

Housing, Plug (9 Terminal) WPL 3367819 Contact Us For Availability

22

Cap WPL 718577 Contact Us For Availability

23

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

23

``O`` Ring WPL 95080 Contact Us For Availability

24

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

24

Thermostat WPL 661504 Contact Us For Availability

25

Bracket, Thermostat WPL 3368272 Contact Us For Availability

26

Cap, Nozzle WPL 3367910 Contact Us For Availability

26

Valve, Water Inlet WPL 303650 Contact Us For Availability

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

27

Spray Arm, Lever WPL 302767 Contact Us For Availability

28

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

28

Guard, Screen WPL 300988 Contact Us For Availability

28

Screw, 6-32 x 1 WPL 301582 Contact Us For Availability

29

Screen, Sump WPL 718226 Contact Us For Availability

30

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

32

Lever, Catch WPL 300119 Contact Us For Availability

33

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

33

Seal, Lever WPL 300105 Contact Us For Availability

35

Nut, 7/16-202 9 (2) WPL 718537 Contact Us For Availability

35

Retainer, Seal WPL 300104 Contact Us For Availability

36

Heater WPL 660318 Contact Us For Availability

37

Support, Heater (2) WPL 717096 Contact Us For Availability

38

Actuator WPL 300109 Contact Us For Availability

38

Washer, Retainer (2) WPL 717289 Contact Us For Availability

39

Washer (2) WPL 14351 Contact Us For Availability

40

Washer (2) WPL 711284 Contact Us For Availability

41

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

41

Screw, 4-40 5/8 WPL 302203 Contact Us For Availability

42

Nut, 10-32 (2) WPL 120614 Contact Us For Availability

42

Barrier, Door WPL 303906 Contact Us For Availability

43

Barrier, Console WPL 303908 Contact Us For Availability

44

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

44

Shim WPL 712302 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

45

Panel, Edging (Door) WPL 304047 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

46

Key, Pump Housing WPL 301936 Contact Us For Availability

47

Washer (8) WPL 718750 Contact Us For Availability

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

48

Panel, Front (Almond/Black) WPL 304668 Contact Us For Availability

49

Wheel Assembly (8) WPL 300844 Contact Us For Availability

49

Trim, Door R.H. WPL 3367206 Contact Us For Availability

49

Trim, Door (L.H.) WPL 3367207 Contact Us For Availability

50

Screw, Shoulder (8) WPL 712499 Contact Us For Availability

50

Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

52

End Cap, Track (4) WPL 300845 Contact Us For Availability

53

Screw, 8-18 x 5/8 (10) WPL 3368008 Contact Us For Availability

54

Gasket (2) WPL 301662 Contact Us For Availability

55

Insert, Cup-Hose WPL 301656 Contact Us For Availability

57

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

58

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $3.70

60

675611 Whirlpool Spring Assembly In Stock WPL 675611 $39.24

60

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado (Uncut) WPL 261889 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Block, Foam (2) WPL 3368107 Contact Us For Availability

Leveler (T WPL 350941 Contact Us For Availability

WPL 675476 WPL 675476 Contact Us For Availability

WPL 675506 WPL 675506 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

67

Cap, Drip WPL 718576 Contact Us For Availability

68

Panel, Access (Almond/Black) WPL 3367012 Contact Us For Availability

70

Plate, Toe WPL 3367671 Contact Us For Availability

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

Washer WPL 300237 Contact Us For Availability

82

Shield, Sound WPL 303809 Contact Us For Availability

84

Screw, 4-20 x 3/8 (2) WPL 304444 Contact Us For Availability

85

Actuator WPL 304443 Contact Us For Availability

86

Rail, Support WPL 304391 Contact Us For Availability

89

Lever, Release WPL 304408 Contact Us For Availability

90

Spacer, Corrugated WPL 3368569 Contact Us For Availability

91

Clip, Wire (2) WPL 301857 Contact Us For Availability

92

Screw, 8 - 18 (4) WPL 3367288 Contact Us For Availability

93

Shield, Harness WPL 303362 Contact Us For Availability

94

Retainer, Clip WPL 3367720 Contact Us For Availability

96

Spacer, Corrugated WPL 303755 Contact Us For Availability

97

Trim, Access Panel WPL 303753 Contact Us For Availability

98

Trim, Access Panel Top WPL 303754 Contact Us For Availability

99

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59
