Model Whirlpool WRF560SFYW05 REFRIGERATOR, BOTTOM MOUNT – Common Parts & Diagrams
02 - CABINET PARTS
04 - REFRIGERATOR DOOR PARTS

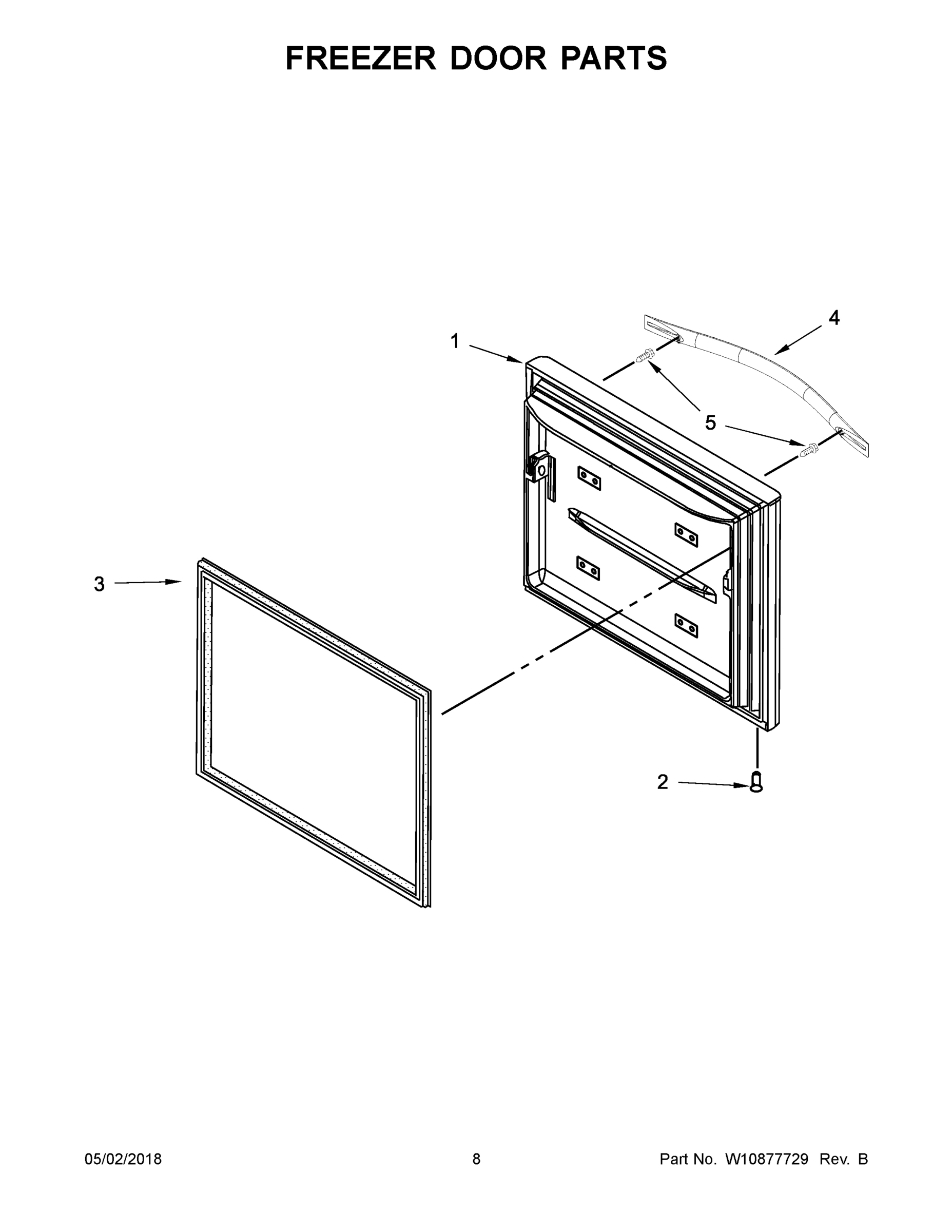

05 - FREEZER DOOR PARTS
08 - OPTIONAL PARTS

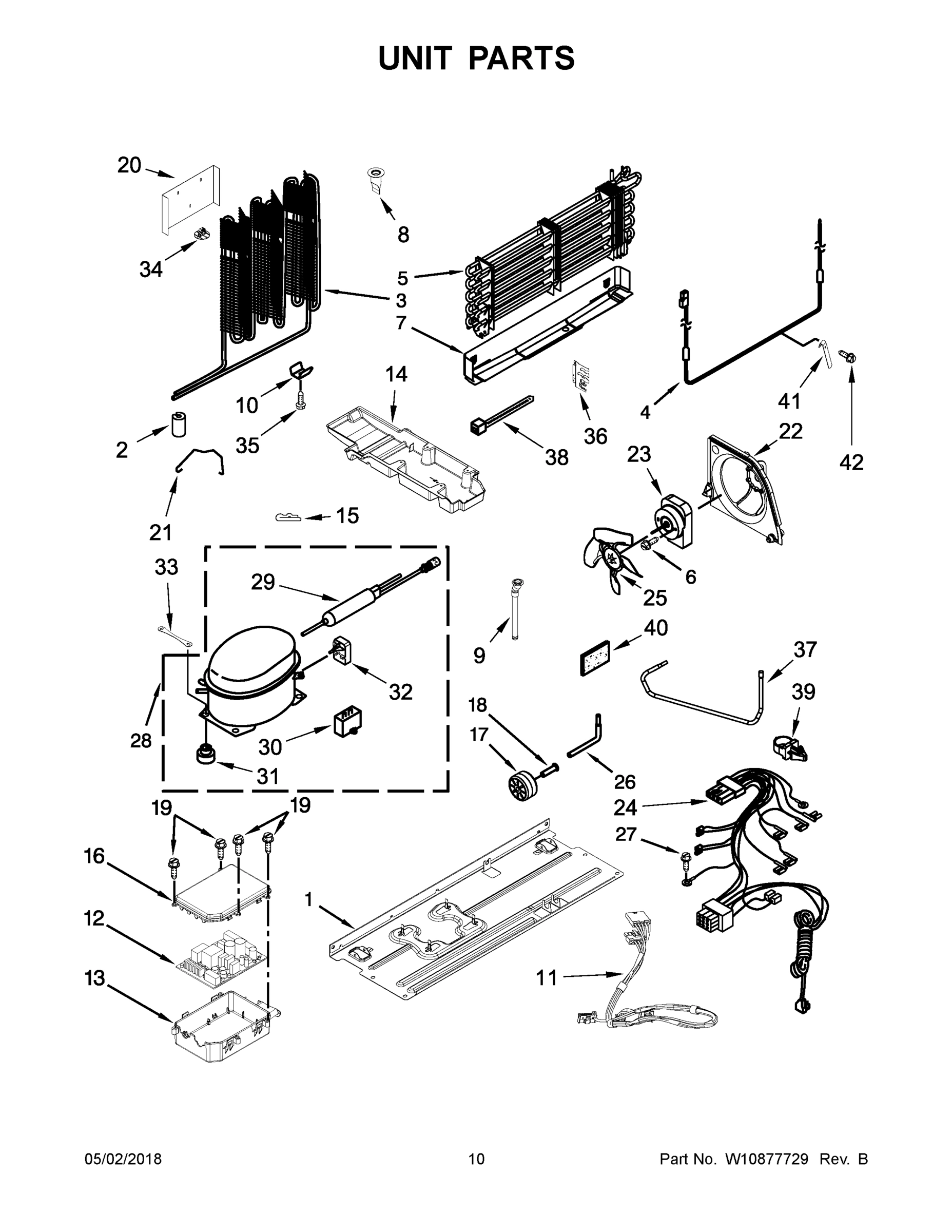

06 - UNIT PARTS

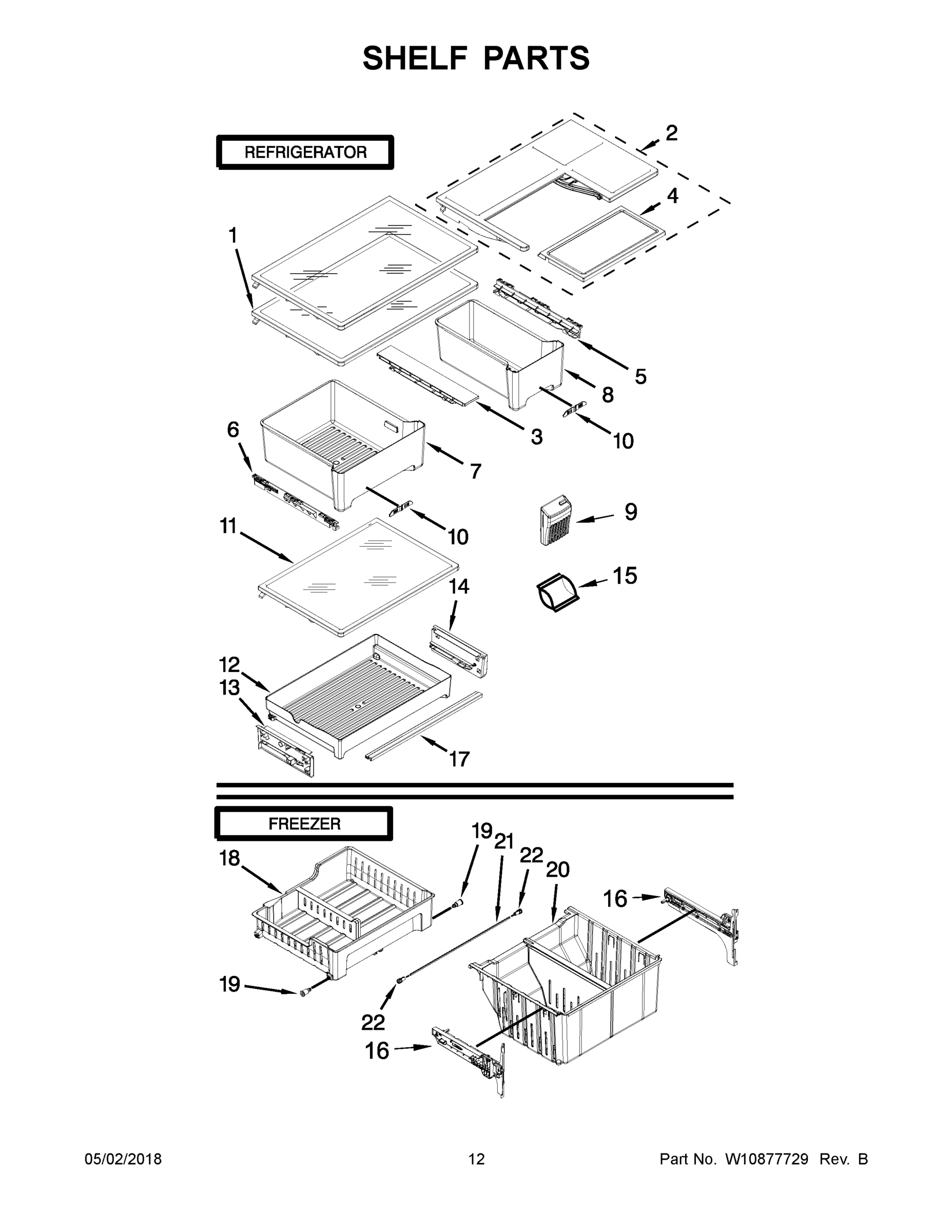

07 - SHELF PARTS

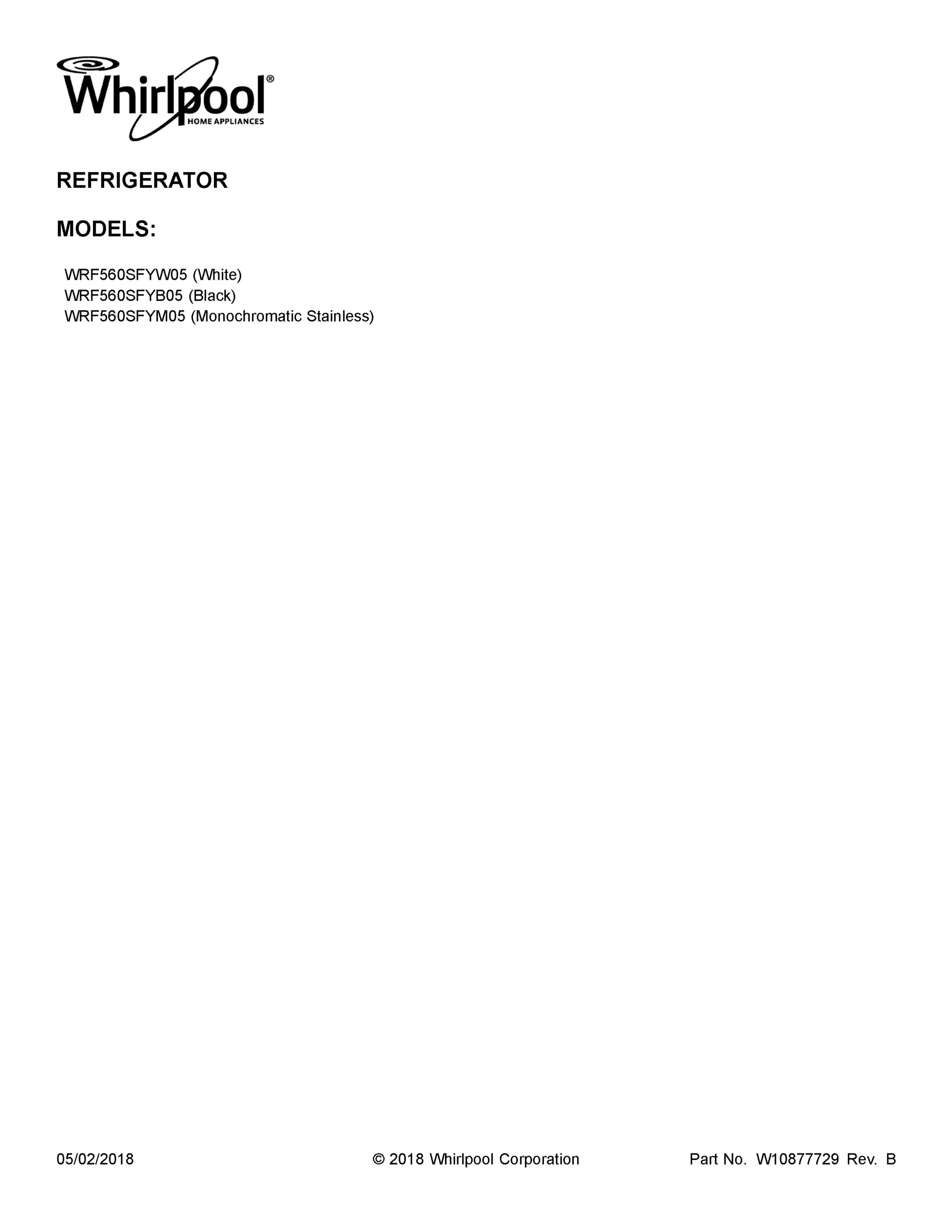

01 - COVER SHEET

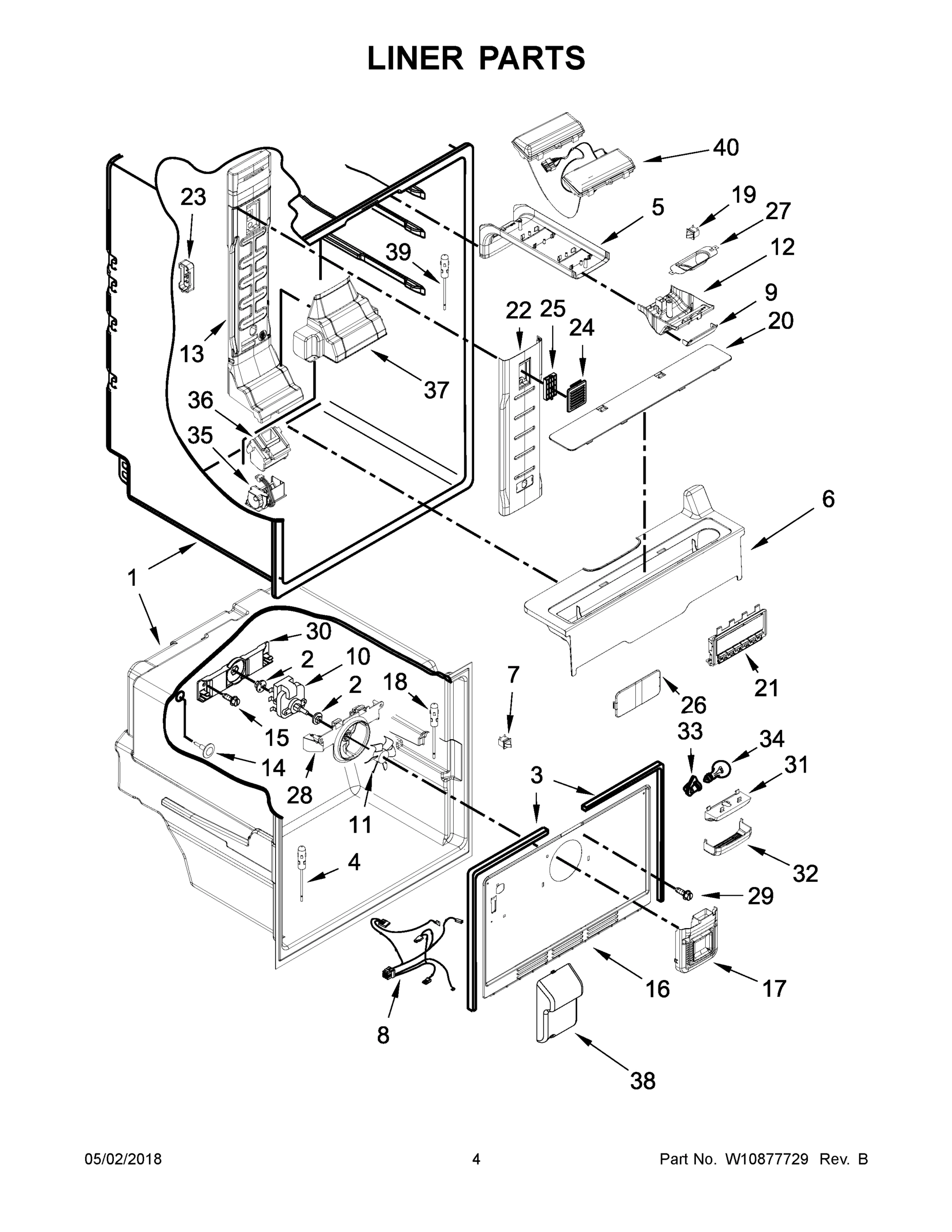

03 - LINER PARTS
Common parts from model Whirlpool WRF560SFYW05 REFRIGERATOR, BOTTOM MOUNT
1
BASEPLATE WPL W10300116 Contact Us For Availability
2
HINGE, TOP (LEFT HAND) WPL W10546298 Contact Us For Availability
4A
HANDLE ASSEMBLY (BLACK) WPL W10686483 Contact Us For Availability
5
HOUSING, LIGHT WPL W10469878 Contact Us For Availability
5
DRUM, TOE GRILLE WPL W10331226 Contact Us For Availability
6
CONTAINER, WATER RESERVOIR WPL W10798439 Contact Us For Availability
8A
COVER, TOE GRILLE (BLACK) WPL W10353930 Contact Us For Availability
9
COVER, CONTROL HOUSING WPL W10360550 Contact Us For Availability
11
COVER, UNIT WPL W10636716 Contact Us For Availability
13
BOX, CONTROL WPL 2323186 Contact Us For Availability
14
HINGE, CENTER (LEFT HAND) WPL W10770878 Contact Us For Availability
16
COVER, EVAPORATOR WPL W10300900 Contact Us For Availability
16
COVER, ELECTRONIC CONTROL WPL W10313215 Contact Us For Availability
18
COVER, HINGE (LEFT HAND (WHITE)) WPL W10465765 Contact Us For Availability
18A
COVER, HINGE (RIGHT HAND (WHITE)) WPL W10465764 Contact Us For Availability
18B
COVER, HINGE (LEFT HAND (BLACK)) WPL W10465771 Contact Us For Availability
18C
COVER, HINGE (RIGHT HAND (BLACK)) WPL W10465770 Contact Us For Availability
18D
COVER, HINGE (LEFT HAND (GREY)) WPL W10465768 Contact Us For Availability
18E
COVER, HINGE (RIGHT HAND (GREY)) WPL W10465767 Contact Us For Availability
20
COVER, WATER RESERVOIR WPL W10413160 Contact Us For Availability
20
COVER, CONDENSER BOTTOM WPL W10349514 Contact Us For Availability
21
SHAFT, RACK WPL W10802342 Contact Us For Availability
24
ASSEMBLY, UNIT WIRE WPL W10637509 Contact Us For Availability
26
CUP, SCREW WPL W10336009 Contact Us For Availability
30
BRACKET, EVAPORATOR FAN REAR WPL 2254454 Contact Us For Availability
33
STRAP, COMPRESSOR WPL W10236396 Contact Us For Availability
34
CLIP, BOTTOM COVER WPL W10815861 Contact Us For Availability
36
BRACKET, EVAPORATOR WPL W10314197 Contact Us For Availability
37
TUBE, SUCTION WPL W10510988 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) WPL 4392899 Contact Us For Availability
NI
VALVE, ACCESS (3/16") WPL 876764 Contact Us For Availability
NI
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU WPL 4392901 Contact Us For Availability
NI
VALVE, ACCESS (5/16") WPL 978026 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) WPL 511873 Contact Us For Availability
NI
VALVE, ACCESS (3/8") WPL 978027 Contact Us For Availability
NI
INSULATION (2 PIECES, 3" X 24" X 48") WPL 876370 Contact Us For Availability
NI
VALVE, ACCESS (5/8") WPL 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") WPL 978030 Contact Us For Availability
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) WPL 350942 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
× ![]()
