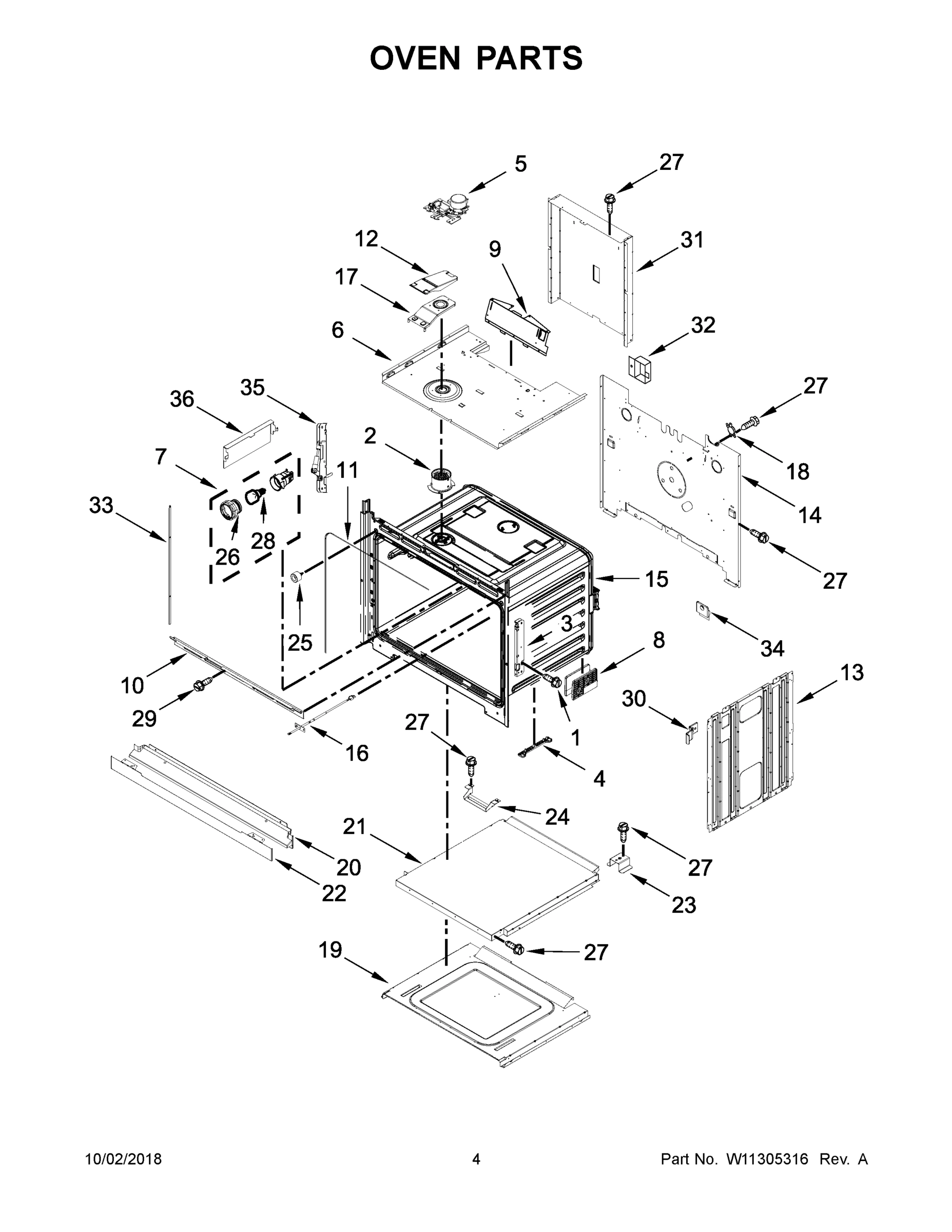

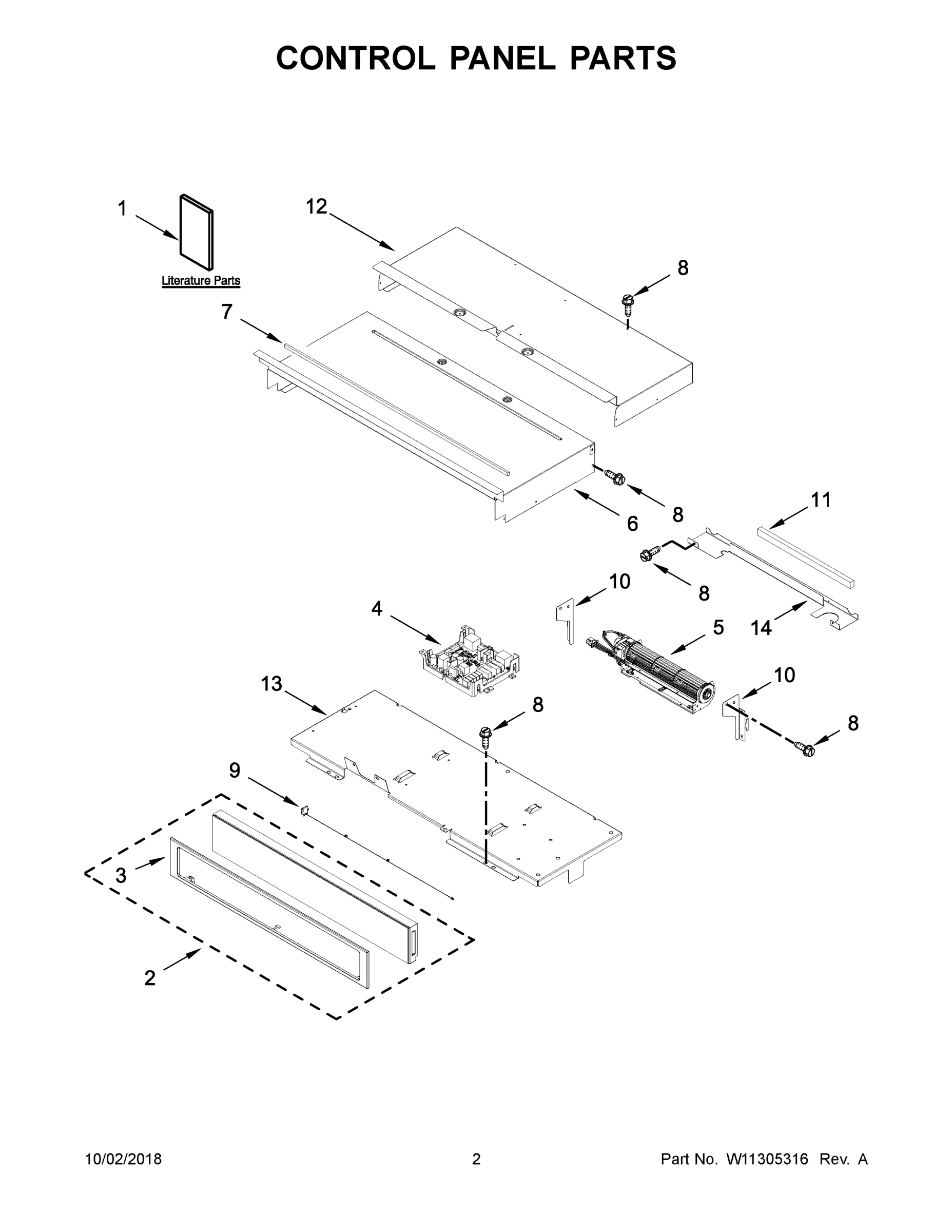

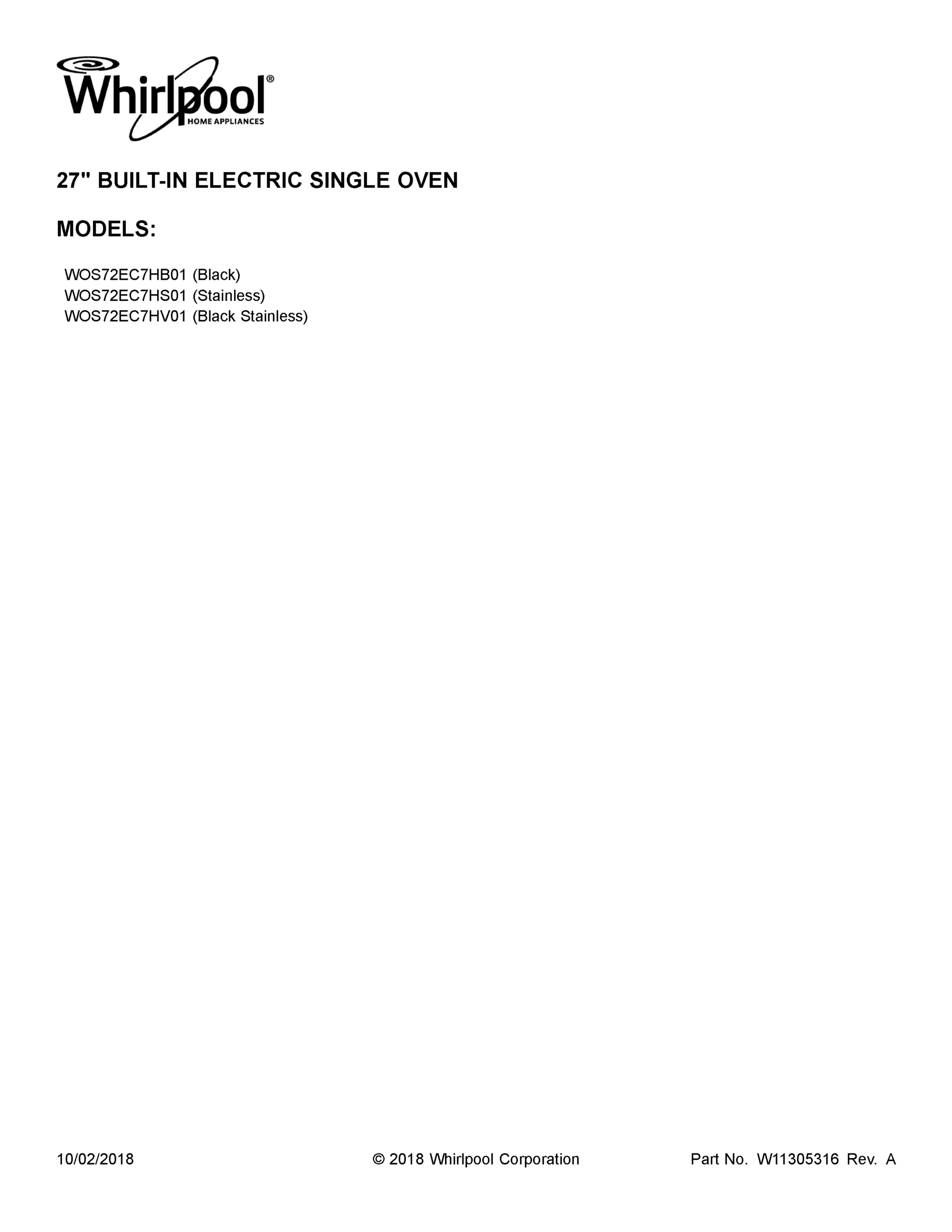

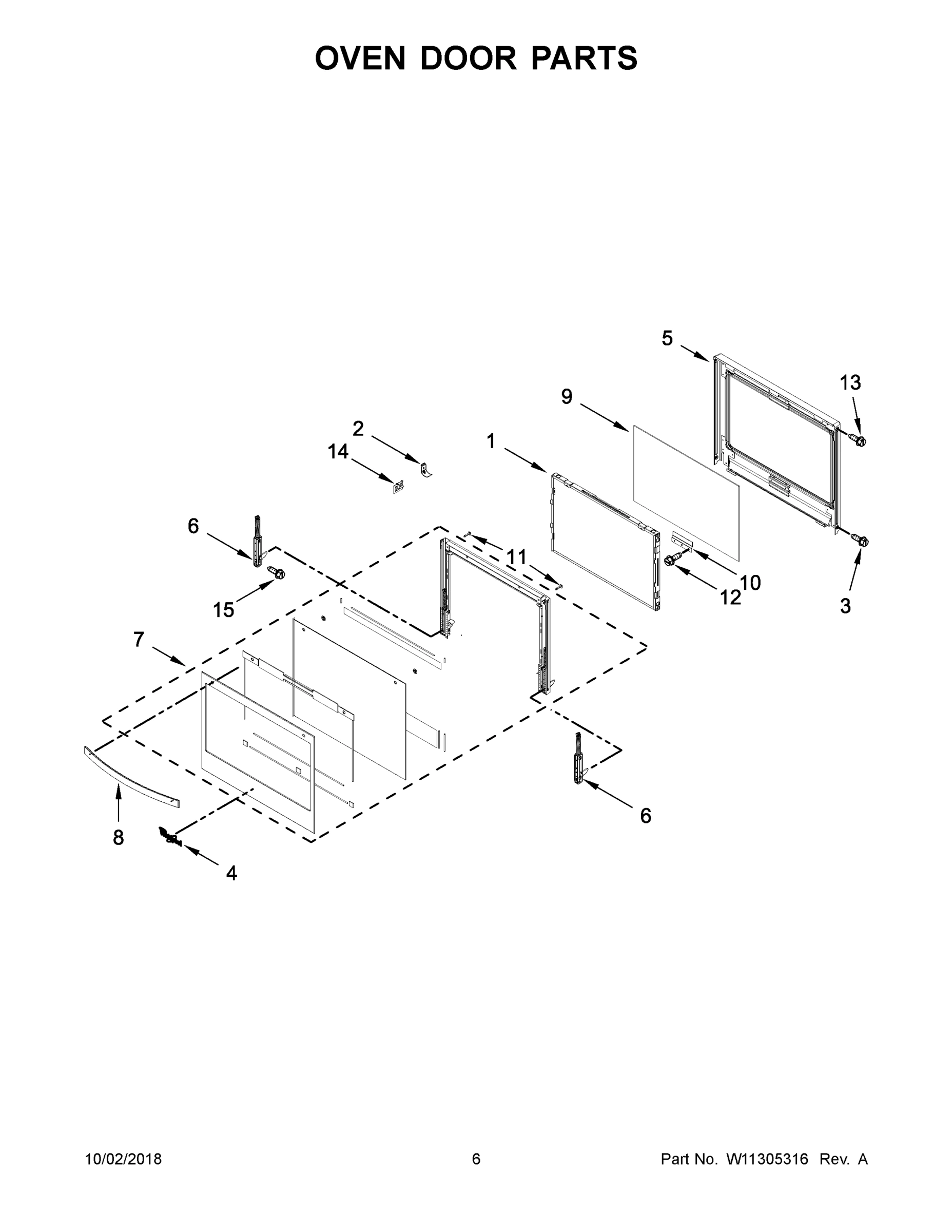

Model Whirlpool WOS72EC7HB01 RANGE/OVEN, ELECTRIC, BUILT-IN, SINGLE, 27 INCH – Common Parts &amp; Diagrams

1

WPW10260252 Whirlpool Broil Element In Stock WPL WPW10260252 $70.54

1

WPW10347597 Whirlpool Door Glass Backorder WPL WPW10347597 $137.99

2

W10812024 Whirlpool Glass Bracket Backorder WPL W10812024 $60.29

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $66.19

3

W11613828 Whirlpool Hinge Receptacle Backorder WPL W11613828 $24.58

3

SCREW (BLACK) WPL 7101P63560 Contact Us For Availability

4

W11178521 Whirlpool Dishwasher Nameplate In Stock WPL W11178521 $31.95

4

W11240831 Whirlpool Spacer Backorder WPL W11240831 $6.42

5

WPW10320793 Whirlpool Glass Frame In Stock WPL WPW10320793 $120.61

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $16.20

6

W10318193 Whirlpool Cabinet Top Backorder WPL W10318193 $51.19

6

W11045550 Whirlpool Door Hinge Backorder WPL W11045550 $37.77

7

W11457681 Whirlpool Door Glass Backorder WPL W11457681 $430.65

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $48.90

7A

W11111694 Whirlpool Door Glass Assembly Backorder WPL W11111694 $296.08

7B

W11111696 Whirlpool Door Glass Backorder WPL W11111696 $296.08

8

W10860984 Whirlpool Fan Motor In Stock WPL W10860984 $74.69

8

W11115278 Whirlpool Door Handle Backorder WPL W11115278 $71.22

8A

W11113204 Whirlpool Door Handle Backorder WPL W11113204 $71.22

8B

HANDLE, DOOR (BLACK STAINLESS) WPL W10903344 Contact Us For Availability

9

W10829001 Whirlpool Oven Wall Inner Door Glas Backorder WPL W10829001 $88.85

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $61.11

10

W10283037 Whirlpool Exhaust Vent Backorder WPL W10283037 $46.99

10

W10853628 Whirlpool Oven Range Glass Bracket Backorder WPL W10853628 $54.68

11

W10831019 Whirlpool Stove Door Screw In Stock WPL W10831019 $3.02

11

W10856596 Whirlpool Oven Gasket Backorder WPL W10856596 $60.31

W10359278 Whirlpool Baffle Conv Backorder WPL W10359278 $83.28

W10616810 Whirlpool Exhaust Cover Backorder WPL W10616810 $29.04

CHASSIS, COVER TOP BACK 27" WPL W10904157 Contact Us For Availability

SCREW WPL 7101P42660 Contact Us For Availability

13

TRAY, ELECTRONIC WPL W10864102 Contact Us For Availability

13

SCREW WPL 7101P65360 Contact Us For Availability

13A

SIDE, CHASSIS (RIGHT) WPL W10318190 Contact Us For Availability

14

W10655465 Whirlpool Mounting Bracket Backorder WPL W10655465 $26.10

14

W11025615 Whirlpool Glass Bracket Backorder WPL W11025615 $62.17

15

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

16

W10859573 Whirlpool Range Oven Temperature Se In Stock WPL W10859573 $68.99

17

W10616809 Whirlpool Vent Tube Backorder WPL W10616809 $11.47

18

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

19

BASE, CHASSIS WPL W10282901 Contact Us For Availability

20

WPW10327375 Whirlpool Oven Vent Backorder WPL WPW10327375 $243.95

20A

WPW10351280 Whirlpool Oven Vent Backorder WPL WPW10351280 $145.32

22

WPW10351237 Whirlpool Trim Backorder WPL WPW10351237 $46.32

22A

WPW10327378 Whirlpool Trim Backorder WPL WPW10327378 $41.38

26

WPW10412722 Whirlpool Light Lens In Stock WPL WPW10412722 $8.38

28

WPW10412711 Whirlpool Light Bulb In Stock WPL WPW10412711 $13.60

31

W10318196 Whirlpool BA Chassis Backorder WPL W10318196 $81.72

35

W11045086 Whirlpool Hinge Receptacle In Stock WPL W11045086 $67.53

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W10487999 Whirlpool Clip Backorder WPL W10487999 $7.65

W10520716 Whirlpool Insulation Backorder WPL W10520716 $35.32

W10655464 Whirlpool Bracket Backorder WPL W10655464 $14.22

W10745649 Whirlpool Oven Rack Backorder WPL W10745649 $240.13

W11132989 Whirlpool Wire Harness In Stock WPL W11132989 $78.81

W11225368 Whirlpool Wire Harness Backorder WPL W11225368 $176.70

W11233570 Whirlpool Wire Harness Backorder WPL W11233570 $112.26

W11688333 Whirlpool Insulation Backorder WPL W11688333 $45.31

W11699910 Whirlpool Wire Harness Backorder WPL W11699910 $11.79

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

ACCESSORIES, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability

ACCESSORIES, CLEANER, GRANITE WPL W10275756 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability

HARNESS, SIGNAL WPL W11225369 Contact Us For Availability
