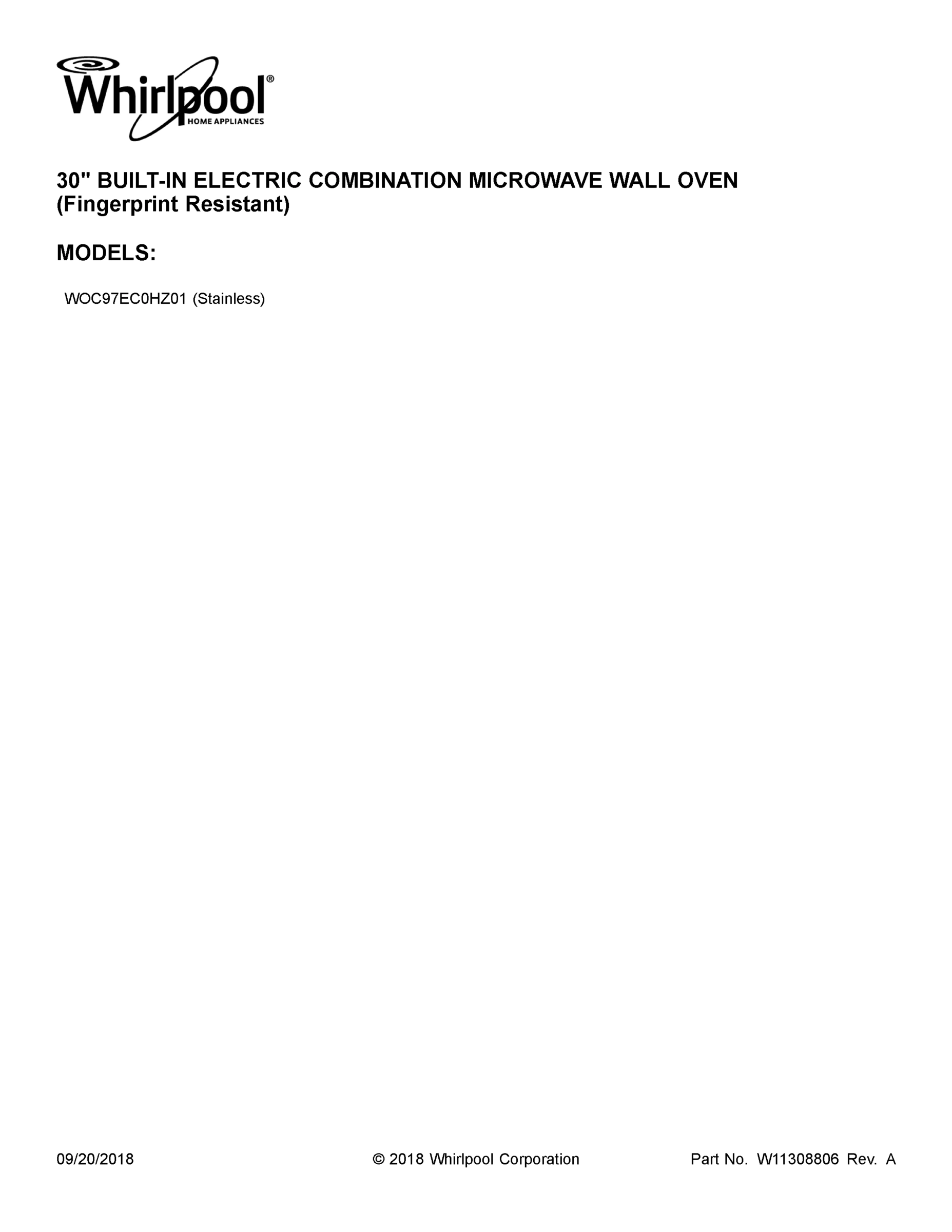

Model Whirlpool WOC97EC0HZ01 WALL OVEN, MICRO COMBO, 30 INCH – Common Parts &amp; Diagrams

1

W11165671-includeCORE Whirlpool W11165671 Mic Backorder WPL W11165671-includeCORE $191.65

1

WPW10260252 Whirlpool Broil Element In Stock WPL WPW10260252 $70.54

1

WPW10347596 Whirlpool Stove Middle Door Glass In Stock WPL WPW10347596 $146.08

2

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

2

W10359769 Whirlpool Microwave Door Gasket In Stock WPL W10359769 $8.18

2

W10486208 Whirlpool Microwave Trim Backorder WPL W10486208 $34.64

2

W10812024 Whirlpool Glass Bracket Backorder WPL W10812024 $60.29

2

W11110134 Whirlpool Glass Tray Support In Stock WPL W11110134 $37.66

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $66.19

3

W11179756 Whirlpool Glass Tray Drive Coupling In Stock WPL W11179756 $12.65

3

W11613828 Whirlpool Hinge Receptacle Backorder WPL W11613828 $24.58

3

W11684570 Whirlpool Microwave Inner Door In Stock WPL W11684570 $275.51

3

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

3

TRIM, SIDE (RIGHT) WPL 461967017481 Contact Us For Availability

4

W11178521 Whirlpool Dishwasher Nameplate In Stock WPL W11178521 $31.95

4

W11240831 Whirlpool Spacer Backorder WPL W11240831 $6.42

4

VENT, TOP MICROWAVE WPL 461968973241 Contact Us For Availability

5

W11398764 Whirlpool Microwave Filter Backorder WPL W11398764 $106.83

5

WPW10709147 Whirlpool Glass Frame In Stock WPL WPW10709147 $173.19

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $16.20

6

W11044773 Whirlpool Door Hinge In Stock WPL W11044773 $37.77

6

W11238401 Whirlpool Microwave Transformer In Stock WPL W11238401 $130.31

6

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

7

W11188752 Whirlpool Microwave Fuse In Stock WPL W11188752 $5.87

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $48.90

7

ASSEMBLY, DOOR (STAINLESS) WPL W11028416 Contact Us For Availability

8

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

8

W10860984 Whirlpool Fan Motor In Stock WPL W10860984 $74.69

8

W11110499 Whirlpool Stove Door Handle In Stock WPL W11110499 $58.05

9

W10819914 Whirlpool Convection Fan Backorder WPL W10819914 $33.96

9

W10827059 Whirlpool Oven Microwave Door Glass Backorder WPL W10827059 $68.54

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $61.11

9

W11233913 Whirlpool Microwave Sensor In Stock WPL W11233913 $55.75

W10495154 Whirlpool Oven Vent Backorder WPL W10495154 $72.22

W10794042 Whirlpool Nut Backorder WPL W10794042 $5.29

W10853628 Whirlpool Oven Range Glass Bracket Backorder WPL W10853628 $54.68

W11175831 Whirlpool Microwave Rack In Stock WPL W11175831 $15.23

W11346197 Whirlpool Magnetron In Stock WPL W11346197 $160.63

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $36.67

W10815868 Whirlpool Cookware Assembly Backorder WPL W10815868 $41.36

W10831019 Whirlpool Stove Door Screw In Stock WPL W10831019 $3.02

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

GASKET WPL W10739089 Contact Us For Availability

W10616810 Whirlpool Exhaust Cover Backorder WPL W10616810 $29.04

WPW10260248 Whirlpool Element Assembly Backorder WPL WPW10260248 $112.03

WPW10490593 Whirlpool Microwave Lamp Housing In Stock WPL WPW10490593 $27.05

SCREW WPL 7101P42660 Contact Us For Availability

13

W10886919 Whirlpool Light Bulb In Stock WPL W10886919 $13.03

13

BAFFLE, CONVECTION WPL W10914672 Contact Us For Availability

13

SCREW WPL 7101P65360 Contact Us For Availability

13A

SIDE, CHASSIS (RIGHT) WPL W10318190 Contact Us For Availability

14

W11025615 Whirlpool Glass Bracket Backorder WPL W11025615 $62.17

14

W11208292 Whirlpool Microwave Sensor In Stock WPL W11208292 $59.10

14

W11220388 Whirlpool Jack Probe Backorder WPL W11220388 $25.64

15

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

15

W11231343 Whirlpool Lock Nut Backorder WPL W11231343 $9.59

15

SCREW (BLACK) WPL 7101P63560 Contact Us For Availability

W10859573 Whirlpool Range Oven Temperature Se In Stock WPL W10859573 $68.99

W11676355 Whirlpool Washer Backorder WPL W11676355 $8.11

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.51

WP8205683 Whirlpool Microwave Interlock In Stock WPL WP8205683 $34.57

17

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

17

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

17

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $49.87

18

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

18

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

19

W11440819 Whirlpool Clip Backorder WPL W11440819 $10.76

20

W10869571 Whirlpool Oven Vent Backorder WPL W10869571 $134.46

20

W10911403 Whirlpool Microwave Turn Motor In Stock WPL W10911403 $63.73

21

461967825321 Whirlpool Microwave Screw Backorder WPL 461967825321 $7.47

22

W10874474 Whirlpool Door Hinge In Stock WPL W10874474 $27.29

23

W11344874 Whirlpool Microwave Fan Motor In Stock WPL W11344874 $74.14

24

W10217711 Whirlpool Microwave Inverter Backorder WPL W10217711 $204.09

25

461967825971 Whirlpool Oven Screw Backorder WPL 461967825971 $7.58

26

WPW10120235 Whirlpool Microwave Relief Rod In Stock WPL WPW10120235 $4.30

26

WPW10519866 Whirlpool Light Backorder WPL WPW10519866 $58.43

27

WPW10128850 Whirlpool Microwave Arm In Stock WPL WPW10128850 $42.71

28

W10616809 Whirlpool Vent Tube Backorder WPL W10616809 $11.47

28

W11700292 Whirlpool Spring Backorder WPL W11700292 $26.77

29

W11684510 Whirlpool Support Backorder WPL W11684510 $5.38

30

W11214480 Whirlpool Microwave Arm In Stock WPL W11214480 $37.04

31

W11699906 Whirlpool Sensor In Stock WPL W11699906 $50.29

32

W11033422 Whirlpool Microwave Interlock In Stock WPL W11033422 $107.41

32

W11045086 Whirlpool Hinge Receptacle In Stock WPL W11045086 $67.53

33

W11676353 Whirlpool Tt Motor Adapter Omi In Stock WPL W11676353 $8.20

34

8205707 Whirlpool Microwave Support Backorder WPL 8205707 $29.43

36

W10769147 Whirlpool Microwave Foam Seal Backorder WPL W10769147 $14.44

36

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.51

37

461967754821 Whirlpool Microwave Magnetic Duc Backorder WPL 461967754821 $35.98

38

W11715912 Whirlpool Spring Assembly Backorder WPL W11715912 $2.29

39

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $27.87

40

W11534564 Whirlpool Microwave Convection Moto Backorder WPL W11534564 $36.14

41

WPW10493735 Whirlpool Microwave Heater Backorder WPL WPW10493735 $44.91

42

W11512064 Whirlpool Microwave Fan Backorder WPL W11512064 $60.85

43

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $16.05

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8205262RB Whirlpool Refrigerator Crusher Blad Backorder WPL 8205262RB $28.58

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W10745649 Whirlpool Oven Rack Backorder WPL W10745649 $240.13

W11132989 Whirlpool Wire Harness In Stock WPL W11132989 $78.81

W11356977 Whirlpool Wire Harness Backorder WPL W11356977 $39.64

W11449277 Whirlpool Microwave Wire Harness In Stock WPL W11449277 $103.24

W11688731 Whirlpool Insulation Backorder WPL W11688731 $45.31

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

ACCESSORIES, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability
