Model Whirlpool WOC75EC7HS00 WALL OVEN, ELECTRIC, MICROWAVE COMBO – Common Parts & Diagrams

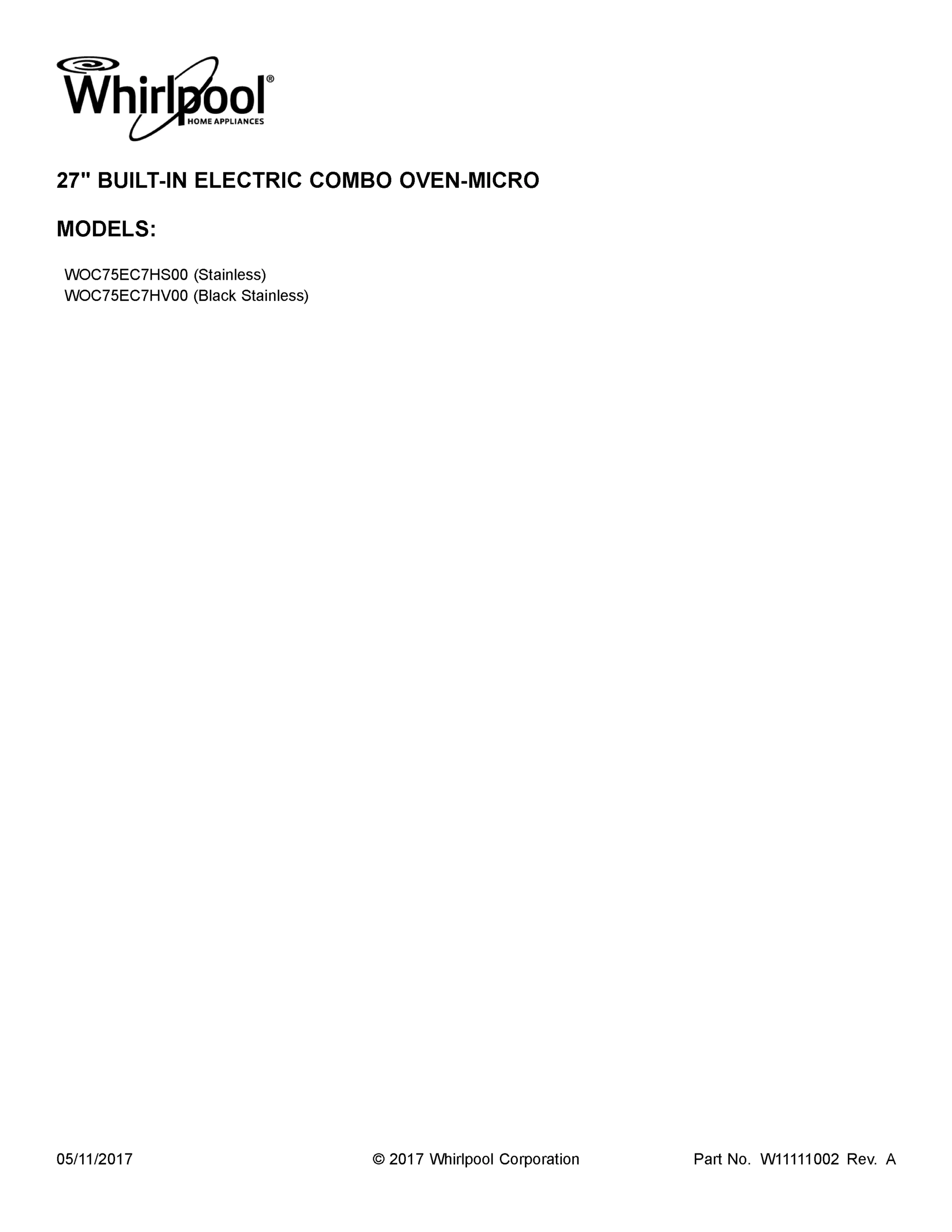

01 - COVER SHEET

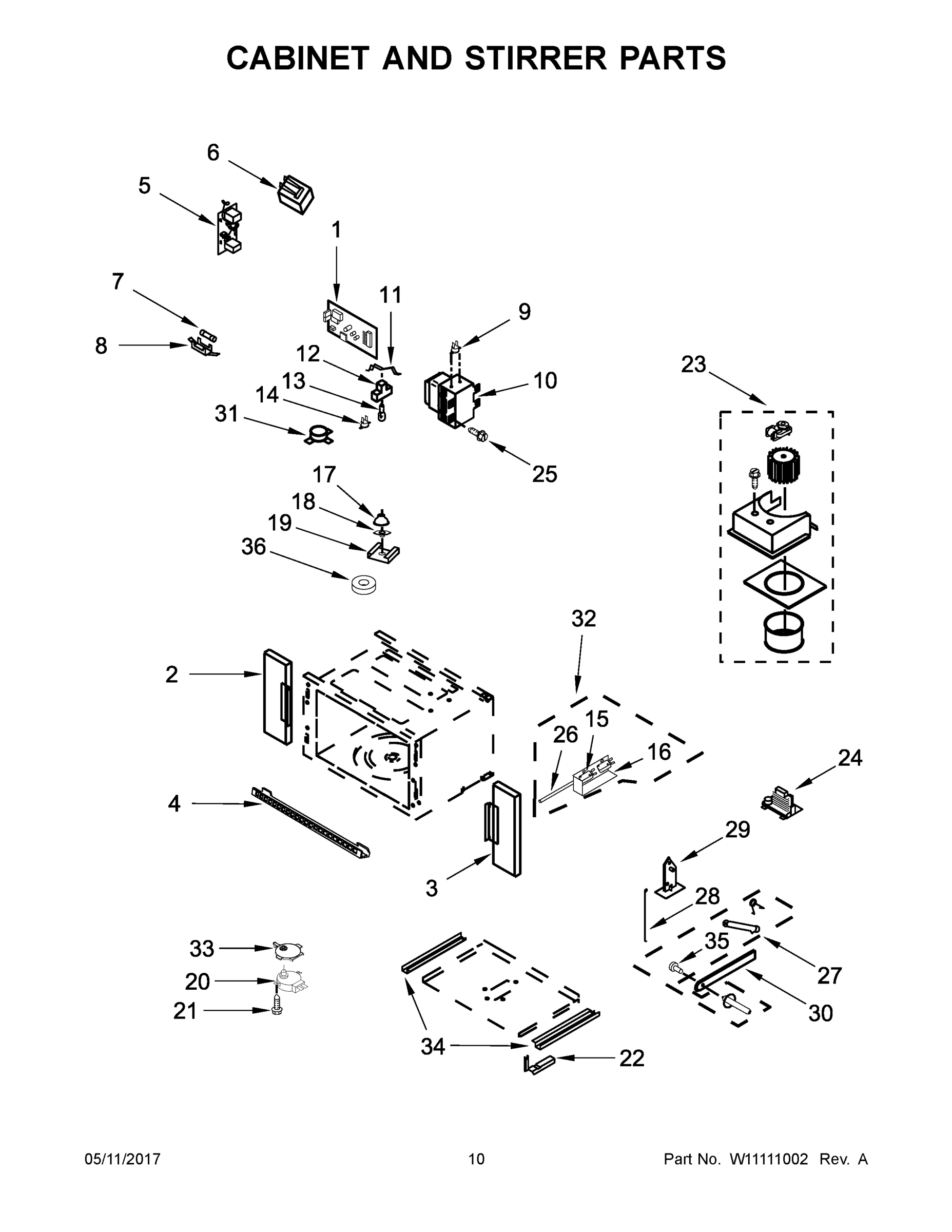

06 - CABINET AND STIRRER PARTS
08 - TOP VENTING PARTS
09 - MICROWAVE DOOR PARTS
02 - CONTROL PANEL PARTS
05 - INTERNAL OVEN PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
03 - OVEN PARTS
04 - OVEN DOOR PARTS
07 - INTERNAL MICROWAVE PARTS
Common parts from model Whirlpool WOC75EC7HS00 WALL OVEN, ELECTRIC, MICROWAVE COMBO
1
CAP, SCREW WPL 8304588BL Contact Us For Availability
1
COVER, CONNECTOR WPL 8285593 Contact Us For Availability
2
FOAM, DOOR HANDLE WPL W10359769 Contact Us For Availability
2
HOLDER, FUSE WPL 4454949 Contact Us For Availability
3
ASSEMBLY, INNER DOOR WPL W10737653 Contact Us For Availability
3
TRAY, HIDDEN BAKE WPL W10318198 Contact Us For Availability
4
VENT, TOP WPL 461968973251 Contact Us For Availability
4
SCREW WPL 7101P43460 Contact Us For Availability
6
HINGE, SLOW CLOSE DOOR WPL W11045550 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY WPL W10282957 Contact Us For Availability
6
CHASSIS, TOP WPL W10904159 Contact Us For Availability
8
SUPPORT, BASE (RIGHT) WPL W10283021 Contact Us For Availability
8A
ASSEMBLY, HANDLE (BLACK STAINLESS) WPL W10903344 Contact Us For Availability
9
DEFLECTOR, BLOWER WPL W10904163 Contact Us For Availability
10
VENT, CENTER 27" WPL W10495155 Contact Us For Availability
11
SPRING, LAMP WPL W10465869 Contact Us For Availability
11
RAIL, SIDE (LEFT) WPL W10360516 Contact Us For Availability
12
COVER, VENT EXHAUST WPL W10616810 Contact Us For Availability
12
RAIL, SIDE (RIGHT) WPL W10360518 Contact Us For Availability
12
CHASSIS, BACK DIVIDER WPL W10655465 Contact Us For Availability
12
SCREW WPL 7101P42660 Contact Us For Availability
13
BAFFLE, CONVECTION WPL W10359278 Contact Us For Availability
13
SIDE, CHASSIS (LEFT) WPL W10663556 Contact Us For Availability
13
SCREW (BLACK) WPL 7101P63360 Contact Us For Availability
13A
SIDE, CHASSIS (RIGHT) WPL W10318190 Contact Us For Availability
14
BACK, CHASSIS WPL W10904162 Contact Us For Availability
17
REFLECTOR WPL 423107022541 Contact Us For Availability
19
BASE, CHASSIS WPL W10282901 Contact Us For Availability
20A
ASSEMBLY, BOTTOM VENT (BLACK STAINLESS) WPL W10869573 Contact Us For Availability
22
SUPPORT, BASE (LEFT) WPL W10283020 Contact Us For Availability
23
SUPPORT, AIR CHANNEL WPL W10213759 Contact Us For Availability
24
SPACER, CHASSIS BOTTOM DUCT WPL W10351308 Contact Us For Availability
25
SCREW WPL 461967825971 Contact Us For Availability
28
BASE, VENT EXHAUST WPL W10616809 Contact Us For Availability
30
SPACERS, FRONT WPL W11113979 Contact Us For Availability
31
COVER, COMBO CHASSIS BACK DUCT (WITH HOLE) WPL W11037653 Contact Us For Availability
32
RECEIVER, SLOW CLOSE HINGE WPL W11045086 Contact Us For Availability
33
SHIELD, SLOW CLOSE HINGE WPL W11034940 Contact Us For Availability
34
DEFLECTOR, CHASSIS WPL W10681156 Contact Us For Availability
36
SEALING, LAMP WPL W10769147 Contact Us For Availability
36
SPACER, CENTER WPL W10834286 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING WPL W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE WPL W10355010 Contact Us For Availability
NI
PAINT, SPRAY (CITRINE WHITE) WPL 261900 Contact Us For Availability
NI
ACCESSORIES, STEAMER, MICROWAVE WPL 8205262RB Contact Us For Availability
NI
ACCESSORIES, RACK, SLIDING WPL W10745649 Contact Us For Availability
NI
INSULATION, WRAP WPL W10520716 Contact Us For Availability
NI
CONDUIT, COMBO WPL 4450950 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
NI
INSULATION WPL W11112951 Contact Us For Availability
× ![]()
