Model Whirlpool WOC54EC7HB04 WALL OVEN, MICRO COMBO, 27 INCH – Common Parts & Diagrams

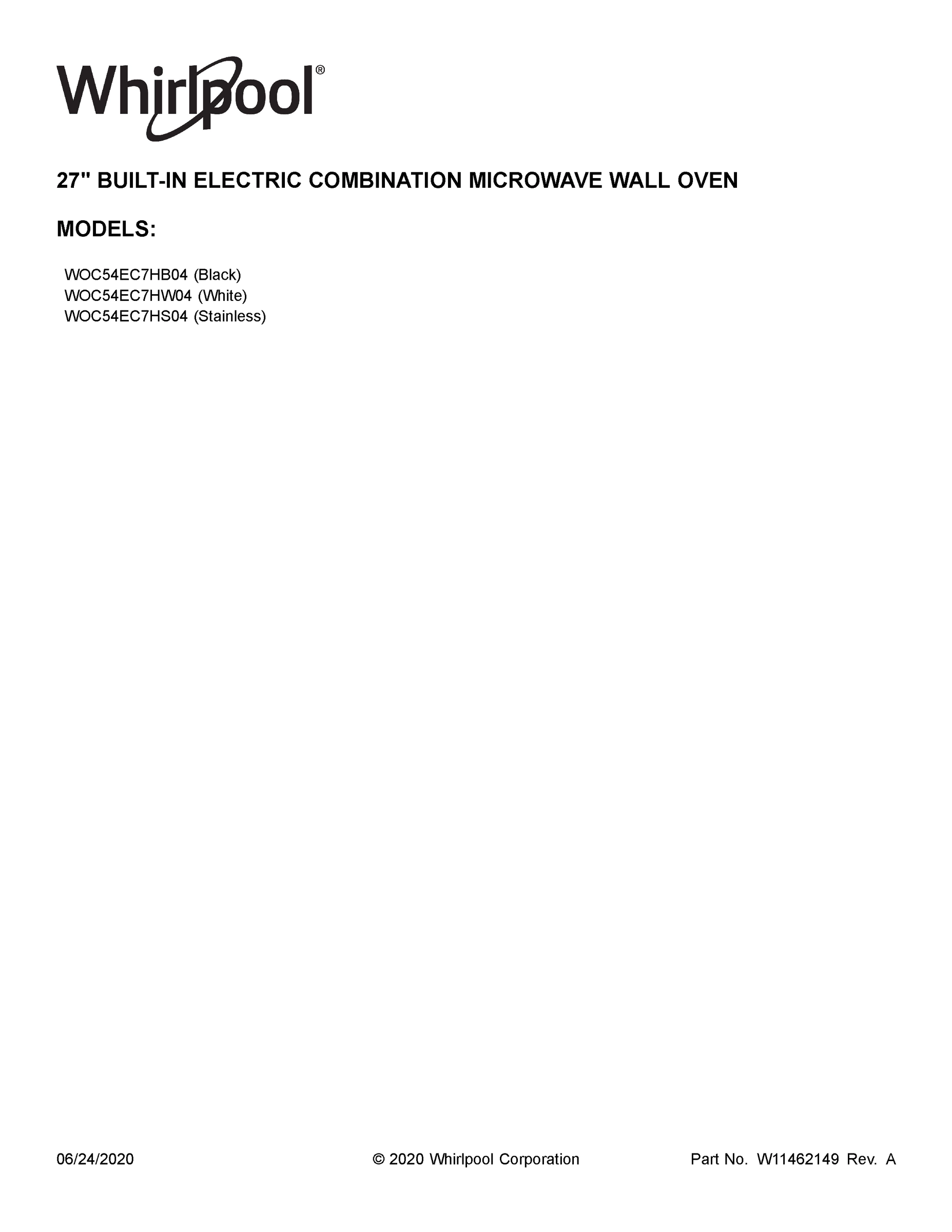

01 - COVER SHEET

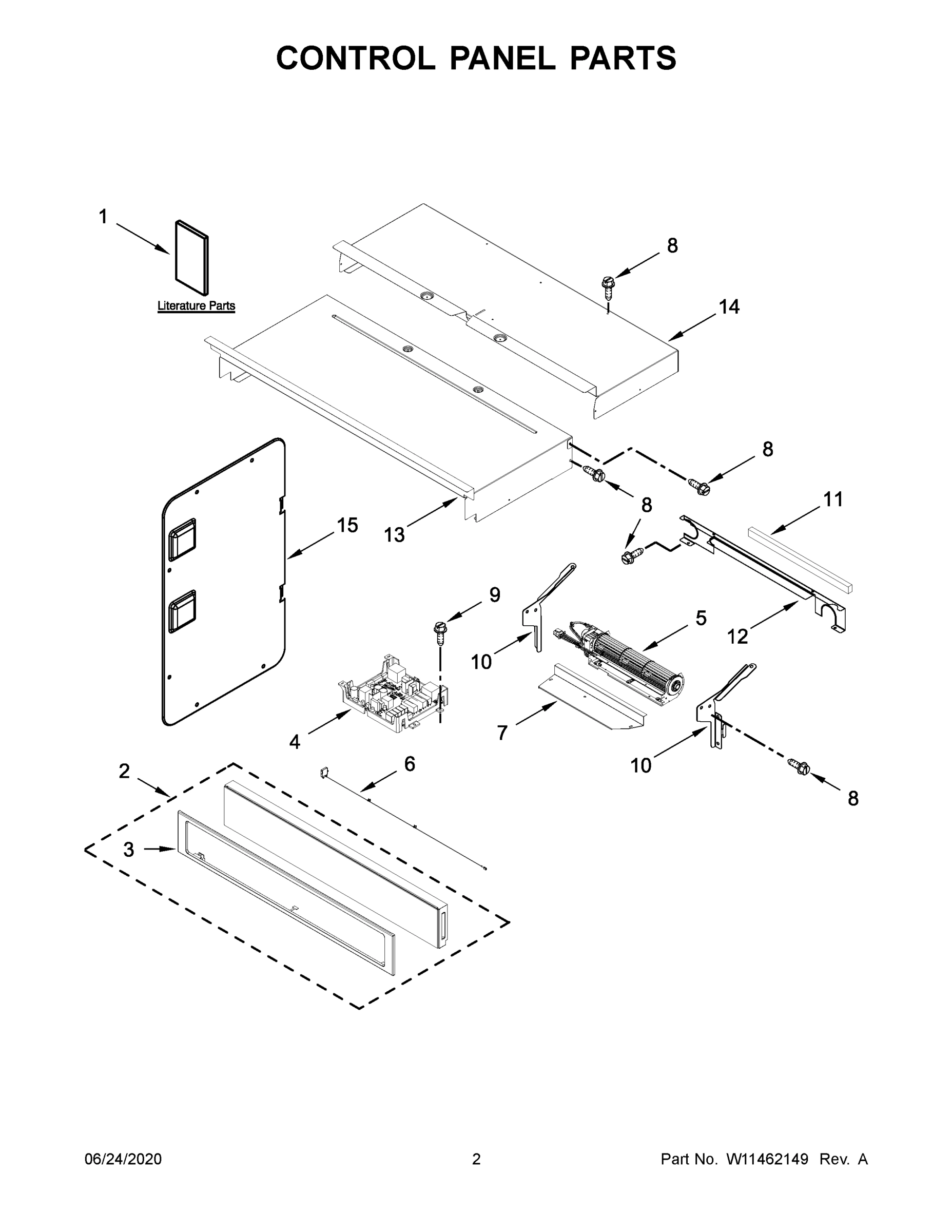

02 - CONTROL PANEL PARTS
03 - OVEN PARTS
04 - OVEN DOOR PARTS
05 - INTERNAL OVEN PARTS
06 - CABINET AND STIRRER PARTS
07 - INTERNAL MICROWAVE PARTS
08 - TOP VENTING PARTS
09 - MICROWAVE DOOR PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool WOC54EC7HB04 WALL OVEN, MICRO COMBO, 27 INCH
1
CAP, SCREW WPL 8304588BL Contact Us For Availability
1
SCREW WPL 7101P06060 Contact Us For Availability
2
FOAM, DOOR HANDLE WPL W10359769 Contact Us For Availability
2
HOLDER, FUSE WPL 4454949 Contact Us For Availability
2
TRIM, SIDE (LEFT) WPL 461967017511 Contact Us For Availability
3
ASSEMBLY, INNER DOOR WPL W10737653 Contact Us For Availability
3
TRAY, HIDDEN BAKE WPL W10318198 Contact Us For Availability
3
SCREW WPL 7101P42660 Contact Us For Availability
3
TRIM, SIDE (RIGHT) WPL W11044584 Contact Us For Availability
4
VENT, TOP WPL 461968973251 Contact Us For Availability
4
COVER, CONNECTOR WPL 8285593 Contact Us For Availability
4
SCREW WPL 7101P43460 Contact Us For Availability
5
SCREW (BLACK) WPL 7101P63360 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY WPL W10282957 Contact Us For Availability
6
HINGE, DOOR WPL W11411963 Contact Us For Availability
7
COVER, COMBO CHASSIS BACK DUCT (WITH HOLE) WPL W11037653 Contact Us For Availability
8
CHASSIS, COMBO SIDE (LEFT) WPL W10655466 Contact Us For Availability
8A
CHASSIS, COMBO SIDE (RIGHT) WPL W11037649 Contact Us For Availability
9
DEFLECTOR, BLOWER WPL W10904163 Contact Us For Availability
9
RAIL, SIDE (LEFT) WPL W10360516 Contact Us For Availability
10
RAIL, SIDE (RIGHT) WPL W10360518 Contact Us For Availability
11
SPRING, LAMP WPL W10465869 Contact Us For Availability
11
SIDE, BRACKET WPL W10283025 Contact Us For Availability
12
COVER, VENT EXHAUST WPL W10616810 Contact Us For Availability
12
SUPPORT, CROSSBAR WPL W10283023 Contact Us For Availability
13
SIDE, CHASSIS WPL W10318190 Contact Us For Availability
13
SCREW (BLACK) WPL 7101P63560 Contact Us For Availability
16
SCREW WPL 7101P65360 Contact Us For Availability
17
REFLECTOR WPL 423107022541 Contact Us For Availability
17
RAIL, DOOR SIDE (LEFT) WPL W11355410 Contact Us For Availability
17A
RAIL, DOOR SIDE (RIGHT) WPL W11355411 Contact Us For Availability
19
BASE, CHASSIS WPL W10282901 Contact Us For Availability
21
SCREW WPL 461967825321 Contact Us For Availability
25
SCREW WPL 461967825971 Contact Us For Availability
30
SPACERS, FRONT WPL W10347649 Contact Us For Availability
31
COVER, BACK DUCT WPL W10519707 Contact Us For Availability
33
BASE, VENT EXHAUST WPL W10616809 Contact Us For Availability
36
SEALING, LAMP WPL W10769147 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, SPRAY (CITRINE WHITE) WPL 261900 Contact Us For Availability
NI
HARNESS, COMMUNICATION WPL W11356990 Contact Us For Availability
NI
HARNESS, DOOR LATCH WPL W11132989 Contact Us For Availability
NI
HARNESS, INTERLOCK WPL W11356970 Contact Us For Availability
NI
INSULATION, WRAP WPL W10520716 Contact Us For Availability
NI
HARNESS, FAN AND TURNTABLE WPL W11356954 Contact Us For Availability
NI
HARNESS, MAIN WPL W11316032 Contact Us For Availability
NI
HARNESS, CABLE TREE ASSEMBLY WPL W11356977 Contact Us For Availability
NI
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
× ![]()
