LG WM3431HW Drum(DD) WM Parts List

*001

MANUAL ASSEMBLY,OWNERS LGE 3829ER3031G Contact Us For Availability

View on Model

*002

Box,Carton LGE 3890EZ3631A Contact Us For Availability

View on Model

*003

3W20018B LG Washer Leg Bolt Wrench In Stock LGE 3W20018B $9.86

View on Model

*004

MANUAL,SERVICE LGE 3828ER3035Q Contact Us For Availability

View on Model

A101

3550ER1028A LG Back Cover Backorder LGE 3550ER1028A $33.69

View on Model

A133

2W20017C LG Washer Clamp Assembly Backorder LGE 2W20017C $9.86

View on Model

A153

HANDLE LGE 3650ER2003A Contact Us For Availability

View on Model

A201

4810ER3016A LG Washer Bracket Base Backorder LGE 4810ER3016A $9.86

View on Model

A303

5006EN3015A LG Washer Drain Hose Cap In Stock LGE 5006EN3015A $4.94

View on Model

A310

5006ER3012A LG Cap Cover Backorder LGE 5006ER3012A $8.58

View on Model

A410

6601ER1006E LG Washer Water Level Pressure Se In Stock LGE 6601ER1006E $53.62

View on Model

A430

6411ER1006E LG Power Cord Assembly Backorder LGE 6411ER1006E $92.89

View on Model

A440

SWITCH ASSEMBLY,DOOR LGE 6601ER1005B Contact Us For Availability

View on Model

F160

AJU71030102 LG Washer Water Inlet Fill Valve In Stock LGE AJU71030102 $54.66

View on Model

F170

5220FR2006H LG Washer Hot Water Inlet Valve In Stock LGE 5220FR2006H $15.84

View on Model

F310

4738ER2004A LG Bellows Backorder LGE 4738ER2004A $33.69

View on Model

F430

5214FR3188G LG Washer Drain Pump Hose In Stock LGE 5214FR3188G $18.38

View on Model

F432

3W50712A LG Washer Pivot Hanger Assembly Backorder LGE 3W50712A $6.19

View on Model

F461

4861FR3068C LG Clamp Backorder LGE 4861FR3068C $6.19

View on Model

F463

4861FR3068A LG Washer Hose Clamp In Stock LGE 4861FR3068A $6.19

View on Model

F467

4860FR3092C LG Clamp Backorder LGE 4860FR3092C $9.86

View on Model

F468

4861FR3068E LG Clamp Assembly Backorder LGE 4861FR3068E $9.86

View on Model

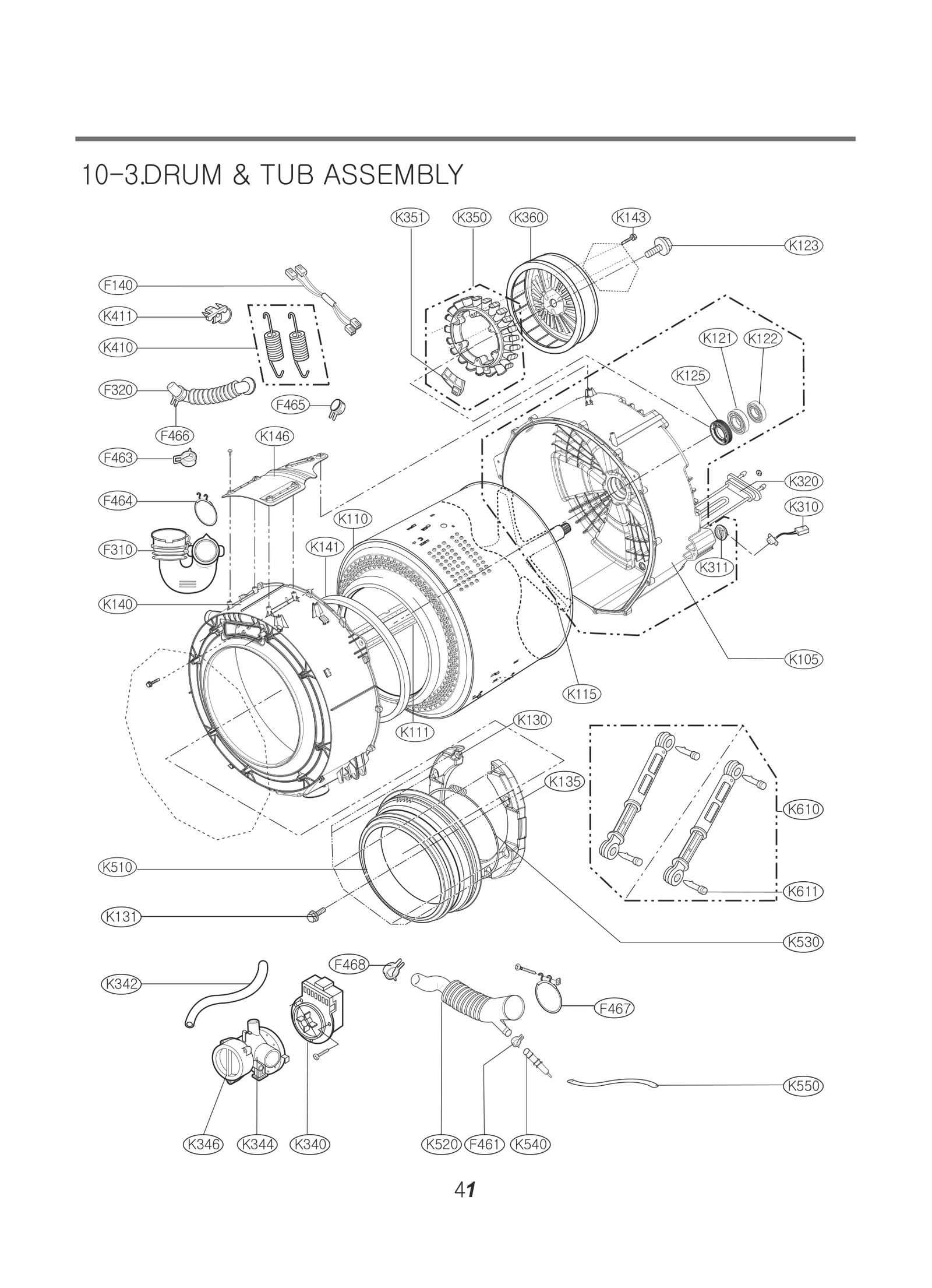

K105

Tub Assembly,Outer LGE 3045ER0030E Contact Us For Availability

View on Model

K110

Tub Assembly,Drum(Inner) LGE 3045ER1010E Contact Us For Availability

View on Model

K111

MFE38265101 LG Lifter Assembly Backorder LGE MFE38265101 $14.79

View on Model

K115

4434ER1008A LG Spider Backorder LGE 4434ER1008A $167.80

View on Model

K121

4280FR4048N LG Washer Tub Ball Bearing Set In Stock LGE 4280FR4048N $49.19

View on Model

K122

4280EN4001D LG Washer Rear Tub Bearing Backorder LGE 4280EN4001D $49.19

View on Model

K123

4040FR4051C LG Washer Bolt Assembly In Stock LGE 4040FR4051C $9.86

View on Model

K125

4036ER2004A LG Washer Spin Bearing Seal Inner In Stock LGE 4036ER2004A $11.51

View on Model

K141

4036ER4001A LG Gasket In Stock LGE 4036ER4001A $20.35

View on Model

K310

6322FR2046C LG Washer Dryer Thermistor In Stock LGE 6322FR2046C $11.51

View on Model

K311

4036FR4050A LG Washer Gasket Seal Backorder LGE 4036FR4050A $6.19

View on Model

K344

CASING ASSEMBLY,PUMP LGE 3661FR2093E Contact Us For Availability

View on Model

K346

383EER2001B LG Parts Assembly Backorder LGE 383EER2001B $14.79

View on Model

K350

STATOR ASSY LGE 4417FA1994E Contact Us For Availability

View on Model

K351

6501KW2001B LG Sensor Assembly In Stock LGE 6501KW2001B $23.97

View on Model

K360

4413ER1001D LG Rotor Assembly Backorder LGE 4413ER1001D $181.30

View on Model

K360

ROTOR ASSEMBLY LGE 4413ER1001B Contact Us For Availability

View on Model

K410

4970FR2084T LG Hinge Spring Backorder LGE 4970FR2084T $20.35

View on Model

K411

4930FR3040A LG Washer Hinge Spring Holder In Stock LGE 4930FR3040A $6.19

View on Model

K510

4986ER1005A LG Washer Door Boot Gasket Seal Backorder LGE 4986ER1005A $107.42

View on Model

K520

BELLOWS LGE 4738FR1145A Contact Us For Availability

View on Model

K530

4861ER2001B LG Washer Clamp Assembly Backorder LGE 4861ER2001B $14.79

View on Model

K540

3504FR3134A LG Air Chamber Backorder LGE 3504FR3134A $6.19

View on Model

K550

HOSE LGE 5214FR4125M Contact Us For Availability

View on Model

K610

383EER3001G LG Washer Shock Absorber Damper A In Stock LGE 383EER3001G $41.23

View on Model

K611

4774FR3118B LG Washer Shock Absorber Locking Backorder LGE 4774FR3118B $9.86

View on Model

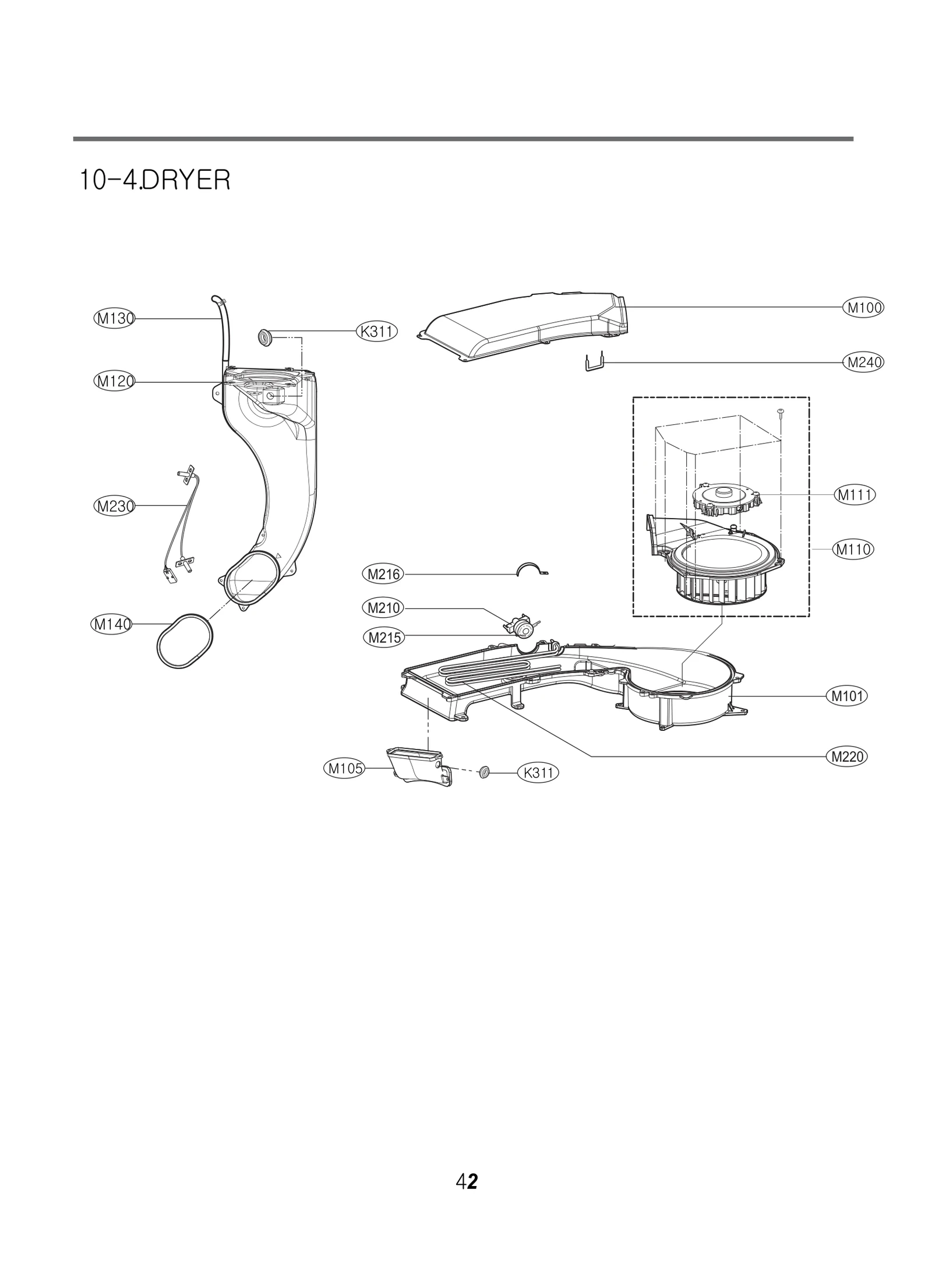

M100

5208ER1006A LG Washer Outlet Duct Backorder LGE 5208ER1006A $41.23

View on Model

M101

5208ER1005A LG Duct Outlet Backorder LGE 5208ER1005A $107.42

View on Model

M105

Duct Assembly LGE 5209ER1002B Contact Us For Availability

View on Model

M110

Motor Assembly,DC LGE 4681ER1004F Contact Us For Availability

View on Model

M111

MOTOR ASSEMBLY,FAN LGE 4680ER1001G Contact Us For Availability

View on Model

M120

5208ER1004A LG Washer Dryer Outlet Duct Backorder LGE 5208ER1004A $53.62

View on Model

M130

HOSE,INLET LGE 5214ER4003A Contact Us For Availability

View on Model

M140

4036FR4043K LG Gasket Backorder LGE 4036FR4043K $9.86

View on Model

M210

6931FR3108A LG Washer Thermostat Backorder LGE 6931FR3108A $41.23

View on Model

M215

4036FR4045A LG Gasket Backorder LGE 4036FR4045A $6.19

View on Model

M216

4860ER3004A LG Clamp Backorder LGE 4860ER3004A $6.19

View on Model

M220

5301FR2076G LG Washer Heater Assembly In Stock LGE 5301FR2076G $131.67

View on Model

M230

6322FR2046K LG NTC Thermistor Backorder LGE 6322FR2046K $49.19

View on Model

M240

6901ER4001A LG Multi Harness Backorder LGE 6901ER4001A $26.26

View on Model

Model LG WM3431HW Drum(DD) WM – Common Parts & Diagrams

Common parts from model LG WM3431HW Drum(DD) WM
