Model LG WM1455HVA.APTEPUS 2.4 cu.ft. Smart wi-fi Enabled Compact Front Load Washer with Built-In Intelligence – Common Parts & Diagrams

Common parts from model LG WM1455HVA.APTEPUS 2.4 cu.ft. Smart wi-fi Enabled Compact Front Load Washer with Built-In Intelligence

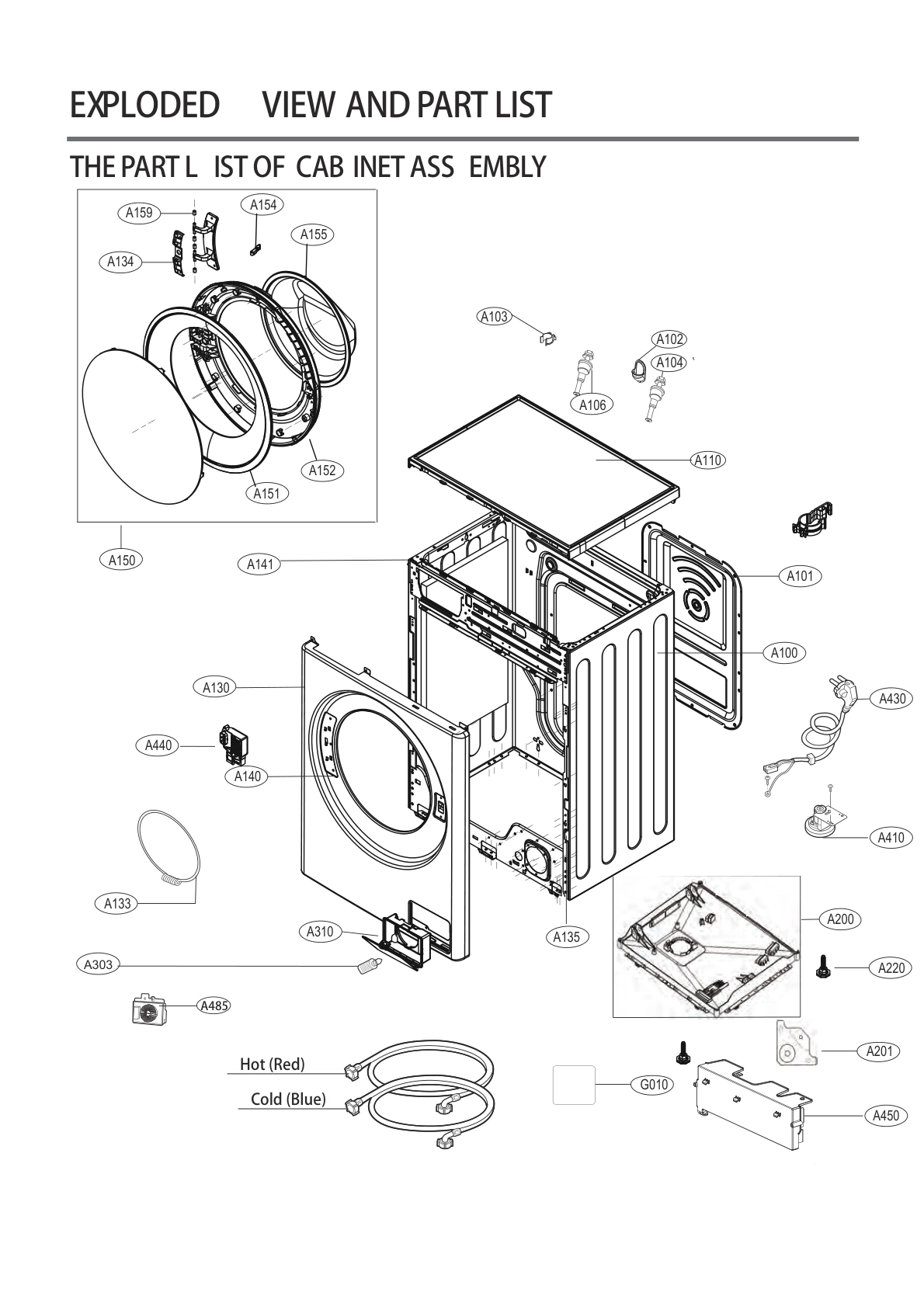

CABINET ASSEMBLY

Print

• This Diagram
• All Diagrams

A106

4011EN3006B LG Bolt Assembly Backorder LGE 4011EN3006B View Details $9.86

View on Model

A154

MFG63099101 LG Locker Hook In Stock LGE MFG63099101 View Details $15.46

View on Model

A155

MCV38082402 LG Glass Door Backorder LGE MCV38082402 View Details $92.89

View on Model

A220

AFC72755404 LG Leg Assembly Backorder LGE AFC72755404 View Details $20.35

View on Model

A220

AFC72909321 LG Leg Assembly Backorder LGE AFC72909321 View Details $8.58

View on Model

A303

5006EN3015A LG Washer Drain Hose Cap In Stock LGE 5006EN3015A View Details $4.94

View on Model

A310

MBL65547937 LG Cap Cover Backorder LGE MBL65547937 View Details $33.69

View on Model

A410

EBF63534901 LG Washer Pressure Switch Assembl In Stock LGE EBF63534901 View Details $33.69

View on Model

A430

EAD61246442 LG Power Cord Assembly Backorder LGE EAD61246442 View Details $63.62

View on Model

A440

EBF61315802 LG Washer Lid Lock Switch Assembl In Stock LGE EBF61315802 View Details $100.22

View on Model

A450

EBR88873903 LG Main PCB Assembly Backorder LGE EBR88873903 View Details $275.07

View on Model

A485

EAM64652601 LG Filter Assembly Backorder LGE EAM64652601 View Details $82.70

View on Model

F110

EBR87419883 LG Display Assembly Printed Circu Backorder LGE EBR87419883 View Details $275.07

View on Model

F120

EAD64947339 LG Multi Harness Backorder LGE EAD64947339 View Details $153.83

View on Model

F140

EAD63406444 LG Multi Harness In Stock LGE EAD63406444 View Details $41.23

View on Model

F160

5220FR2067T LG Inlet Valve Assembly Backorder LGE 5220FR2067T View Details $63.62

View on Model

F170

5220FR2006Z LG Inlet Valve Assembly In Stock LGE 5220FR2006Z View Details $49.19

View on Model

F210

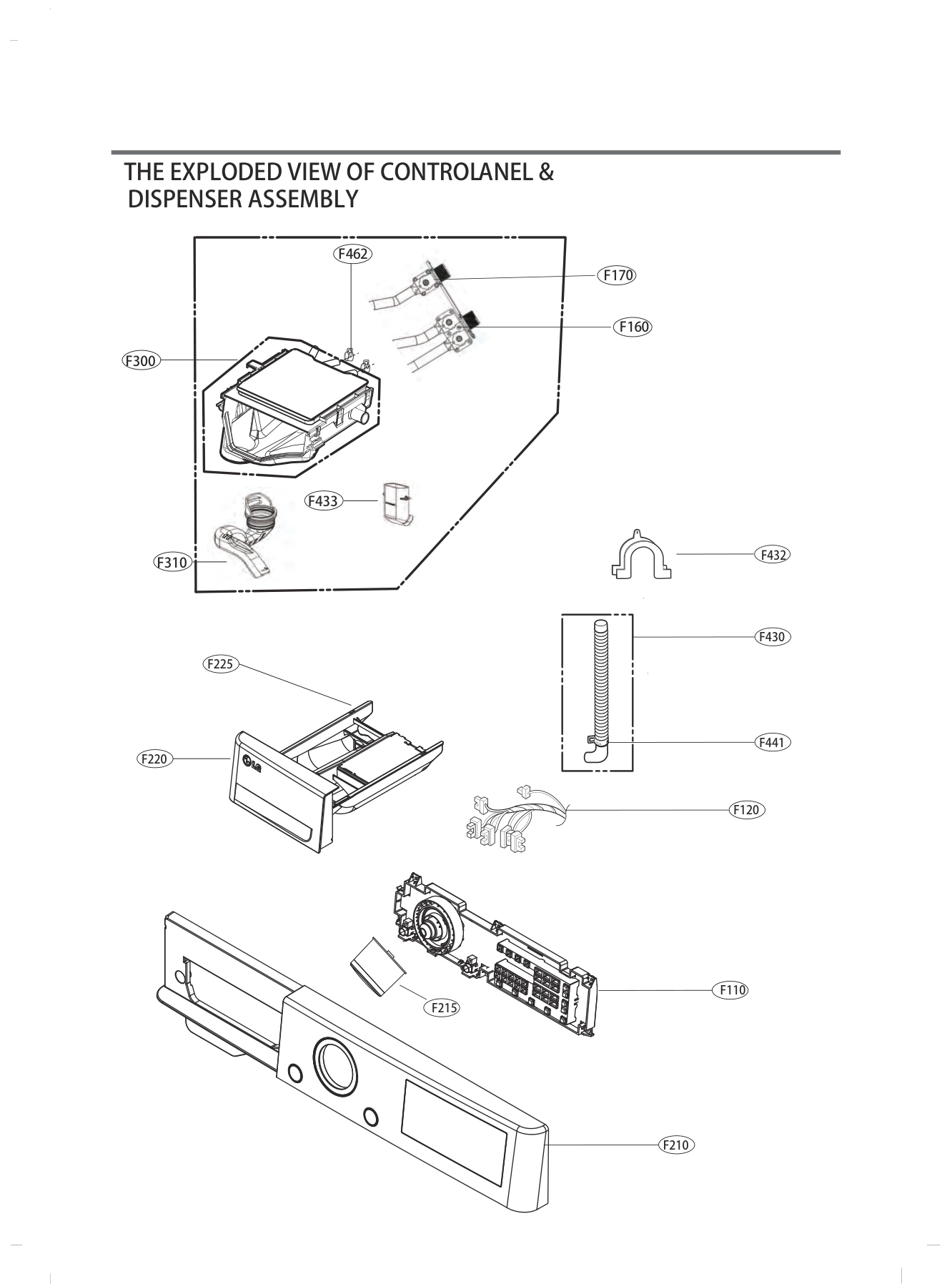

AGL30057631 LG Control Panel Assembly Backorder LGE AGL30057631 View Details $153.83

View on Model

F215

AEZ75473501 LG Knob Assembly Backorder LGE AEZ75473501 View Details $14.79

View on Model

F220

AGL76733377 LG Drawer Panel Assembly Backorder LGE AGL76733377 View Details $133.75

View on Model

F225

MBL57765301 LG Softener Cap Backorder LGE MBL57765301 View Details $6.19

View on Model

F300

ACZ74230515 LG Dispenser Assembly Backorder LGE ACZ74230515 View Details $41.23

View on Model

F310

MAR62542002 LG Bellows Backorder LGE MAR62542002 View Details $41.23

View on Model

F320

4738EN3002C LG Bellows Backorder LGE 4738EN3002C View Details $79.30

View on Model

F430

5214EN3042P LG Pump Hose Backorder LGE 5214EN3042P View Details $17.77

View on Model

F432

4991EN3002A LG Washer Pivot Hanger Assembly Backorder LGE 4991EN3002A View Details $2.31

View on Model

F433

MEJ64284801 LG Connector Hose Backorder LGE MEJ64284801 View Details $53.62

View on Model

F461

4861EN3003C LG Washer Clamp Assembly Backorder LGE 4861EN3003C View Details $6.19

View on Model

F462

Clamp Assembly Backorder LGE 4861EN3003Z View Details $9.86

View on Model

F466

4350EN3002C LG Snap Ring Backorder LGE 4350EN3002C View Details $6.19

View on Model

F467

4860EN3001E LG Tub Clamp Backorder LGE 4860EN3001E View Details $2.31

View on Model

F468

4861EN3003D LG Clamp Assembly In Stock LGE 4861EN3003D View Details $3.48

View on Model

G010

MHK61866301 LG Installation Sheet Backorder LGE MHK61866301 View Details $6.19

View on Model

K105

AGM75471408 LG Parts Assembly Backorder LGE AGM75471408 View Details $277.57

View on Model

K110

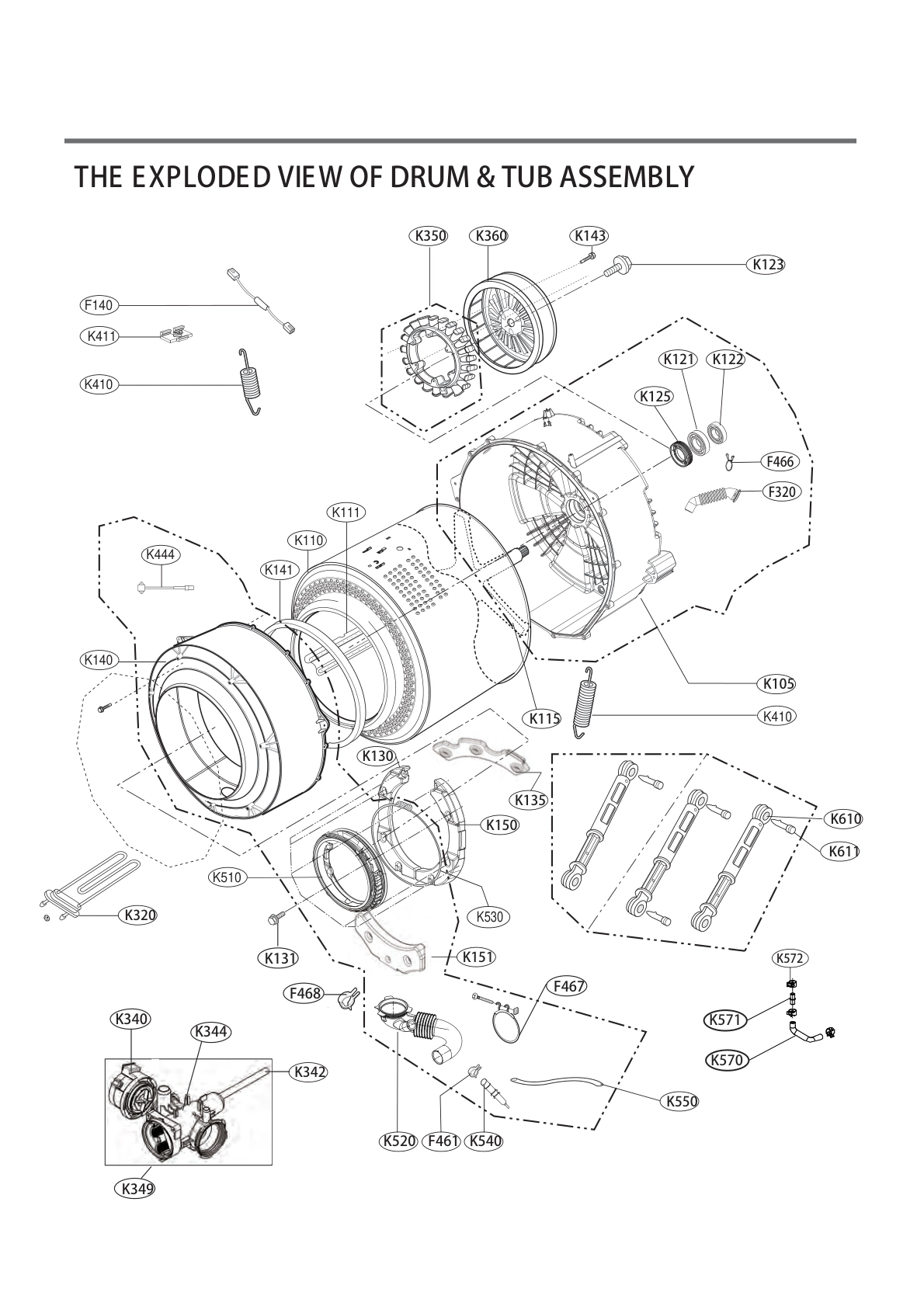

AJQ74954112 LG Drum Assembly Inner Tub Backorder LGE AJQ74954112 View Details $235.58

View on Model

K111

AFH73149002 LG Lifter Assembly Backorder LGE AFH73149002 View Details $9.86

View on Model

K115

MHW62661201 LG Spider Backorder LGE MHW62661201 View Details $188.43

View on Model

K121

4280EN4001C LG Washer Tub Bearing Seal In Stock LGE 4280EN4001C View Details $53.62

View on Model

K122

4280EN4001D LG Washer Rear Tub Bearing Backorder LGE 4280EN4001D View Details $49.19

View on Model

K123

FAA30970901 LG Bolt Assembly Backorder LGE FAA30970901 View Details $8.16

View on Model

K123

Bolt Assembly LGE 4011EN4005J Contact Us For Availability

View on Model

K125

4036ER2004A LG Washer Spin Bearing Seal Inner In Stock LGE 4036ER2004A View Details $11.51

View on Model

K130

MAG63763001 LG Balance Weight Backorder LGE MAG63763001 View Details $63.62

View on Model

K131

FAA30831001 LG Bolt Assembly Backorder LGE FAA30831001 View Details $6.19

View on Model

K135

MAG63763201 LG Balance Weight Backorder LGE MAG63763201 View Details $33.69

View on Model

K140

ACQ90597901 LG Tub Cover Assembly Backorder LGE ACQ90597901 View Details $188.43

View on Model

K141

4036EN4002J LG Gasket Backorder LGE 4036EN4002J View Details $14.79

View on Model

K143

4011EN4013A LG Bolt Assembly Backorder LGE 4011EN4013A View Details $6.19

View on Model

K150

MAG63763102 LG Balance Weight Backorder LGE MAG63763102 View Details $63.62

View on Model

K151

MAG63763301 LG Balance Weight Backorder LGE MAG63763301 View Details $33.69

View on Model

K320

AEG73309907 LG Heater Assembly In Stock LGE AEG73309907 View Details $92.89

View on Model

K340

EAU64082901 LG DC Motor Pump Assembly Backorder LGE EAU64082901 View Details $107.42

View on Model

K342

5214FR4006G LG Washer Water Clean Out Drain H In Stock LGE 5214FR4006G View Details $6.19

View on Model

K344

MBP62261101 LG Pump Casing Backorder LGE MBP62261101 View Details $33.69

View on Model

K349

AHA75693401 LG Drain Pump Assembly Backorder LGE AHA75693401 View Details $153.83

View on Model

K350

AJB73816024 LG Assembly Stator Backorder LGE AJB73816024 View Details $167.80

View on Model

K360

AHL73855301 LG Rotor Assembly Backorder LGE AHL73855301 View Details $167.80

View on Model

K410

MHY62644802 LG Hinge Spring Backorder LGE MHY62644802 View Details $20.35

View on Model

K411

MEG64919202 LG Holder Backorder LGE MEG64919202 View Details $53.62

View on Model

K444

EBD48922823 LG Sensor Assembly Backorder LGE EBD48922823 View Details $92.89

View on Model

K510

MDS66651605 LG Gasket Backorder LGE MDS66651605 View Details $126.81

View on Model

K520

MAR62541901 LG Bellows Backorder LGE MAR62541901 View Details $20.35

View on Model

K530

4861EN3002A LG Clamp Assembly Backorder LGE 4861EN3002A View Details $6.19

View on Model

K540

3504EN3001A LG Air Chamber Backorder LGE 3504EN3001A View Details $6.19

View on Model

K550

Hose,Inlet Backorder LGE MEJ62524804 View Details $14.79

View on Model

K570

5215EA4001K LG Drain Hose Assembly Backorder LGE 5215EA4001K View Details $9.86

View on Model

K571

4932ER4007C LG Hose Connector Backorder LGE 4932ER4007C View Details $6.19

View on Model

K572

4861FR3068R LG Clamp Backorder LGE 4861FR3068R View Details $6.19

View on Model

K610

4901ER2003A LG Washer Drum Support Damper Ass In Stock LGE 4901ER2003A View Details $19.09

View on Model

K610

4901ER2003K LG Damper Assembly - Friction Backorder LGE 4901ER2003K View Details $20.35

View on Model

K611

4774EN3002A LG Hinge In Stock LGE 4774EN3002A View Details $8.16

View on Model

×
