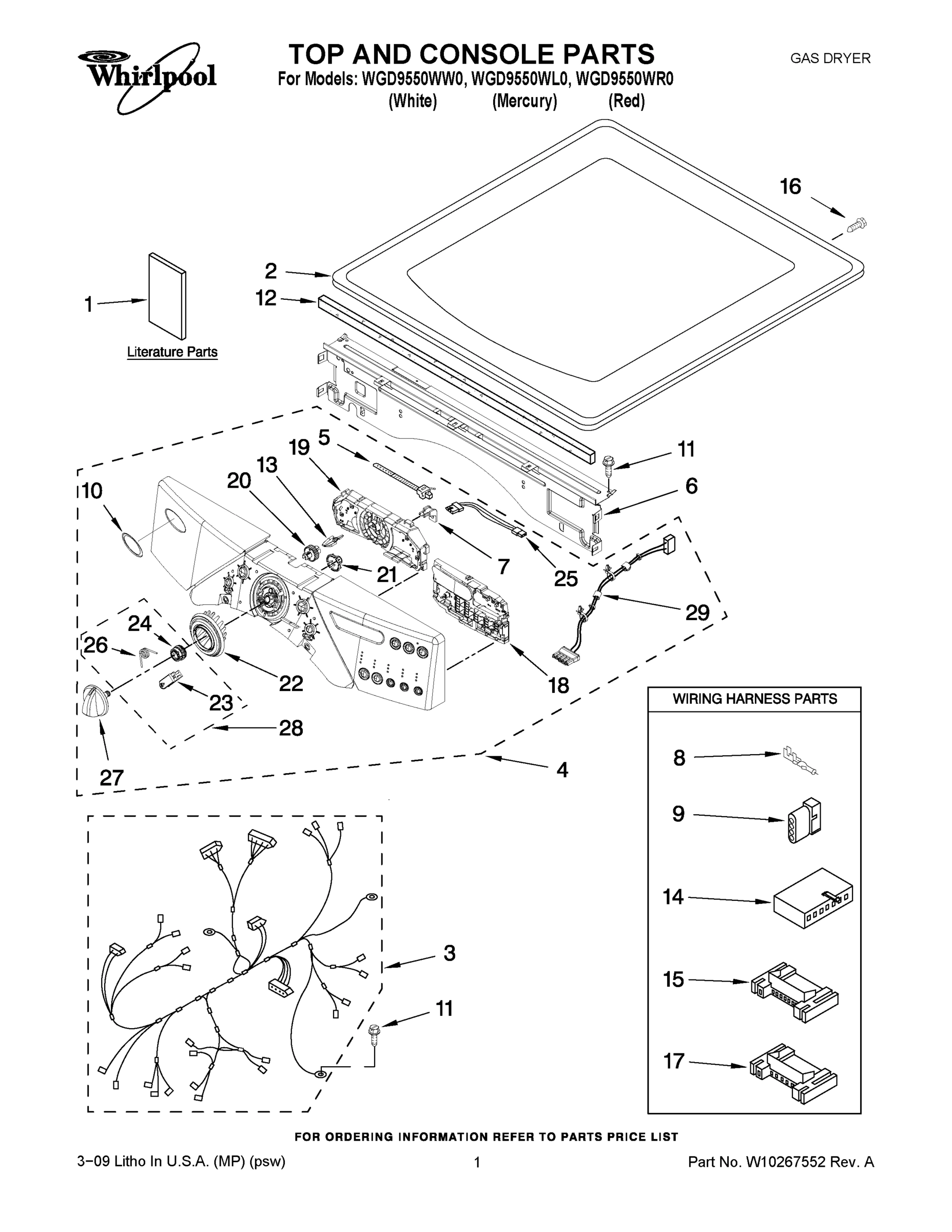

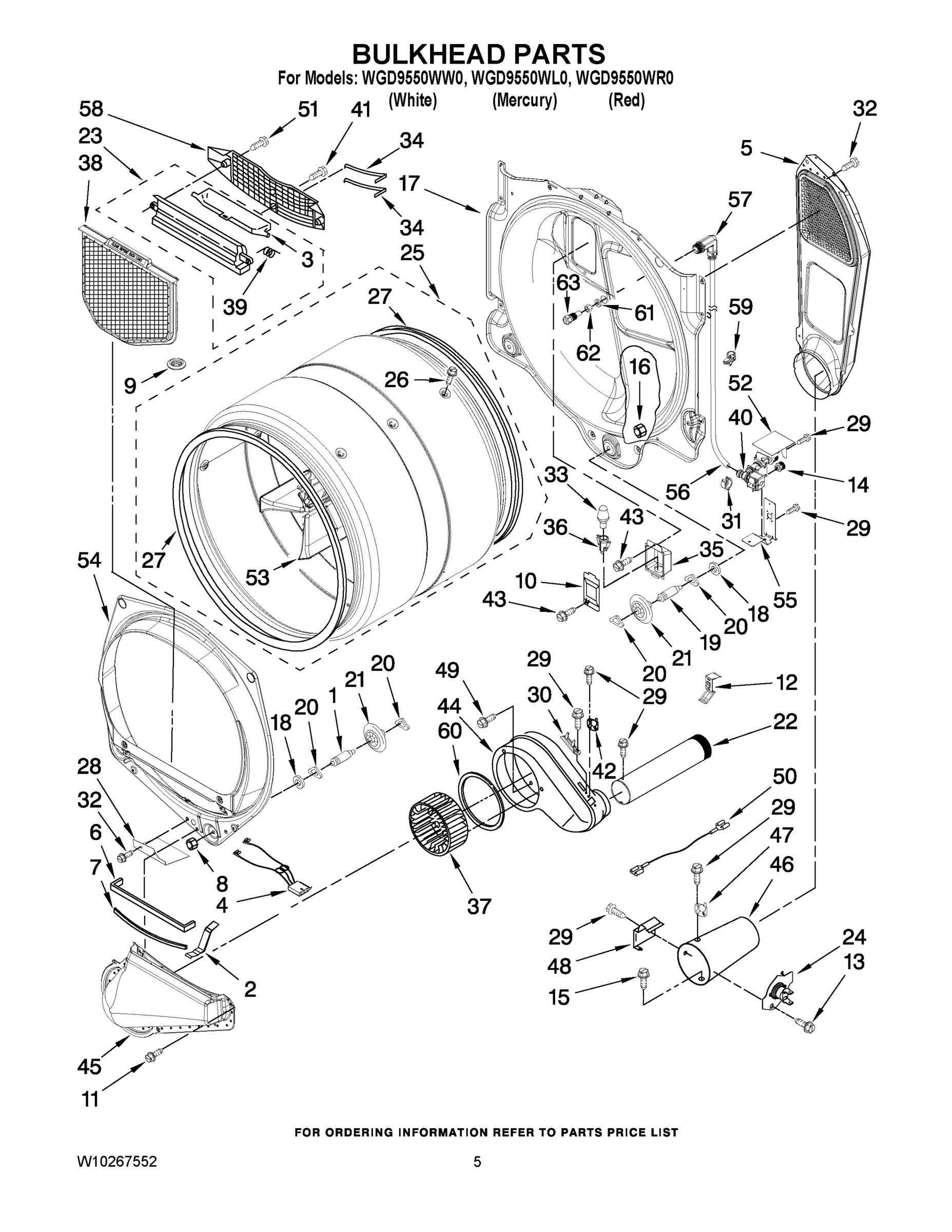

Model Whirlpool WGD9550WR0 GAS DRYER – Common Parts &amp; Diagrams

1

W10819767 Whirlpool Cover Backorder WPL W10819767 $41.03

2

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

3

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.51

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

WPW10249725 Whirlpool Panel Backorder WPL WPW10249725 $185.49

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

PANEL, SIDE (R.H.) (RED) WPL W10249769 Contact Us For Availability

5

279782 Whirlpool Lid Switch In Stock WPL 279782 $30.85

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $58.41

5

Screw-Plug WPL W10048910 Contact Us For Availability

6

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $37.41

7

W11233548 Whirlpool Panel In Stock WPL W11233548 $91.13

7

PANEL, SIDE (L.H.) (MERCURY) WPL W10249727 Contact Us For Availability

7

PANEL, SIDE (L.H.) (RED) WPL W10249768 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $12.08

10

WPW10118347 Whirlpool Gas Valve In Stock WPL WPW10118347 $168.63

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

10

Door Assembly (Inner) (Includes Illus. 12) WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

12

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $10.89

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $10.79

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

14

3978776 Whirlpool Bracket Backorder WPL 3978776 $28.80

14

W10859554 Whirlpool Coupler Backorder WPL W10859554 $26.75

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

8579662 Whirlpool Seal Backorder WPL 8579662 $40.35

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

16

W10167612 Whirlpool Wire Backorder WPL W10167612 $8.00

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

16

COVER HINGE (STATIONARY (RH)) WPL W10181197 Contact Us For Availability

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $92.47

Bulkhead, Rear WPL W10133857 Contact Us For Availability

Sound Panel WPL W10128772 Contact Us For Availability

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

W10128087 Whirlpool Door Switch Backorder WPL W10128087 $26.77

TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE) WPL W10246600 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (RED) WPL W10249767 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (MERCURY) WPL W10249765 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

20

Door Shield WPL W10180120 Contact Us For Availability

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $3.70

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

W10250089 Whirlpool Ring Backorder WPL W10250089 $9.13

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

24

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

24

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $32.46

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.25

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.78

Harness, Communication WPL W10095960 Contact Us For Availability

Panel, Rear WPL W10181460 Contact Us For Availability

26

W10181464 Whirlpool Wire Harness Backorder WPL W10181464 $45.62

26

W10853898 Whirlpool Screw In Stock WPL W10853898 $2.51

26

Bracket, Support WPL 3389889 Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $109.35

27

W10190685 Whirlpool Knob Assembly Backorder WPL W10190685 $38.01

28

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

28

W11257251 Whirlpool Shield Backorder WPL W11257251 $25.58

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $45.53

29

Power Cable, User-Interface WPL W10111020 Contact Us For Availability

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $10.71

30

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

31

W10181903 Whirlpool Bracket Backorder WPL W10181903 $9.83

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $44.84

33

W11628810 Whirlpool Power Cord Backorder WPL W11628810 $36.97

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

35

3389682 Whirlpool Spacer Backorder WPL 3389682 $5.65

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $28.07

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $29.43

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $28.80

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $30.96

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $10.83

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

Clip-S Type WPL 62825 Contact Us For Availability

41

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

46

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $69.14

47

WP8573028 Whirlpool Thermostat Assembly In Stock WPL WP8573028 $34.18

47

BOARD, CONTROL WPL W10169969 Contact Us For Availability

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

P WPL W10116271 Contact Us For Availability

WPL W10249737 WPL W10249737 Contact Us For Availability

WPL W10250673 WPL W10250673 Contact Us For Availability

50

WPL W10239098 WPL W10239098 Contact Us For Availability

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

WPL W10180423 WPL W10180423 Contact Us For Availability

WPL W10249726 WPL W10249726 Contact Us For Availability

WPL W10250670 WPL W10250670 Contact Us For Availability

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

53

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $53.07

57

WPL W10179730 WPL W10179730 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

61

W10044579 Whirlpool Washer Backorder WPL W10044579 $5.65

62

W10044628 Whirlpool Nut Backorder WPL W10044628 $28.80

63

WPL W10044629 WPL W10044629 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $18.78

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

49586 Whirlpool Mixer In Stock WPL 49586 $5.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $53.07

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

8579666ARP Whirlpool Door Kit Backorder WPL 8579666ARP $23.97

W10044609A Whirlpool Steam Dryer Hose Install In Stock WPL W10044609A $19.97

W10218247 Whirlpool Touch-Up Backorder WPL W10218247 $10.07

W11581317 Whirlpool LP Gas Connector In Stock WPL W11581317 $42.09

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $15.65

PAINT, TOUCH-UP (1/2oz.) (Ultimate Silver) WPL 8212605 Contact Us For Availability

Hose Inlet 1` Hose WPL W10044603 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

PAINT, BULK (1 qt.) (Black (Uncut)) WPL 799340 Contact Us For Availability

Kit, Hold Down WPL 8529894 Contact Us For Availability

PAINT, TOUCH-UP (1/2oz.) (Chestnut) WPL W10162090 Contact Us For Availability
