  • Whirlpool WGD9450WW2 Parts List

Model Whirlpool WGD9450WW2 GAS DRYER – Common Parts & Diagrams

1
USE & CARE GUIDE
USE & CARE GUIDE WPL W10244607 Contact Us For Availability
View on Model
1
INSTALLATION, INSTRUCTION
INSTALLATION, INSTRUCTION WPL W10255469 Contact Us For Availability
View on Model
1
TECH SHEET
TECH SHEET WPL W10258369 Contact Us For Availability
View on Model

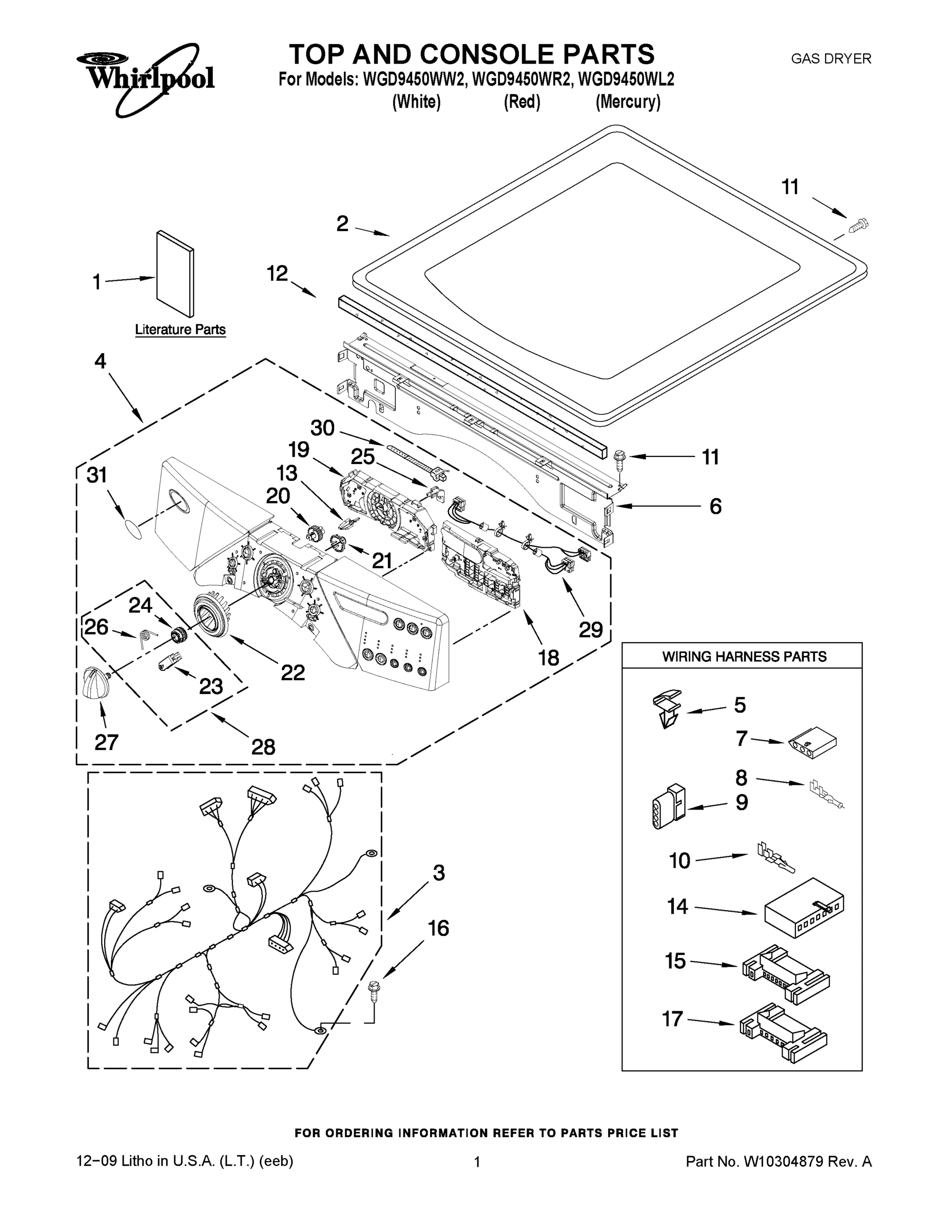

2
Top (White)
Top (White) WPL 3980634 Contact Us For Availability
View on Model
2
TOP (RED)
TOP (RED) WPL W10249738 Contact Us For Availability
View on Model
2
TOP (MERCURY)
TOP (MERCURY) WPL W10249739 Contact Us For Availability
View on Model
3
HARNESS, MAIN
HARNESS, MAIN WPL W10111062 Contact Us For Availability
View on Model
4
Screw, 8-18 x 5/8
Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability
View on Model
4
PANEL, CONSOLE (INCLUDES ITEMS, 18,19,20,21,2
PANEL, CONSOLE (INCLUDES ITEMS, 18,19,20,21,2 WPL W10255226 Contact Us For Availability
View on Model
4
PANEL, CONSOLE (INCLUDES ITEMS, 18,19,20,21,2
PANEL, CONSOLE (INCLUDES ITEMS, 18,19,20,21,2 WPL W10255227 Contact Us For Availability
View on Model
4
PANEL, CONSOLE (INCLUDES ITEMS, 18,19,20,21,2
PANEL, CONSOLE (INCLUDES ITEMS, 18,19,20,21,2 WPL W10255228 Contact Us For Availability
View on Model
5
Screw-Plug
Screw-Plug WPL W10048910 Contact Us For Availability
View on Model
6
BRACKET, CONSOLE (INCLUDES ITEM 12)
BRACKET, CONSOLE (INCLUDES ITEM 12) WPL W10215656 Contact Us For Availability
View on Model
7
Connector, Sensor
Connector, Sensor WPL 353424 Contact Us For Availability
View on Model

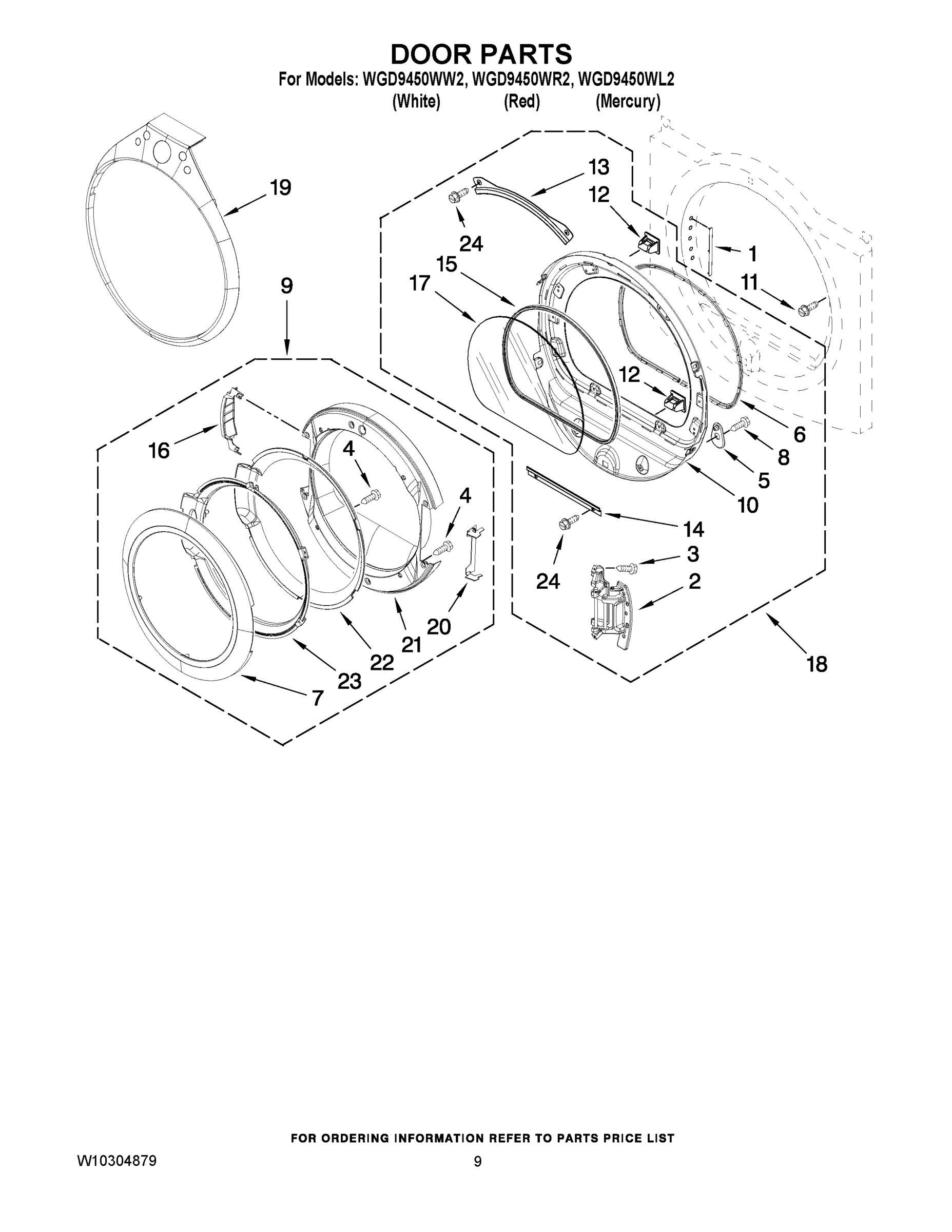

9
Door Assembly (Outer)
Door Assembly (Outer) WPL W10180115 Contact Us For Availability
View on Model
10
INNER DOOR (INCLUDE, ITEM. 12 )
INNER DOOR (INCLUDE, ITEM. 12 ) WPL 8578229 Contact Us For Availability
View on Model
14
Connector, 7-Circuit
Connector, 7-Circuit WPL 3936150 Contact Us For Availability
View on Model
15
Seal-Window
Seal-Window WPL 8579662 Contact Us For Availability
View on Model
16
COVER HINGE (STATIONARY (RH))
COVER HINGE (STATIONARY (RH)) WPL W10181197 Contact Us For Availability
View on Model
17
Window
Window WPL 8566254 Contact Us For Availability
View on Model
18
INNER DOOR ASSEMBLY
INNER DOOR ASSEMBLY WPL 8577819 Contact Us For Availability
View on Model
18
USER-INTERFACE (RIGHT)
USER-INTERFACE (RIGHT) WPL W10280100 Contact Us For Availability
View on Model
19
TEAR-DROP TRIM & CLIP ASSEMBLY (MERCURY)
TEAR-DROP TRIM & CLIP ASSEMBLY (MERCURY) WPL W10249741 Contact Us For Availability
View on Model
19
TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE)
TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE) WPL W10246598 Contact Us For Availability
View on Model
19
USER INTERFACE (CENTER) (INCLUDES, ITEM. 21 )
USER INTERFACE (CENTER) (INCLUDES, ITEM. 21 ) WPL W10279688 Contact Us For Availability
View on Model
20
Door Shield
Door Shield WPL W10180120 Contact Us For Availability
View on Model
20
Encoder-Wheel
Encoder-Wheel WPL W10012430 Contact Us For Availability
View on Model
21
Door, Intermediate
Door, Intermediate WPL W10180118 Contact Us For Availability
View on Model
21
Retainer-Snap
Retainer-Snap WPL W10012440 Contact Us For Availability
View on Model
22
Ramp, Door
Ramp, Door WPL 8529053 Contact Us For Availability
View on Model
23
HARNESS, DIGITAL INTERFACE
HARNESS, DIGITAL INTERFACE WPL W10242903 Contact Us For Availability
View on Model
23
RAST, WHEEL ASSEMBLY (SERVICE ONLY WITH ITEM.
RAST, WHEEL ASSEMBLY (SERVICE ONLY WITH ITEM. WPL W10012810 Contact Us For Availability
View on Model
24
Detent Wheel (Service Only With Item. 28)
Detent Wheel (Service Only With Item. 28) WPL W10012460 Contact Us For Availability
View on Model
25
CLIP-S TYPE CONTROL BOARD
CLIP-S TYPE CONTROL BOARD WPL 62825 Contact Us For Availability
View on Model
25
Clip-Harness (4)
Clip-Harness (4) WPL W10112268 Contact Us For Availability
View on Model
26
Knob, Spring (2) (Service Only With Item 28)
Knob, Spring (2) (Service Only With Item 28) WPL W10012820 Contact Us For Availability
View on Model

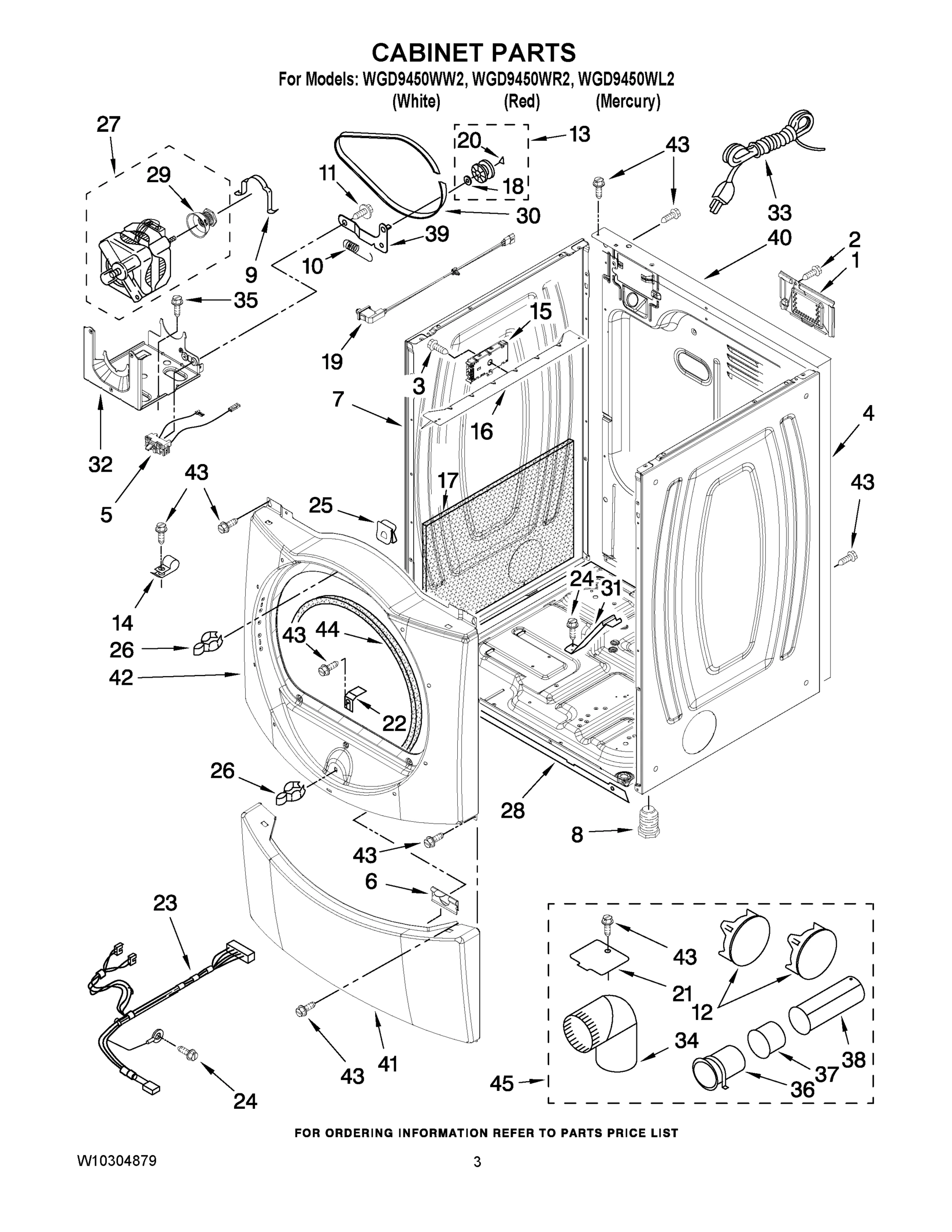

28
BASE, CABINET
BASE, CABINET WPL W10239098 Contact Us For Availability
View on Model
31
Badge
Badge WPL W10117943 Contact Us For Availability
View on Model
40
PANEL, REAR
PANEL, REAR WPL W10244141 Contact Us For Availability
View on Model
41
PANEL, TOE (WHITE)
PANEL, TOE (WHITE) WPL W10246269 Contact Us For Availability
View on Model
41
PANEL, TOE (MERCURY)
PANEL, TOE (MERCURY) WPL W10259606 Contact Us For Availability
View on Model
41
PANEL, TOE (RED)
PANEL, TOE (RED) WPL W10259607 Contact Us For Availability
View on Model
42
Front Panel (White)
Front Panel (White) WPL W10180423 Contact Us For Availability
View on Model
42
FRONT PANEL (MERCURY)
FRONT PANEL (MERCURY) WPL W10249726 Contact Us For Availability
View on Model
42
FRONT PANEL (RED)
FRONT PANEL (RED) WPL W10250670 Contact Us For Availability
View on Model
NI
PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
